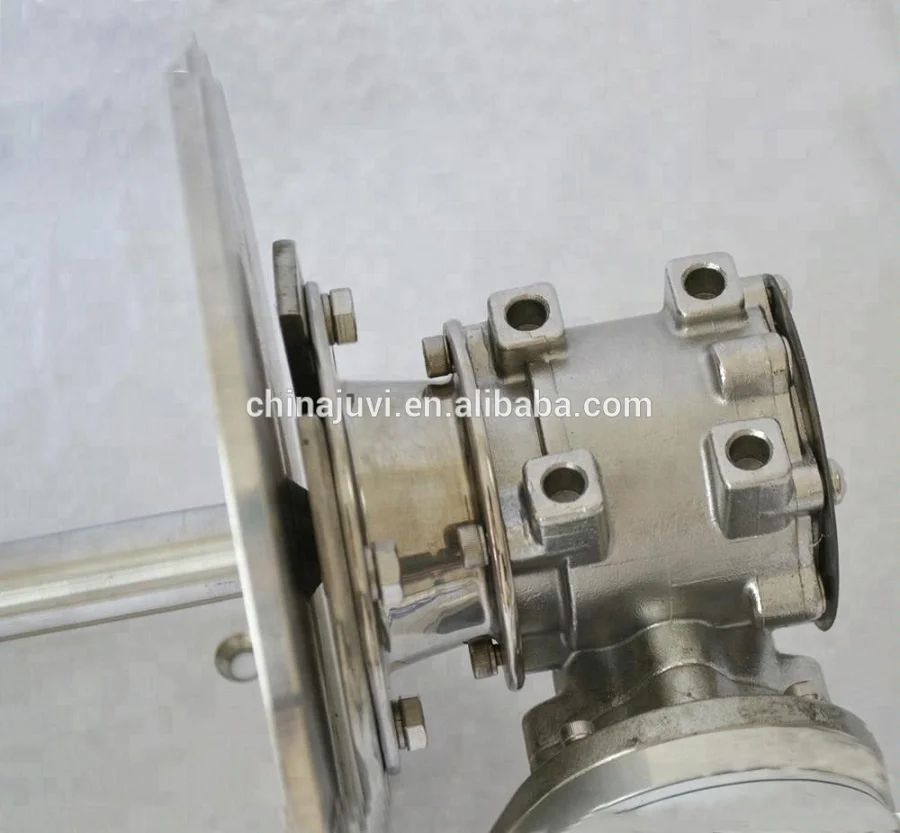

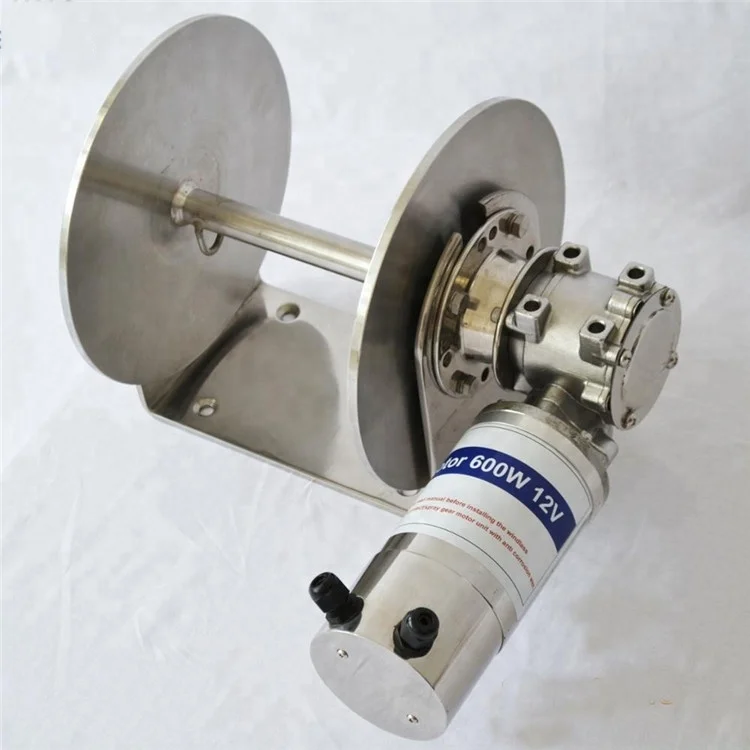

600W Drum Winch Mini 12V 24V Electric Anchor Winch for Ship Yacht Boat Accessories Other Marine Supplies JVW 011
- Category: >>>
- Supplier: Chongqing Juvi Import & Export Co. Ltd.
Share on (1600511118877):
Product Overview
Description
Product Description

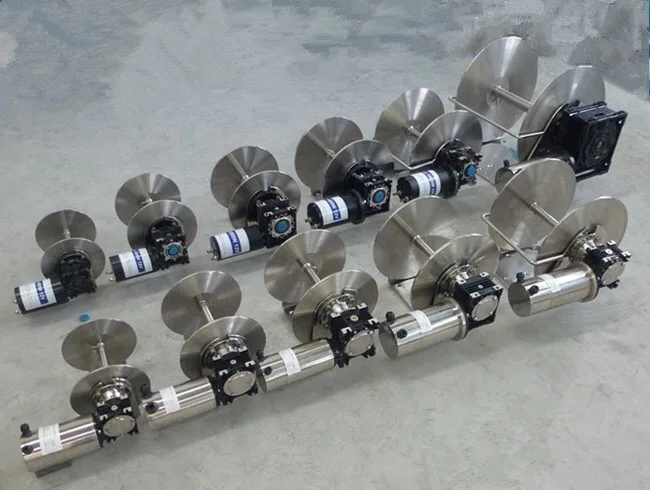

Drum Winch
* Perfect Anchoring System for Fishing Boat
* Heavy Duty Motor,High speed, Silent Operation With Bearing
* Constructed from 316 marine grade stainless steel
* Simply drive the boat to where you want to fish,push a button and the anchor is I
* You can lower and retrieve your anchor rope using our winches at a rate between

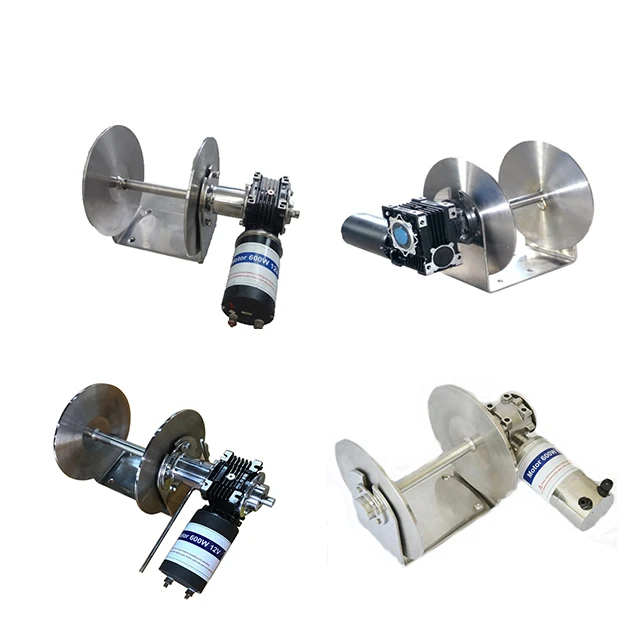

* The NYS drum winch is available in a range of capacities,and there's one design
* Heavy Duty Motor,High speed, Silent Operation With Bearing
* Constructed from 316 marine grade stainless steel
* Simply drive the boat to where you want to fish,push a button and the anchor is I
* You can lower and retrieve your anchor rope using our winches at a rate between
* The NYS drum winch is available in a range of capacities,and there's one design
Features

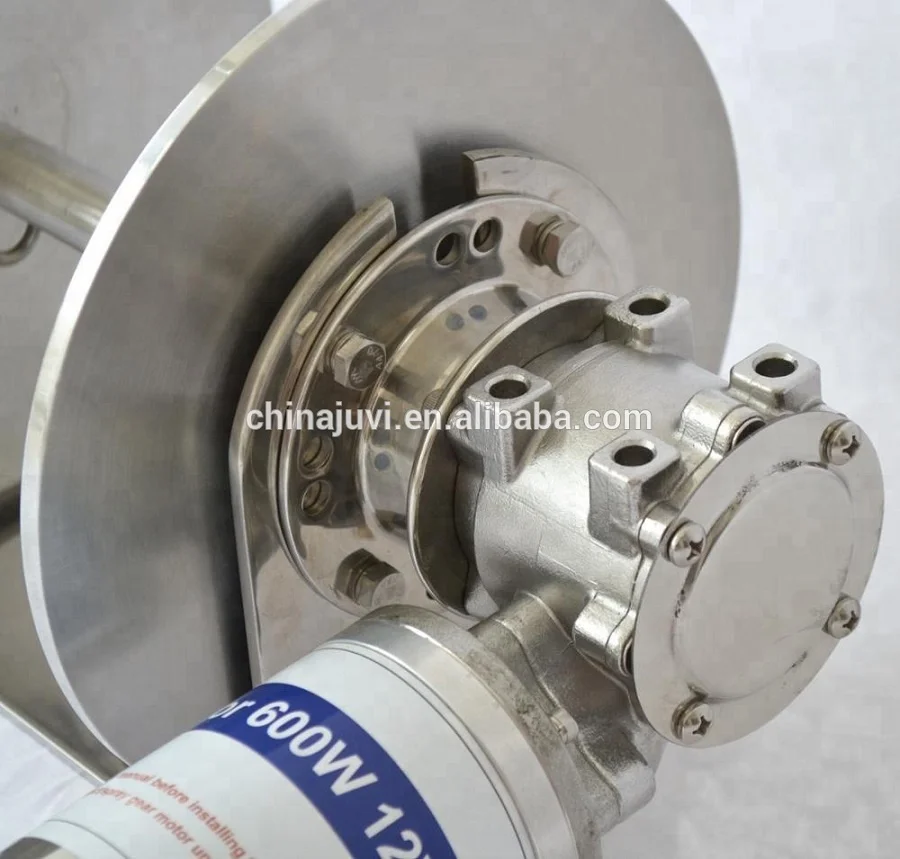

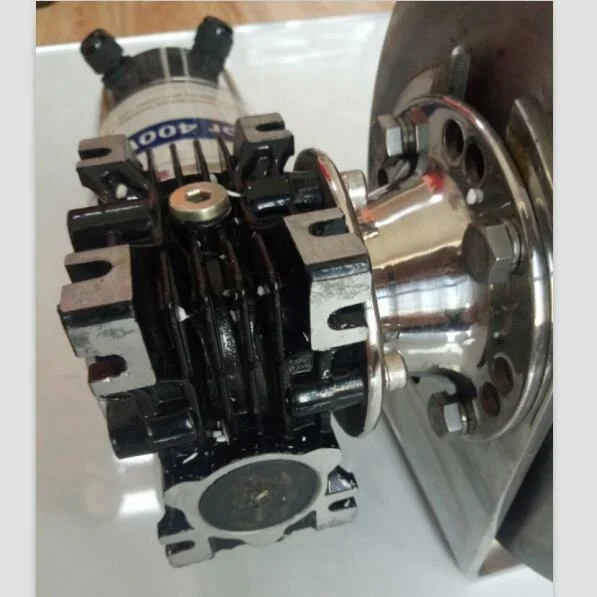

● The fully sealed gearbox is driven by a vertically mounted, permanent magnet motor
● Gearbox housings are marine grade alloy and drum is Stainless steel
● The speed of retrieval increases with each revolution.
● The rope and chain does not twist and tangle causing the unit to malfunction.
● The motor can be mounted at 30, 45 and 90 degrees to suit the configuration of the anchor well
● To protect the motor, the circuit breaker will trip out if there is a power overload (for example if the anchor is stuck on the bottom).
● Easily disassembled for servicing

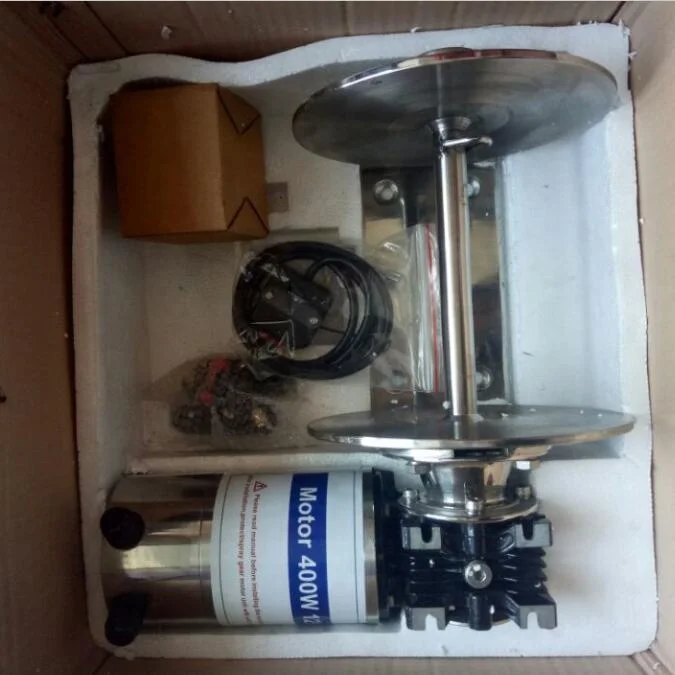

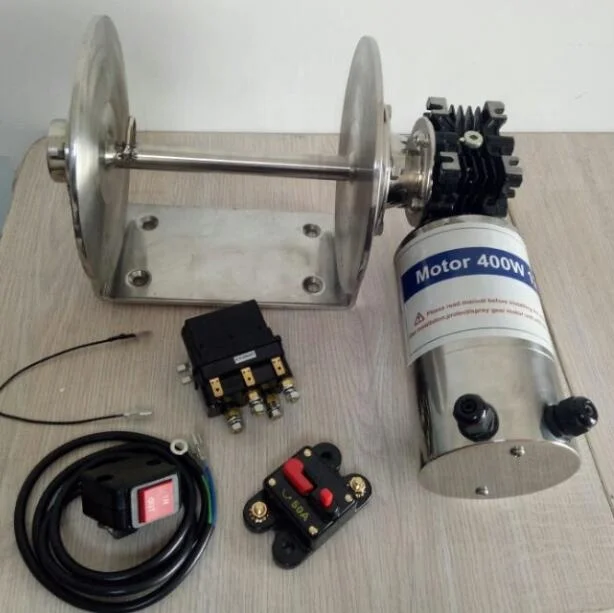

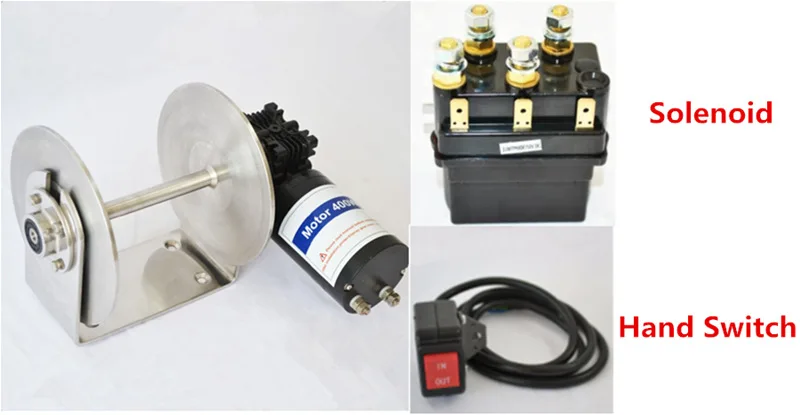

● Fit include hand-switch and solenoidquan，circuit breaker
● Gearbox housings are marine grade alloy and drum is Stainless steel
● The speed of retrieval increases with each revolution.
● The rope and chain does not twist and tangle causing the unit to malfunction.
● The motor can be mounted at 30, 45 and 90 degrees to suit the configuration of the anchor well
● To protect the motor, the circuit breaker will trip out if there is a power overload (for example if the anchor is stuck on the bottom).
● Easily disassembled for servicing
● Fit include hand-switch and solenoidquan，circuit breaker
Specification
Model | Weight | Power Supply | Motor | AMPS@ WORIKING LOAD | Working Load | Max. Pull | Rope capcity | Suggest Chain Size & length |
YVW-010 | 11kg | 12V/24V | 400W | 50A/30A | 70kg | 320kg | 6mm*70m | 6mm*3m |
YVW-011 | 16kg | 12V/24V | 600W | 70A/40A | 90kg | 510kg | 6mm*100m | 6mm*3m |
YVW-012 | 24kg | 12V/24V | 1000W | 100A/60A | 120kg | 750kg | 8mm*105m | 8mm*3m |
YVW-013 | 35kg | 12V/24V | 1400W | 125A/70A | 145kg | 900kg | 8mm*170m | 8mm*3m |
YVW-014 | 45kg | 12V/24V | 1600W | 150A/80A | 170kg | 980kg | 10mm*260m | 10mm*3m |
YVW-015 | 115kg | 24V/48V | 2500W | 160A/80A | 210kg | 1600kg | 14mm*400m | 12mm*3m |

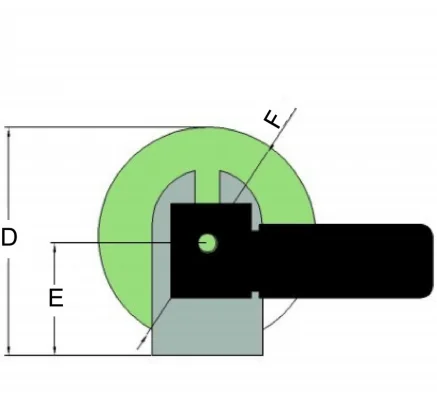

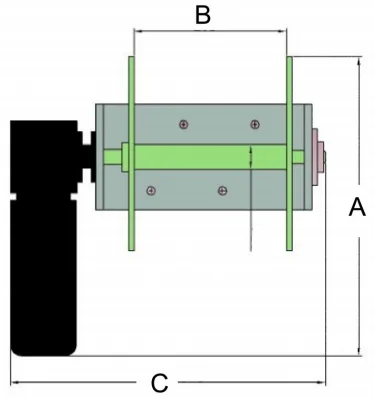

Dimension
Model | motor | A | B | C | D | E | F |
YVW-010 | 400W | 300 | 175 | 350 | 200 | 110 | 185 |
YVW-011 | 600W | 335 | 206 | 376 | 265 | 140 | 245 |
YVW-012 | 1000W | 410 | 208 | 393 | 310 | 165 | 290 |
YVW-013 | 1400W | 450 | 248 | 423 | 350 | 180 | 340 |
YVW-014 | 1600W | 520 | 260 | 500 | 420 | 215 | 400 |
YVW-015 | 2500W | 705 | 433 | 722 | 570 | 295 | 550 |
Packing & Delivery
Standard Export Packaging

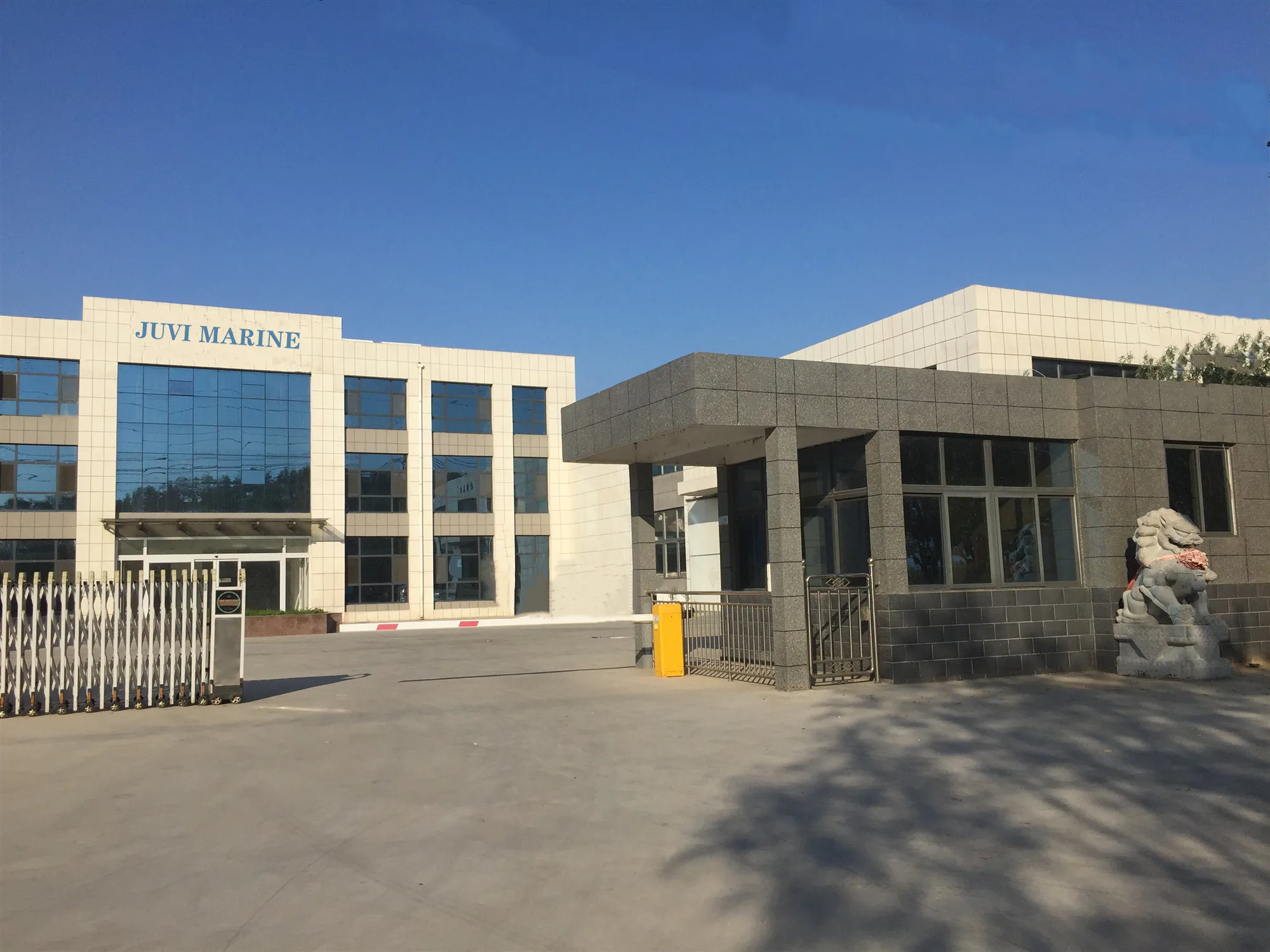

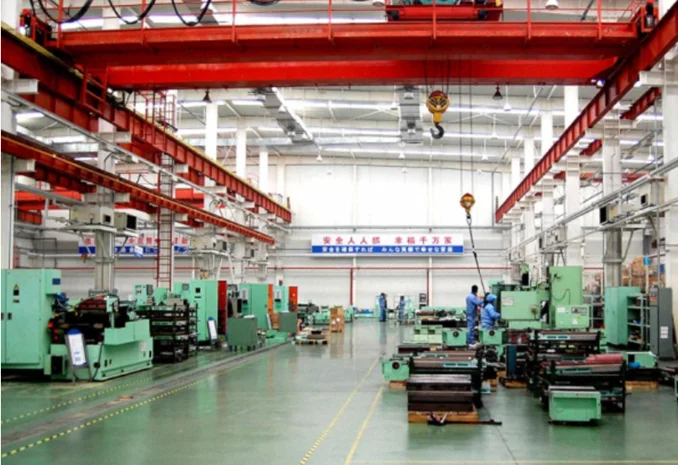

Company Profile
Chongqing Juvi marine machinery company is an integrated marine technology company that presently specializes in product design, production, and sales.
The Juvi has both, a professional technical staff and strong sales team. Our products have sold to regions as far away as Europe, North America and Asia, among others. Furthermore, our professional technical staffs are able to provide our clients with the perfect solution at the perfect time, while also offering consummate service specifically catered to the individual needs of each and every client. We regularly introduce the most advanced foreign products and technologies into the domestic market and routinely share the latest in scientific and technological advancements with related domestic industries.
Juvi company is administered by the marine equipment production systems. In addition, our company has established longstanding partnerships with other outstanding firms in our industry, thus achieving both technical collaboration and the very best aspects of product sharing, using them to the advantage of our customer base. Every factory that our partner with has passed the CCS,ABS,DNV,LR,NK,RINA,ISO9002, TS16949, UL and other related systems authentication. More than 10 years of accumulated experience, high-quality products, coupled with our philosophy of absolute integrity in all business dealings have earned us unanimous praise from old and new clients alike, as well as a distinctive reputation in the industry. We look forward to providing your firm with our patented brand of reliable product quality and superior service, just when you need it.
The Juvi has both, a professional technical staff and strong sales team. Our products have sold to regions as far away as Europe, North America and Asia, among others. Furthermore, our professional technical staffs are able to provide our clients with the perfect solution at the perfect time, while also offering consummate service specifically catered to the individual needs of each and every client. We regularly introduce the most advanced foreign products and technologies into the domestic market and routinely share the latest in scientific and technological advancements with related domestic industries.
Juvi company is administered by the marine equipment production systems. In addition, our company has established longstanding partnerships with other outstanding firms in our industry, thus achieving both technical collaboration and the very best aspects of product sharing, using them to the advantage of our customer base. Every factory that our partner with has passed the CCS,ABS,DNV,LR,NK,RINA,ISO9002, TS16949, UL and other related systems authentication. More than 10 years of accumulated experience, high-quality products, coupled with our philosophy of absolute integrity in all business dealings have earned us unanimous praise from old and new clients alike, as well as a distinctive reputation in the industry. We look forward to providing your firm with our patented brand of reliable product quality and superior service, just when you need it.
CERTIFICATIONS
FAQ
1. who are we?
We are based in Chongqing, China, start from 2012,sell to Southeast Asia(50.00%),North America(12.00%),South America(10.00%),Africa(5.00%),Eastern Europe(5.00%),South Asia(5.00%),Western Europe(3.00%),Oceania(3.00%),Eastern Asia(3.00%),Mid East(2.00%),Northern Europe(2.00%). There are total about 11-50 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Deck Machinery,Anchor and Anchor Chain,Marine Lights,Marine Life Saving Products,Labor Insurance Products
4. why should you buy from us not from other suppliers?
> 11 professional engineers can provide overall solution services.
> 15 years specialising in marine deck equipment .
> 24 hours a day after-sale technical support .
> 68 long-term cooperation supporting factories.
5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,FAS,CIP,FCA,CPT,DEQ,DDP,DDU,Express Delivery,DAF,DES；
Accepted Payment Currency:USD,EUR,JPY,CAD,AUD,HKD,GBP,CNY,CHF;
Accepted Payment Type: T/T,L/C,D/P D/A,MoneyGram,Credit Card,PayPal,Western Union,Cash;
Language Spoken:English,Chinese,Japanese,German
We are based in Chongqing, China, start from 2012,sell to Southeast Asia(50.00%),North America(12.00%),South America(10.00%),Africa(5.00%),Eastern Europe(5.00%),South Asia(5.00%),Western Europe(3.00%),Oceania(3.00%),Eastern Asia(3.00%),Mid East(2.00%),Northern Europe(2.00%). There are total about 11-50 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Deck Machinery,Anchor and Anchor Chain,Marine Lights,Marine Life Saving Products,Labor Insurance Products
4. why should you buy from us not from other suppliers?
> 11 professional engineers can provide overall solution services.
> 15 years specialising in marine deck equipment .
> 24 hours a day after-sale technical support .
> 68 long-term cooperation supporting factories.
5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,FAS,CIP,FCA,CPT,DEQ,DDP,DDU,Express Delivery,DAF,DES；
Accepted Payment Currency:USD,EUR,JPY,CAD,AUD,HKD,GBP,CNY,CHF;
Accepted Payment Type: T/T,L/C,D/P D/A,MoneyGram,Credit Card,PayPal,Western Union,Cash;
Language Spoken:English,Chinese,Japanese,German
