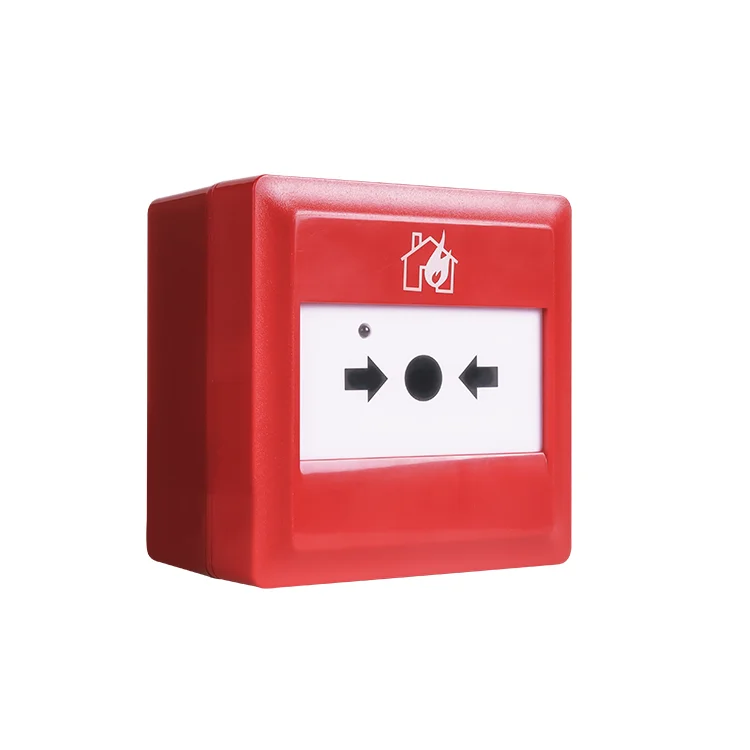

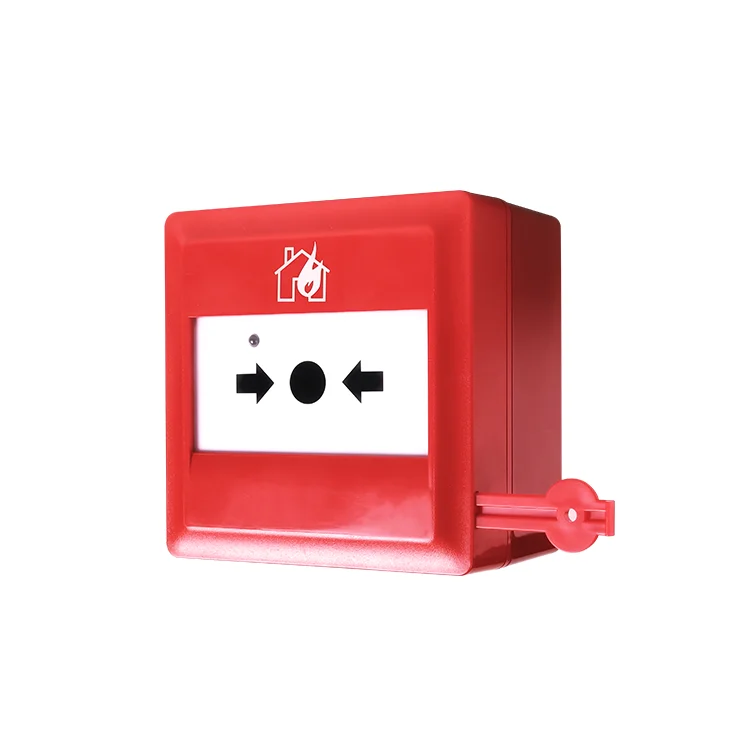

LPCB Certified Addressable Fire Alarm Manual Call Point
- Category: >>>
- Supplier: SHENZHEN HTI SANJIANG ELECTRONICS CO. LTD.
Share on (1600511126095):
Product Overview
Description
Products Description
Executive Standard | EN54-11 |
Operation Voltage | 24V (pulse modulation) |
Protection Class | IP43 |
Operating Current | monitoring status<300uA, alarm status <2mA |
Application | Indoors |
Operating Temperature | -10 ℃ ~ 55 ℃，Relative humidity：≤ 95%(non-condensing) |
Indicator | Red alarm indicator flashes when data logging, and it will keep on when pressing the manual button |
Coding | It supports soft addressing via coder in situ. Address codes 1 to 324 are available for selection |
Material And Color | ABS, red |
Wiring | Non-polarity two-wire bus system (L1, L2) |
Dimension(Surface-Mount) | 90mm×90mm×42mm; (Semi-flush mount）：90mm×90mm×23mm |
Weight | about;95g |
