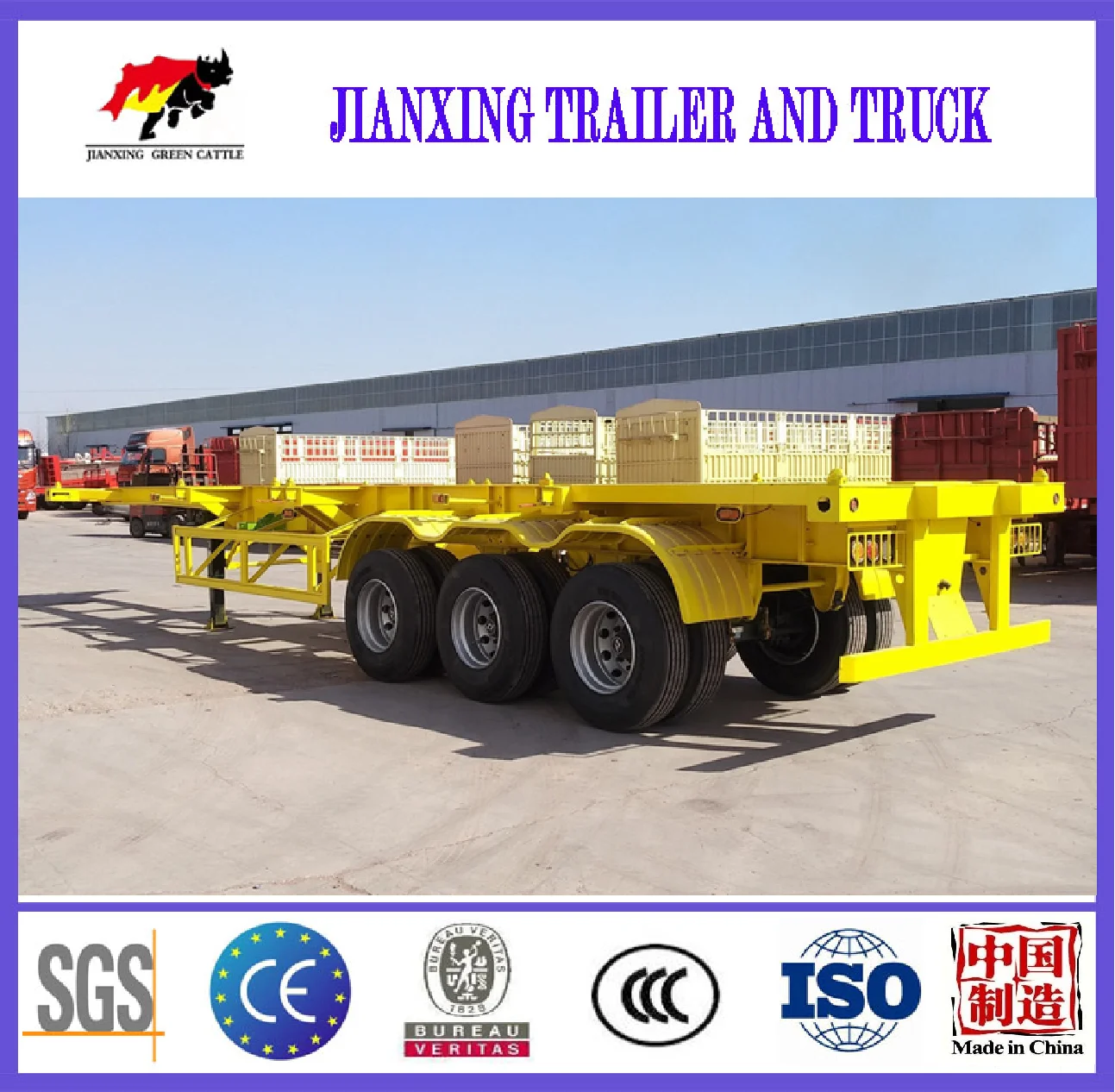

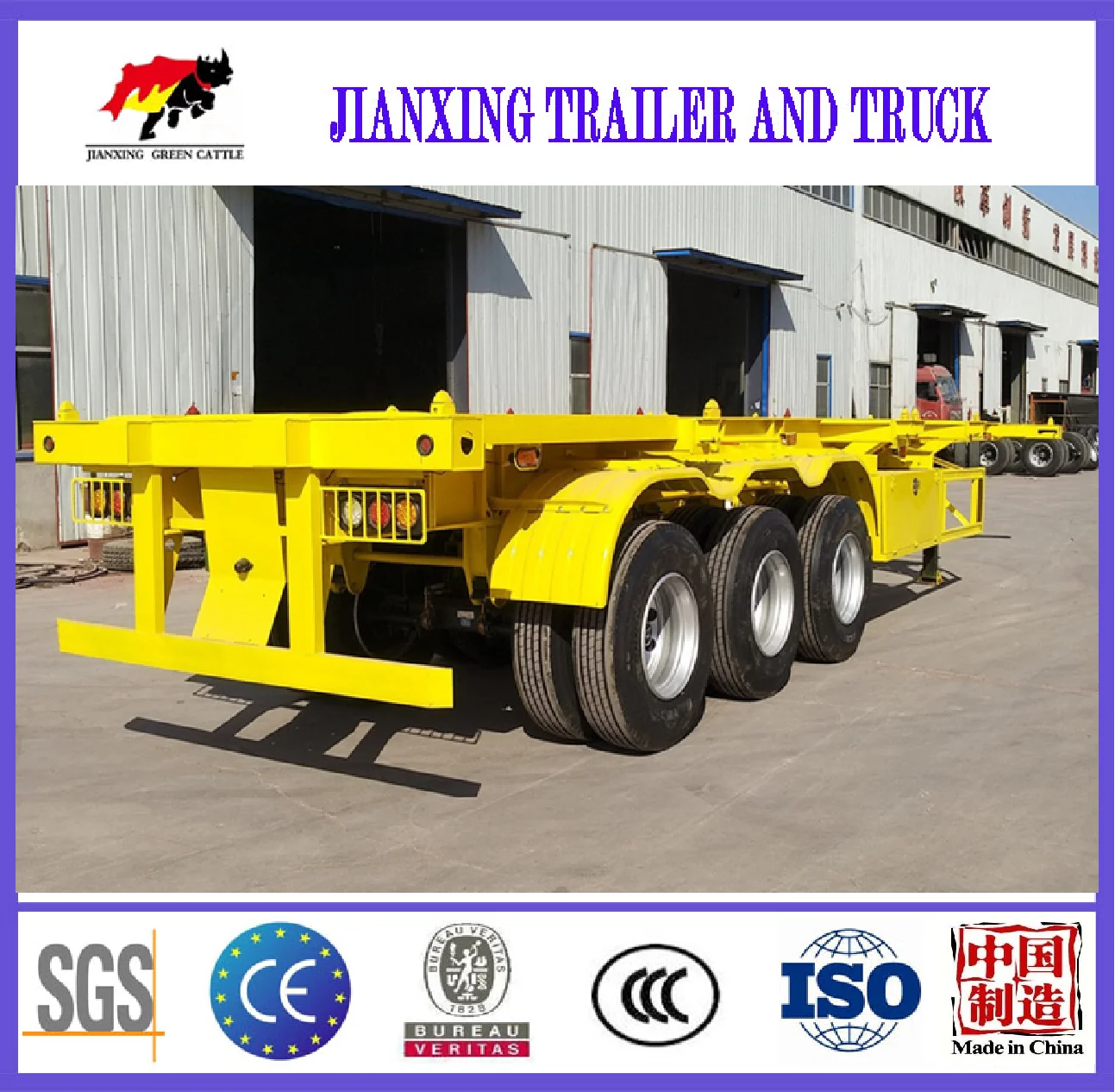

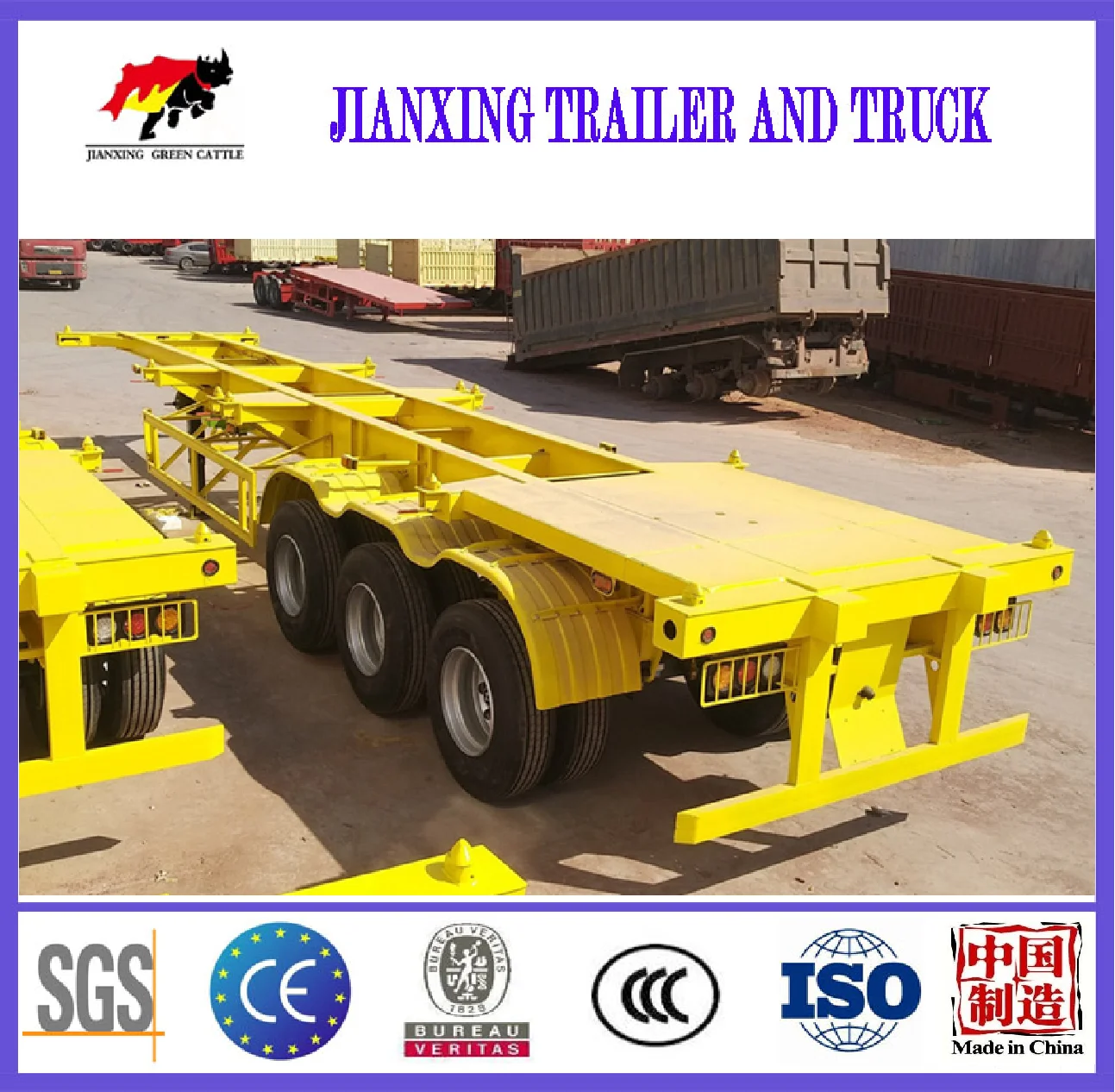

Best Price 3 Axles 40FT Container Chassis Skeleton Skeletal Tractor Semi Trailer
- Category: >>>
- Supplier: Sen Xiang International (Shandong) Co. Ltd.
Share on (1600511136739):
Product Overview
Description
Skeleton trailer as known as skeletal trailercontainer chassis trailer etc. Generally used for transport ISO container in port, shipyard, routes, bridges, tunnels, transfer station, supporting multimodal transport logistics system.
As a skeleton container trailer manufacturer, We supply trailer options for carrying 20 foot and 40ft and other size containers. We use the largest of 12 pcs of EU standard container locks.
As a skeleton container trailer manufacturer, We supply trailer options for carrying 20 foot and 40ft and other size containers. We use the largest of 12 pcs of EU standard container locks.
Products Description

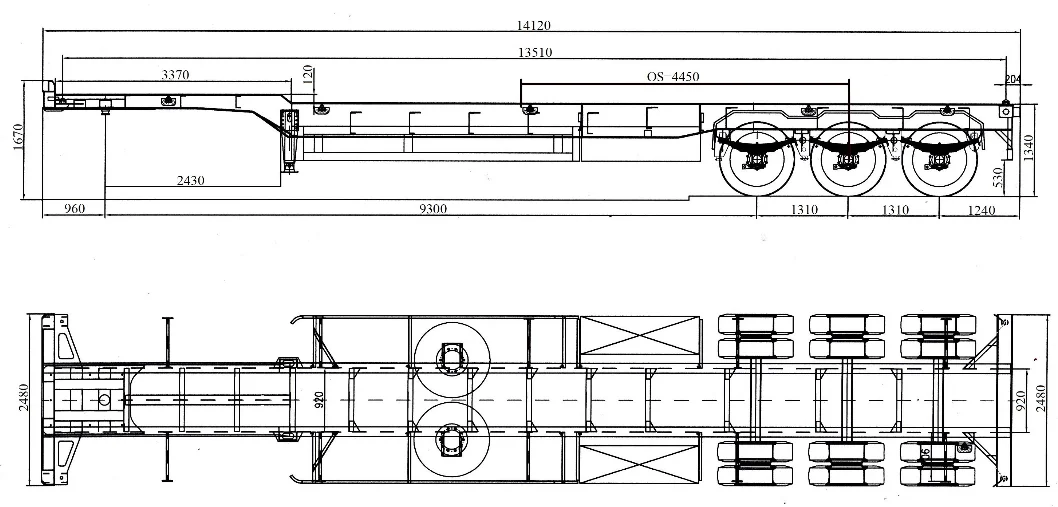

Specification | ||||||
20FT | 40FT | 53FT | ||||
Dimension | 6.1m×2.5m×1.55m | 12.5m×2.5m×1.55m | 16.2m×2.5m×1.55m | |||
Payload | 40T | 50T | 60T | |||
Tare weight | About 4.5T | About 7T | About 8T | |||

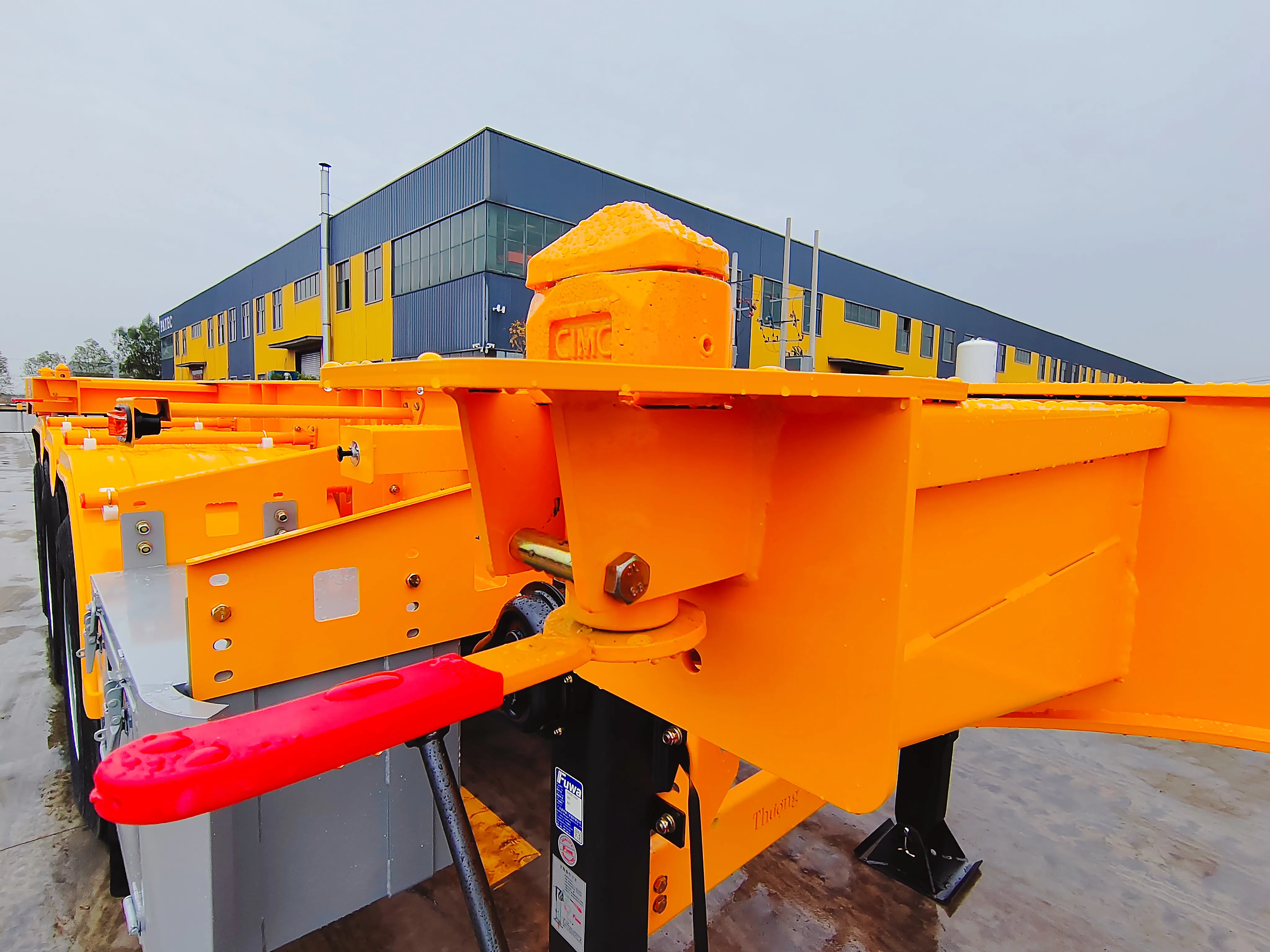

Twist lock | 4uints | 12uints | 12uints | |||

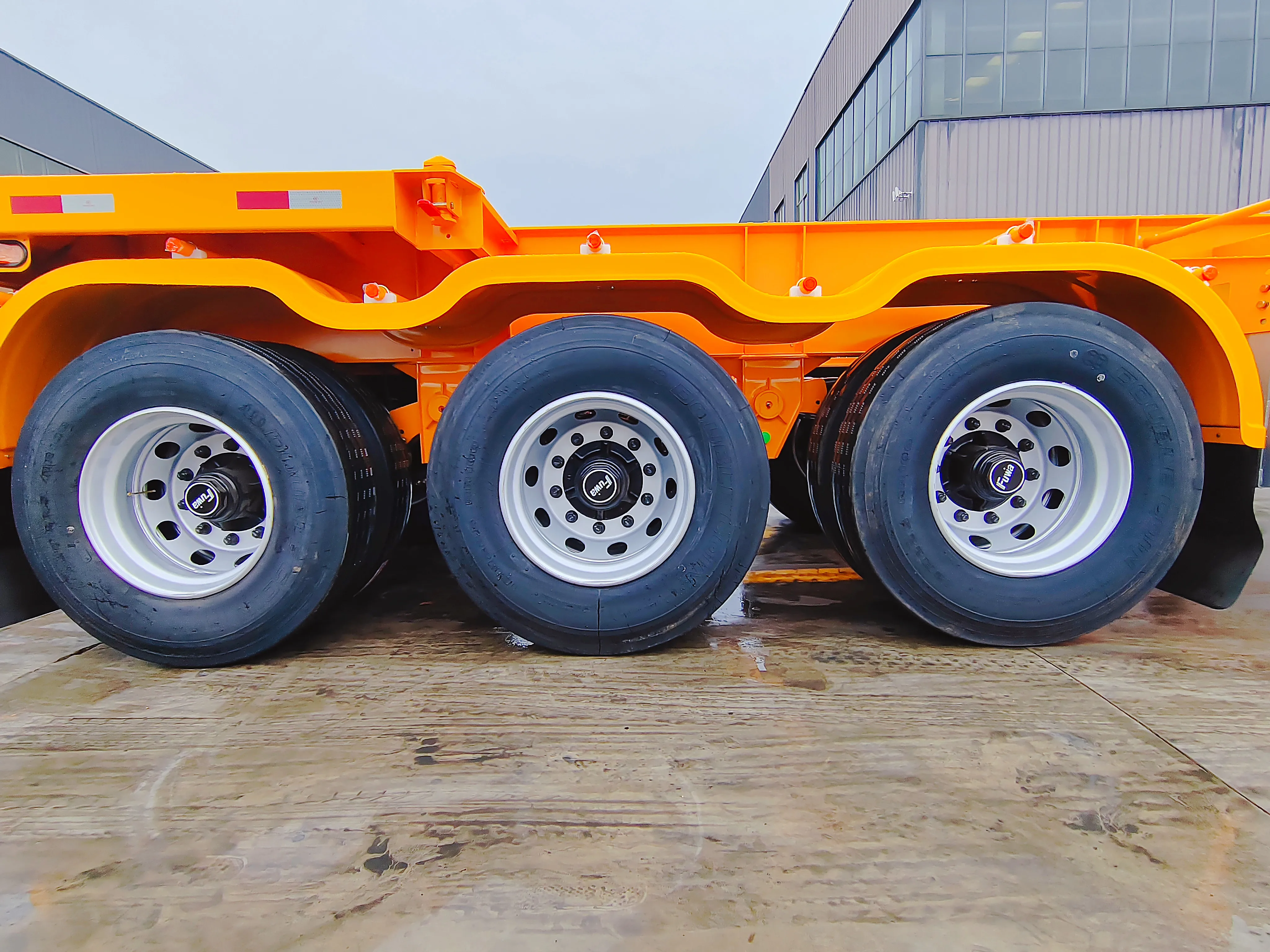

Axle | 2 axles | 2 axles/3 axles/4 axles | 3 axles/4 axles | |||
Chassis | ||||||
Main beam | Heavy duty and extra durability designed I beam; Opting for high tensile steel Q345B, welded by automatic Submerged-Arc processes. | |||||
Frame Beam | Top Flange 14mm,width 140mm; Middle Flange 8mm; Bottom Flange 16mm,width 140mm, main beam height 480mm | |||||
Axle | 13ton brake pads; Optional brands: Fuwa,BPW, etc. | |||||

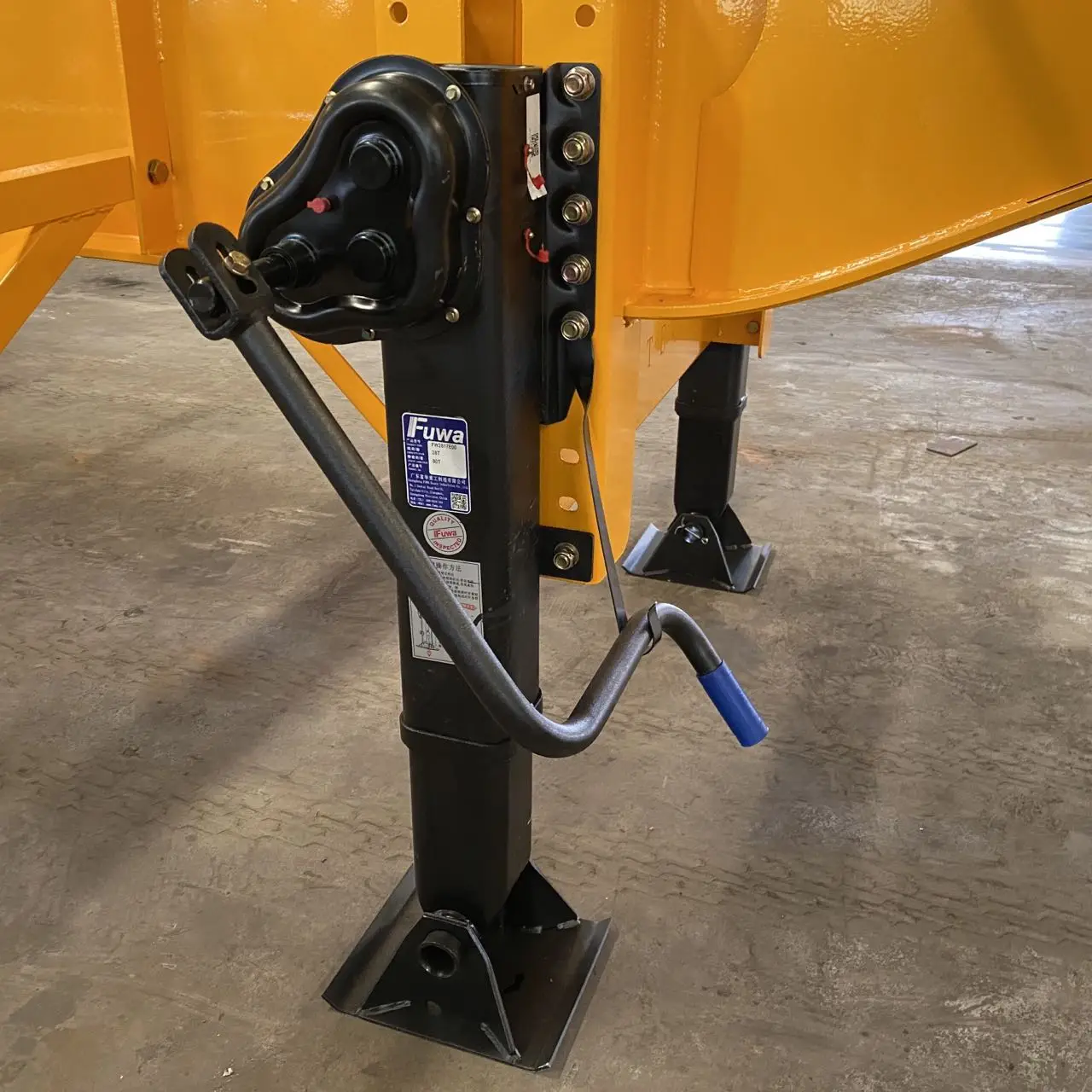

Landing Gear | 28T lifting capacity with two speed | |||||
King Pin | 2.00 or 3.5 inch bolt-in king pin ;Optional brand:JOST | |||||

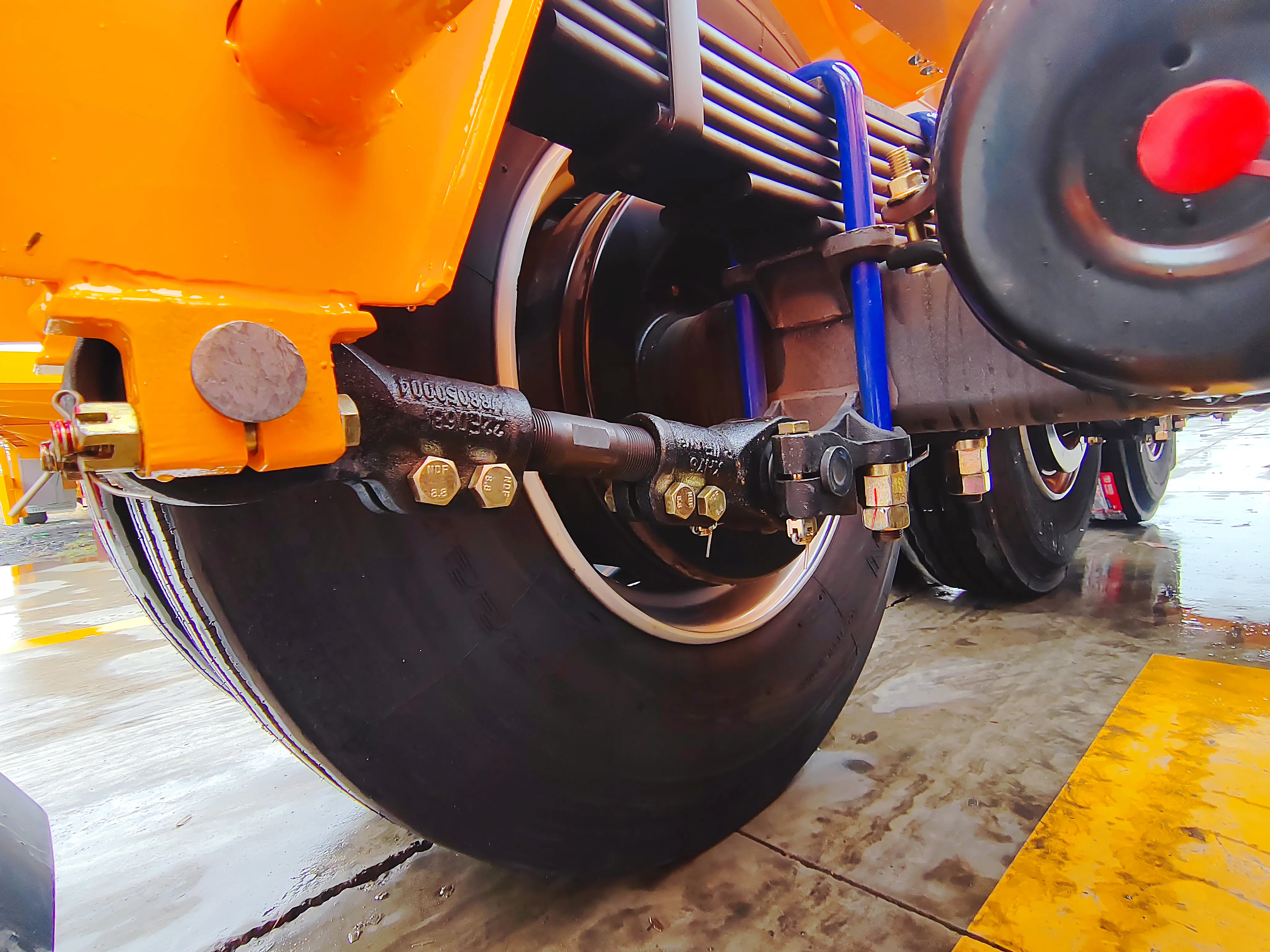

Suspension | Mechanical suspension reinforced type | |||||
Leaf Spring | 90mm(W)*13mm(T)*10 Layer | |||||

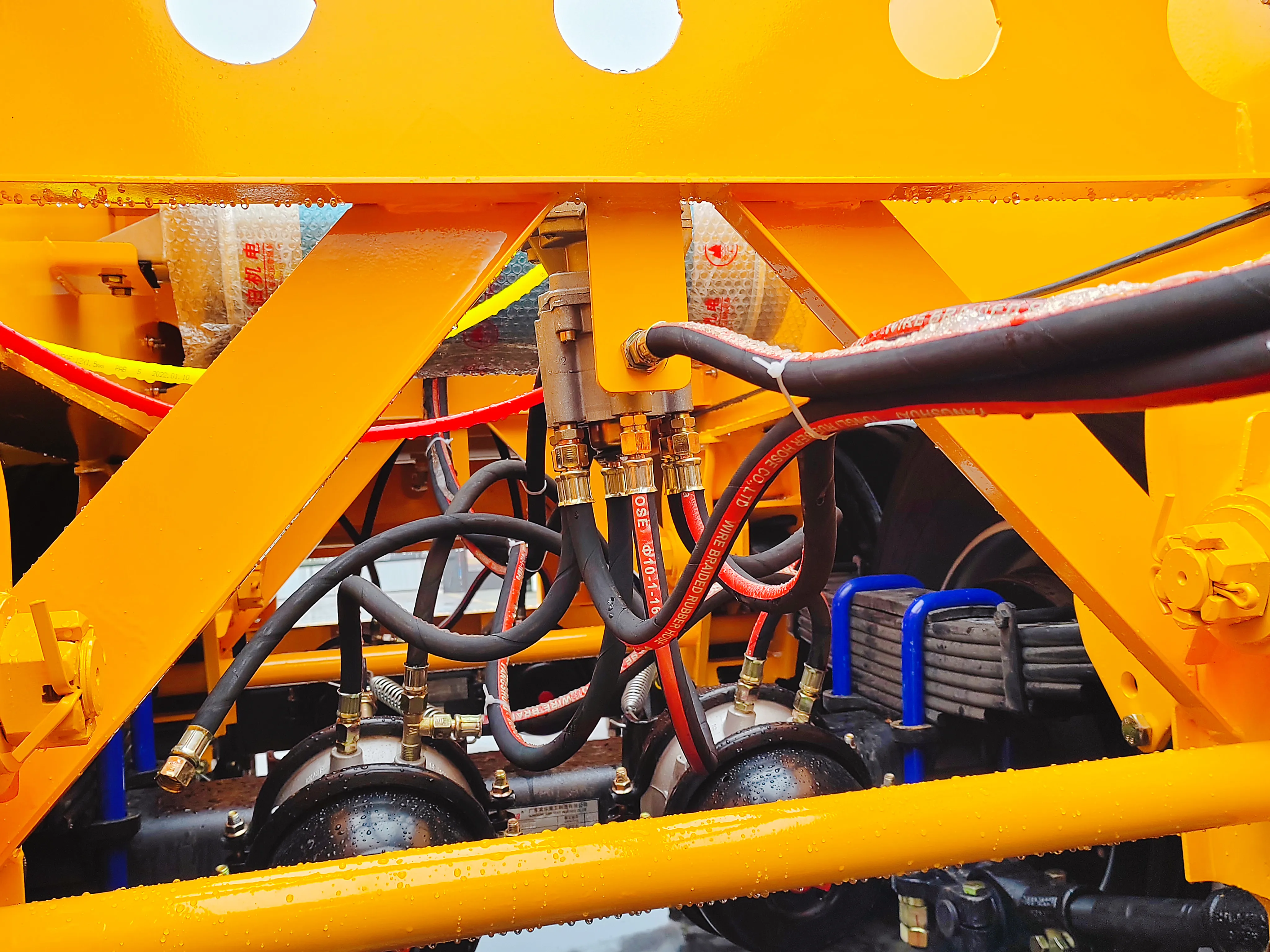

Pneumatic Braking System | Dual line pneumatic brake system,T30 air chamber ,40L air tanks, Emergency relay valve | |||||
Rim | 9.0-20*12 pcs | |||||
Tire | 12R22.5*12 pcs | |||||
Accessories | One standard tool box | |||||
Spare tire rack | One | |||||

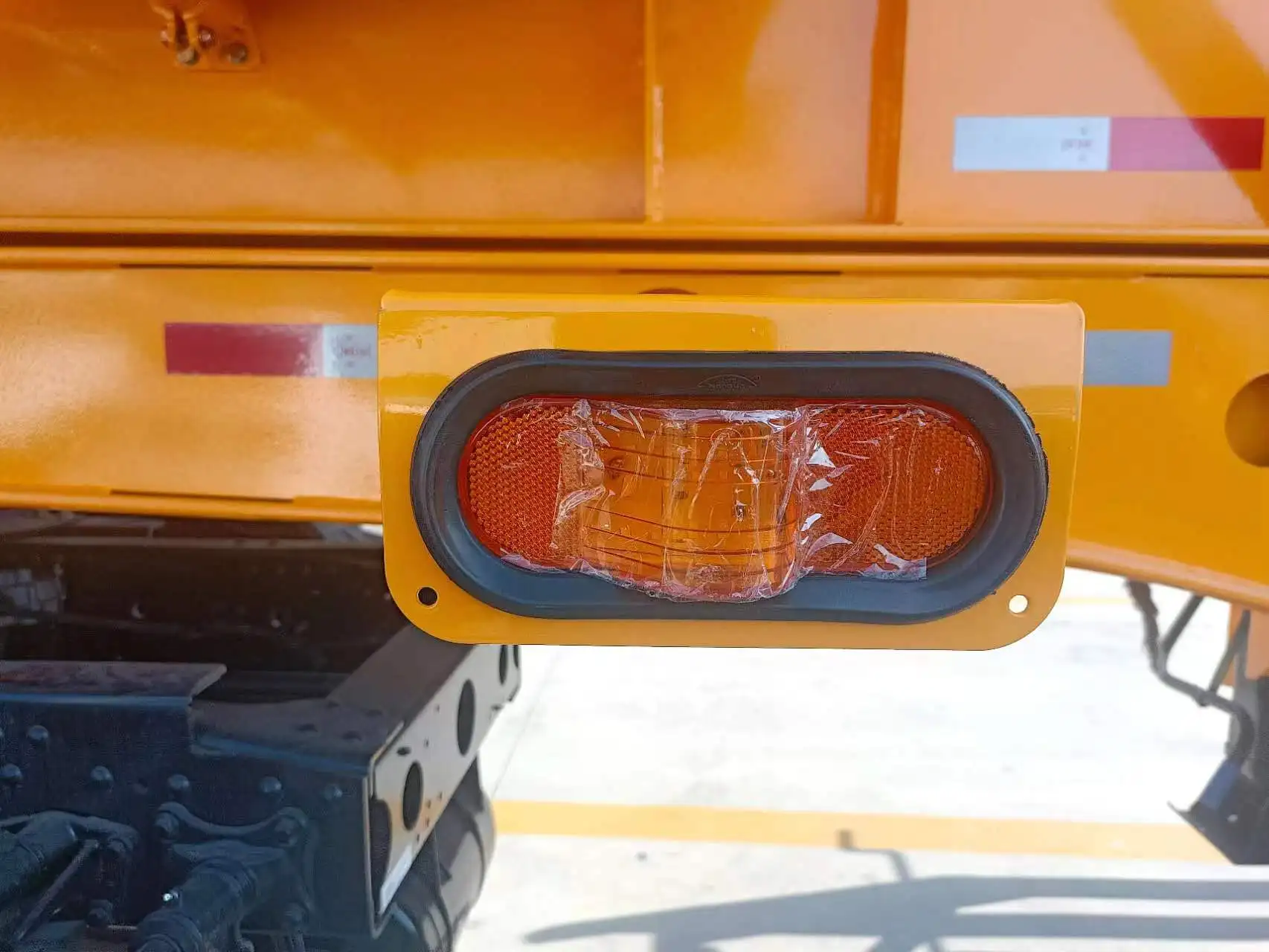

Electrical system | 24 volt electrical system.7 pin electrical connector. Parking stop, reverse, number plate and indicator lights. rear lights conform to European standard, rear front and side reflectors | |||||
Packing and shipping | ||||||
Painting | Complete Chassis sand blasting to clean rust, 1 coat of anticorrosive prime, 2 coats of final paint | |||||

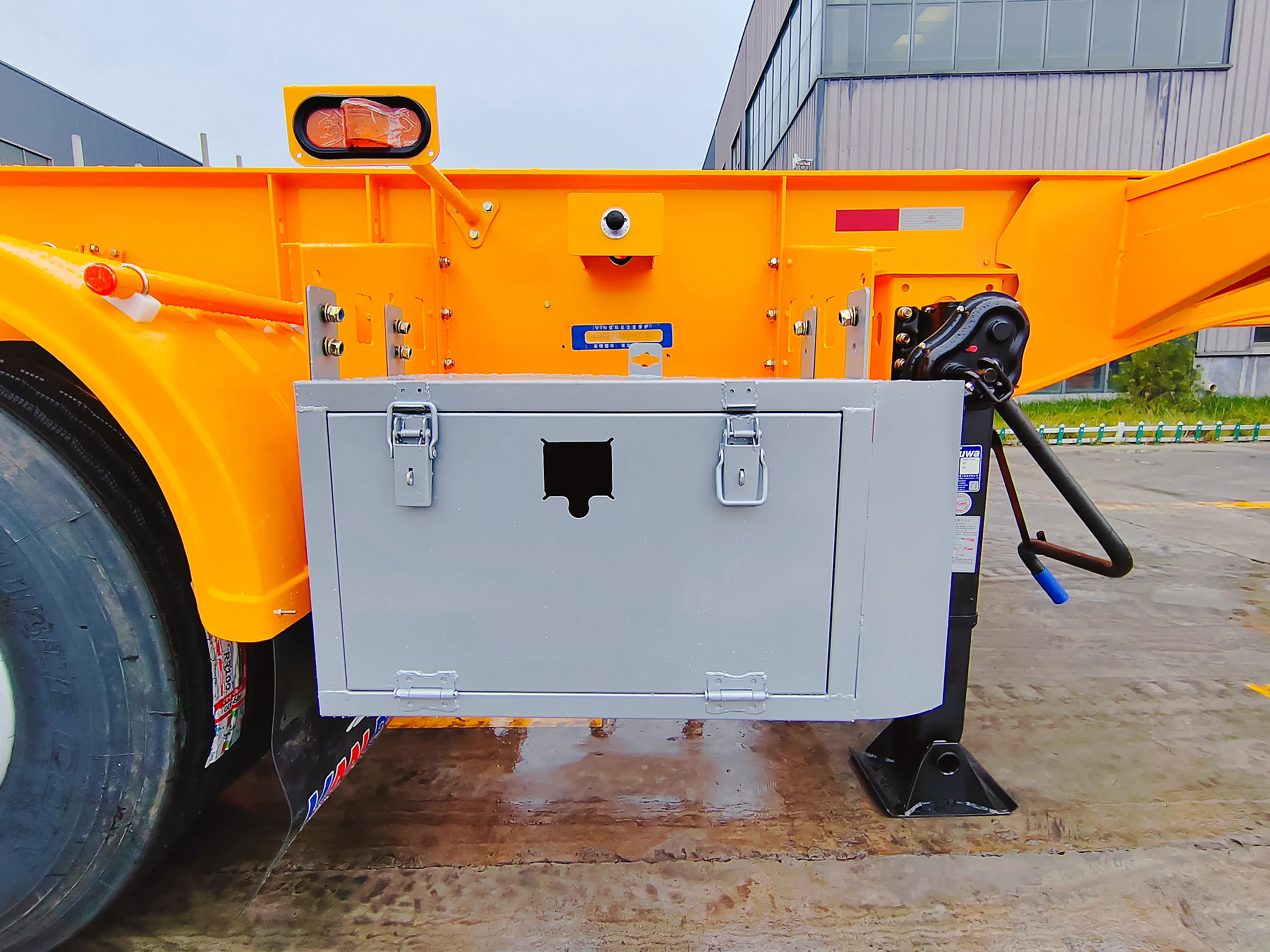

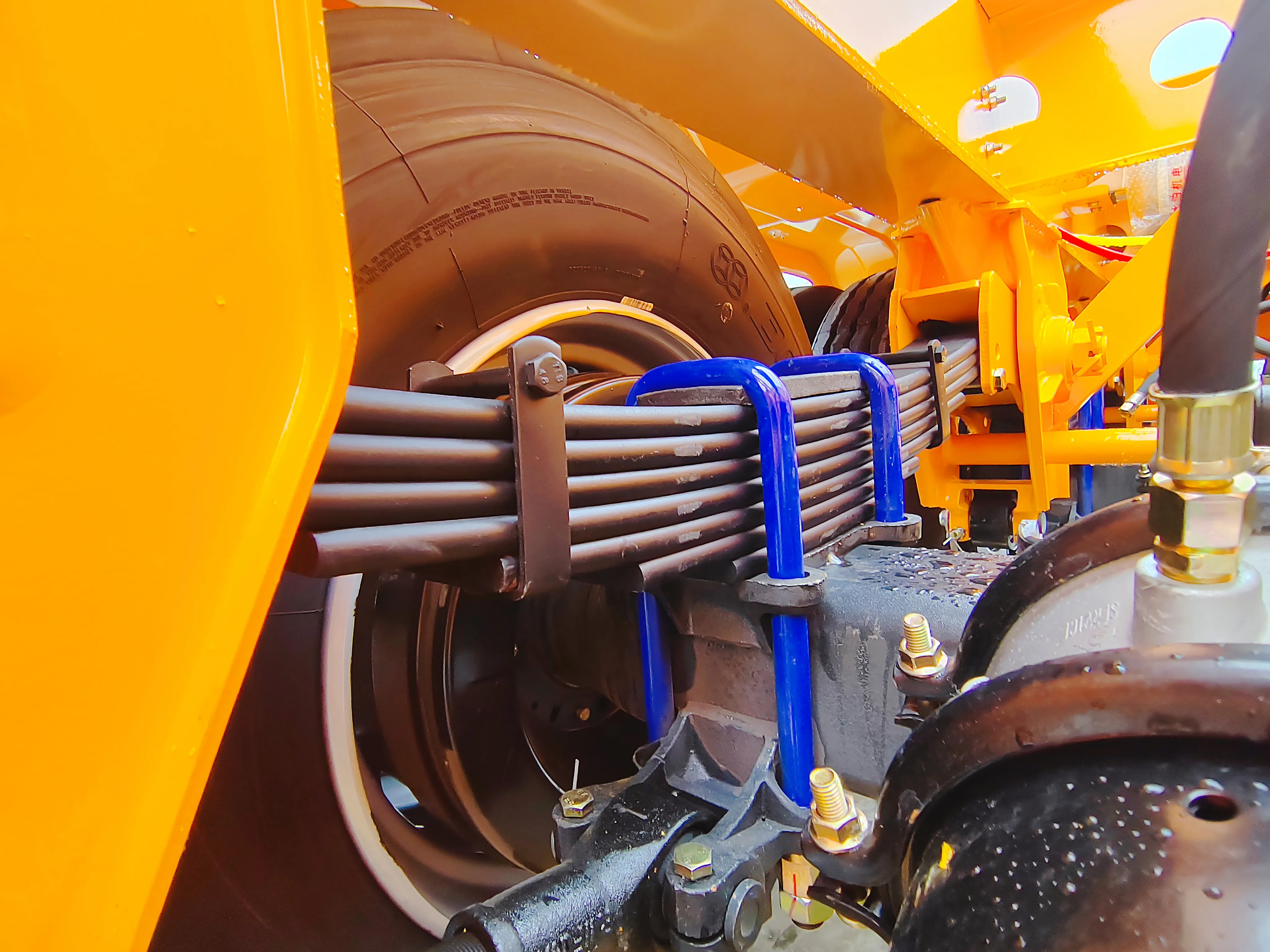

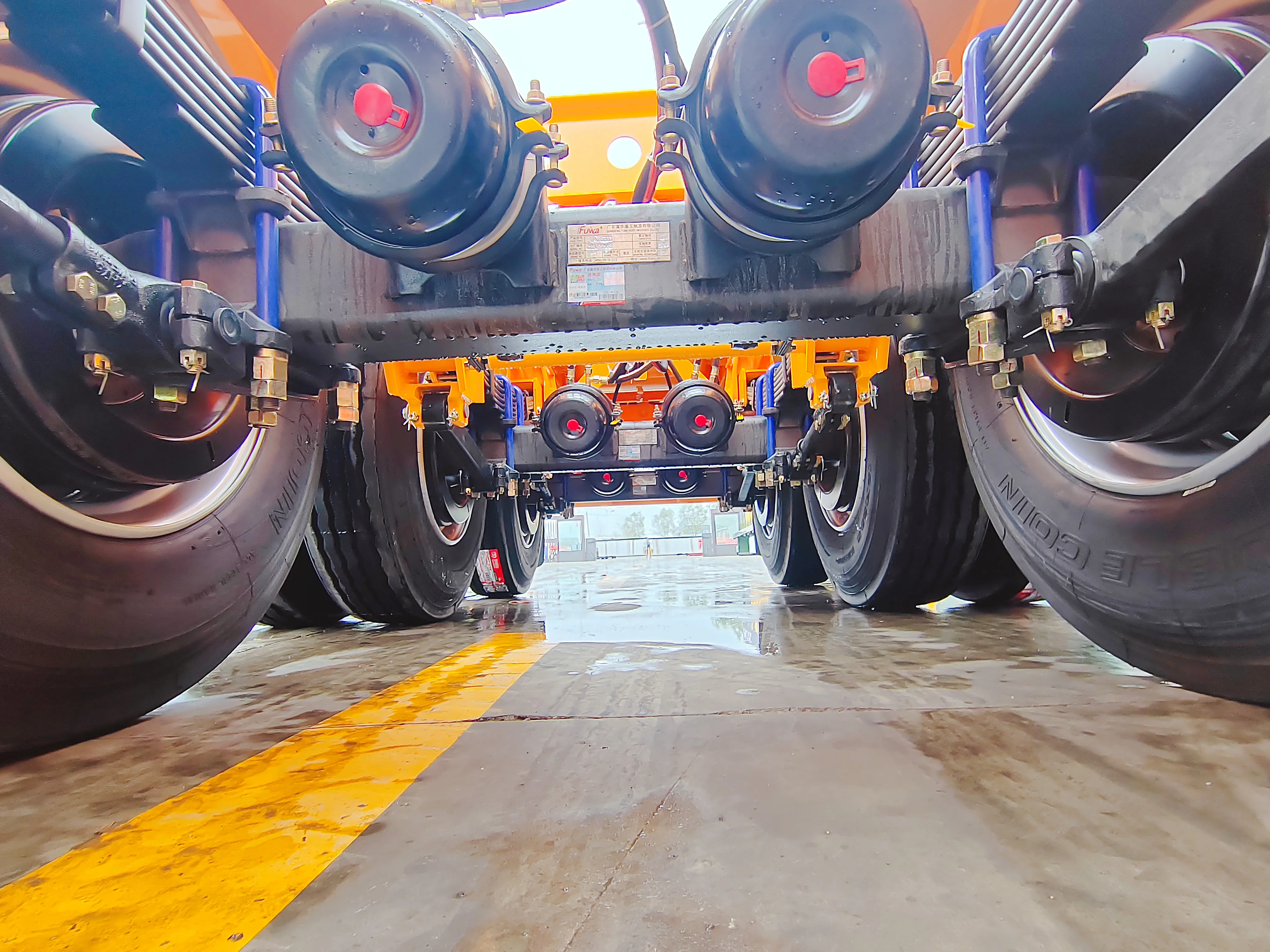

Details Images
Detailed pictures of the product.
If you want to know more about it, we will provide you with a video of the production process, that you can know the progress of your product at any time.
If you want to know more about it, we will provide you with a video of the production process, that you can know the progress of your product at any time.
Company Profile
Jianxing Green Cattle International (Shandong) Co., Ltd. was established in 2021 in Jinan by Shandong Yuncheng Jianxing Special Vehicle Manufacturing Co., Ltd. Our company is located in Wanda Plaza in the Jingsi Road in the center of Jinan City. There are more than 40 kinds of products and the weight of vehicles from 8 to 120 tons. Our products are exported to all over the world, such as southeast Asia, Central Asia, the Middle East, Africa and so on.

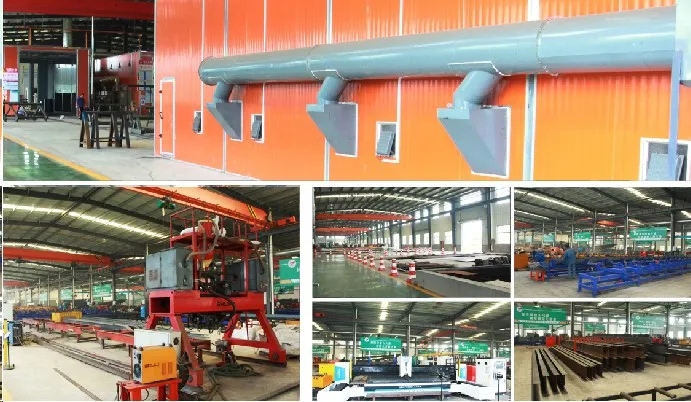

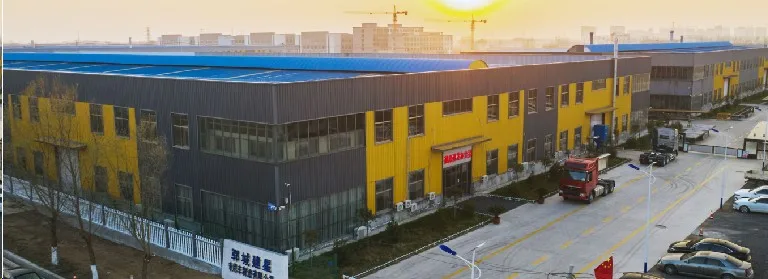

Our Factory
JianXing Green Cattle International (Shandong)Co., Ltd, was established in 2021, which is one of the professional suppliers of various semi-trailers belongs to Jianxing special truck factory located in Yuncheng,shandong province.
After 20 years of development, Jianxing become a comprehensive factory with production and trade. as one of the biggest trailer manufactures in the world, The site covers an area of 140 acres, plant area 90 acres, with about 300 employees. We have world-class automatic equipment, professional R&D and sales team, high-quality raw materials and famous brand components in and out. All trailers are with novel shape, unique design, reasonable structure and durable using life. There are more than 40 types of products to meet your different needs. Such as heavy duty low bed semi trailer, flatbed container semi trailers, skeletal container semi trailer, side wall semi trailer, cargo box semi trailer, dump trailers, bulk cement tanker trailer, fuel tanker semi trailer, stainless steel tank trailers, aluminum tank trailers, car carrier semi trailers.
Meanwhile we are dealing with sinotruk HOWO and A7 truck tractor, dump truck, fuel tanker truck, water tanker truck, cargo truck ,concrete mixture truck etc with competitive price and good service.
The products passed the China Quality Certification Center "CCC" certification and ISO9001: 2000 quality management system certification. BV certification, SGS certification, CE certification, etc.
Why Choose Us
Professional Production Team: More Than 200 Experienced Workers,Provide Clients High Assembling for Fast Quality Delivery.We have passed ISO9001:2000, CCC, BV, SGS, CE.
Customize: Professional Design Team Provide Suitable Programs and Customized,Support Local Adaptive Trailer
7*24H Service: 7*24H Service Provide Professional Fast Response.We have rest assured after-sales service.
Parts Support: Abundant Parts Supply Provide Lasting Support for Worldwide Clients
Customize: Professional Design Team Provide Suitable Programs and Customized,Support Local Adaptive Trailer
7*24H Service: 7*24H Service Provide Professional Fast Response.We have rest assured after-sales service.
Parts Support: Abundant Parts Supply Provide Lasting Support for Worldwide Clients

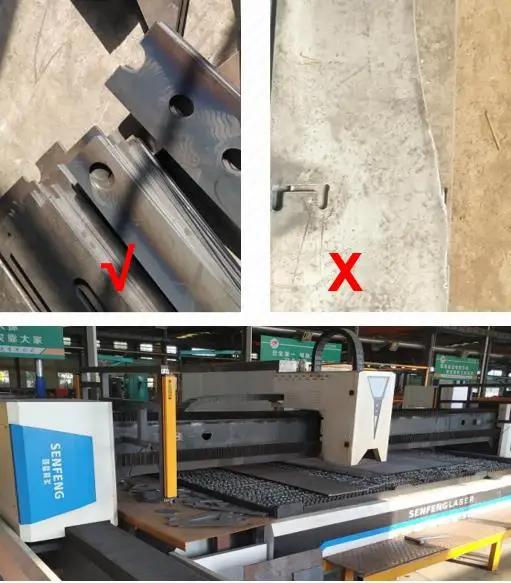

Cutting
In order to ensure the accurate size of raw materials and smooth cutting surface, laser cutting is mainly used.
Note: Laser cutting machine (by manually operating the machine, cutting the raw material into the required shape and size)
Note: Laser cutting machine (by manually operating the machine, cutting the raw material into the required shape and size)

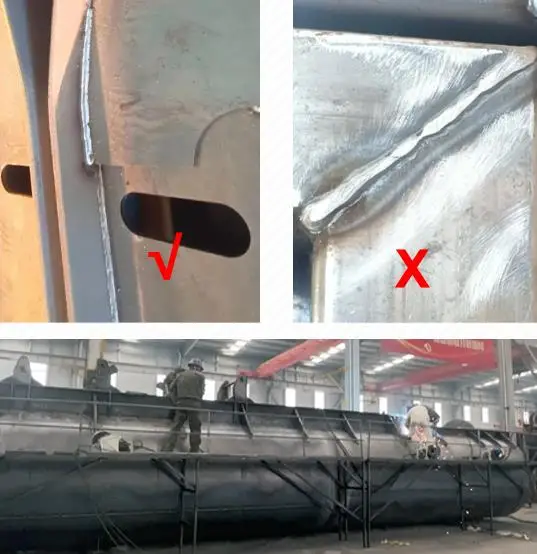

Welding
In order to ensure the service life, we use machine spot welding.

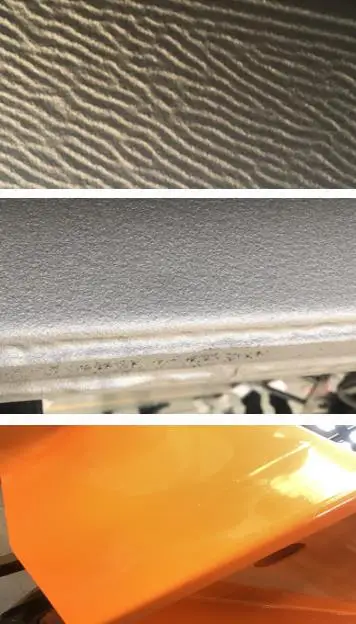

Sandblasting
Use small steel balls (also called gravel) to polish the welded large and small parts, first remove dirt and oil stains.
Polish to make the steel surface have adhesion, in preparation for the next step of powder spraying and coloring.

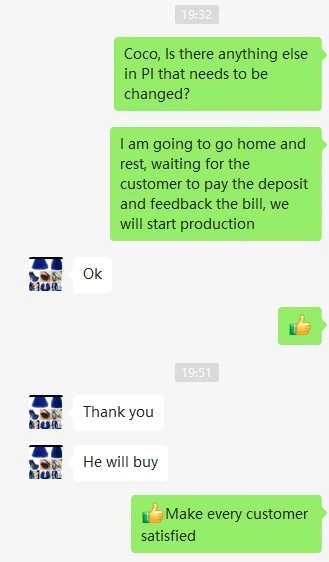

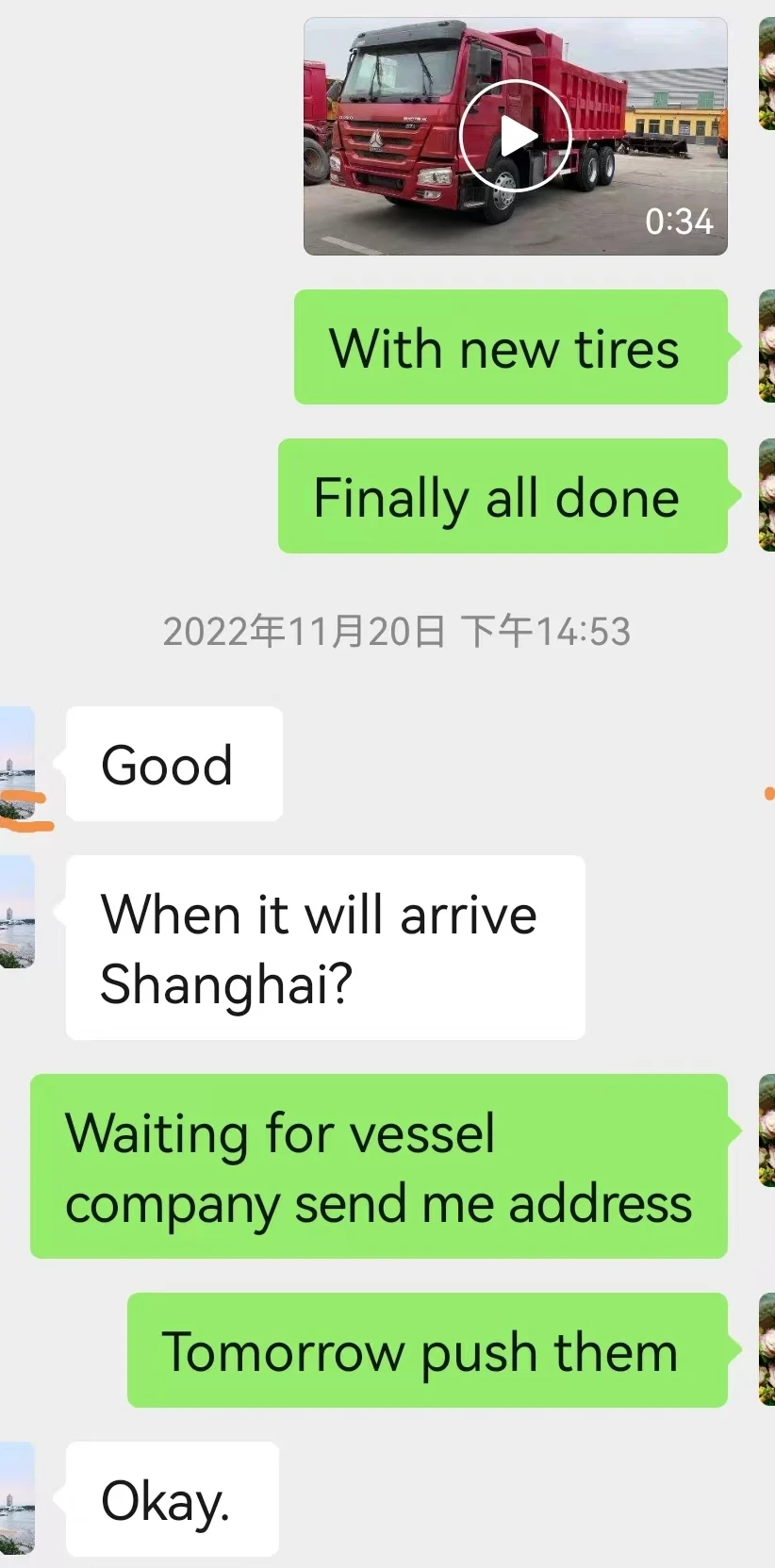

----- Below is our Real Customer Feedback----
Main Products
Product packaging
FAQ
1. What's your advantage?
A: Honest business with competitive price and professional service on export process.
2. How I believe you?
A : We consider honest as the life of our company, we can tell you the contact information of our some other clients for you to check our credit. Besides, there is trade assurance from Alibaba, your order and money will be well guaranteed.
3.Can you give warranty of your products?
A: Yes, we extend a 100% satisfaction guarantee on all items. Please feel free to feedback immediately if you are not pleased with our quality or service.
4.Where are you? Can I visit you?
A: Honest business with competitive price and professional service on export process.
2. How I believe you?
A : We consider honest as the life of our company, we can tell you the contact information of our some other clients for you to check our credit. Besides, there is trade assurance from Alibaba, your order and money will be well guaranteed.
3.Can you give warranty of your products?
A: Yes, we extend a 100% satisfaction guarantee on all items. Please feel free to feedback immediately if you are not pleased with our quality or service.
4.Where are you? Can I visit you?
A: Sure,welcome to you visit our factory at any time.
5.How about the delivery time?
A: Within 15-35 days after we confirm you requirement.
6.what kind of payment does your company support?
A: T/T, 100% L/C at sight, Cash, Western Union are all accepted if you have other payment,please contact me.
