Product Overview
Description
Products Description
Overband magnet is widely used for the places with the conveyed materials.

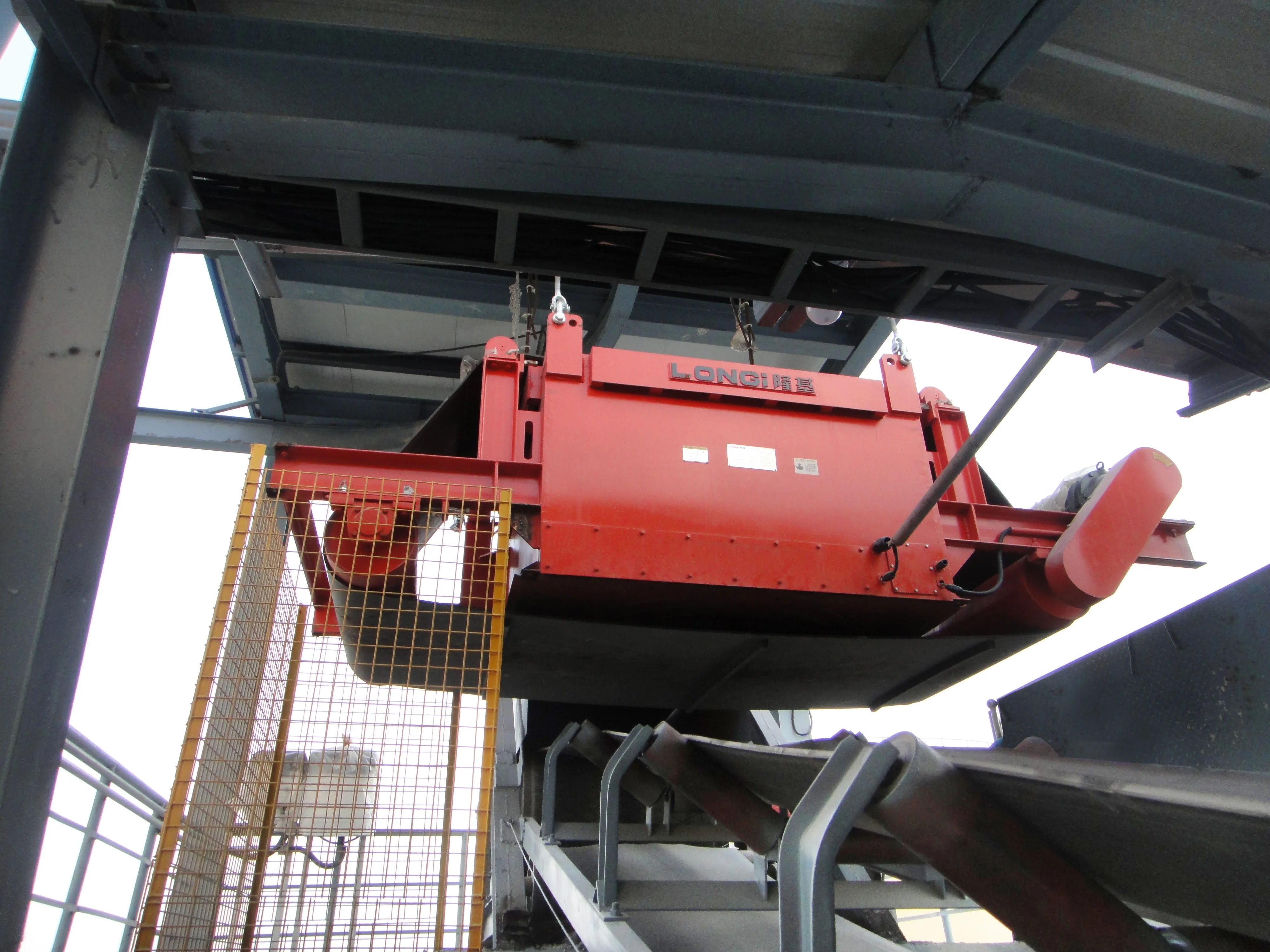

Overband magnets are installed over cross the conveyors. The permanent magnetic assembly is the key part of the equipment which with our advanced designs with a discharging belt normally. It is powerful in strength and also long in servicing life.
Overband magnets are installed over cross the conveyors. The permanent magnetic assembly is the key part of the equipment which with our advanced designs with a discharging belt normally. It is powerful in strength and also long in servicing life.
Products features
Features for overband magnet:
-Compact Structure
-Less Maintenance
-High Gradient Magnetic Field
-Reasonable magnetic circuit design.
-Rare Earth and ceramics magnets are available for different applications
-With magnetic force decrease less than 3% in 10 years
-Safety Guards available
-Monitoring instruments for options
-Less Maintenance
-High Gradient Magnetic Field
-Reasonable magnetic circuit design.
-Rare Earth and ceramics magnets are available for different applications
-With magnetic force decrease less than 3% in 10 years
-Safety Guards available
-Monitoring instruments for options
Product Paramenters
Model | Suitable belt width | Rated suspension height | Magnetic intensity at SHR | Cooling type |
LJG-D6 | 650mm | 200mm | ≥70 | Air cooling |
LJG-D8 | 800mm | 250mm | ≥70 | Air cooling |
LJG-D10 | 1000mm | 300mm | ≥70 | Air cooling |
LJG-D12 | 1200mm | 350mm | ≥70 | Air cooling |
LJG-D14 | 1400mm | 400mm | ≥70 | Air cooling |
Applications

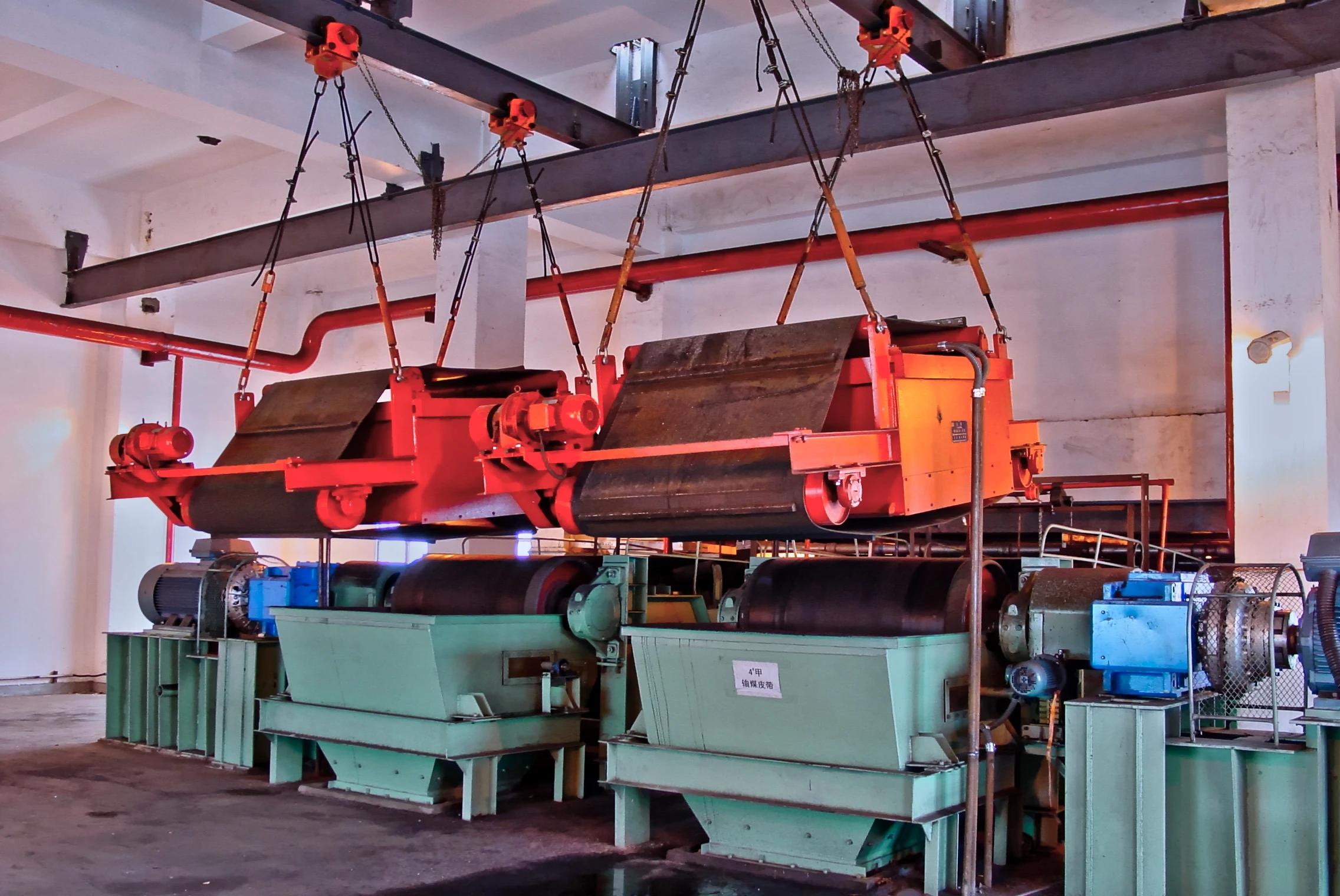

The suspended crossbelt separators are used in a wide variety of industrial environments where unnecessary ferrous might cause issues. Such as before equipment that may need to be protected. Sites dealing with coal or crushed concrete. MURFs or recycling centers where the material needs tramp steel removed to upgrade the material and so on.
