Product Overview
Description
Product Description
50tph 100tph Stone Quarry Machines Stone Crusher Crushing and Screening Plant Prices
Stone crushing production line (stationary stone crusher plant), also known as stone crushing screening plant, mainly consists of vibrating feeder, jaw crusher, cone crusher/impact crusher, vibrating screen, belt conveyor, electric control panel, dust removal equipment, etc. Sand washing and other machines can also be added to this line to meet the various customers' requirements.
Shibo can provide various sizes and capacities of crushing plants according to customers' special requirements and hardness of stones.
Shibo can provide various sizes and capacities of crushing plants according to customers' special requirements and hardness of stones.

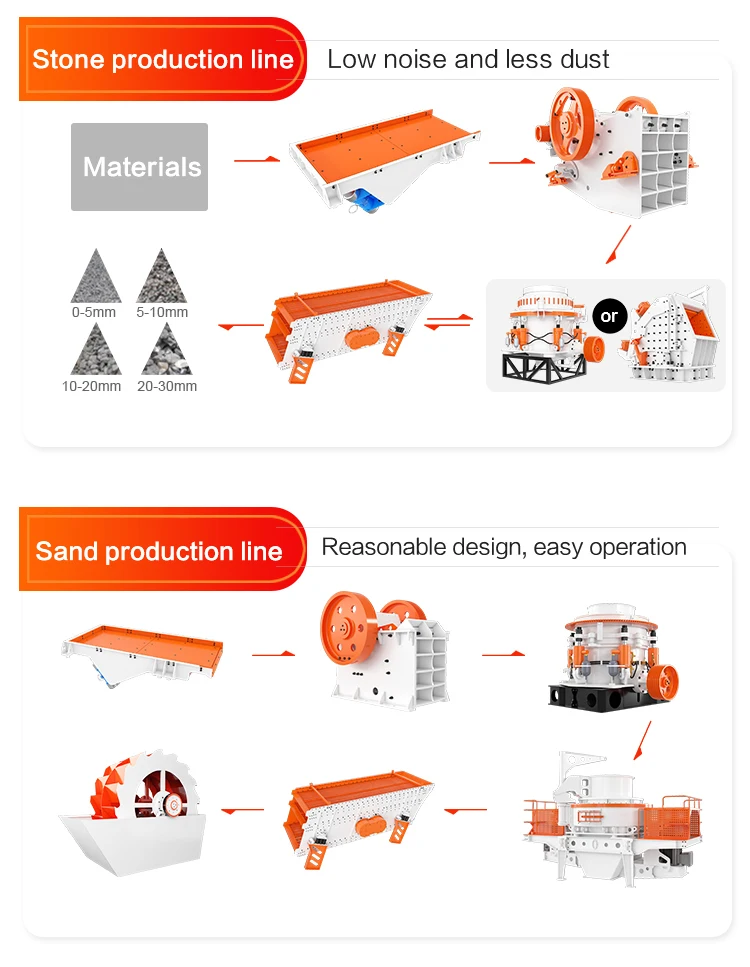

Here are some common used designs for your reference

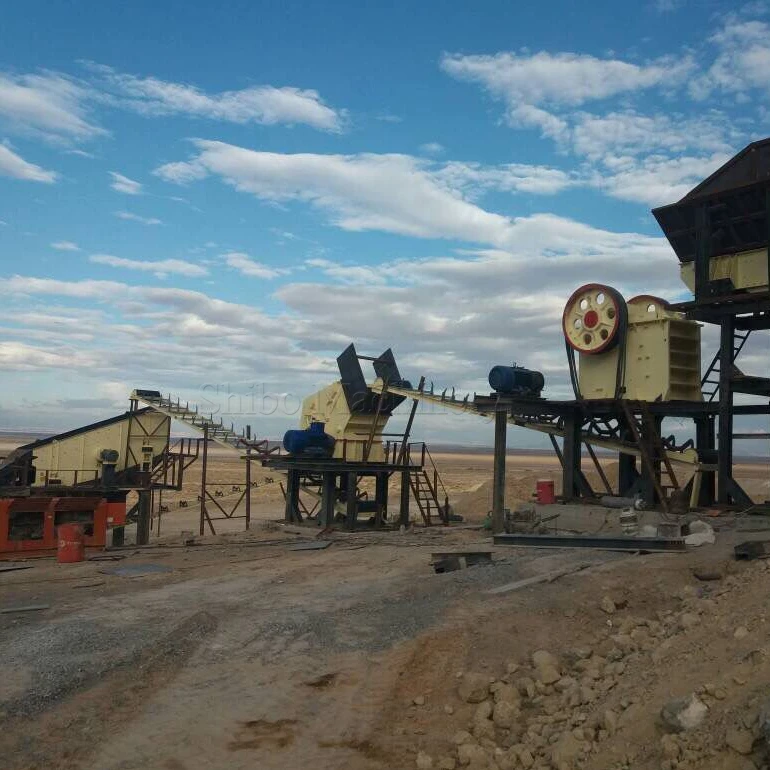

(1) Hard stone crushing and screening plant
Main equipment : Vibrating feeder , jaw crusher , cone crusher ,vibrating screen , belt conveyor ,control cabinet ect
Suitable for : hard stone like granite , marble , basalt ,andesite ect all kind of stone (including soft stone) .
Suitable for : hard stone like granite , marble , basalt ,andesite ect all kind of stone (including soft stone) .

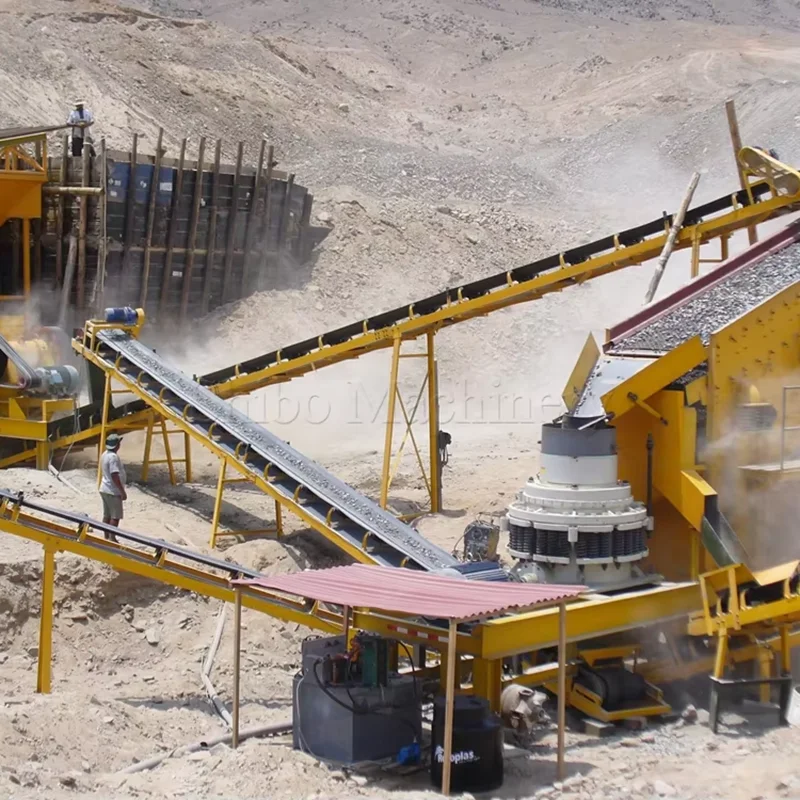

(2)Soft stone crushing and screening plant
Main equipment: Vibrating feeder, jaw crusher, impact crusher, vibrating screen, belt conveyor, control cabinet etc.
Suitable for: soft stone like limestone, concrete, coal, dolomite etc .
Suitable for: soft stone like limestone, concrete, coal, dolomite etc .

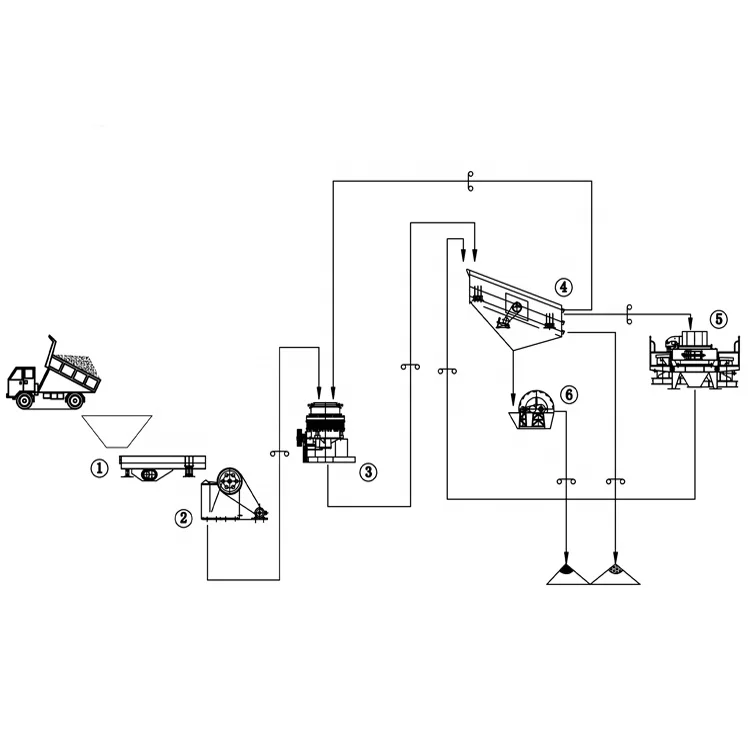

(3) Sand making production line
Suitable for : hard stone and soft , used to produce 0-5mm artificial sand , this design also used for get cubic shape aggregates.
Configuration and Price
Equipment Configuration | ||||||
Model | 30-50tph | 60-80tph | 80-120tph | |||
Vibrating Feeder | ZSW650*2300 | ZSW850*3000 | ZSW960*3800 | |||
Jaw Crusher | PE400*600 | PE500*750 | PE600*900 | |||
Impact Crusher | PF1007 / PF1010 | PF1010 | PF1214 / PF1315 | |||
or Cone Crusher | PYB900 | CS75 | CS110 | |||
Vibrating Screen | 3YK1548 | 3YK1848 | 3YK1860 | |||
Price | 60,000-80,000 USD | 85,000-110,000 USD | 110,000-140,000 USD | |||
Model | 150-200tph | 180-220tph | 300tph | |||
Vibrating Feeder | ZSW1100*4200 | ZSW1100*4200 | ZSW1300*4900 | |||
Jaw Crusher | PE750*1060 | PE900*1060 | PE900*1200 | |||
Impact Crusher | PF1315 | PF1320 / PF1210*2 | PF1315*2 | |||
or Cone Crusher | CS220 | CS160*2 | CS250+CS110 | |||
Vibrating Screen | 3YK2160 | 3YK1860*2 | 3YK2460*2 | |||
Price | 160,000-200,000 USD | 190,000-365,000 USD | _________ | |||

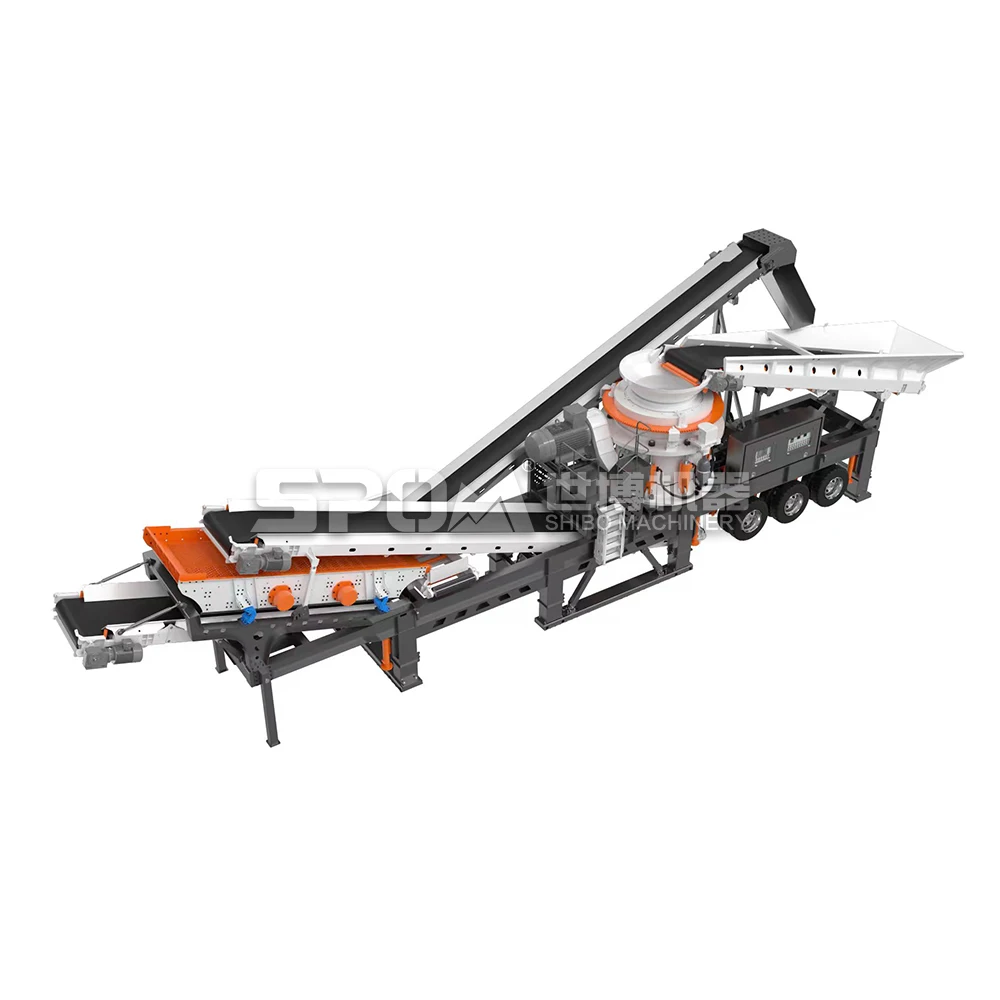

Mobile Stone Crushing Plant
Besides this kind of fixed crushing line, we also have mobile crushing screening plant (wheel type or crawler type) for sale. The mobility of mobile crushing plant is very good, so it can extend with the raw material places or the construction place, and it can also make multiple matching, get to different product requirements.
Main Equipment

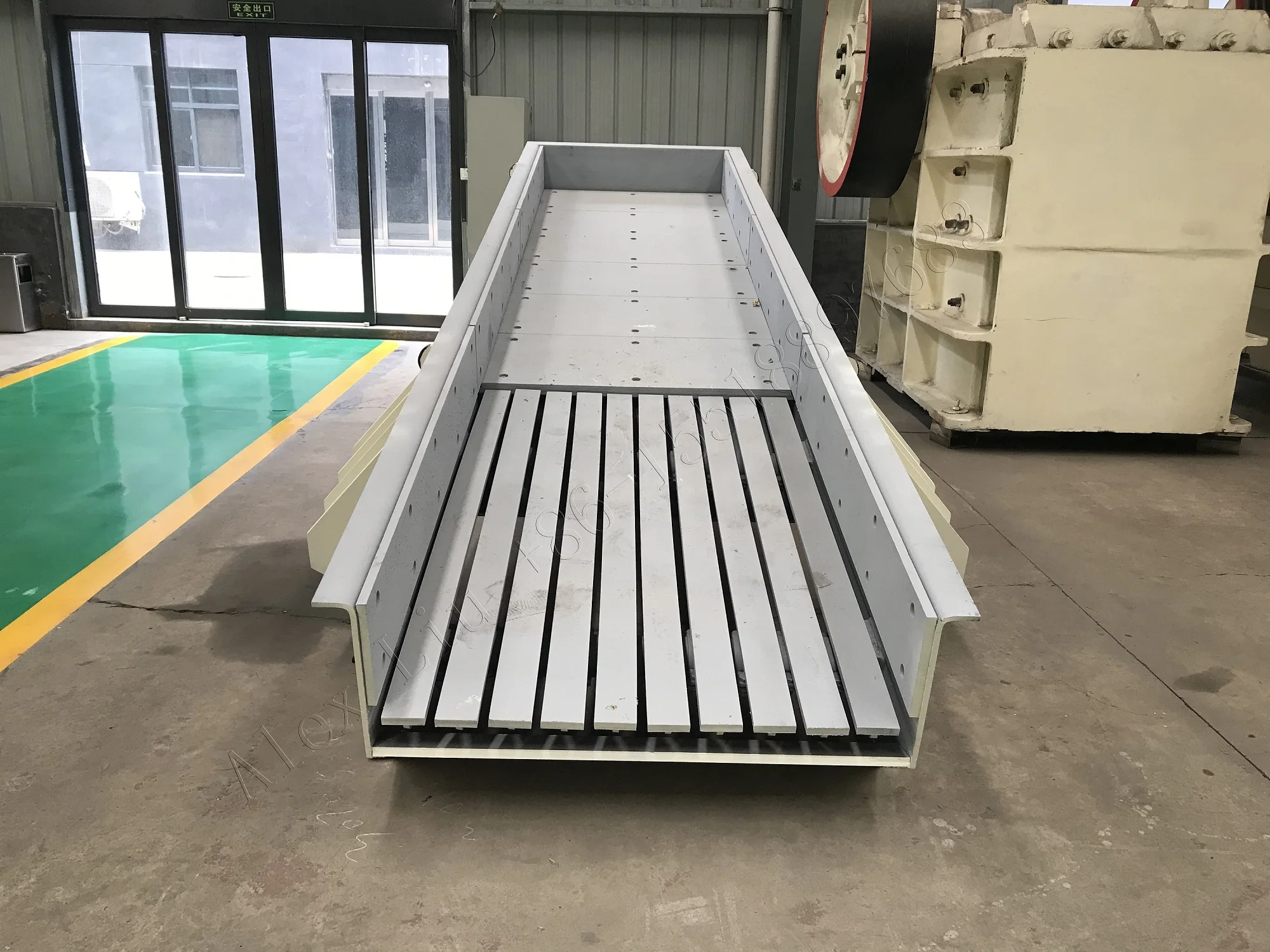

This machine can transfer the bulk, granular materials to the crushers from the stock bin evenly and continuously in the given time. In the stone and sand production lines, it can feed the crushing equipments continuously and screen the materials coarsely.

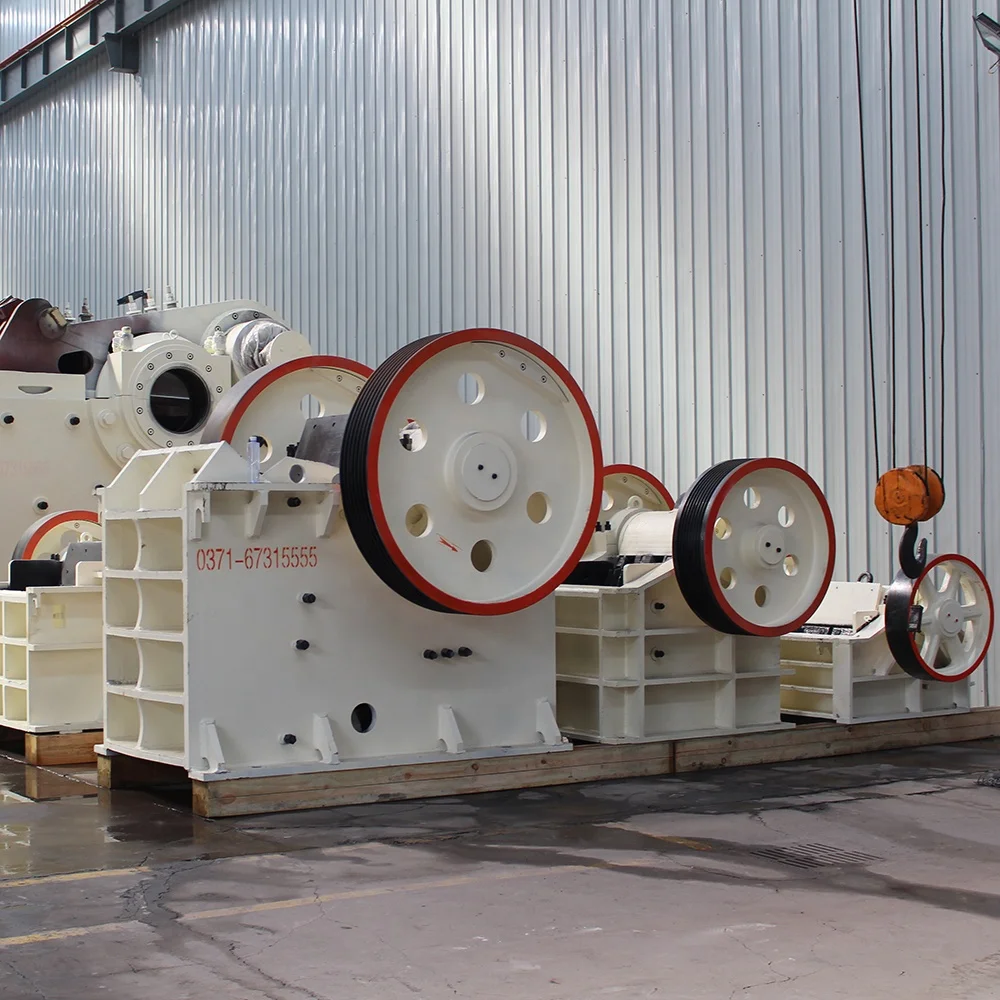

Jaw crusher is the primary crushing equipment in the crushing production line , it used to crush the large stone (300-1200mm) into medium size (100-200mm) , the fine type jaw crusher can produce 0-40mm aggregate.
A Cone Crusher is a compression type of machine that reduces material by squeezing or compressing the feed material between a moving piece of steel and a stationary piece of steel. Final sizing and reduction is determined by the closed side setting or the gap between the two crushing members at the lowest point.

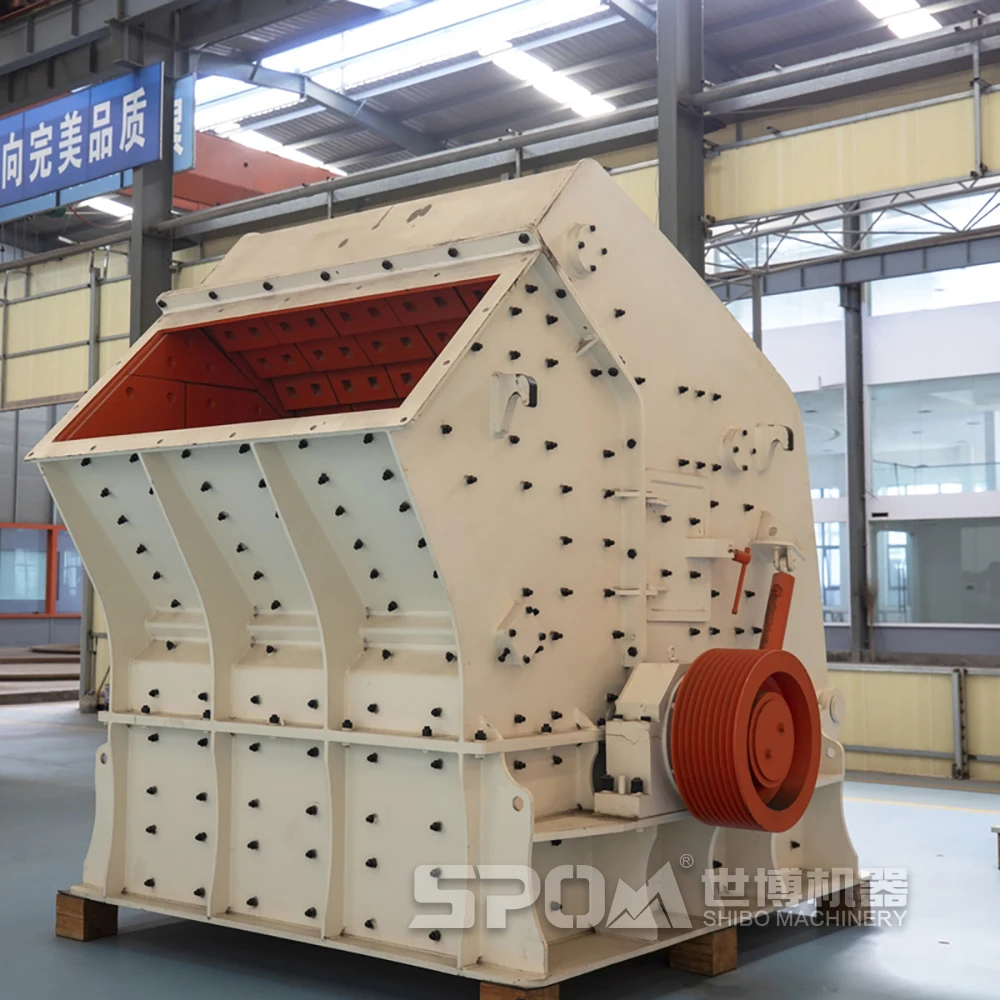

An impact crusher is a machine that uses striking as opposed to pressure to reduce the size of a material. Impact crushers are designated as a primary, secondary, tertiary or quarternary rotor crusher depending on which processing stage the equipment is being utilized.

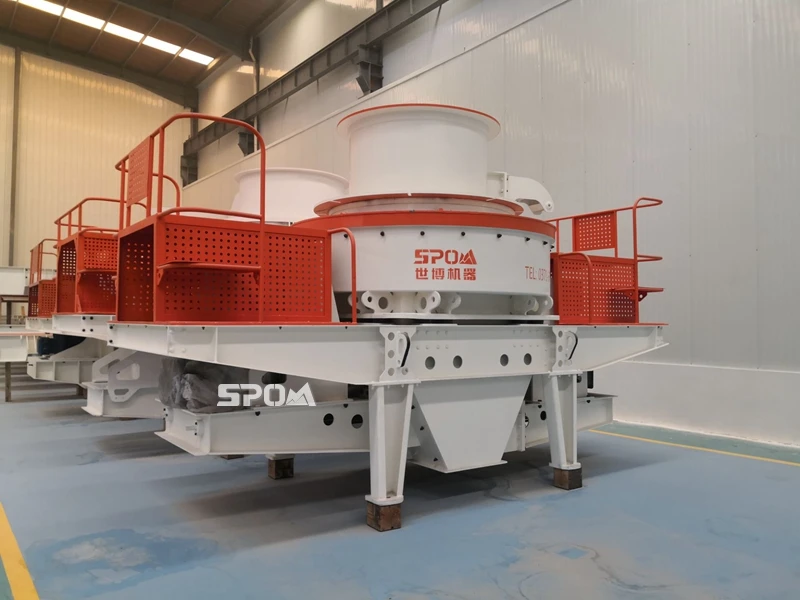

The VSI is typically used after a primary or secondary crusher. This makes a VSI ideal for making sand and for making coarse and medium aggregates for concrete/asphalt production.

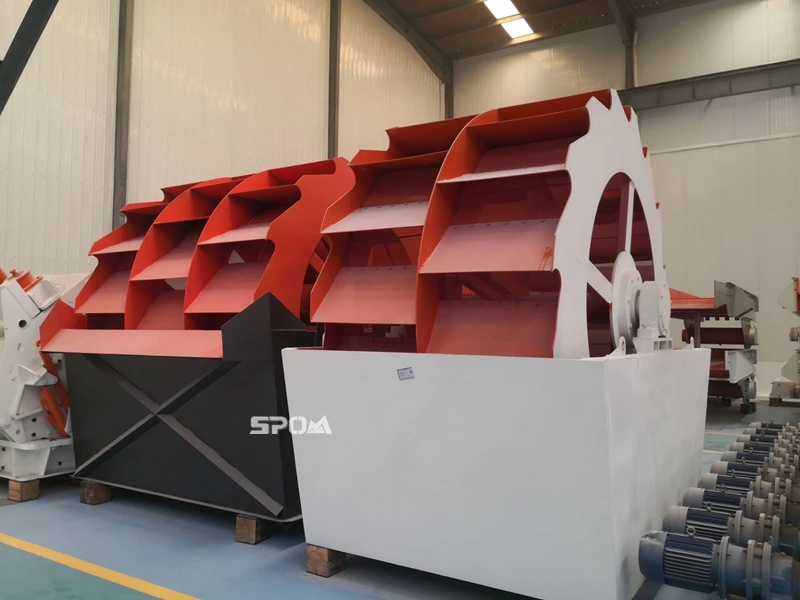

Sand washing machine
Sand washer is the commonly used equipment in artificial sand making production line. It is widely used to process silica sand, river sand, yellow sand, sea sand, etc. It is used to remove the dirt and impurities in sand for sand washing, classifying and grading to meet the standard.

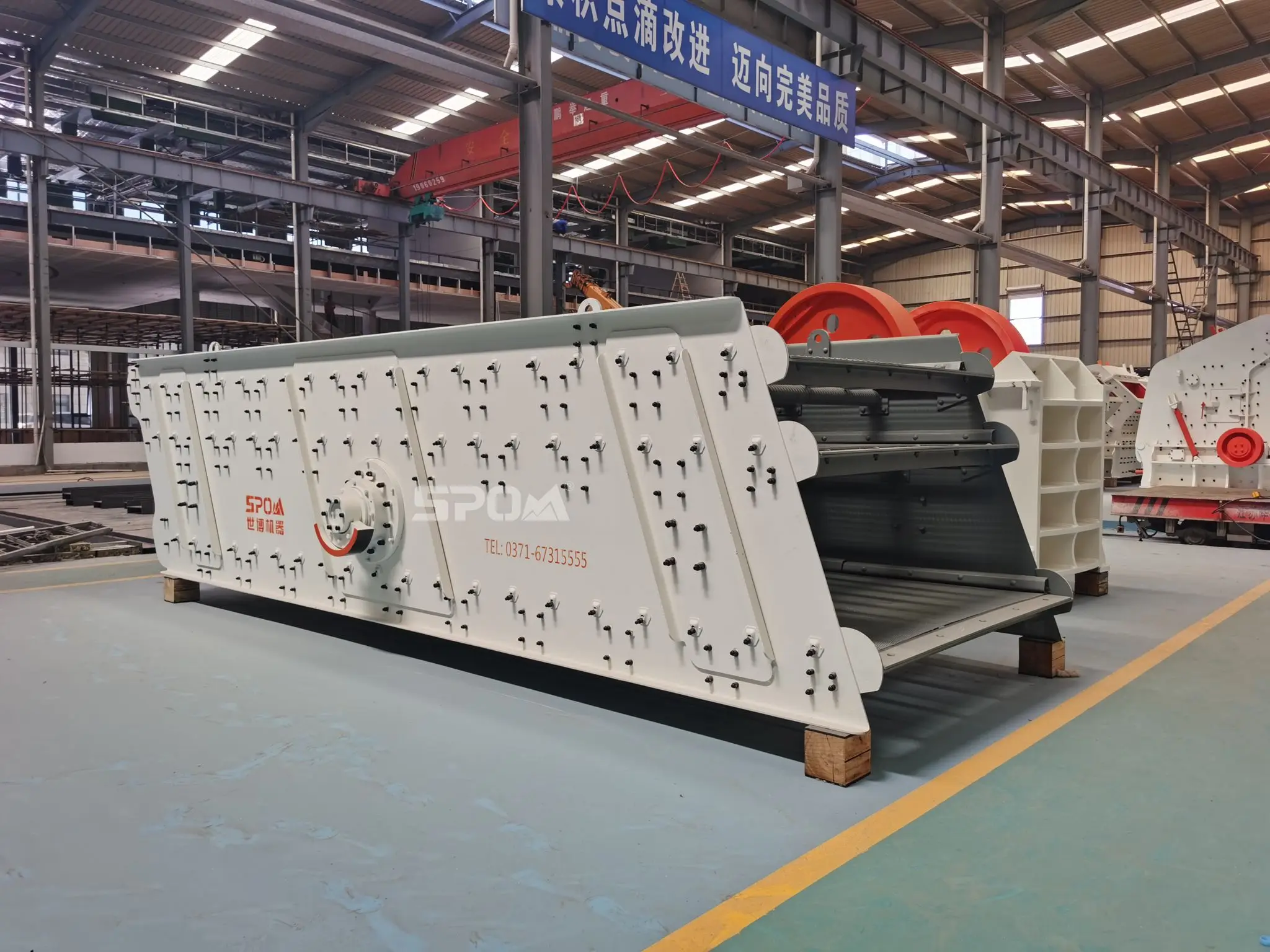

Vibrating screen
Sand screening machine is widely used to classify the minerals such as stone,sand, ore and othe kinds of minerals in mining, quarry, construction, building material industry. It can be featured with 2 layers, 3 layers, 4 layers. It is used to sort and classify the materials accoding to the particle size by its circular vibration.
Belt Conveyor
Belt conveyor has the advantages of big conveying amount, simple structure, convenient maintenance and standard spare parts. The hot-sale types are including: Belt Width 500mm, 650mm, 800mm, 1000mm, 1200mm, 1400mm, 1600mm. It has been widely used in many industrial departments such as mine, metallurgy and coal for transporting bulk materials and piece
articles.
articles.
Packing and delivery
The main machine is nude packing , motor , V-belt , Anchor bolt are packing in wooden box ,we will test the machine three times to make sure it is 100% qualified before the machine leave factory .
Company Profile
As a professional manufacturer of crushing, grinding and mining equipments, Henan Shibo Mechanical Engineering Co., Ltd. offers advanced, reasonable solutions for any size-reduction requirements including quarry, aggregate, and different kinds of minerals. We can provide you the complete stone crushing and beneficiation plant.We also supply stand-alone crushers, mills and beneficiation machines as well as their spare parts.

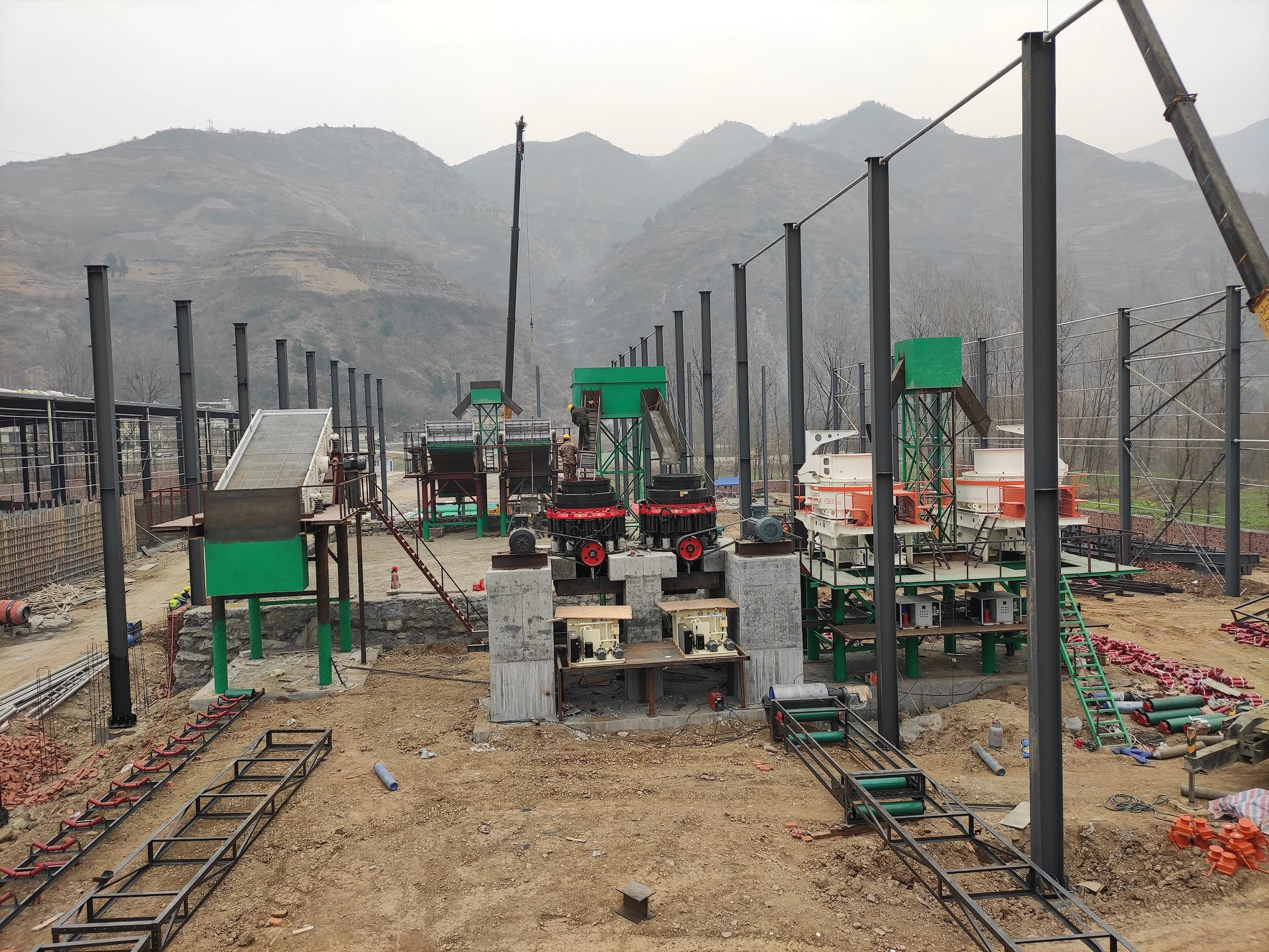

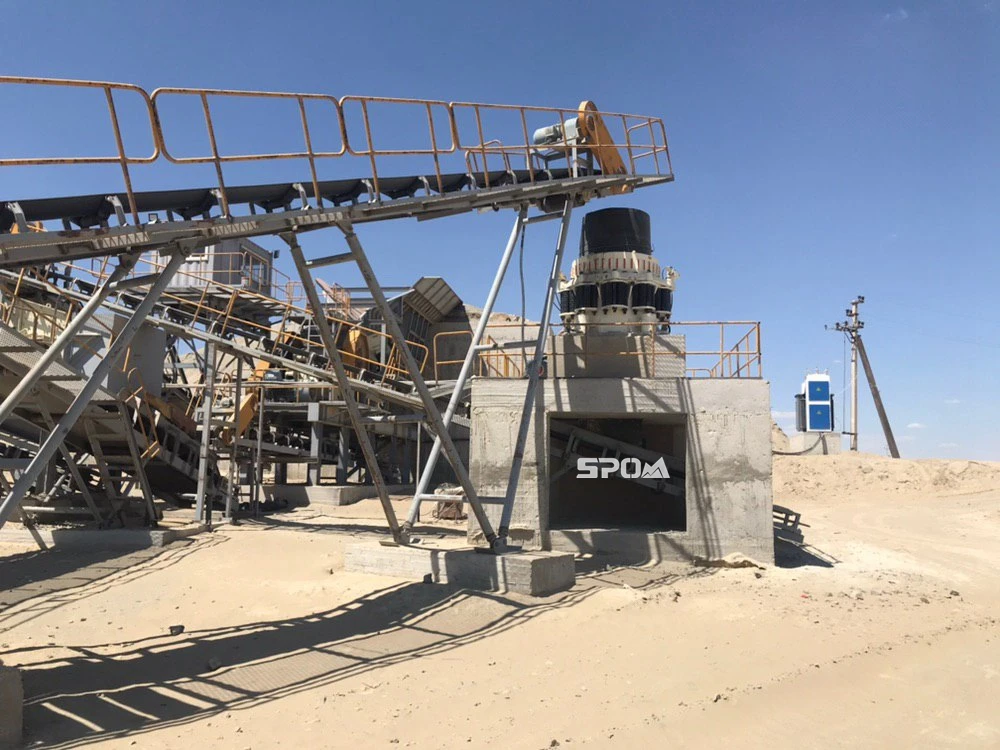

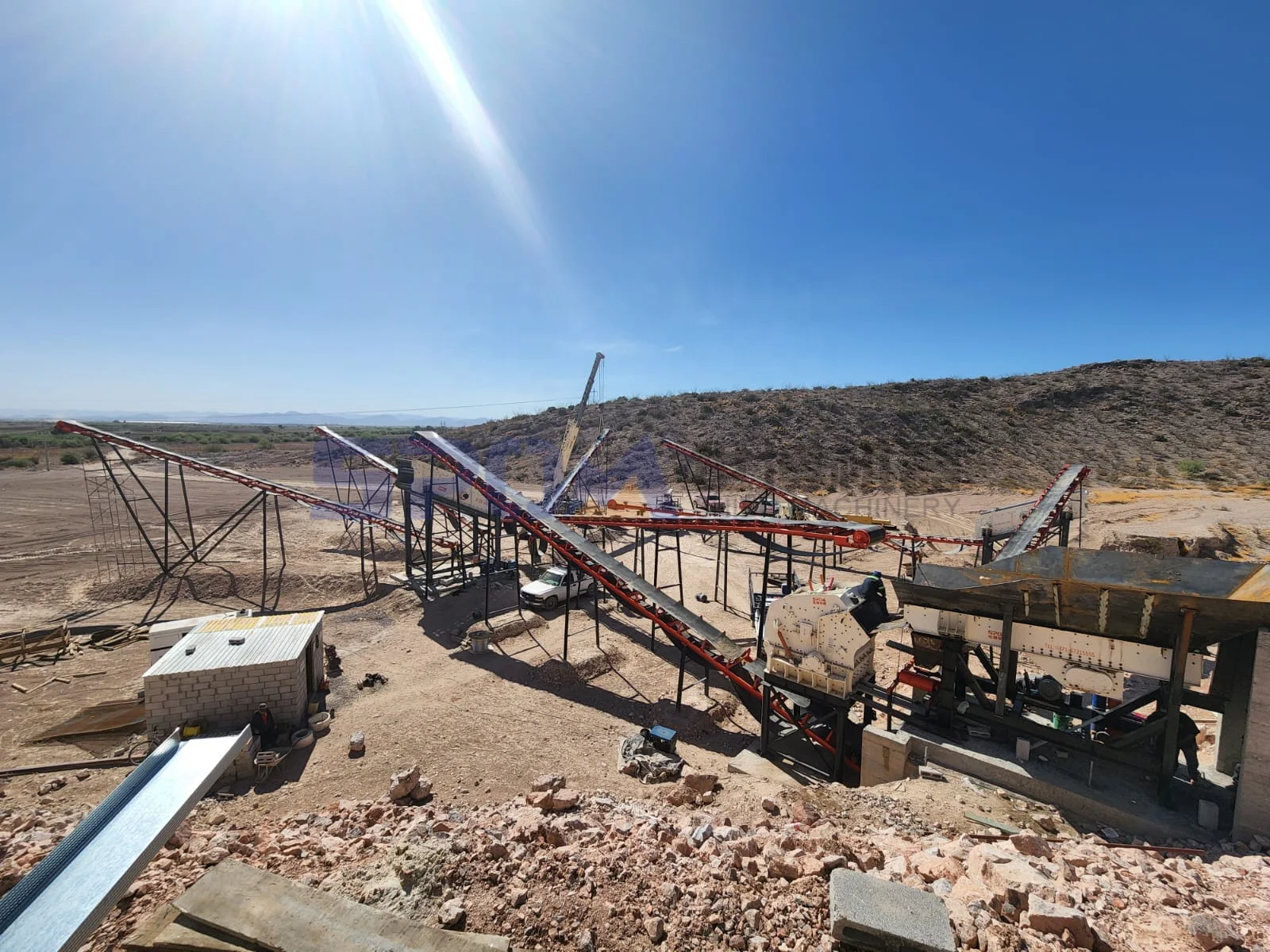

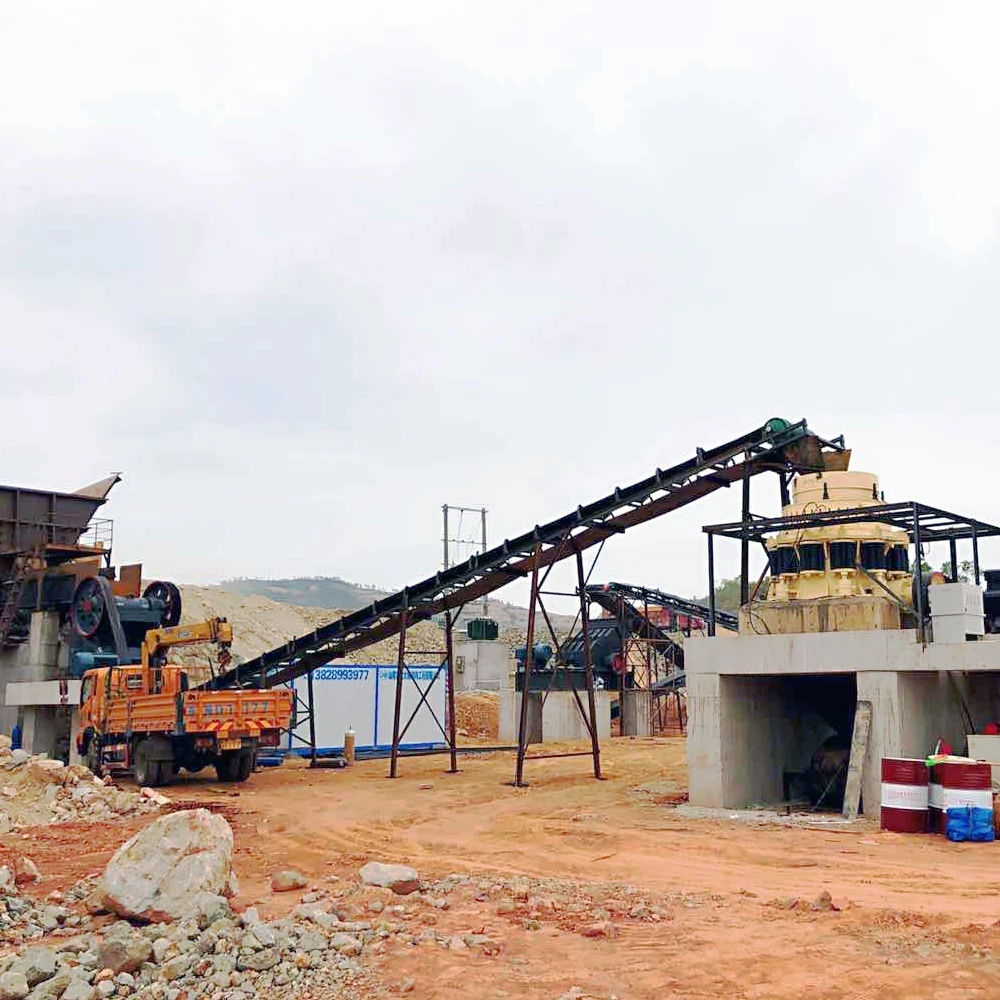

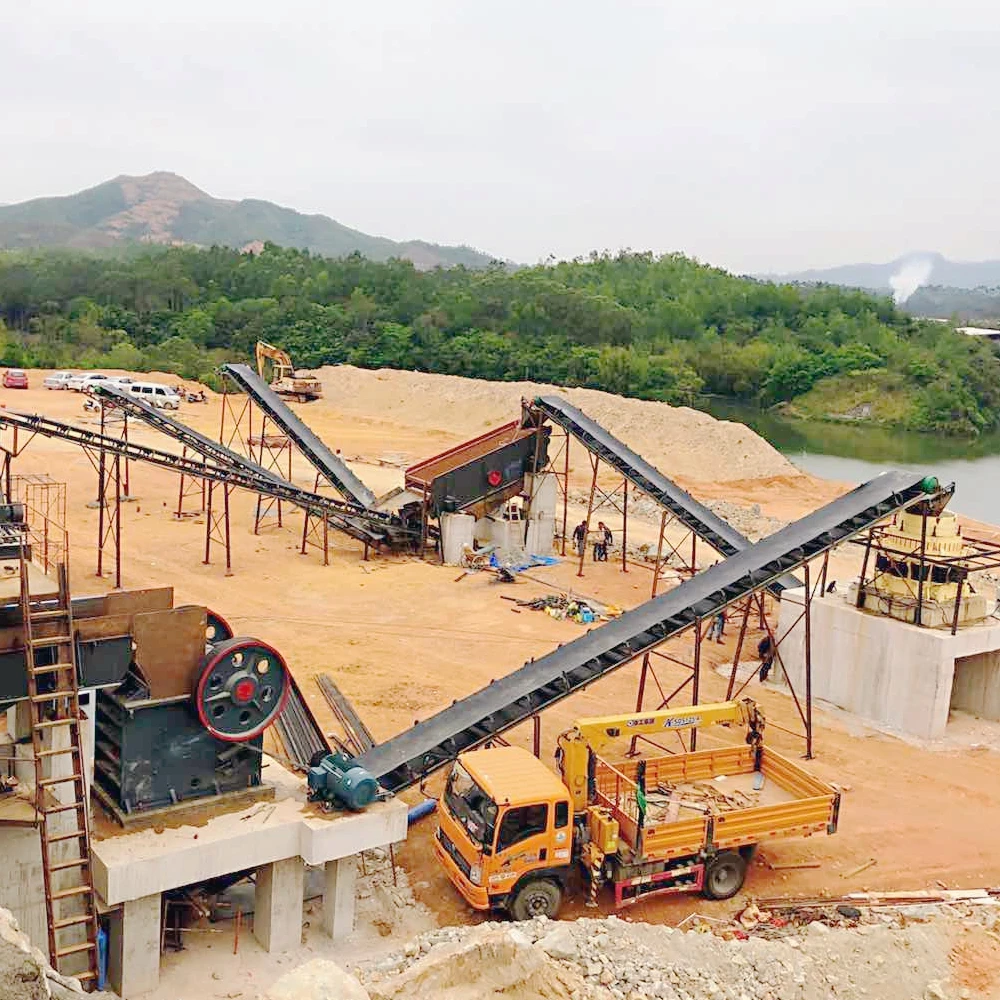

Customer Photos
FAQ
Q: what is the payment terms ?
A: 30% prepayment by T/T , after the seller finish the production process and buyer verify the machine , 70% balance should paid
before delivery, L/C is also acceptable .
Q: How long do you need to produce the crushing production line?
A: For 300tph and lower capacity plant ,30-40 working days
A: 30% prepayment by T/T , after the seller finish the production process and buyer verify the machine , 70% balance should paid
before delivery, L/C is also acceptable .
Q: How long do you need to produce the crushing production line?
A: For 300tph and lower capacity plant ,30-40 working days
Q: Which airport and train station is near to the factory ?
A: Zhengzhou xinzheng international airport and Zhengzhou East Railway Station
Q: How to choose the suitable model ?
A: please confirm the following information :
1. what kind of stone do you want to crush ? such as granite ? limestone ?
2. what's the size of your stone before crush ? how many inch or mm ?
3. what's your requirements of final product size ? how many inch or mm ?
4. what's your requirements of production capacity ? how many ton per hour ?
A: Zhengzhou xinzheng international airport and Zhengzhou East Railway Station
Q: How to choose the suitable model ?
A: please confirm the following information :
1. what kind of stone do you want to crush ? such as granite ? limestone ?
2. what's the size of your stone before crush ? how many inch or mm ?
3. what's your requirements of final product size ? how many inch or mm ?
4. what's your requirements of production capacity ? how many ton per hour ?
