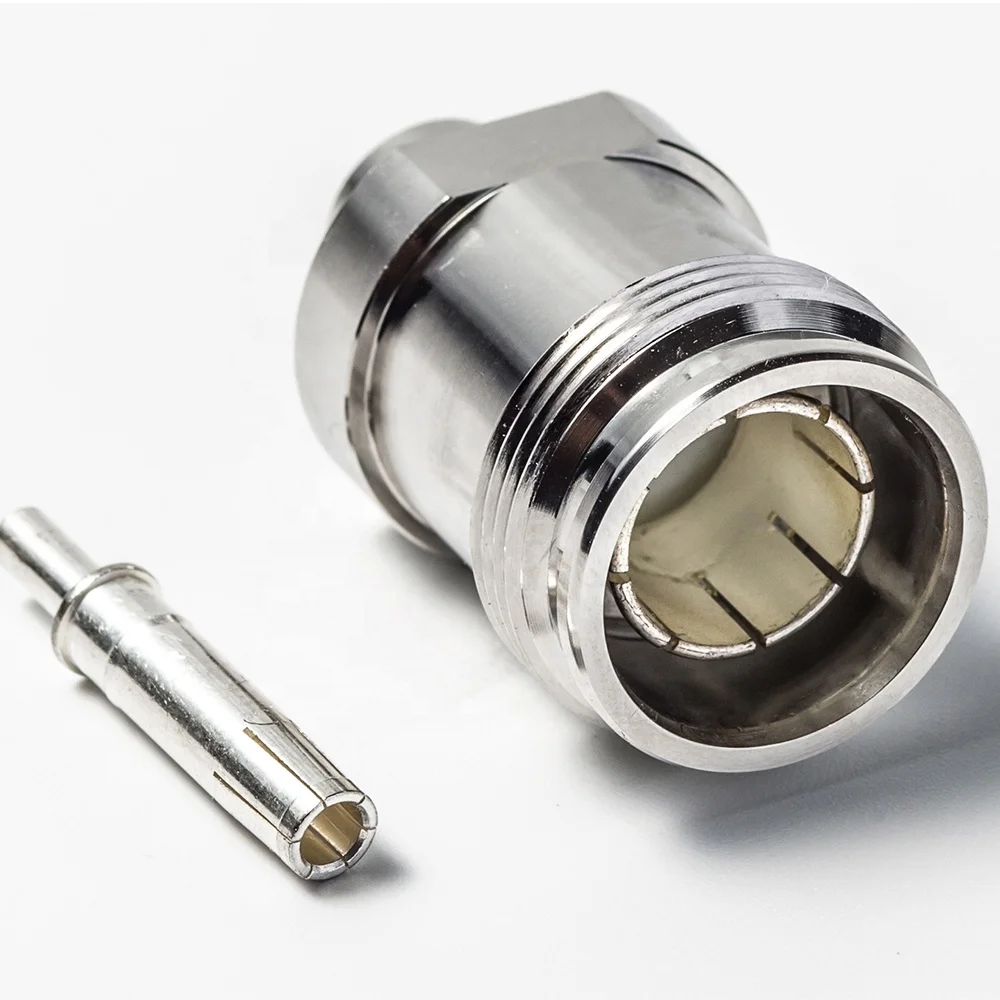

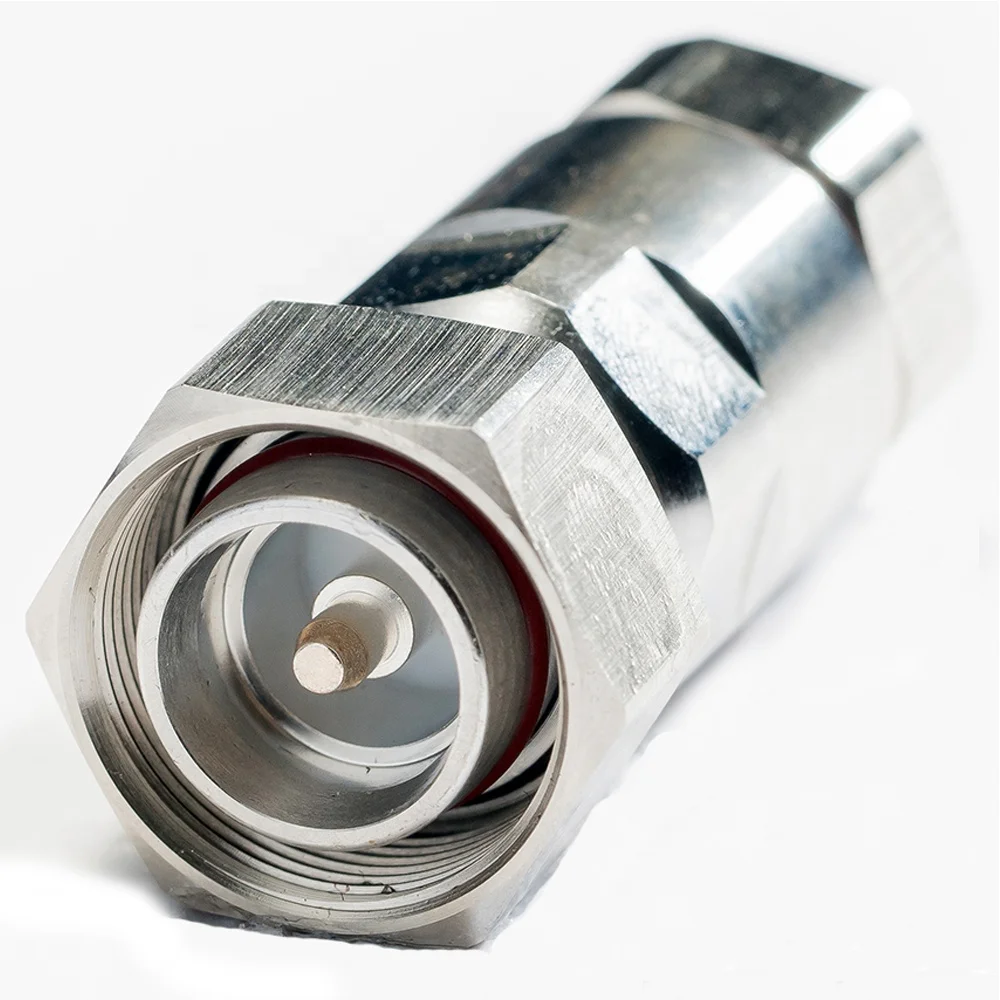

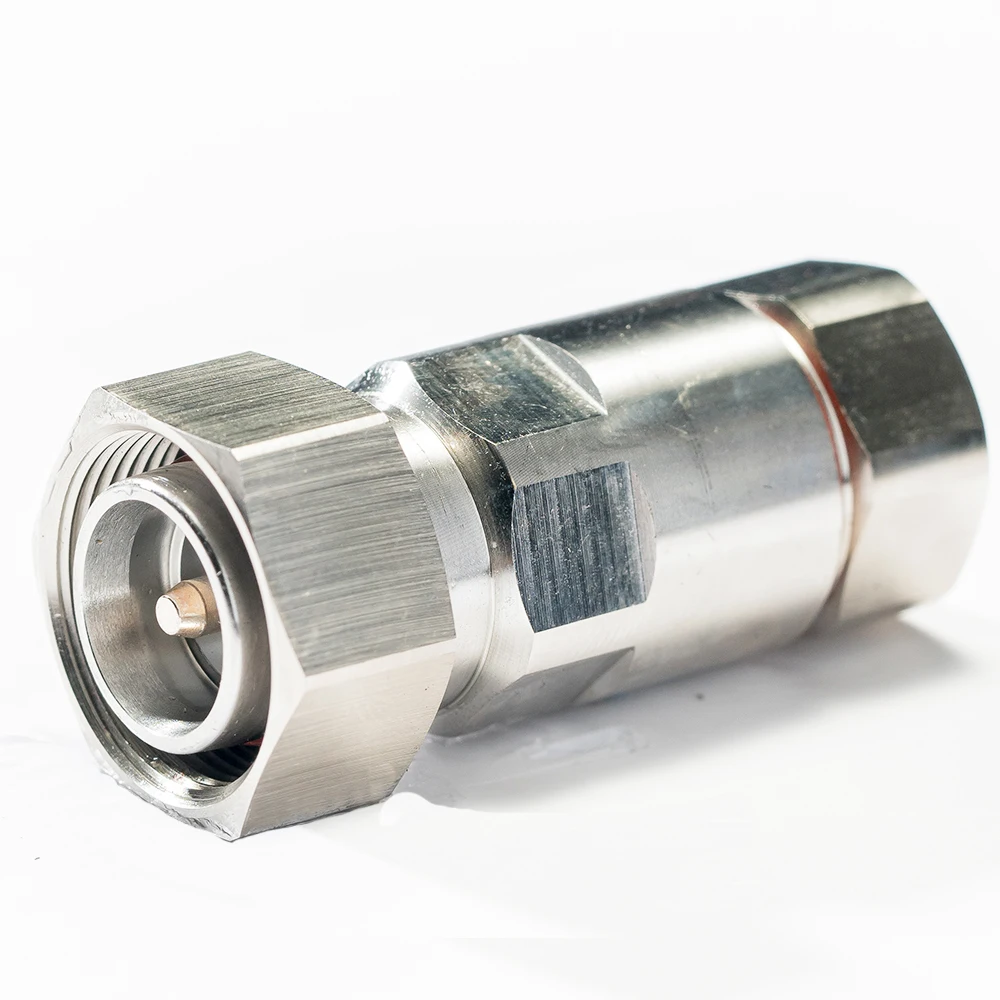

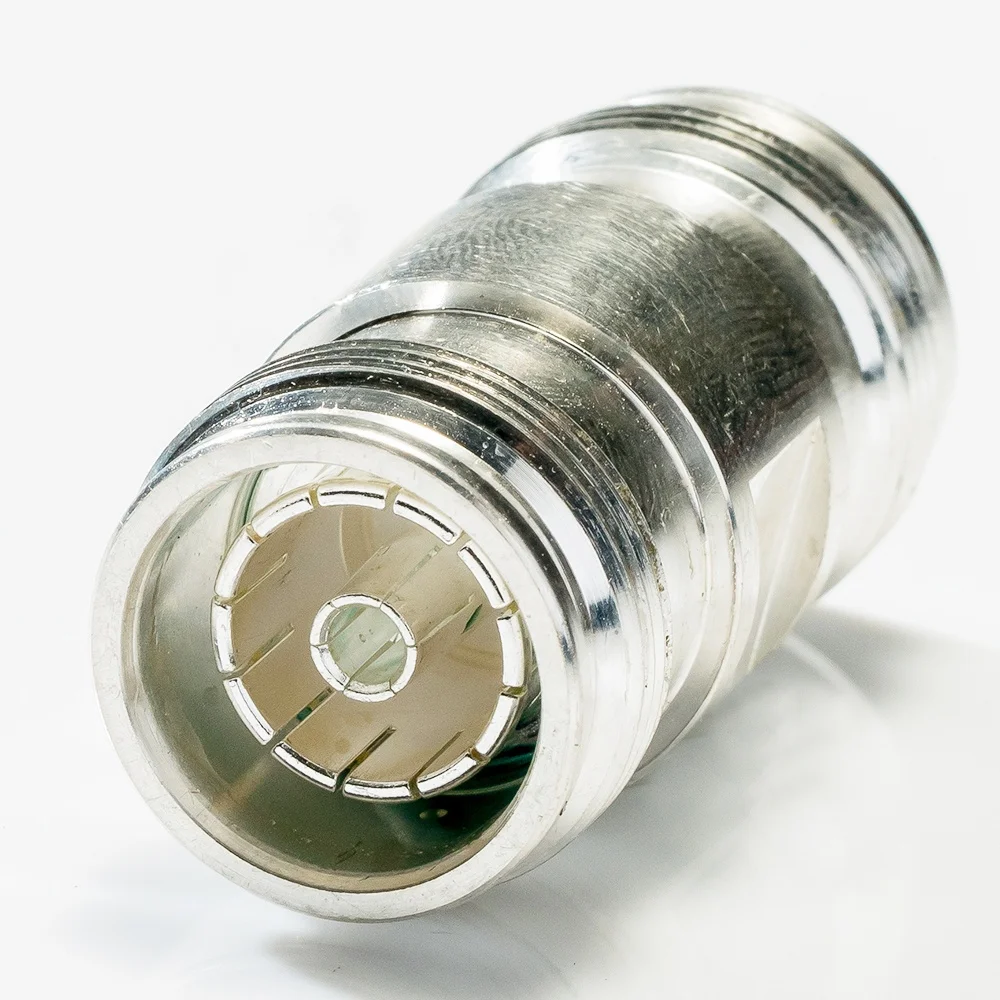

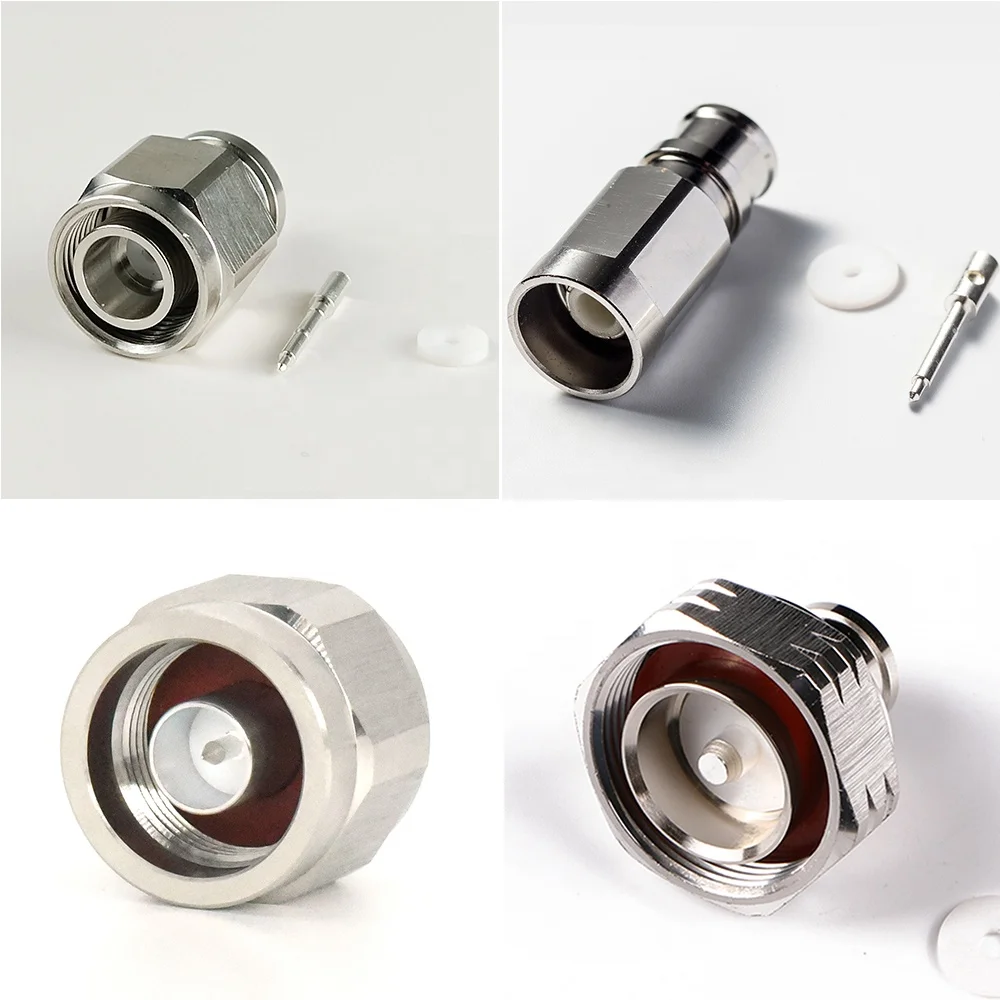

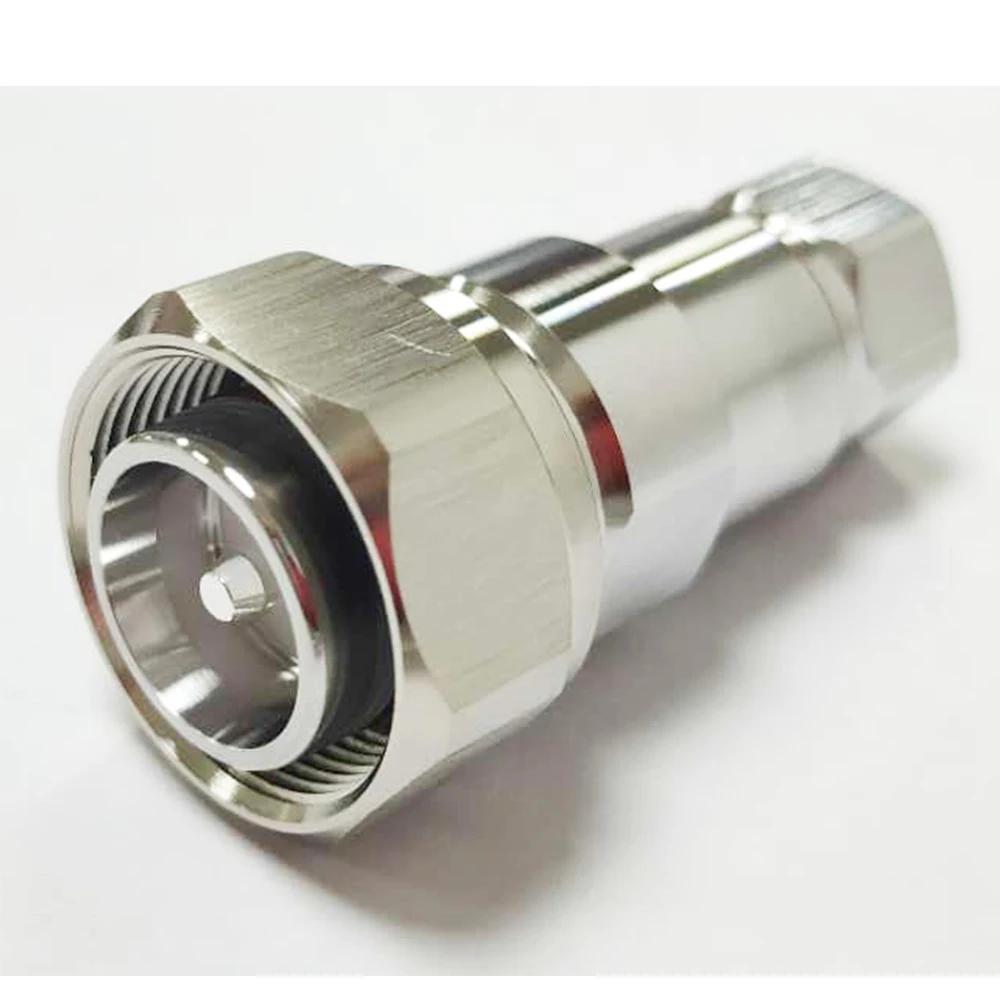

Raynool Low PIM 4.3/10 for RG402, TFT402 solder pin captive type clamp type straight right angle RF Connector
- Category: Connectors >>>
- Supplier: Raynool Technology Co. Ltd.
Share on (1600511150482):
Product Overview
Description
Product Description
4.3-10 series
For 1/4''S (FSJ1-50B,SPP-250-LLPL), 3/8'' Superflexible, 1/2'' Standard, 1/2'' Superflexible
For RG402, RG401
Material & Plating | ||||
Cenner Conductor | Phorsphor Bronze | Ag Plating | ||
Insulator | PTFE | / | ||
Outer Conductor | Brass | Ternary Plating | ||
Gasket | Silicone Ribber | / | ||
Key Specification | ||||
Polarity | Standard | Standard in stock | ||
Connector Series | 4.3-10 | |||
Connector Gender | Male/Female | |||
Impedance | 50 ohm | |||

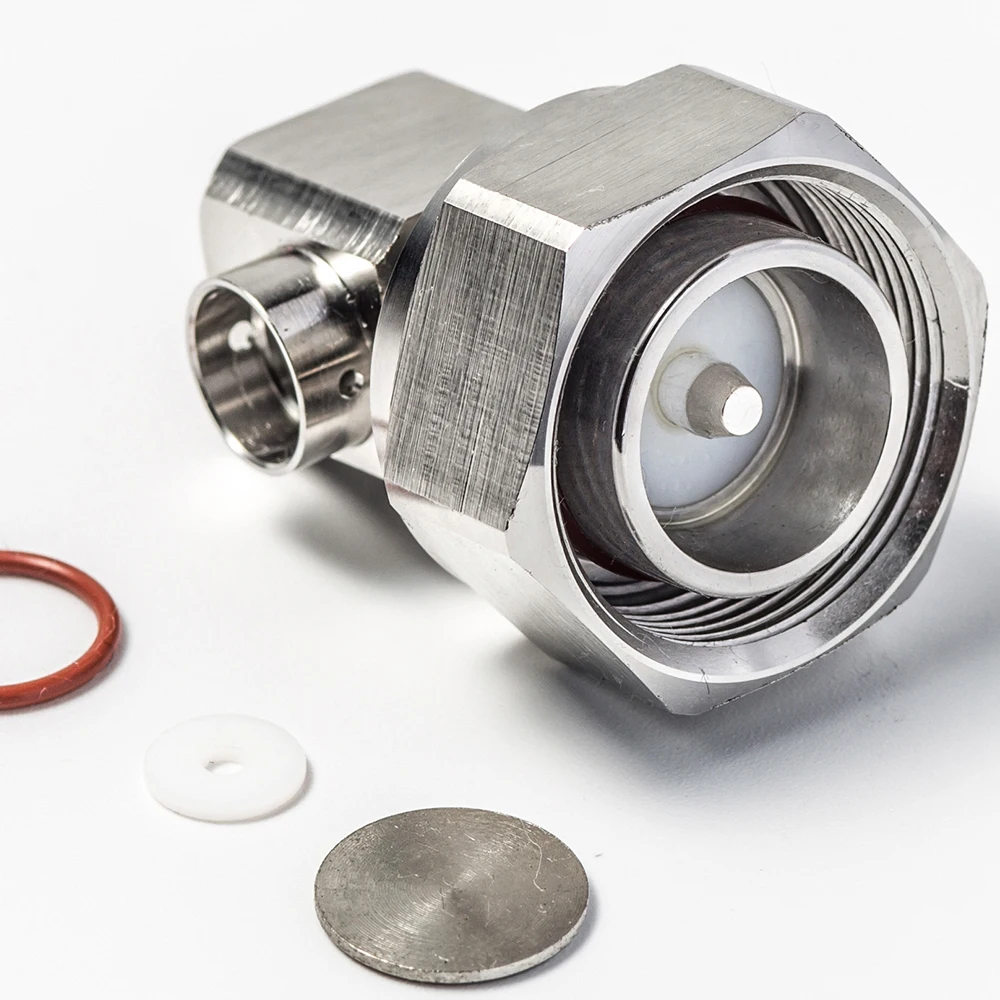

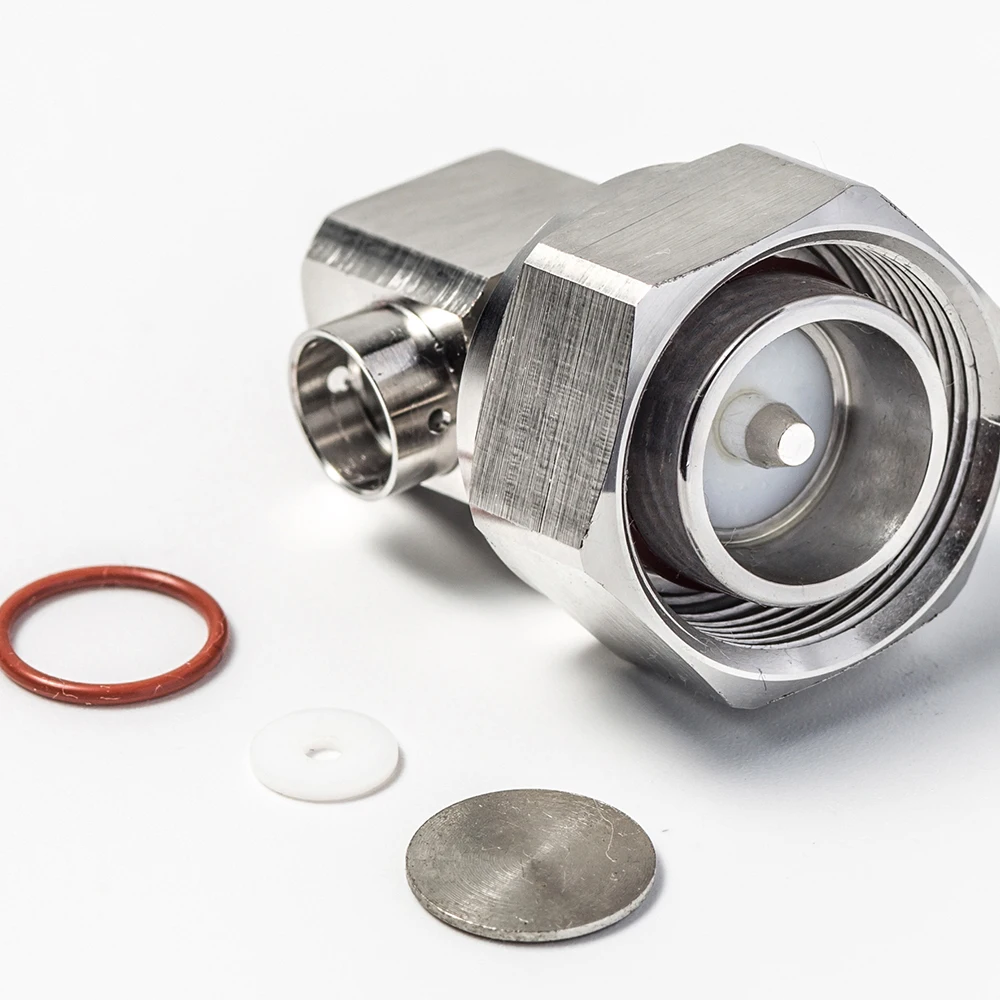

Body Type | Straight / Right Angle | Custom Requirement Call us! | ||
Attachment method | Solder / Clamp | |||
Frequency | 0-6 GHz / 0-3 GHz | |||
Interface | RG402 / SPP-250-LLPL / 1/4''S, 1/2''S, 1/2'' Cable | |||
Low PIM
Low PIM, it's in our DNA, we know what Low PIM means to our customer, Raynool manufacturer a full series of Low PIM connector, both standard and custom design.

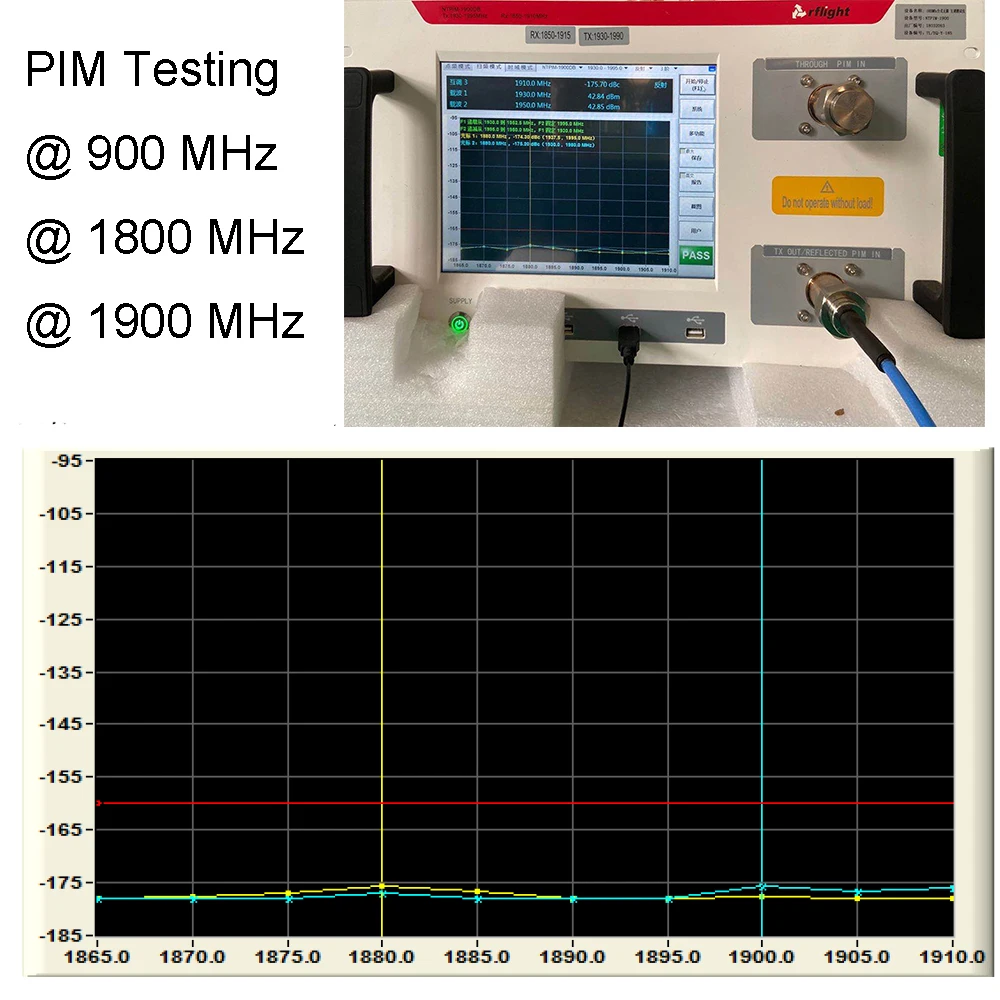

Raynool Low PIM connector have excellent PIM performance on all the popular frequency from 700 MHz, 900 MHz, 1800 MHz to 1900 MHz.
Low PIM Connector type

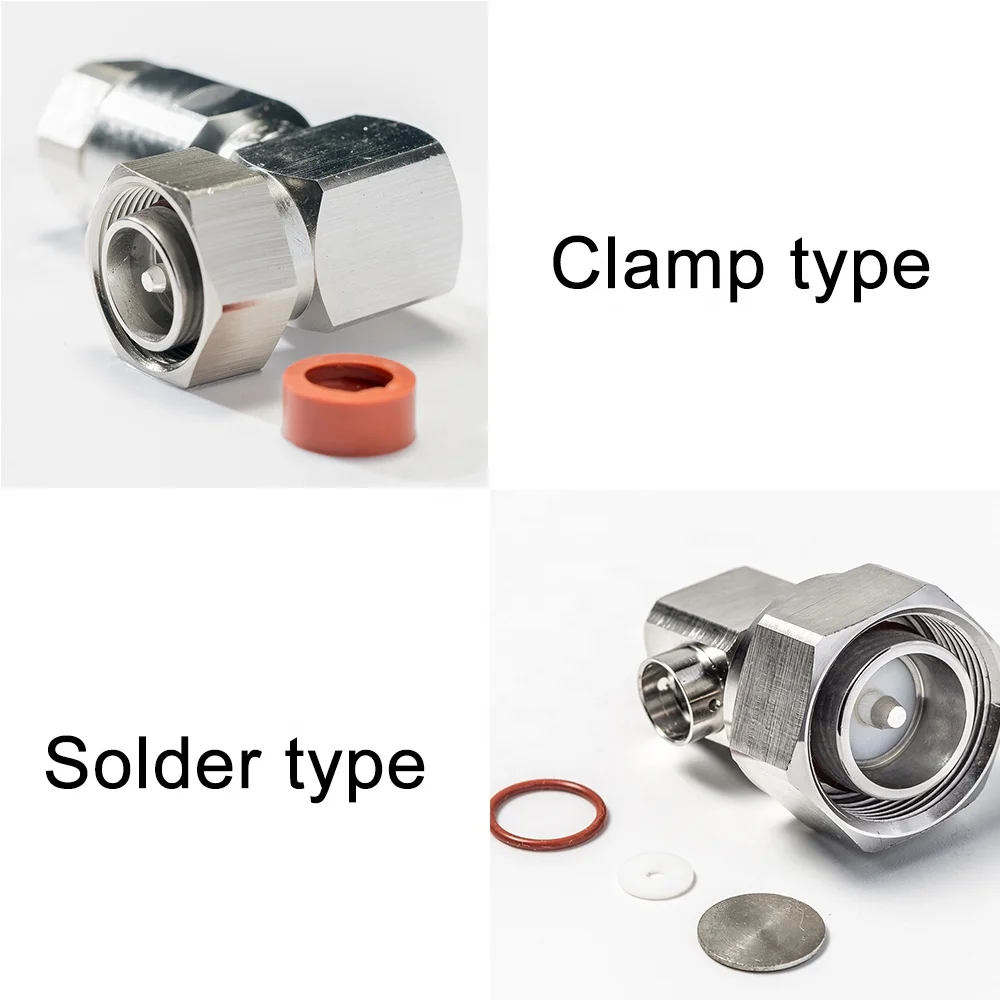

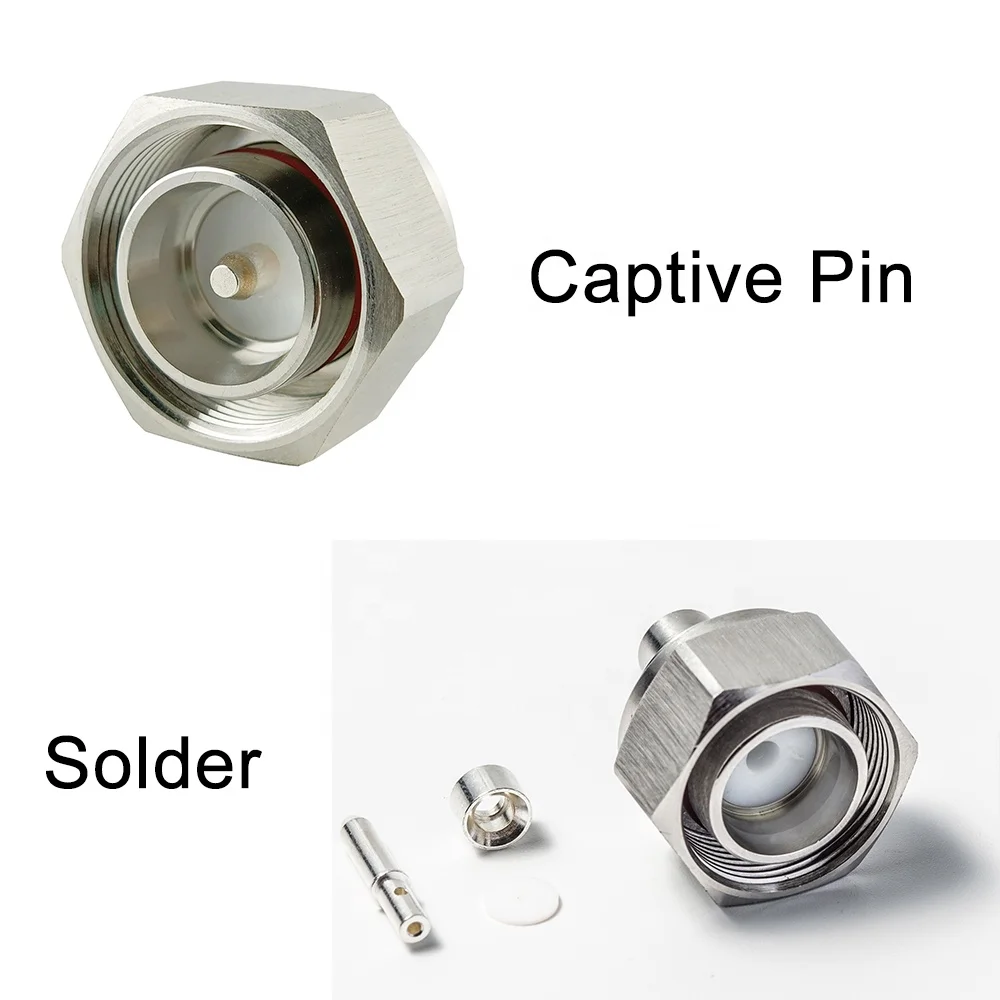

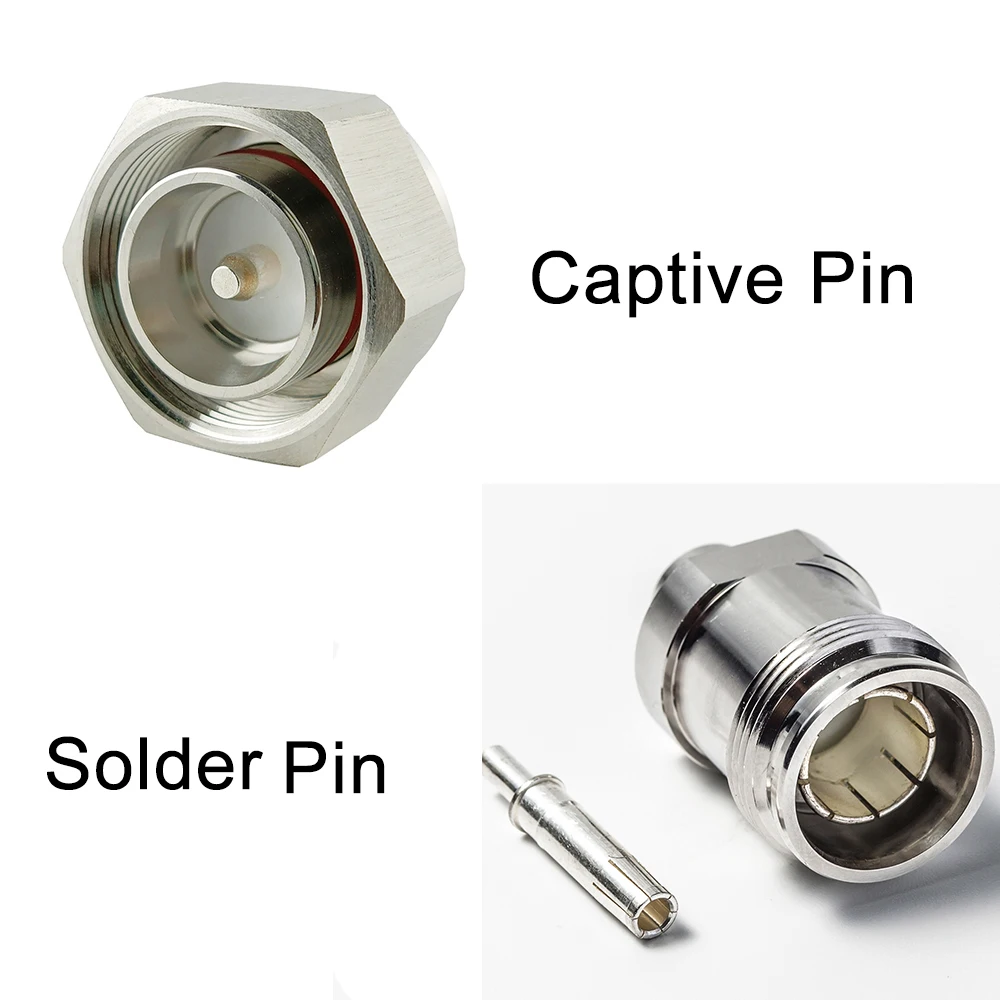

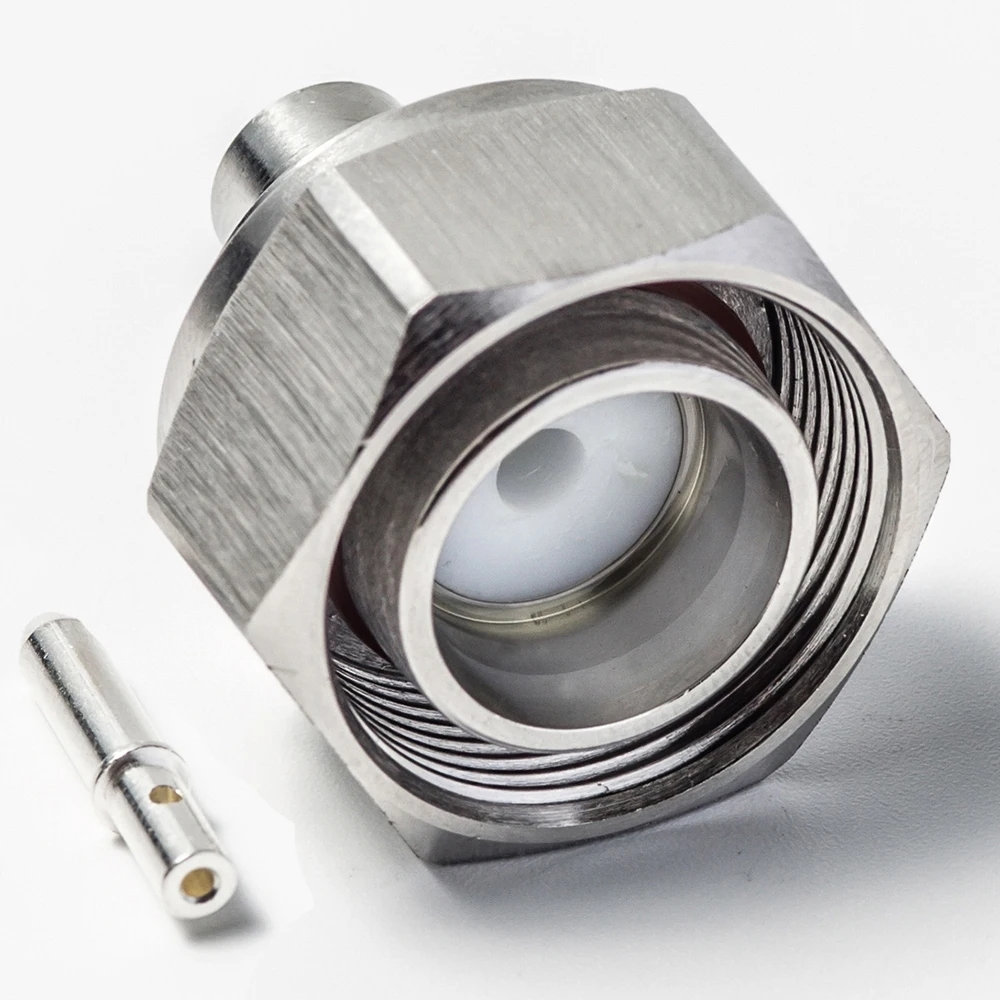

Clamp type, Solder type, Captive Pin, Solder Pin, Straight, Right Angle
BeCu(Beryllium) Contact available for high performance requirement.
Design-in High quality solution
Meet the high end market.
Raynool provide customized, design-in solution for the high end market.
Cost optimized solution
Quality guarantee & cost control
Raynool's Low PIM connector is quality guarantee, and the most important thing is to meet your budget
Take a look at our new 5G connector 2.2-5 series
Ideal for 1/4'' Superflexible & RG402

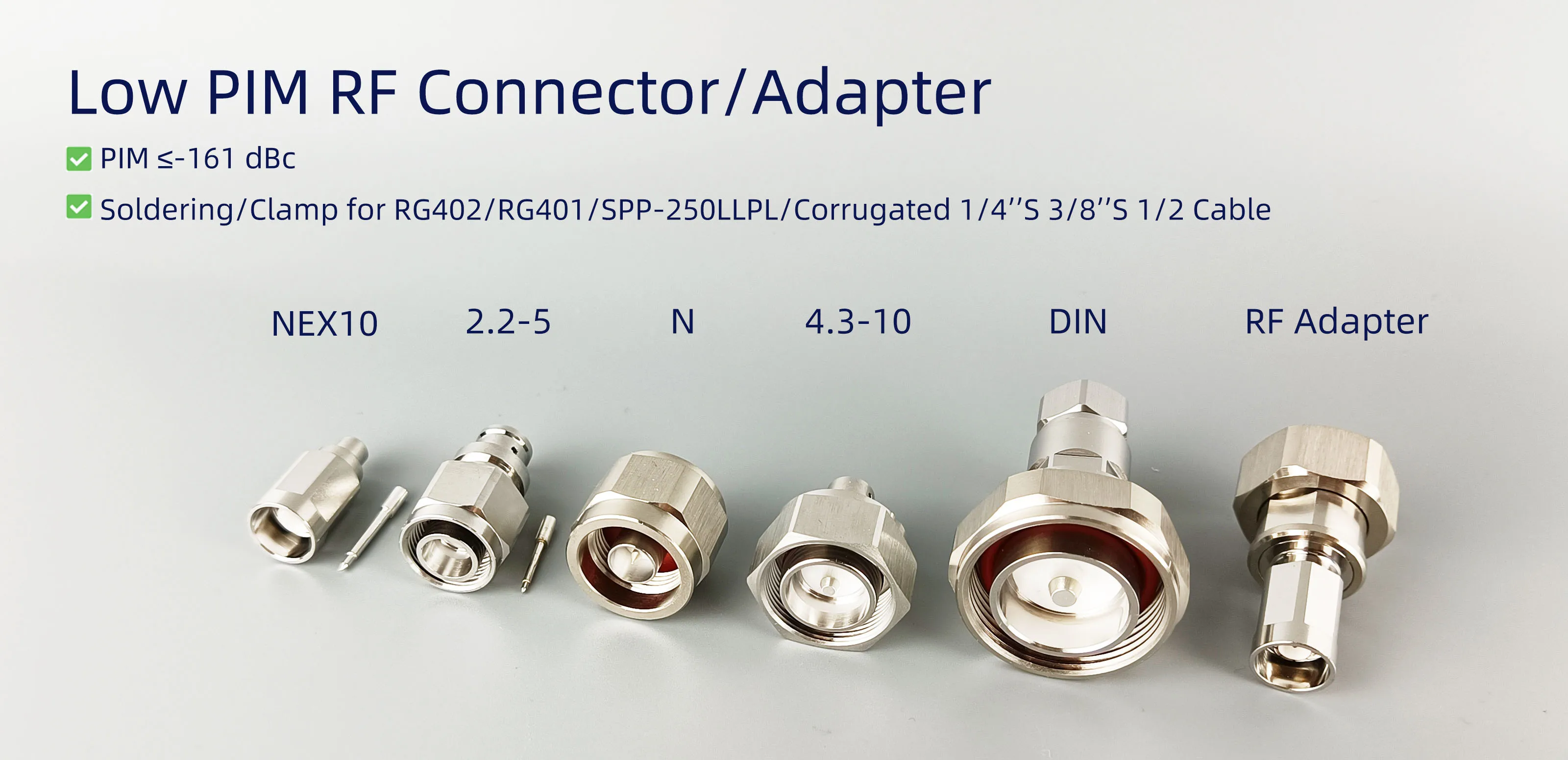

NEX10 features a compact design which is 50% smaller than 4.3-10.
NEX10 | 4.3-10 | DIN | N | |
Passive Intermodulation | -166dBc @2*43dBm | -166dBc @2*43dBm | -165dBc @2*43dBm | -155dBc @2*43dBm |
Power Handling | 100W(2GHz) | 500W(2GHz) | 1000W(2GHz) | 300W(2GHz) |
Frequency Range | 20GHz | 6GHz | 6GHz | 6GHz |
Return Loss | 36dB@4GHz 34dB@6GHz | 36dB@4GHz 32dB@6GHz | 36dB@4GHz 32dB@6GHz | 36dB@4GHz 32dB@6GHz |
Coupling Mechanisms | Screw Push Pull Hand Screw | Screw Push Pull Hand Screw | Screw | Screw |
Packaging Density | 12.7mm | 25.4mm | 32mm | 25.4mm |
Small Cell and MINO
DAS/In-building
Antennas
Outdoor and Indoor
Related Products
RG Series
RG8
RG58
RG174
RG178
RG316
RG213
RG214
RG400
RG401(.250'')
RG402(.141'')
RG405(.086'')
LMR Series
LMR195
LMR200
LMR300
LMR400
LMR600
Corrugated Cable
1/4''S flex(FSJ1-50A)
1/2''S flex(FSJ4-50B)
1/2'' standard(LDF4-50A)
7/8'' standard(LDF5-50A,AVA5-50)
Company Profile
Expert--Low PIM,Low Loss,High Frequency products
Raynool can provide practical guidance on the optimum combination of coaxial cable and connectors to meet specific electrical and mechanical requirements for a customer’s operating frequency band and temperature ranges.
Raynool technology Co.,ltd has Its own R&D team ,and focuses on manufacturing RF connector, Cable assemblies, high speed cable assembly, and accessories for Wireless Infrastructure.
Connector
Coax Cable
Cable Assembly
Manufacturing Technique
Connector Line
Coaxial Cable Line
Cable Assembly Line
Quality Control
Certifications
Why Choose Us
Provide Excellent service to our customer
No matter you order 1 pcs or 1 meter
You will get the same quality service.
Cable, Connector, Cable Assembly.
Raynool can help you.
FAQ
Q:Could you please advise reference list of customers?
A: We are an OEM manufacture of Amphenol & Rosenberger.
Q: Could you accept custom products?
A: Raynool is a custom solution provider,especially in Low PIM products,pls contact our sales and share the specification to us.
Q: What is your MOQ?
A: Our MOQ is normally 200 pcs.
Q: How about the Lead Time?
A: For connector, the LT is 2 weeks.
For Cable Assembly, the LT is 3 to 4 weeks.
For Coaxial Cable ,the LT is 4 weeks.
