A dozen coke automatic sealer sleeve shrink wrapping machine price sealing machine
Performance Features

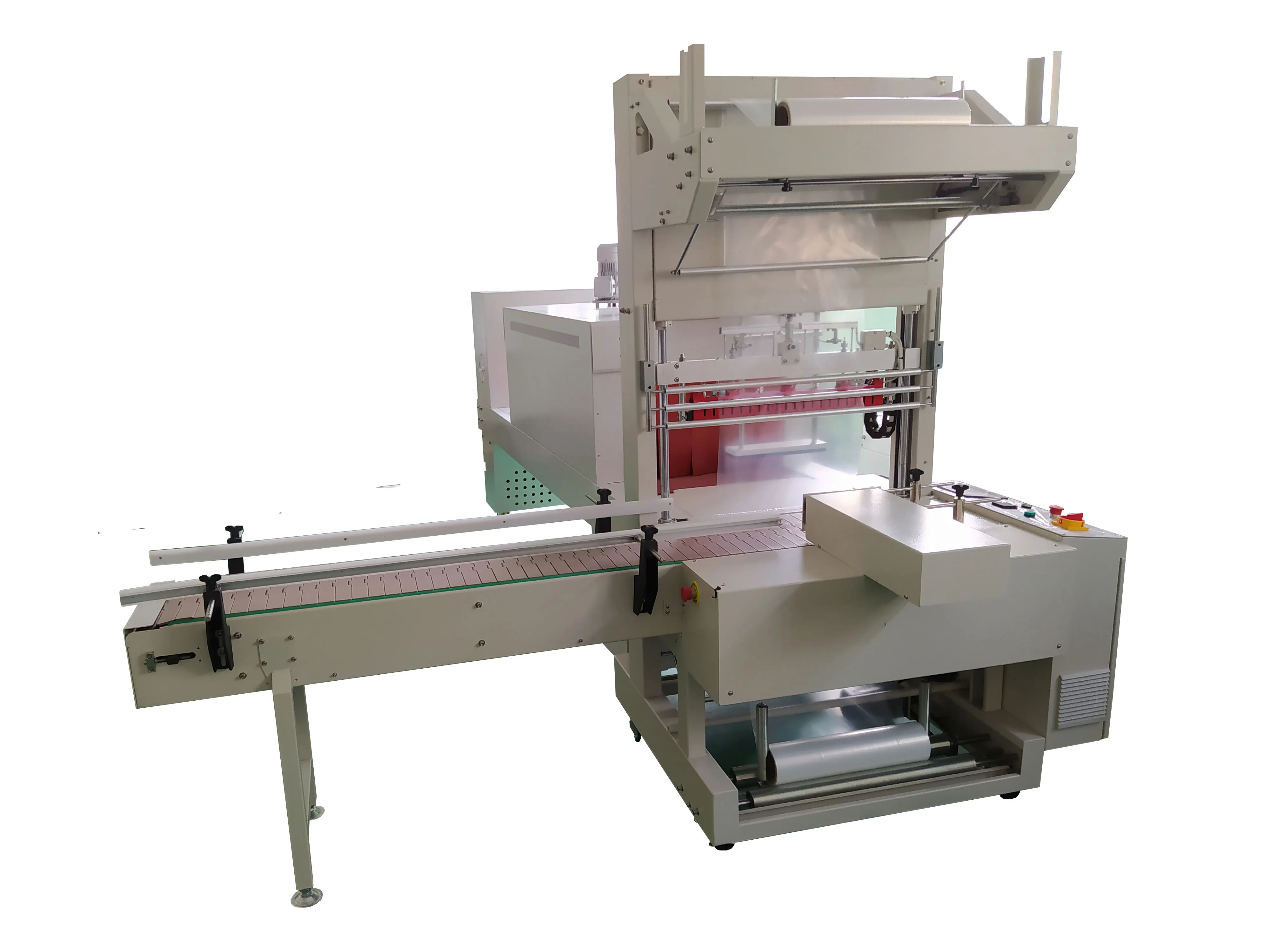

•TFZ6540L fully automatic sleeve sealer with side feeding design, suitable for lighter items of single or collection packaging.
•Sealing knife uses the special steel knife with Daikin Teflon which is anti-stick coating & anti-high temperature. So the sealing will not have cracking, coking and smoking.

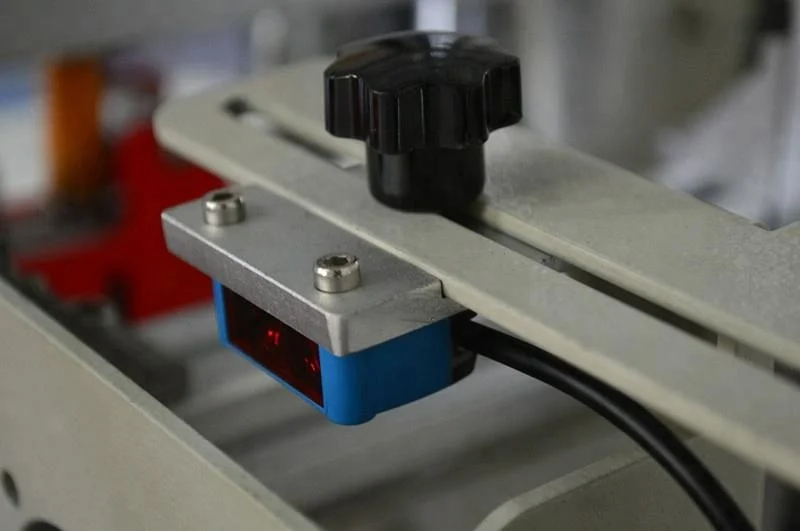

•Imported photoelectric sensor, positioning accuracy, fast response.
•Adopt Panasonic PLC programmable controller and WEINVIEW 7-inch man machine interface, simple operation.
•The separate control box makes it easy to use for operator.
•Equipped with pressure device makes sure the position is stable even for the light product during the procession.

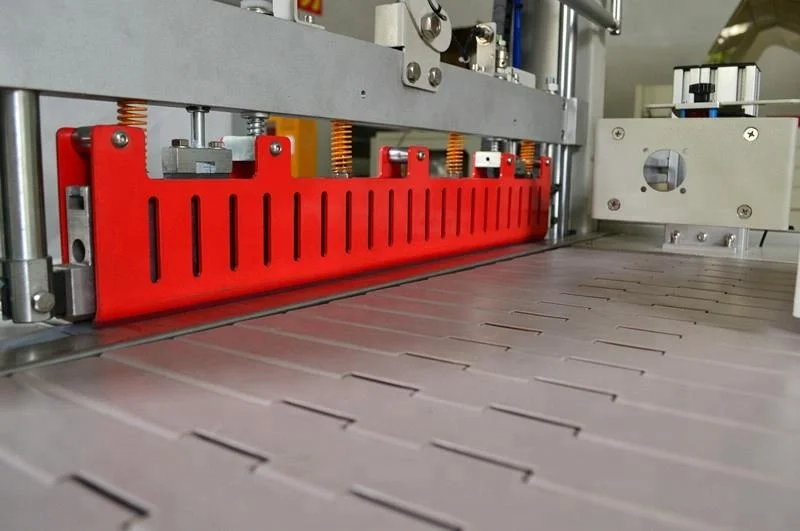

•The sealing blade itself is also quipped with automatic protection function which effectively prevent from accidental cutting.
•The entire machine realizes unmanned operation with the production line connecting.
•Automatic mode and manual mode can be switched at any time which convenient to replace the shrink film.
Application Range

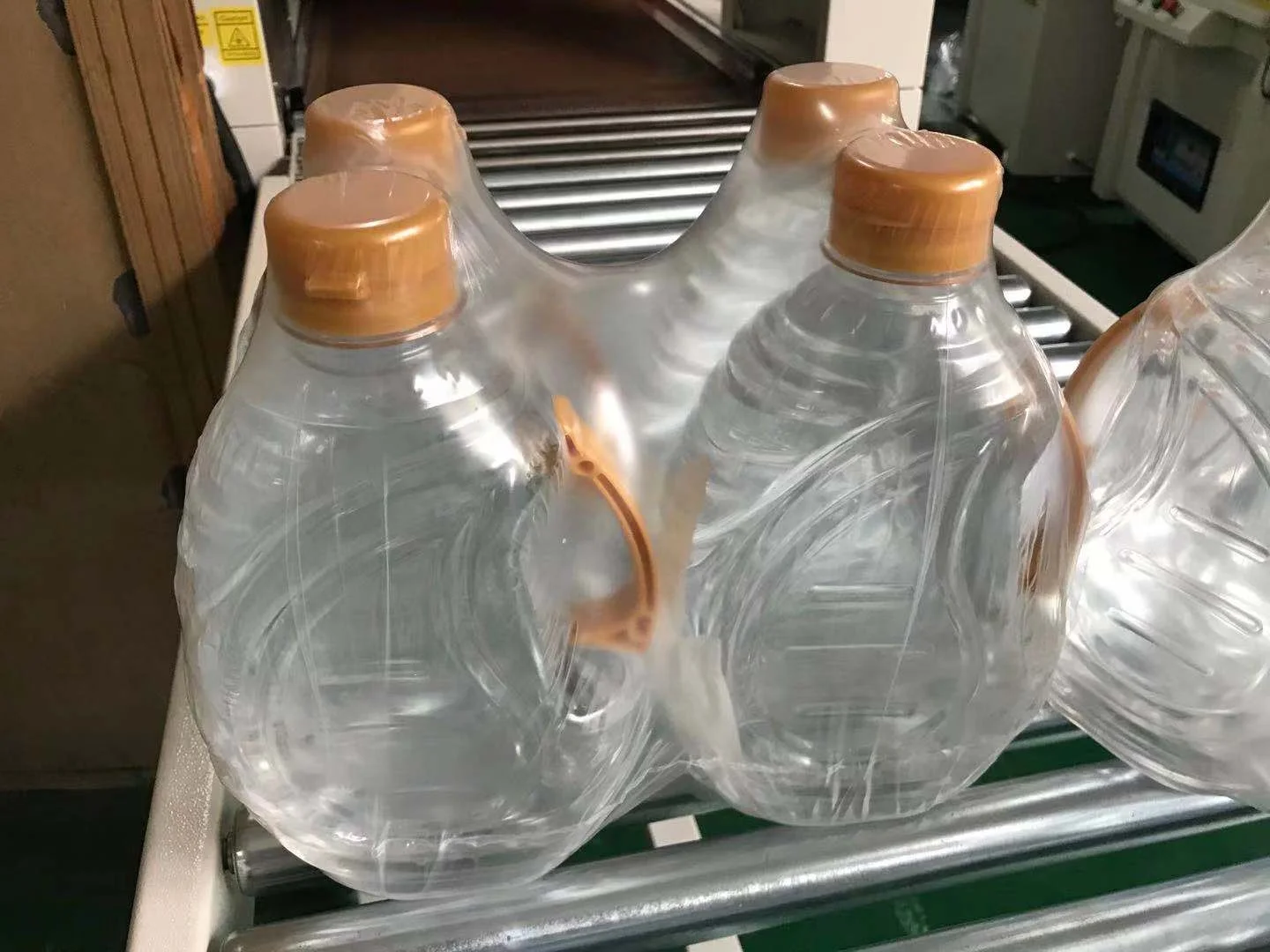

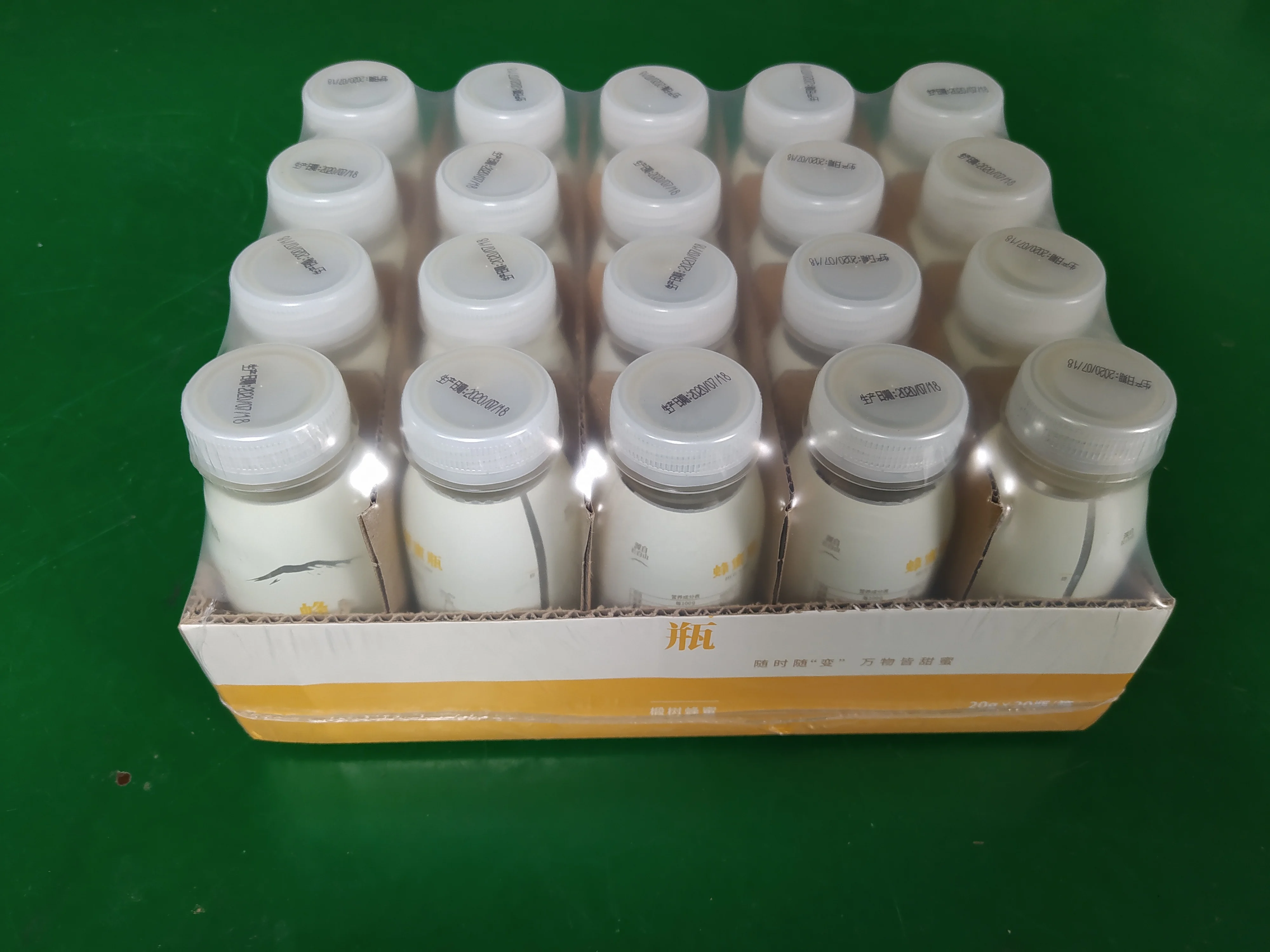

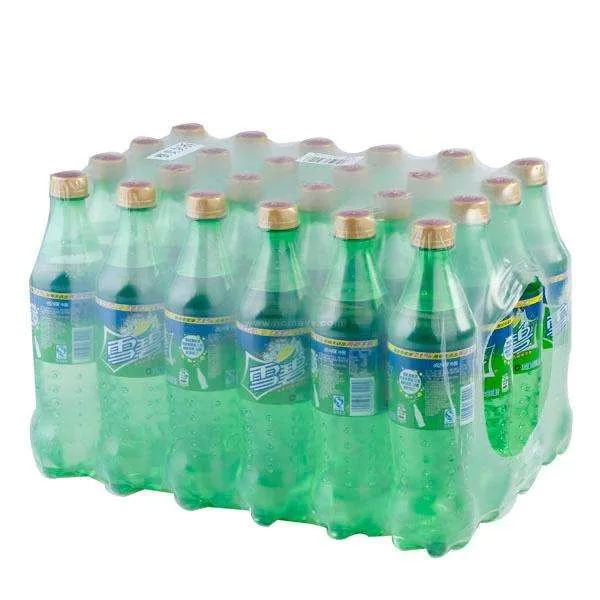

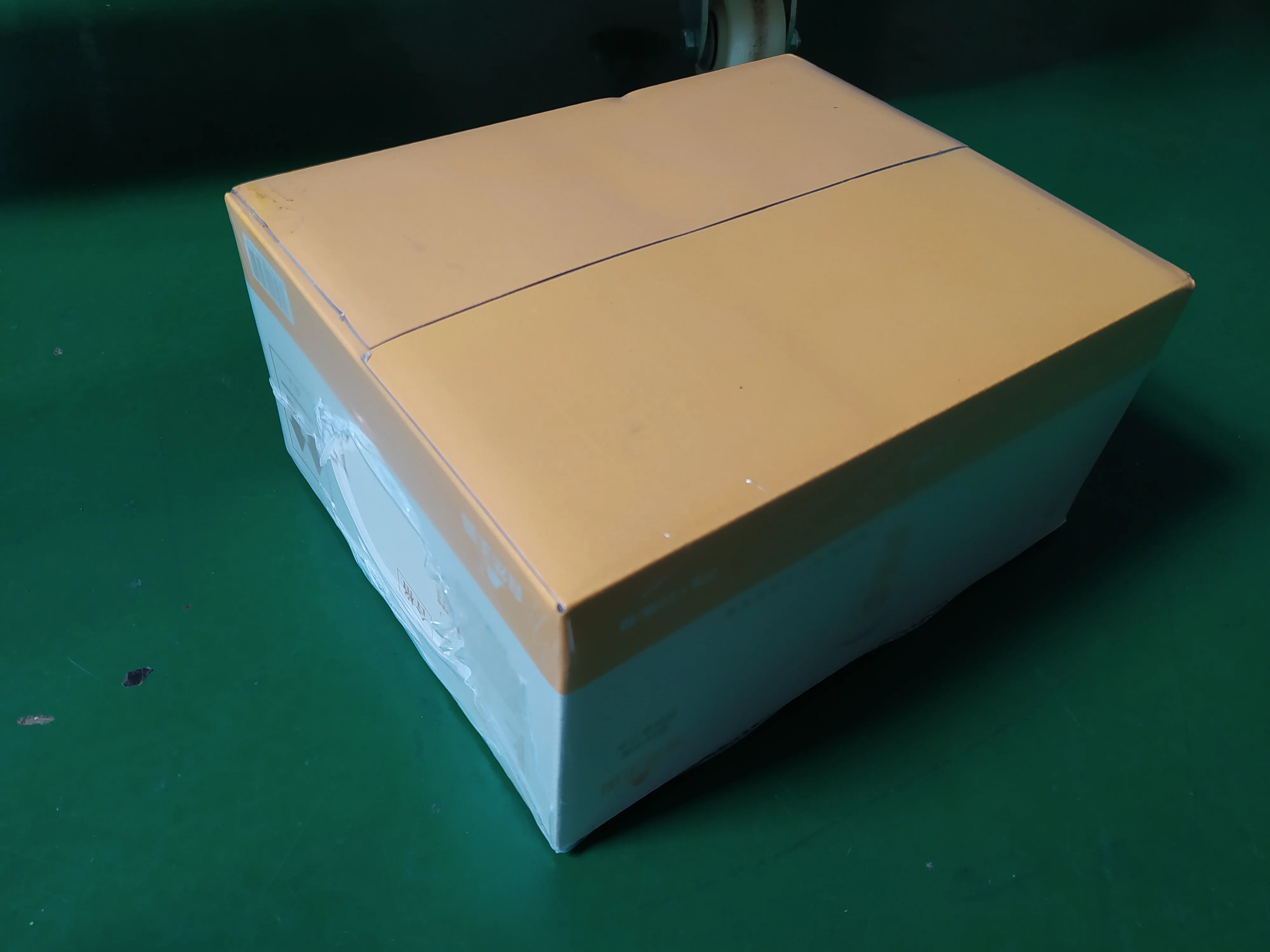

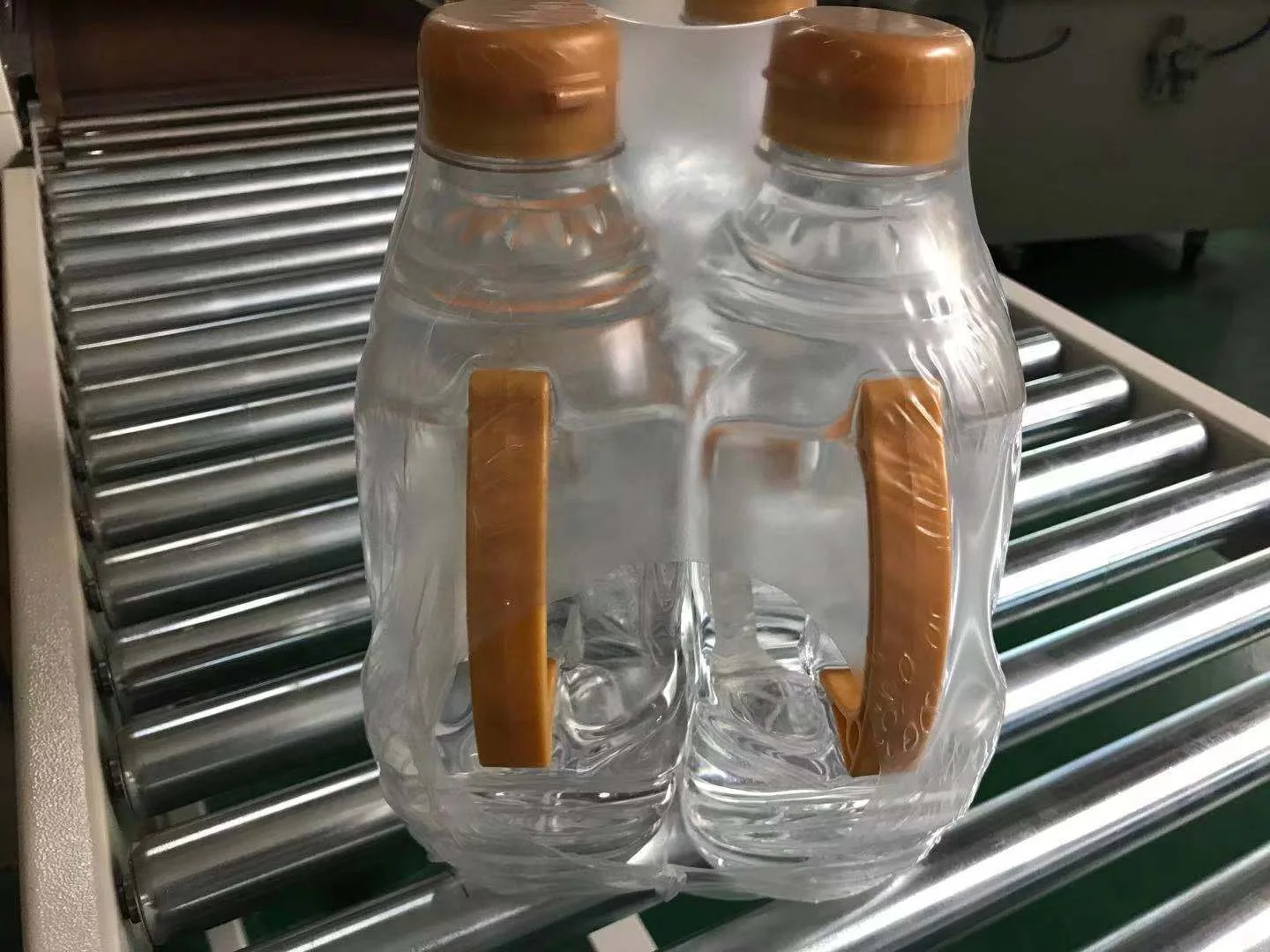

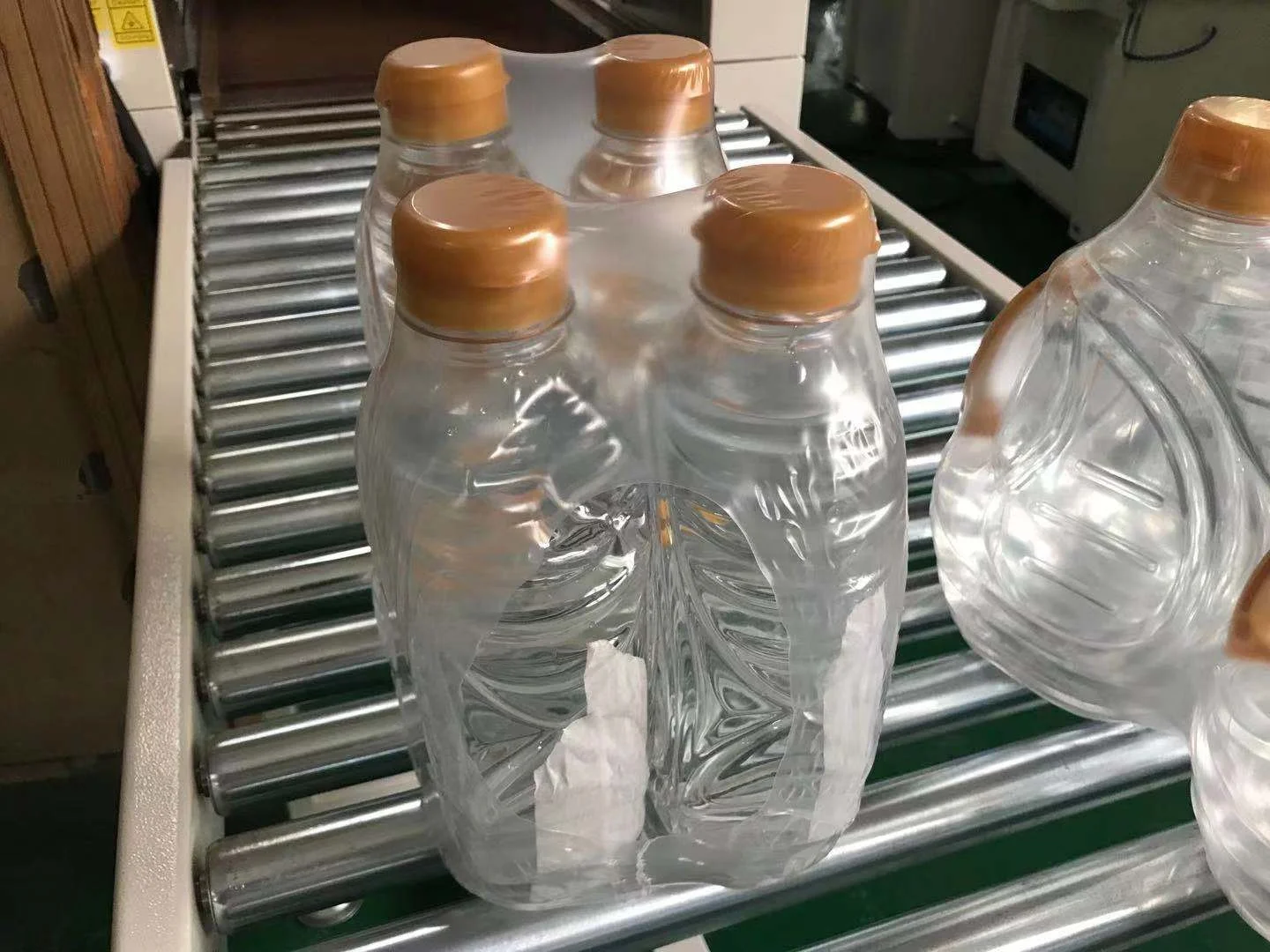

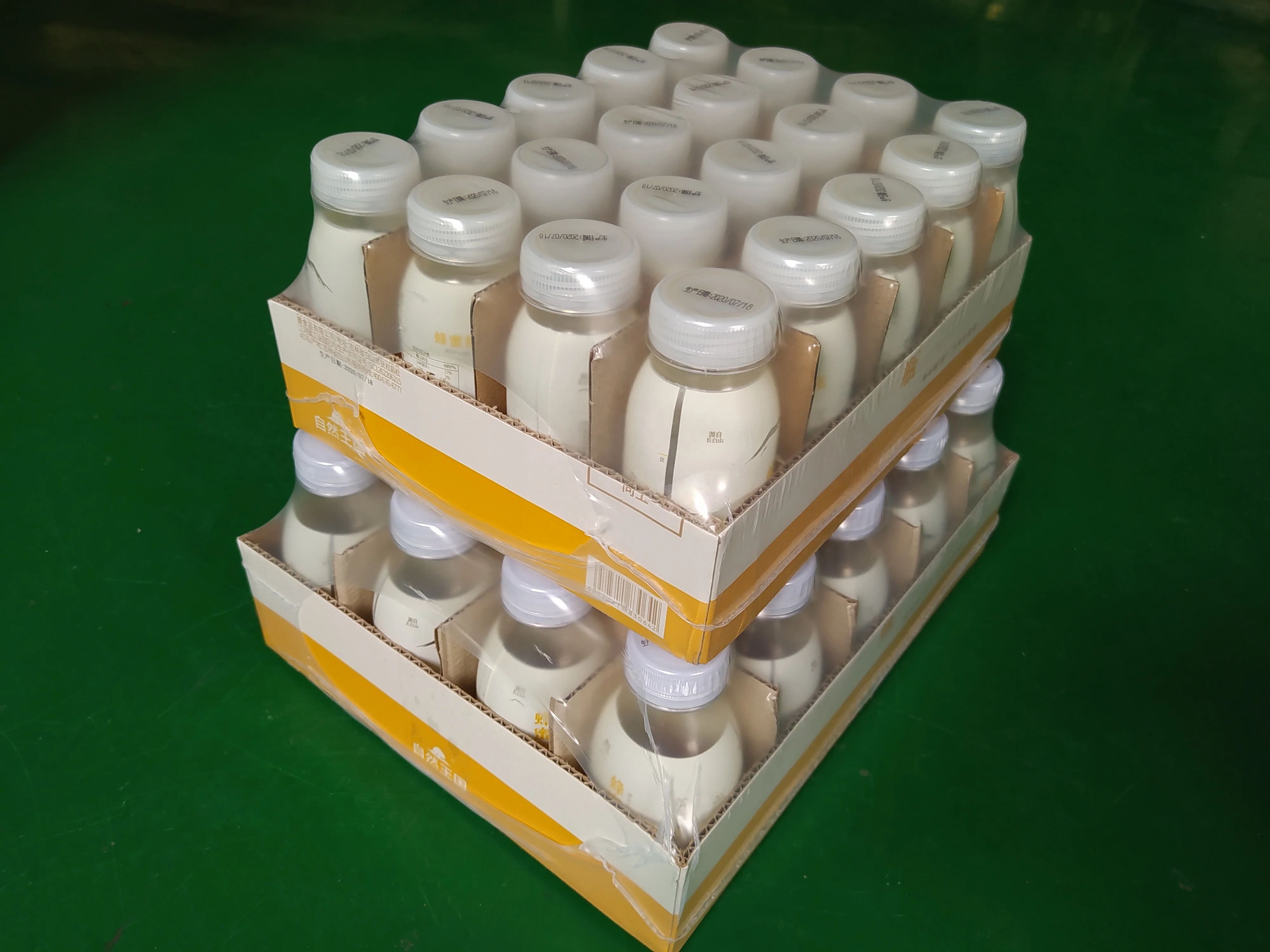

This machine is mainly applied to the longer products, such as cartonspaper trays which contain drink, beer, water, canglass bottles collectionsingle shrink wrapping.
![H3RH0}S[]RYTH]EV``2)WD.jpg](http://sc03.alicdn.com/kf/H64cdef1edd354a0da78bc60bf123684c8/229743863/H64cdef1edd354a0da78bc60bf123684c8.jpg)
Technical Parameter
Model | TFZ-6540L |
Power Supply | AC 220/380V 3PH 60Hz |
Power | 1.8KW |
Max. Packing Size | (L)≤450mm;(W)≤300mm;(H)≤380mm |
Sealing Size | (W)650mm |
Table Height | 800mm |
Packing Speed | 10-15pcs/min(decide on product size) |
Air Source | 6kgf/cm2 |
Shrink Film | PE |
Film Size | (W)≤550mm;(D)≤250mm;(G)≤35KG |
Sealing Type | Sleeve type |

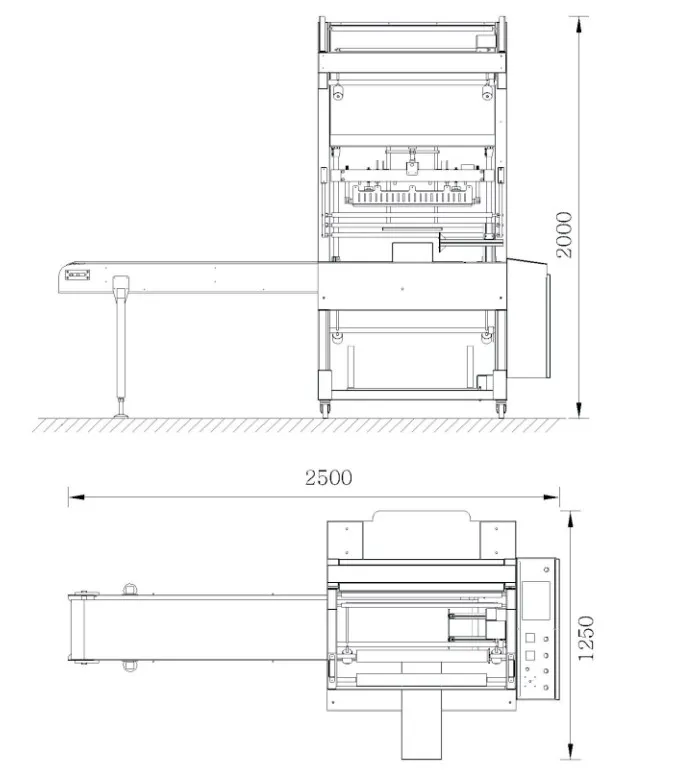

Machine Size | L2460×W1230×H2000mm |
Package Size | L2550×W1350×H2150mm |
G./N. Weight | 420/330kg |
Model | BS6040PE |
Power Supply | AC 220/380V 3PH 60Hz |
Power | 22KW |
Table Height | 800mm |
Conveying Load | 30KG |
Conveyor Speed | 1-15m/min |
Tunnel Size | L1800×W600×H400mm |
Machine Size | L2800×W850×H1600mm |
Package Size | L2850×W940×H1780mm |
G./N. Weight | 540/450KG |
Product Detail

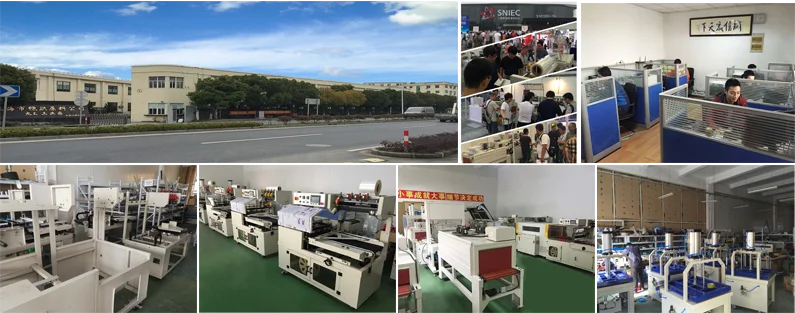

Company Information
Packaging & Shipping
Packaging Details: Standard Export Wooden Cases.
Delivery Detail: Standard machines are available in stock.
FAQ
Q1: How do we test your machine?
When the machine complete manufactured, we will send video for you check , you can also come to our factory to test and learn how to operate it.
Q2: What information shall I provide you when I need your offer?
Normally, please tell us what product you plan to pack and please send me your product weight(L*W*H) with weight then we can quote exactly what you need.
Q3: More questions or information please feel free to contact us at any time!
