HCTL A50 60 jigs Wholly automatic hypodermic syringe needle assembly machine
- Category: >>>
- Supplier: Zhejiang Huanchou Mechanical Equipment Manufacturing Co. Ltd.
Share on (1600511198920):
Product Overview
Description

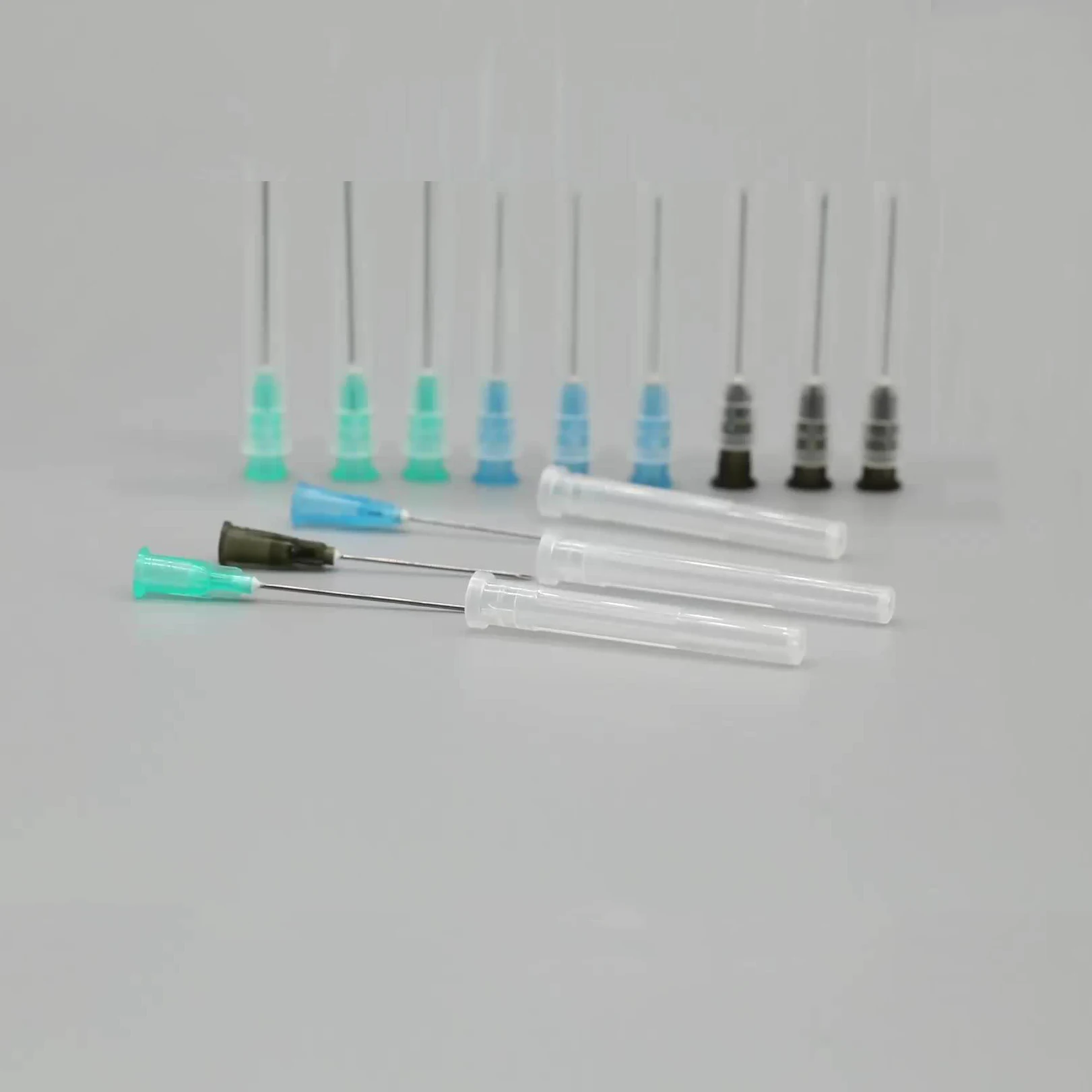

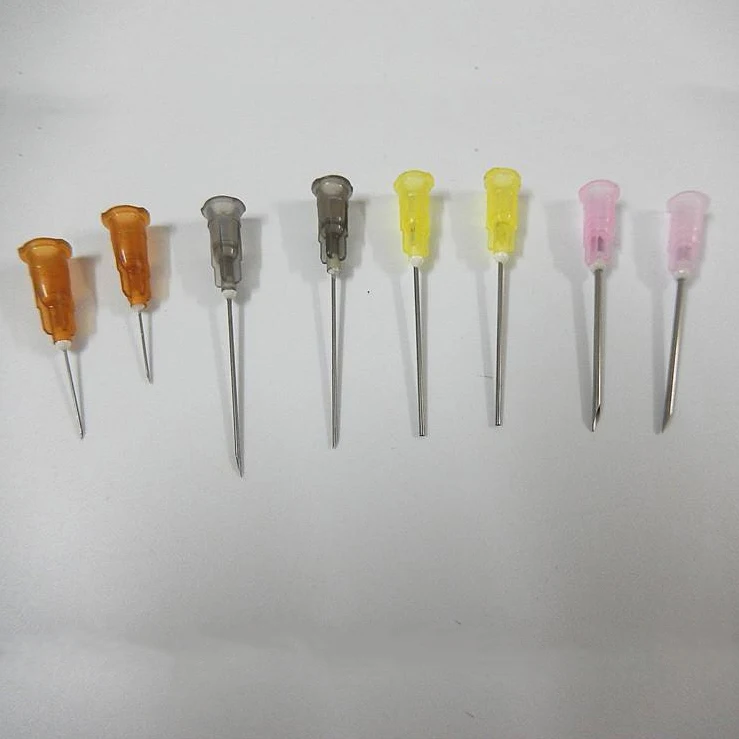

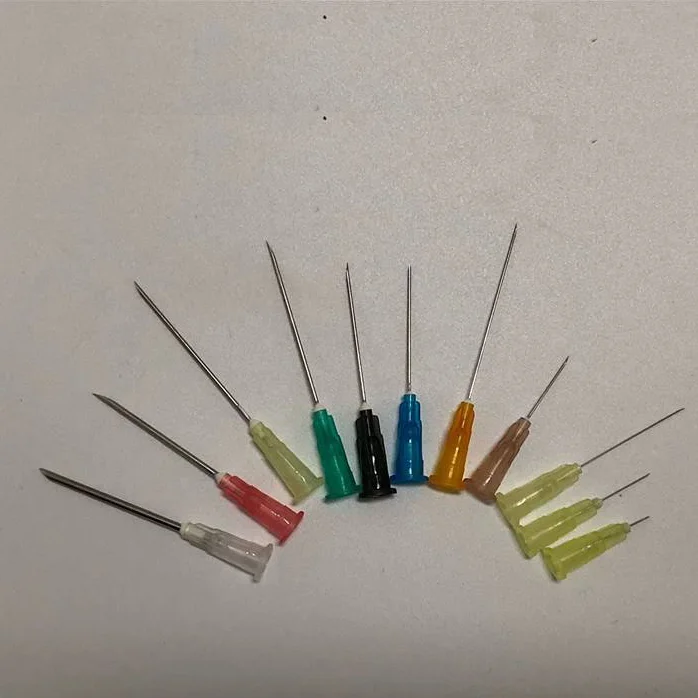

Automatic Hypodermic Needle Assembly Machine
1、Configuration of the machine: Japan Omron programmable controllers, touch screen control system, servo motor mechanism Tim glue, glue stationary process,the detection system used in Japan Keyence CCD image aerodynamic configuration using imported components.2、Assembly process:
1Needle hub loadin—>2 pressing needle hub— 3assembly of cannula —4 gluing (epoxy resin glue) —5 curing in oven fixture cooling —> 6 detection of blockage— 7 CCD detection of burr and inverted cannula —> 8 silicification — 9 unqualified extraction —> 10 cap loading— 11* pressing cap —> 12 unloading Assembly
1Needle hub loadin—>2 pressing needle hub— 3assembly of cannula —4 gluing (epoxy resin glue) —5 curing in oven fixture cooling —> 6 detection of blockage— 7 CCD detection of burr and inverted cannula —> 8 silicification — 9 unqualified extraction —> 10 cap loading— 11* pressing cap —> 12 unloading Assembly
3、The machine is equipped with alarm device, such as breakdown, material blocking, lack of air pressure, lack of silicone oil, will alarm.
4、 Resistant nylon strip shall be provided at all the places where the equipment fixtures contacts the table surface to reduce the powder and foreign matters etc.when friction.
5、:Capicity: 24G, 23G, 22G, 21G 68,000pcs per hour;26G,25G, 18G, 16G 50,000 pcs per hour.
6、 Machine need 2 operators
4、 Resistant nylon strip shall be provided at all the places where the equipment fixtures contacts the table surface to reduce the powder and foreign matters etc.when friction.
5、:Capicity: 24G, 23G, 22G, 21G 68,000pcs per hour;26G,25G, 18G, 16G 50,000 pcs per hour.
6、 Machine need 2 operators
Aluminum parts | 6061 (with hard treatment in surface) | 3-5ML | 10ML | 20ML | 30ML | ||||
Machine parts | A3 steel 45 steel and stainless steel, etc | 220-240 PCS/MIN | 180-200 PCS/MIN | 160-180 PCS/MIN | 140-160 PCS/MIN | ||||
Main frame | 45# square tube composition (baking paint in surface) | ||||||||
Main frame table | 45# steel (anti rust paint is sprayed on the surface) Panel 304 stainless steel (surface shockproof) | ||||||||
RATED VOLT | 380V/50HZ | ||||||||
EQUIPMENT SIZE | 11000*3500*1980MM | ||||||||
POWER | 14KW | ||||||||
WEIGHT | 3000KG | ||||||||
AIR PRESSURE | ≥0.6MPA | ||||||||
Q1: Are you factory or trading company?
A: We are factory located in Jinhua Xiaoshun, Zhejiang Province with convenient transportation , prosperous economy and trade.Welcome to your visit.
Q2: How to get a target quotation for my product?
A: Please let us know the detail product spec (including type, size, structure etc), production capacity requirement etc.
Q3: Please clarify the whole business process .
A: 1) Quotation confirmed and PI/Contract signed
2) Deposit and syringe samples arranged
3) Production arranged after getting deposit and confirmation of samples and drawings
4) Trial running/test running at our site before the shipment. The result will be confirmed by the clients on site or online,or by the third party.
5) Balance payment arranged and shipment arranged
6) Installation technical support and operator training through internet
Q4: Are your engineers available for overseas service?
A: Yes.we have domestic engineers who can go to your factory for installation and maintenance. We also have local technical team in Egypt, Brazil and Russia. However, due to the uncontrollable spread of COVID19 virus, remote video guidance can only be provided at present.
Q5: How to make sure the machine quality after placing the order?
A: Our product quality is with high reputation among all our clients based on our decades experience.
1) Machine trial running/test running at our site,you can come and do the on-site check or ask someone you trust to do that if you
can not arrive.We will also offer some pictures and videos and finished product samples to you for more reference.
2) Filed installation and operator training is also available when the epidemic is over. Don’t worry, online technical support
also works.
3) One-year warranty , lifelong maintenance and spare parts supply service
Q6: What payment term do you accept?
A: Usually we accept the payment by T/T. Alibaba online trade assurance order will be OK, too.
A: We are factory located in Jinhua Xiaoshun, Zhejiang Province with convenient transportation , prosperous economy and trade.Welcome to your visit.
Q2: How to get a target quotation for my product?
A: Please let us know the detail product spec (including type, size, structure etc), production capacity requirement etc.
Q3: Please clarify the whole business process .
A: 1) Quotation confirmed and PI/Contract signed
2) Deposit and syringe samples arranged
3) Production arranged after getting deposit and confirmation of samples and drawings
4) Trial running/test running at our site before the shipment. The result will be confirmed by the clients on site or online,or by the third party.
5) Balance payment arranged and shipment arranged
6) Installation technical support and operator training through internet
Q4: Are your engineers available for overseas service?
A: Yes.we have domestic engineers who can go to your factory for installation and maintenance. We also have local technical team in Egypt, Brazil and Russia. However, due to the uncontrollable spread of COVID19 virus, remote video guidance can only be provided at present.
Q5: How to make sure the machine quality after placing the order?
A: Our product quality is with high reputation among all our clients based on our decades experience.
1) Machine trial running/test running at our site,you can come and do the on-site check or ask someone you trust to do that if you
can not arrive.We will also offer some pictures and videos and finished product samples to you for more reference.
2) Filed installation and operator training is also available when the epidemic is over. Don’t worry, online technical support
also works.
3) One-year warranty , lifelong maintenance and spare parts supply service
Q6: What payment term do you accept?
A: Usually we accept the payment by T/T. Alibaba online trade assurance order will be OK, too.
