Slight heat electric industrial band ceramic heater with molding insulators and extruder
- Category: >>>
- Supplier: Yancheng Xiaoshu Technology Co. Ltd.
Share on (1600511334319):
Product Overview
Description
Product Overview

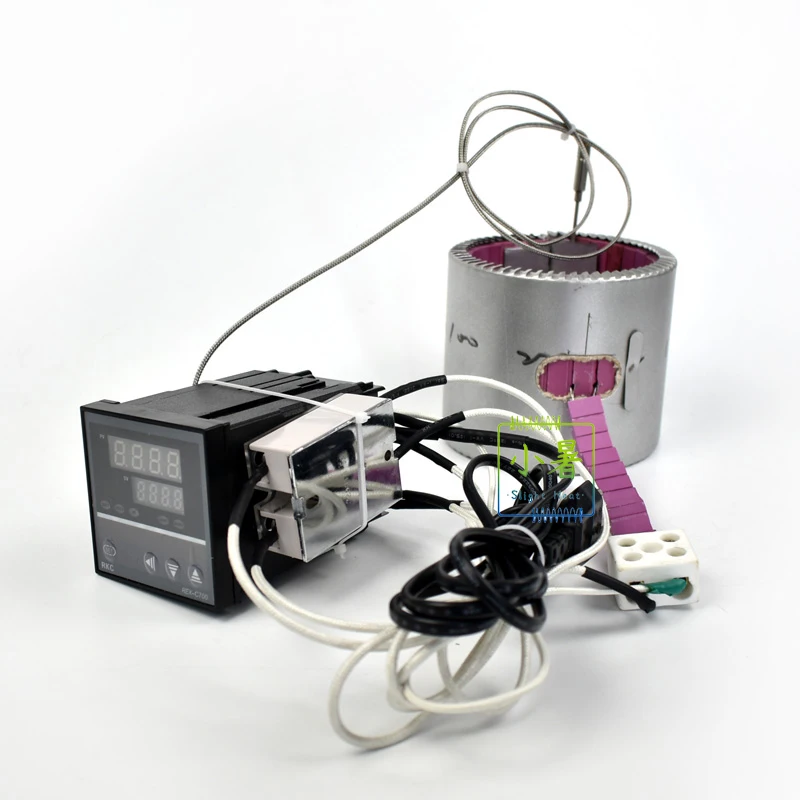

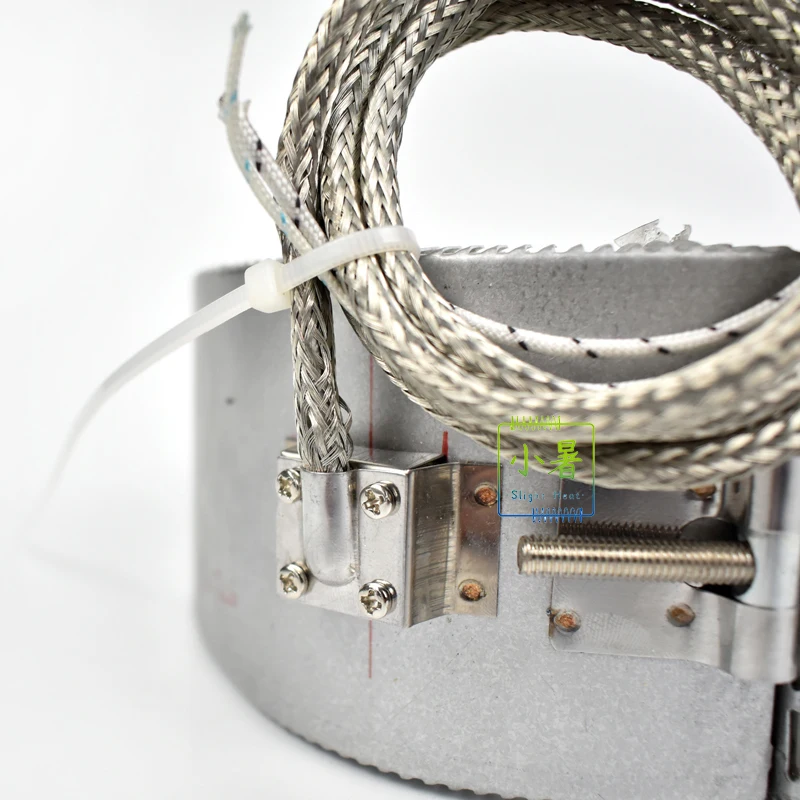

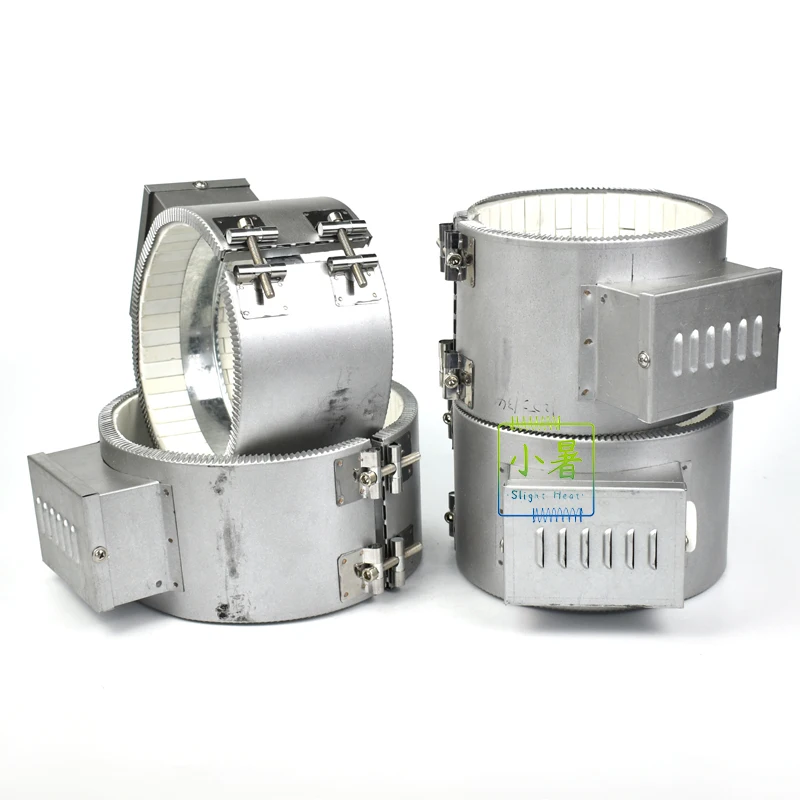

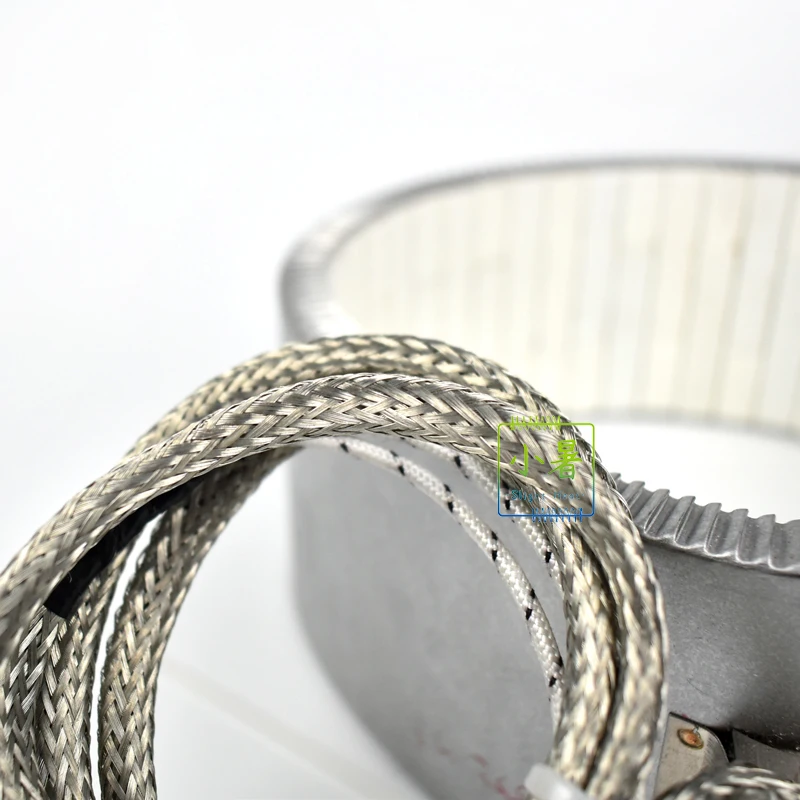

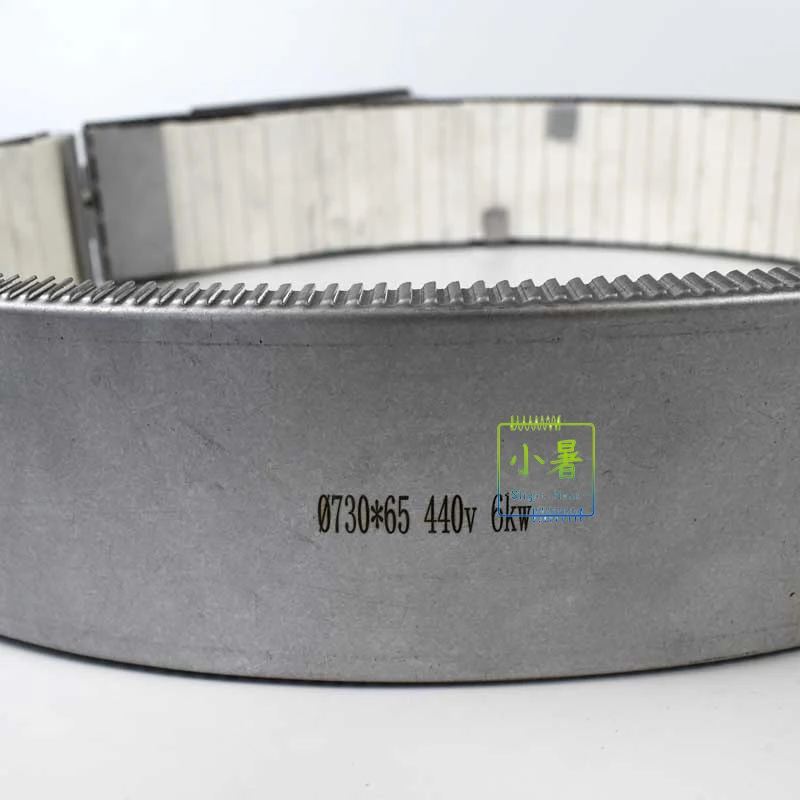

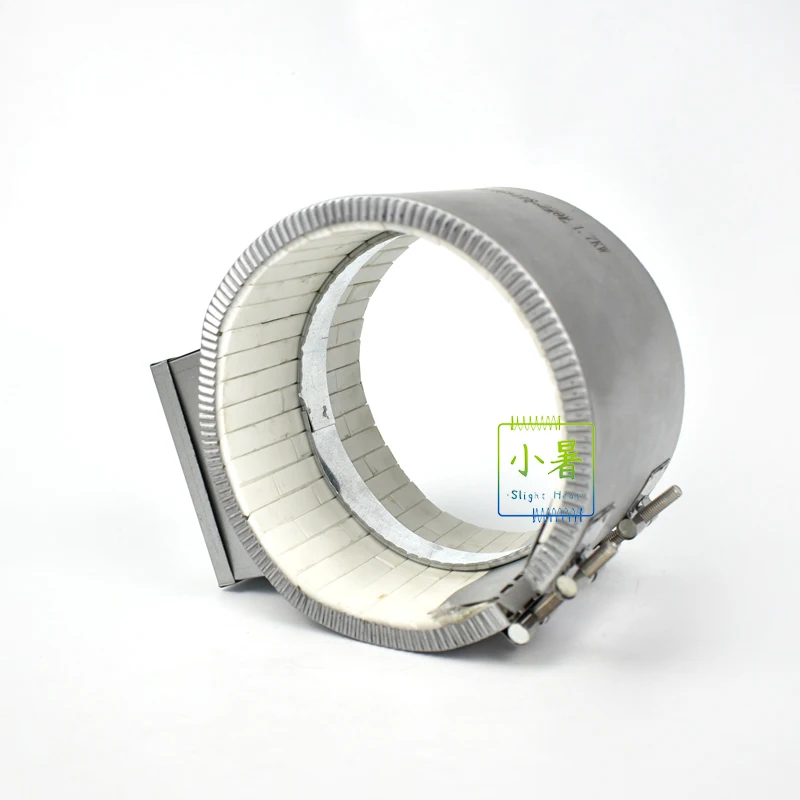

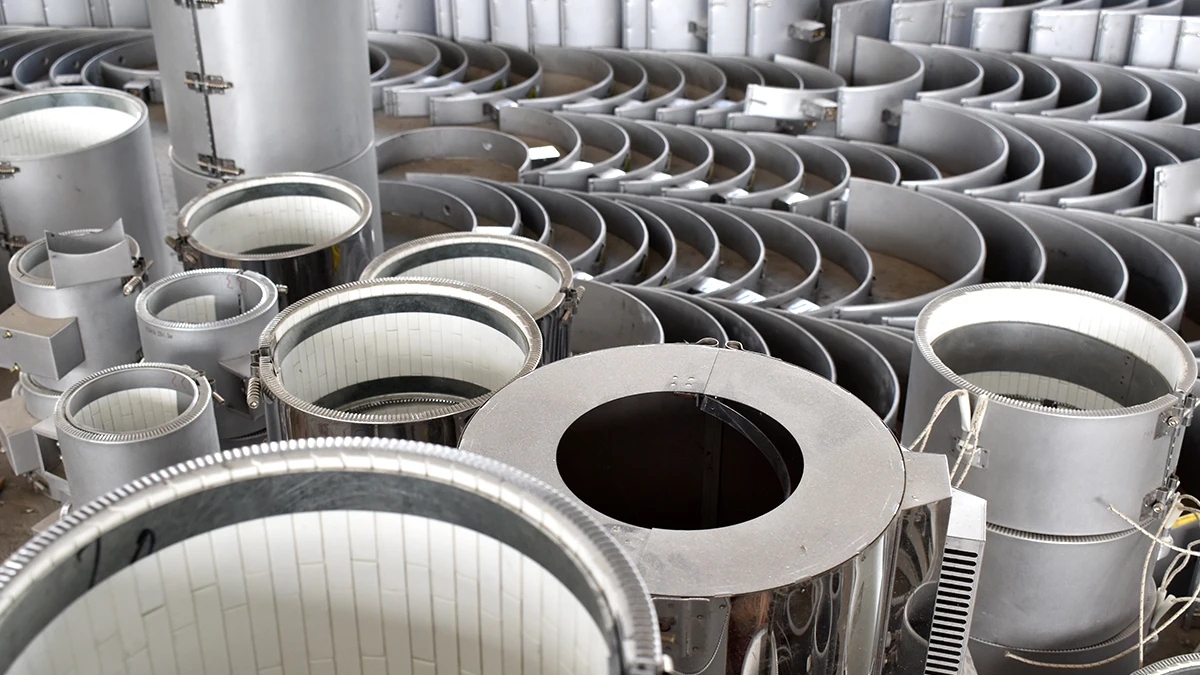

Ceramic Band heaters
Ceramic Band heaters are designed and manufactured out of 10 years of experience, for superior performance and life expectancy. Ceramic band heaters primarily used for Plastic Processing machinery, depending upon applications, these heaters come with outer heat saving insulation covers, which provides the best combination of physical strength, high emissivity & good thermal conductivity to heat cylindrical parts, good for sheath temperature up to 500deg.C along with Energy Saving.
PRODUCT SPECIFICATIONS
Sheath Material | Stainless Steel cover for ceramic band heater |

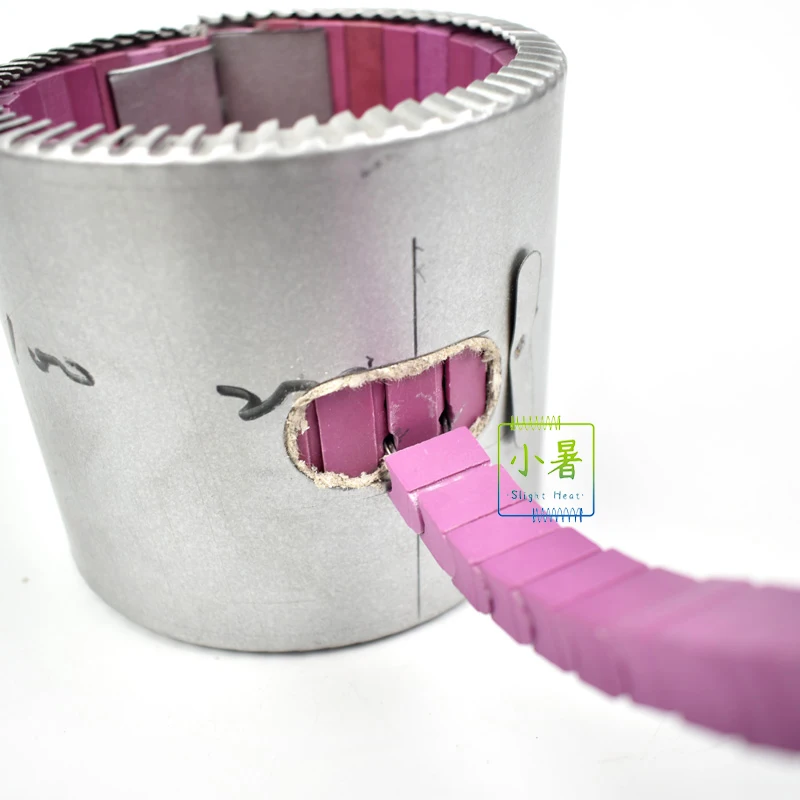

Insulators | High Grade Steatite Ceramic Insulators (High temperature) |
Heat Saving Thermal Insulation | |
Heating Elements (coil) | NiCr 80:20 |
Nominal Wall Thickness | Premium Heat : ½" Power Saver : ½" + 5/8" (Outer Insulation) Power Saver PLUS :½" + 1.5" ( Outer Insulation) |
Connection Method | |
Voltage Range | 110V - 440V, Single, Three Phase |
Surface Loading | 35-55W / inch2 (depending upon model & application) |
Power Rating | Depending upon application |
Power Tolerance | +5% to -10% |
HV Testing | 1.5 Kv between heating element and sheath |
Insulation Resistance (Cold) | |
Sheath Temperature | Up to 500°C maximum (Chrome Nickel Steel sheath) |
5 - 10mm | |
Resistance | +/- 10% |
Minimum 50mm and there after multiples of 15mm. Minimum 100mm in case of Power saver & Power Saver PLUS | |
Minimum 50mm Minimum 75mm incase of Power saver & 100mm for Power Saver PLUS |
Applications of Ceramic band heaters:
.

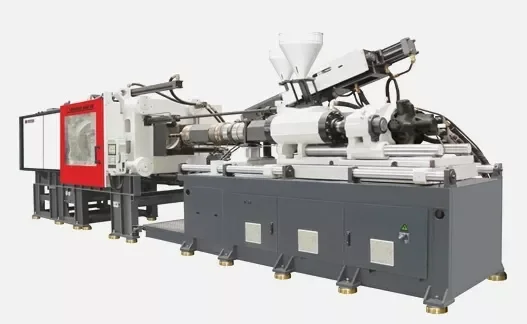

1.Plastic Injection Molding Machines

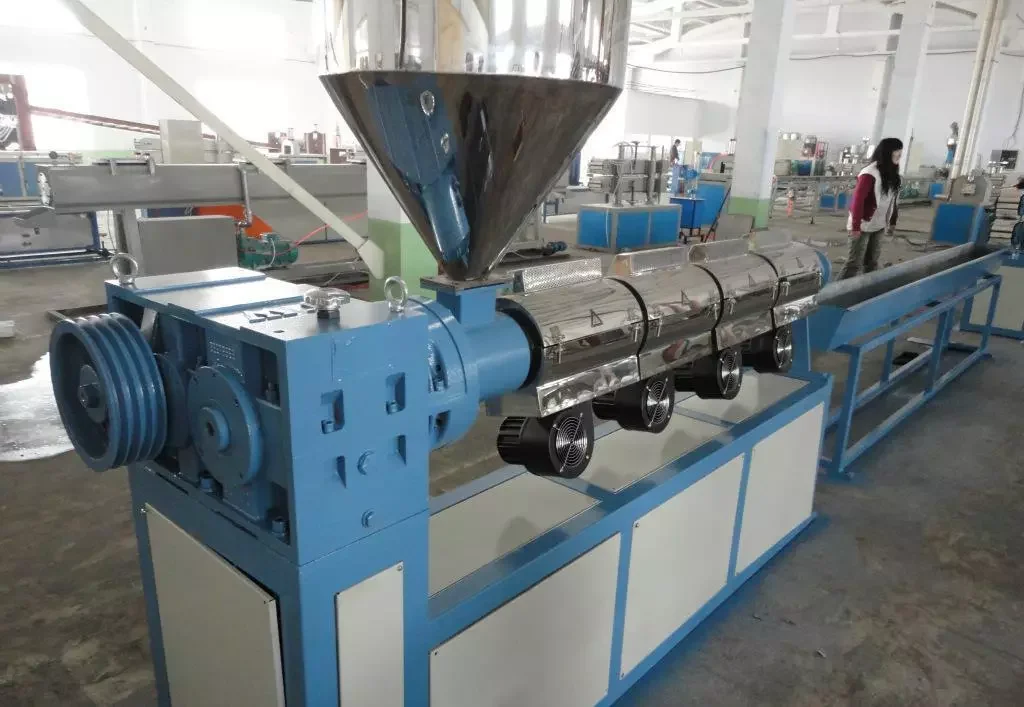

2 Plastic Extruders
3. Oil Reclamation Equipment
4. Food and Candy Extruders
5. Drum Heating
6. Extrusion Dies
7. Holding Tanks
8. Blow Molding Machines
9. Food Service Warming
10. Hot Runner Molds
2 Plastic Extruders
3. Oil Reclamation Equipment
4. Food and Candy Extruders
5. Drum Heating
6. Extrusion Dies
7. Holding Tanks
8. Blow Molding Machines
9. Food Service Warming
10. Hot Runner Molds
Our Company

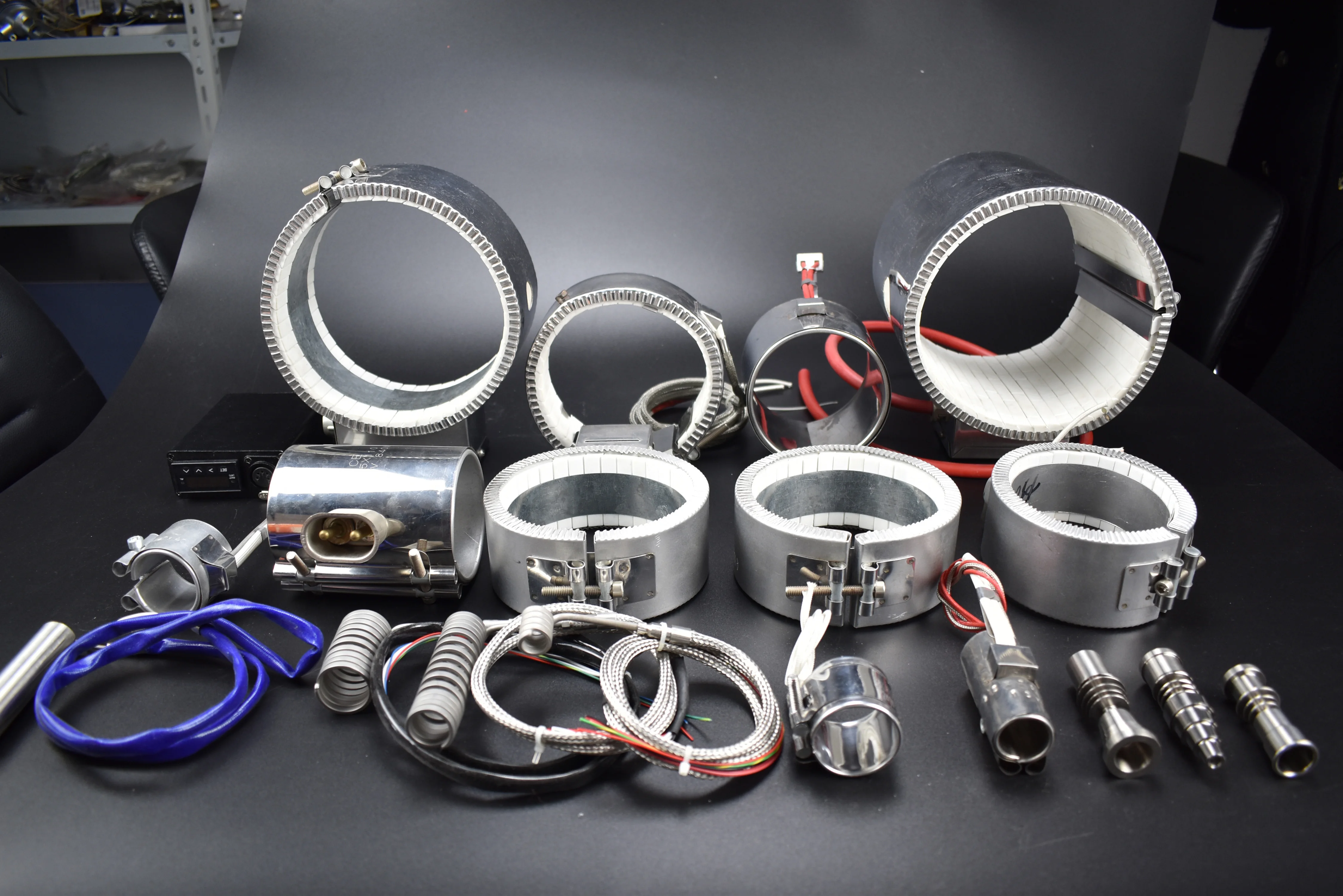

Xiaoshu Heat technology is a manufacturer focusing on industrial heaters. For example, Mica band heater/Ceramic band heater/Mica heater plate/Ceramic heater plate/Nano band heater and so on .
Enterprises with independent innovation brand, establish the product trademark of "Small Heat Technology" "Slight Heat".
At the same time, it has a certain independent research and development ability, and applies advanced technology to the design of electric heating products, and creates the best product value for customers.
The company strictly according to the ISO9001 quality management system for production and manufacturing, and all products are in line with CE and ROHS testing certification.

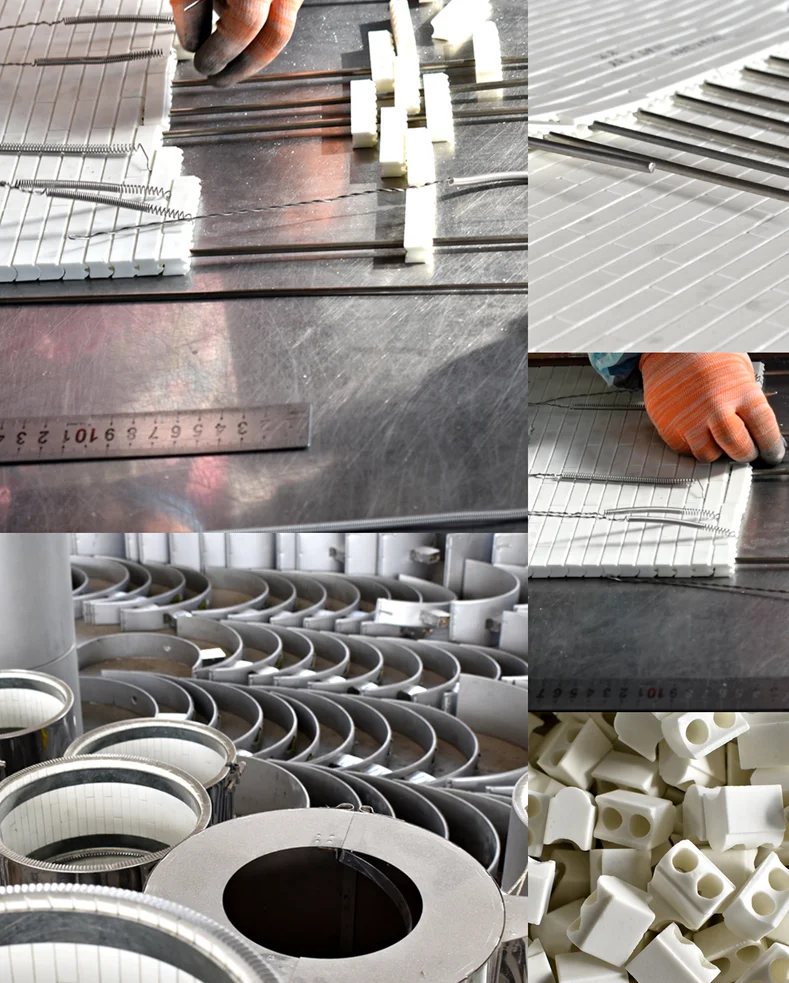

Our company has introduced advanced production equipment, precision testing instruments, the use of high-quality raw materials;
With professional technical team, perfect after-sales service system;
For injection molding machine, blister machine, drawing machine, blowing machine, extruder, granulator, rubber and plastic equipment and other industries to design and manufacture various types of high quality heater products.
Enterprises with independent innovation brand, establish the product trademark of "Small Heat Technology" "Slight Heat".
At the same time, it has a certain independent research and development ability, and applies advanced technology to the design of electric heating products, and creates the best product value for customers.
The company strictly according to the ISO9001 quality management system for production and manufacturing, and all products are in line with CE and ROHS testing certification.
Our company has introduced advanced production equipment, precision testing instruments, the use of high-quality raw materials;
With professional technical team, perfect after-sales service system;
For injection molding machine, blister machine, drawing machine, blowing machine, extruder, granulator, rubber and plastic equipment and other industries to design and manufacture various types of high quality heater products.
