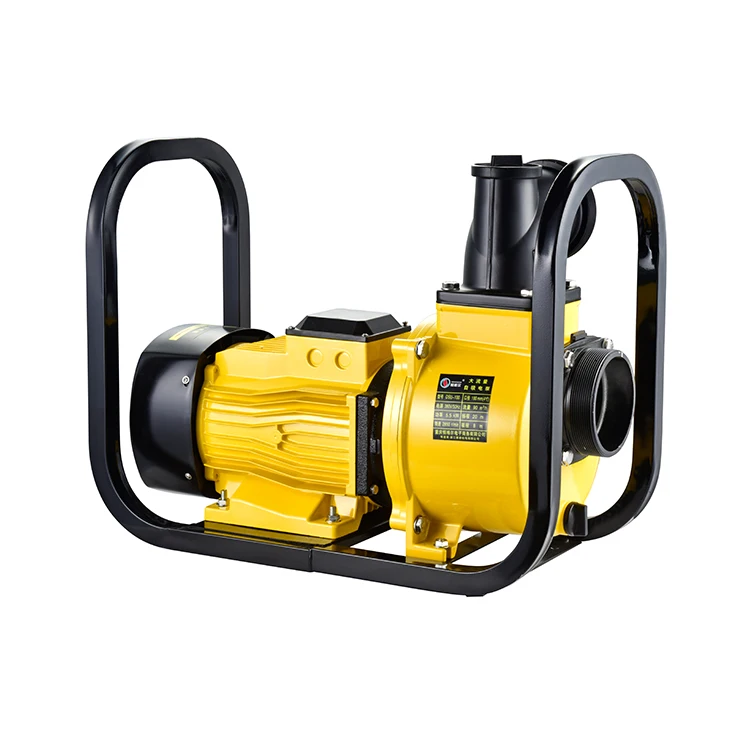

Odm 220V/380V 50Hz 4Hp Pond Agricultural Irrigation Centrifugal Electric Water Pump
- Category: >>>
- Supplier: Zhejiang Zhentai Electromechanical Co. Ltd.
Share on (1600511351854):
Product Overview
Description
Product Paramenters
Model | DSU-100B |
Warranty period | One year |
Material | The outer frame is iron, the motor is copper, and the rest is aluminum |
Size | 57*26*41（cm） |
Weight | 27kg |
Voltage | 220V/380V |
Frequency | 50Hz |
Horsepower | 4Hp |
Rated lift | 20 |
Max lift | 20 |
Rated flow | 75 |
Rated speed | 2900 |
Way of structure | Centrifugal |
Wire length | 1M |
Application | Agricultural drip irrigation (mainly used in greenhouses), sprinkler irrigation, factory and enterprise drainage |
Product Description
DSU series large flow electric pump is composed of high-quality aluminum casing motor, aluminum alloy pump casing and runner-type impeller volute. Unique frame design makes it protective and portable. This series has the advantages of light and beautiful appearance, large flow, high lift, fast self-priming speed and low energy consumption cost. At the same time, it overcomes the characteristics of submersible pumps that must be water-cooled and easily trapped in mud, and is especially suitable for greenhouse drip irrigation, sprinkler irrigation, industrial and mining enterprise drainage treatment, municipal engineering, factory water circulation, aquaculture water supply and drainage, water-cooled air-conditioning water supply and other occasions.
Technical Parameter
Item | DSU-50 | DSU-80 | DSU-100B | DSU-100A |
Inlet/Outlet size | 50 | 80 | 100 | 100 |
Displacement Q.max (m³/h) | 25 | 50 | 75 | 90 |
Lift H.Max (m) | 28 | 28 | 20 | 20 |
Suction (m) | 8 | 8 | 7 | 8 |
Power (kW) | 2.2 | 2.5 | 3 | 5.5 |
Speed (rpm) | 2900 | 2900 | 2900 | 2900 |
Voltage (v) | 220/380 | 220/380 | 220/380 | 380 |
Frequency (Hz) | 50 | 50 | 50 | 50 |
Product Features
● Perfect water seal is durable: SB silicon carbide mechanical seal is adopted, which is 6-7 times more durable than ordinary seals.
● Thoughtful design: long screw assembly for easy maintenance.
● High-performance self-priming, the special structure ensures strong self-priming, excellent performance, lightweight and durable in design.
● The lead-iron cast impeller and thickened casing are more than 5 times higher than the general cast iron structure.
● The semi-frame structure is welded with 22# steel pipe with moderate thickness, and the grasping position is low and easy to lift.
● Thoughtful design: long screw assembly for easy maintenance.
● High-performance self-priming, the special structure ensures strong self-priming, excellent performance, lightweight and durable in design.
● The lead-iron cast impeller and thickened casing are more than 5 times higher than the general cast iron structure.
● The semi-frame structure is welded with 22# steel pipe with moderate thickness, and the grasping position is low and easy to lift.
Item | EWB-20 | EWB-30 | CHP-20(single impeller) | ZHP-20(double impeller) |
Inlet/Outlet size | 50 | 80 | 38/38/50 | 50 |
Displacement Q.max (m³/h) | 30 | 45 | 30 | 25 |
Lift H.Max (m) | 20 | 18 | 45 | 60 |
Suction (m) | 8 | 7 | 5 | 6 |
Power (kW) | 3 | 3 | 3 | 3 |
Speed (rpm) | 2900 | 2900 | 2900 | 2900 |
Voltage (v) | 220/380 | 220/380 | 220/380 | 220/380 |
Frequency (Hz) | 50 | 50 | 50 | 50 |
Exclusive Service
Product Categories
Company Profile
Shipping&Payment
FAQ
Q1. What's your company's main products?
A: Our company is specialized in many kinds of fish pond aerators，including Waterwheel aerator, Floating aerator,
Surge aerator, Wave aerator, Double speed aerator, Paddle aerator and Agricultural water pump.
Q2. What's the MOQ for your production?
A: The MOQ depends on your products requirements.
Q3. Can your product be customized?
A: YES, the waterwheel aerator can be customized with material, pattern, logo, size, color and motor model, etc.
Q4. Where is your loading port?
A: Ningbo, or else port in China as your requirements.
Q5. Are you a manufactuer or trading company?
A: We are a manufactuer. located in Taizhou city, Zhejiang province,china.
A: Our company is specialized in many kinds of fish pond aerators，including Waterwheel aerator, Floating aerator,
Surge aerator, Wave aerator, Double speed aerator, Paddle aerator and Agricultural water pump.
Q2. What's the MOQ for your production?
A: The MOQ depends on your products requirements.
Q3. Can your product be customized?
A: YES, the waterwheel aerator can be customized with material, pattern, logo, size, color and motor model, etc.
Q4. Where is your loading port?
A: Ningbo, or else port in China as your requirements.
Q5. Are you a manufactuer or trading company?
A: We are a manufactuer. located in Taizhou city, Zhejiang province,china.
