High Quality Cement, slag, steel slag, nickel slag Grinding Powder ball Mill Machine Price
- Category: >>>
- Supplier: Xinxiang Great Wall Machinery Co. Ltd.
Share on (1600511360192):
Product Overview
Description
High Quality Cement, slag, steel slag, nickel slag Grinding Powder ball Mill Machine Price
Product Description
The GRMSS steel slag vertical mill of CHAENG is a kind of special equipment for grinding industrial waste such as steel slag and water slag into powder.
Capacity: 200,000-1,500,000t/a
Specific surface area: 450~500 m²/kg
System power consumption: ≤50 kWh/t
Process Introduction
The GRMSS steel slag vertical mill of CHAENG is a kind of special equipment for grinding industrial waste such as steel slag and water slag into powder. Integrating crushing, transporting, grinding and drying, the steel slag vertical mill is a kind of ideal equipment for grinding steel slag. The models of CHAENG’s GRMS steel slag vertical mill are complete, including GRMSS33.31, GRMSS46.41, GRMSS53.41 and so on, which can meet the needs of the steel slag production line project with an annual output of 200,000-1,500,000 tons.

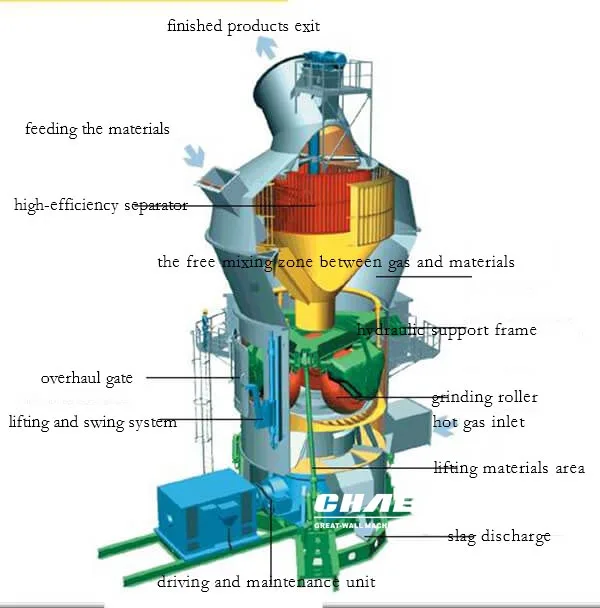

The materials fall to the center of the grinding table through the blanking pipe, then the grinding table is rotating at the constant speed and disperses and spreads out the materials evenly with the aid of centrifugal force, which makes the grinding table become the material bed with a certain thickness. Then several grinding rollers on the grinding table grind and crush the materials at the same time. With the continuous centrifugal force, the materials constantly move toward the outer edge of the grinding table. When the materials that leave the grinding table meet the hot gas which entering into the mill through wind ring, the materials will also rise. Then the materials enter into the separator through the mill’s middle shell, during this process, the materials and the hot gas have sufficient heat exchange with each other, and the water is quickly evaporated. The powder separator controls the size of the finished products, particles that are larger than the specified size will be separated and fall back into the grinding table, and particles that meet the fineness requirement will enter into the finished products warehouse through the powder separator.
Features
Specifications
| Items | 600,000t/a Slag rinding plant energy consumption | 450,000t/a Slag grinding plant energy consumption | 300,000t/a Slag grinding plant energy consumption |
|---|---|---|---|
| Output(t/h) | 105 | 65 | 50 |
| Annual output (×10,000 tons) | 60 | 45 | 30 |
| Total Power(KW) | 5400 | 3770 | 2860 |
| The power at 10KV(KW) | 4400 | 3140 | 2230 |
| Transformer specifications | 1000KVA | 630KVA | 630KVA |
| Power consumption /unit product (Kwh/ton) | 40 | 40~41 | 42 |
| Coal consumption /unit product (kg/ton) | 18 | 18 | 18 |
Successful case
Our hornor
Company Information
Xinxiang Great Wall Machinery Corporation, located at National Sustainable Development Experiment Area, Mengzhuang Town, Huixian City, Henan Province, China, was initially built in 1958 and restructured into limited liability Company from township collective enterprise in 2002.
The company now has over 500 sets of various machining equipments. The main equipments include Φ10m Russian Double Column Heavy Vertical lathe and Φ10m gear hobbing machine produced in Russia, T6920 boring and milling machine produced in Czech, WIISTNC120 × 3000 type upper roller numerically controlled universal lapping machine, Φ6 .3m × 20m cylinder lathe, the largest and the most advanced 6m × 6m× 16.5m cylinder integral electric heating automatic-controlled annealing furnace in domestic machinery industry, five 150t automatic submerged arc welding production lines, about 50sets of 150t, 100t and 75t,etc overhead travelling cranes and 2 sets of 30t alkaline arc furnace. The specifications of the equipments are complete with advanced technology, and the company has formed powerful whole set processing capacity with annual processing capacity of 80000t.
The main products are:
GRM series raw material vertical mill, cement mill that can cater to below 10000t/d cement production line, and the series slag vertical mills with annual production capacity of 0.3 million ton, 0.6 million ton and 1.0 million ton.
Φ4.8m×74m,Φ4.5m×66m,Φ4.3m×66m,Φ4.2m×60m series of NSP rotary kiln

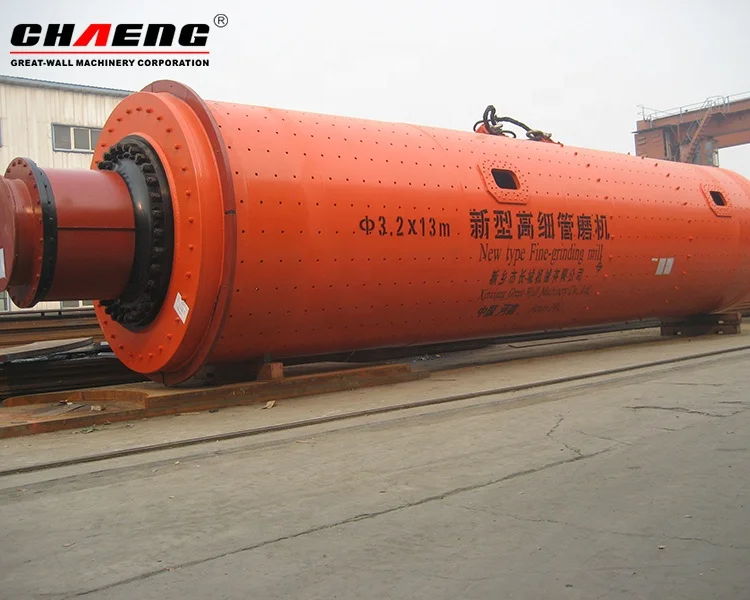

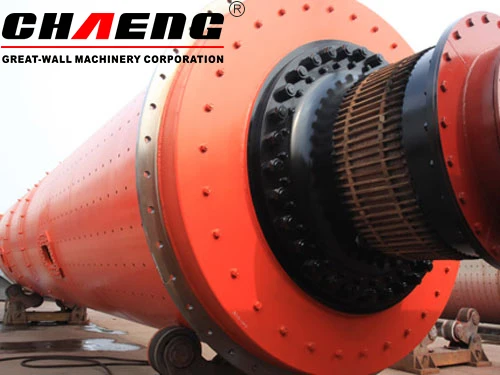

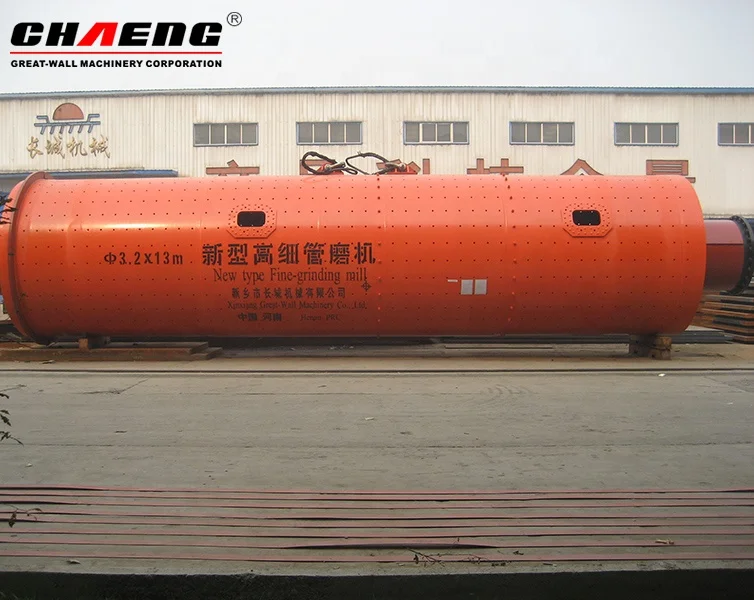

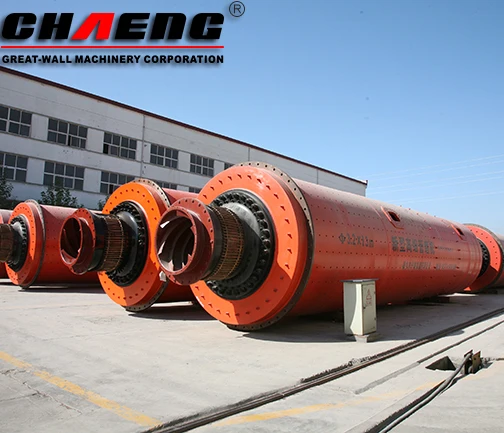

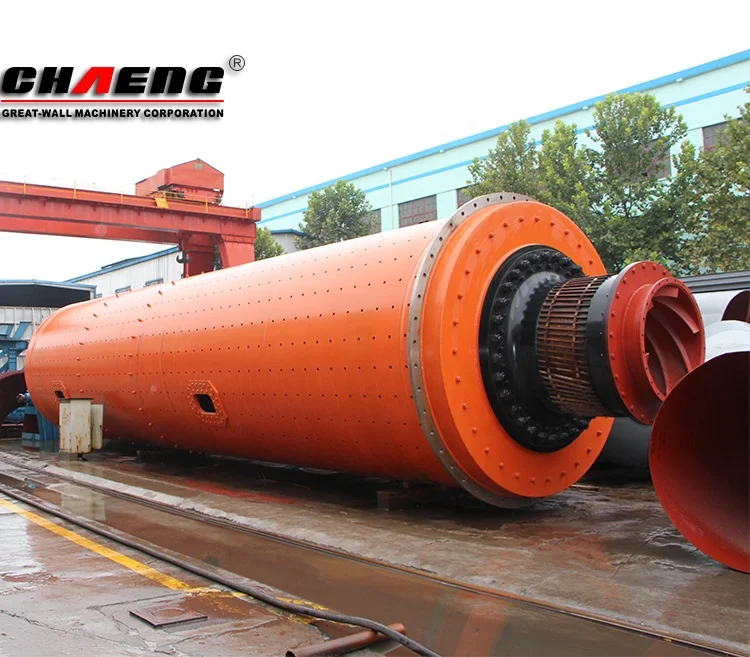

Φ4.2m×13m cement grinding mill and other ball mills
Rod mill and trellis pattern overflow mill for coal chemical industry and alumina industry; and the relevant supporting equipments for cement production lines.
The company’ s large foundry base, main plant building area covers 25000 m² with annual production volume of 50000 ton, and the weight of single product can reach 120 ton, enjoys advanced technology and equipments, and is the largest steel-casting base in the north of Henan Province, PRC.
Our Services
Pre-sales Service:
The wide product range enables us to provide our customers with stand-alone machines or complete processing plants. Based on our customers’ request and budget, our experts make efficient, reliable solutions. Following customers’ order we produce strictly, what’s more, before placing the order every customer has the chance to visit XinXiang Great Wall (Chaeng) working machines or complete plant in the site.
To ease the trip for every visitor to China, in particular the first-time visitor, we provide FOR FREE all relevant visitor-friendly services including invitation letter preparation, hotel reservation, airport pick-up, incity transportation, and sightseeing guide, etc.
After-sales Service:
Experienced technicians guidance is available on the phone, and on the internet. One or more engineers will be dispatched to the quarry site to help install the customers’ plants. Necessary training about machine daily maintenance to local workers is provided also.
After-Sales department is made of well-trained employees and installation engineers, the installation engineers are special and professional members of XinXiang Great Wall (Chaeng), they are now strategically located home and abroad, working for our customers.
