PG42 Electric Brass Cable Gland
- Category: >>>
- Supplier: Yuyao Jiachi Pipe Co. Ltd.
Share on (1600511365209):
Product Overview
Description
Products Show

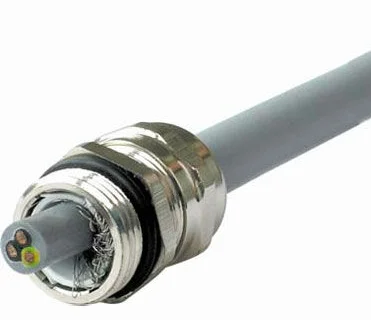

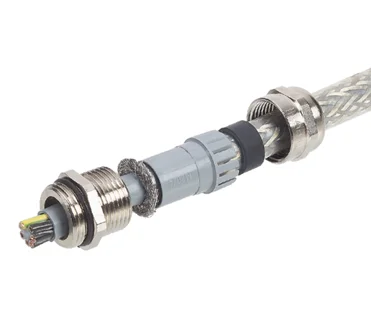

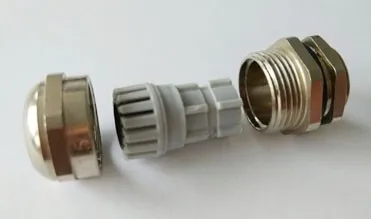

Electric Brass Cable Gland
1.Material:Nickel Plated Brass;
2.Size A: PG7~PG63;
Size B: M8-M100;
Size C: NPT1/4" to NPT 3";
Size D: BSP(G)1/4"-BSP(G)3"
3.Protection level: IP68;
4. Usage: Protect and connect electrical wires to box or other enclosures...
Brass cable gland body with hexagonal wrench surface, thread PG in accordance with DIN40430,suitable for all
sealing,fixed,non-slip,the occasion of high temperature requirements!
sealing,fixed,non-slip,the occasion of high temperature requirements!
Machining centres and robotics
General indutrial and commerical electrical wiring protection
any narrow space in static applications
General wiring for OEM applications
Low fire hazard applications
Underflooring wiring in office buildings
Brass Cable Gland Description:
1:Material: Brass with nickel plated;
2. Clamp Jaw:Nylon PA;
3:Sealing Element(O-Ring):NBR, EPDM;
4. Protection Class:IP68;
3:Sealing Element(O-Ring):NBR, EPDM;
4. Protection Class:IP68;
5:Working temperature:-40℃ to +100℃ in static state Instantaneous heat resistance up to 120℃,-20℃ to 80℃ in dynamic state,Instantaneous heat resistance up to 100℃;
6:Color:Silver as picture.
6:Color:Silver as picture.
Product Description
Product Name | Electric Brass Cable Gland |
Material | Brass |
Surface Treatment | Nickel plated |
IP Grade | IP68 |
Working Temperature | -40℃- 100℃ ,Instanttaneous heat resistance up to 120℃ |
Certification | CE/ROHS/ISO |
Packaging | plastic bag+master carton |
Usage | Protect and connect electrical cables to boxes or other enclosures... |

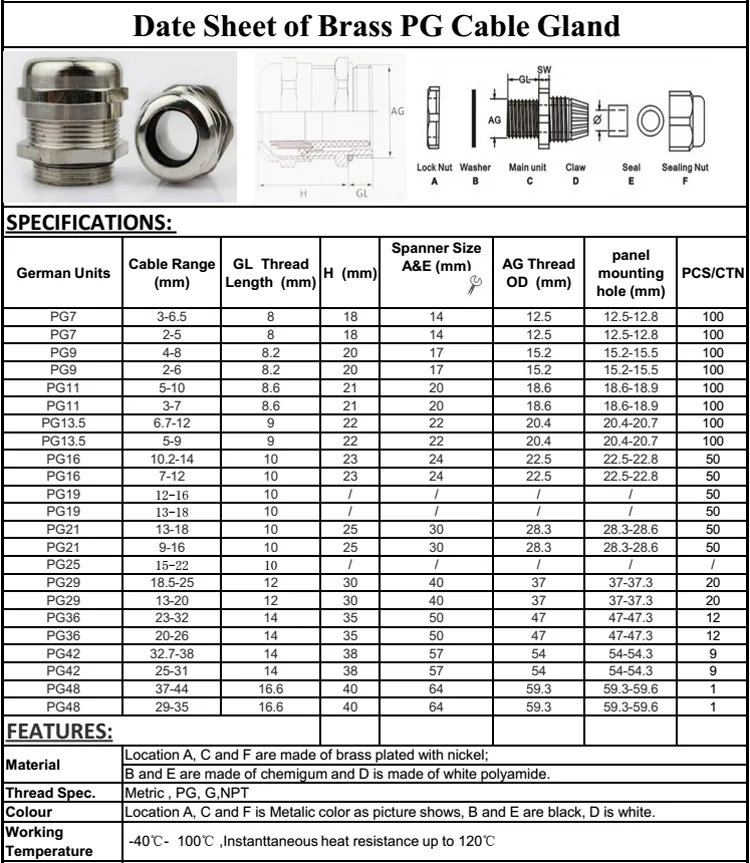

Specification
Packing & Delivery
1. Package with carton box
2. Stock in warehouse
3. All with PE film
4. Professional package
5. Packaging process
6. Complete package
