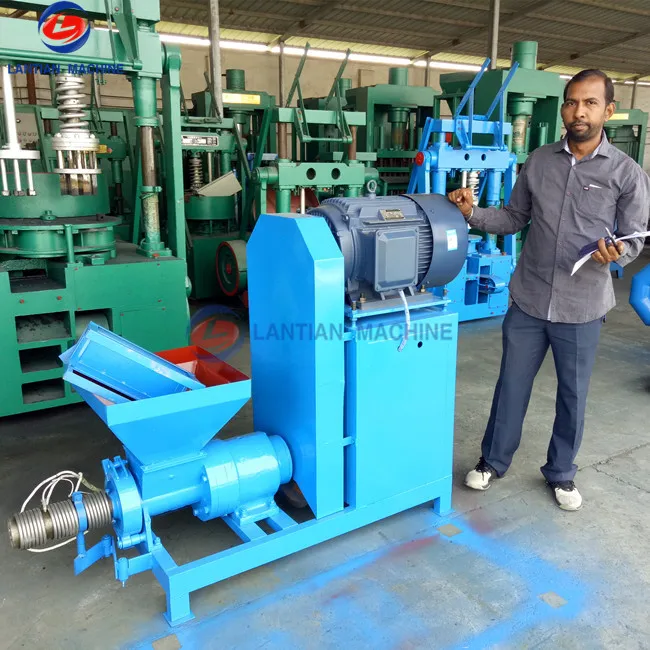

Extruder briquetting equipment coffee grounds husk briquette machine
- Category: >>>
- Supplier: Henan Lantian Machinery Manufacture Co. Ltd.
Share on (1600511374092):
Product Overview
Description

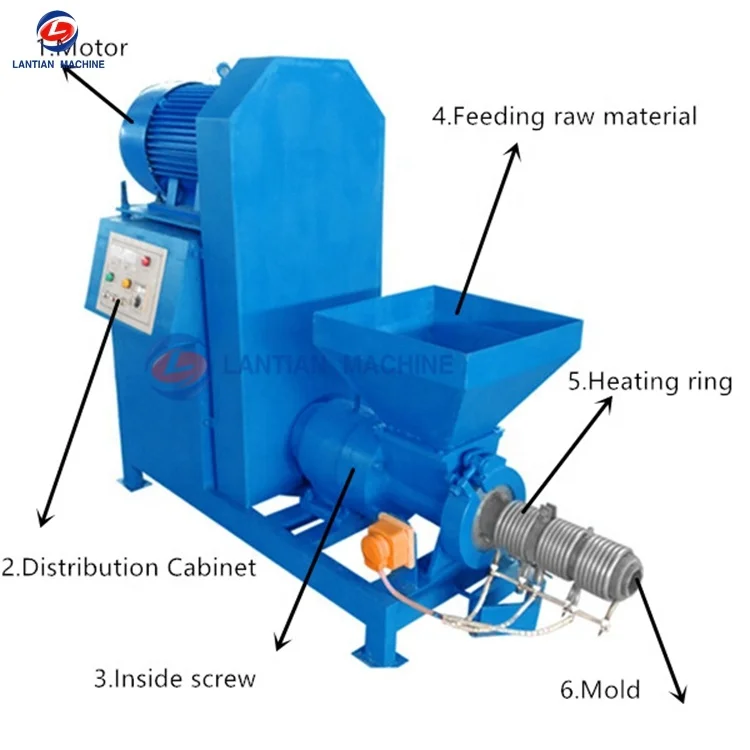

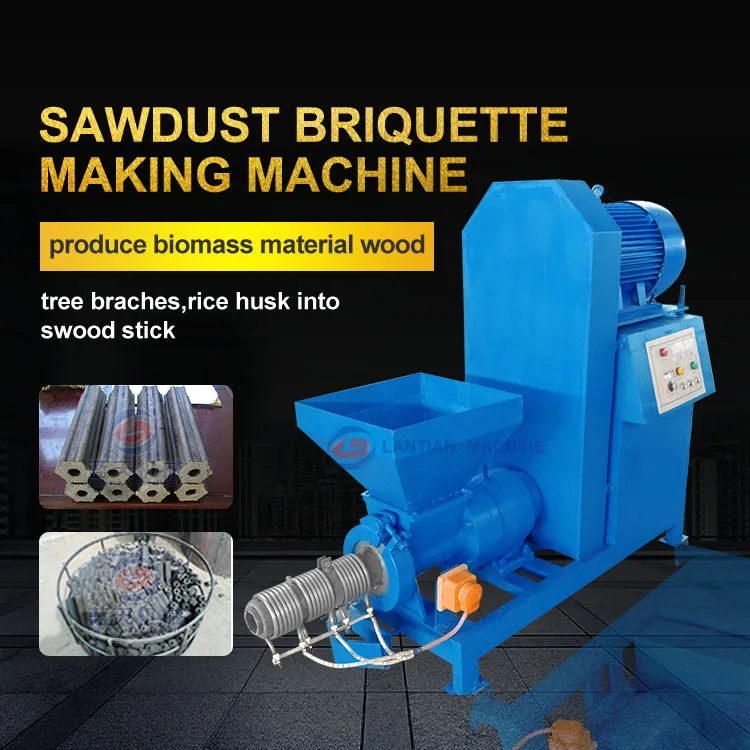

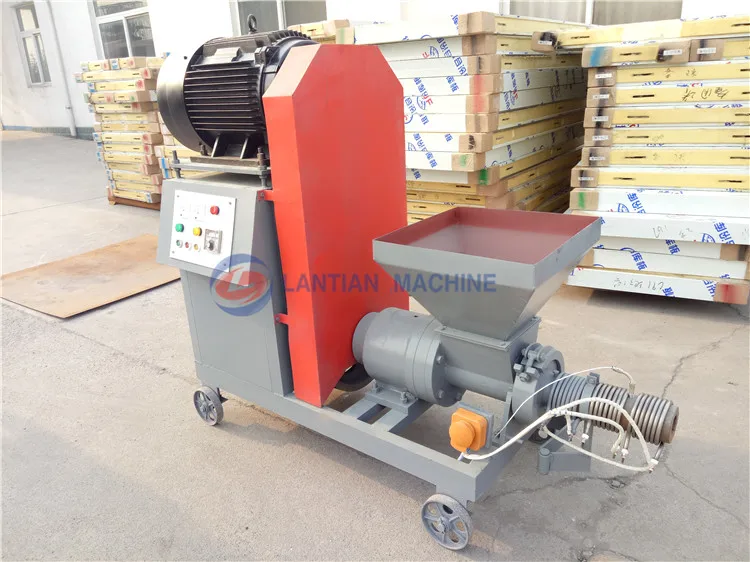

Extruder briquetting equipment coffee grounds husk briquette machine
Product Description
1. Coffee grounds briquette machine takes wood, sawdust, rice husk, coconut shell, peanut shell, plant stalk, and other wood materials as feeding materials ( no any additives) to make stick shape briquettes under the condition of high pressure and temperature;
2. The outlet wood briquettes has the features of high density, small volume, which can take place of fuel wood and coal;
2. The outlet wood briquettes has the features of high density, small volume, which can take place of fuel wood and coal;
Specification
Type | LTM-50 | LTM-80 |
Capacity | 180-200kg/h | 200-300kg/h |
Motor power | 18.5KW | 22KW |
Diameter of briquettes | 50mm | 80mm |
Dimension | 1.7x0.66x1.5m | 1.7x0.66x1.5m |
Raw materials&final products
1. The feeding materials of coffee husk briquette machine can be waste wood branch, sawdust, coconut shell, peanut shell, rice husk and other agriculture materials;
2. The inlet size of raw materials should be 3-5 mm. If the raw materials are bigger than 5 mm, should crush the raw material firstly;
3. The inlet moisture of raw materials should be 8-12%, otherwise, the outlet wood briquettes are easy broken and have crevice. So before briquetting, the wet materials should be dried.
2. The inlet size of raw materials should be 3-5 mm. If the raw materials are bigger than 5 mm, should crush the raw material firstly;
3. The inlet moisture of raw materials should be 8-12%, otherwise, the outlet wood briquettes are easy broken and have crevice. So before briquetting, the wet materials should be dried.

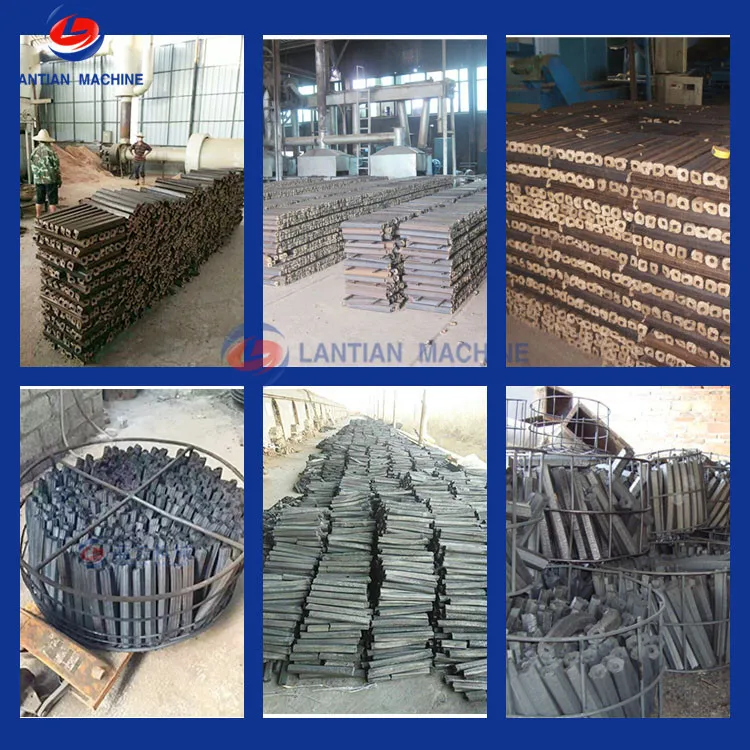

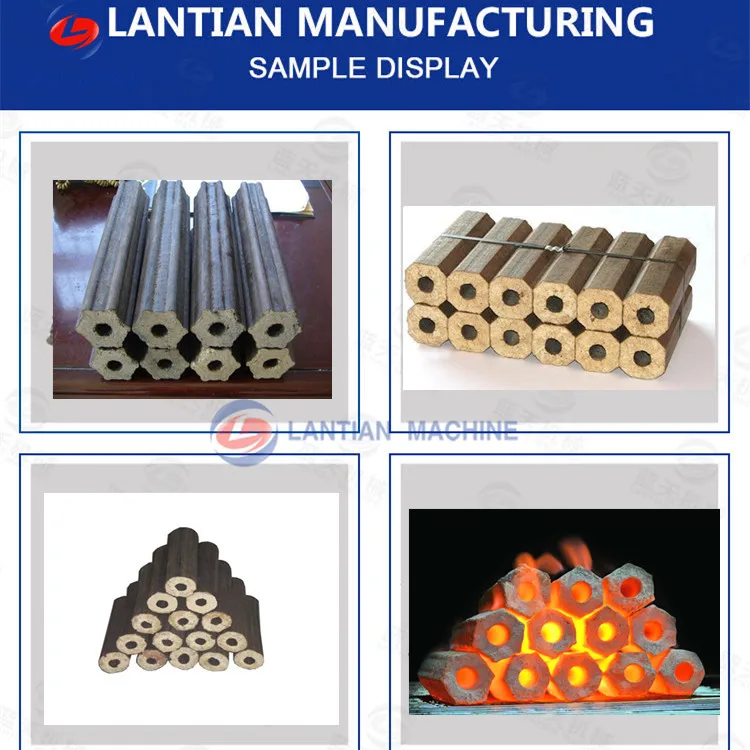

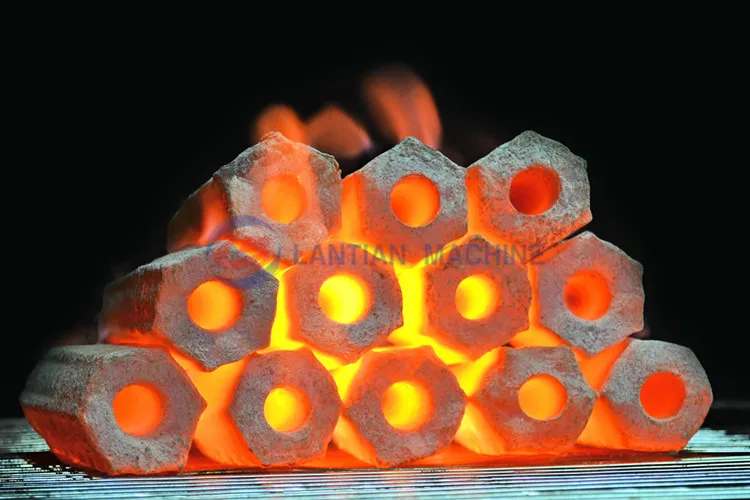

The final briquette is 50/80 mm in diameter, occurs in the hollow quadrangular or hexagonal cylinder or hollow hexagonal with a 15-20 mm hole through the body.

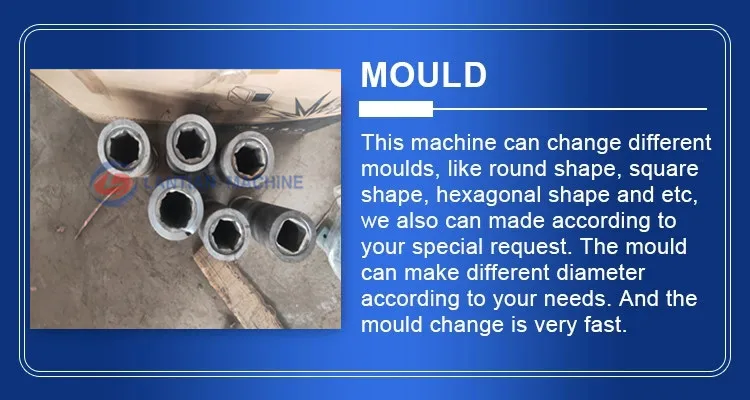

The available shape: square, hexagonal, pentagon, pentagon with edge, hexagon with edge
The available length could be :20 cm,30 cm, 40 cm, 50 cm
The feature of the final product : Specific gravity: 1300—1900 kg/m Calorific value: 4500—5000 kcal/kg
The available shape: square, hexagonal, pentagon, pentagon with edge, hexagon with edge
The available length could be :20 cm,30 cm, 40 cm, 50 cm
The feature of the final product : Specific gravity: 1300—1900 kg/m Calorific value: 4500—5000 kcal/kg

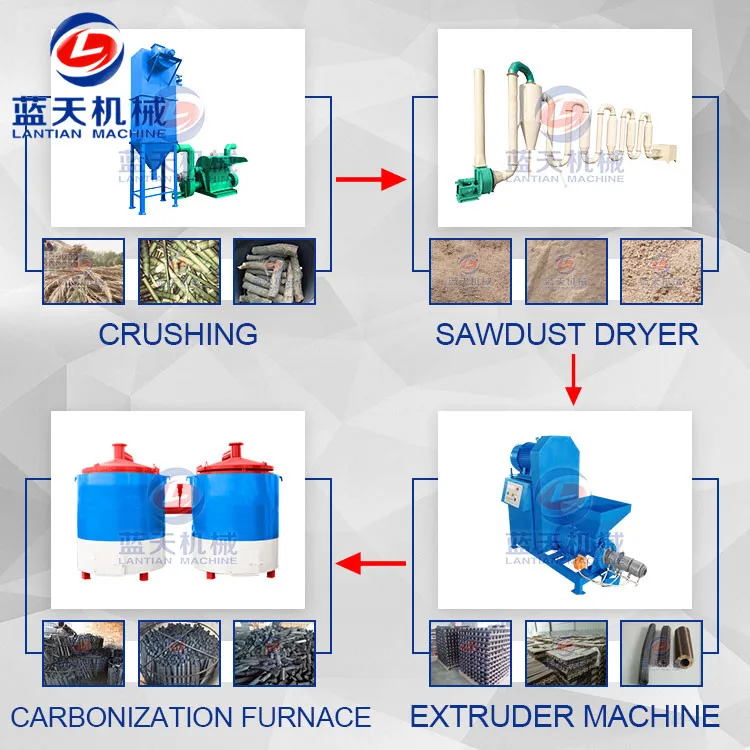

Production line of Extruder briquetting equipment coffee grounds husk briquette machine
1,Crushing——crushing machine
The raw materials ( including bamboo ,wood sawdust, peanut shell, corn cob.,rice hull. branches straw)crushed into sawdust.
2,Drying——dryer machine
The sawdust dryer uses the hot air drying system to reduce the water content to 8%-12%.
3,Pressed Bar——coffee husk briquette machine
The sawdust produces free radicals,bifunctional under the hot and high pressure condition of the briquette machine. The sawdust can be combined each other closely through a covalent bond.once formed, the combination will remain stable in case there is no external damage, more stable after cooling.
4,Carbonization——Making charcoal
The carbonization stove transforms the wood briquette to clean charcoal without smoke.
Enclosed is the technical parameters and some pictures of Charcoal machine.
Application of final products
a, Boilers: It can be used in the boilers of Paper Mills, Sugar Mills, Dyeing houses, leather, lamination industries
b, Food Processing Units, Oil Extraction Units, Solvent Extraction Plant and many other plants and industries.
c, Furnace&Foundries: It can be used for metal heating & melting (where melting point is less than 1000d/cel.)
d, Brick Kilns: It is the total, substitute of steam coal.
e, Residential&Commercial Heating: For winter heating in Cold areas and Hotels, Canteens, Cafeterias and house hold kitchen appliances etc.
As the need of pollution free environment, the product has a large scope of marketing. The briquettes can be used as a substitute of any fuel in following fields:
a, Boilers: It can be used in the boilers of Paper Mills, Sugar Mills, Dyeing houses, leather, lamination industries
b, Food Processing Units, Oil Extraction Units, Solvent Extraction Plant and many other plants and industries.
c, Furnace&Foundries: It can be used for metal heating & melting (where melting point is less than 1000d/cel.)
d, Brick Kilns: It is the total, substitute of steam coal.
e, Residential&Commercial Heating: For winter heating in Cold areas and Hotels, Canteens, Cafeterias and house hold kitchen appliances etc.
Spare parts

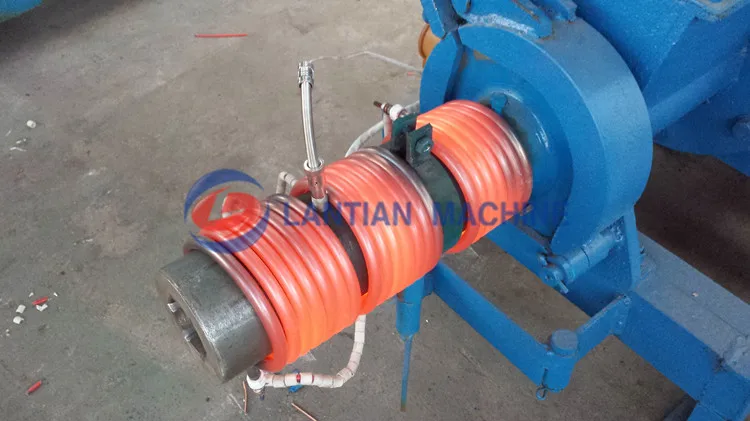

Heating ring of coffee grounds briquette machine
Also called the coil heater:it used for heat the machine. One machine has three set coil heater,and the diameter of the heat can be adjust. ·One coil heater will install one 1.5-3.0kw electrical motor. The basic construction of these heaters consists of compacted MgO,high temperature resistance wire and chrome.

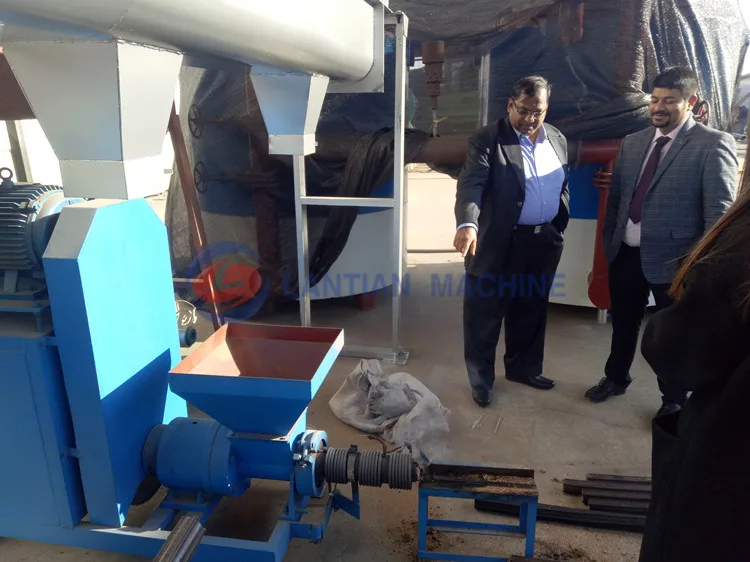

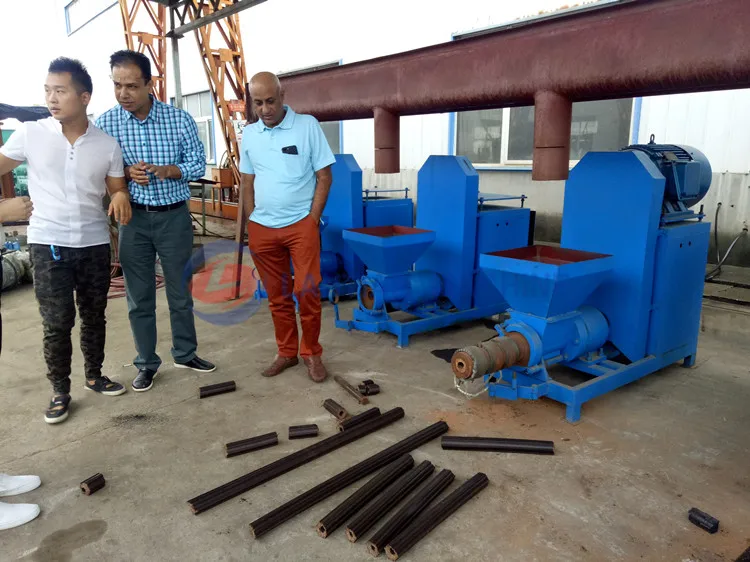

Customer's visiting

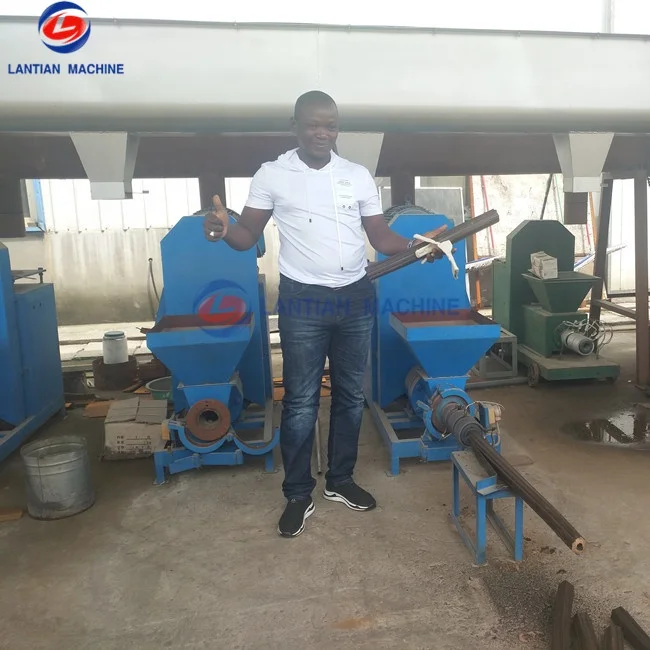

Each year, we sell at home and abroad, most customer come to our factory and test wood briquetting machine line , or we go to customer factory to help customer test.

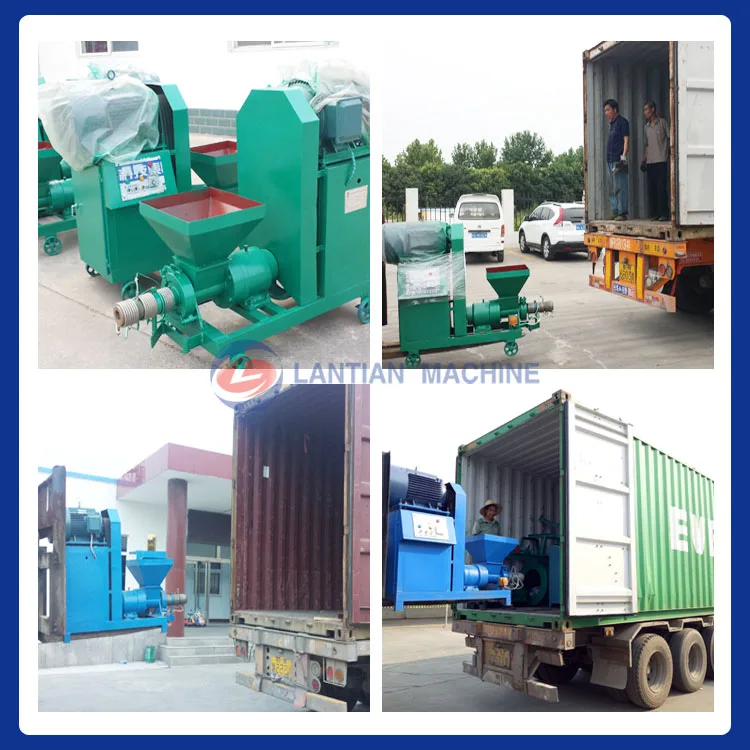

Packing & Delivery
1. Payment terms: 30% deposit, the balance upon receipt of the copy of BL or LC at sight.
2. Delivery terms: 10-15 days after get your deposit for the single machine.
3. Warranty: The guarantees for Extruder biomass briquetting equipment straw bamboo powder briquette making machine is 1 years from the date of exporting date. If any parts (excluding easily damaging parts) are found defective in quality in the first year, we shall replace it free-of-cost. After one year, parts can be replaced on favorable payment basis.
2. Delivery terms: 10-15 days after get your deposit for the single machine.
3. Warranty: The guarantees for Extruder biomass briquetting equipment straw bamboo powder briquette making machine is 1 years from the date of exporting date. If any parts (excluding easily damaging parts) are found defective in quality in the first year, we shall replace it free-of-cost. After one year, parts can be replaced on favorable payment basis.
OUR SERVICE
♥ Before sale service:
♥ After sale service:
1. Send engineers to your site, help you to install and debugging divides, build plant, and training operators, at the same time pass the technology on clay brick production to customers.
1. According to our customers special requirements, provide the most suitable project design, process design and the purchase program.
2. Guide customers to choose the best and economical plant, recover investment within short time, and site inspection.
♥ On sale service:
1. Accompany you to check the working conditions of our machines.
1. Accompany you to check the working conditions of our machines.
2. Inspect the quality of all our machines.
3. Manufacturer the equipment as the contact appears at first time after receive your deposit. Arrange the delivery timely.
♥ After sale service:
1. Send engineers to your site, help you to install and debugging divides, build plant, and training operators, at the same time pass the technology on clay brick production to customers.
2. Guarantee of the equipment quality, maintenance, etc. Solve all the troubles for you timely during your production when receive your call our e-mails.

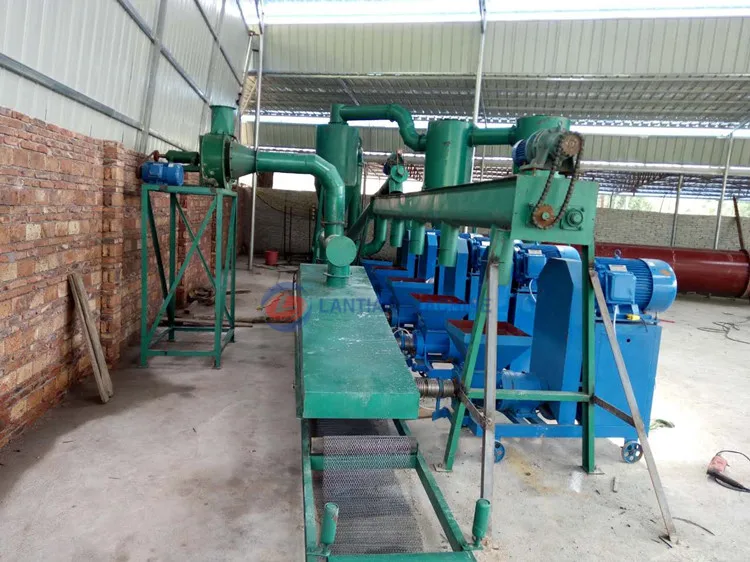

Customer's installation site of Extruder biomass briquetting equipment straw bamboo powder briquette making machine
Company Information
Henan Lantian Machinery Manufacture Co.,Ltd has developed into a professional enterprise specialized in R&D, design, manufacture,sale and after-sale service since the 1990s. In order to meet the different requirements of customers, we have also designed and researched many types of charcoal processing machine, include wood bamboo chips briquette machine, charcoal & coal briquette machine, shisha/hookah charcoal machine, tablet press machine, and rotary dryer, vertical dryer, belt mesh dryer and the accessory machines for he whole production line!
