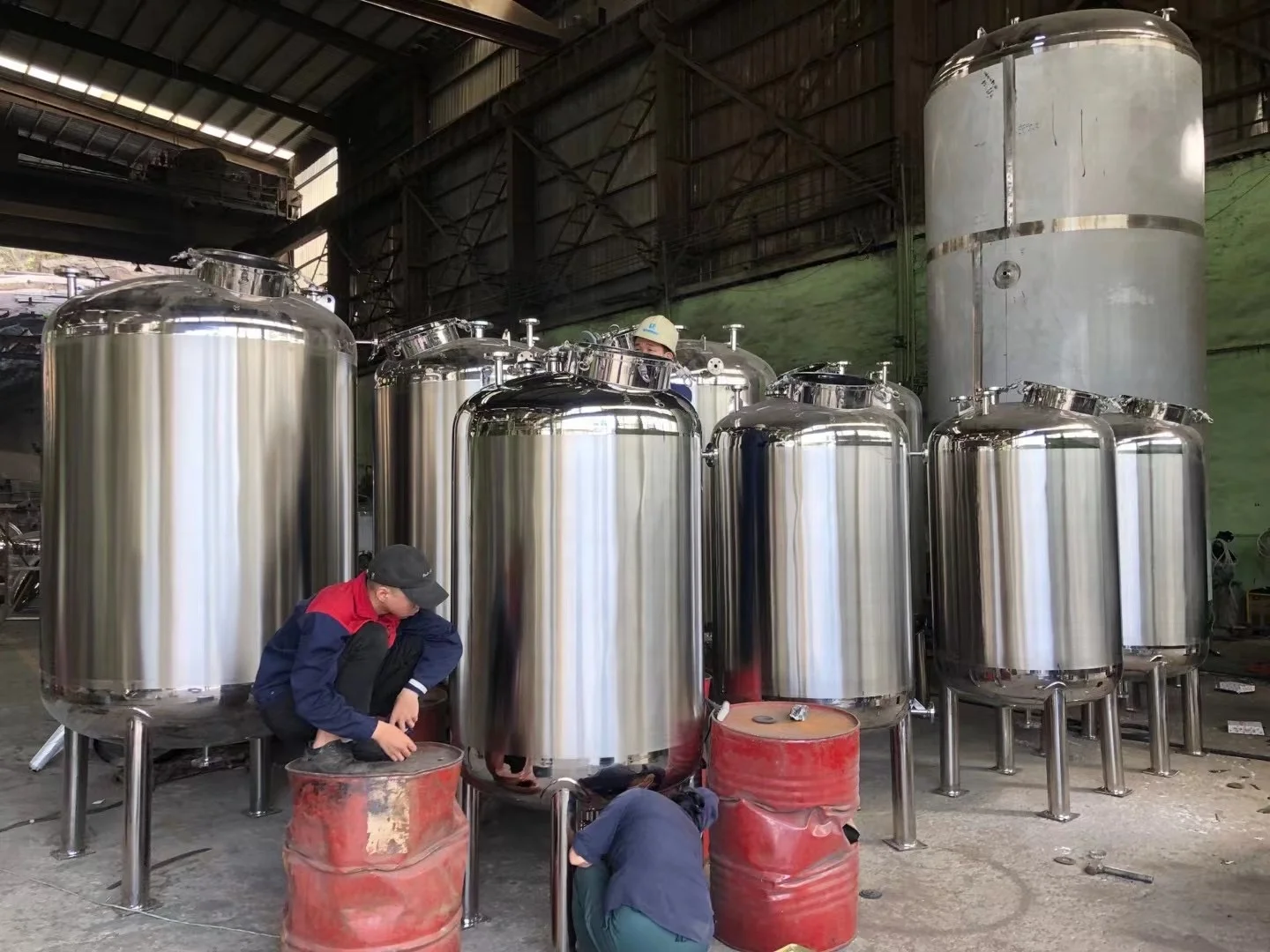

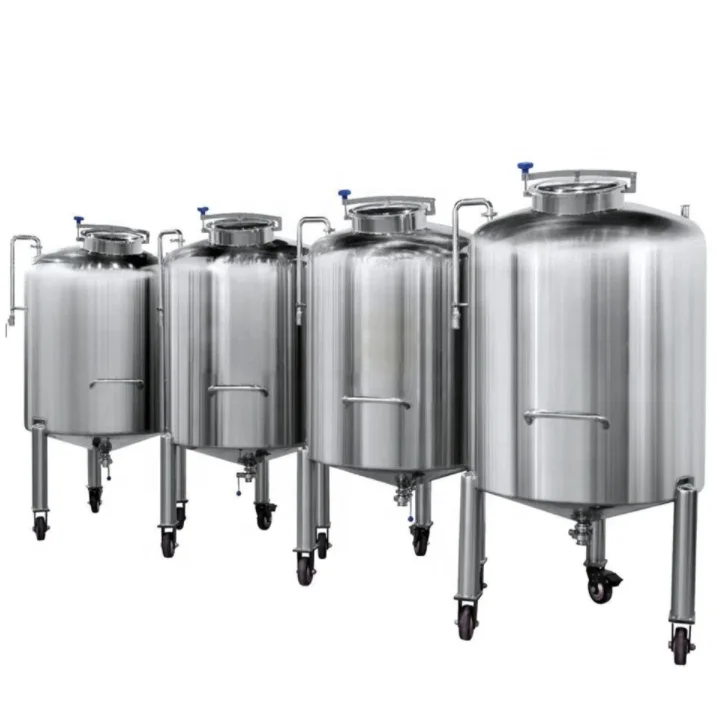

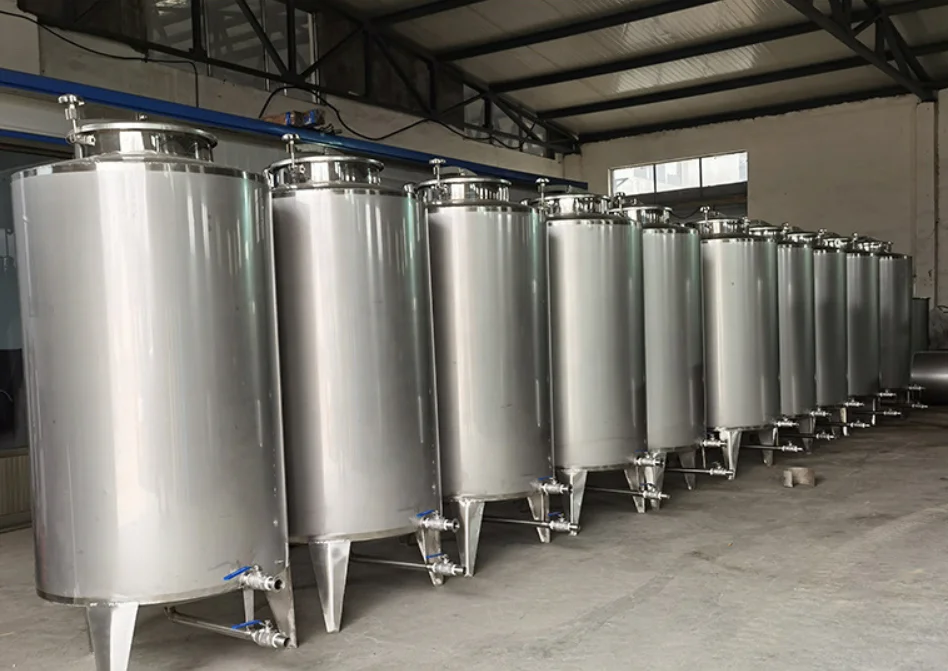

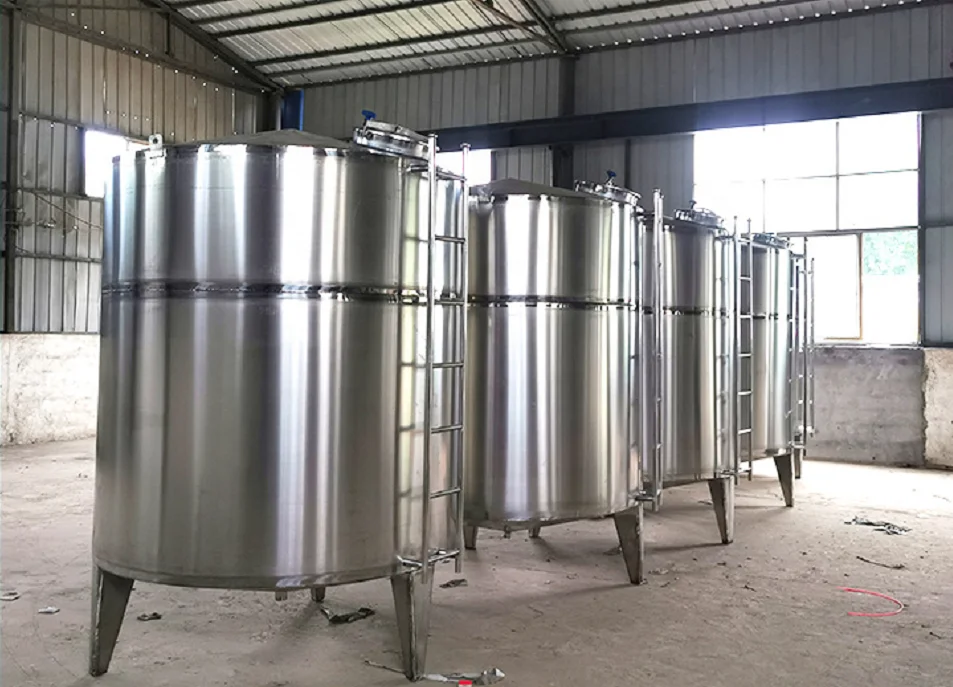

Custom Sealed Storage Tank Stainless Steel Sealed Water Tank Cosmetics Food Cooling Tank
- Category: >>>
- Supplier: Henan Zgcm Machinery Co. ltd.
Share on (1600511415647):
Product Overview
Description
Dimensions
Storage Tank be designed, manufactured and inspected in accordance with the pressure vessel standard(ASME Section VIII) and the steel welded atmospheric pressure vessel standard(NB/T 47003.1-2009), strictly meet to GMP certificate requirements.

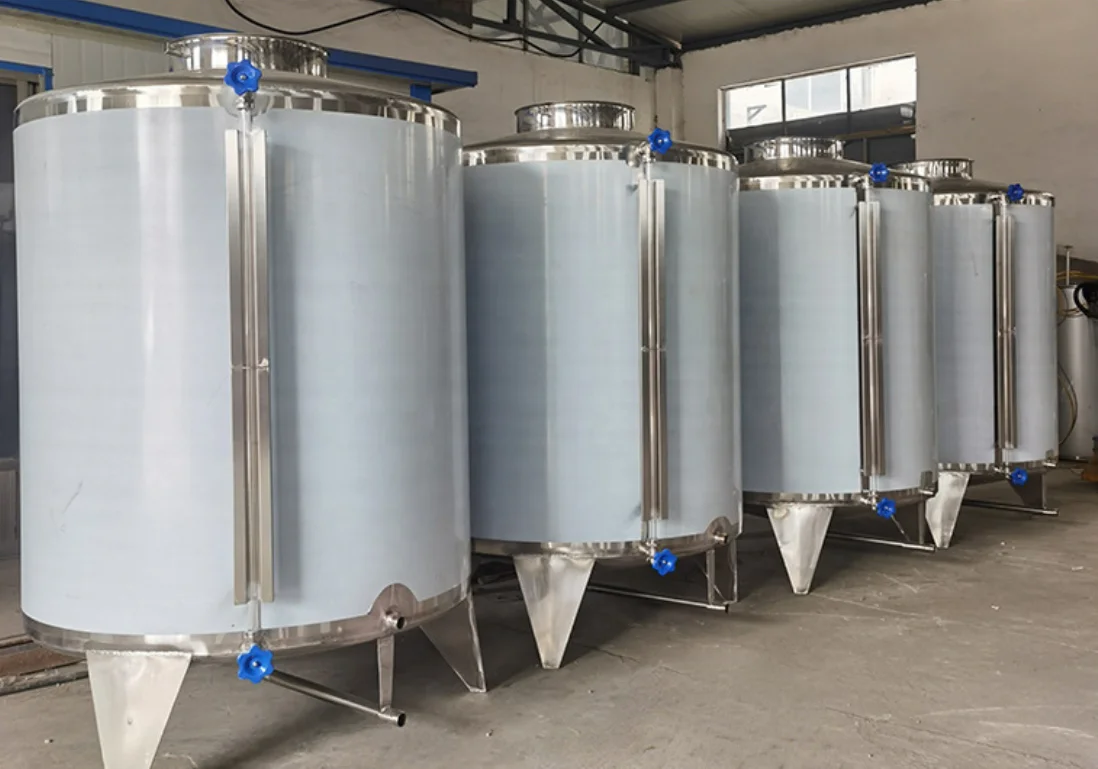

Storage Tanks usually adopt vertical circular tank body, the top is standard elliptic or torisphericalhead,the bottom is standard conical,torispherical or elliptic head, inner wall of tank body transition section adopts circular arc transit on, no dead corner, easy to clean; Single layer, double layer (tank body and the bottom head is equipped with insulation layer) or jacket type (tank body and the bottom head is equipped with the jacket and insulation layer),It can be customized for customers,Tank inner surface mirror polished, can realize the CIP and SIP. meet the GMP standard. Usually Storage Tank structure is vertical structure or horizontal structure, it also can be designed in square and circular shapes accoding to customers' requirements; Configuration of mechanical mixing.
Storage Tanks usually adopt vertical circular tank body, the top is standard elliptic or torisphericalhead,the bottom is standard conical,torispherical or elliptic head, inner wall of tank body transition section adopts circular arc transit on, no dead corner, easy to clean; Single layer, double layer (tank body and the bottom head is equipped with insulation layer) or jacket type (tank body and the bottom head is equipped with the jacket and insulation layer),It can be customized for customers,Tank inner surface mirror polished, can realize the CIP and SIP. meet the GMP standard. Usually Storage Tank structure is vertical structure or horizontal structure, it also can be designed in square and circular shapes accoding to customers' requirements; Configuration of mechanical mixing.
Technical specifications
Model | Volume (lt) | Inner dia.:mm | Total Height: mm | Cydlindrical Height: mm |
ZG1T | 1000 | 930 | 2200 | 1500 |
ZG2T | 2000 | 1270 | 2600 | 1610 |
ZG3T | 3000 | 1400 | 2900 | 2000 |
ZG4T | 4000 | 1600 | 3100 | 2000 |
ZG5T | 5000 | 1600 | 3700 | 2440 |
ZG10T | 10000 | 1900 | 5050 | 3660 |
ZG15T | 15000 | 2000 | 5950 | 4880 |
ZG20T | 20000 | 2230 | 6100 | 5110 |
ZG25T | 25000 | 2650 | 5600 | 4500 |
ZG30T | 30000 | 2600 | 6760 | 5500 |
ZG40T | 40000 | 2900 | 7400 | 6100 |
ZG50T | 50000 | 3200 | 7600 | 6100 |
Tank Optional Configuration
Storage Tank optional configuration: sterile air filter thermometer (digital display type or dial),, pressure gauge, sight glass, sanitary manhole, inoutlet. CIP universal rotating cleaning ball, liquid meter etc, Or configured accordirg to customers' requirements.
Application
Storage Tank optional configuration: sterile air filter thermometer (digital display type or dial),, pressure gauge, sight glass, sanitary manhole, inoutlet. CIP universal rotating cleaning ball, liquid meter etc, Or configured accordirg to customers' requirements.
Feature
•There are 500L^50000L varietys of specifications, it can be designed, customized according to the customers' requirements.
•Insulation material is rock wool ( keep warm ) or PU ( keep cool).
•Connector use tri-clamp, inner tank use SS304 or SS316L, the inner surface mirror polishing Ra<0.28pm ~ 0.6pm, outer surface can be polishing, wiredrawing .sandblasting according to customer's requirement.
•Insulation material is rock wool ( keep warm ) or PU ( keep cool).
•Connector use tri-clamp, inner tank use SS304 or SS316L, the inner surface mirror polishing Ra<0.28pm ~ 0.6pm, outer surface can be polishing, wiredrawing .sandblasting according to customer's requirement.
detail
Our factory
Henan Zhongguan Machinery Co., Ltd. has a plant area of more than 10,000 square meters, producing mixing tanks, heating tanks, fermentation tanks, homogenizers, vacuum homogenizers, extractors, thickeners, filling production lines, reverse osmosis systems, etc. The main products are exported to hundreds of countries and regions in Southeast Asia, Europe, America, Africa, the Middle East, etc., and are well received by users all over the world! The company always adheres to the development strategy of "customer first, worry-free after-sales", pays attention to the reserve and training of talents, and has long-term exchange of talents and technologies with well-known enterprises at home and abroad. The factory has more than 180 employees, including 35 in the R&D department, responsible for the R&D and design of non-standard equipment and advanced technology in the industry. The after-sales department has 30 masters with more than 20 years of after-sales experience, responsible for the installation of equipment sold at home and abroad. Commissioning, operation training and technical maintenance. We aim to realize the intelligent packaging of enterprises, liberate people from heavy packaging production, let machines replace labor, reduce production costs and improve production efficiency
Company history
Cooperation Case
Our client
transport
Frequently Asked Questions and Answers
1. Q: Do you have a finished machine to see?
Yes, we have standard machine inventory.
2. Q: Will you check before leaving the factory?
Yes it is. Every step of production and completion will be checked by QC department before shipment.
3. Q: Can overseas services be provided?
Yes, engineers can go abroad to train workers, install and debug machines for free
4. Q: How long is the warranty period?
One year machine warranty.
5. Q: What is the delivery time?
15-25 days after receiving the deposit.
Yes, we have standard machine inventory.
2. Q: Will you check before leaving the factory?
Yes it is. Every step of production and completion will be checked by QC department before shipment.
3. Q: Can overseas services be provided?
Yes, engineers can go abroad to train workers, install and debug machines for free
4. Q: How long is the warranty period?
One year machine warranty.
5. Q: What is the delivery time?
15-25 days after receiving the deposit.
