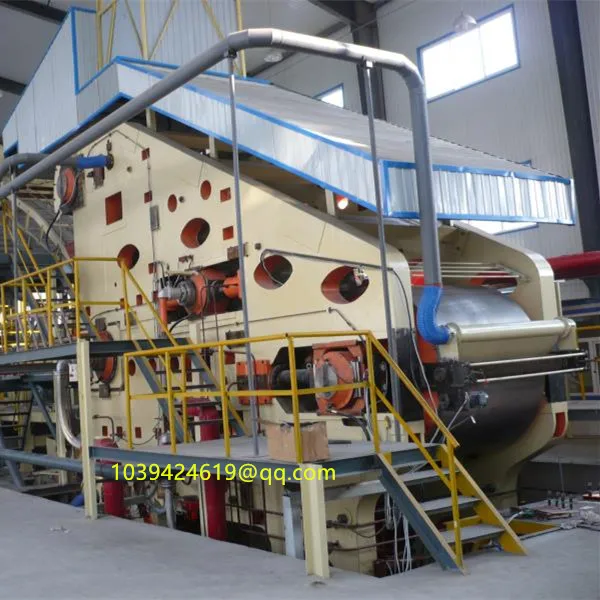

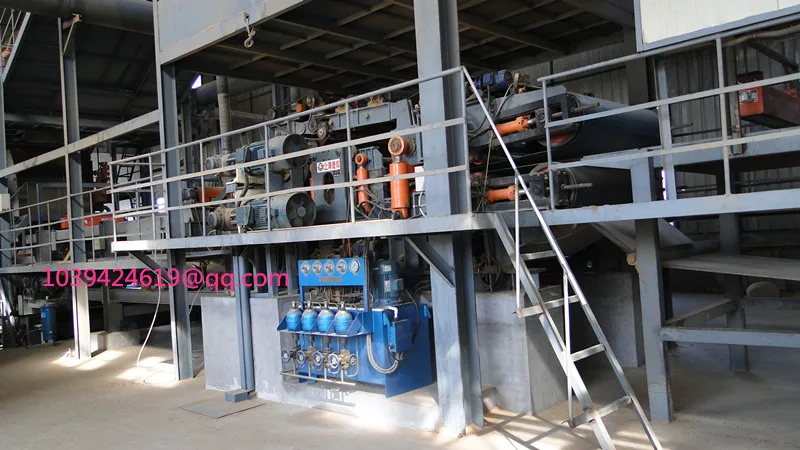

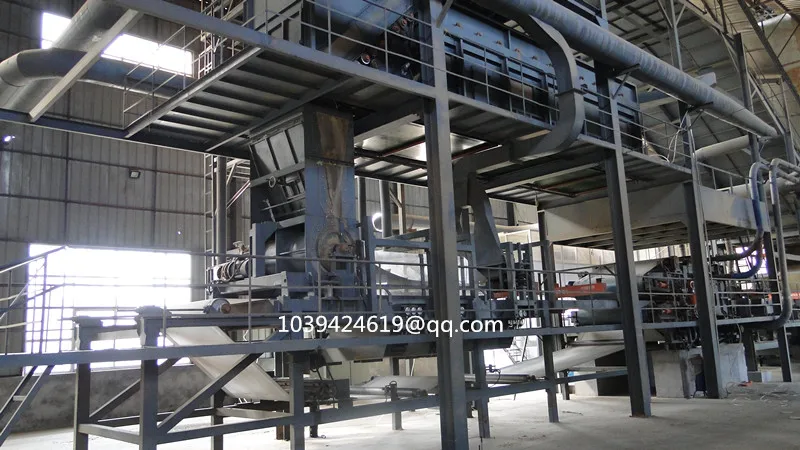

Thin MDF production line/roller MDF line
- Category: >>>
- Supplier: Linyi Youming Wood Based Panel Machinery Co. Ltd.
Share on (1600511478393):
Product Overview
Description
Product Description
Specification

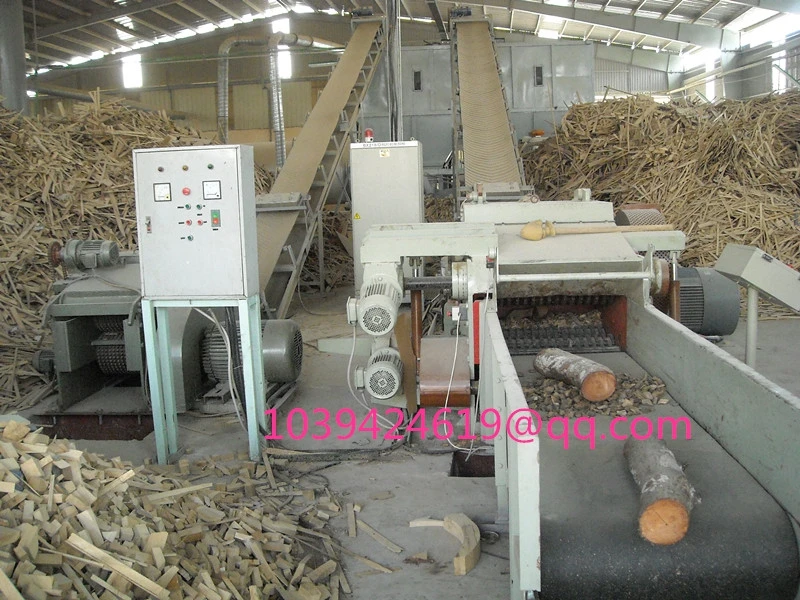

remove fines, soil and stones.

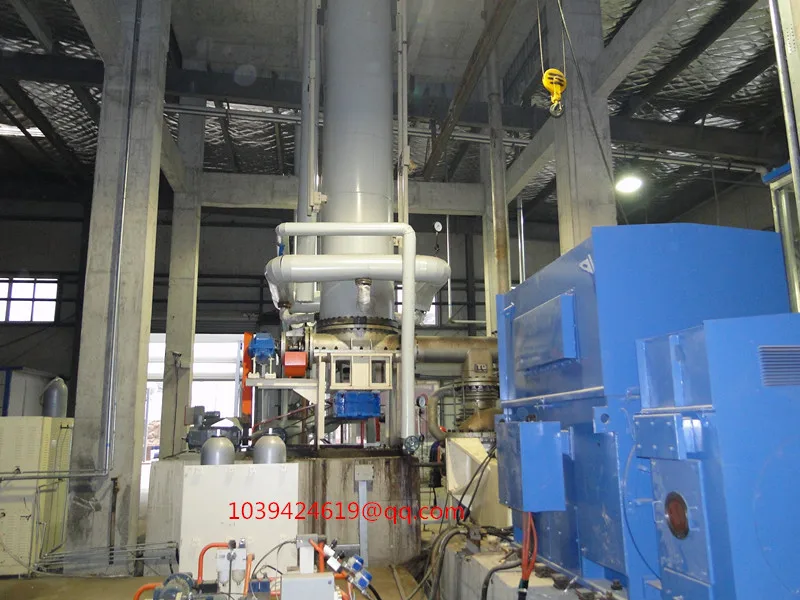

2.Fiber prepare section
Chips are transported to upper bin of refiner, and positively fed to digester by screw feeder for steaming. Steamed chips will
be disintegrated to fiber under the force of heat and mechanism. Mix drying medium and wet fiber which is in the state of
suspension with the help of high pressure air flow, and thus exhaust moisture in fiber via drying medium to get dry fiber. Dry
fiber falls on belt conveyor through cyclone discharge valve, and then be transported to dry fiber bin for storage.
be disintegrated to fiber under the force of heat and mechanism. Mix drying medium and wet fiber which is in the state of
suspension with the help of high pressure air flow, and thus exhaust moisture in fiber via drying medium to get dry fiber. Dry
fiber falls on belt conveyor through cyclone discharge valve, and then be transported to dry fiber bin for storage.
Glue making system
Glue dosing system
Process of glue applying before drying is adopted. Feed molten paraffin and water-proof additive to refiner. Paraffin is mixed with fiber uniformly under the force of refiner plates. Glue is transported to the blow line of fiber discharge valve. This section can be controlled by PLC or computer

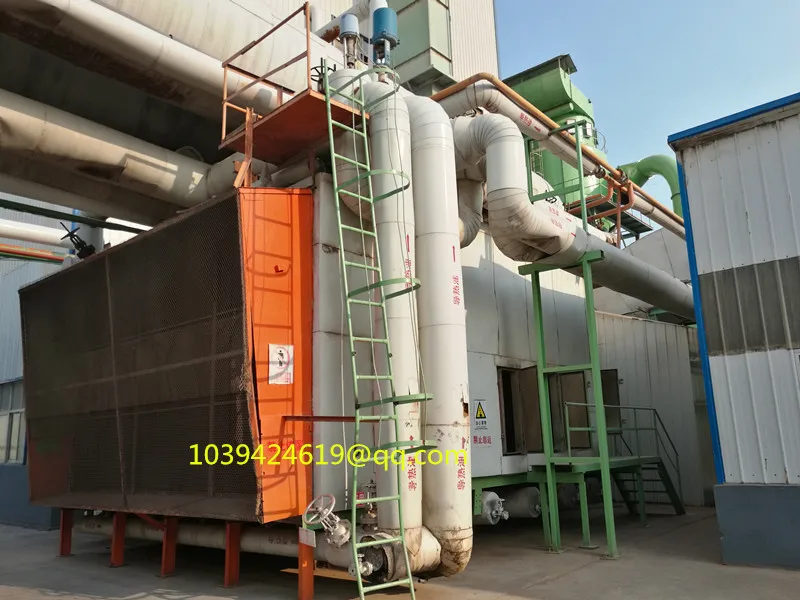

3.Fiber drying section
to drying ducts along with steam, and transported to cylcone separator by hot air. And thus the water in the fibers is drained out
with hot air. The dried fibers and air is separated and then transported to silo.
4. Mats forming section

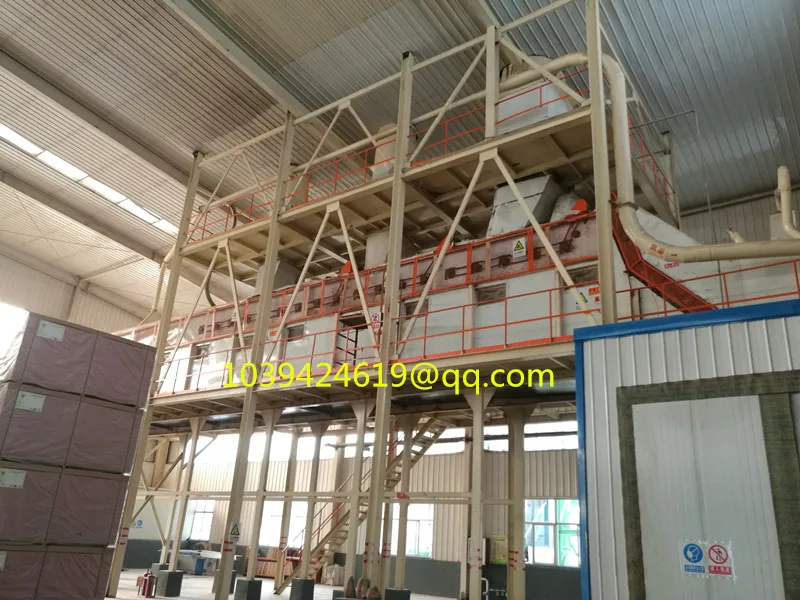

The fiber after drying is transported to the above of forming machine, and uniformly spread on the conveying mesh belt in the way of air-flow. Vacuum box equipped below the mesh belt provides negative pressure and air will be removed via mesh belt, fiber stays on
mesh belt and thereafter forms mats gradually.
mesh belt and thereafter forms mats gradually.

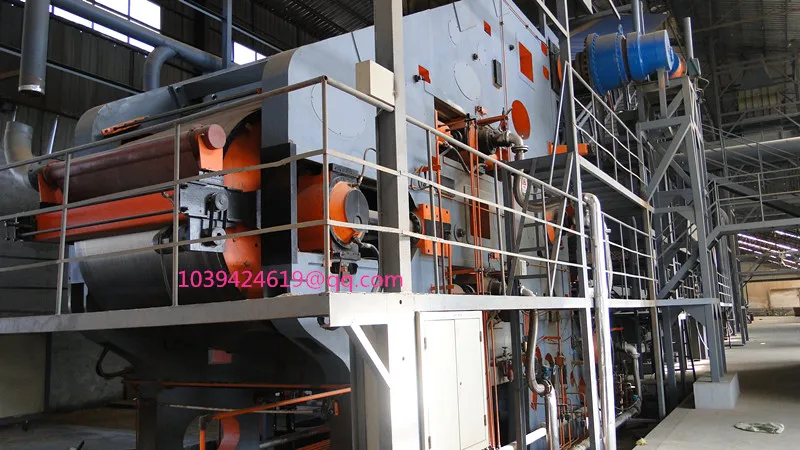

Fluffy mats will be pressed by pre-press. Pressed mats are cut into definite length by longitudinal and transversal saw, then transported
to loader passing through accelerating conveyor, storage conveyor and extension conveyor.
pressure in hot press, and hence boards with definite intensity and thickness form. Rough boards will be put on support via
unloader. Outfeeding conveyor will unload boards one after another to next section when cage comes down.
4x8ft/6x9ft/6*12ft size we can design on your requirement.
Company Profile
OUR TEAM
Located in Lanshan district,Linyi City of Shandong province,“The biggest wood based panel base of
Asia”(LINYI YOUMING WOOD BASED PANEL MACHINERY CO.,LTD/LINYI HENGMING INTERNATIONAL TRADING CO.,LTD)is an aggressive enterprise which integrates wood based panel machinery researching,designing,manufacturing,marketing and service into one whold. Since the company was founded 26 years ago，YOUMING machinery keeping innovations and perfection to commit themselves in producing best quality machinery.
Our main products are Particle board production line ,Plywood production line ,H/MDF production line,all kinds of Lamination press(Mould door hot press,block board hot press,molded hot press)etc.based on our good quality as wellas perfect service,our businees scope expands extensively both at home and more than 20 coutries such as
Vietnam,Malaysia,India,Pakistan,Bangladesh,Russia,Turkey and so on.And the machinery are well praised by our clients.
Choose YOUMING machinery, Create measureless value!
Asia”(LINYI YOUMING WOOD BASED PANEL MACHINERY CO.,LTD/LINYI HENGMING INTERNATIONAL TRADING CO.,LTD)is an aggressive enterprise which integrates wood based panel machinery researching,designing,manufacturing,marketing and service into one whold. Since the company was founded 26 years ago，YOUMING machinery keeping innovations and perfection to commit themselves in producing best quality machinery.
Our main products are Particle board production line ,Plywood production line ,H/MDF production line,all kinds of Lamination press(Mould door hot press,block board hot press,molded hot press)etc.based on our good quality as wellas perfect service,our businees scope expands extensively both at home and more than 20 coutries such as
Vietnam,Malaysia,India,Pakistan,Bangladesh,Russia,Turkey and so on.And the machinery are well praised by our clients.
Choose YOUMING machinery, Create measureless value!

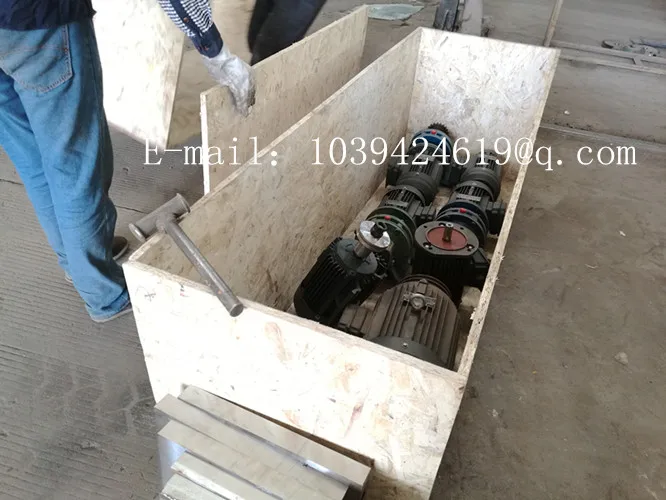

Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
