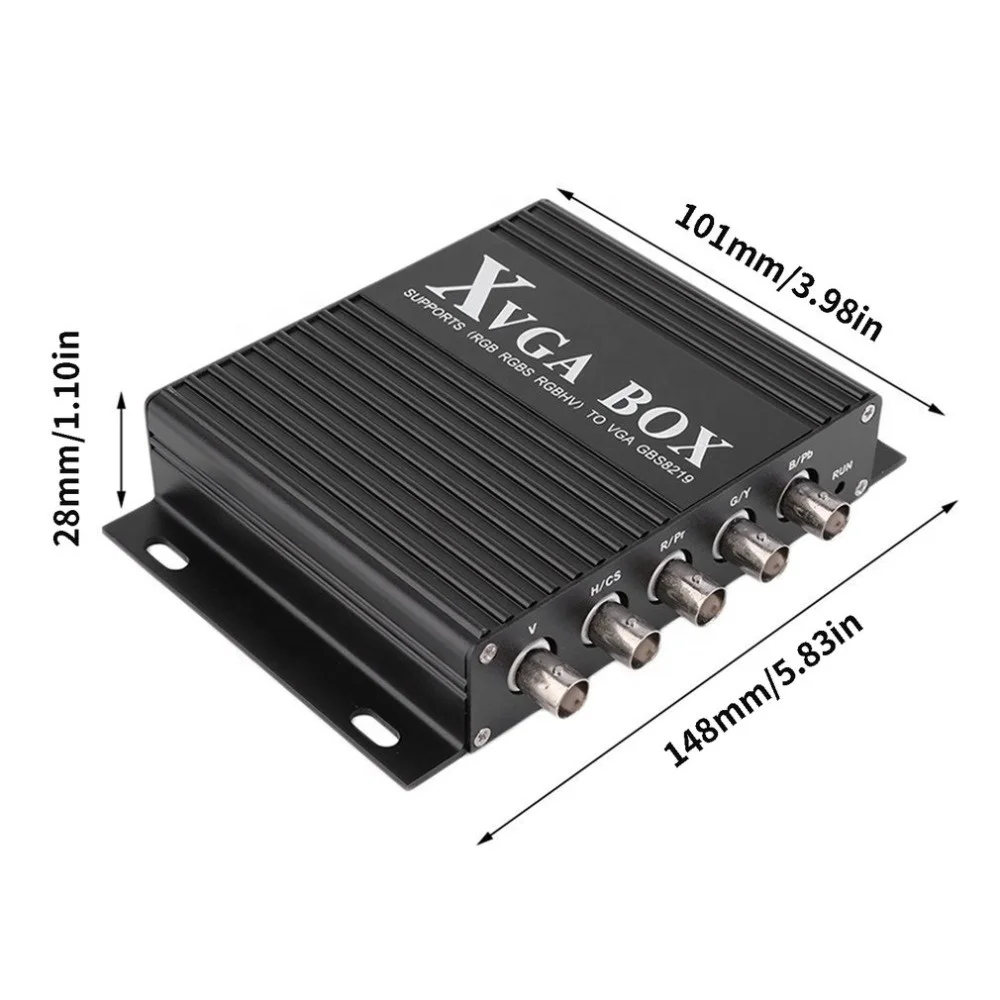

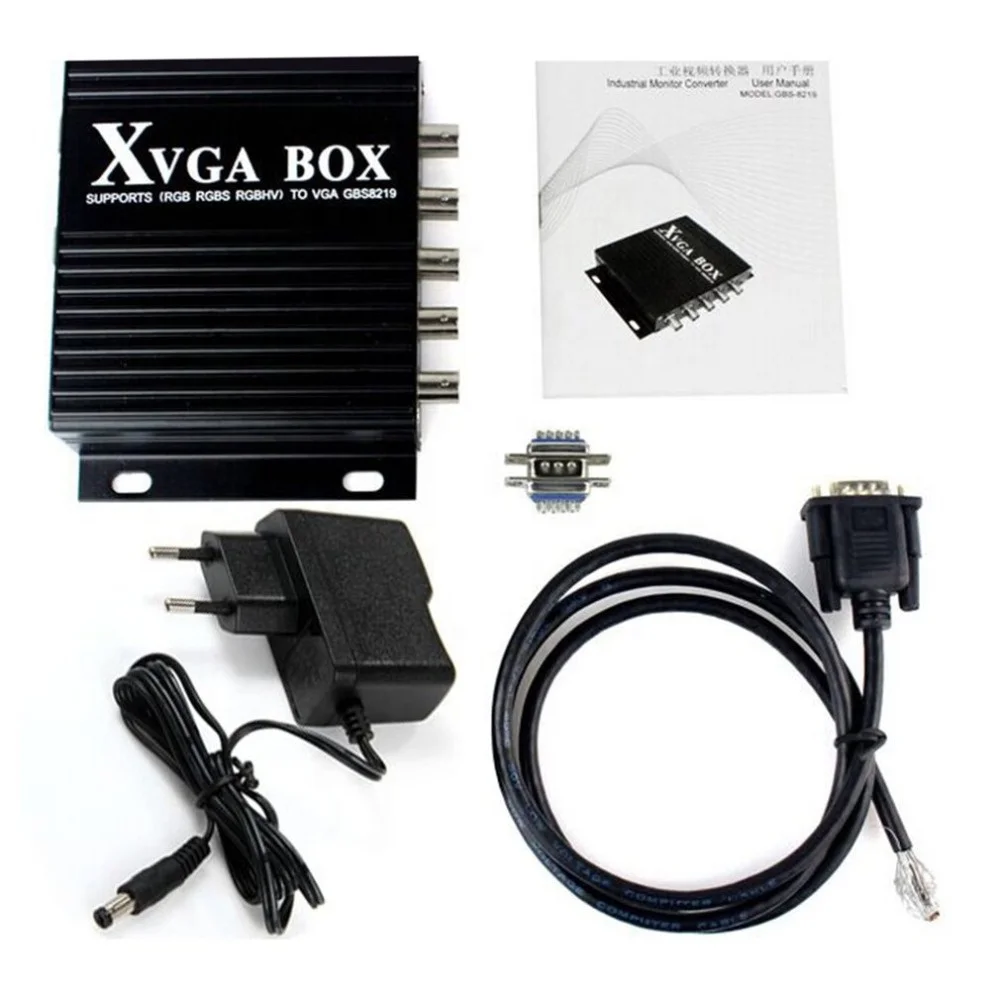

GBS8219 Video Converter RGB EGA CGA to VGA LCD Industrial Monitor Video Converter
- Category: >>>
- Supplier: Dongguan Lidi Electronics Technology Co. Ltd.
Share on (1600511491186):
Product Overview
Description
Product Description
Introduction
Newly released XVGA BOX(RGB,MDA,CGA,EGA to VGA Converter) was launched of an innovative industrial Video Converter, GBS 8219 video converter of industrial fully automated operation, be able to convert all Rgbhv, Rgbs, Rgb,MDA,CGA,EGA signal to VGA signal, and was widely for various kinds of FHKD, such as Digital Control Machine Tool Display, DCS Display, injection molding machine, analytical instrument, specialized display of navigation and import production line, etc.
Feature specifications
Input | Signals | MDA,CGA,EGA,RGB,RGB Sog,RGBS,RGBHV,YPbPr |
Interface | 9pin,3pin,6pin,14pin,20pin,25pin | |
Horizontal Frequency Rate(H) | 12kHz to 40kHz automatically recognized | |
Output | Supports | 15pin VGA,Resolution:800*600/60HZ or custom-resolution |
Interface | D-Sub 15 PIN standard VGA port | |
Power | DC 12V 1.0A | |
Note
1. YPbPr = YUV
2. Input Horizontal Frequency Rate 12kHz to 40kHz automatically recognized.
3. Support RGB and YPbPr
4. Support Interlaced Scanning and Line by Line Scanning.
5. Support Vertical Resolution from line200 to line 600 automatically recognized.
6.Support variable Horizontal Resolution automatically recognized.
7. Support RGBHV (separate sync), RGBS (composite sync), automatically recognized
8. Output resolution: 800*600/60Hz standard VGA or custom-resolution.

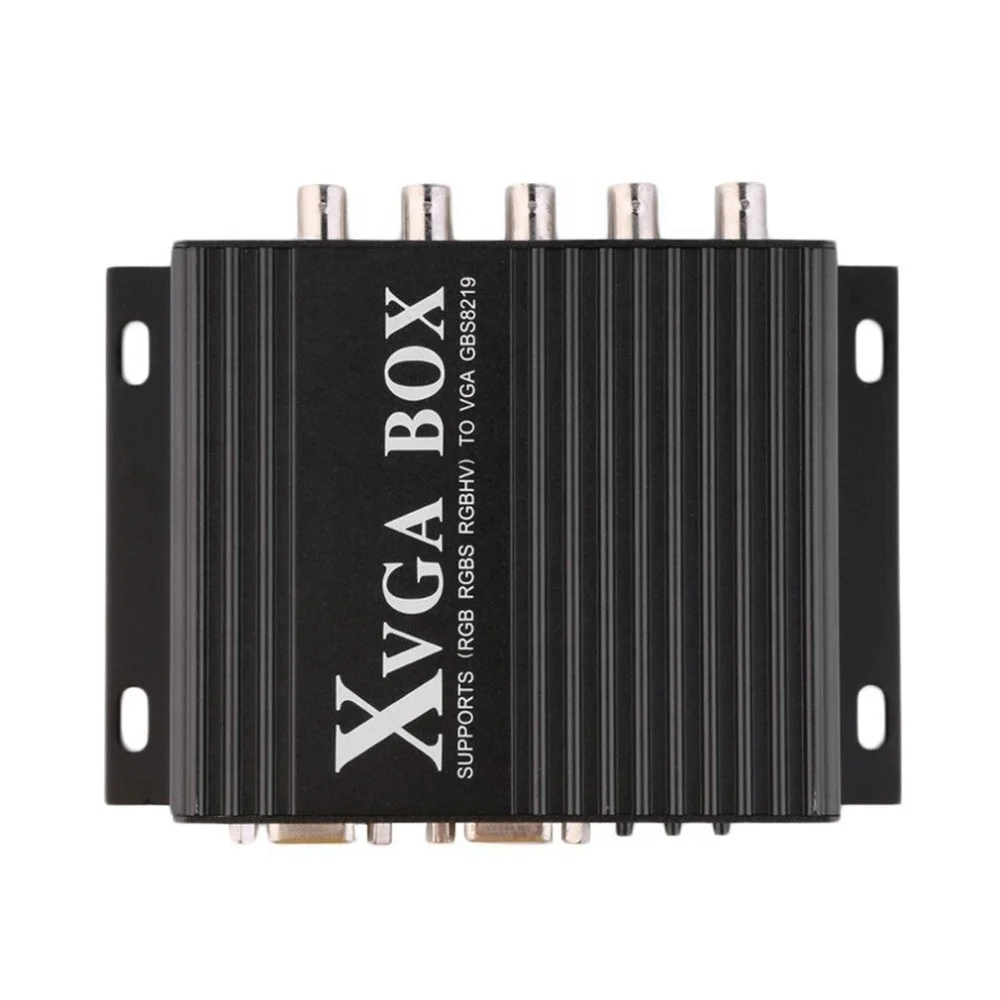

Interface Specification
Item | Spec. | Remarks |
V | To connect V interface of the input device | Input Channel Ⅰ |
H/CS | To connect H(CS) interface of the input device | |
R/Pr | Red signal input/ Pr signal input | |
G/Y | Green signal input/ YPBPR -Y signal input | |
B/Pb | Blue Signal input/YPBPR -Pb signal input | |
RUN | Running Status Indicator |
|
VIDEO in | To connect 9-pin interface of the input device | Input Channel Ⅱ |
VGA out | Standard sub-15p VGA female interface | VGA Output |
MENU | Use to adjust screen /programming |
|
DC12 | Power input DC12V, 1A |
|
Note: Input Channel Ⅰ, Input Channel Ⅱ, you can choose one of them
Definition for I/O interface
Table 4.1 Definition for Input Channel Ⅱ:
PIN | Input Signal |
p1(GND) | Connect to the ground |
p2(GND) | Connect to the ground |
P3(R) | connect R(ed) interface of the input device |
P4(G) | connect G(reen) interface of the input device |
P5(B) | connect B(lue) interface of the input device |
P6 | Undefined(null) |
P7 | Undefined(null) |
P8(H) | connect H(CS) interface of the input device |
P9(V) | connect V interface of the input device |
