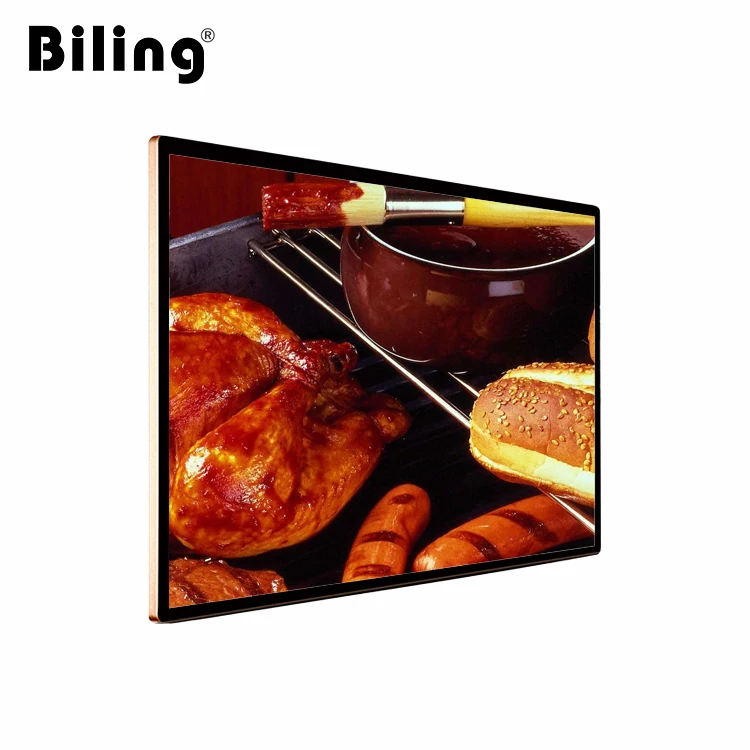

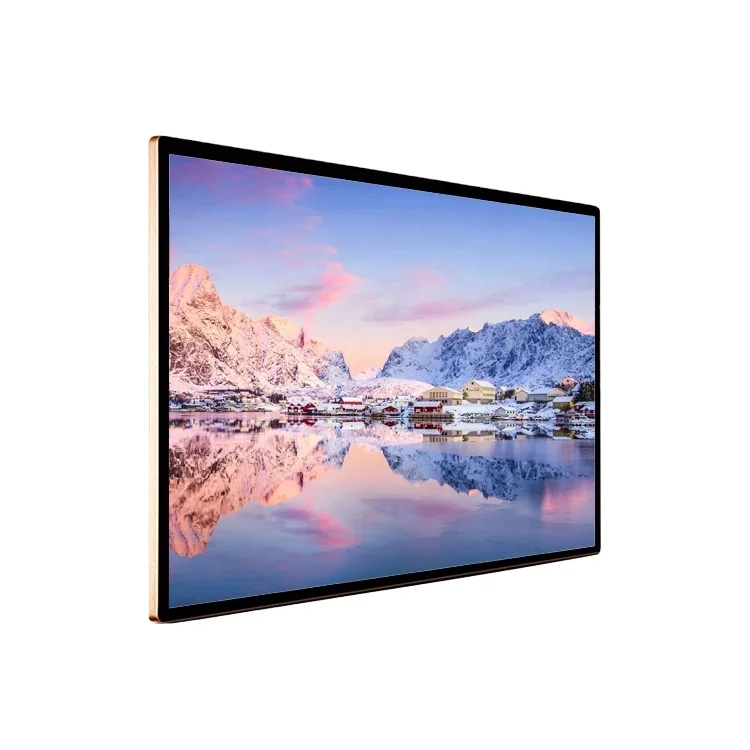

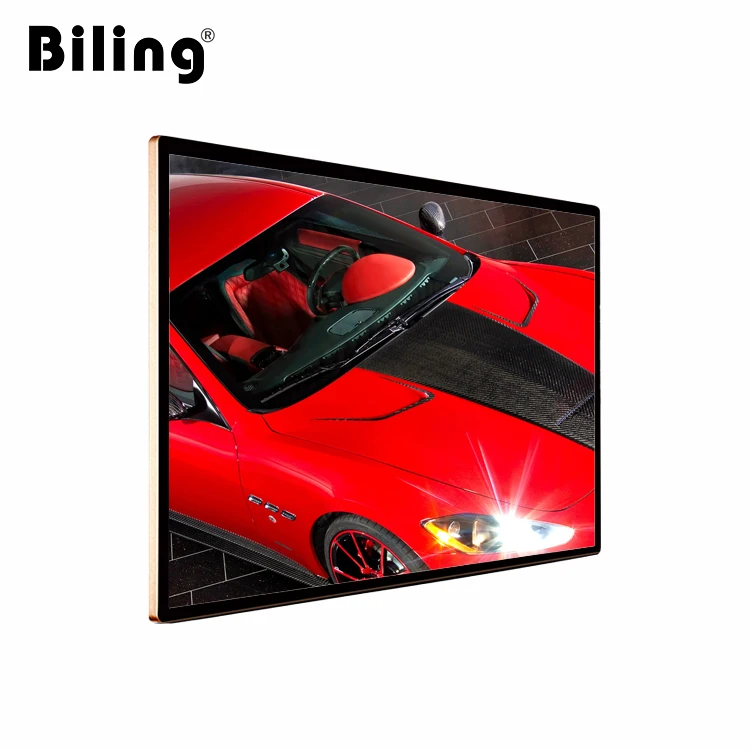

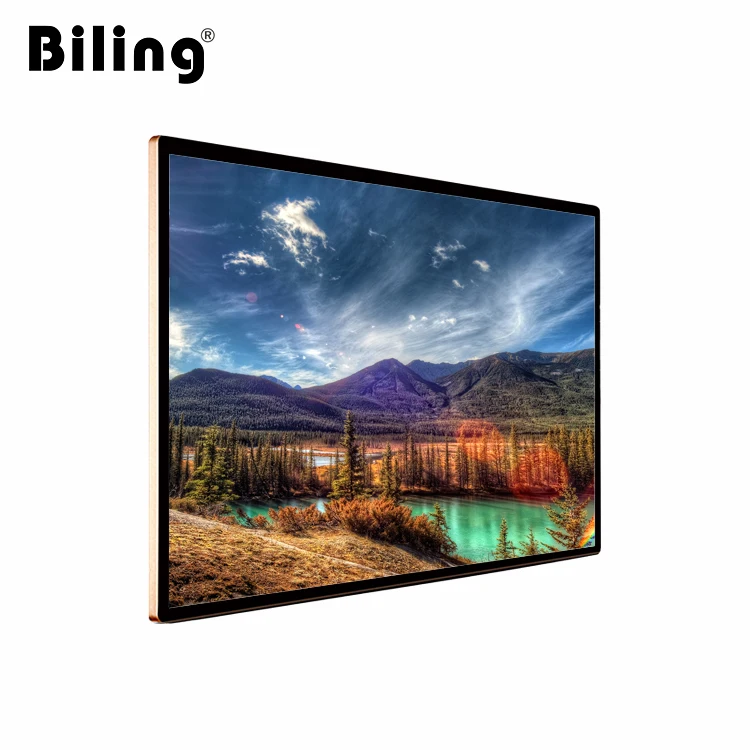

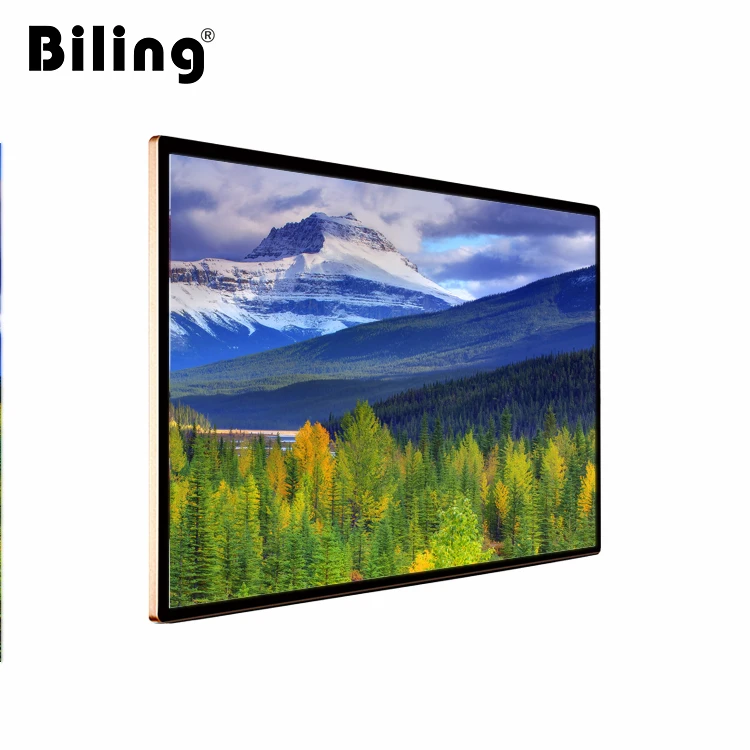

43 inch Wall Mounted Magic Mirror TV Display LCD Media Player Digital Signage hd lcd ad display
Support OEM / ODM
Infrared TOUCH ( optional ) , Thickness :3cm(or 2cm)

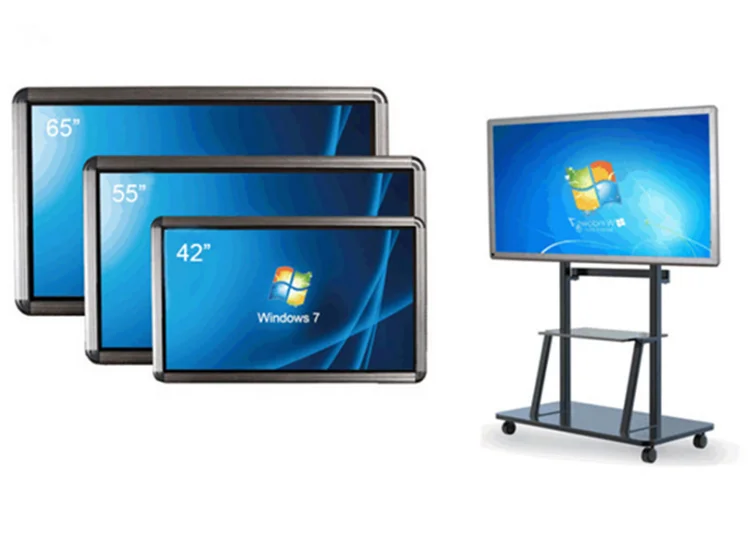

43,49,55,65 inch Screen can support
Stand-alone / Android / windows version optional
black , gold , silver ( optional )
USE

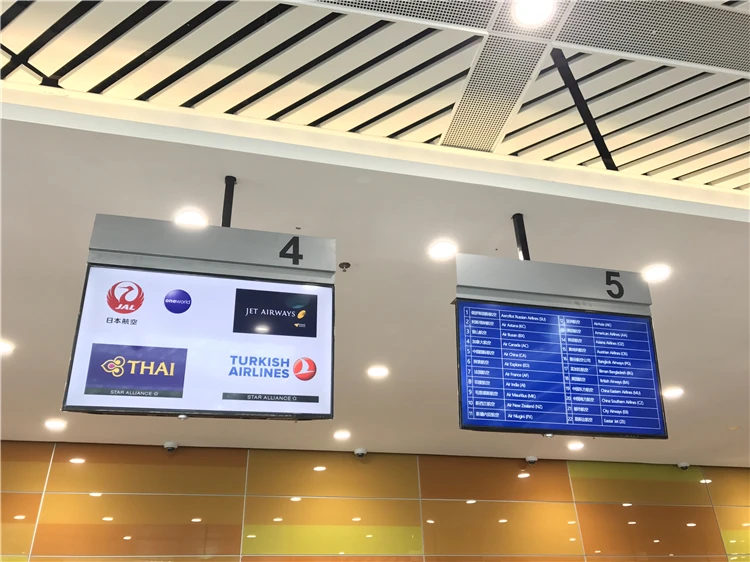

Widely use on Airport, station, catering industry, entertainment industry, medical institution, golf course, supermarket, exhibition, stadium and gymnasium, financial industry, organ and enterprise, building adverting and billboard advertising, subway, hotel, rail way station, bus station, lift, bank, commercial center, wedding photograph, large exhibition, mobile show, chain-store and etc.
Screen size: 55"
Resolution: 3840 (RGBW) x 2160 [UHD] or 1920 (RGB) * 1080 [FHD]
Display size: 1209.6 * 680.4 mm (H * V)
Visual size: 1214.6 * 685.4 mm (H * V)
Brightness (cd/m2):500 (Typ.)
Best angle: full view
Visual angle: 89/89/89/89 (Min.) (CR = 10)
Pitch: 0.630mm (H) x 0.630mm (W)
Color quantity: 16.7M/1.07B, 68% [CIE1931]
Screen weight: 12.5/13.0Kgs (Typ./Max.)
Refresh frequency: 60Hz
Signal system: V-by-One 8, lane, terminal, 51 pins
Supply voltage: 12.0V (Typ.)
Maximum rating: storage temperature: -20 ~ 60 degrees C operating temperature: 0 ~ 50 degrees C
Screen type: LCD module, a-Si TFT-LCD
Pixel configuration: RGBW vertical strip

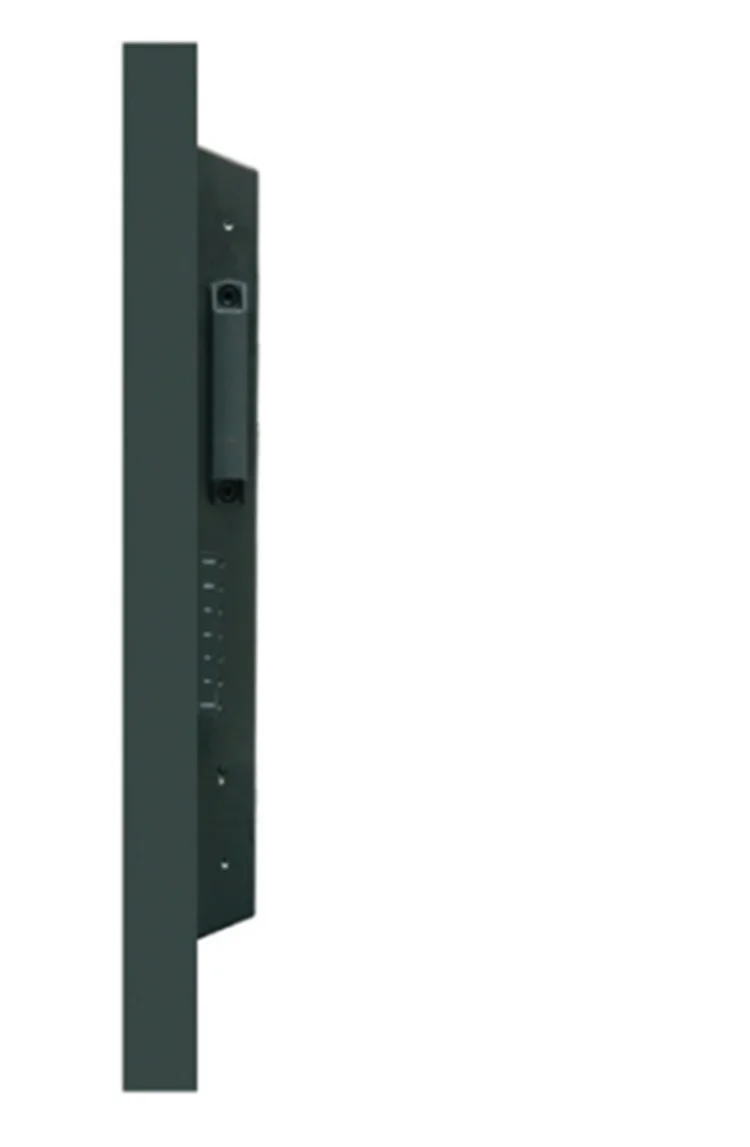

Appearance size: 1233.4 * 706.8 * 15.4 (H * V * D)
Surface treatment: Fog (Haze 1%), Hard, coating (3H)
Contrast: 1000: 1 (Typ.) [transmission]
Optical mode IPS, normally black display, transmissive type
Response speed: 8 (Typ.) (G, to, G) MS
Backlight type: WLED, 50K hours, no drive
CPU: RK3188, quad-core, frequency 1.6GHz
Memory: 1 / 2G (optional)
Built-in memory: EMMC FLASH 8G (optional)
Built-in ROM: 2KB EEPROM
Decoding resolution: up to 1080P
Operating system: Android 4.4 above
Play mode: support for the cycle, timing, spots and other playback modes
Network support: 3G, Ethernet, WiFi support, wireless peripherals expansion
Video playback: support wmv, avi, flv, rm, rmvb, mpeg, ts, mp4 and so on
Picture format: support BMP, JPEG, PNG, GIF
USB2.0 interface: 3 USB HOST, 3 USB socket
Serial port: 3 serial socket
TVIn: CVBS input 2, support N, P standard
GPS: built-in GPS (optional)
WIFI, BT: built-in WIFI, BT (optional)
Ethernet: 1, 10M / 100M adaptive Ethernet
Timing switch machine: support

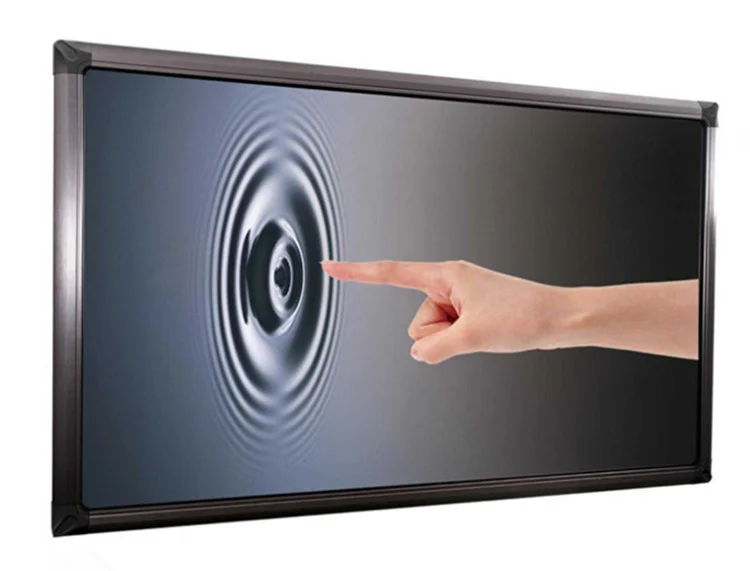

| Infrared touch | |
Material: tempered glass Glass thickness: 3mm, 4mm, 6mm | |
| Touch the parameter | Electrical parameters |
| The number of times the theory is determined by the degree of glass wear Design life: more than 5 years Touch the fastest response speed: 6ms Touch the average reaction speed: 8ms | Working voltage: 4.5 ~ 5.5Vdc Working current: ≤120mA Power: ≤ 900mW |
Welcome to Shenzhen P&Y Technology Co., Ltd
We are a professional manufacturer of Advertising display screen & android tv box with well-equipped testing equipment and strong technical force.With a wide range,good quality, reasonable prices, stylish designs and huge Tech team support,our products are extensively used in many industries.look forwarder to start cooperation with you!
Standard export carton packing.
3-20 days after confirming order,detail delivery date should be decided according to
production season and order quantity.
