Camless CNC Versatile Spring Rotating Forming Machine
- Category: >>>
- Supplier: Nantong Eason Foreign Trade Co. Ltd.
Share on (1600511515253):
Product Overview
Description
Product Description
PRECISION SPEEDINESS STABILITY

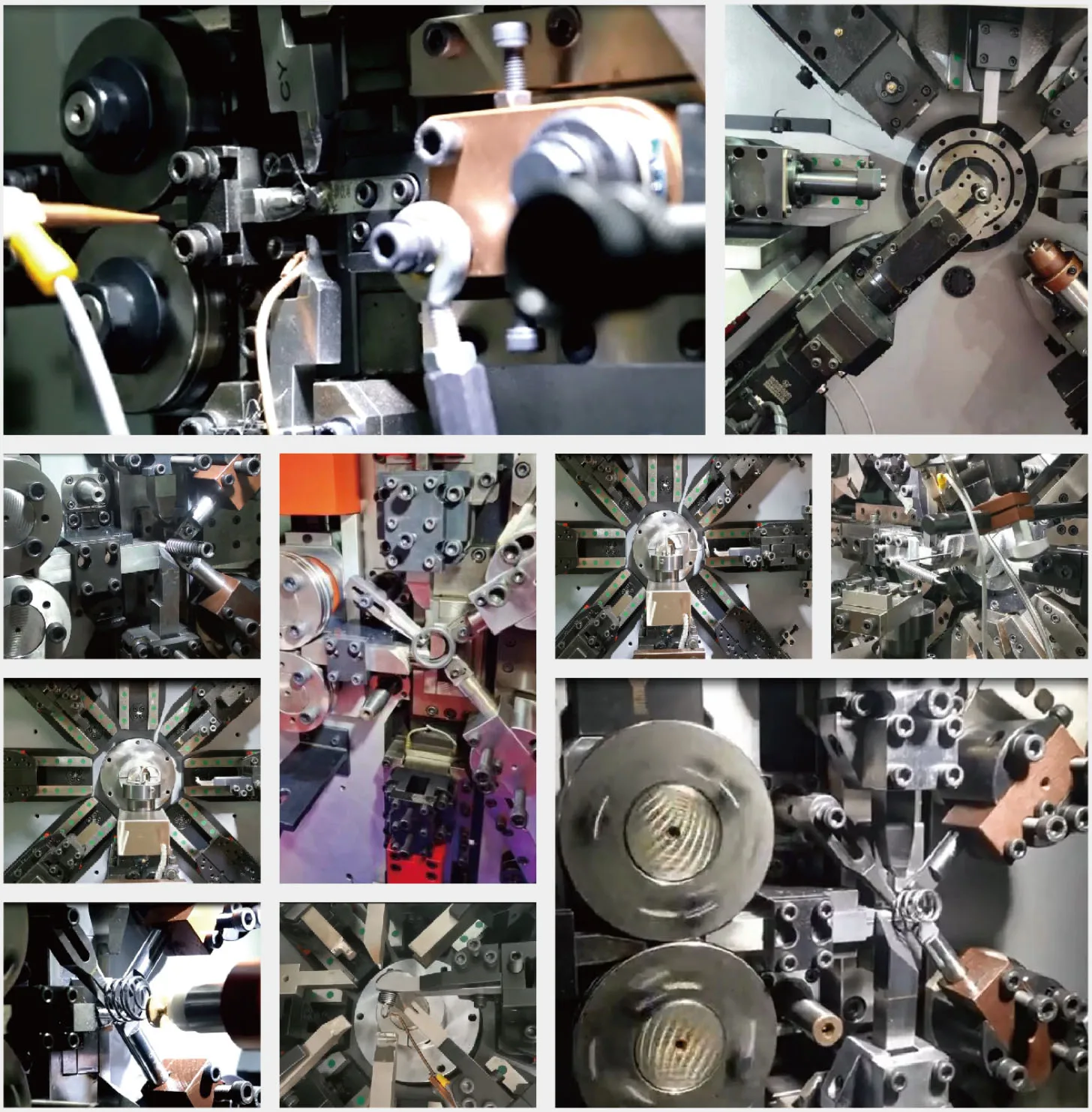

1220 Camless multi axis CNC rotating and Forming machine, is composed by Taiwan computer system and Japan Servo motor special designed with no rocker arm and camless, the slide base is separately controlled by eight servo motor, feeding axis, quill rotation axis, wire rotating axis and spinner axis. The machine optional with device of servo scissors, servo spinners, and servo cutters, with low noise. The damage is zero on mandrel and machine.

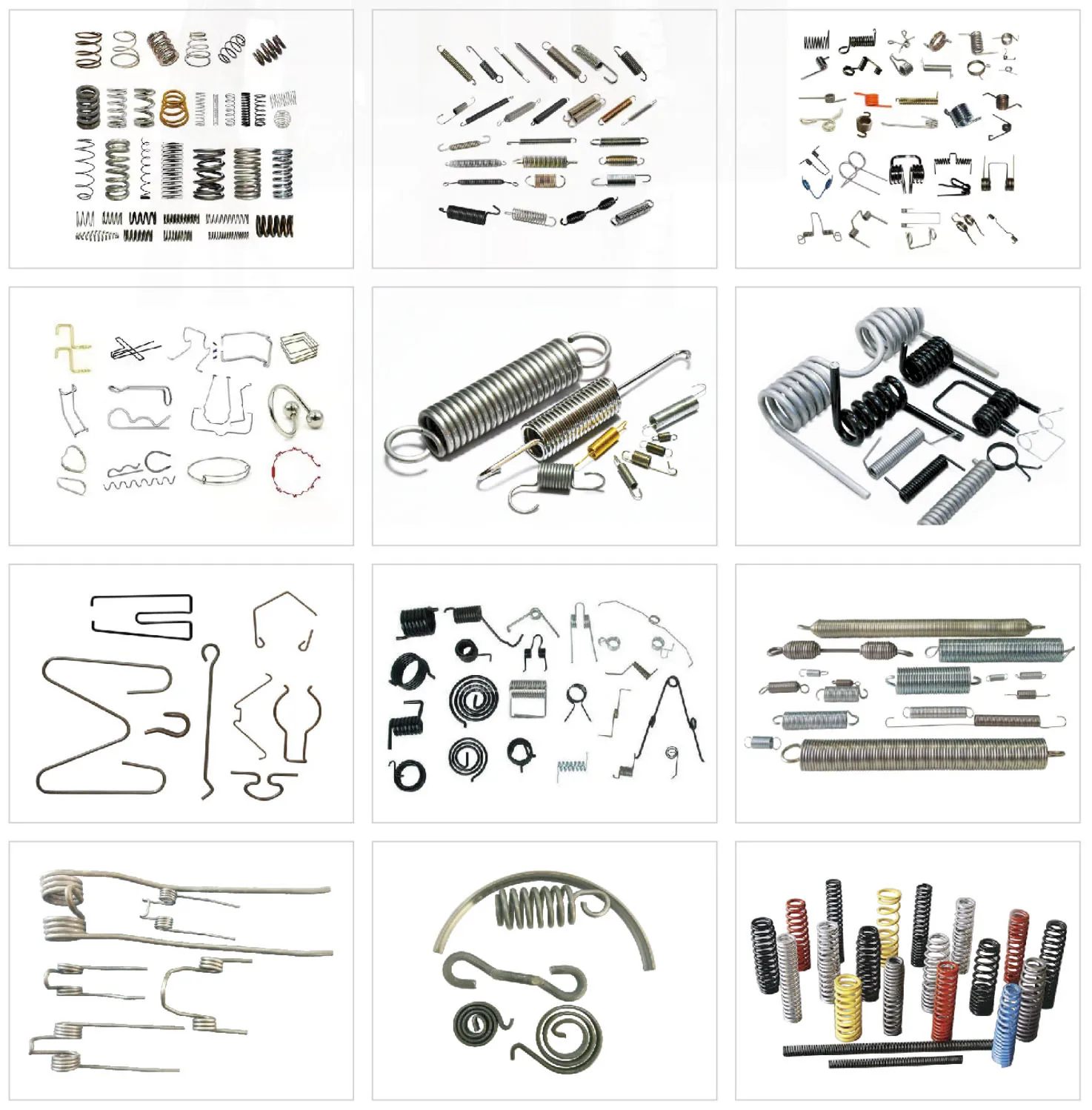

It is suitable for making kinds of tension spring, torsion spring, compression spring, scroll spring, tower spring ,flat wire spring and difficult shaped springs.
Largely increased the spring making range from 0.3-2.0mm, it is precise, stable, and easy operating.
PARAMETER | Specifications are subject to actual delivery. |
Model | KCT-1220WZ |
Number Of Axes | 12 (Max 18 axes) |
Wire Diameter | Φ 0.3-2.0 mm |
Max. Wire Feed Speed | 150m/min |
Spring Index | 3 |
Feed Roller Group | 2 Groups |
Feed Servo Motor | 2.9 KW |
Quill Servo Motor | l.0 KW |
Wire Rotation Motor | 2.9 KW |
Fomer Servo Motor | 0.85 KW *8 |
Spinner Servo Motor | 0.4 KW |
Air pressure | 0.2-0.4 Pa |
Air cylinder | 5 |
Probe | 5 |
Power | 3P/380V 50/60 HZ |
Dimension (L*W*H) | 1600*1160*1750 mm |
Weight | 1500 KG |
FEATURES
Max. 18 axes
All axes work independently
Linux System
Japan servo motor
Remote monitoring
USB port

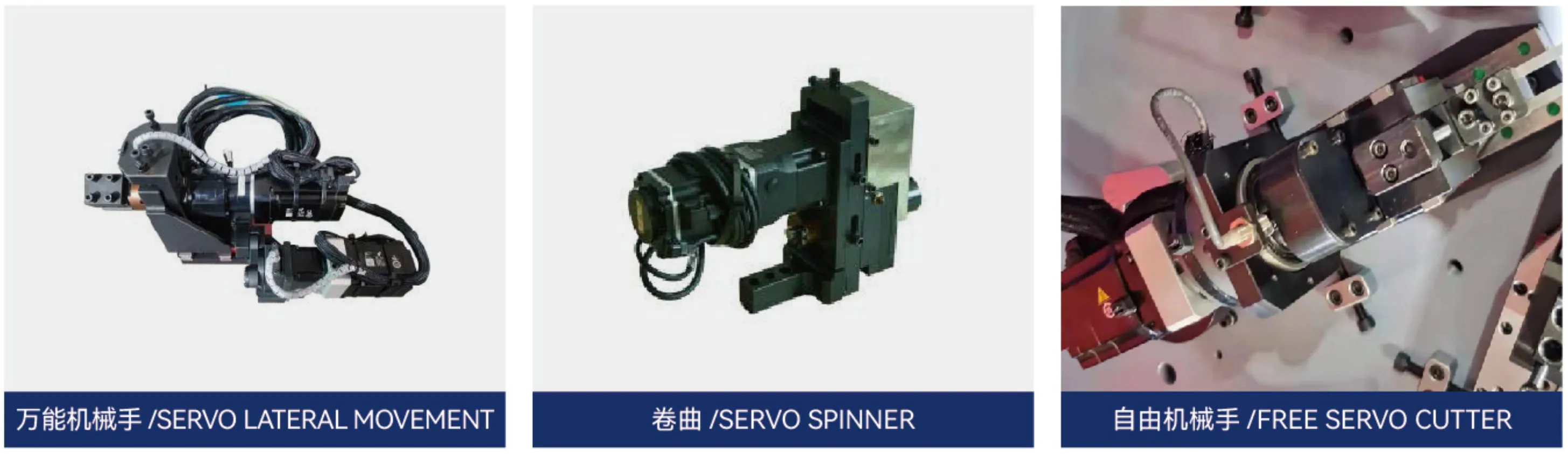

Optional Servo spinner
Optional Servo Cutter etc
