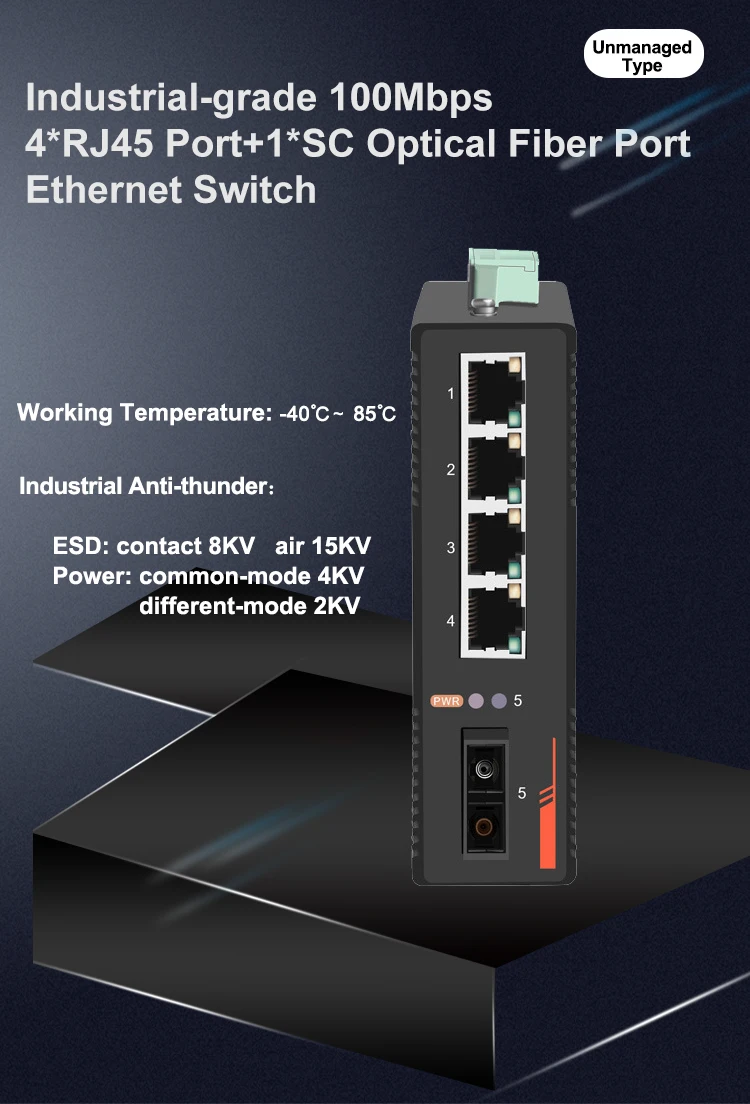

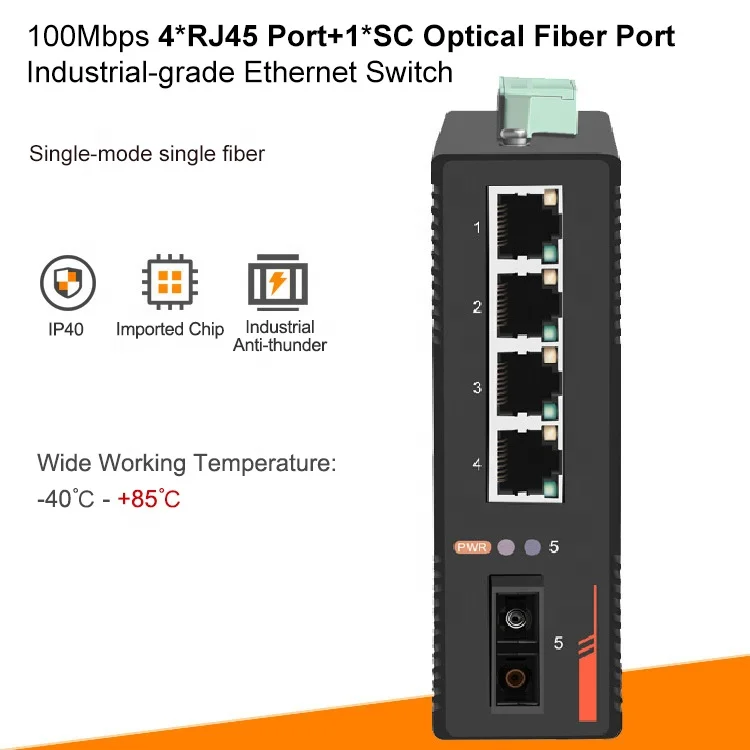

4 RJ45 Port 1 SC Optical Fiber Port 100Mbps Industrial Ethernet Network Switch Switcher

Product Name

4 RJ45 Port 1 SC Optical Fiber Port 100Mbps Industrial Ethernet Network Switch Switcher

RJ45 Port

10/100BaseT(X)Automatic detection

Full/half duplex MDI/MDI-X adaptive

Ports

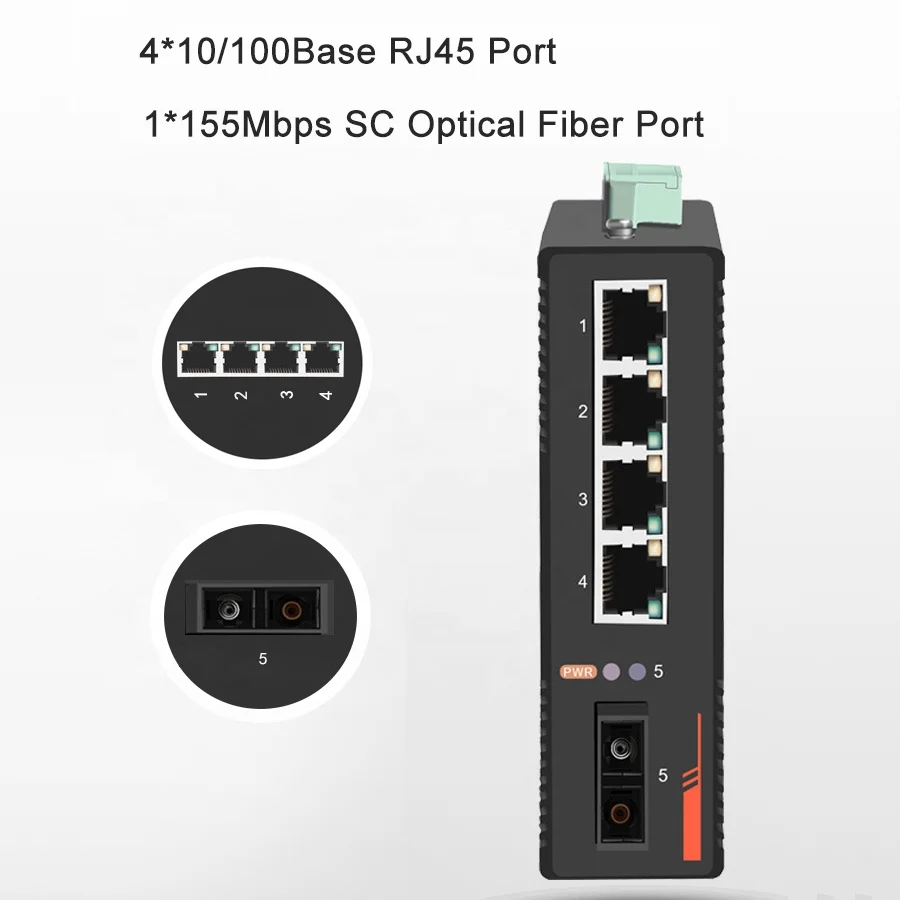

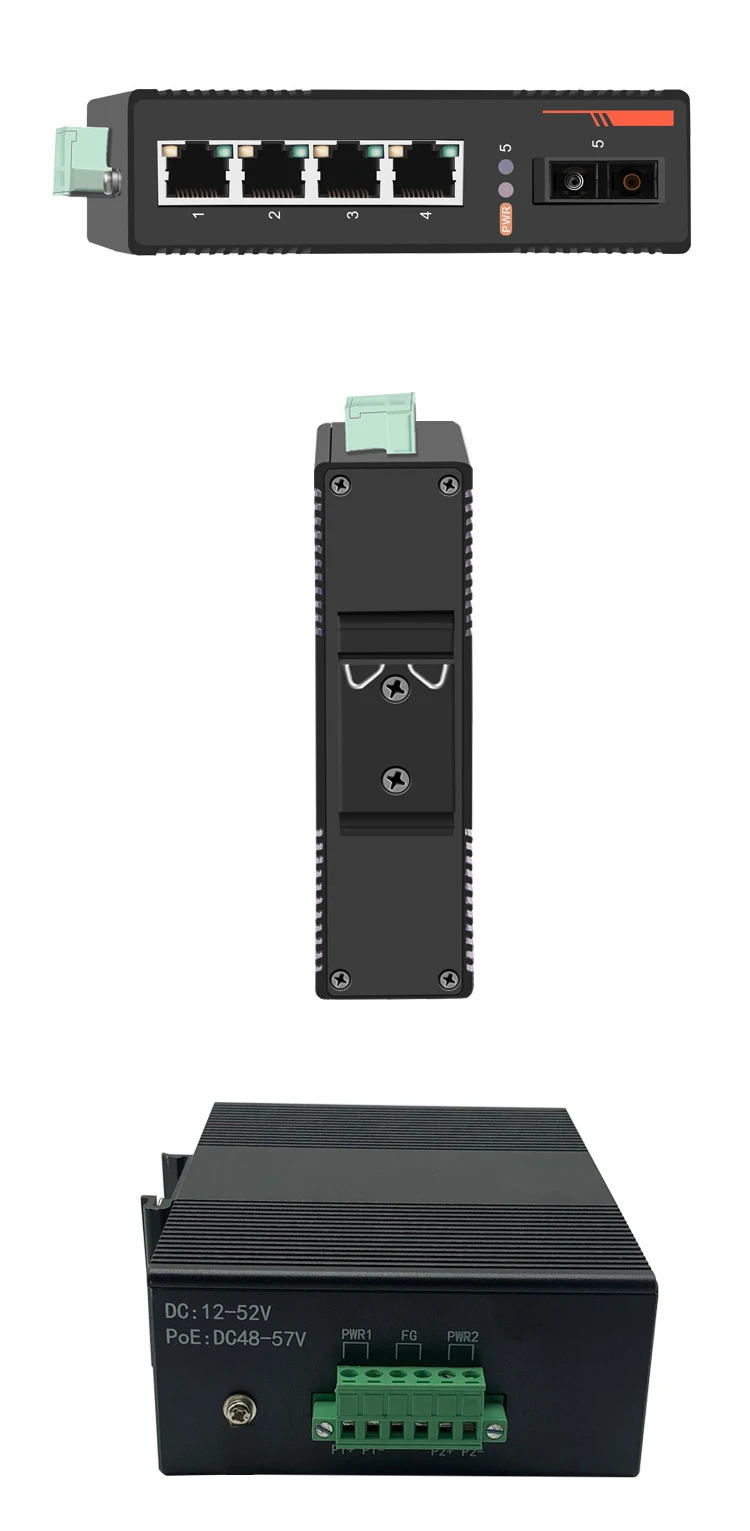

4 RJ45 ports+1 SC optical fiber port

Network Protocol

IEEE802.3 - CSMA/CD

IEEE802.3i - 10Base-T

IEEE802.3u - 100Base-TX/FX

IEEE802.3x - flow control

Working Environment

Operating temperature: -40~85degree C

Storage temperature: -40~85degree C

Relative humidity: 5%~95%(no condensation)

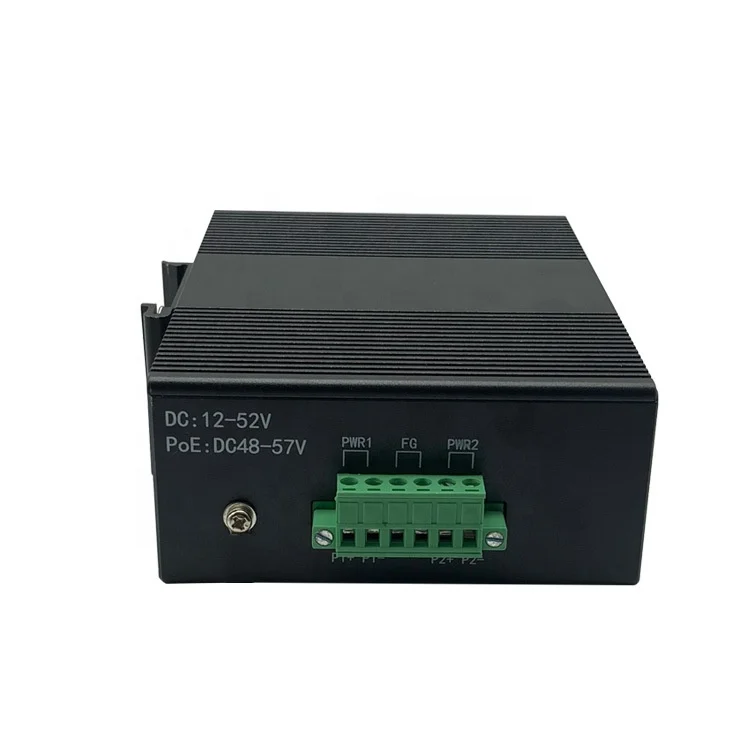

Power Supply

Input voltage: DC12-52V(dual power supply redundant backup)

Access terminal: Phoenix terminal

Support dual power redundancy

Support built-in overcurrent 4.0A protection

Support reverse grounding protection

Switch Properties

Exchange capacity: 1.6Gbps

Application level: Level 2

Overall packet forwarding rate: 0.744Mpps

MAC surface: 1K

Packet buffer: 448K

Delay time: <3μs

Switching mode: store forward power consumption: <3W

LED Indicators

Power indicator:PWR, interface indicator: electric port and optical port(Link/ACT)

Protection

IP40

Authentication

Passed certification: CE, ISO9001:2015 network access license of the Ministry of industry and information technology, inspection report of the Ministry of public security,

Security: ul508

MTBF

300000hours

Mechanical Properties

Enclosure:IP40 protection grade, metal enclosure

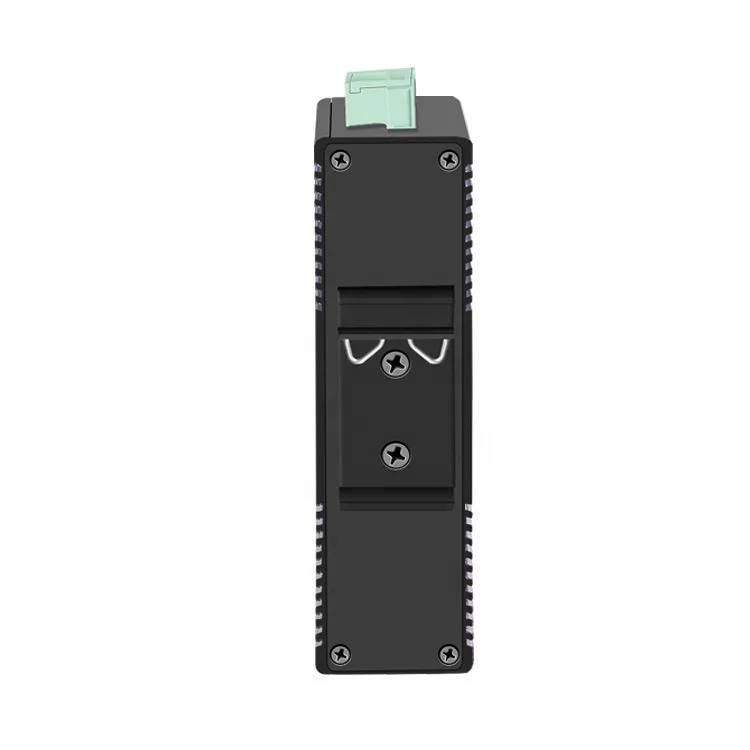

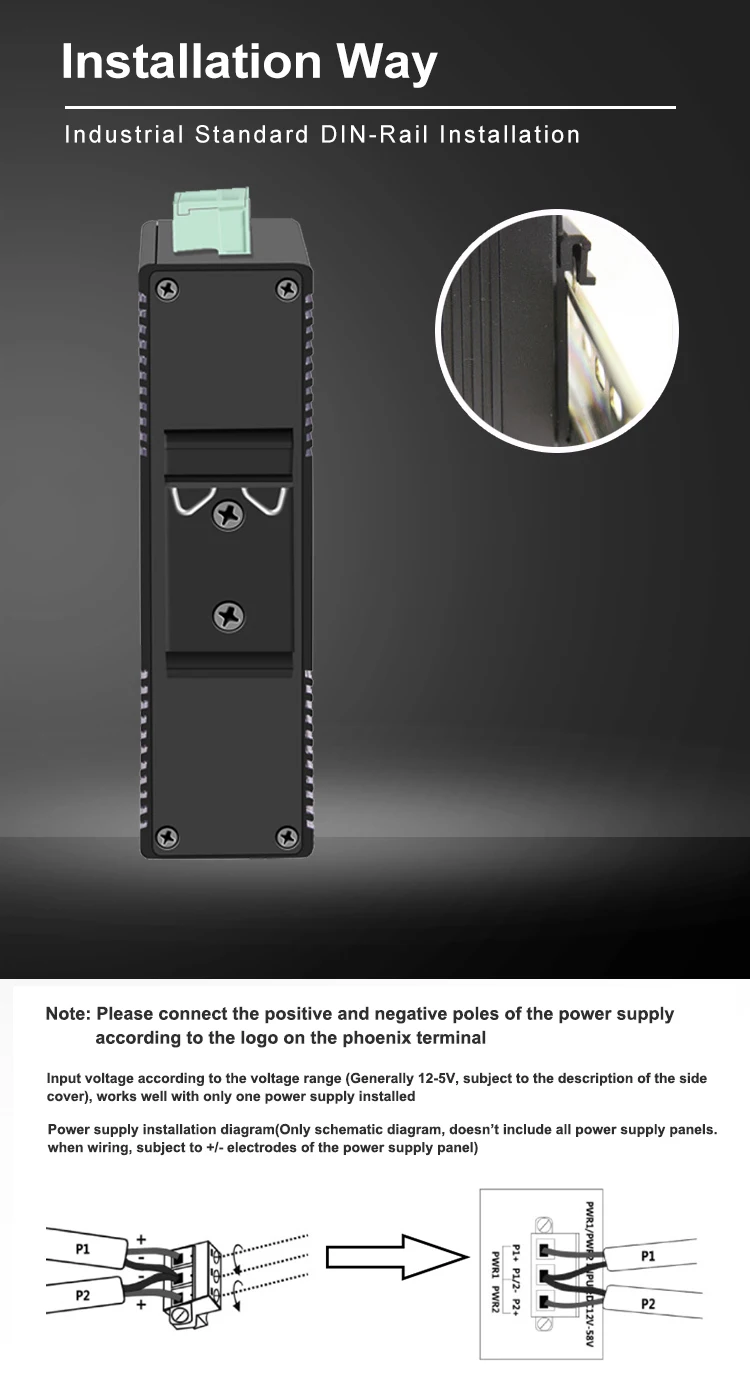

Installation:DIN rail type, wall mounted

Heat dissipation:natural cooling without fan

Weight:0.36kg

Dimensions:118*86*39mm

Industry Standard

EMI: FCC Part 15 Subpart B Class A, EN 55022 Class A

EMS: IEC(EN)61000-4-2(ESD): +-8KV(contact), +-15KV(air)

IEC(EN)61000-4-3(RS): 10V/m(80~1000MHz)

IEC(EN)61000-4-4(EFT):Power Port:+-4KV; Data Port: +-2KV

IEC(EN)61000-4-5(Surge): Power Port: +-2KV/DM, +-4KV/CM; Data Port: +-2KV

IEC(EN)61000-4-5(Surge): Power Port: +-2KV/DM, +-4KV/CM; Data Port: +-2KV

IEC61000-4-6(CS): 10V(150kHz~80MHz)

IEC(EN)61000-4-16(CM EMI): 30V cont. 300V,1s

IEC 60068-2-27(Shock)/EC 60068-2-32 (Free fall)

IEC 60068-2-6(Vibration)
