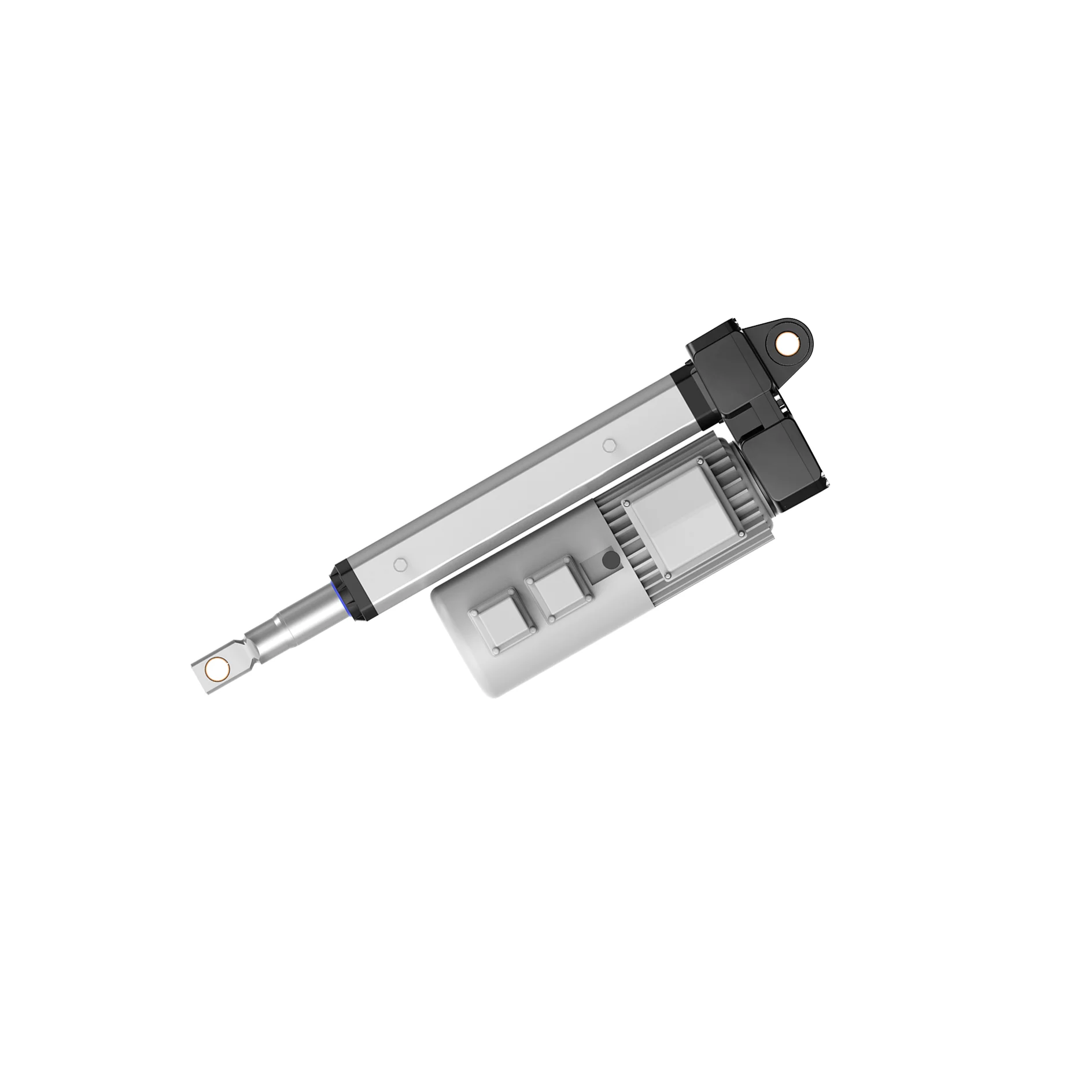

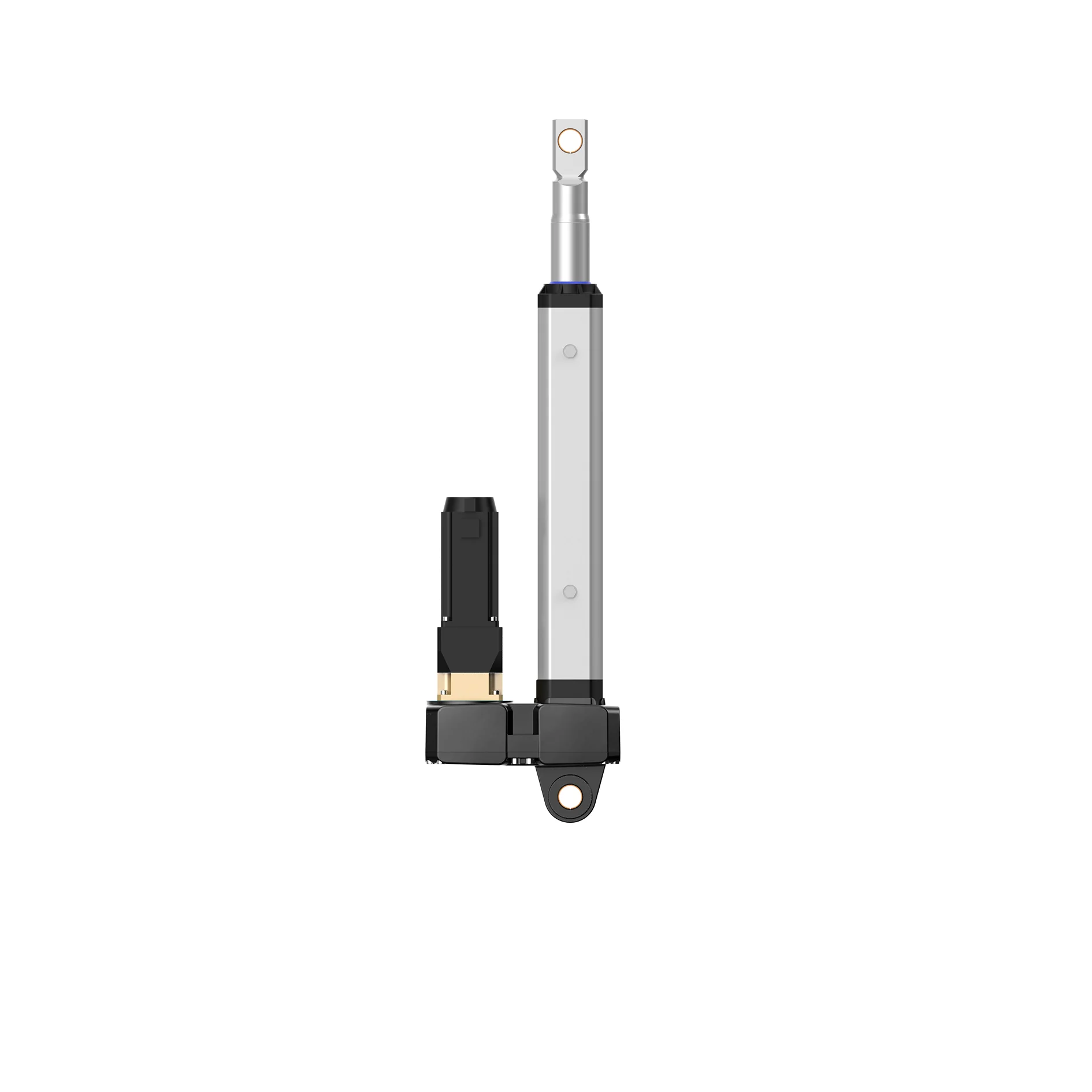

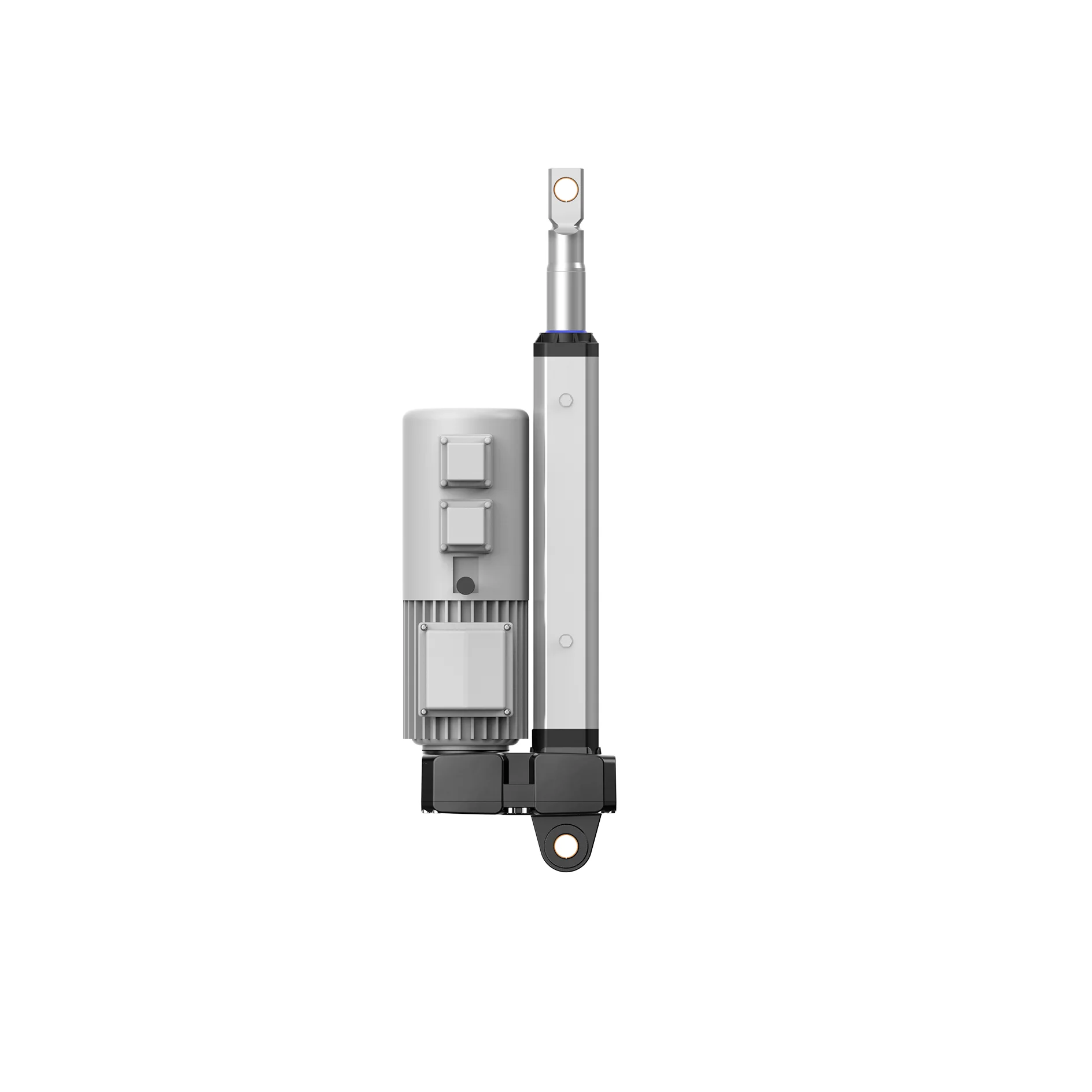

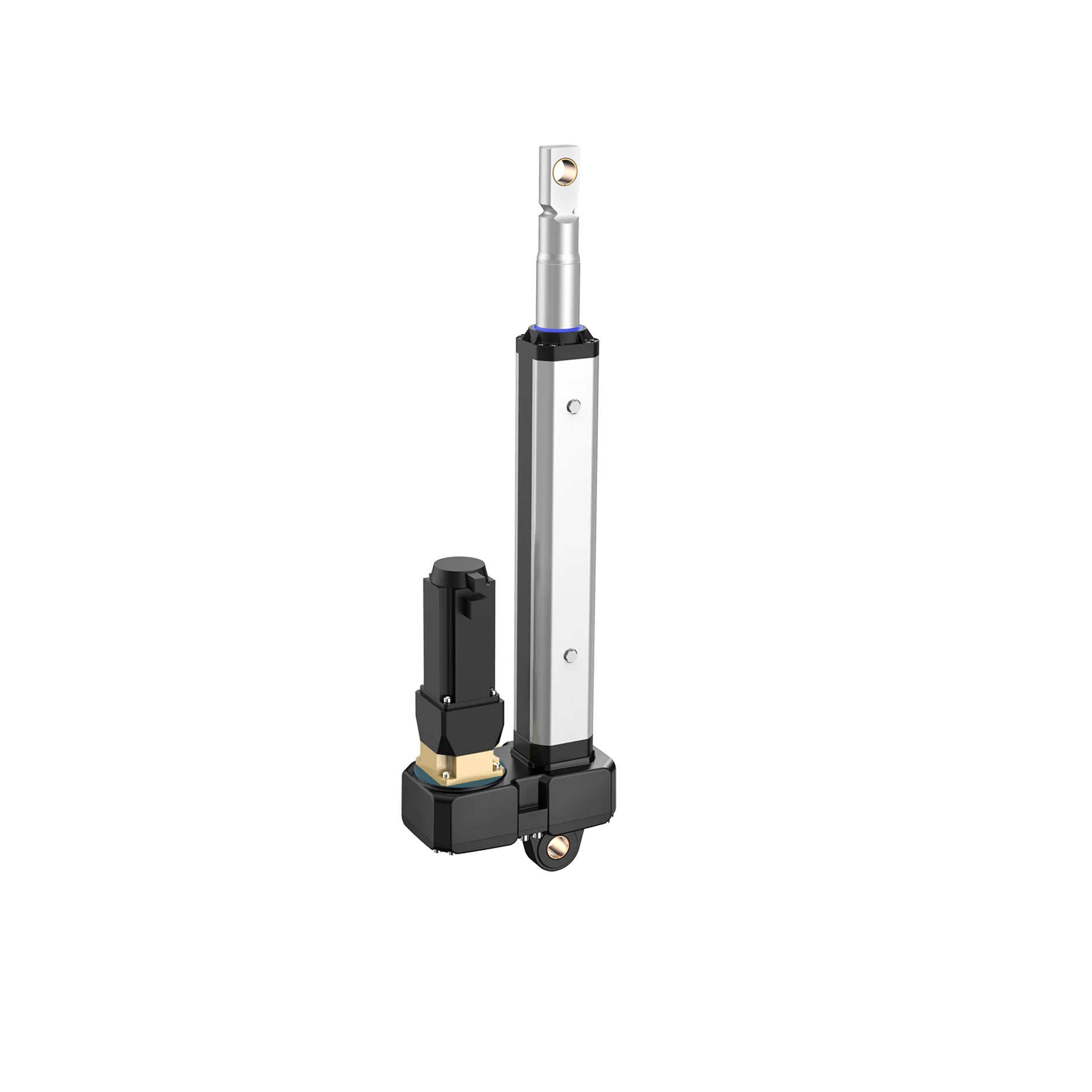

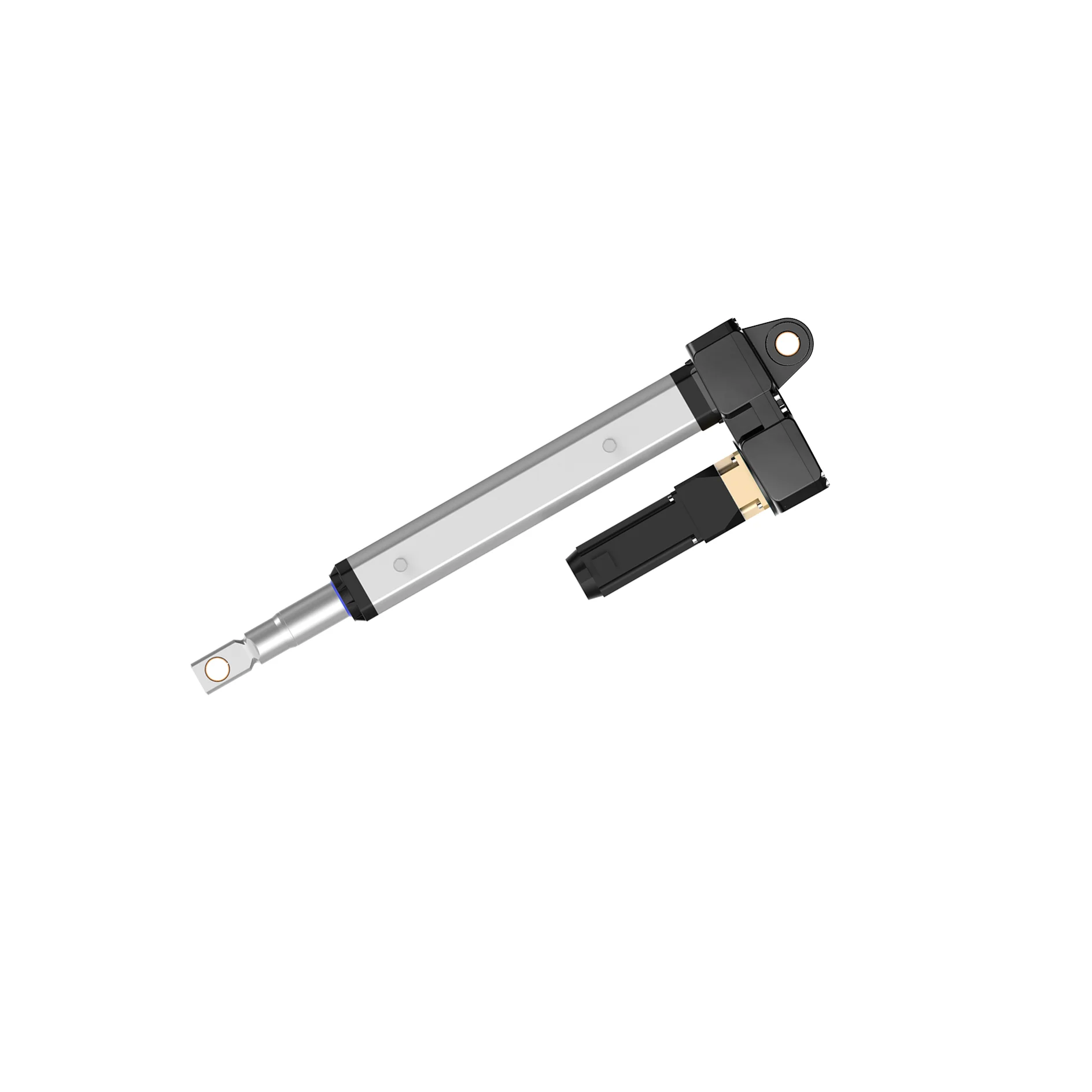

Summit LA JL 01 5000N/20000N Industrial Servo AC Linear Actuator For Pump
- Category: >>>
- Supplier: Ningbo Summite Im & Ex Co. Ltd.
Share on (1600511688946):
Product Overview
Description
Products Description
LA-JL-01
1. Four motors are optional;
2. Stroke 100mm to 1000mm can be customized;
3. Speed 25-100mm/s optional;
4. Ultimate load 20,000N;
5. Working temperature -15 to 40;
6. Built-in limit switch;
7. Protection class IP55;
8. The product has obtained CE certification;
9. It is recommended to fill the lead screw with oil once every 50km of operation.
2. Stroke 100mm to 1000mm can be customized;
3. Speed 25-100mm/s optional;
4. Ultimate load 20,000N;
5. Working temperature -15 to 40;
6. Built-in limit switch;
7. Protection class IP55;
8. The product has obtained CE certification;
9. It is recommended to fill the lead screw with oil once every 50km of operation.
Specifications

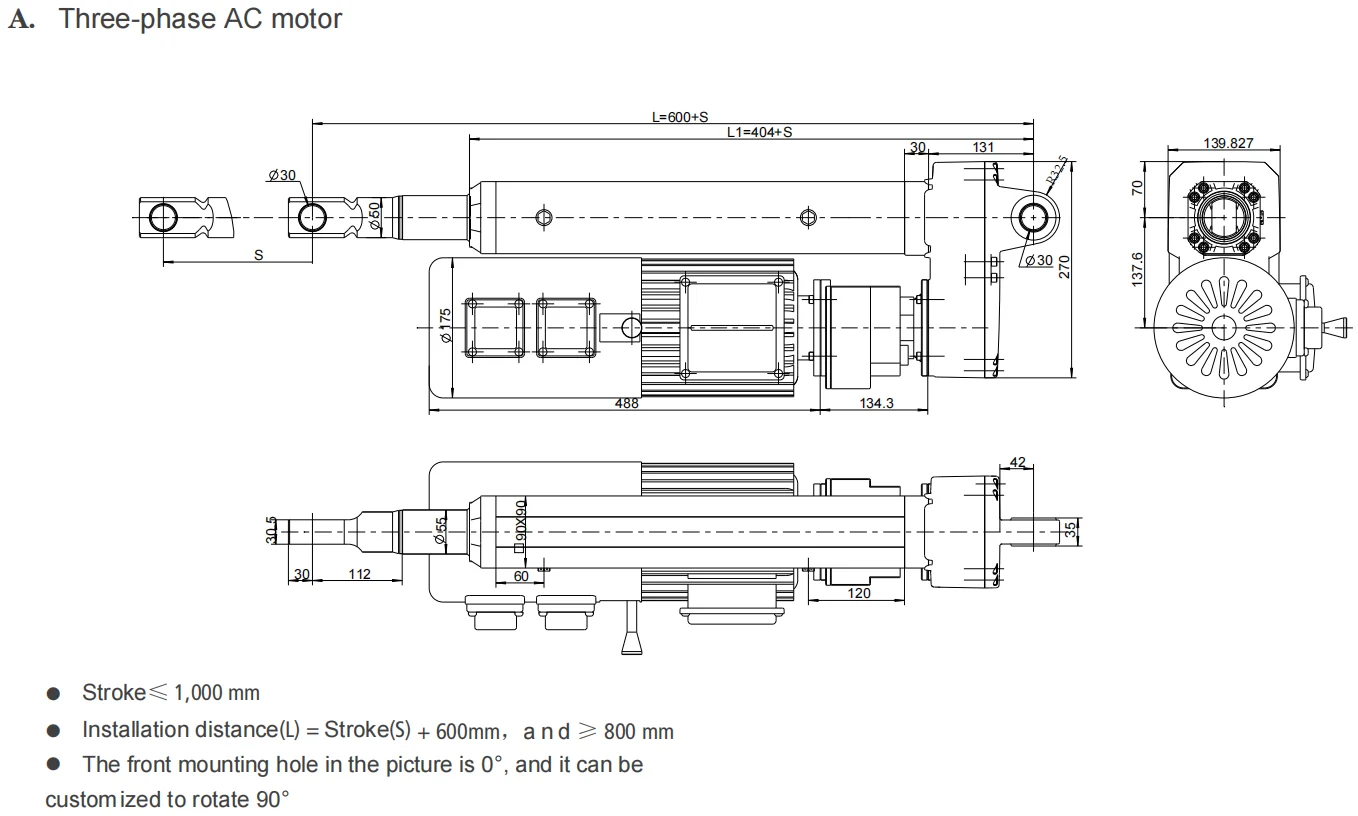

A. Three-phase AC motor(* When fully loaded in normal temperature environment, the duty cycle is 100%.)
Code | Synchronous pulley speed ratio | Reducer speed ratio | Speed | Max Load | Max Self-lock Load | No load Current | Full load Current | Ball screw | Three-phase AC frequency conversion Motor configuration |
(mm/s) | (N) | (N) | (A) | (A) | |||||
A | 20:40 | 1:3 | 24~25 | 20000 | 22000 | 0.4 | 2.2 | GQ3206 | 380VAC, 0.75KW, 50Hz, 4 poles, 1500rpm Frequency range 30-70Hz |
B | 27:34 | 1:3 | 38~40 | 10000 | 12000 | 0.4 | 1.7 | GQ3206 | |
C | 20:40 | No reducer | 72.5~75 | 5000 | 7000 | 0.4 | 1.6 | GQ3206 |

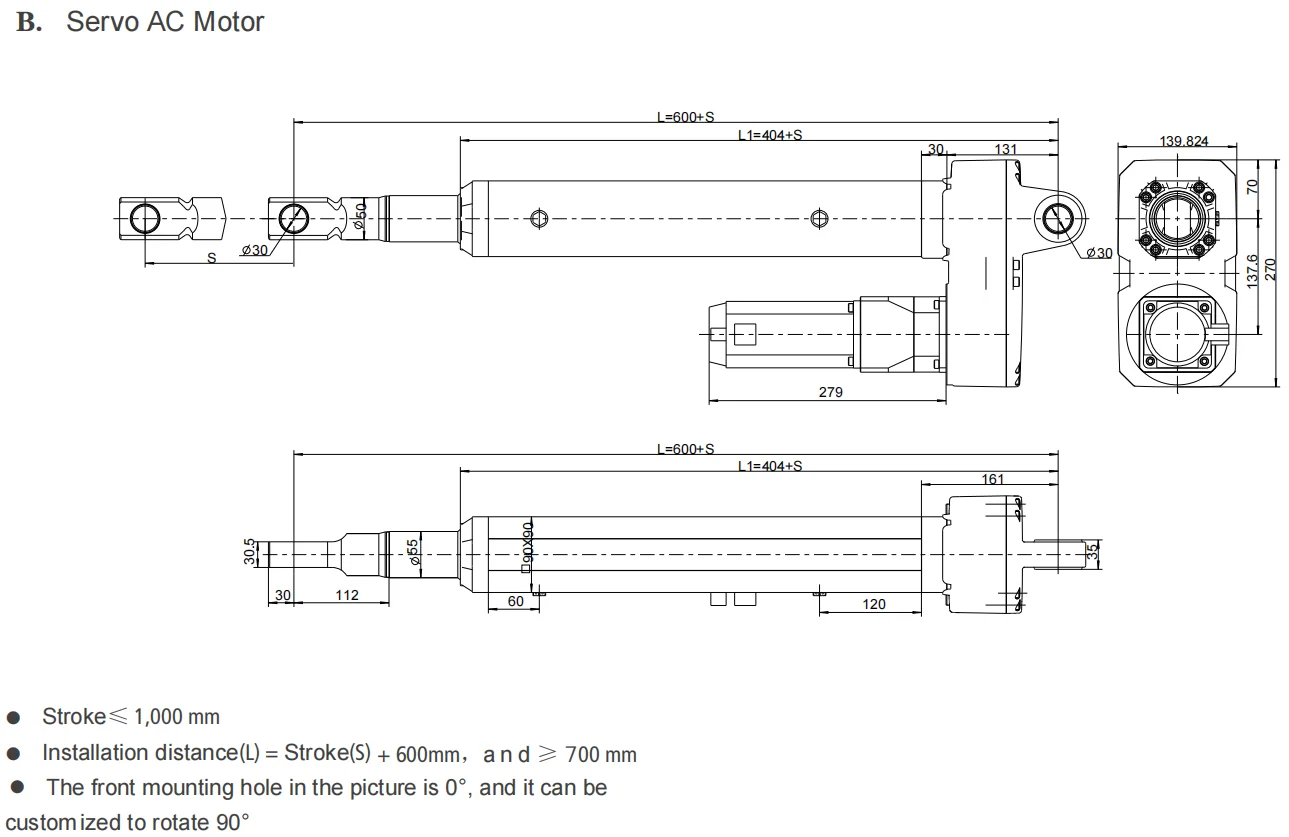

B. Servo AC motor(* When fully loaded in normal temperature environment, the duty cycle is 100%.)
Code | Synchronous pulley speed ratio | Reducer speed ratio | Speed | Max Load | Max Self-lock Load | No load Current | Full load Current | Ball screw | Servo AC Motor Configuration |
(mm/s) | (N) | (N) | (A) | (A) | |||||
E | 20:40 | 1:6 | 24~25 | 20000 | 22000 | 0.7 | 3.7 | GQ3206 | 220V AC, 0.75KW, 50Hz 3,000 rpm |
F | 20:40 | 1:3 | 49~50 | 10000 | 12000 | 0.7 | 3.7 | GQ3206 | |
G | 27:43 | 1:3 | 79~80 | 5000 | 7000 | 3.00.7 | 1.6 | GQ3206 |

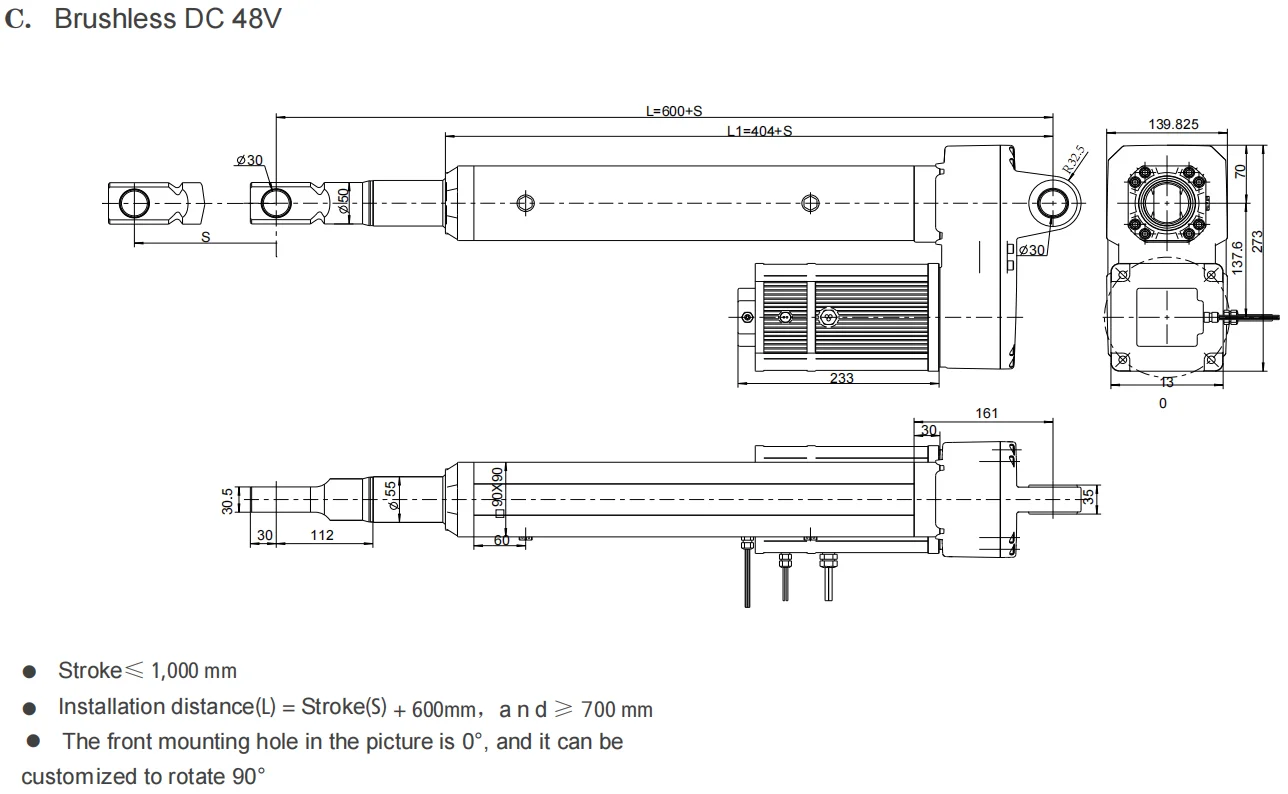

C. Brushless DC Motor 48v(* When fully loaded in normal temperature environment, the duty cycle is 50%.)
Code | Synchronous pulley speed ratio | Motor output speed | Speed | Max Load | Max Self-lock Load | Voltage | No load Current | Full load Current | Ball screw |
rpm | (mm/s) | (N) | (N) | (V) | (A) | (A) | |||
H | 20:40 | 500 | 24~25 | 20000 | 22000 | 48 | 7 | 16.8 | GQ3206 |
I | 20:40 | 1000 | 48~50 | 10000 | 12000 | 48 | 7 | 16.8 | GQ3206 |
J | 20:40 | 2000 | 96~100 | 5000 | 7000 | 48 | 7 | 16.8 | GQ3206 |

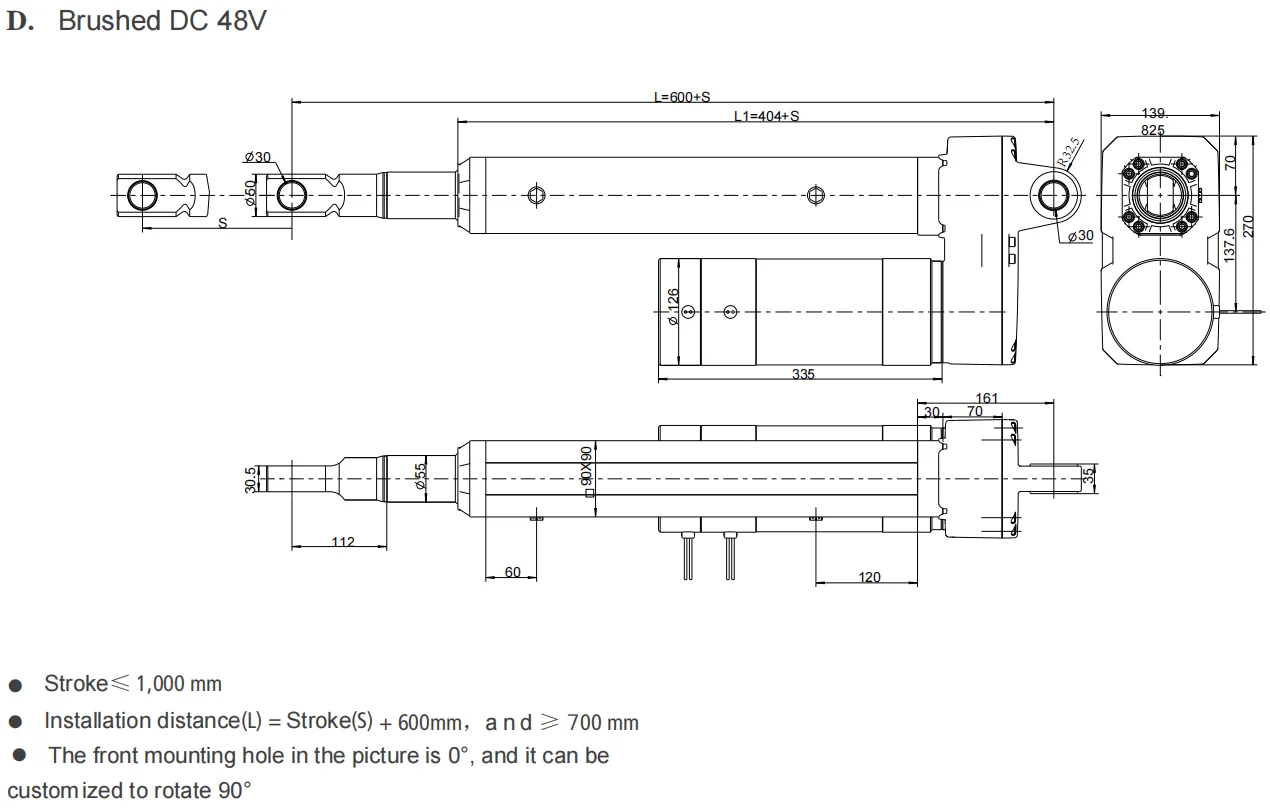

D. Brushed DC Motor 48v(* When fully loaded in normal temperature environment, the duty cycle is 20%.)
Code | Synchronous pulley speed ratio | Motor output speed | Speed | Max Load | Max Self-lock Load | Voltage | No load Current | Full load Current | Ball screw |
rpm | (mm/s) | (N) | (N) | (V) | (A) | (A) | |||
K | 20:40 | 500 | 24~25 | 20000 | 22000 | 48 | 7 | 16.8 | GQ3206 |
L | 20:40 | 1000 | 48~50 | 10000 | 12000 | 48 | 7 | 16.8 | GQ3206 |
M | 20:40 | 2000 | 96~100 | 5000 | 7000 | 48 | 7 | 16.8 | GQ3206 |

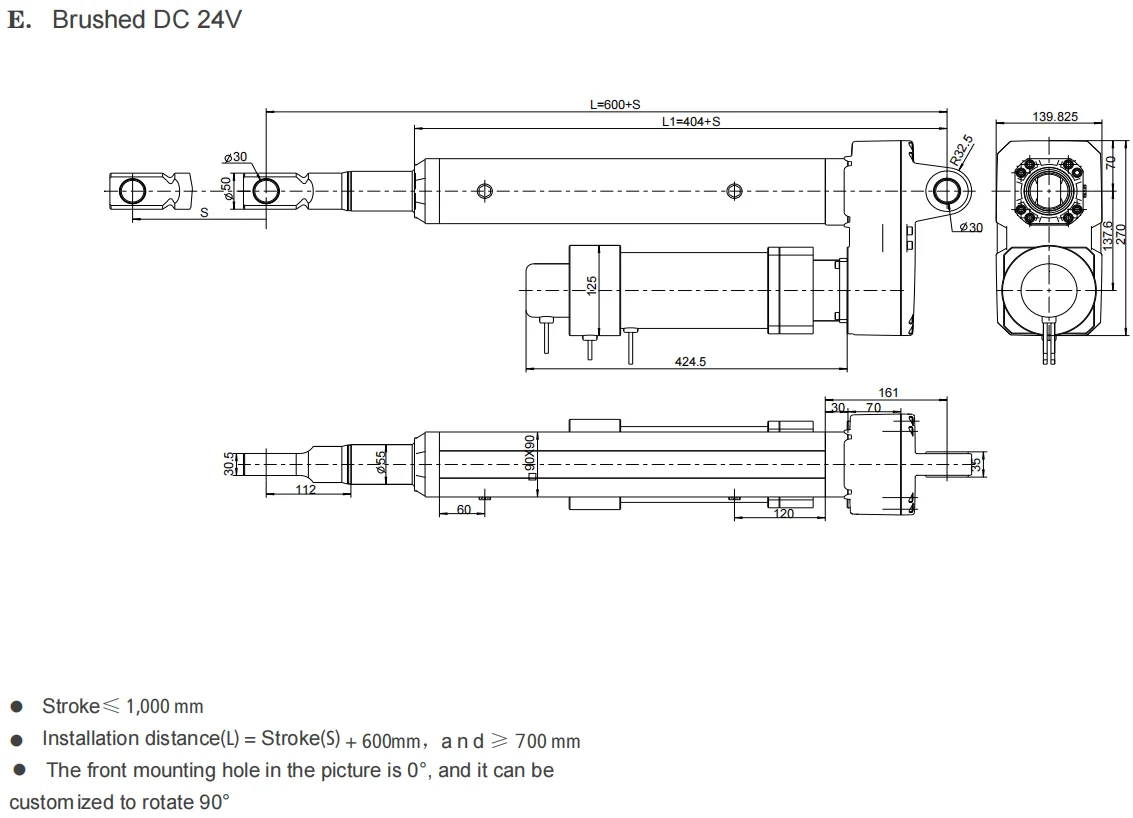

E. Brushed DC Motor 24v(* When fully loaded in normal temperature environment, the duty cycle is 20%.)
Code | Synchronous pulley speed ratio | Motor output speed | Speed | Max Load | Max Self-lock Load | Voltage | No load Current | Full load Current | Ball screw |
rpm | (mm/s) | (N) | (N) | (V) | (A) | (A) | |||
N | 20:40 | 500 | 24~25 | 20000 | 22000 | 24 | 3.1 | 33.6 | GQ3206 |
O | 20:40 | 1000 | 48~50 | 10000 | 12000 | 24 | 3.1 | 33.6 | GQ3206 |
P | 20:40 | 2000 | 96~100 | 5000 | 7000 | 24 | 3.1 | 33.6 | GQ3206 |
Note: The data above are general parameters. If you need other parameters, please send the request in the message box at the bottom of this page.
