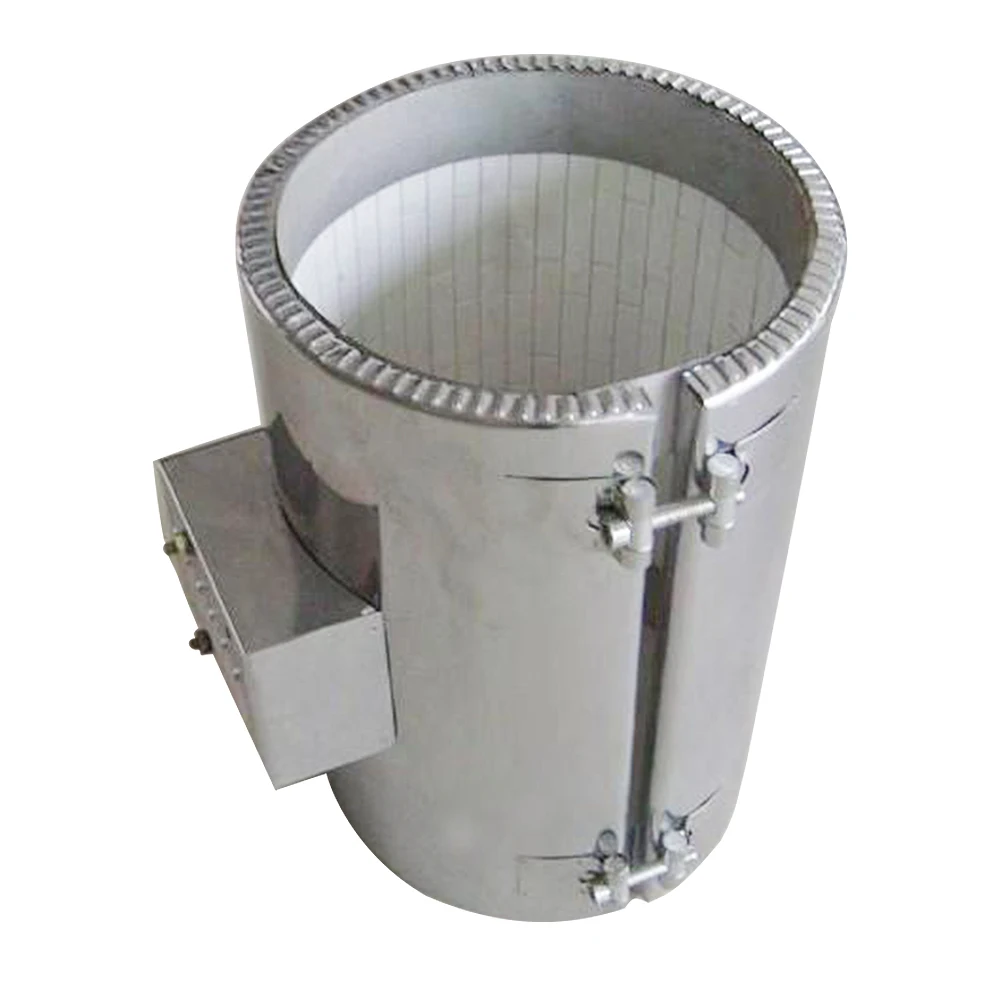

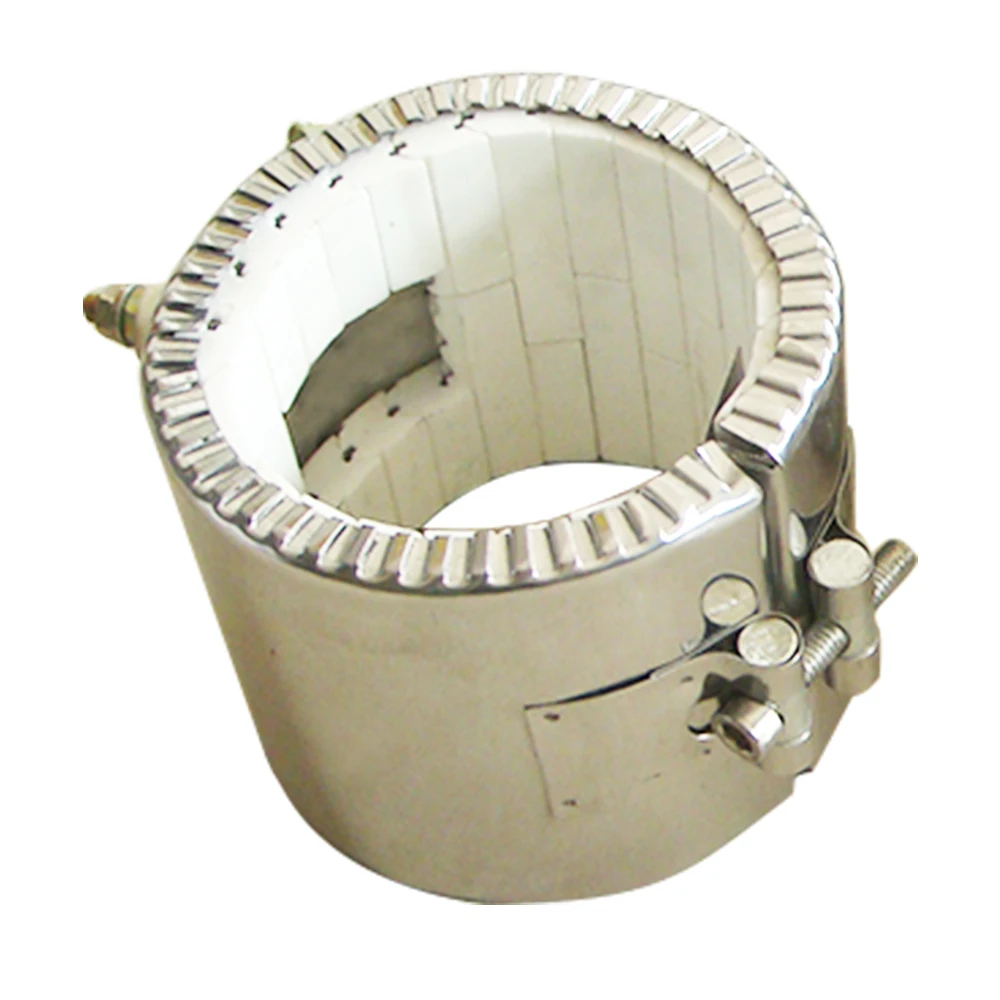

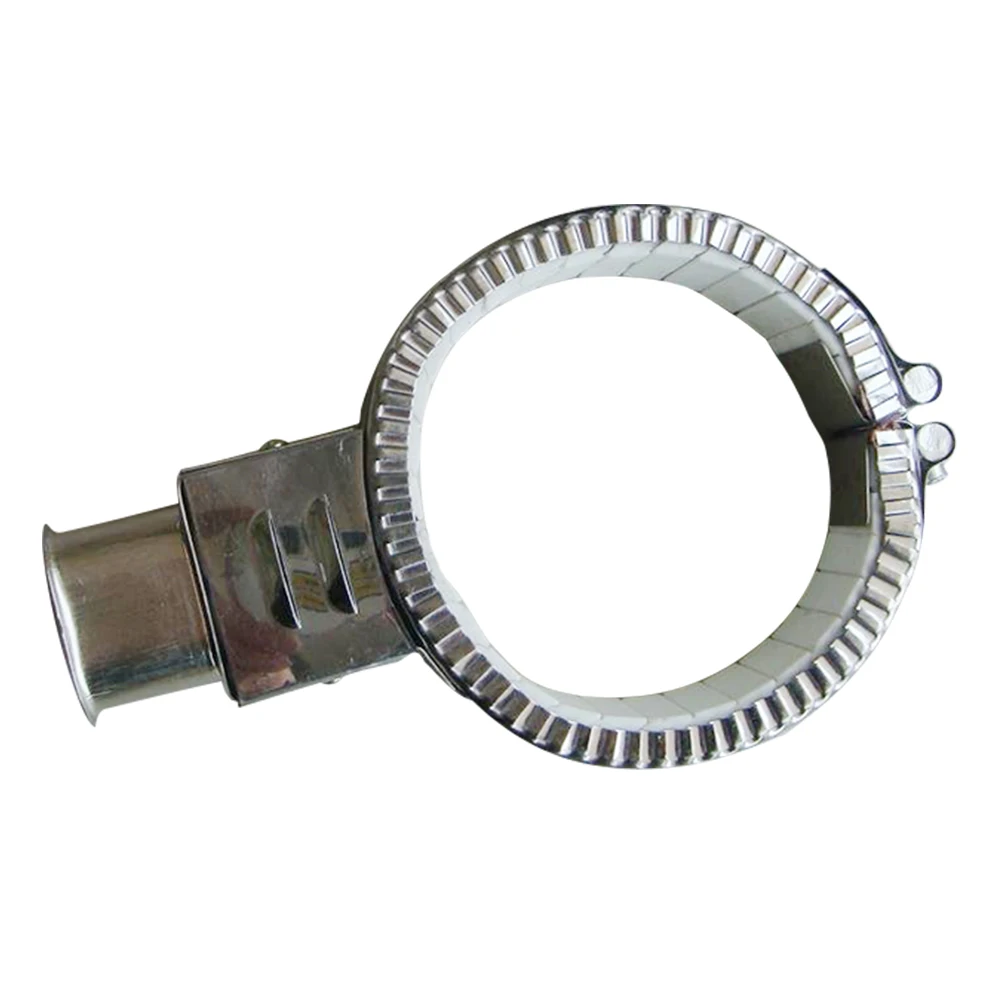

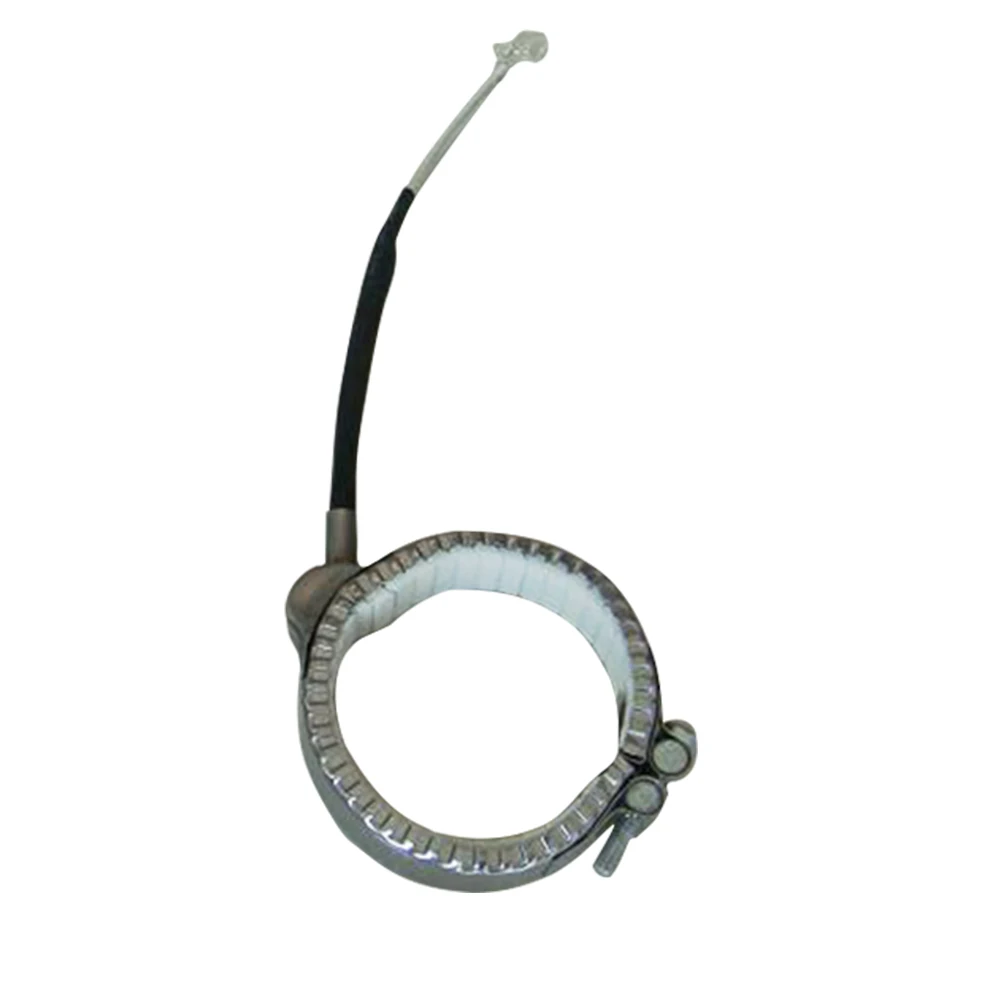

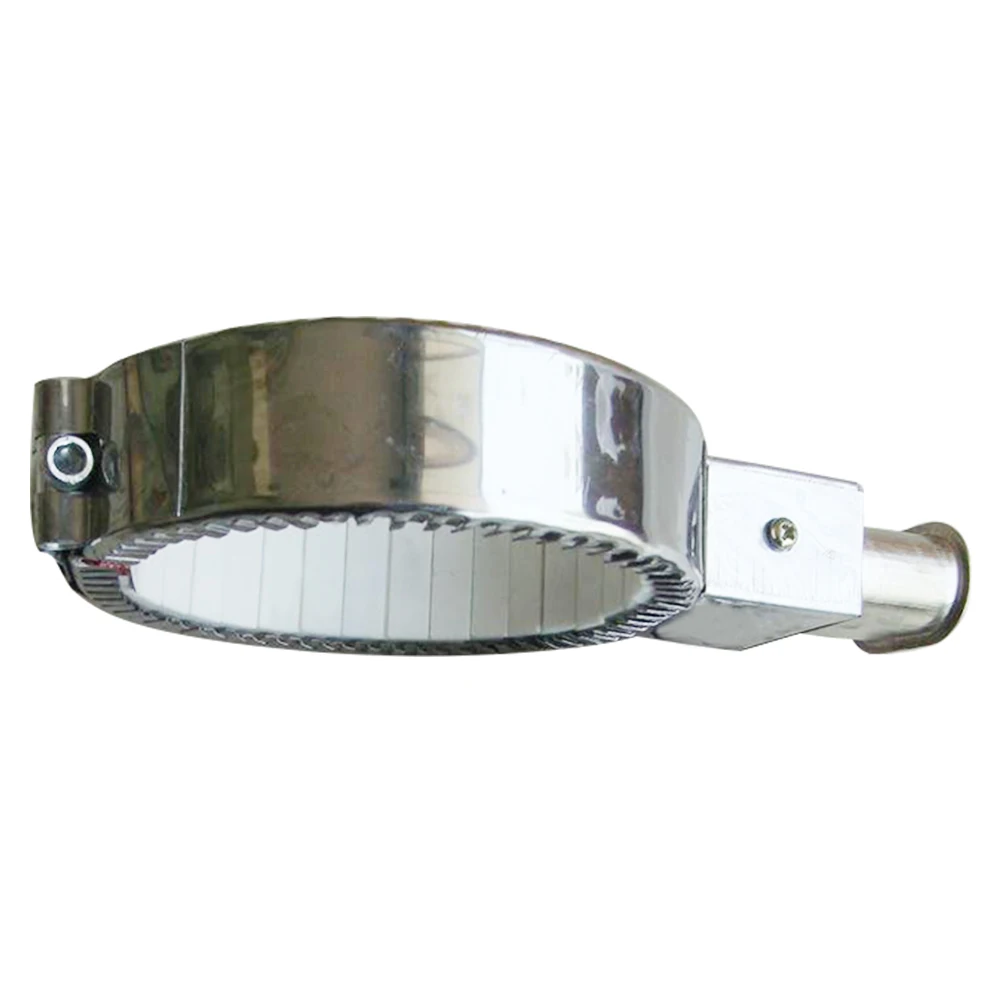

2000w stainless steel jacket industrial ceramic band heater 25kw
2000w stainless steel jacket industrial ceramic band heater 25kw
2000w stainless steel jacket industrial ceramic band heater 25kw
2000w stainless steel jacket industrial ceramic band heater 25kw
2000w stainless steel jacket industrial ceramic band heater 25kw
2000w stainless steel jacket industrial ceramic band heater 25kw
2000w stainless steel jacket industrial ceramic band heater 25kw

2000w stainless steel jacket industrial ceramic band heater 25kw

Share on (1600511749709):


Price:$40.00 - $50.00

Quantity:


Product Overview

Description



Product Description



BAOJUN ceramic heaters are heater bands with ceramic insulation that are employed in the heating of the plastification cylinders of the plastic moulding machines, injection machines, extrusion machines. They are recommended when the operational temperature exceeds 280°C and in all cases presenting severe operational conditions. Thanks to the most advanced technical solutions, to the selection of the most appropriate materials and to the severe quality control procedures, they are characterised by:

1. Long Operational Life
2. Energy saving
3. Fast heat conduction
4. Uniform heat distribution
5. High electrical insulation
6. Easy installation
7. Great mechanical resistance to shocks and to tearing applied to the cables
8. Tight manufacturing tolerances
9. Various sizes, no limited max sizes.






Features of ceramic heating coil:

1. The ceramic heating coil has fast heat transfer, uniform heating and stable work.
2. The ceramic electric heating ring has the
advantages of no leakage of temperature and energy saving. The outer cover is not hot when touched by hand, and it is safe to work.
3. The power of the ceramic heating coil is high, and the power of the ceramic rod threading method is 0.5 to 1.5 times
higher than that of ordinary ones.
4. The ceramic heating ring adopts European and American high temperature resistant heating
wire, which has the characteristics of fast heat dissipation, uniform heating, and stable high temperature. It can be used at
600-800℃ for a long time.
5. The product life of ceramic electric heating coils is long. Because the raw materials age slowly at
high temperatures, the product life is long. 6. The ceramic heating coil meets the technical requirements of the national GB. Power deviation +5%∽-10%.
7. Electric strength of ceramic heating coil: After the 1500v/50Hz sinusoidal AC voltage test, there is no breakdown after 1MIN.






Detailed Images


SIZE(MM)
WATT(W)
SIZE
WATT
SIZE
WATT
SIZE
WATT
Ø25×25
120
Ø32×25
115
Ø38×25
140
Ø45×25
160
Ø25×30
120
Ø32×30
140
Ø38×30
160
Ø45×30
185
Ø25×32
120
Ø32×32
150
Ø38×32
170
Ø45×32
200
Ø25×35
130
Ø32×35
160
Ø38×35
190
Ø45×35
225
Ø25×38
140
Ø32×38
175
Ø38×38
200
Ø45×38
240
Ø25×40
150
Ø32×40
180
Ø38×40
225
Ø45×40
250
Ø25×45
165
Ø32×45
200
Ø38×45
270
Ø45×45
275
Ø25×50
180
Ø32×50
230
Ø38×50
275
Ø45×50
325
Ø30×25
120
Ø35×25
130
Ø40×25
140
Ø50×25
180
Ø30×30
130
Ø35×30
150
Ø40×30
175
Ø50×30
220
Ø30×32
140
Ø35×32
160
Ø40×32
180
Ø50×32
235
Ø30×35
150
Ø35×35
175
Ø40×35
200
Ø50×35
250
Ø30×38
160
Ø35×38
190
Ø40×38
220
Ø50×38
280
Ø30×40
175
Ø35×40
200
Ø40×40
230
Ø50×40
300
Ø30×45
200
Ø35×45
225
Ø40×45
250
Ø50×45
325
Ø30×50
220
Ø35×50
250
Ø40×50
280
Ø50×50
375


Related Products


Induction heater for plastic machine Extruder Band heating element


High temperature electric stainless steel extruder barrel mica band heater


Infrared ceramic band heater with Square Ceramic Connectors




Certifications




Our Service






Our Company








Packing & Delivery




Packaging

Package:
1. Carton box(Size: L*W*H).
2. Export wooden package is also acceptable.
MOQ:
10 pieces of ceramic band heater
Delivery Time:
15 working days of ceramic band heater
Payment :
30%T/T in advanced+70% balanced; Paypal; Western Union
