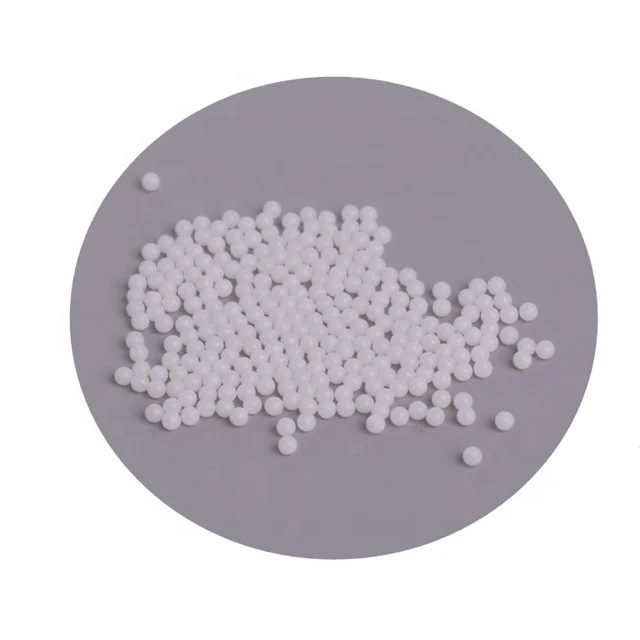

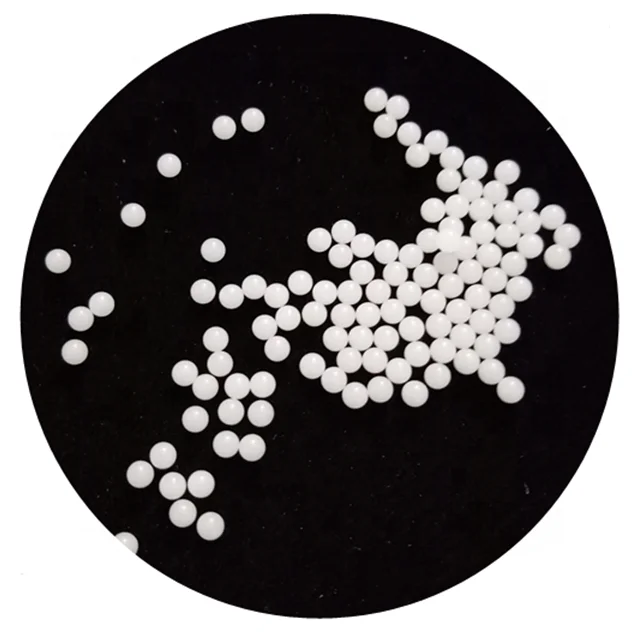

POM PA PP PTFE 10 мм 20 мм 25 мм Твердый Полиоксиметилен 3,175 мм пластиковый шарик делрина
- Category: >>>
- Supplier: Ningyang Xinxin Stainless Steel Ball Manufacture Co. Ltd.
Share on (1600511770563):
Product Overview
Description
Exhibiton
The size we can produce
1mm 1.2mm 2mm 2.381mm 3mm 3.175mm 3.969mm 4mm 4.5mm 4.763mm 5mm 6mm 6.35mm 7mm 8mm 8.731mm 9mm 9.85mm 10mm 11mm 11.1125mm 12mm 1.7mm 14mm 15mm 15.875mm 20mm 25mm 25.4mm 30mm 31.75mm 33.33mm 35mm 38.1mm 40mm 45mm

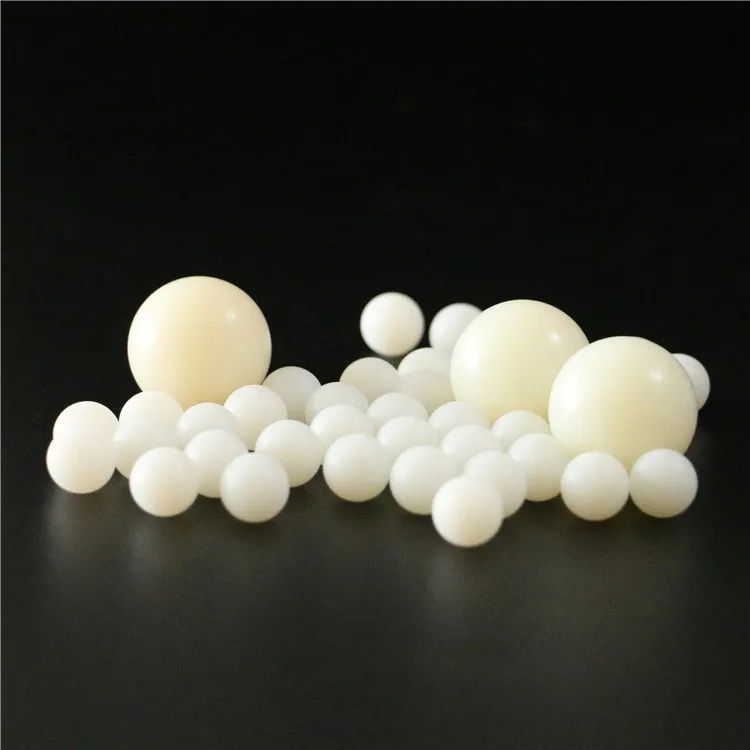

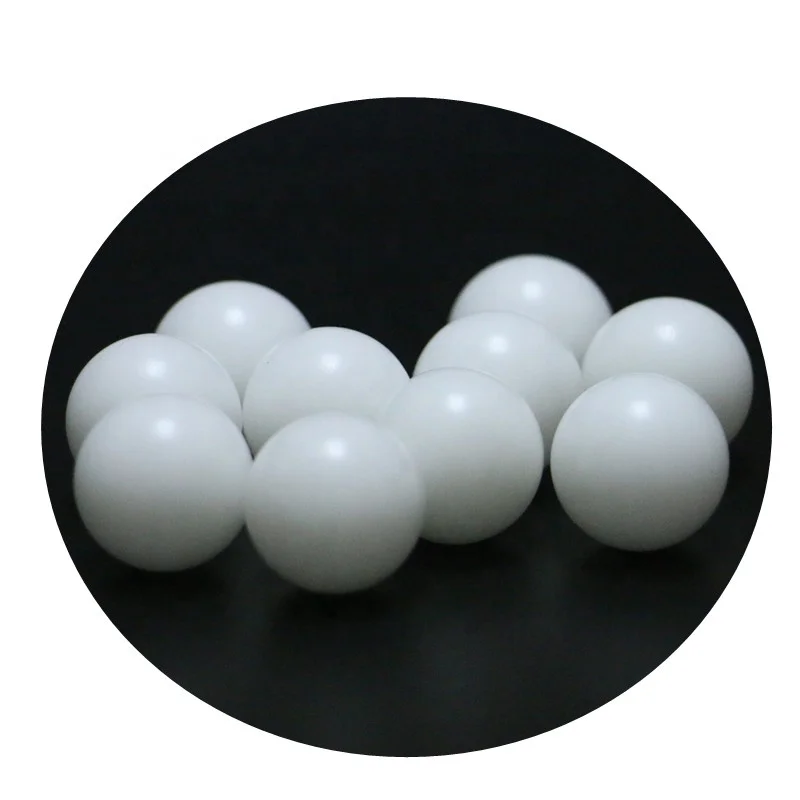

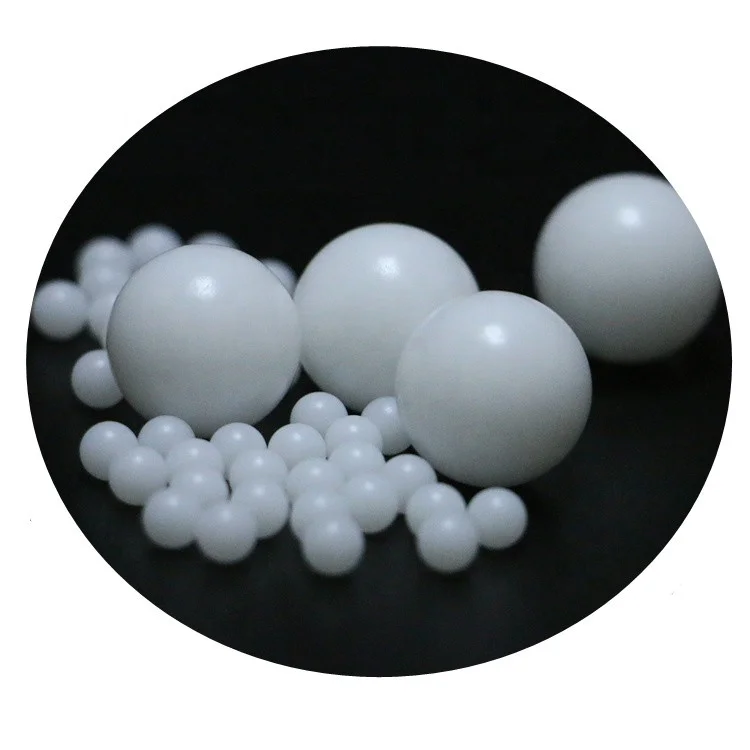

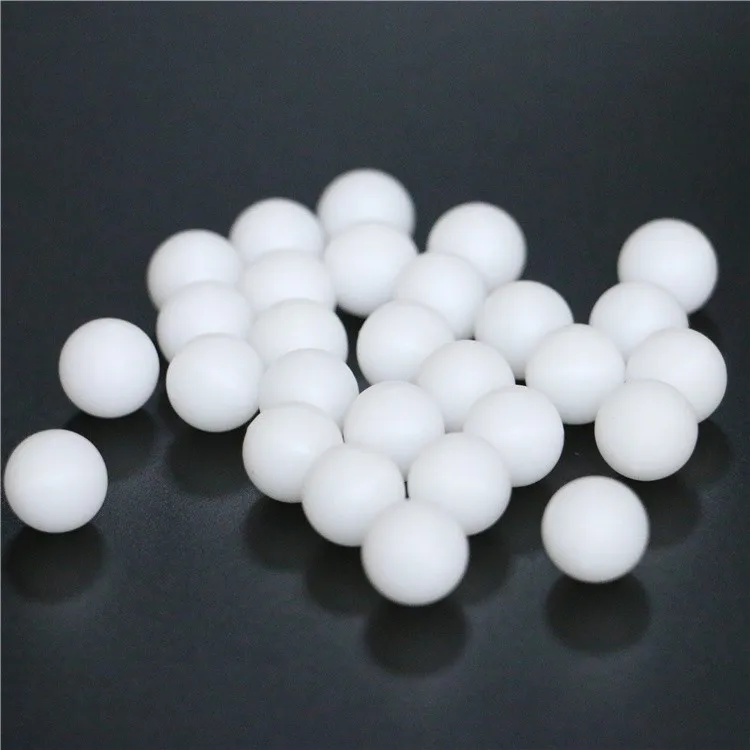

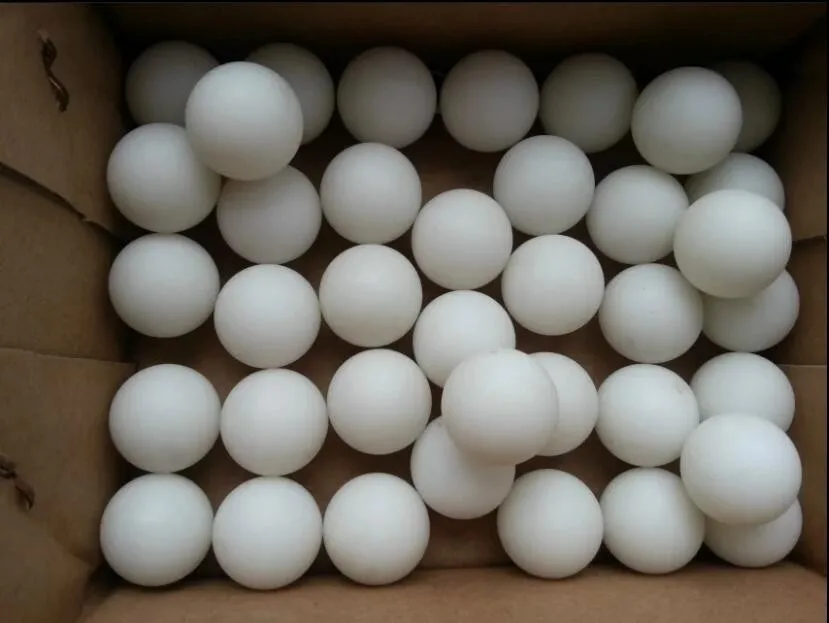

POM(DELRIN )Balls
PA66( Nylon) Ball Teflon Balls-PTFE

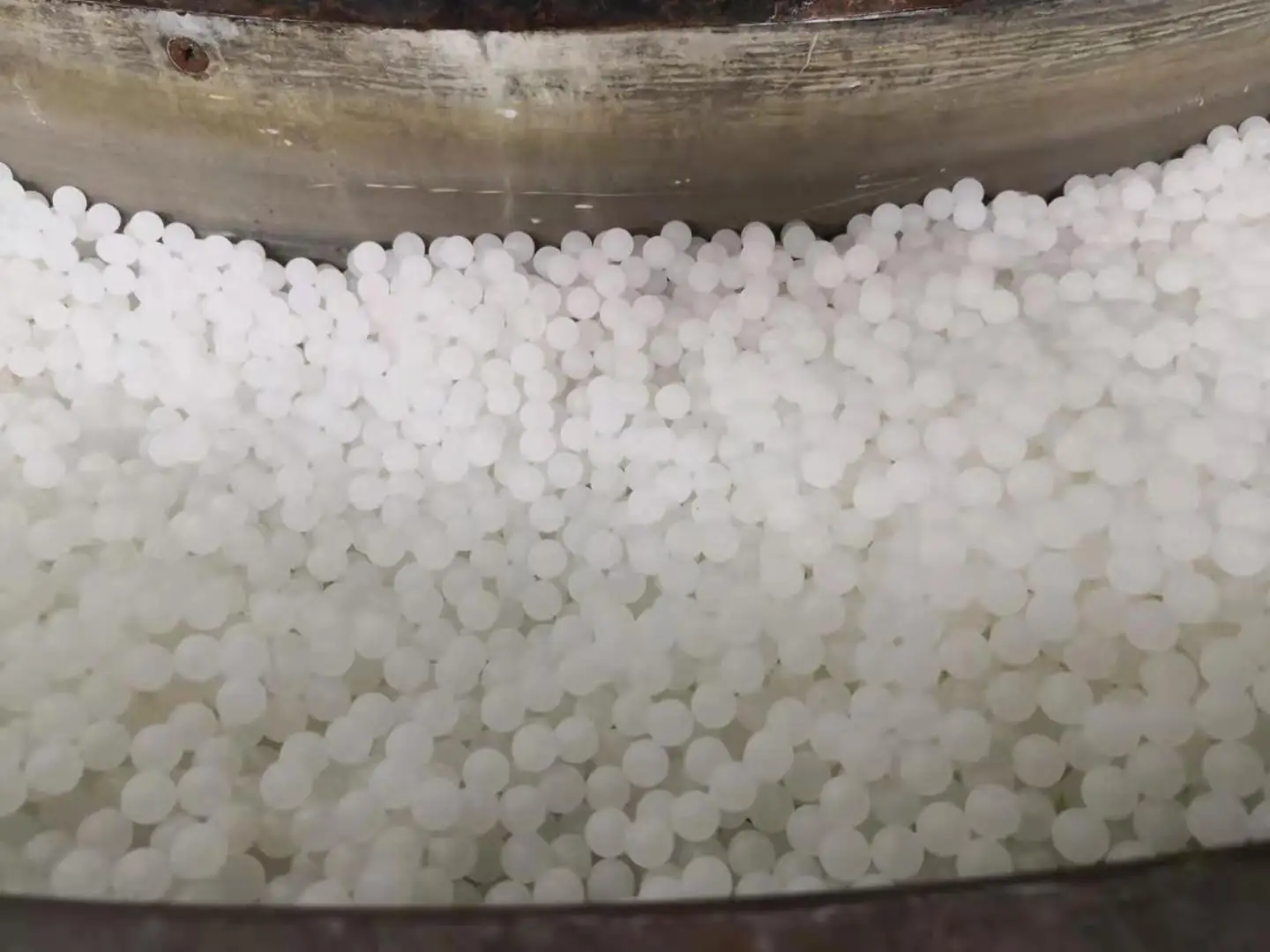

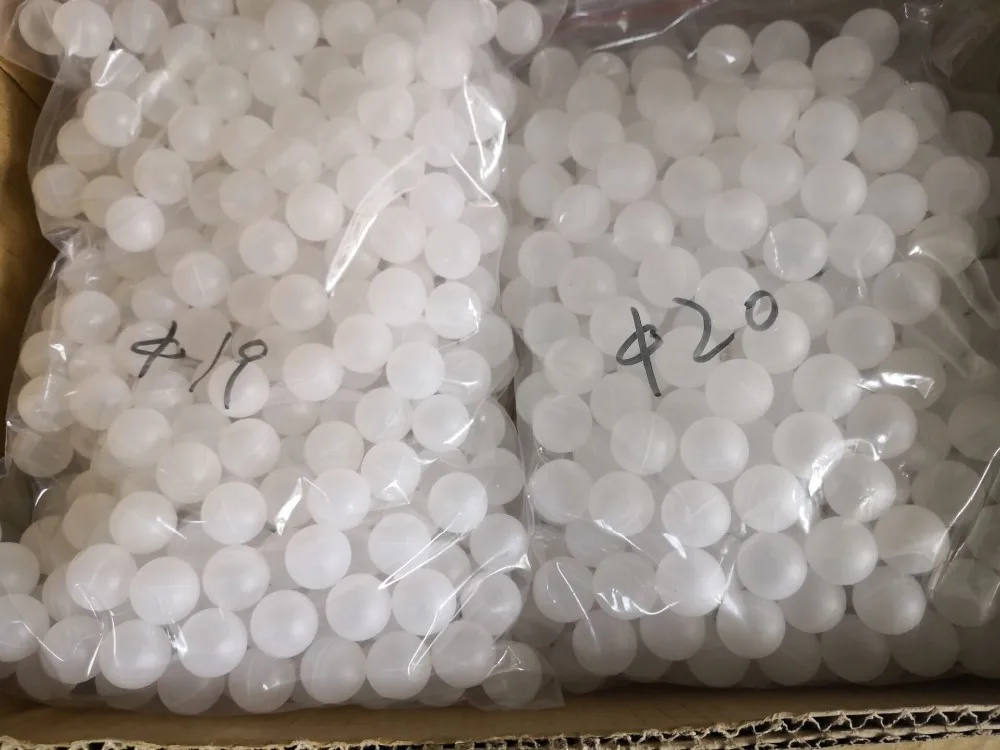

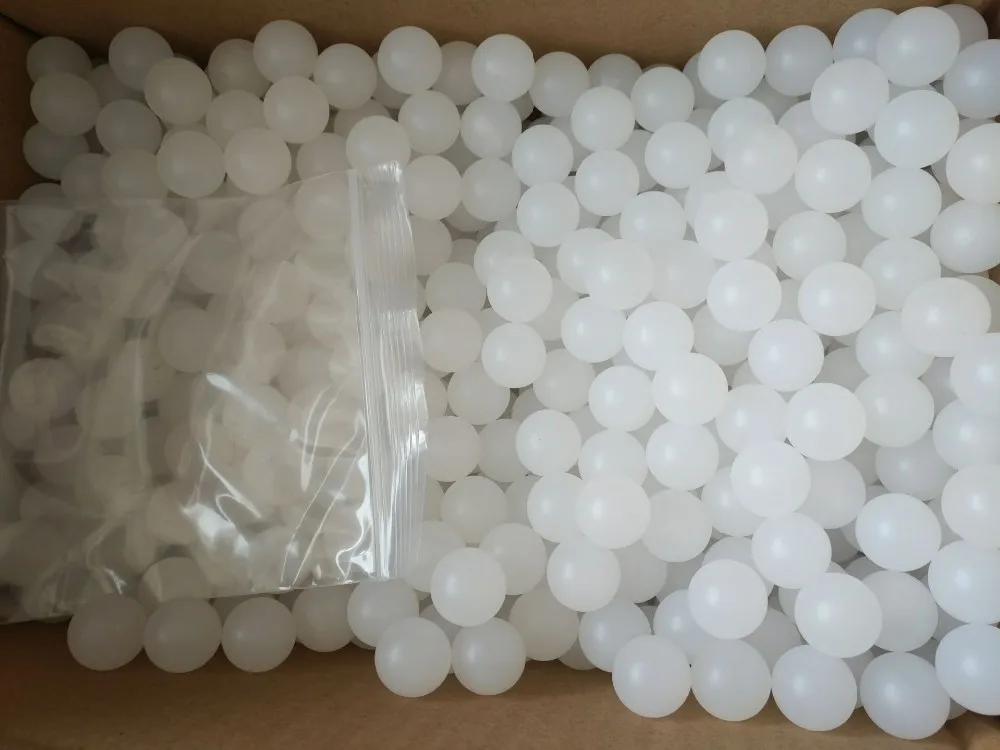

Solid PP plastic ball Polypropylene

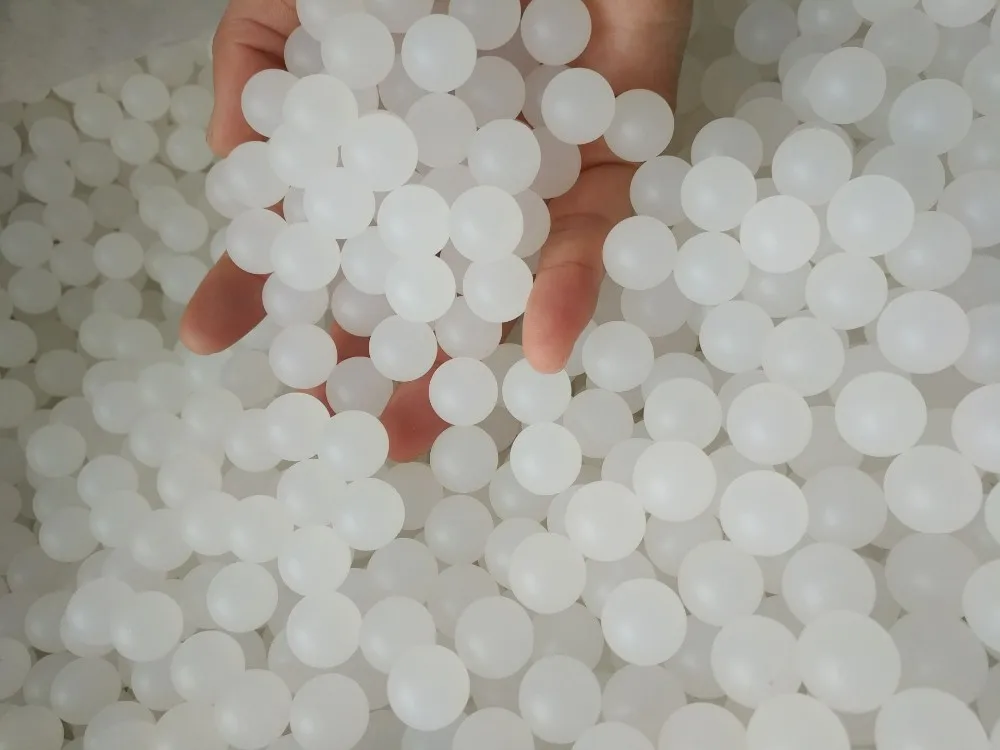

Hollow PP plastic ball Polypropylene
Grade | G0 G1 |
Material | PP ball,POM ball,PA66 ball,PTFE ball |
Size | 0.8mm-100mm |
Certificate | SGS ISO ROHS MSDS |

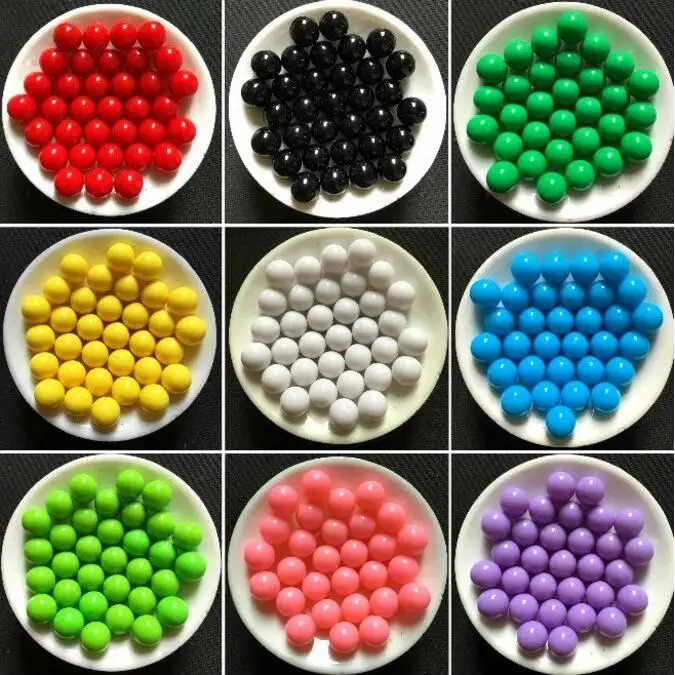

Color | white, black ,colorful |
Type | solid/hollow |

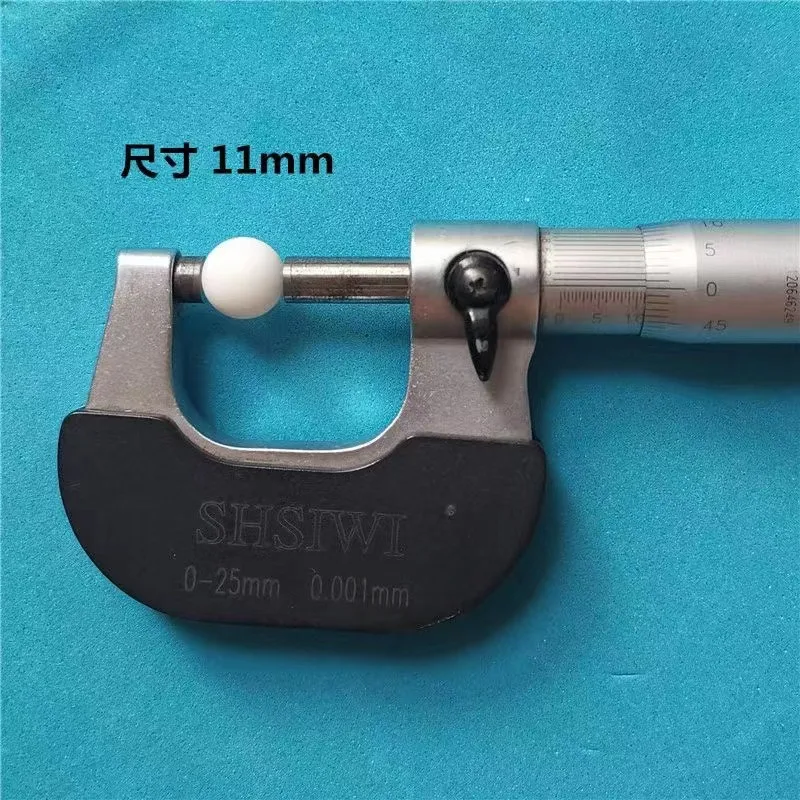

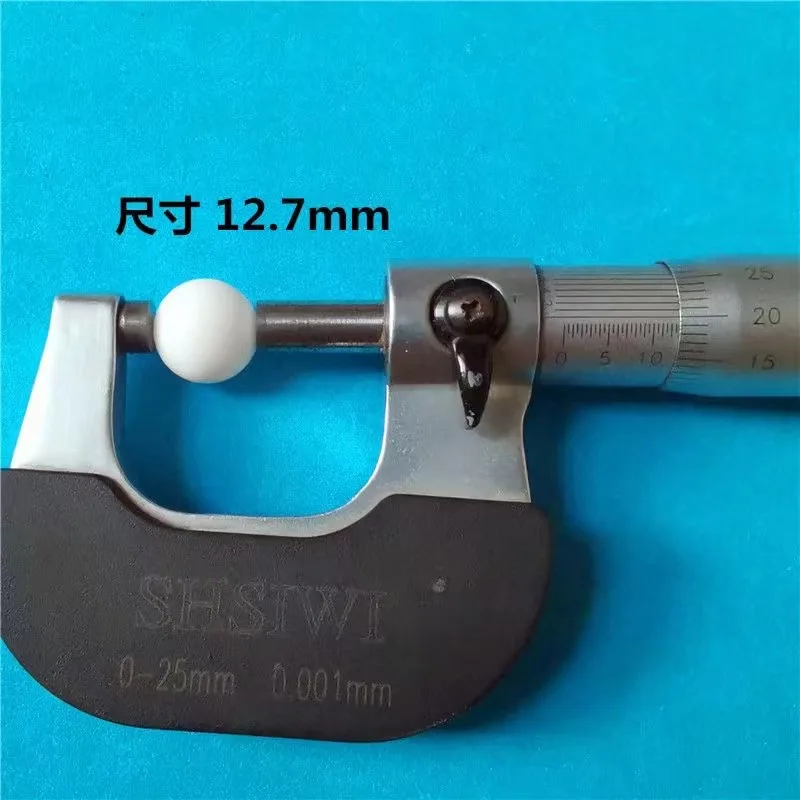

Grade | Tolerance range of diameter(mm) | The tolerance range of roundness(mm) |
G0 | +/-0.0127 | 0.00635 |
G1 | +/-0.0254 | 0.0127 |
G2 | +/-0.0508 | 0.0254 |
G3 | +/-0.127 | 0.127 |
Product Description
Product | PP plastic ball Polypropylene | POM plastic ball Delrin | PA66 Plastic ball Nylon | PTFE plastic ball Polytetrafluoro ethylene |
Size | 3mm-100mm | 2.381mm-100mm | 4.763mm-100mm | 1mm-80mm |
Material | Polypropylene balls | Delrin, POM balls | Nylon Balls | Teflon Balls-PTFE |
Grade | G0-G3 (±0.01-0.05mm) | G0-G3 (±0.01-0.05mm) | G0-G3 (±0.01-0.05mm) | G0-G3 (±0.01-0.05mm) |
Type | Solid/Hollow | Solid | Solid | Solid |
Density | Around: 0.85g/cm3 | Around:1.4g/cm3 | Around:1.1g/cm3 | Around: 1.5g/cm3 |
Feature | Has good resistance, chemical resistance, low density (density less than water), low water absorption, the highest melting point of the thermoplastic with excellent electrical insulator and low dielectric coefficient, often used for floating capacity requirements, withblood transfusion, level calibration indicator. It has a high resistance to chemical substances, such as acid, alkali, alcohol, many inorganic substances, salt solutions, solvents, gasoline, water, oil, grease, cleaning agents, fruit juices, milk and the like, but not resistant to aromatic carbon hydrogen compounds and chlorate. | it is similar to nylon, but slightly harder than nylon, slightly larger than the density recommended products applied to the required low water absorption | The nylon has preferably the alkali metal, to adapt to the neutral characteristics of petroleum products and all kinds of chemical products. | It have excellent chemical stability, resistance to corrosion, sealing, high lubricity non-tackiness, electrical insulation and good anti-aging Stamina. Continuous use temperature range of -180 ° C to 250 ° C. PTFE (Teflon ®), ball so excellent frictionless known to most corrosive resistant possessed electrically insulating material |

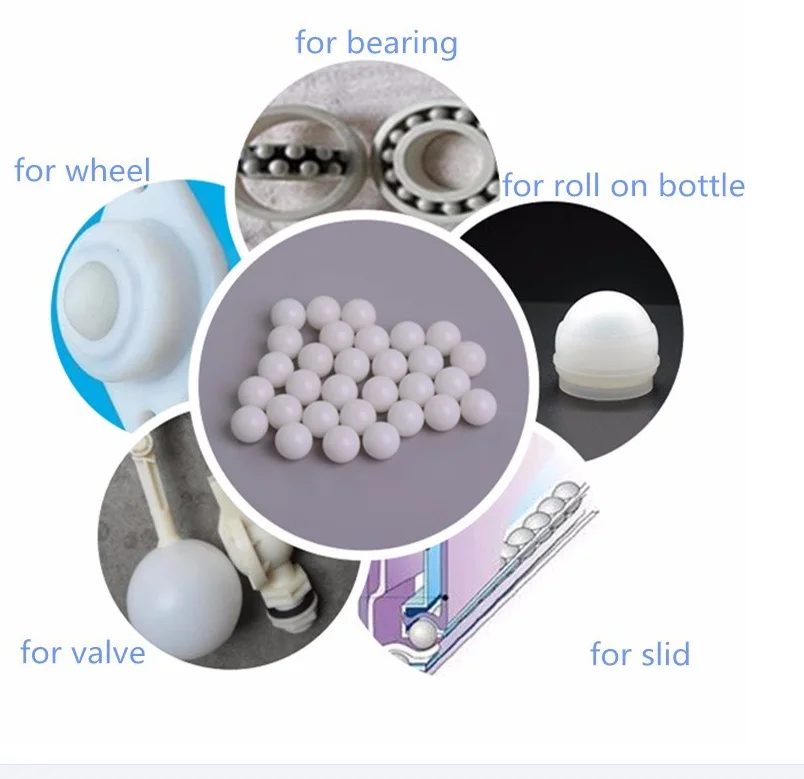

Application
PP plastic ball Polypropylene | POM plastic ball Delrin | PA66 Plastic ball Nylon | PTFE plastic ball Polytetrafluoro ethylene |

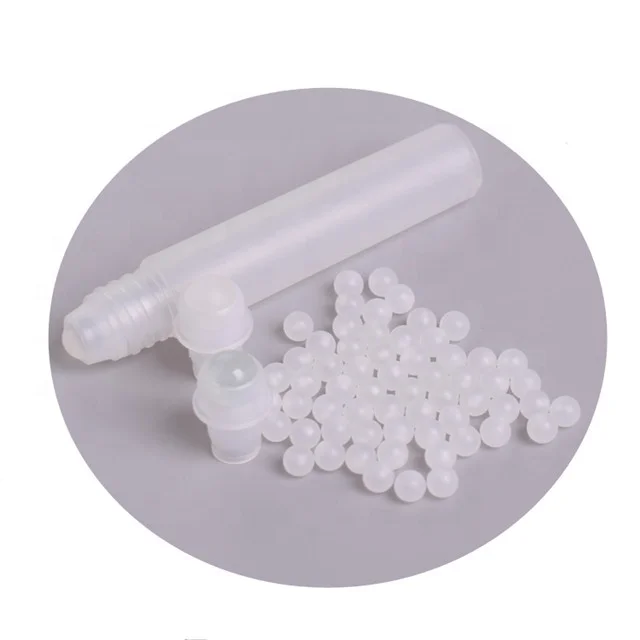

Used for cosmetic beads, used for liquid level calibration indicator, medium oil or acid alkaline liquid | Table and drawer sliding devices, bearings, rollers, valves and electronics, sailing, etc | For check valve, light load bearing, knob, pull switch, good elasticity, high hardness device | Mainly used in cryogenic liquid and acid - base conditions of instruments |
Company Information
Ningyang Xinxin Stainless Steel Ball Manufacture Co.Ltd
Ningyang Xinxin Stainless Steel Ball Manufacture Co.,Ltd is One of famous and professional stainless steel ball factory from china
We have two professional factory to produce steel ball ,one is in Shandong province(5000 square meters),other one is in
Henanprovince (10000 square meters ) .
We have a professional high precision solid POM ,PP ,PA,PA66,PTFE plastic ball
factory , the smallest size of 0.8mm 1mm POM
plastic
ball our factory are able to produce now .
POM size :0.8mm-100mm
PP Size: 2mm-100mm
PA Size: 3.175mm-100mm
PA66 Size: 3.175mm-100mm
PTFE Size: 1mm-300mm
Grade:G0-G3 (0.01MM-0.05MM)
Certificate:ROHS,REACH,SGS .
