Clean Room Aerosol Generator Laboratory Use Aerosol Generator
- Category: >>>
- Supplier: Liaoyang Conoval Technology Co. Ltd.
Share on (1600511779332):
Product Overview
Description
Product introduction
KQ-4010s is a manual scan counting leak detector designed according to ISO14644-3 B.6 specification.
The machine is specially designed for the use of tuyere filter leakage. KQ-4010s is easy to use.
The basic purpose of the instrument is to check and measure the concentration of aerosols so that the filter can be picked up online.
The 8 inch color LCD touch screen can monitor the concentration change of the downstream end and observe the particle size range（0.3,0.5,1.3,5,10um) in real time.
The user only needs to enter "↑", "↓" and "scan/stop" （sure key） through the three keys of the handheld display, so that the leakage information can be obtained during the scanning process.

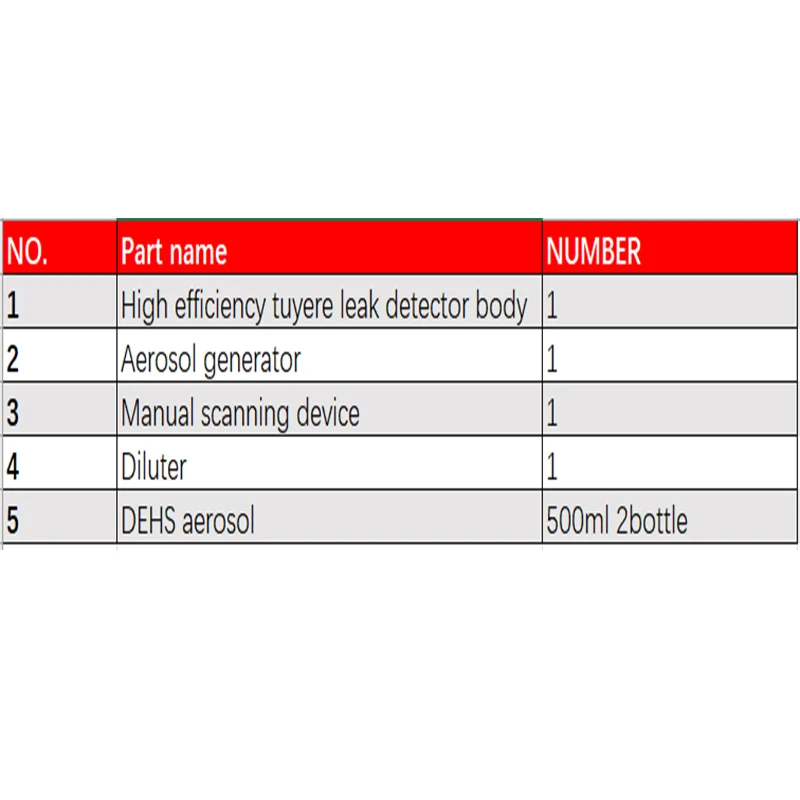

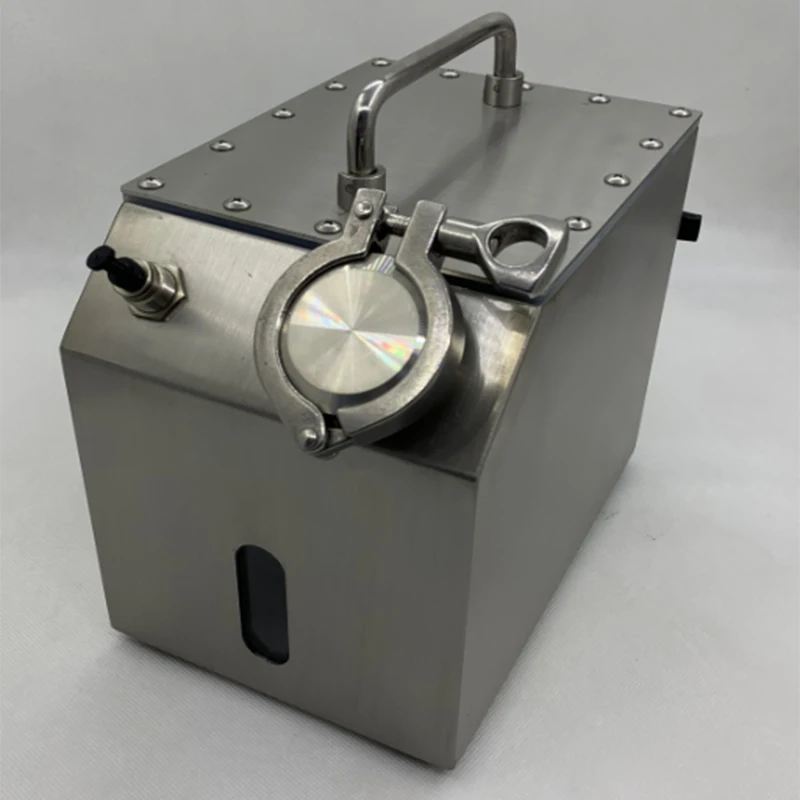

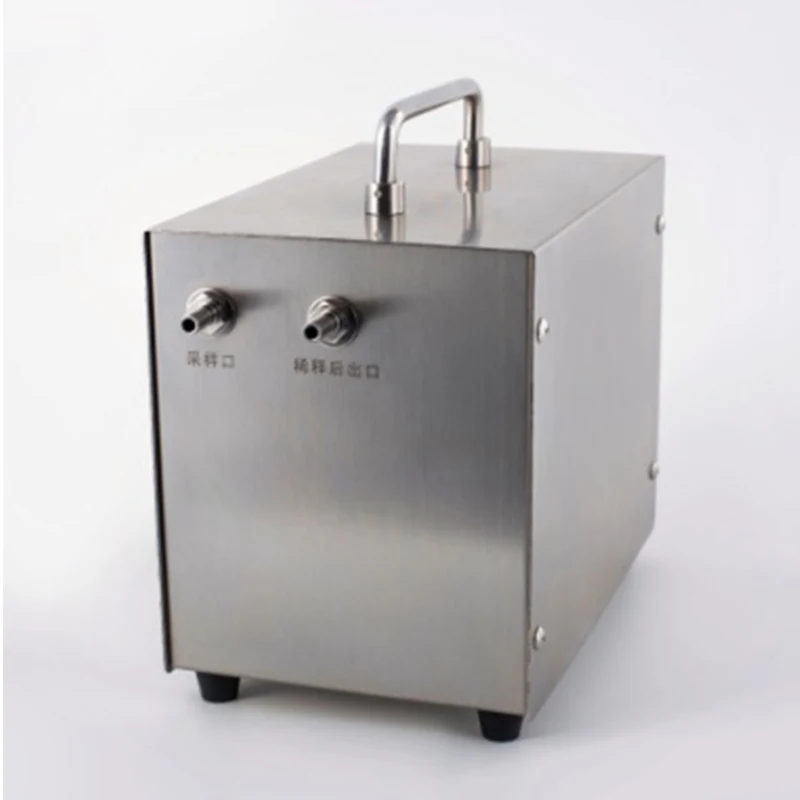

KQ-4010s consists of four parts. The 28.3L large flow particle counter is used as the main body, and the hand-held scanning sampling probe, aerosol generator and diluter are used together.
KQ-4010s conform to ISO14644-3B.6, EN1822, IEST-RP-CC001.3, cGMPs, EU GMP. related requirements
Technical Parameter
1. Test Aerosol: DEHS standard. (PAO, DOP, PSL, NaCl, KCl adjustable)
2. Concentration: 1.5×104P/L
3. Miss point value, use hand display "↑", "↓", "OK" three keys input
4. Sampling Volume：3L/min
5. Speed of Scan: advice 3～5cm/s
6. Distance between scanning port and filter surface: 2cm～4cm
7. Size: Length * width * height: 240*330*280mm
8. Weight: 7kg
9. power supply: AC220V 50Hz/DC17V (Ac/dc)
2. Concentration: 1.5×104P/L
3. Miss point value, use hand display "↑", "↓", "OK" three keys input
4. Sampling Volume：3L/min
5. Speed of Scan: advice 3～5cm/s
6. Distance between scanning port and filter surface: 2cm～4cm
7. Size: Length * width * height: 240*330*280mm
8. Weight: 7kg
9. power supply: AC220V 50Hz/DC17V (Ac/dc)
