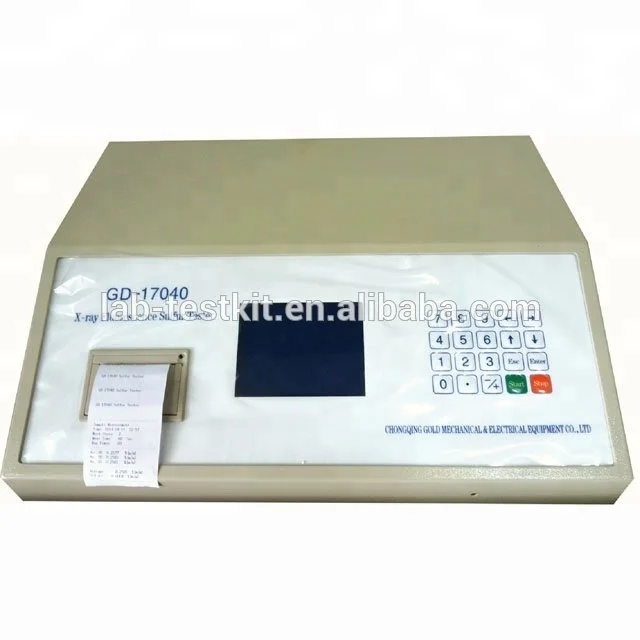

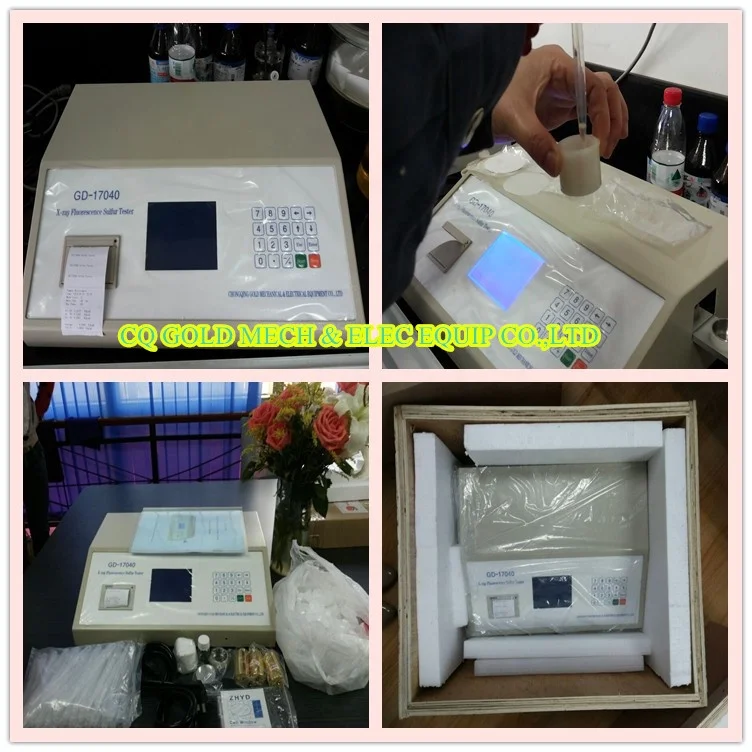

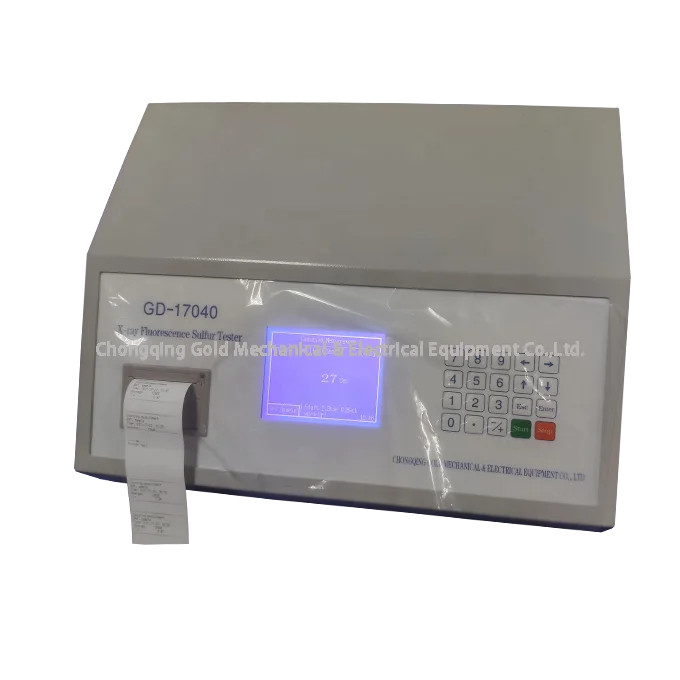

Electronic Petroleum Tester X-ray Fluorscence Sulfur Analyzer for Oil / Petroleum
Introduction
The X-ray Fluorscence Sulfur Analyzer for Oil / Petroleum is specially designed to determine sulfur content in petroleum products. Adopts fluorescence intensity ratio analysis. The fluorescence sulfur tester is rapid and accurate. The sulfur tester can meet the requirements of National Standard GB / T 17040 and GB / T 11140 on repeatability and reproducibility. And it can also meet requirements of ASTM D4294-03 on these indexes. The sulfur tester provides a measure to determine sulfur content during petroleum or petrochemical production process.Instrument characteristics

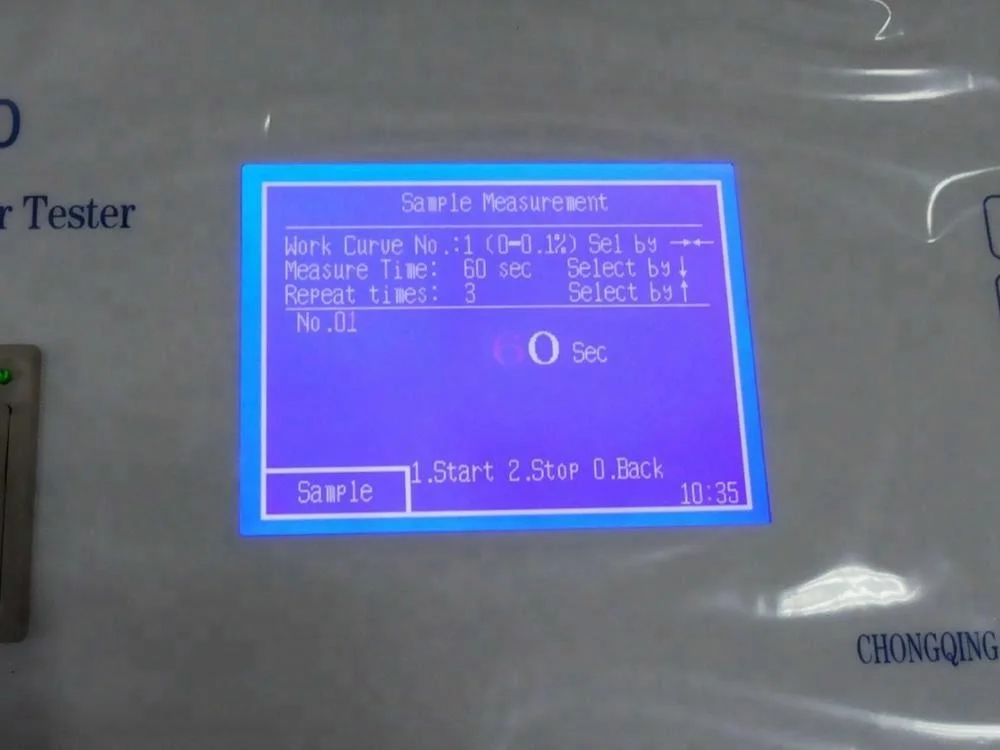

1. Computerized design of electromechanical integration of instrument. Large screen LCD display, man-machine dialogue, simple and beautiful.
2. Wide detection varieties, wide detection range, fast analysis speed and less consumption of standard samples;
3. Air pressure, fluorescence intensity, automatic correction method. Hydrocarbon ratio (C / h) can also be corrected;
4. The automatic diagnosis function of the instrument to judge the working state and electrical parameters of the instrument;
5. Use disposable Mylar membrane sample cup to avoid cross contamination. Sample cup sample preparation is fast and convenient. Sample number and S% (M / M) date can be recorded;
6. The positioning of the sample table is accurate. When testing samples, it automatically extends out of the machine to place samples and replace oil leakage proof parts, which is very convenient. It also avoids the possibility of contamination of the detection system;
7. All data are stored in a large amount, and the content analysis results and calibration working curve parameters can be checked at any time;
8. The thermal printer is used to replace the printing paper, which is simple and convenient. It also eliminates the printing ribbon consumables;
9. The instrument has standard serial communication rs_ 232C interface can be connected to any computer or computer networking system;
10. Safe X-ray protection measures, no X-rays for individuals and groups. Ionizing radiation and injury.
2. Wide detection varieties, wide detection range, fast analysis speed and less consumption of standard samples;
3. Air pressure, fluorescence intensity, automatic correction method. Hydrocarbon ratio (C / h) can also be corrected;
4. The automatic diagnosis function of the instrument to judge the working state and electrical parameters of the instrument;
5. Use disposable Mylar membrane sample cup to avoid cross contamination. Sample cup sample preparation is fast and convenient. Sample number and S% (M / M) date can be recorded;
6. The positioning of the sample table is accurate. When testing samples, it automatically extends out of the machine to place samples and replace oil leakage proof parts, which is very convenient. It also avoids the possibility of contamination of the detection system;
7. All data are stored in a large amount, and the content analysis results and calibration working curve parameters can be checked at any time;
8. The thermal printer is used to replace the printing paper, which is simple and convenient. It also eliminates the printing ribbon consumables;
9. The instrument has standard serial communication rs_ 232C interface can be connected to any computer or computer networking system;
10. Safe X-ray protection measures, no X-rays for individuals and groups. Ionizing radiation and injury.
Specification
item | value |
Model No | GD-17040 Electronic Petroleum Tester X-ray Fluorscence Sulfur Analyzer for Oil / Petroleum |
Applicable standards | ASTM D4294; GB / T11140; ISO 8754; GB / T17040 |
Sulfur measurement range | 7ppm is equal to 5% |
Repeatability (r) | < 0.02894 (x + 0.1691) |
Reproducibility (R) | 0.1215 (x + 0.05555) |
Sample volume | 2.5ml (equivalent to sample depth 4mm) |
Temperature | 5 ~ 35 ℃ |
Relative humidity | ≤ 85% (30 ℃) |
Power supply | AC220V, ± 20V. 50HZ |
Rated power | 30W |
Size | 468mm×368mm×136mm |
Packing & Delivery
Plywood case for Electronic Petroleum Tester X-ray Fluorscence Sulfur Analyzer for Oil / Petroleum.
Exhibition
Our Company

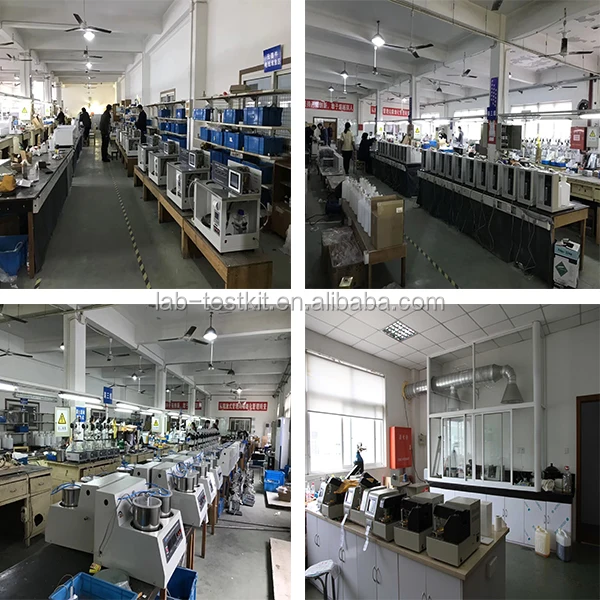

As a leading manufacturer of petroleum testing equipment and road laboratory equipment in China, we have been engaged in this field for many years. We have an expert team, rich experience in relevant projects and factories that can supply at any time and have rich inventory.
