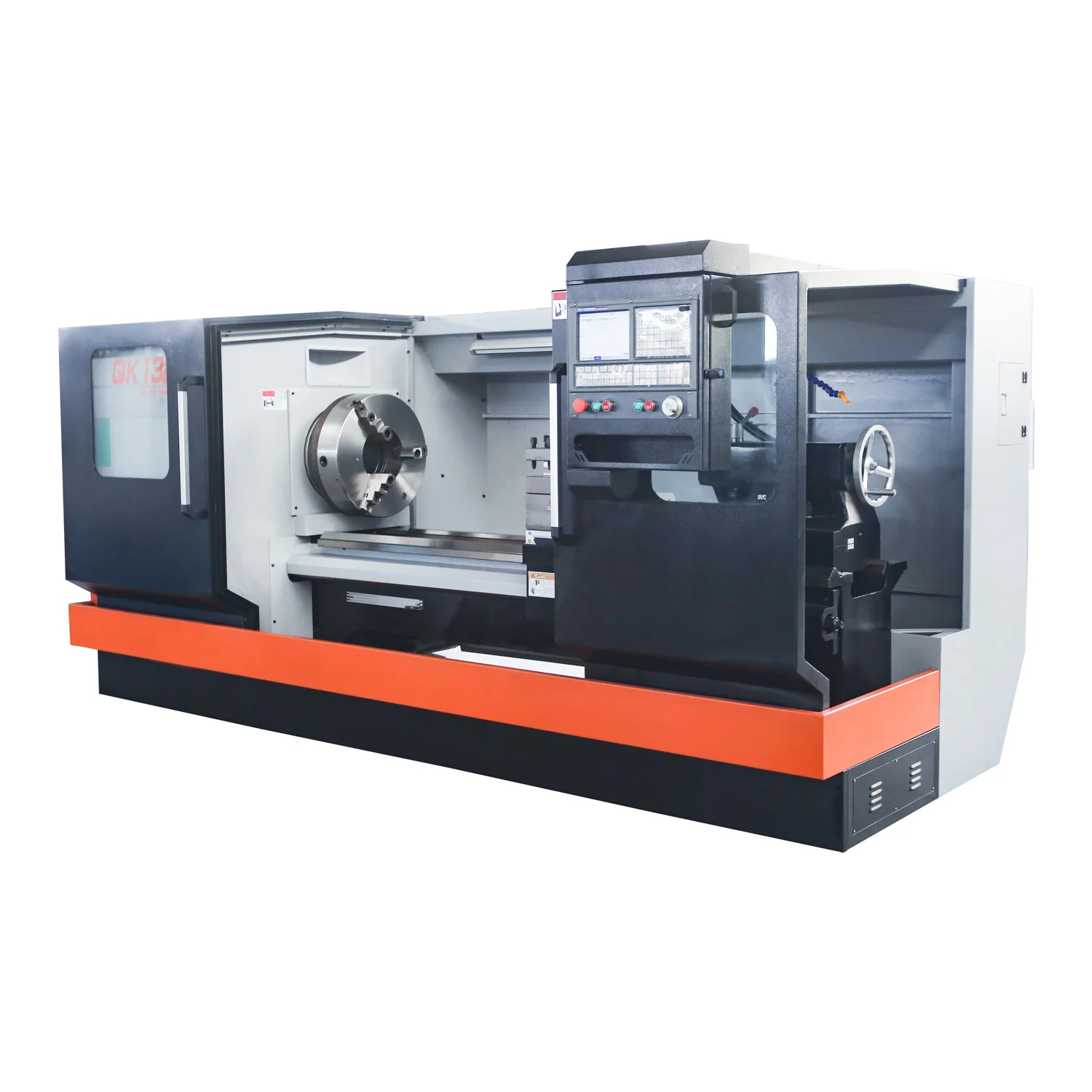

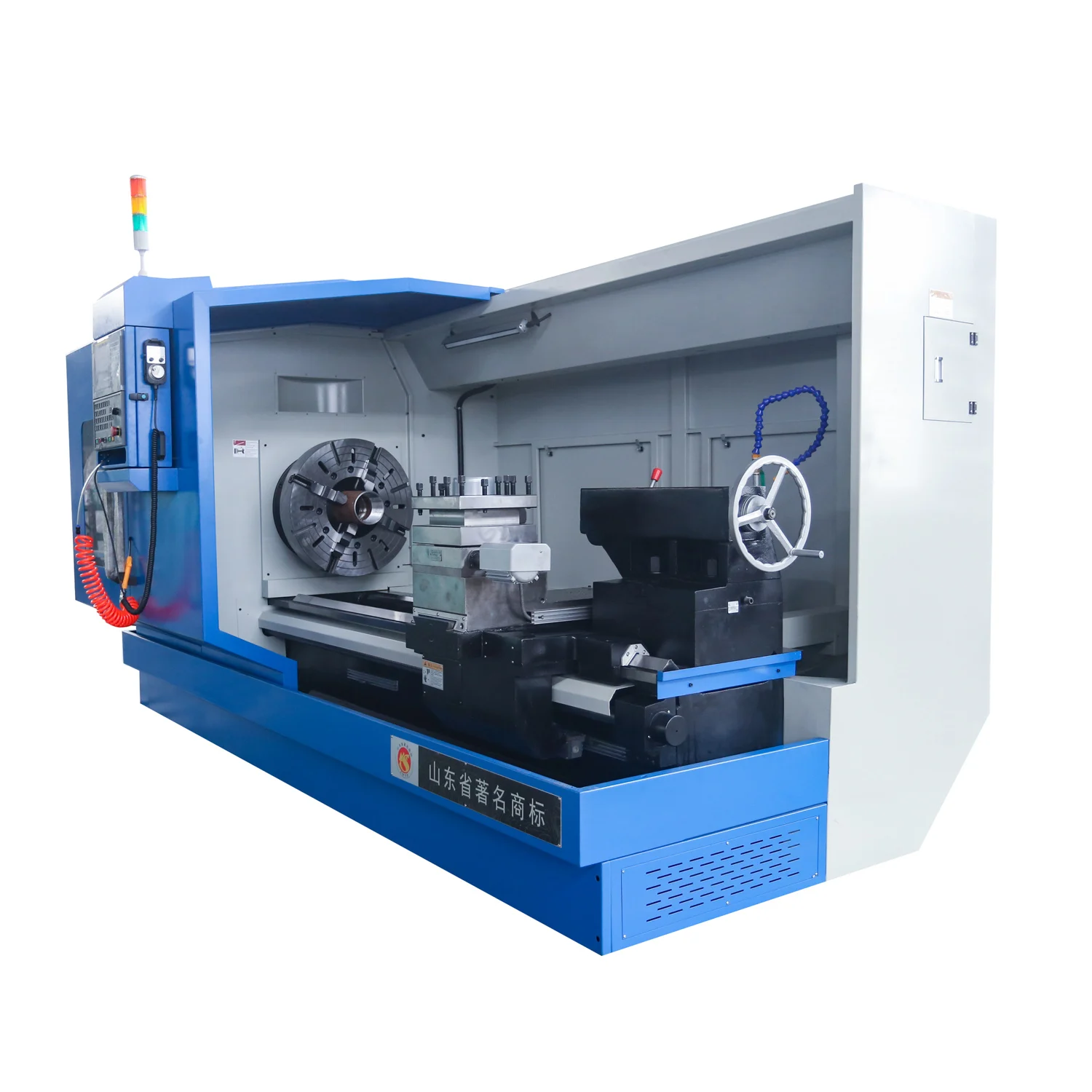

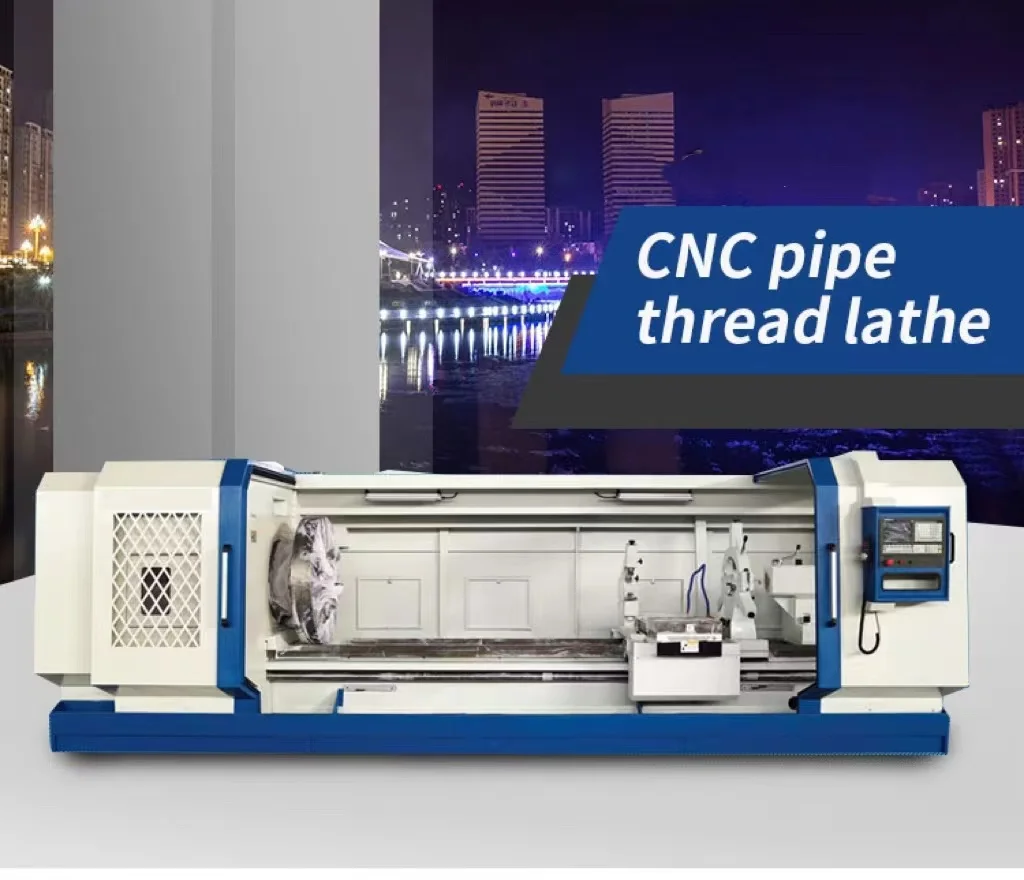

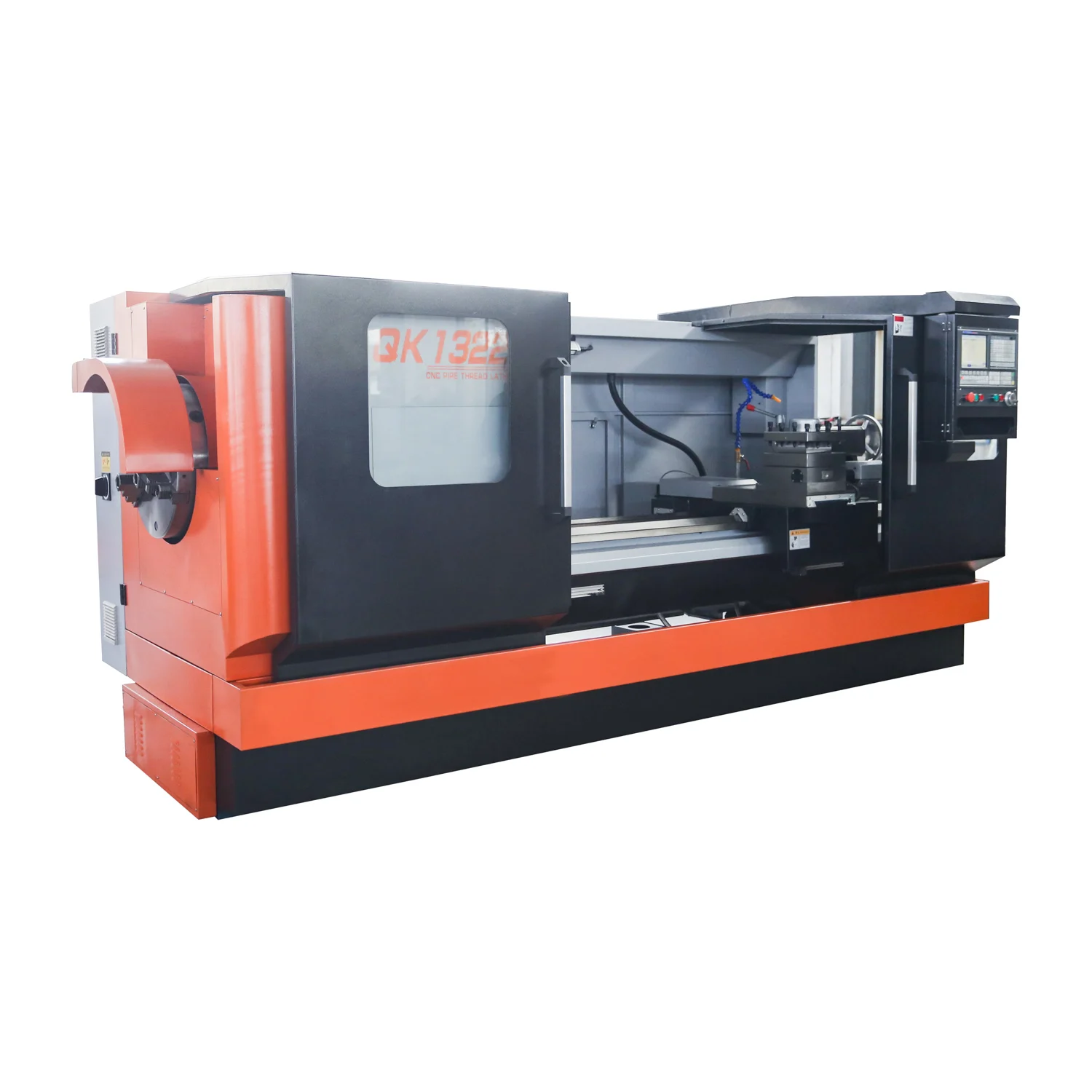

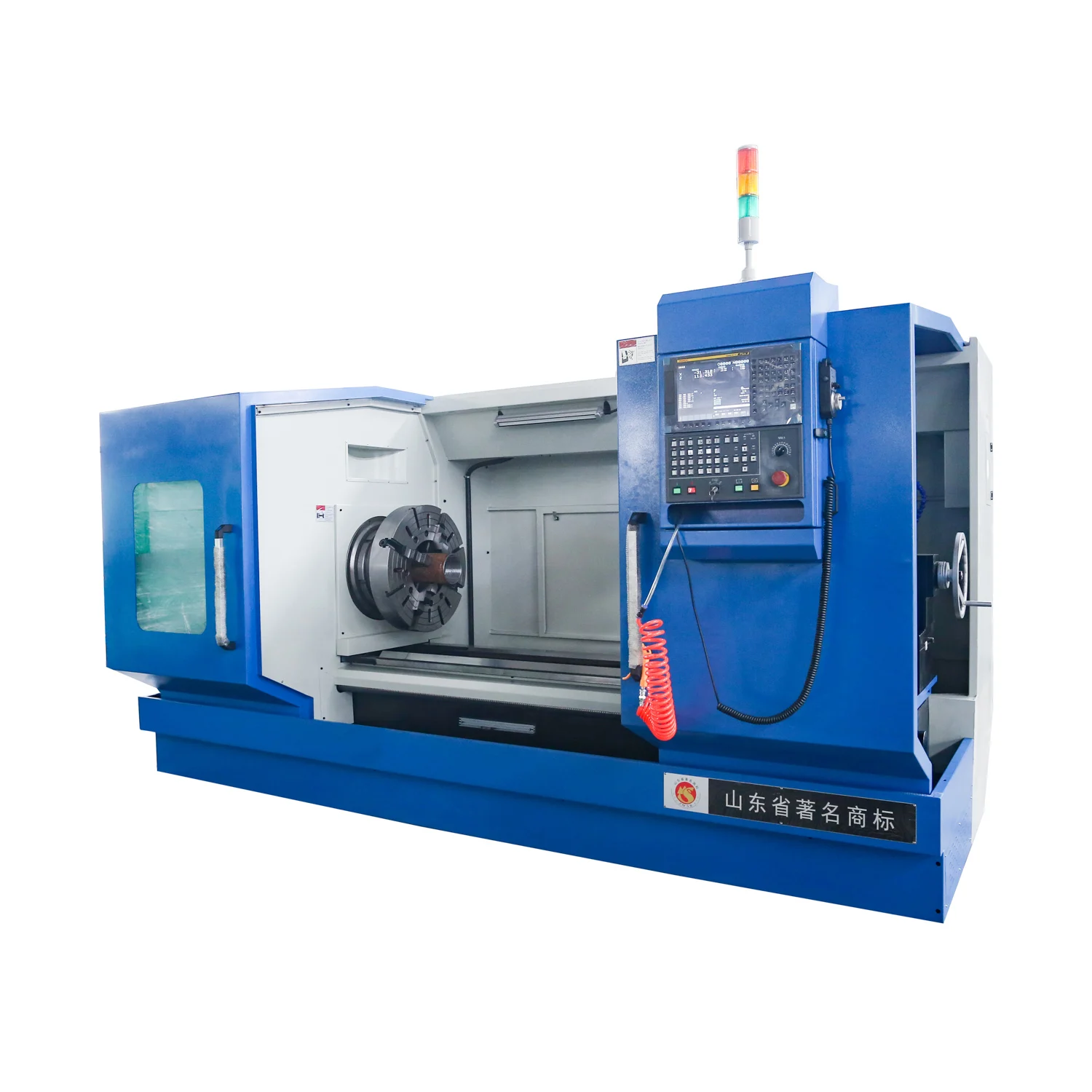

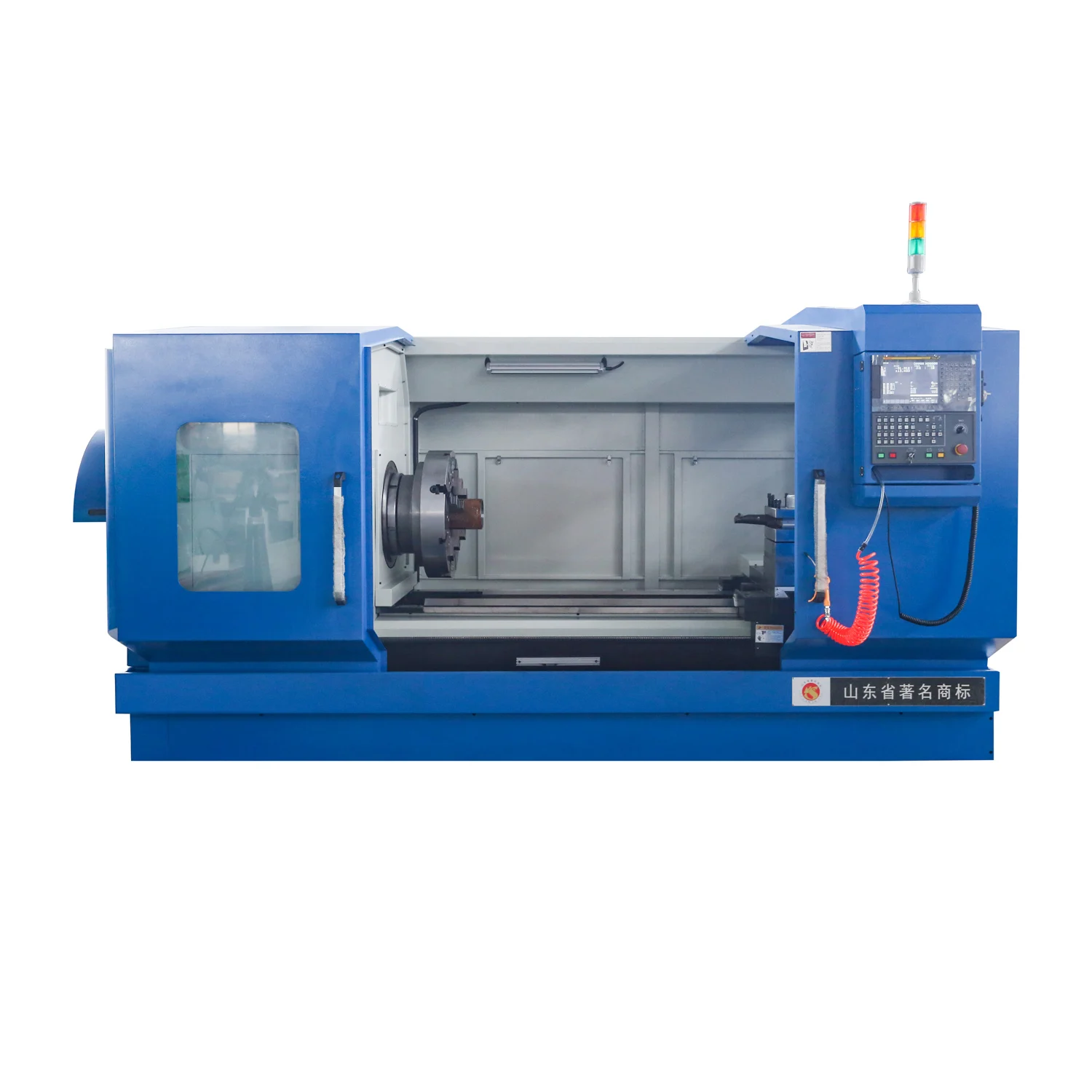

High Precision Qk1327 CNC Pipe Threading Lathe Machine
- Category: >>>
- Supplier: Zibo Jepps Trading Co. Ltd.
Share on (1600511790525):
Product Overview
Description
Product Description
Features:
1. Two-speed speed change, wide speed regulation range, not only meets the requirements of high-speed thread finishing, but also has high cutting efficiency and low noise.
2. The machine bed is an integral floor structure, which greatly improves the rigidity of the machine tool. The width of the guide rail surface of the bed is wide, and has been quenched and precision ground by super audio frequency.
3. Quenching precision grinding gears and high-quality bearings to ensure low noise and good sound quality of the machine tool.
4. The spindle box adopts powerful external circulation cooling and lubrication, which not only reduces the temperature rise of the spindle, but also maintains the cleanliness and lubrication of the spindle box.
5. The X and Z axes are directly driven by high-precision ball screws and pre-stressed and tightened, and the nut hanger is an integral structure.

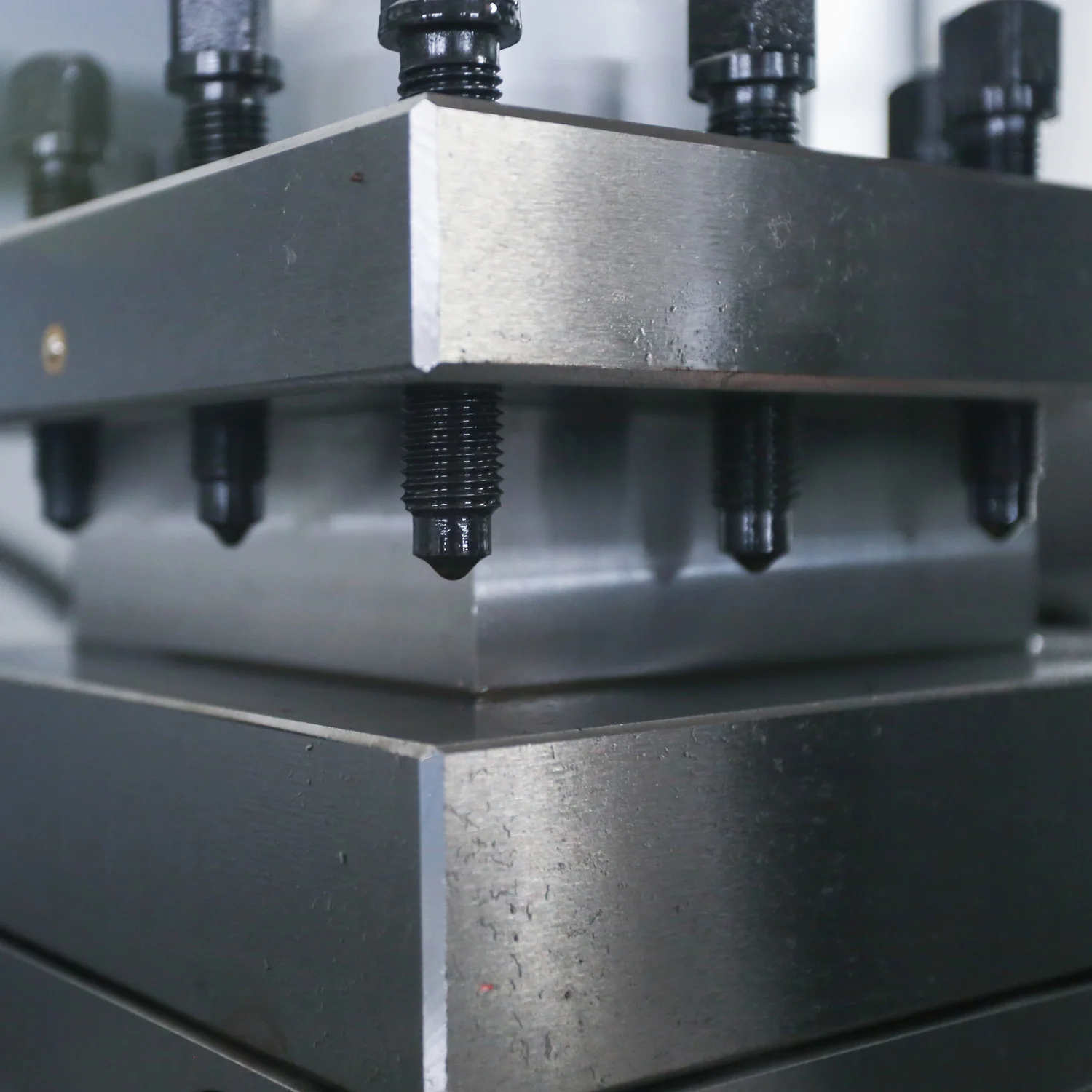

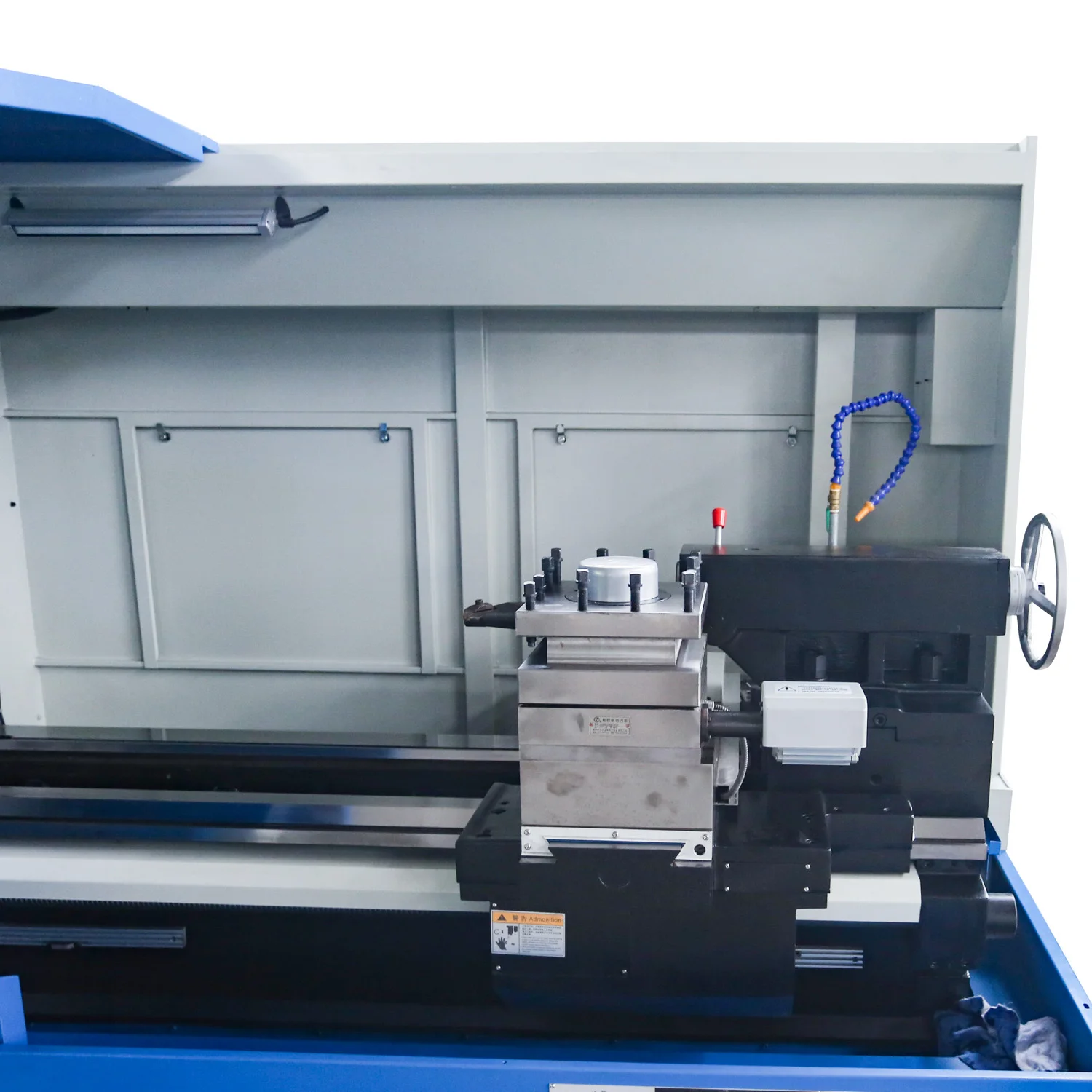

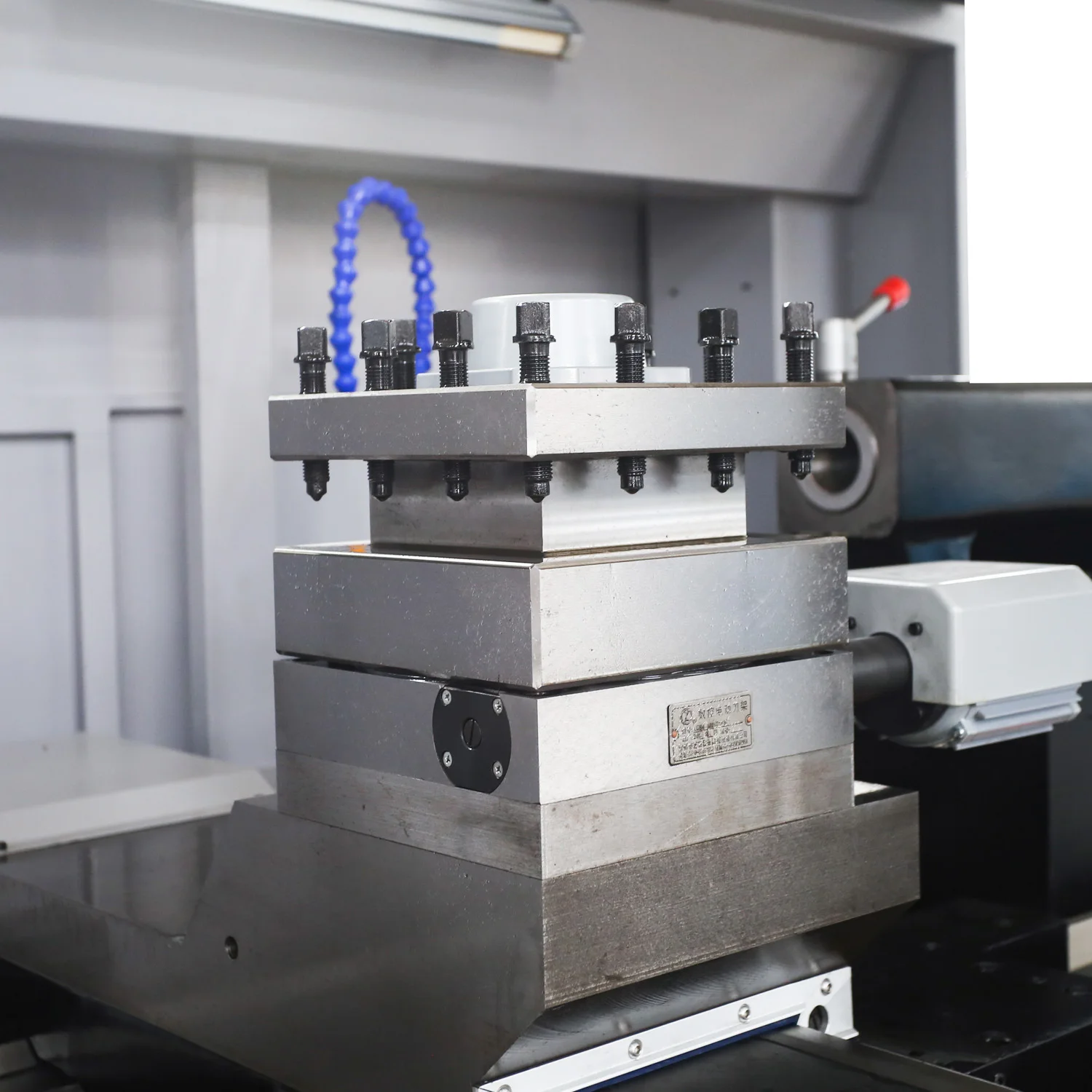

6. The large-size 4-station vertical electric turret enables the machine tool to have high processing efficiency and more effectively ensure the precision of the inner hole thread of the fine turning.
2. The machine bed is an integral floor structure, which greatly improves the rigidity of the machine tool. The width of the guide rail surface of the bed is wide, and has been quenched and precision ground by super audio frequency.
3. Quenching precision grinding gears and high-quality bearings to ensure low noise and good sound quality of the machine tool.
4. The spindle box adopts powerful external circulation cooling and lubrication, which not only reduces the temperature rise of the spindle, but also maintains the cleanliness and lubrication of the spindle box.
5. The X and Z axes are directly driven by high-precision ball screws and pre-stressed and tightened, and the nut hanger is an integral structure.
6. The large-size 4-station vertical electric turret enables the machine tool to have high processing efficiency and more effectively ensure the precision of the inner hole thread of the fine turning.
Specification
Model and specifications | QK1313 | QK1319 | QK1322 | QK1327 | QK1335 | QK1343 | |||||
Guideway width | 550 mm | 755mm | |||||||||
Max.swing over bed | 630mm | 1000mm | |||||||||
Max.swing over carriage | 350mm | 610mm | |||||||||
Hole through spindle | 130 mm | 200 mm | 225mm | 280mm | 350mm | 440mm | |||||
Max.processing Pipe diameter | 126 mm | 196 mm | 219mm | 270mm | 340mm | 430mm | |||||
Max.workpiece length | 1500mm/3000mm | ||||||||||
Range of spindle speed changes（r/min） | 16～820 | 36～450 | 36～450 | 7.7～230 | 6～330 | 4～230 | |||||
Tool post style | Vertical 4 stations (standard configuration) | ||||||||||
Knife rest translocation time（s） | 3 | ||||||||||
Repeated positioning accuracy | ±0.002 | ||||||||||
Processing workpiece precision | IT7 | ||||||||||
Bed quenching hardness | HRC52 | ||||||||||
Power of main motor | 11kw | 18.5kw | 22kw | ||||||||

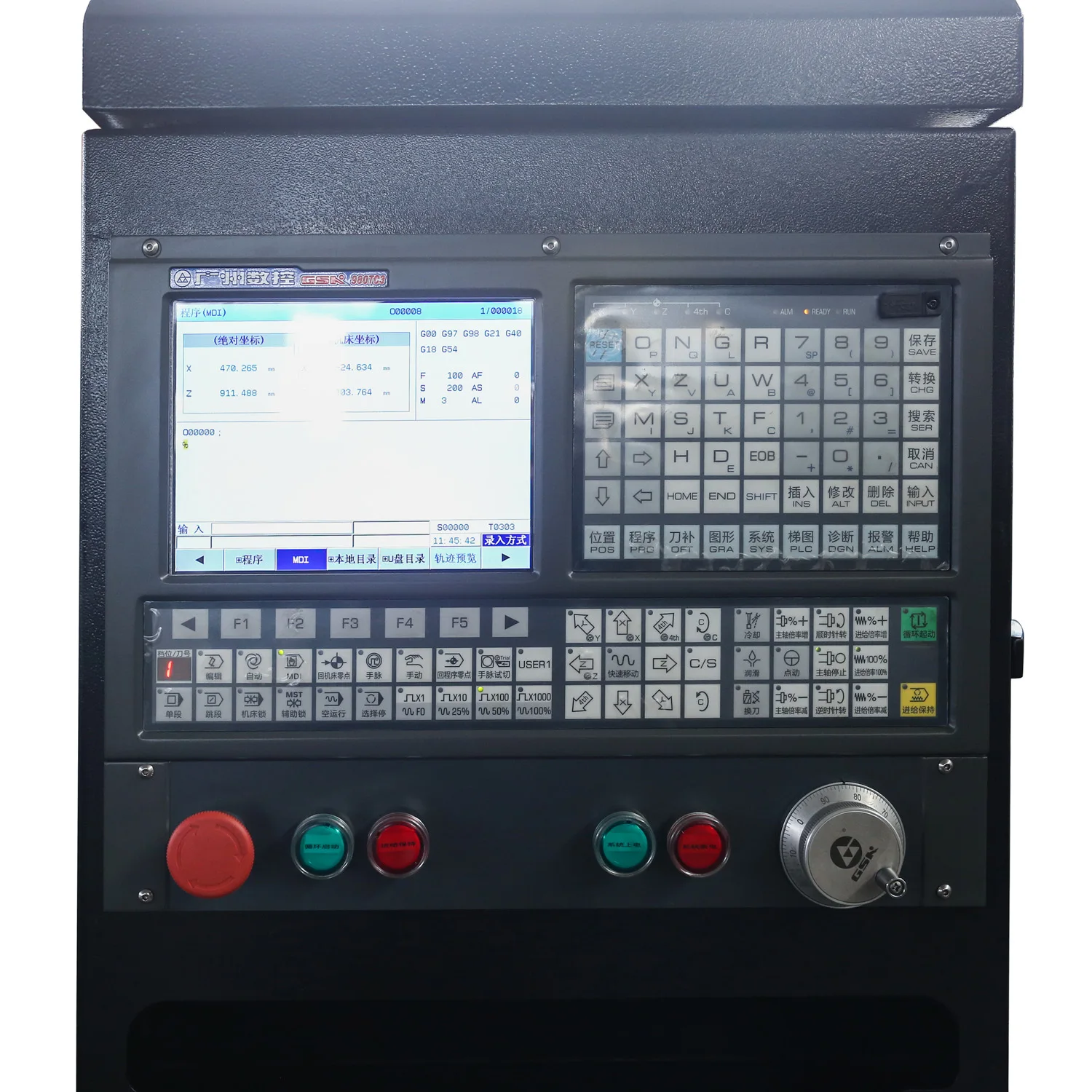

CNC | Guangtai 130IT/Guangshu 980TA2 (can be configured according to customer requirements) | ||||||||||

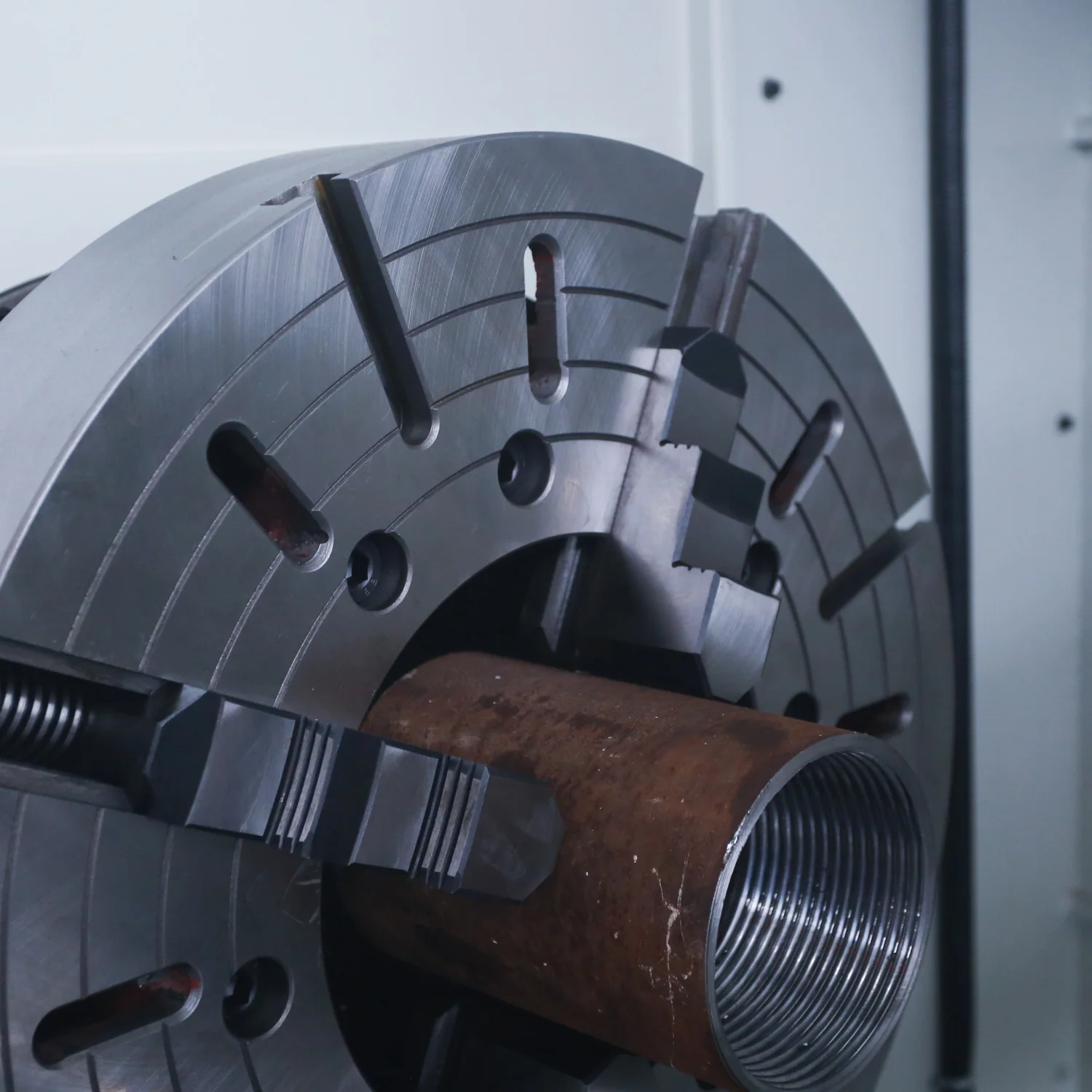

Chuck | 400 Three claws | 500 Three claws | 800 Four claws | 1000 Four claws | |||||||
Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
