New Deep drilling hole water well inspection borewell camera

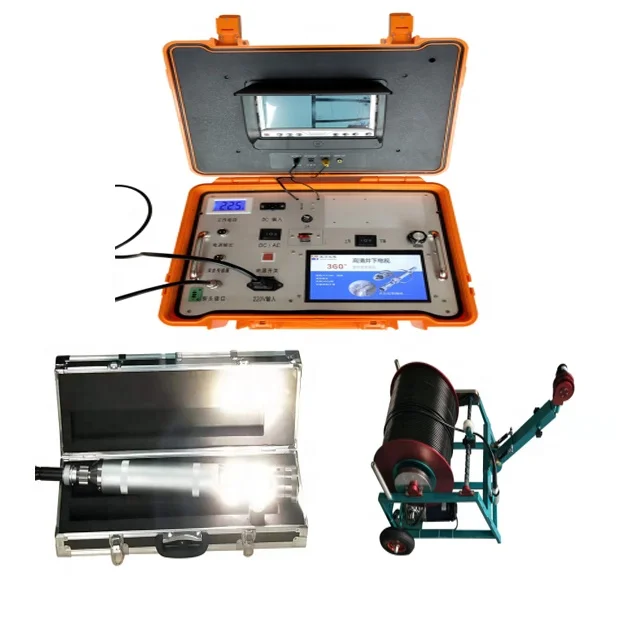

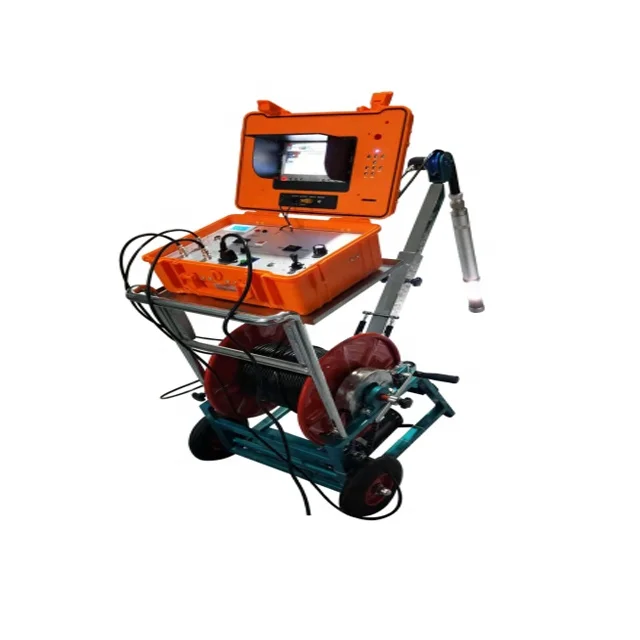

Downhole TV (submersible camera) is a high-tech electronic instrument that captures video images in time in water. Downhole TV is composed of underwater camera, transmission cable, host control box, photoelectric encoder, electric winch and video system.It has the advantages of waterproof, high pressure resistance, high temperature resistance, but also has simple operation, large data volume, clear images, real-time image monitoring, collection, recording, at the same time to the remote and near scenery automatic focus, can present clear images, can be used for real-time preservation of monitoring data.Especially under the condition of dry hole and clean water hole, it can obtain very clear color images in real time, which provides a * basis for various hole accident handling, with unique intuition and authenticity
FEATURES AT A GLANCE
New Deep drilling hole water well inspection borewell camera

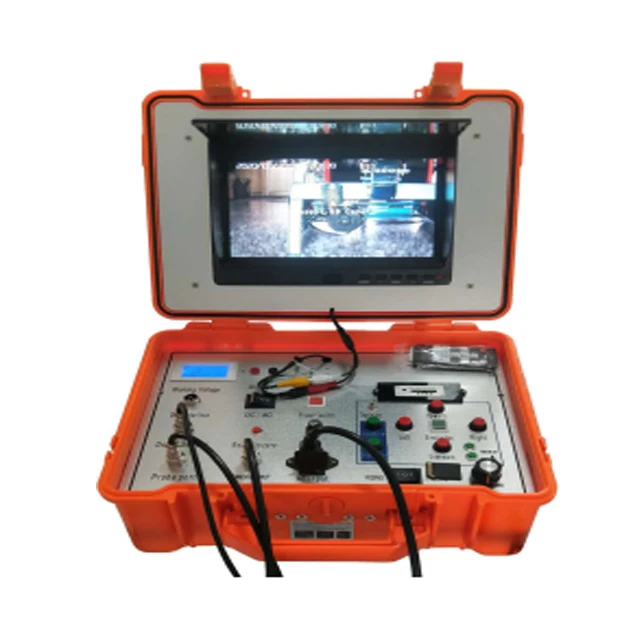

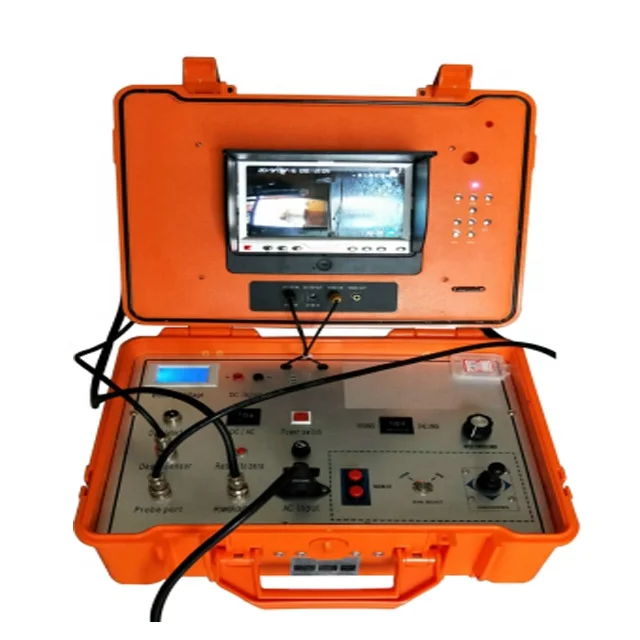

I. Physical button control system:
* ABS engineering plastic master control box / aviation aluminum alloy control box
* Voltage input: 220V / 12V
* Depth interface: connection depth sensor
* probe interface: connect probe, transmit video and power
* data interface: can write the well number, can calibrate the depth
* video system: ultra HD SD card video recorder, video, photo, direct back function, 16G SD card video system, maximum support 32G
* depth zero: please depth to zero before logging, in order to count accurately
* Depth display: depth real-time display to the control box display,
* display: 7 inch / 10 inch / 12 inch bright LED display,
* control box panel button operation of the direction and Angle of the downhole camera, rotation and camera light source brightness and focus length adjustment, and the rise and speed of the cable and camera probe
* 12v Battery power supply function, (available within 600 m of well depth
Right elevation
Left elevation
Front elevation
PRODUCT SPECIFICATIONS
Downhole TV in oil, hydrological drilling is mainly used for the division of formation structure, wall formation fissure and karst development discrimination, distinguish fault fracture development zone, determine the karst distribution position and long-term monitoring in hole, downhole TV can in vertical drilling, horizontal drilling and have any Angle of drilling monitoring.In the repair project of the well, the underground TV mainly detects the damage of the casing, the falling objects in the well and the filter pipe hole. It can shoot the damage and leakage of the casing and casing wall of the burning well in real time, and transmit the clear images to the display on the ground by using its supporting special underwater cable
Computer client software
Supports the 32-bit / 64-bit Windows operating system Real-time video preview Photo-taking and video-recording function Camera motion, zoom control Light source brightness adjustment Depth parameter settings Deep to zero, deep function Full screen video character superposition control
Yuntai rotating dimming focus camera probe
Yuntai rotation focus dimming camera probe
* Unite rotation 360; pitch 180
* The camera uses SONY CCD HD camera, fully automatic light sensing system.
* Focal lens with adjustable focal length (manual ground)
* Front-highlighted LED light source
* φ 90mm rear fill strong light source
* Light source brightness is adjustable
* Pressure pressure of 20Mpa * Maximum logging depth of 2,000 m
* External diameter: 42mm / 75mm / 90mm * Material: stainless steel
