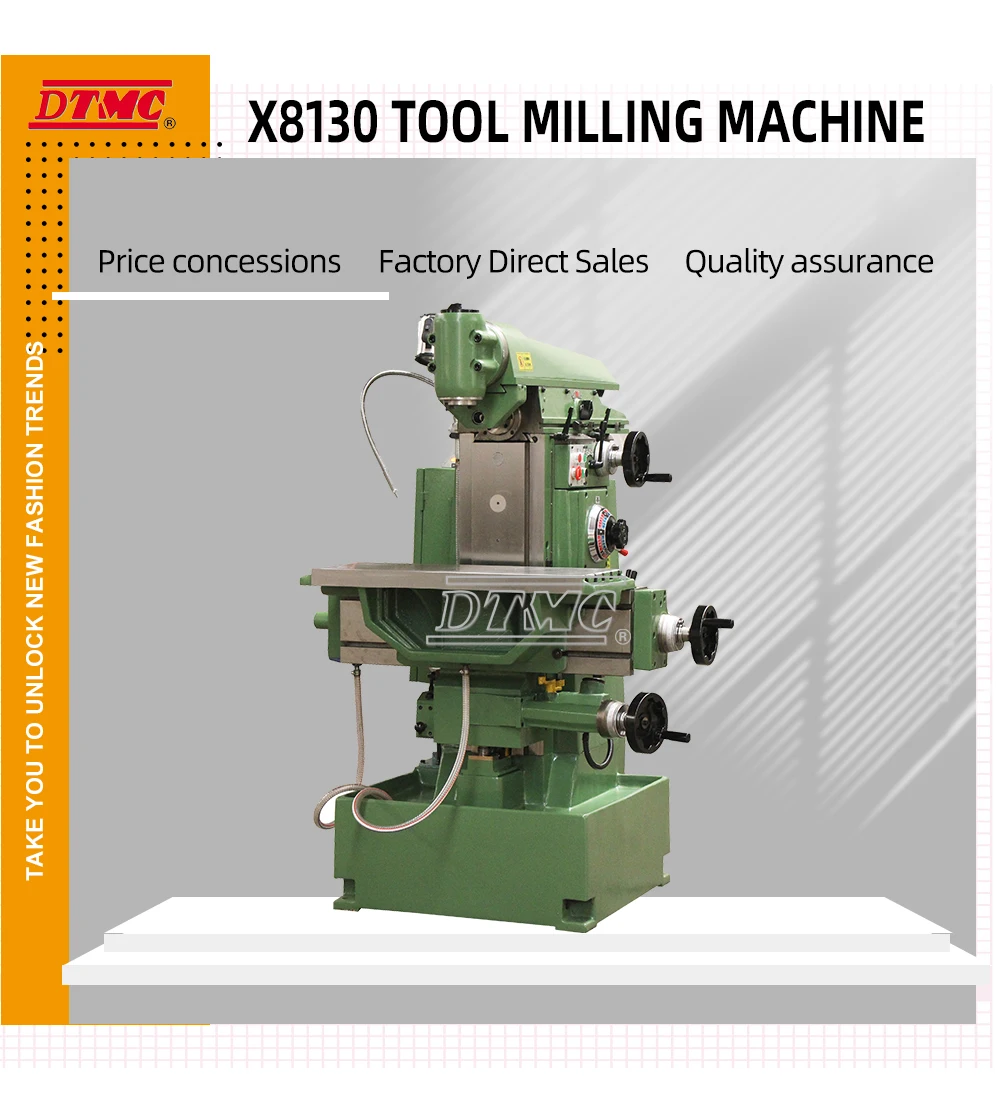

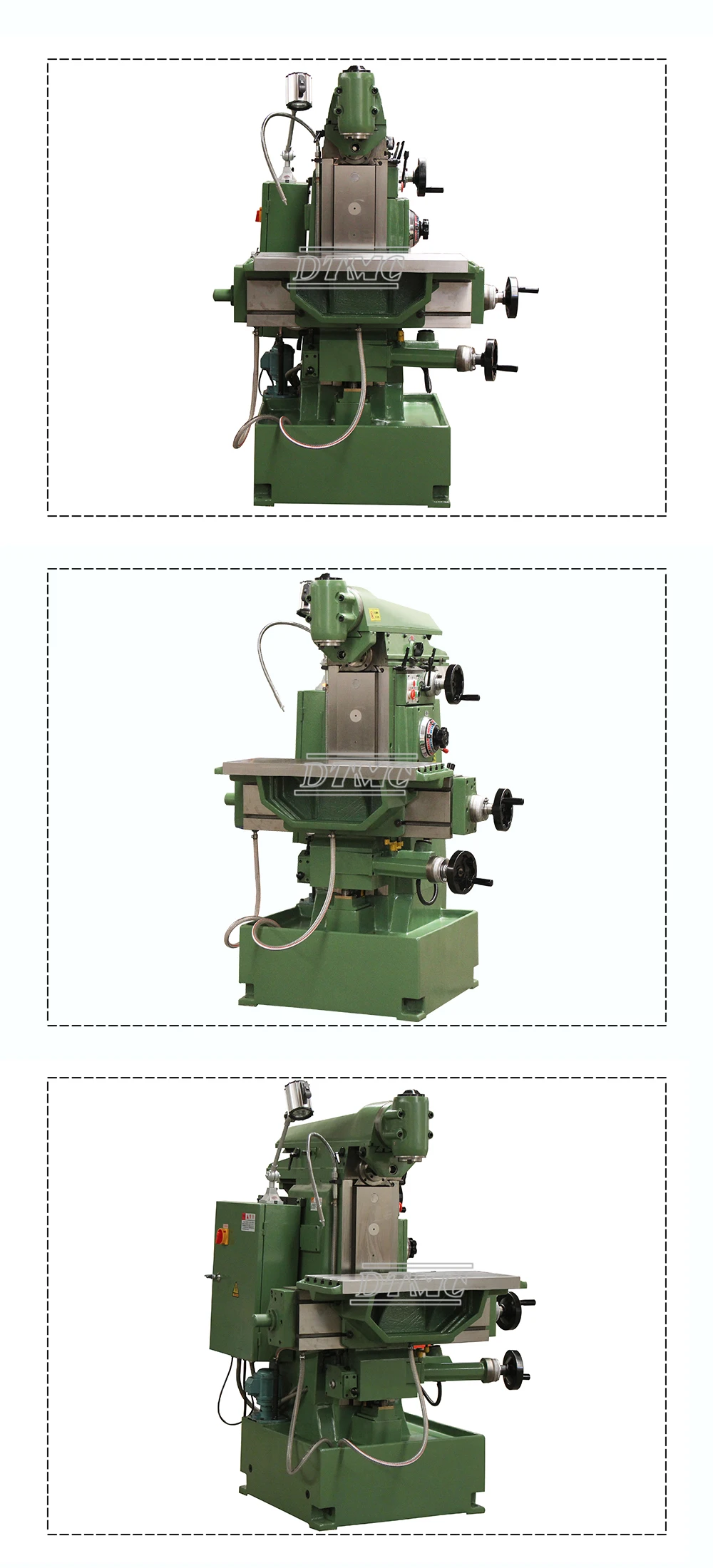

X8130 Tool Milling Machine Milling machine Hot Sale

X8130

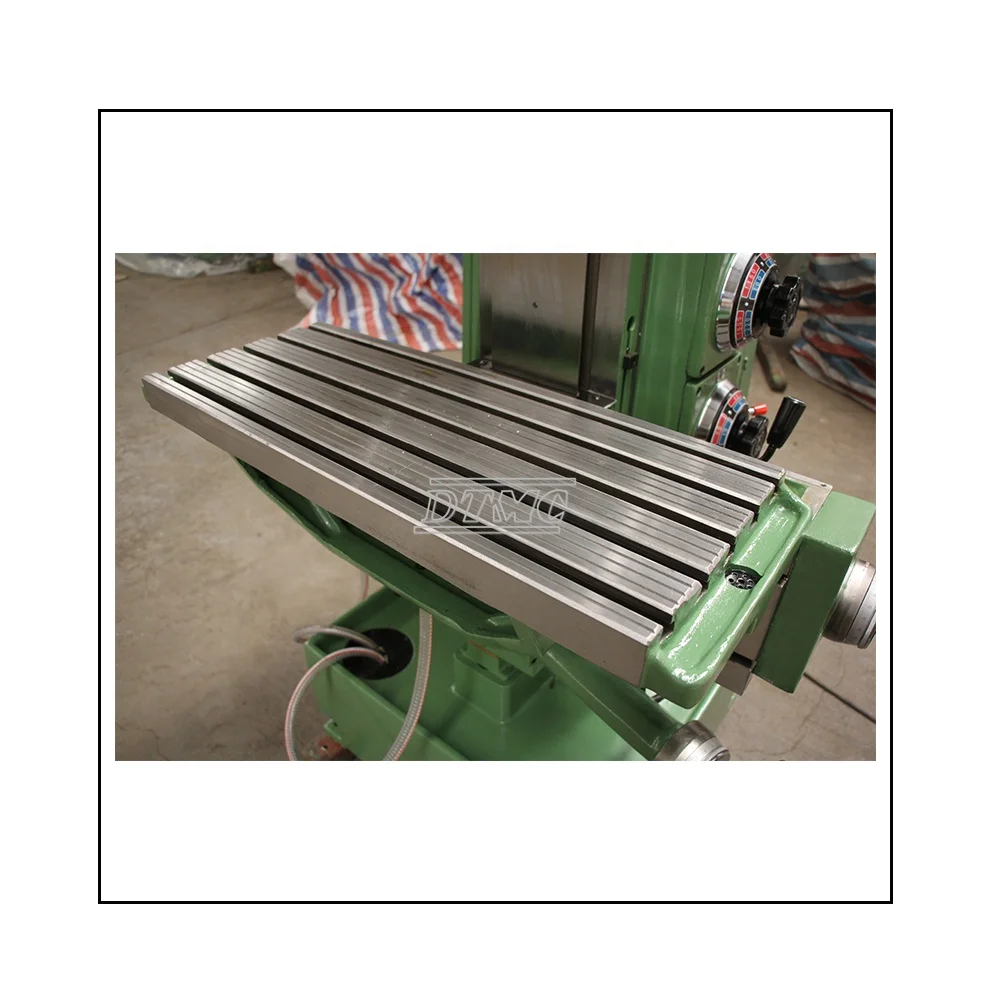

Horizontal working table

Working surface

300x750mm

T slot no./width/distance

5 /14mm /60mm

Vertical working table

Working surface

220x800mm

T slot no./width/distance

2 /14mm /126mm

Max. longitudinal travel( by hand/power)

405/395mm

Max. vertical travel( by hand/power)

390/380mm

Spindle slide

spindle taper bore

ISO40 7:24

Max. cross travel

200mm

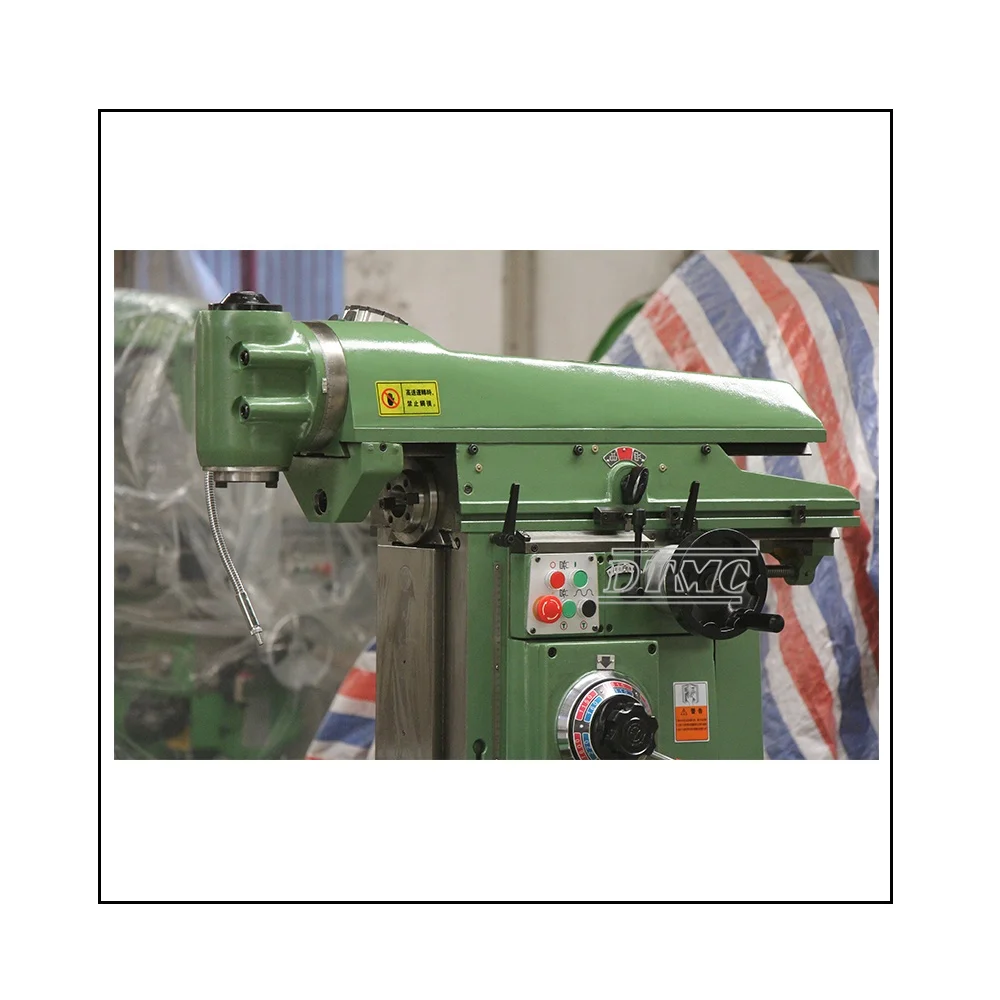

Vertical milling head

spindle taper bore

ISO40 7:24

Max. travel of milling head slide

550mm

Max. swivel of vertical milling head

±60°

Main dimensions between parts

Distance from axis of horizontal spindle to table surface (Min./Max.)

35/415mm

Max. diameter of cutter applied when employing overarm support

Φ150mm

Distance from vertical table to guideway

175mm

Distance from vertical spindle axis to guideway(Max.)

660mm

Distance from spindle end to table surface (Min./Max.)

65/445mm

Weight of machine approx Speeds& Feeds

Number of spindle speeds

12

Range of spindle speeds

40-1600r/min

Longitunidal and vertical feeds of table and cross of spindle slide

Number

12

Range

8-310mm/min

Rapid transverse

1000mm/min

Power,overall dimensions&weight

Rapid traverse motor

Power

2.2kw

speed

1430r/min

Main drive motor

Power

0.55KW

speed

1400r/min

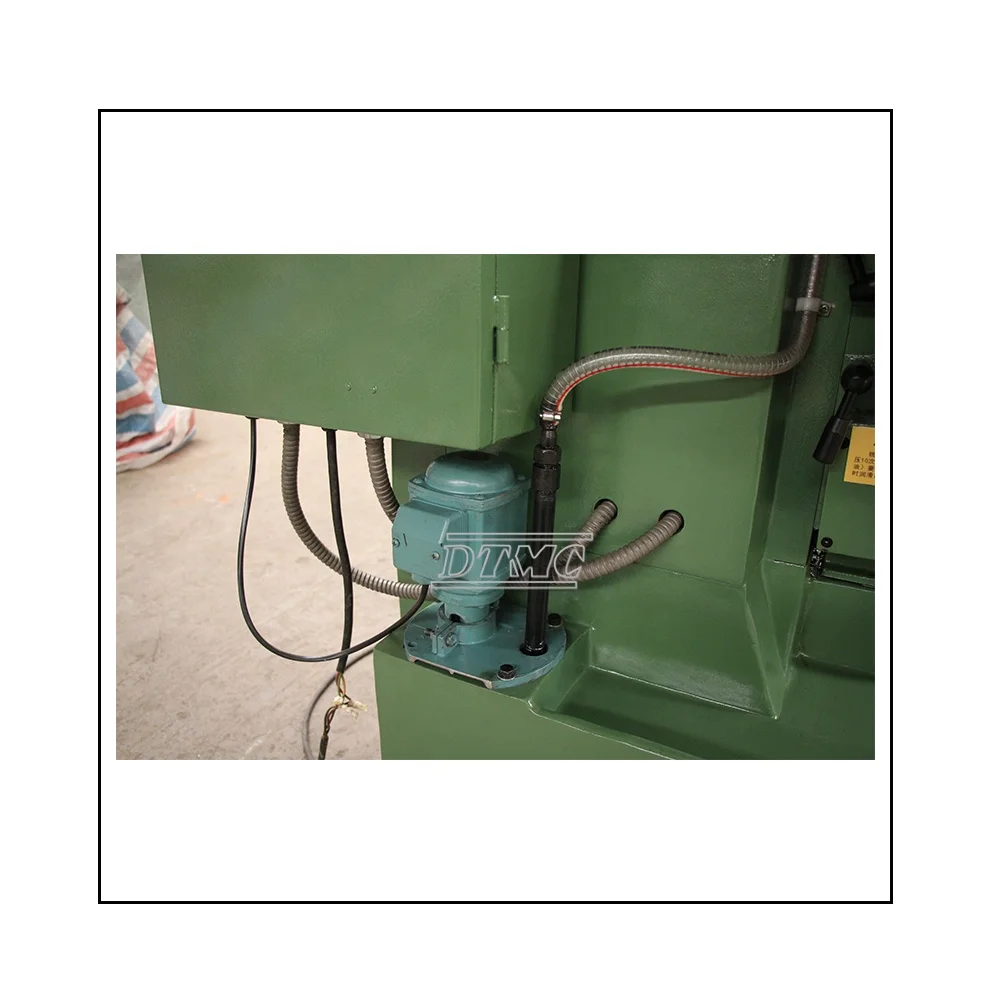

coolant pump motor

Power

0.125kw

speed

2860r/min

Overall dimensions

985x1195x1630mm

Machine weight

1050kgs
