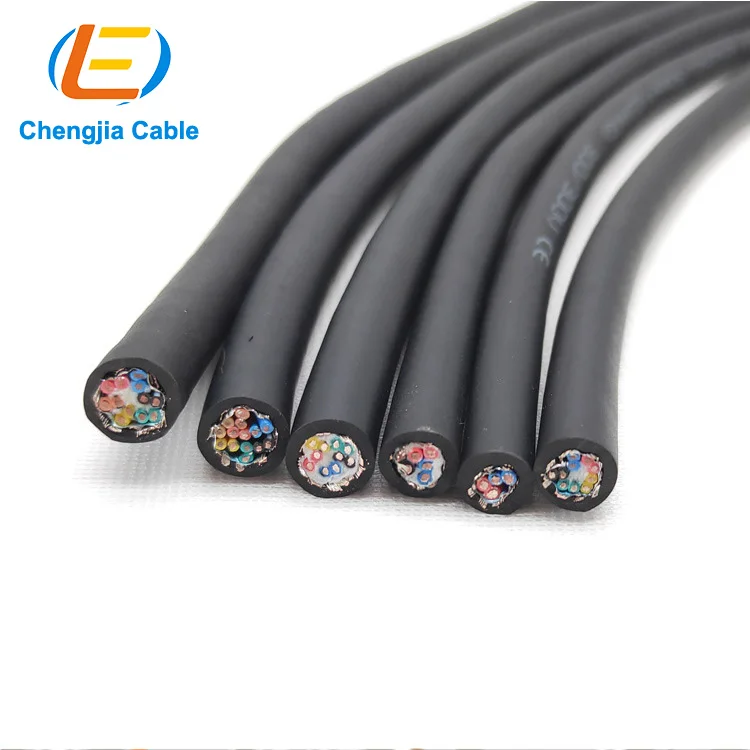

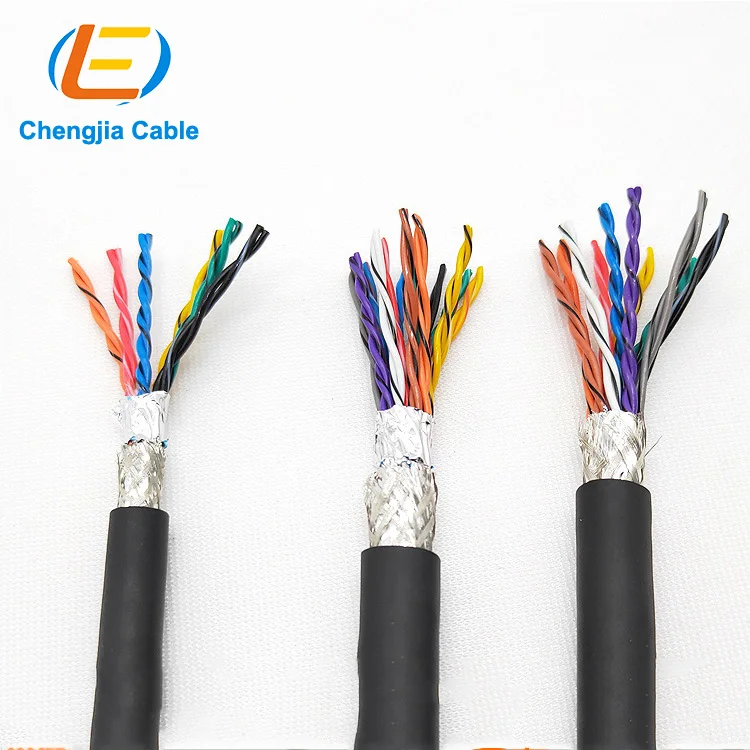

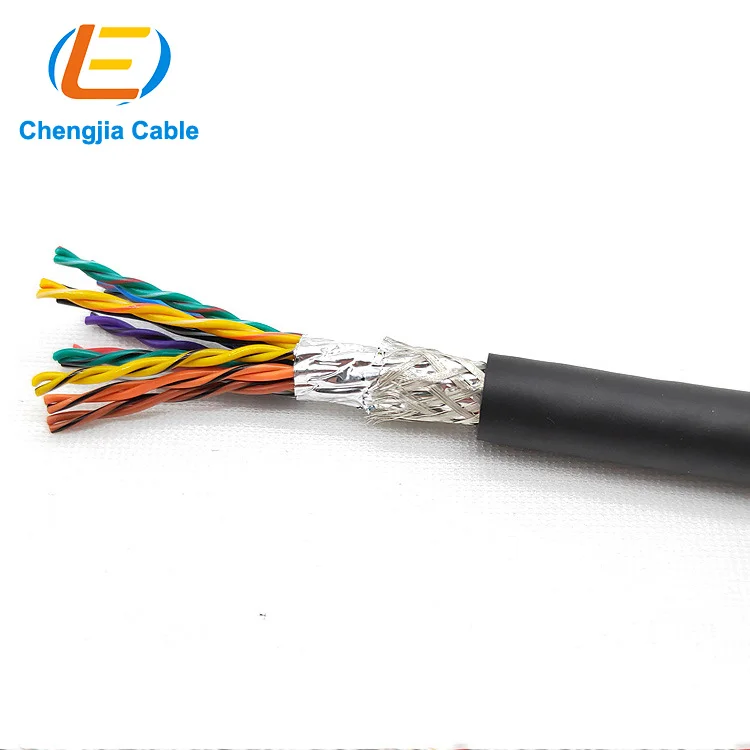

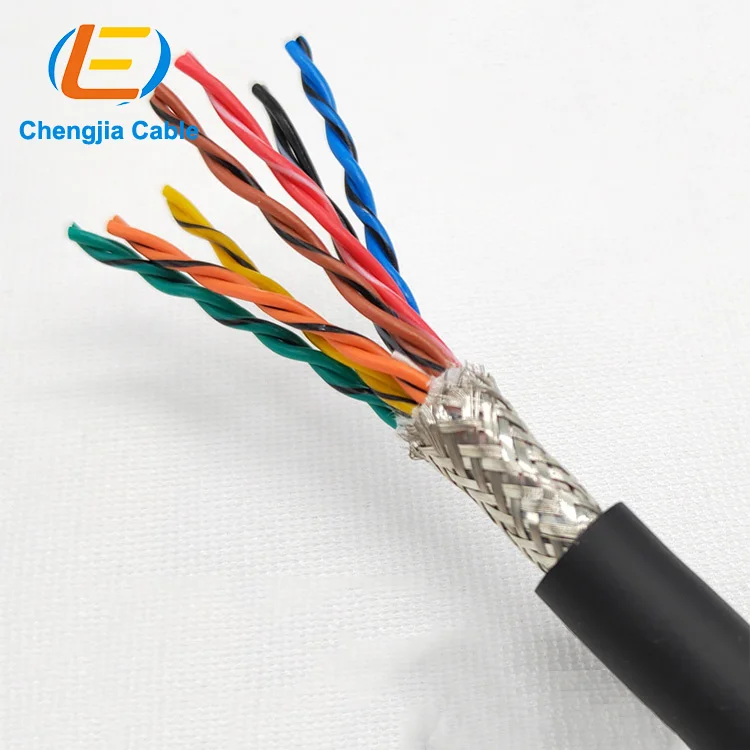

TPU Double Sheath Pair Twist Shielded Ultra Flexible Cable drag chain cable PUR TPE Twisted Multi Pair Shielded Signal Cable
- Category: >>>
- Supplier: Guangzhou Chengjia Wire&Cable Co. Ltd.
Share on (1600511800568):
Product Overview
Description

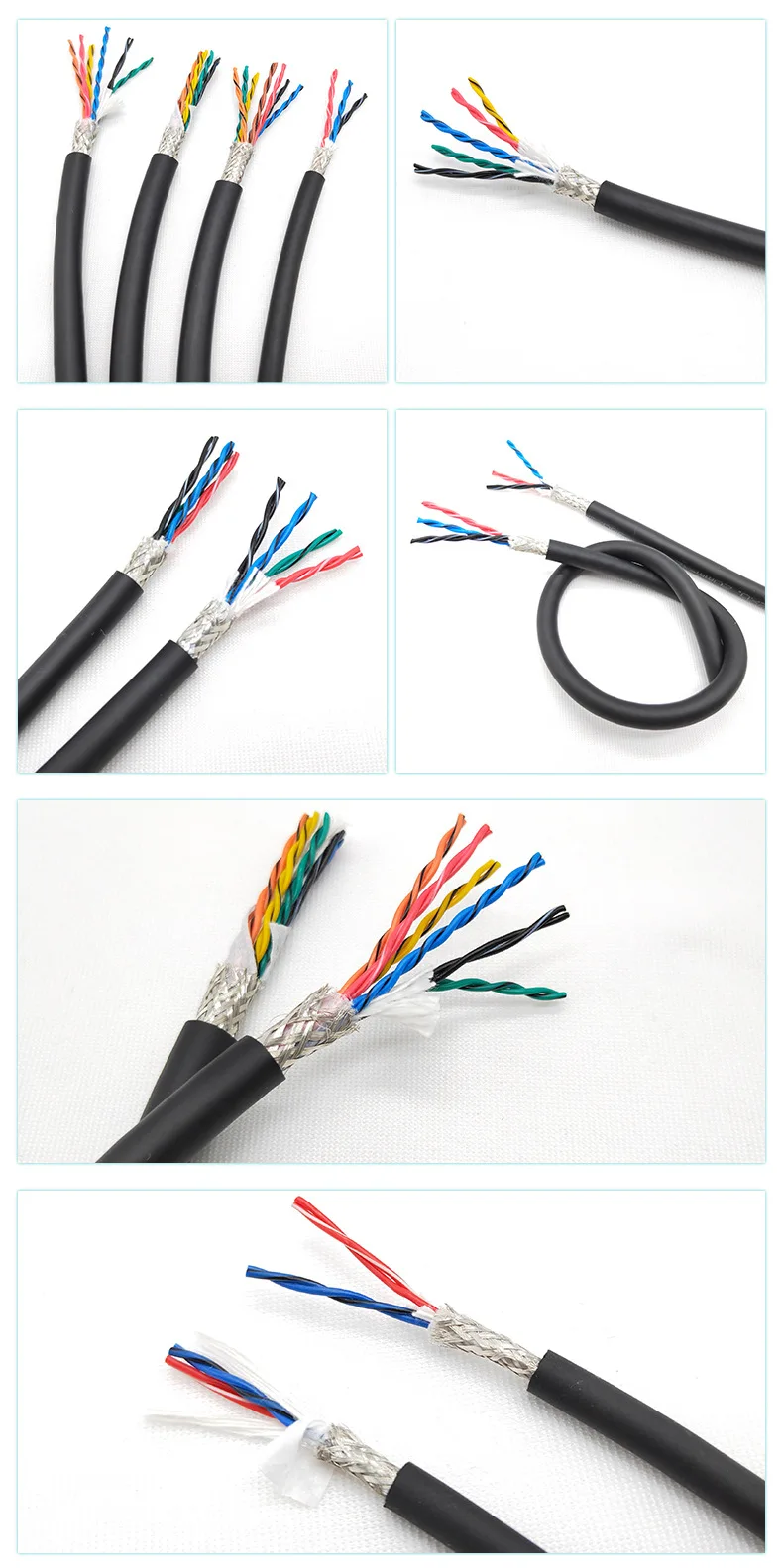

Super flexible PUR insulated copper wire shielded drag chain cable Twisted Multi Pair Shielded Signal Cable
Products Description
2 million low-speed motion flexible PUR data transmission cables, which can transmit analog and digital signals in equipment with a control processor, or as a connection line between instruments and control equipment, suitable for low power consumption and uninterrupted data transmission occasions, It is widely used in machinery, instruments, industrial electronic equipment, computers, and information transmission systems, and is suitable for any two-way communication occasions.

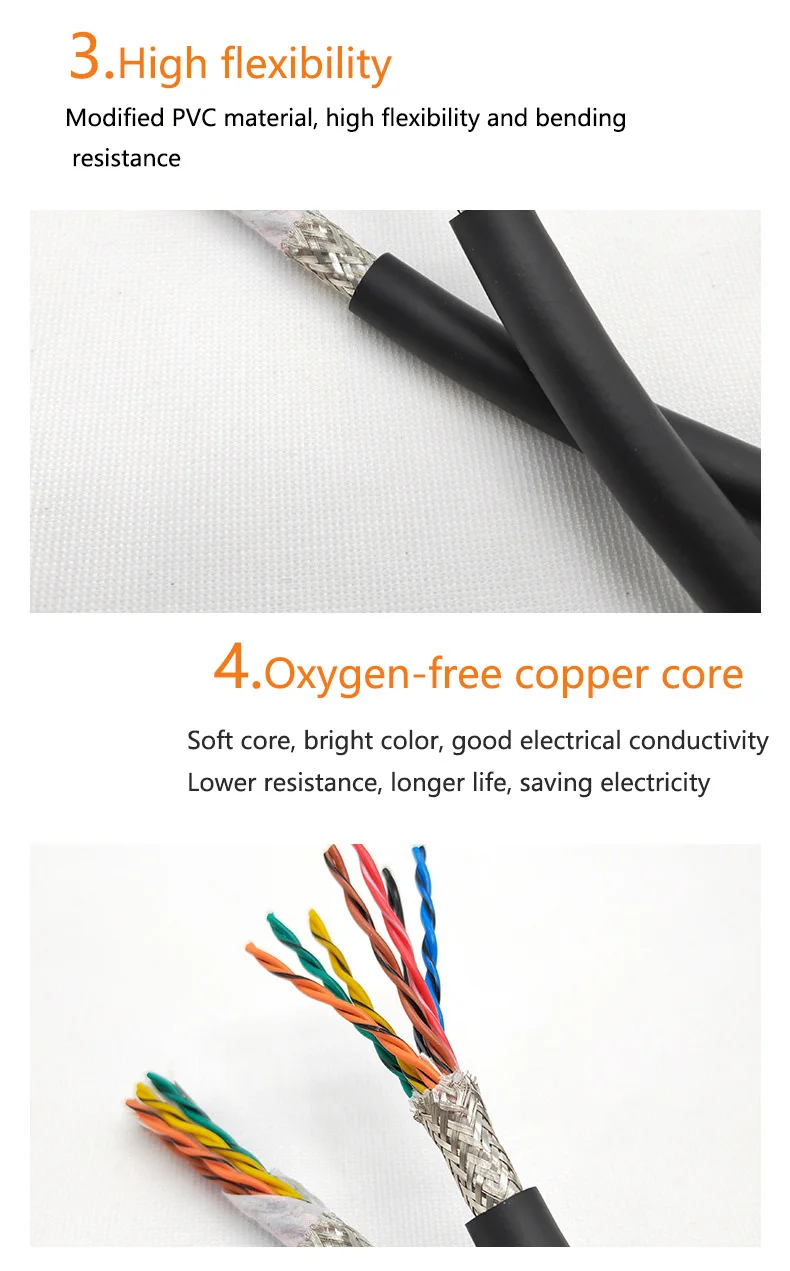

Product Feature
Technical Parameter
Standard | Comply with UL20276 standard, thin wire diameter design | ||||||
Conductor | adopts high-quality tinned copper stranded copper wire | ||||||
Insulation material | Modified PVC | ||||||
Core structure | Small pitch single stranding | ||||||
Core recognition | Below 0.5m㎡ is marked with colored core wires; 0.5m㎡ above, a yellow-green ground wire + black core wire with white numbers | ||||||
Outer sheath | Modified PUR mate | ||||||
Color | black (other colors can be customized) | ||||||
Bending radius | Move in is more than 7.5 x d, Fixed laying is more than 6 x d, | ||||||
Nominal voltage | Uo/U 300/300 V | ||||||
Test voltage | 1500 V | ||||||

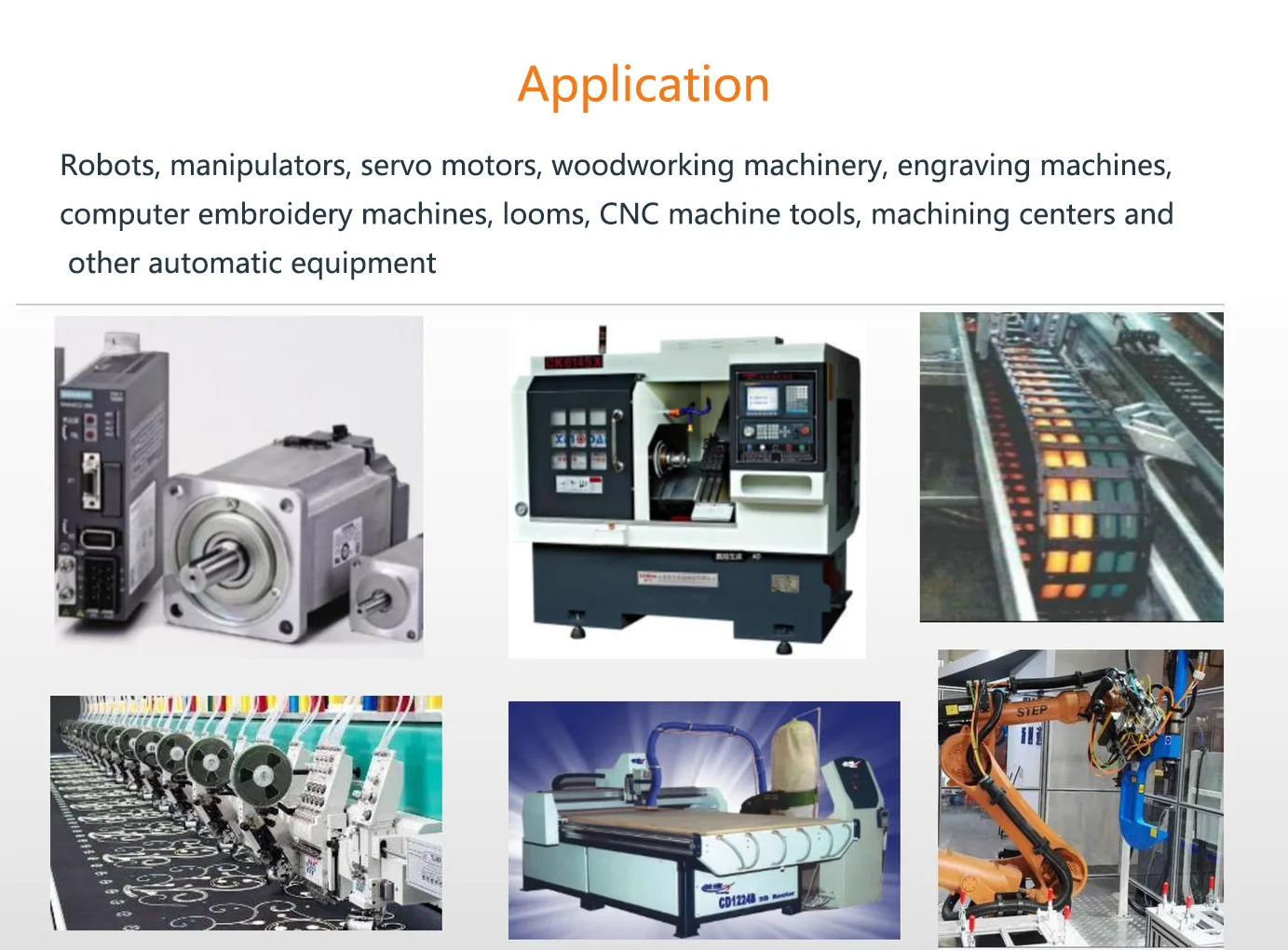

Application: | It is especially suitable for fixed installation of mechanical equipment and machine tools or occasional mobile applications. The flexible cable uses specially modified insulation and sheath materials, has abrasion resistance and medium resistance, and has more than one million periodic bends, and always maintains stability. | ||||||

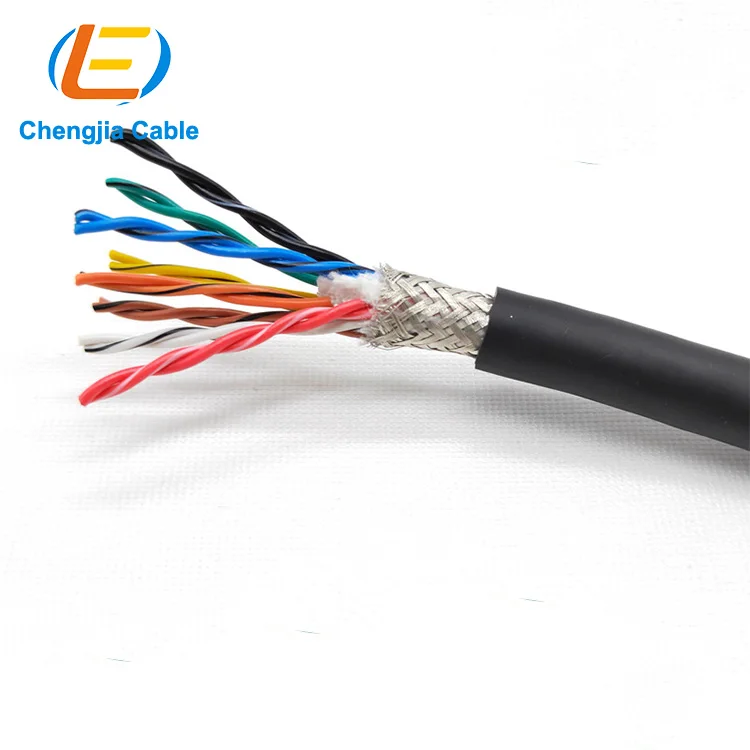

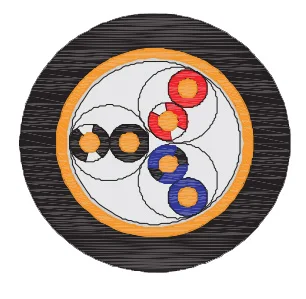

Cable Structure
Control Cable Structure
1. Tinned copper (less than 0.5m㎡) or bare copper (0.5m㎡ and above) conductor thin copper wire, in line with DIN VDE0295 category 6 and IEC 60228 category 6
2. Special PVC insulation
3. Color core wire identification (less than 0.5m㎡)
4. Black core wire with continuous white digital code (0.5m㎡ and above)
5. The wire core is stranded in layers with the best pitch
6. Improved tinned copper wire braided shield
7. The minimum comprehensive shielding rate is 80%
8. Special PUR outer sheath
9. Black (RAL 9005) matte
2. Special PVC insulation
3. Color core wire identification (less than 0.5m㎡)
4. Black core wire with continuous white digital code (0.5m㎡ and above)
5. The wire core is stranded in layers with the best pitch
6. Improved tinned copper wire braided shield
7. The minimum comprehensive shielding rate is 80%
8. Special PUR outer sheath
9. Black (RAL 9005) matte
No. | Product Code | Cores Number and cross-sectional area (NO.Xm㎡) | Approximate outer diameter （mm) | Outer sheath color | 20℃ Conductor DC resistance Ω/km | |||||
1 | YY06.04.0014 | 2x2x0.14 | 5.5 | Black | 150 | |||||
2 | YY06.06.0014 | 3x2x0.14 | 5.6 | Black | 150 | |||||
3 | YY06.08.0014 | 4x2x0.14 | 6.2 | Black | 150 | |||||
4 | YY06.10.0014 | 5x2x0.14 | 6.8 | Black | 150 | |||||
5 | YY06.12.0014 | 6x2x0.14 | 7.0 | Black | 150 | |||||
6 | YY06.14.0014 | 7x2x0.14 | 7.5 | Black | 150 | |||||
7 | YY06.16.0014 | 8x2x0.14 | 7.8 | Black | 150 | |||||
8 | YY06.20.0014 | 10x2x0.14 | 8.5 | Black | 150 | |||||
9 | YY06.26.0014 | 13x2x0.14 | 9.3 | Black | 150 | |||||
10 | YY06.04.0020 | 2x2x0.2 | 5.6 | Black | 95 | |||||
11 | YY06.06.0020 | 3x2x0.2 | 6.0 | Black | 95 | |||||
12 | YY06.08.0020 | 4x2x0.2 | 6.8 | Black | 95 | |||||
13 | YY06.10.0020 | 5x2x0.2 | 7.2 | Black | 95 | |||||
14 | YY06.12.0020 | 6x2x0.2 | 7.6 | Black | 95 | |||||
15 | YY06.14.0020 | 7x2x0.2 | 8.0 | Black | 95 | |||||
16 | YY06.16.0020 | 8x2x0.2 | 8.5 | Black | 95 | |||||
17 | YY06.20.0020 | 10x2x0.2 | 9.2 | Black | 95 | |||||
18 | YY06.04.0030 | 2x2x0.3 | 6.2 | Black | 71.2 | |||||
19 | YY06.06.0030 | 3x2x0.3 | 6.6 | Black | 71.2 | |||||
20 | YY06.08.0030 | 4x2x0.3 | 7.3 | Black | 71.2 | |||||
21 | YY06.10.0030 | 5x2x0.3 | 7.8 | Black | 71.2 | |||||

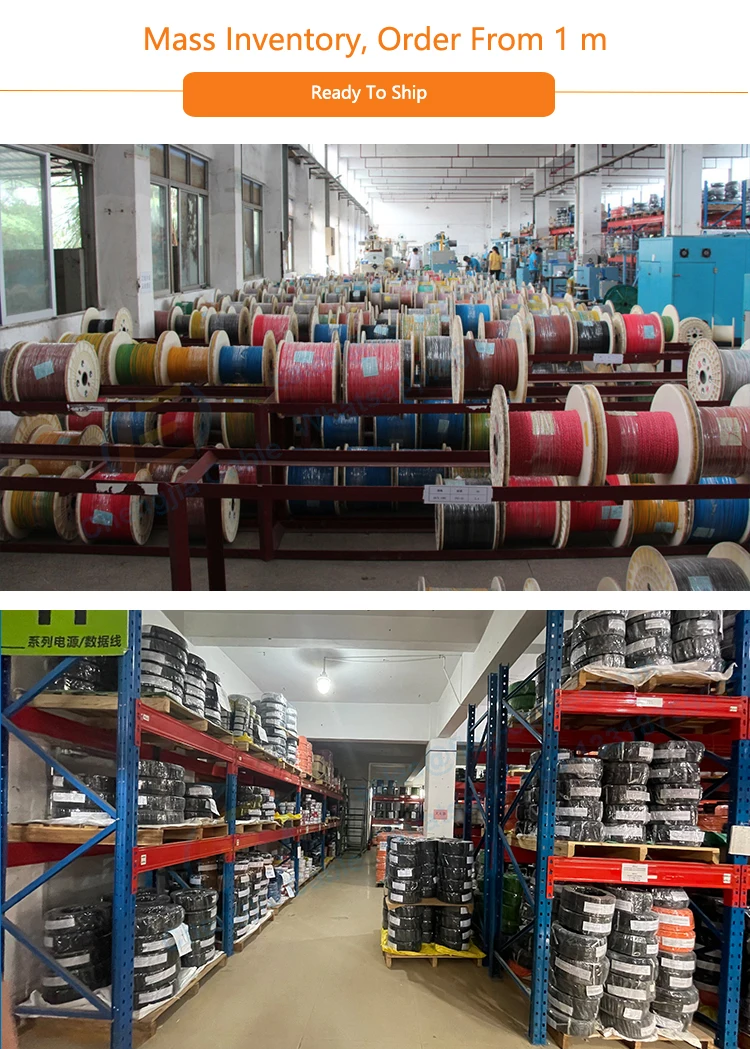

MOQ 1 meter, If you need to order PUR outer sheath, MOQ 400 meters | ||||||||||
