GBOS Stitching Line Marking Machine With Double Head Achieve Async Spraying Apply to Shoe Manufacturer for Mass Production
- Category: >>>
- Supplier: Gbos Laser Inc.
Share on (1600511802998):
Product Overview
Description
Product Description

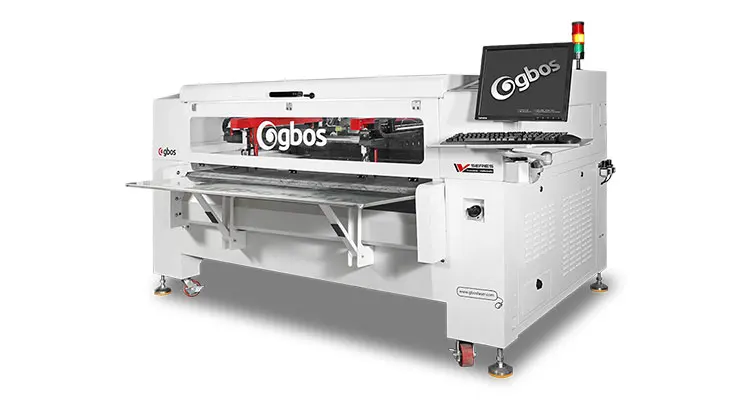

GBOS Double-head Async Marking Line & Cutting Machine
GBOS GN1080-LA is Smart vamp marking line & laser cutting machine integrated, cutting + spraying line complete at one time, save loading/unloading material time. And this model is suitable for product development.
GBOS Double-head Async Marking Line & Cutting Machine | ||||||
MODEL | V8SCCD-LA | |||||
Processing Area(mm) | 1600×480mm | |||||
Laser power(W) | ≤130W | |||||
Laser type | CO2 Laser tube | |||||
Gross Power(W) | 5500W | |||||
Aperture size(mm) | 0.2mm | |||||
Ink pressure (barg) | 0.1-0.5 | |||||
Ink Viscosity Range(CPS) | 0-3000 | |||||
Measurement(L×W×H)(mm) | 3011×2533×2280mm | |||||
System/Compatible Format | Windows XP/7/8/10, AI,PLT, DXF, CDR | |||||
Weight(KG) | 860KG | |||||
Power Supply | 380VAC/32A-40A, 50Hz/60Hz | |||||
Environmental requirements | Temperature 10-30℃, Humidityno condensation30-80% | |||||

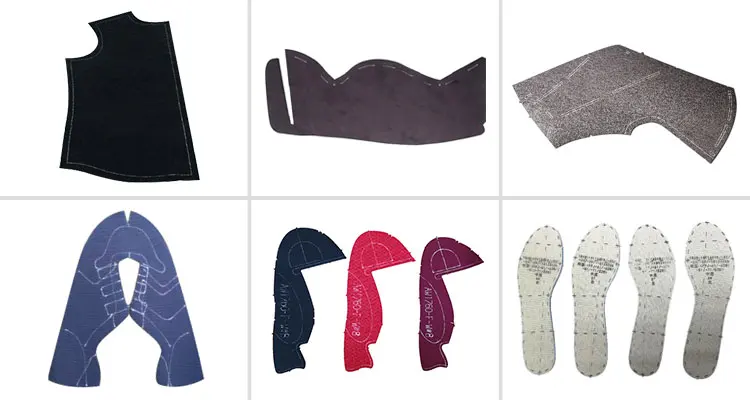

GBOS Double-head Async Marking Line & Cutting Machine applicable materials

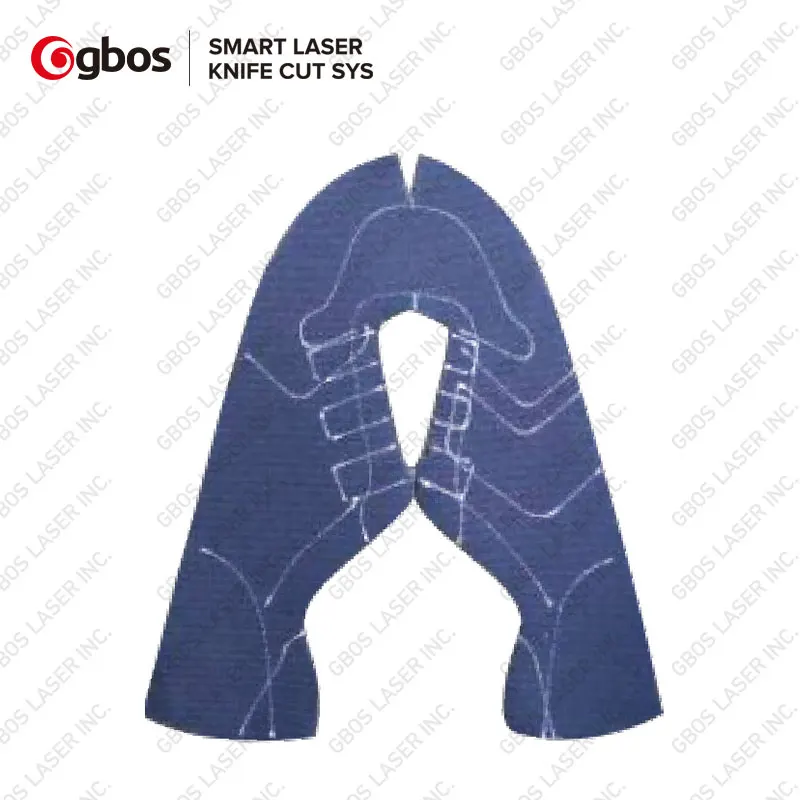

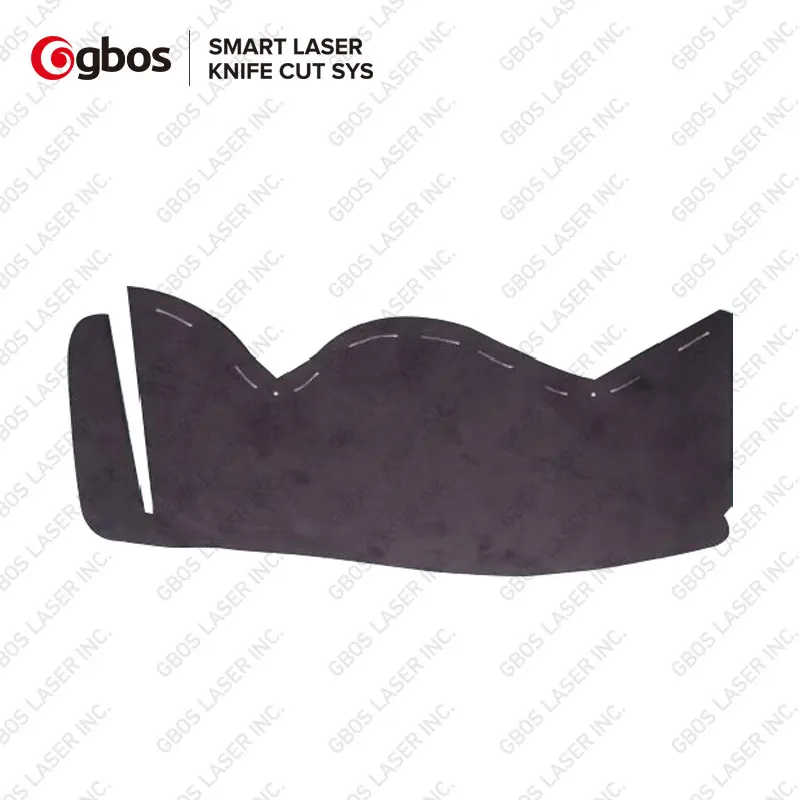

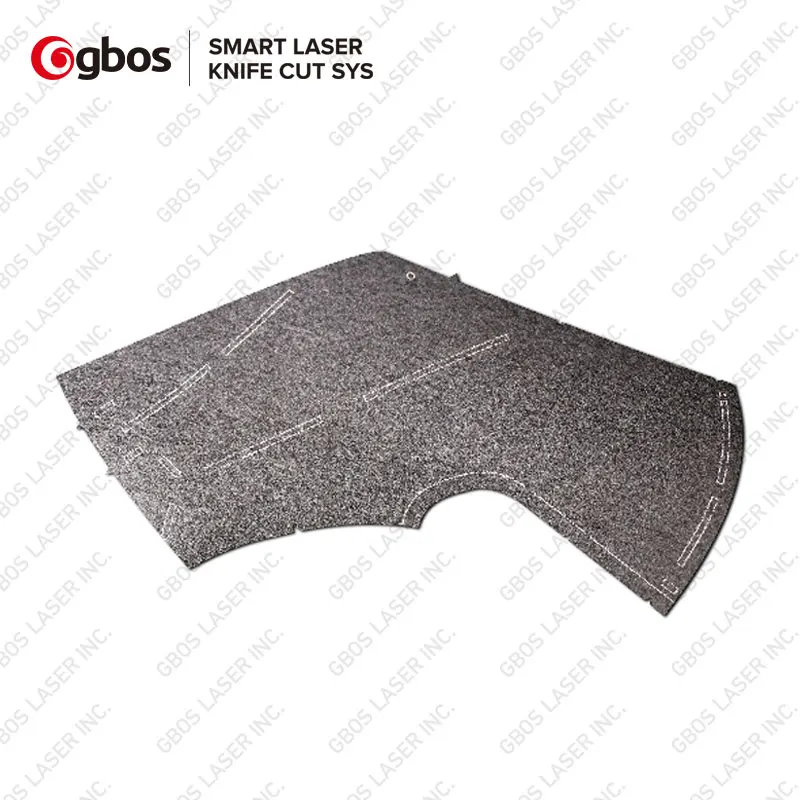

Suitable for Genuine Leather, Synthetic leather, suede, mesh, mid-sole, cloth, canvas and etc.
Product Advantage
Spraying and cutting completed by one time.
Reduce production processes (cutting+printing), higher production efficiency.

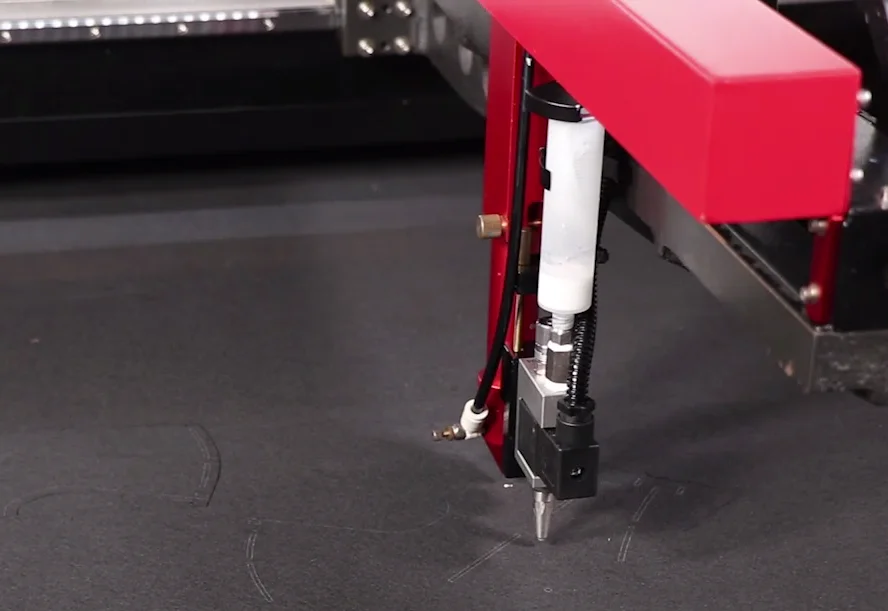

Smart dual-head async cutting system
Multi-pattern, Twin-head Async, fast Cutting.
Visual identity system
Any cut parts, no need fixed placement position.
Automatic identification line.
Casting structure
X bridge in cast metal structure,be formed united,
increasing high stability and accuracy.
Applicable to a variety of inks
No limited about ink.
Only required range of ink viscosity: 0-3000CPS
Auto-oiling system
Automatically & timely input oil to
protect important parts for gear wheel and rack.
IOT system(Optional)
Gbos Laser IOT system smartly monitor every machine by remote diagnosis, remote control, auto updating of software and online information transfer etc.
About GBOS
GBOS LASER INC. A national high-tech enterprise dedicated to provide laser intelligent solution globally.
Since it was established in 2005, GBOS Laser Brand has been devoted to the research and development, innovation, production and sales of medium and high-end laser systems. So far, it has launched more than 150 kinds of intelligent laser systems, and product lines cover laser marking, cutting, drilling, engraving and other fields. The company has passed the industry's ISO9001.2008 quality management standard and its core technology has won several national patents and software copyrights. A number of products have passed the EU CE certification.
The company's core technology, talent, and innovation have created the most comprehensive product line of laser systems in the industry. As the industry leader in intelligent laser systems, our laser systems are being used in various countries and regions worldwide, and customers range from small family-owned businesses to large highly automated enterprises. We believe that our leading laser system can help you to develop and maintain a competitive advantage.
"All GBOS people will be proud of the well-known GBOS". We make every effort to create the world's leading brand in the laser industry.
Our Service
Pre-sales
✔Free sample testing
✔Professional introduction
✔Multilingual online services
✔Warranty available and prompt delivery
After-sales
✔Free technical training and software upgrading
✔Remote control and local installation
✔Machine maintenance
Exhibition
GUANGZHOU CHINA SHOES MATERIAL MACHINARY FAIR
Located in Guangzhou
SIMAC &TANNING-TECH INTERNATIONAL EXHIBITION OF MACHINES AND TECHNOLOGIES FOR FOOTWEAR AND LEATHERGOODS AND TANNING INDU
Located in Italy
CHINA INT'L SEWING MACHINERY & ACCESSORIES SHOW
Located in Shanghai
VIETNAM SAIGON TEXTILE&GARMENT INDUSTRY FABRIC&GARMENT ACCESSORIES EXPOLocated in Vienam
FAQ
1.Is there any technical help after we receive GBOS Double-head async marking line & cutting machine?
Yes, we have perfect after-sale service team to supply technical support on our customers. Our technical can assist you to install machine and give you free training after you receive machine.
2. What's the mainly applications for Double-head async marking line & cutting machine?
Genuine Leather, Synthetic leather, suede, mesh, mid-sole, cloth, canvas and other materials.
3. What is the maximum cutting thickness of this Double-head async marking line & cutting machine ?
Please tell us your materials.We will respond you at precisely thickness.
4.If there is some problems about machine parts during warranty period, will your company repair or replace for me?
Yes, we will. Please send the main part back to our company,we will repair and send back them to you for free within warranty time. If the problem part can not be repaired well ,we will send new one to you within warranty time for free.
Any problem, please do not hesitate to contact us, we will service to you at 7*24 hours.
