KQ 4001 Particle Counter for Medical Chemical Electronic Research Institute for Clean Room
- Category: >>>
- Supplier: Liaoyang Conoval Technology Co. Ltd.
Share on (1600511814397):
Product Overview
Description
Product introduction

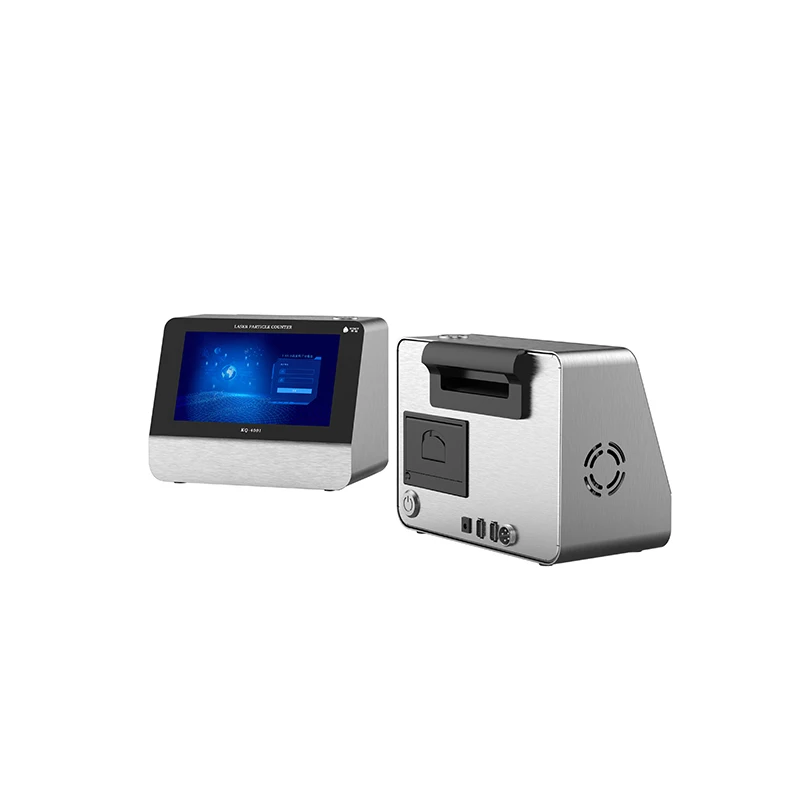

KQ-4001 small flow 2.83L desktop laser dust particle counter is a precision testing instrument applied to clean environment cleanliness detection
Mainly used for clean room cleanliness detection and measurement. The product shell is made of stainless steel and combined with professional industrial design. Internal buckle handle design. Industry initiative, Simple appearance atmosphere.

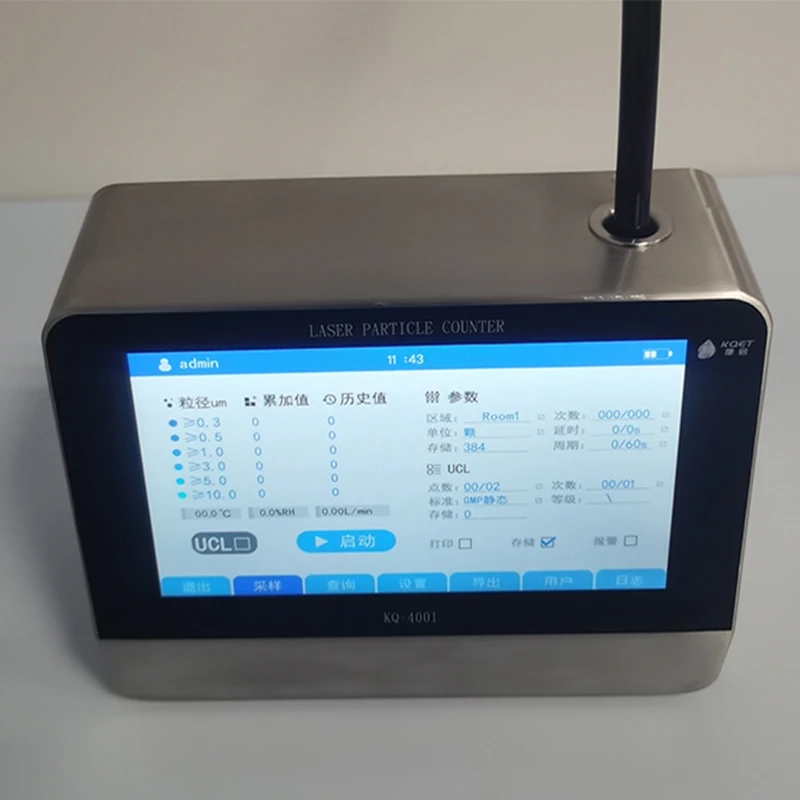

The smallest and lightest volume in China. The machine adopts 7-inch touch screen, so the detection data is intuitive and the touch operation is simple, comfortable, efficient and convenient.
Based on the principle of light scattering, the counter realizes the detection of dust particle size distribution and the counting of particle number through photoelectric sensing technology.
The instrument has been widely used in clean room testing, pharmaceutical factory, electronics factory, hospital operating room, aerospace, precision processing, food industry and other industries.
This instrument has the characteristics of good stability, high measurement accuracy and convenient installation.
Products Features
* 7-inch HD screen has higher resolution and faster response, allowing users to intuitively read cleanliness data.
* Friendly human-computer interaction, simple and direct operation, reduce user learning costs and improve user
* Friendly human-computer interaction, simple and direct operation, reduce user learning costs and improve user
experience.
* Is small in size, easy to carry, and supports desktop/handheld dual-purpose
* Real-time traffic monitoring, intelligent algorithms are used to realize real-time negative feedback self-adjustment of
traffic, and the detection results are more accurate.
* 20000 groups of large-capacity data storage, supports one-click export of U disk, and downloads data anytime and
* Is small in size, easy to carry, and supports desktop/handheld dual-purpose
* Real-time traffic monitoring, intelligent algorithms are used to realize real-time negative feedback self-adjustment of
traffic, and the detection results are more accurate.
* 20000 groups of large-capacity data storage, supports one-click export of U disk, and downloads data anytime and
anywhere.
* Support audit tracking, log management, three-level authority management, queryable, traceable, and controllable
* Long-life laser source with service life greater than 30000 hours (calibration required annually)
* Large-capacity quality lithium battery, longer endurance, AC and DC dual-purpose
* Scalable, with analog access hardware interface, external temperature and humidity sensor/wind speed
* Support audit tracking, log management, three-level authority management, queryable, traceable, and controllable
* Long-life laser source with service life greater than 30000 hours (calibration required annually)
* Large-capacity quality lithium battery, longer endurance, AC and DC dual-purpose
* Scalable, with analog access hardware interface, external temperature and humidity sensor/wind speed
sensor/differential pressure sensor, etc. (optional)
Technical Parameter
Particle Size Channel | 0.3μm,0.5μm,1.0μm,3.0μm,5.0μm,10.0μm |
Sampling Traffic | 2.83L/min(0.1CFM)±5% |
Particle Size Distribution Error | ≤ 30% |
Concentration Indication Error | 0.5μm≤±30%FS |
Repetition Error | ± 10% F.S |
Self-cleaning Time | ≤ 10min |
Sampling Period | 1~9999s Adjustable |
Sampling Delay | 0 ~ 999s Adjustable |
Number of Samples | 1 to 50 Times Adjustable |
Number of Sample Points | 2 to 9 O'clock Adjustable |
Laser Light Source | Long-life Semiconductor Laser Diode |
Vacuum | Built-in Micro Vacuum Pump |
Screen Display | 7-inch IPS Touch Screen |
Printing Method | Embedded Thermal Printing |
Operating Voltage | DC12V/1A |
Battery Life | ≥ 4 Hours |
Charger | DC12.6V 2A |
Charging Time | 2.5 Hours |
Data Storage | Article 20000 |
Data Export | Export USB Flash Drive and Export USB Communication |
Audit Trail | Support audit tracking, log management, and three-level permission management. |
It is searchable, traceable, and controllable | |
Temperature and Humidity Detection | 0~50 ℃ 0 ~ 100% RH (optional function) |
Calibration Specification | JJF1190-2008,GB/T6167-2007 |
Criteria | CGMP Static, GMP Dynamic, ISO14644-1 |
Housing | 304 stainless steel |
Size | Width 20 * Depth 11 * Height 17cm |
Weight | 2.2Kg |
Working environment | Temperature 0~40°C Humidity 10% ~ 90% Without condensation |
Storage environment | Temperature -10~50°C Humidity 0 ~ 90% Without condensation |
