MID 1P2W multi functional electric monitor RS485 63A din rail energy meter
- Category: >>>
- Supplier: Jiangsu Sfere Electric Co. Ltd.
Share on (1600511823613):
Product Overview
Description
Product Description
Product Name: MID 1P2W multi functional electric monitor RS485 63A din rail energy meter

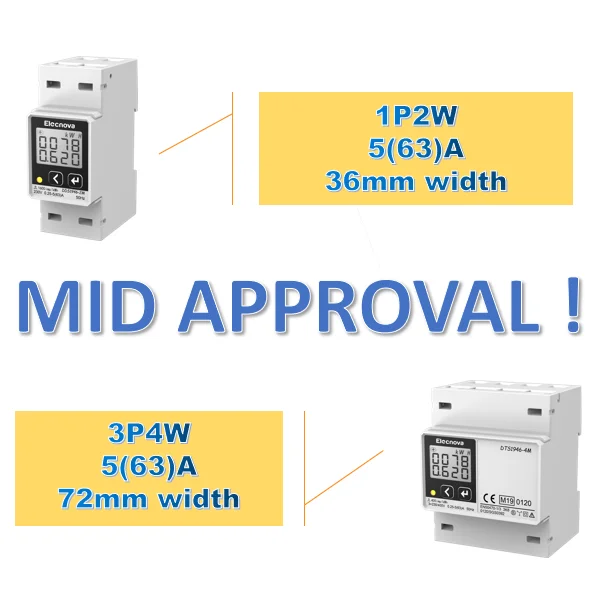

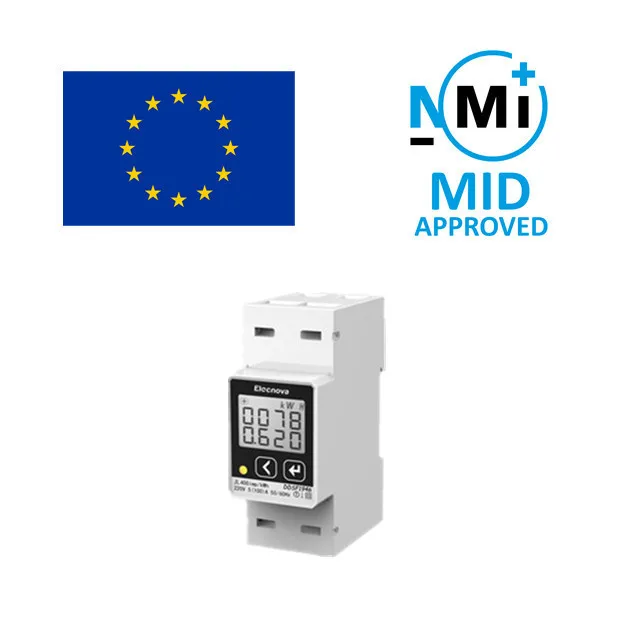

Elecnova din rail mounted energy meter DDS1946-2M single phase meter is a digital energy meter complies with the MID certification Class B (2014/32/EU). With the 32mm width (2DIN module) compact design, it’s right perfect for the fiscal metering for the home use wall mounted EV charger. The DDS1946-2M is equipped with a LCD display for parameter checking, the DDS1946-2M also has the standard Modbus-RTU communication protocol, the measuring data could be integrated with the display of the EV charger by RS485 interface.

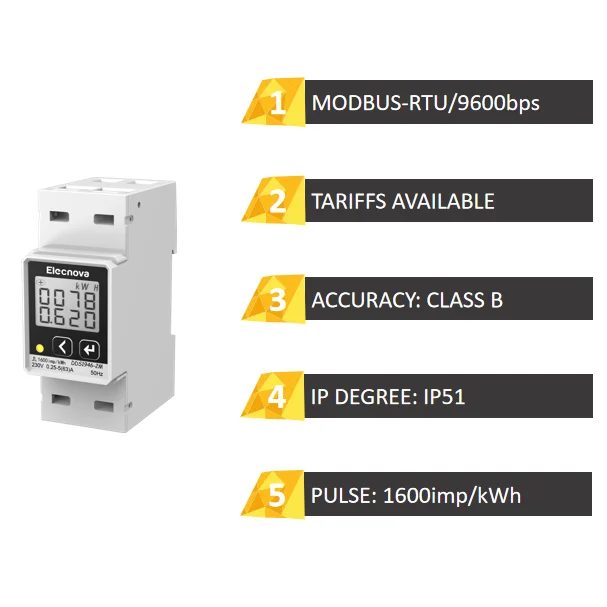

Advantage
Technical Parameter
DDS1946-1P DDSF1946-1P | DDS1946-2P DDSF1946-2P | DDS1946 DDSF1946 | DSS1946 DSSF1946 | DTS1946 DTSF1946 | |||||||
Normal Voltage | 230V | 230V | 230V | 3*400V | 3*230/400V | ||||||
Direct input | 5(40)A | 5(100)A | 5(100)A | 5(100)A | 5(100)A | ||||||
Via CT input | - | - | 1.5(6)A | 1.5(6)A | 1.5(6)A | ||||||
Accuracy | Class 1(Optional:Class 0.5S) | ||||||||||
Frequency | 45Hz~65Hz | ||||||||||
Voltage Range | 0.8Un~1.2Un | ||||||||||
Direct input | 0.004Ib | ||||||||||
Via CT input | 0.002In | ||||||||||
Consumption | <2VA | ||||||||||
Energy Pulse | 1 output, pulse width (80±20%) ms | ||||||||||
RTC Error | ≤0.5s/day | ||||||||||
Communication | RS485, Modbus-RTU, 2-wire, up to 9600bps | ||||||||||
IP Degree | Front: IP51 | ||||||||||
Operating Temperature | -10℃ ~ 55℃ | ||||||||||
Storage Temperature | -25℃ ~ 70℃ | ||||||||||
Relative Humidity | ≤93% | ||||||||||
Certificate | CE ISO9001,MID | ||||||||||
Application
Related Products
Company Profile
FAQ
Q: Are you trading company or manufacturer ?
A: We are factory located in Jiangyin Jiangsu Province.
Q: Does your company provide customized manufacturing?
A: We provide OEM/ODM service to our customers. Our experienced R&D team will give our customer solution in a high efficiency way.
Q: How long is your delivery time?
A: 3-5 working days for the items were in stock, 15-21days for the items out of stock.
Q: Do you provide samples ? is it free or extra ?
A: You need to pay for the sample and cover the freight as well.
Q: What is your terms of payment ?
A: Order amount less than $3000, 100% paid before shipment, order amount more than $3000,30% as deposit, 70% before shipment, or by negotiated for the both parties.
