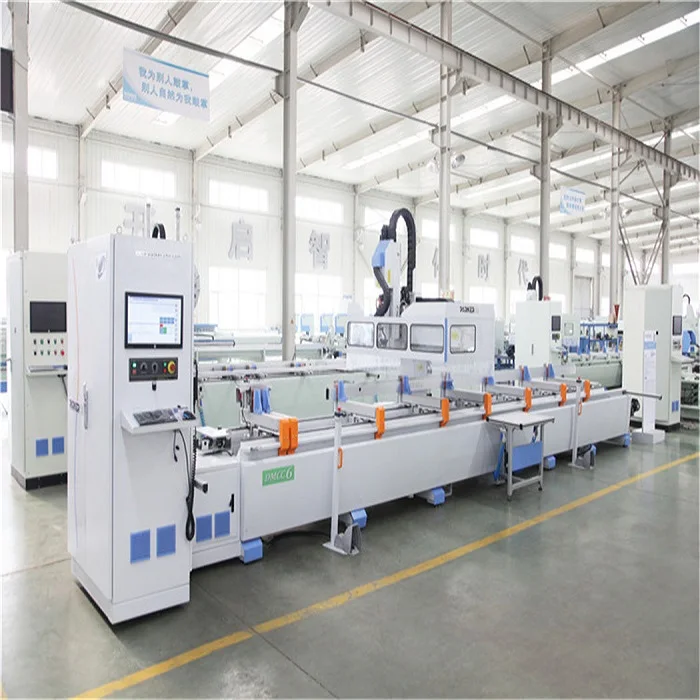

Aluminum CNC Machining center 4 axis drill mill machine
- Category: >>>
- Supplier: Jinan Parker Machinery Co. Ltd.
Share on (1600511828240):
Product Overview
Description
Product Description
Product Application
The machine is suitable for processing installation holes, water slot, shaped holes, and end milling and making screw on curtain walls and aluminum windows and doors.
SPECIFICATIONS FOR Four Axis CNC Machining Center | ||||||
Stroke | Stroke for X axis | mm | 7600 | |||
Stroke for Y axis | mm | 960 | ||||
Stroke for Z axis | mm | 610 | ||||
Main shaft rotary range | - | - 90º ~ 0º ~ + 90º | ||||
Max cutter length | mm | 165 | ||||
Number of clamping device | - | 6~8 | ||||
Six of machine | Power supply | - | 380V 50Hz | |||
power | kw | 10 | ||||
Air pressure | Mpa | 0.5~0.8 | ||||
Main Features
1. It adopts high-speed electric principal axis, which is imported from Italy. It is extremely efficient and can swing in±90°
2.It adopts high-quality computer control system which is used in industry area specially, with good user interface, graphical programming and processing tracking interface, truly realize what you see and what you get.

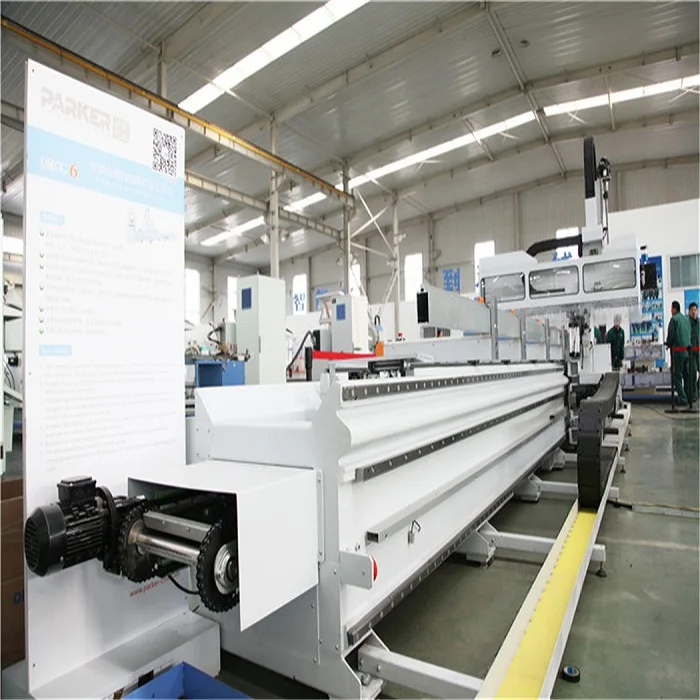

3. It adopts high-quality servo motor, ball screw, linear guide pair and bearings and so on to ensure the machine runs with high precision.
4. Equipped Six cutters positions, the cutter can change quickly and automatically .
5. The semi-closed guard improved security greatly.
6. Clamping device position can be optimized and put to right position automatically and freely.
Certifications
Our Service
Pre-Sales Service
* Inquiry and consulting support.
* Sample testing support.
* View our Factory.
After-Sales Service
* Training how to instal the machine, training how to use the machine.
* Engineers available to service machinery overseas.
Packing & Delivery
Packaging | ||
Size | 10100mm (L) * 2300mm (W) * 2600mm(D) | |
Weight | 5T | |
Packaging Details | The normal package is wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request. | |
