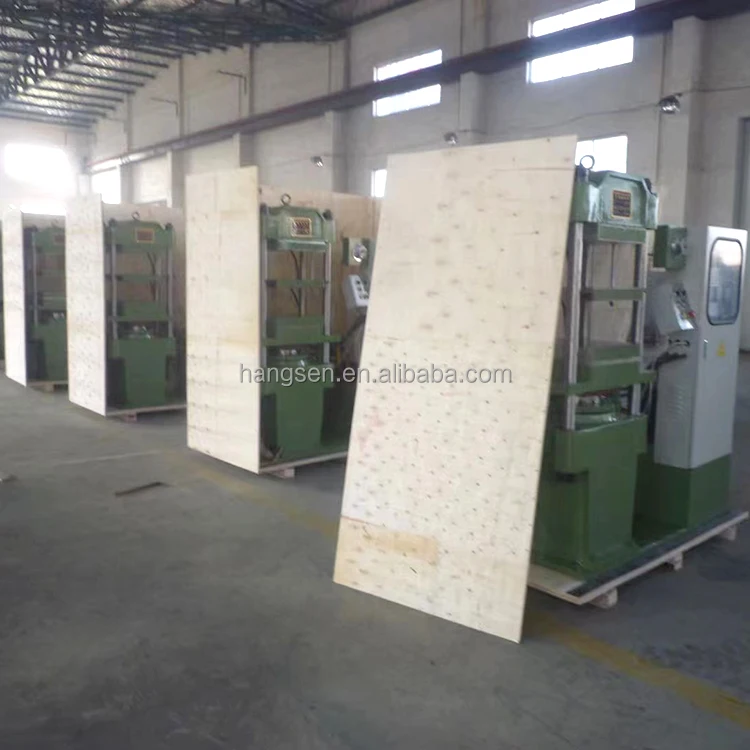

Rubber Sole Vulcanizing Machine, Rubber Sole Making Machine
- Category: >>>
- Supplier: Qingdao Hangsen Industry And Trade Co. Ltd.
Share on (1600511833371):
Product Overview
Description

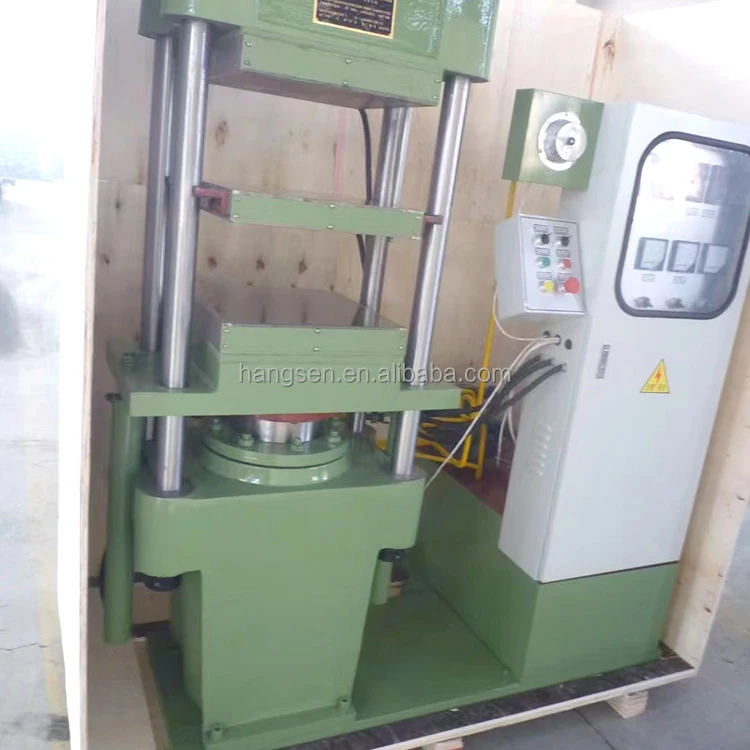

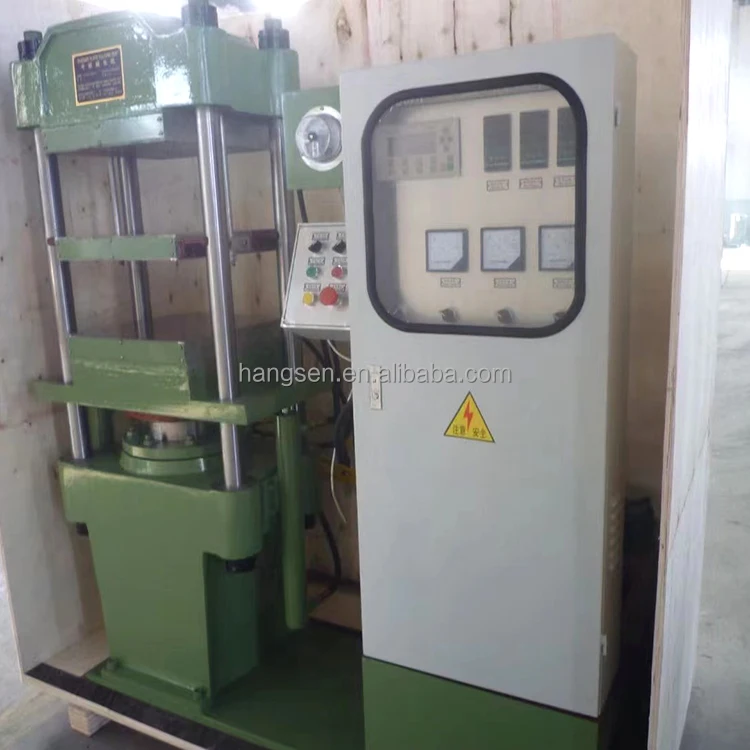

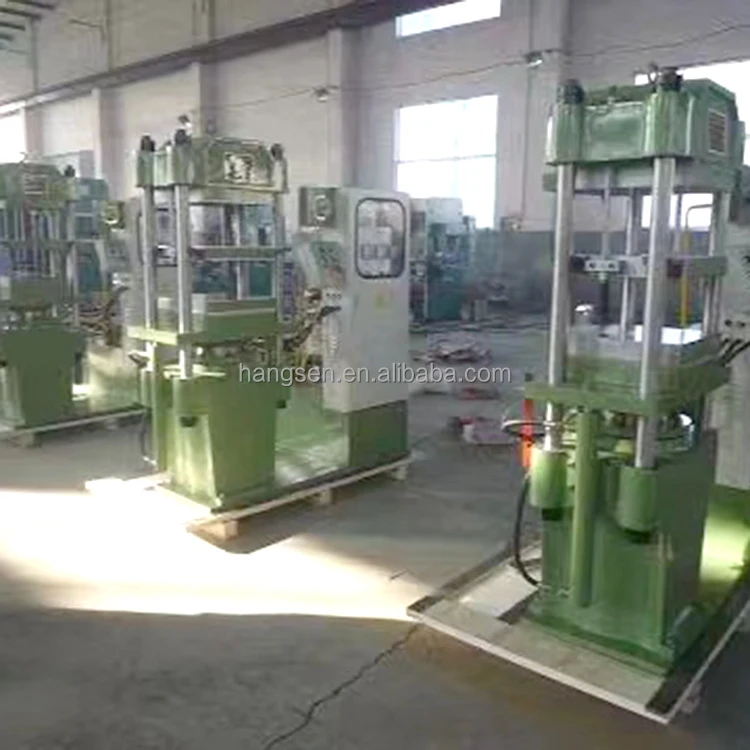

Rubber Sole Making Machine Rubber Vulcanizing Press Machine: 63T
1. Pressure : 63T
2. Plate size: 400*400mm
3. Working Layer: 2 working layers
4. Structure: column type
5. Daylight gap：250mm
6. Piston stroke: 400mm
7. Control mode: Siemens PLC automatic opening and closing.
Accept customized requirements and offer free technical support.
Type | XLB240×240×2 | XLB350×350×2 | XLB400×400×2 | XLB500×500×2 | XLB600×600×2/4 | XLB700×700×2 | XLB750×850×2/4 | XLB900×900×2Q |
Total pressure (MN) | 0.15 | 0.25 | 0.5 | 0.63 | 1.00 | 1.20 | 1.60 | 2.00 |
Plate distance(mm) | 125 | 125 | 125 | 125 | 125 | 125 | 200 | 300 |
Working layer number | 2 | 2 | 2 | 2 | 2-4 | 2 | 2-4 | 2 |
Unit area pressure of hot plate（Mpa） | 2.60 | 2.04 | 3.13 | 2.52 | 2.77 | 2.45 | 2.51 | 2.47 |
Plunger stroke(mm) | 250 | 250 | 250 | 250 | 250/400 | 250 | 400 | 400 |
Heating mode | electricity | electricity | electricity/steam | electricity/steam | electricity/steam | steam | electricity/steam | steam |
Main motor power (KW) | 2.2 | 2.2 | 2.2 | 2.2 | 2.2 | 2.2 | 3 | 5.5 |
Overall dimension (L×W×H) (mm) | 1200×350×1300 | 1400×480×1380 | 1600×500×1480 | 1750×600×1540 | 1880×720×1680 | 2000×850×1750 | 2250×1200×2200 | 1400×900×2400 |
Frame form | Post | Post | Post | Post | Post | Post | Frame | Frame |
