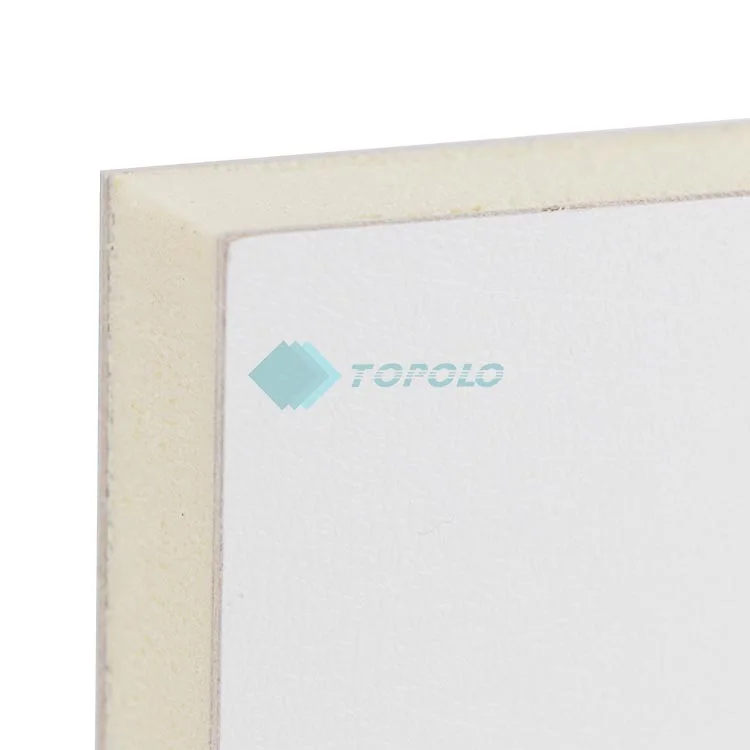

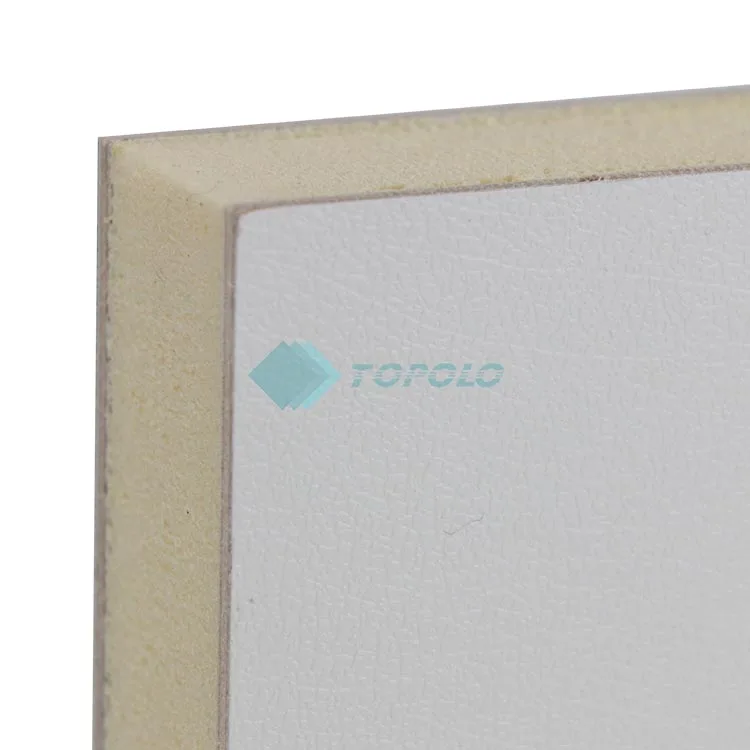

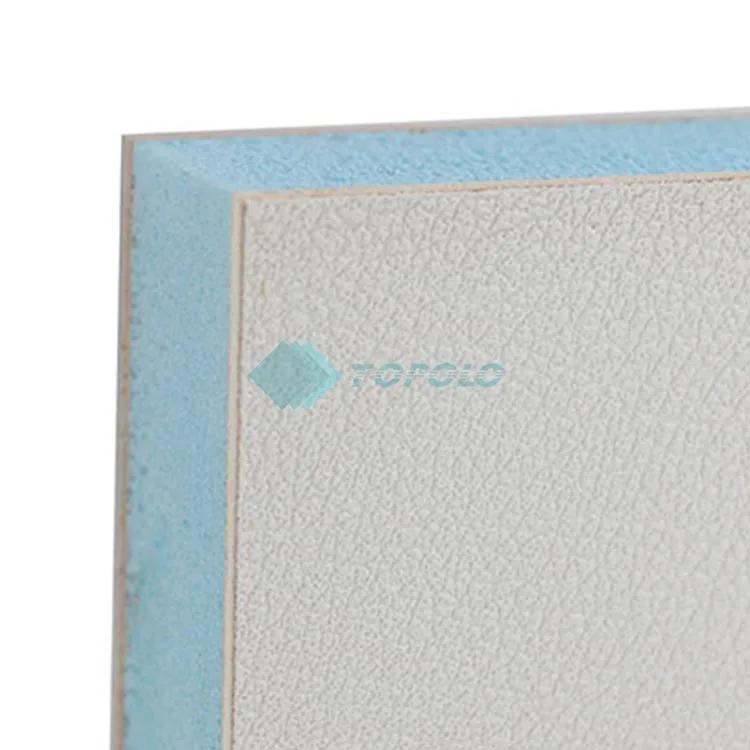

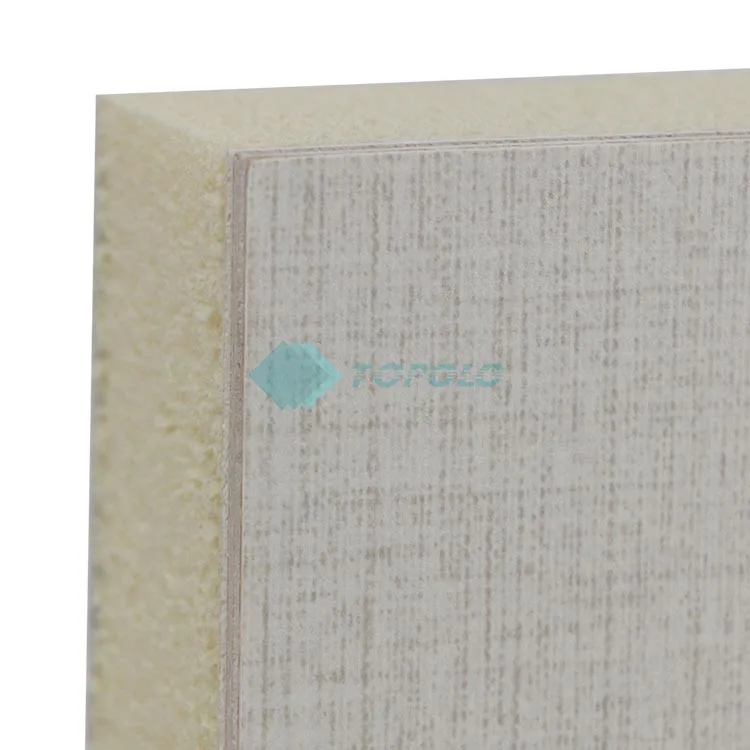

CFRT Skin XPS Foam Panel Extruded Polystyrene Foam Sandwich Panel For Cold Room / RV /Truck Body
- Category: >>>
- Supplier: Shanghai Topolo New Materials Co. Ltd.
Share on (1600511836067):
Product Overview
Description
XPS foam sandwich panels are formed by bonding extruded polystyrene foam to skins of different materials. There are many options for skin materials (fiberglass, aluminum, wood, steel, etc.). It has thermal insulation, is light and strong, waterproof and moisture-proof, environmental protection, and many other characteristics.

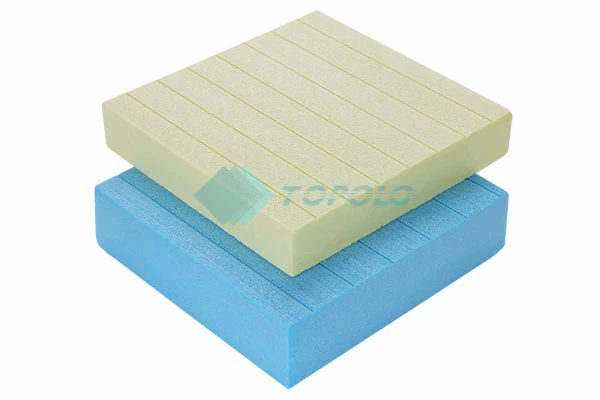

XPS Foam Board
XPS foam board is a material that is continuously extruded. Its surface is uniform and flat, and the interior is a completely closed cell, so it has the characteristics of high-pressure resistance, lightweight, non-absorbent, airtight, wear-resistant, and non-degradable.

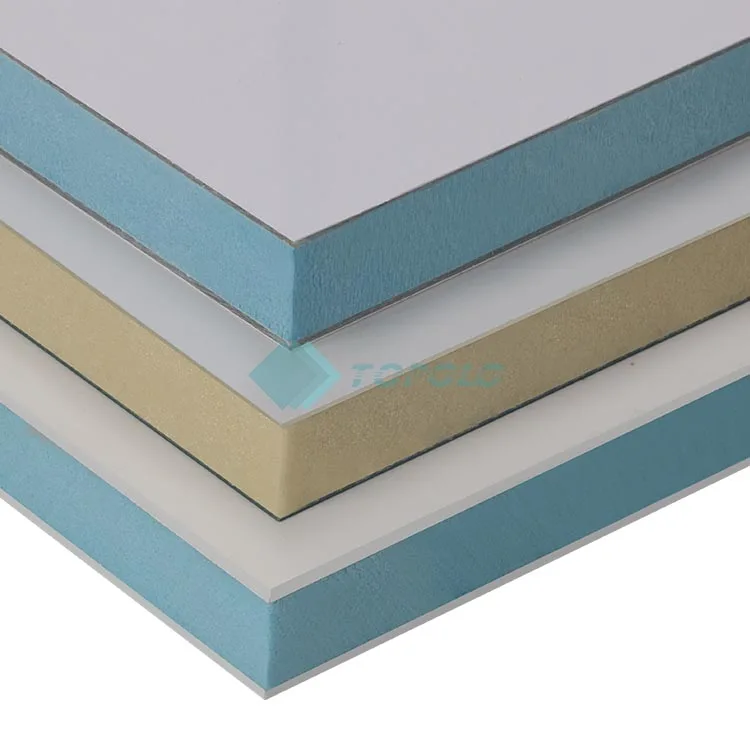

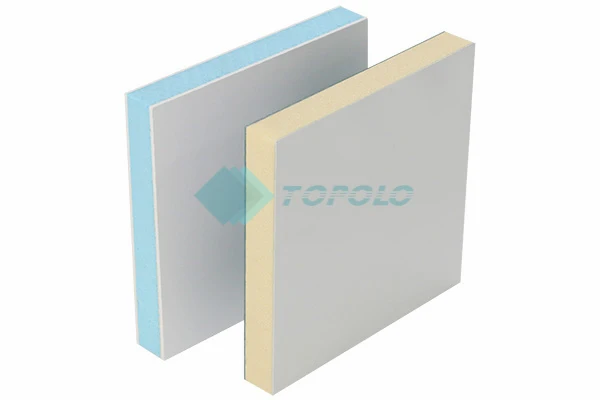

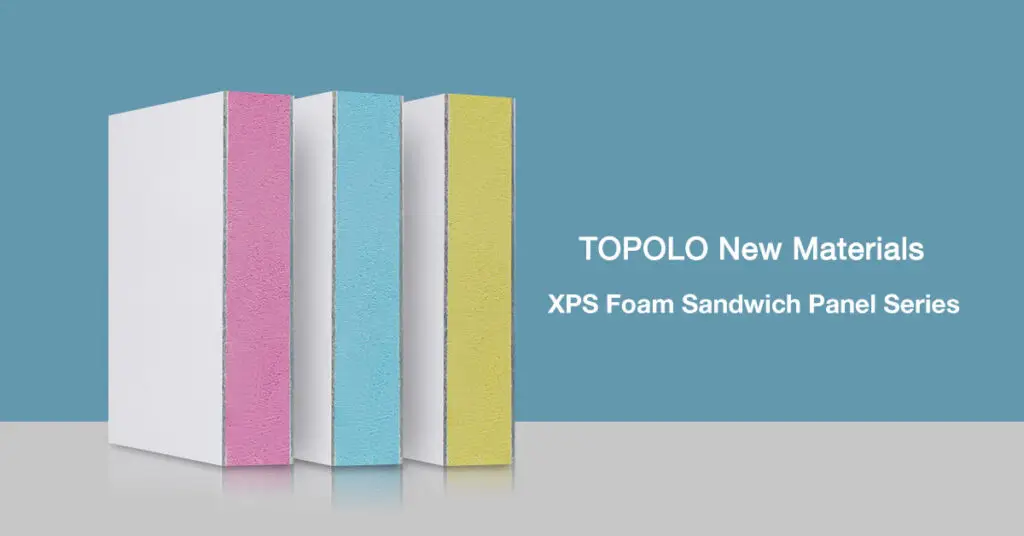

XPS Sandwich Panels are Available in Different Foam and Skin at TOPOLO
FRP sheet + XPS foam
Aluminum Sheet + XPS foam
Wood Board + XPS foam
Specification
Type | XPS Foam Sandwich Panels |
Width | Max 3.2m |
Thickness | Skin: 0.7mm~3mm Core: 25mm~120mm |
Length | Custom-made |
Core Density | 35kg/m3~45kg/m3 |
Skin | FRP/GRP Sheet, CFRT Sheet, Aluminum sheet, Wooden Board |
Color | White, black, green, yellow, or customized. |
Application | RVs, trailers, vans, refrigerated trucks, campers, Caravans, motorboats, mobile homes, clean rooms, cold rooms, etc. |
Custom-Made | Embedded Tube/Plate, CNC service |
Fiberglass XPS Foam Sandwich Panel Brief

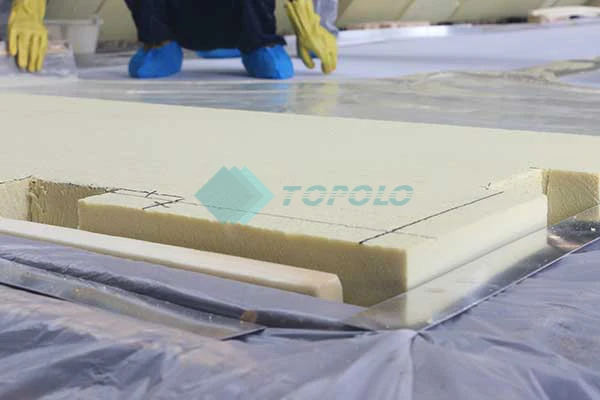

The fiberglass XPS foam sandwich panel is a thermoplastic composite panel containing a thermoplastic resin and glass fiber. The outer skin is made of fiberglass sheets, and the core material is a closed-cell extruded polystyrene foam board, which is bonded to the skin by vacuum compression using a special adhesive.

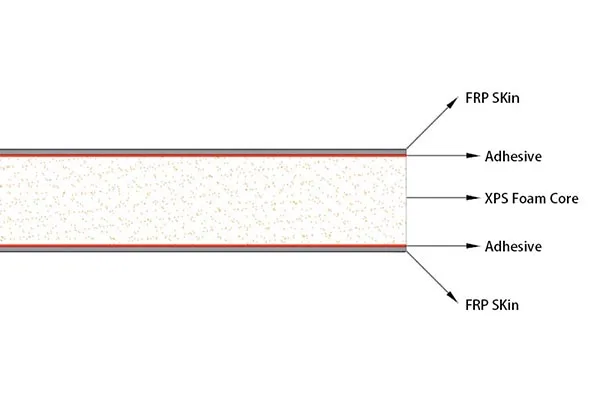

The basic structure of the XPS foam sandwich panel
The fiberglass skin is available in ordinary FRP sheets (short fiber) and CFRT sheets (continuous fiber), the surface of the glass fiber sheet is coated with a gel coat made of food-grade resin, and the gel coat makes the panel surface more smooth, and easy to clean. The inner core material uses extruded polystyrene foam with a closed cell rate of 99%, its compressive strength reaches 150-500KPA, and there are multiple colors to choose from. The extruded polystyrene also performs well under a temperature as low as -50℃.
Why Choose Fiberglass Composited with XPS Foam?
As a new type of reinforcement material, glass fiber has incomparable advantages over metal and wood, and it replaces these traditional materials in more and more fields.
Lighter: Fiberglass is lighter compared to metal materials.
Stronger: Fiberglass is much stronger than wood.
Moisture-proof: Fiberglass doesn’t rot as quickly as wood does in wet weather, or rust like steel.
Insulation: Fiberglass is a good insulating material.
Stronger: Fiberglass is much stronger than wood.
Moisture-proof: Fiberglass doesn’t rot as quickly as wood does in wet weather, or rust like steel.
Insulation: Fiberglass is a good insulating material.
The Application of Fiberglass XPS Foam Panels
XPS sandwich panels are widely used in automobiles, buildings, decoration, industrial production and other fields.
* RVs
XPS sandwich panels are the most popular RV body panels. Such as caravans, travel trailers, campers, mobile villas, etc.
* Refrigerated container
Suitable for storing and transporting medicines, fresh meat, vegetables, and fruits, it is one of the most important materials for refrigerated truck bodies and cold rooms.
* Building Insulation panels
XPS sandwich panels are used extensively in buildings that require thermal insulation.
* Interior decoration
It is widely used in interior decoration, ceiling, sound insulation walls, and sandwich door filling material, and has the effects of heat insulation, sound insulation, moisture retention, weight reduction, etc.
Choose TOPOLO Fiberglass Sandwich Panels

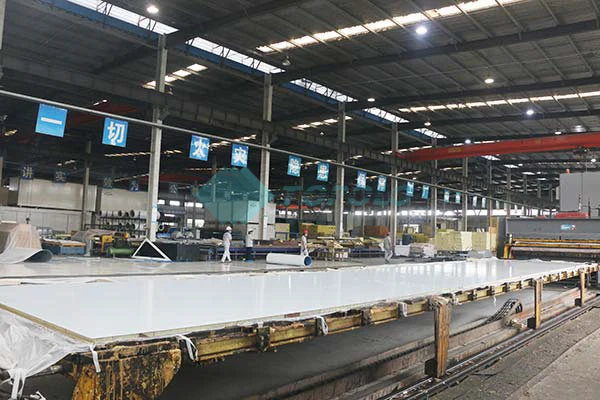

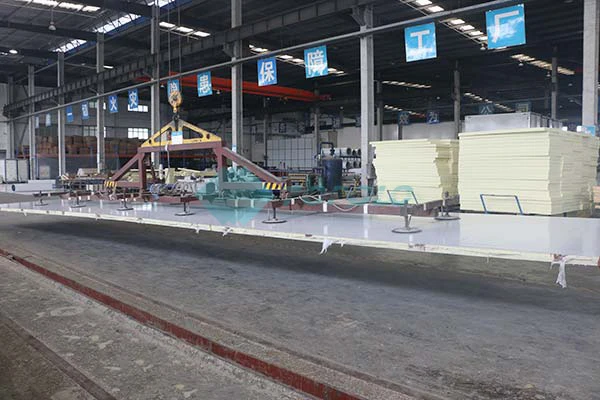

TOPOLO fiberglass sandwich panels factory covers an area of tens of thousands of square meters, with a daily production area of more than 10,000 square meters. Our FRP panels are very popular in the international market, and currently sell well in Europe, South America, North America, Middle East, Central Asia, Southeast Asia, Africa and other markets.
Professional International Sales Team
Professional international sales team – English, French, Russian, Spanish, Portuguese, etc., make our communication unimpeded, from pre-sales product consultation to after-sales logistics services, to provide you with professional solutions.
