Q32 Tumble belt crawler type RFQ shot blasting machine cleaning for small size workpiece
- Category: >>>
- Supplier: Qingdao Binhai Jincheng Foundry Machinery Co. Ltd.
Share on (1600511843127):
Product Overview
Description
Technical Parameters
Q32 Tumble Belt Shot Blasting Machine
This type machine suit for surface cleaning or peening mang kinds part with large and medium volume production, The casting or heat treatment workpiece must be can impact and roll. Machine can work along or work together in a line.
Item | unit | QR3210ZS | |||
1. Max. weight of single piece | kg | 30 | |||
2. Max. loading weight | kg | 600 | |||
3.productivity(gray casting) | kg/h | 1500~2500 | |||
4. belt | |||||
4.1 diameter of end disk | mm | φ1000 | |||
4.2 rotating speed of end disk | r/min | 3.5 | |||
5. abrasive impeller | |||||
5.1 type | Q037 | ||||
5.2 quantity | 1 | ||||
5.3 diameter of impeller | mm | Φ360 | |||
5.4 rotating speed | 2500 | ||||
5.5 abrasive flow rate | kg/min | 250 | |||
5.6 power | kW | 15 | |||
5.7 type of motor | Y160L-4 | ||||
6. belt transmission mechanism | |||||
6.1 transmission speed | m/s | 0.1 | |||
6.2 power of motor | kW | 2.2 | |||
7. elevator | |||||
7.1 lifting capacity | t/h | 16 | |||
7.2 power | KW | 2.2 | |||
8. separator | |||||
8.1 separate capacity | 16 | ||||
8.2 air consumption need | 1000m3 | ||||
9. screw conveyor | |||||
9.1 diameter of screw | mm | φ150 | |||
9.2 conveying capacity | T/h | >15 | |||
10. hanging door | |||||
10.1 walking speed | mm/s | 180 | |||
10.2 motor power | by cylinder | ||||
11. filling machine | |||||
11.1 Max. loading capacity | kg | 600 | |||
11.2 motor power | kW | 3 | |||
12. ventilation capacity of dust remover | m³/h | 3500 | |||
13. power of air blower | kW | 7.5 | |||
14. total power | kW | 26.45 | |||

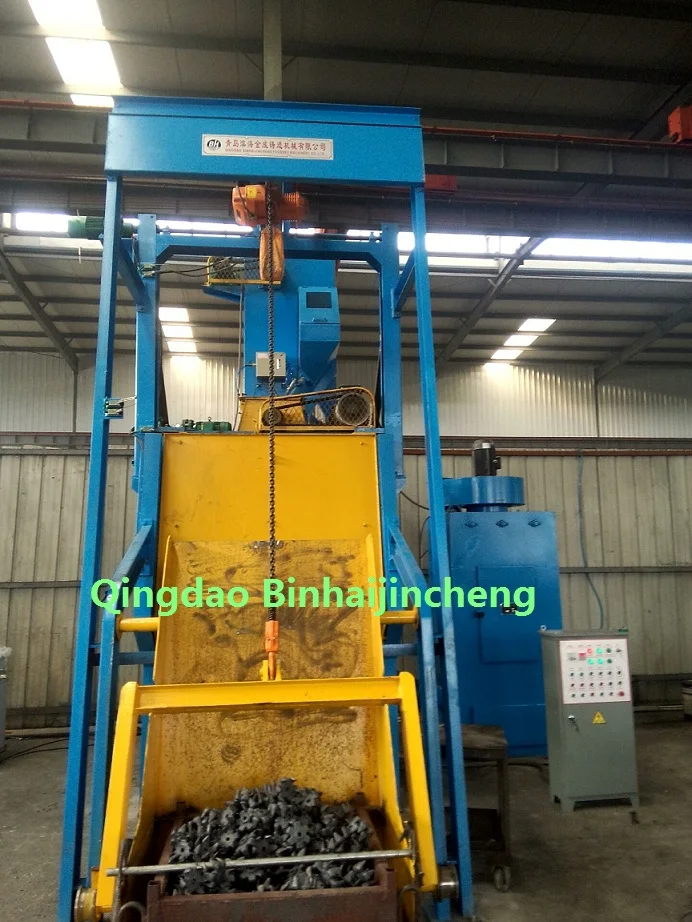

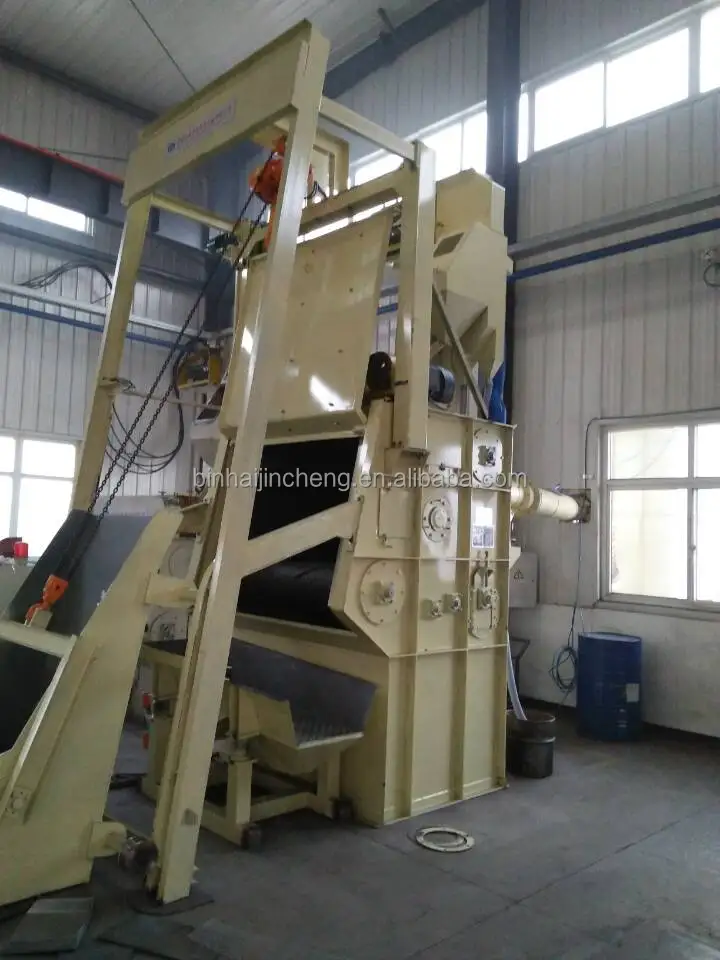

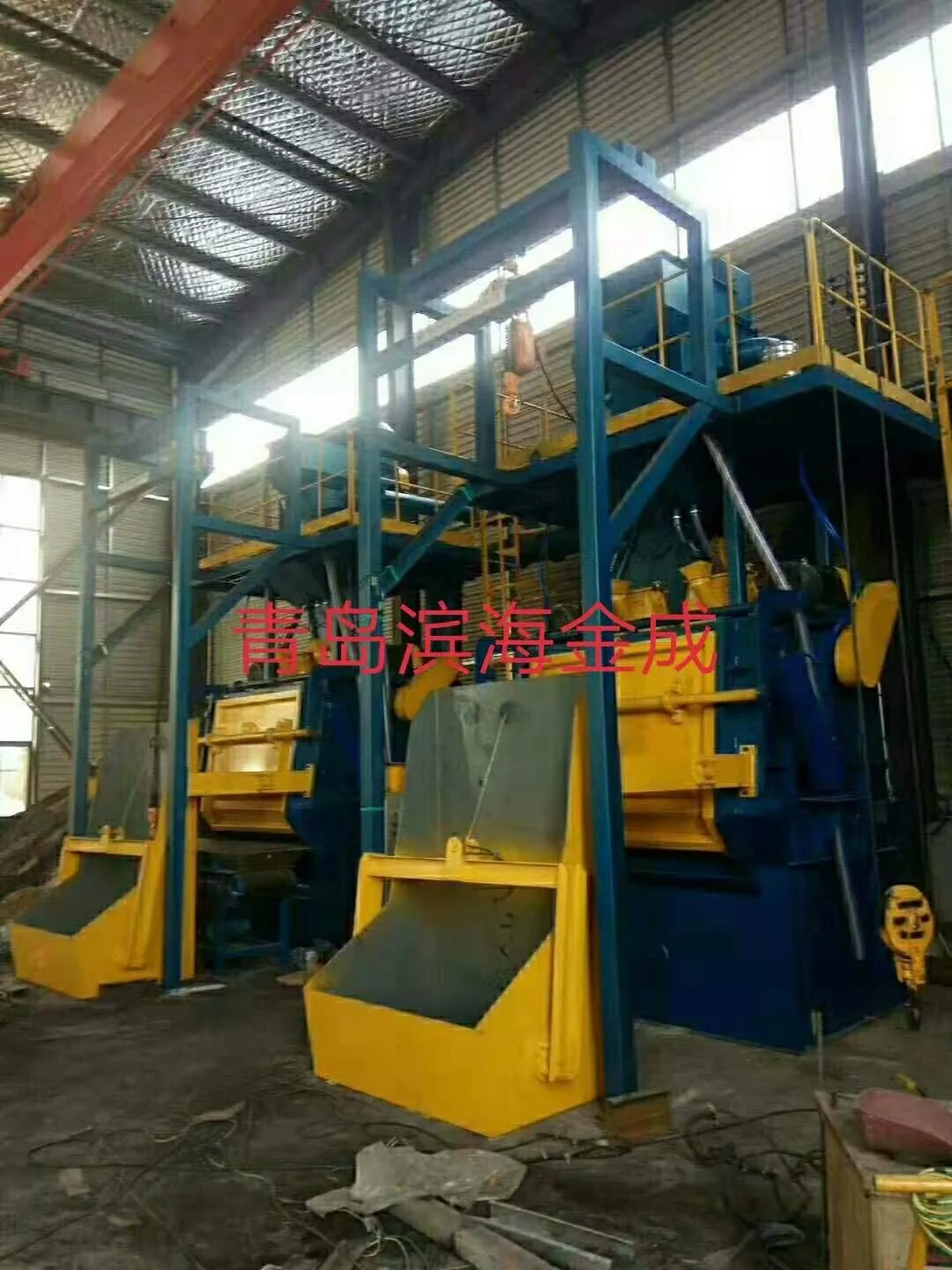

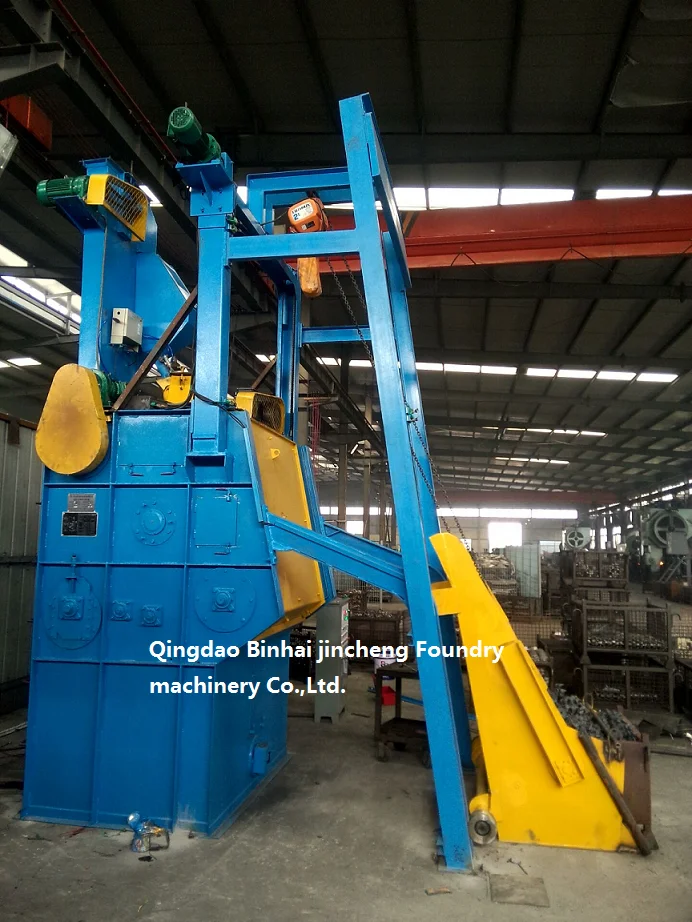

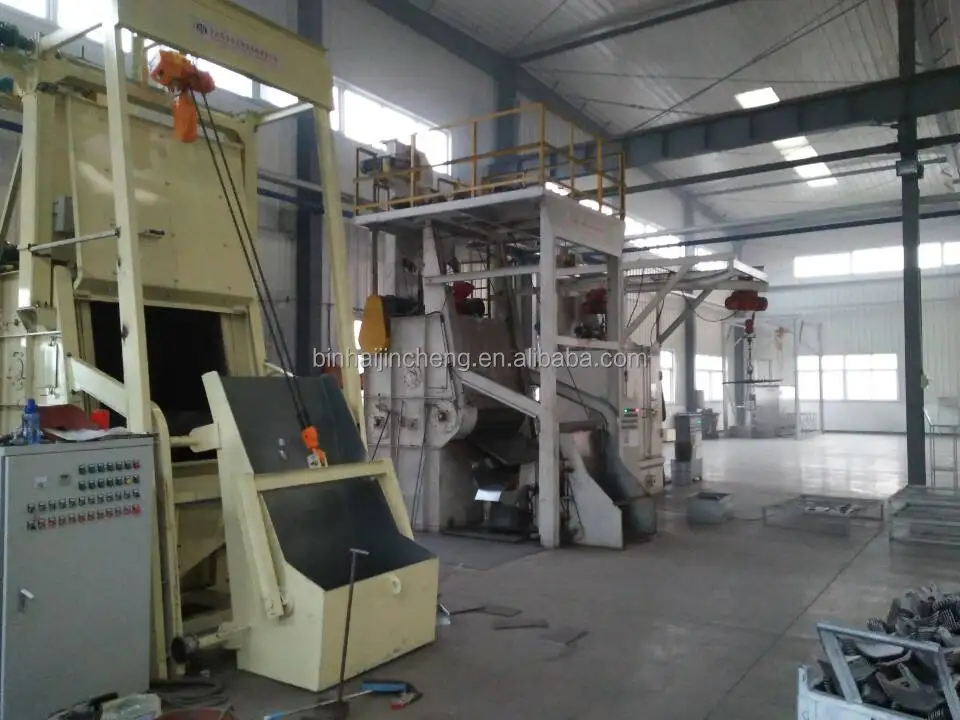

Product Show
Our service:
1.Machine guarantee one year except damage by human wrong operation caused.
2.supplier offer installation drawing, operation manual, certification ,packing list…
3.engineer can go to your factory to guiding installation and train your stuff.
4.supply technical assistance and friendly help forever
5.one-stop solution
6.24/7hours on line
7.spare parts always supply in time
8.factory door always open and welcome your visit
9.free and fast solution design
2.supplier offer installation drawing, operation manual, certification ,packing list…
3.engineer can go to your factory to guiding installation and train your stuff.
4.supply technical assistance and friendly help forever
5.one-stop solution
6.24/7hours on line
7.spare parts always supply in time
8.factory door always open and welcome your visit
9.free and fast solution design

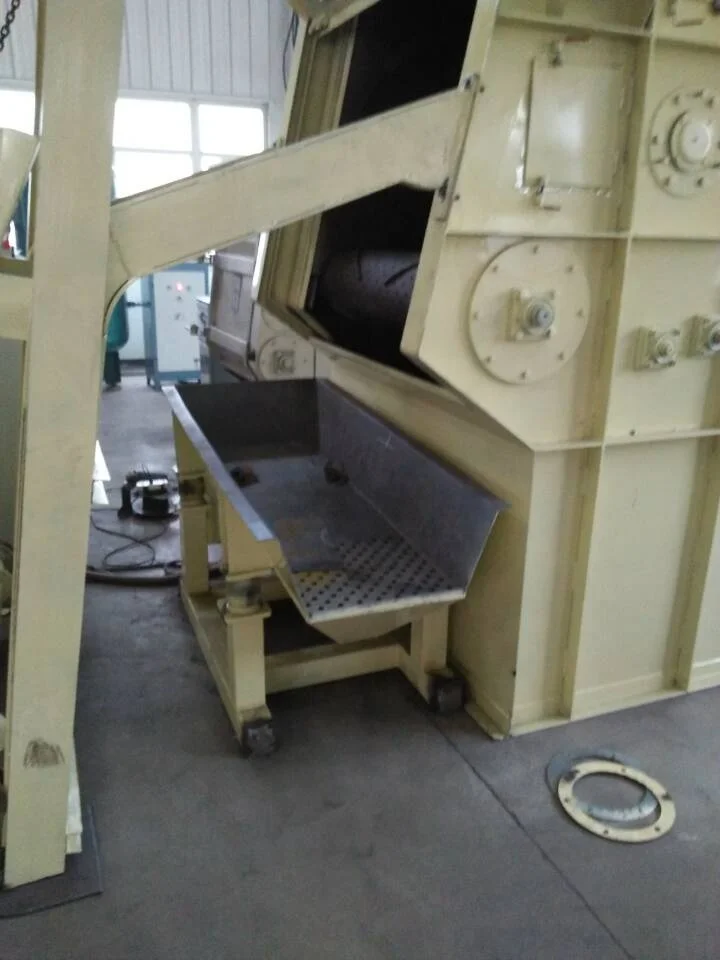

Products Details
1.more thicker guard board,high wear resisting cast iron
2.with frame more stronger
3.thicker track, high content gum
4.uniform speed
5.small machine vibration
6.longer life time
6.longer life time

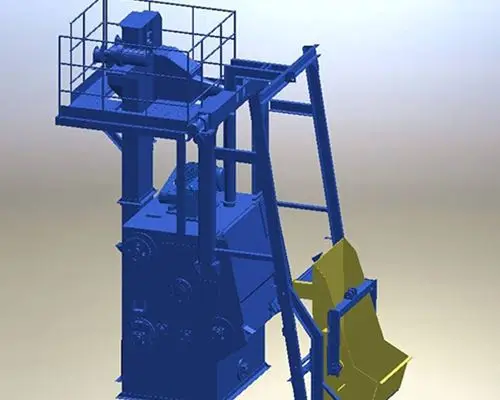

Machine Character
Belt connection centrifugal type blast wheel, more stable and uniform speed. High impeller rotate speed 3000r/min.

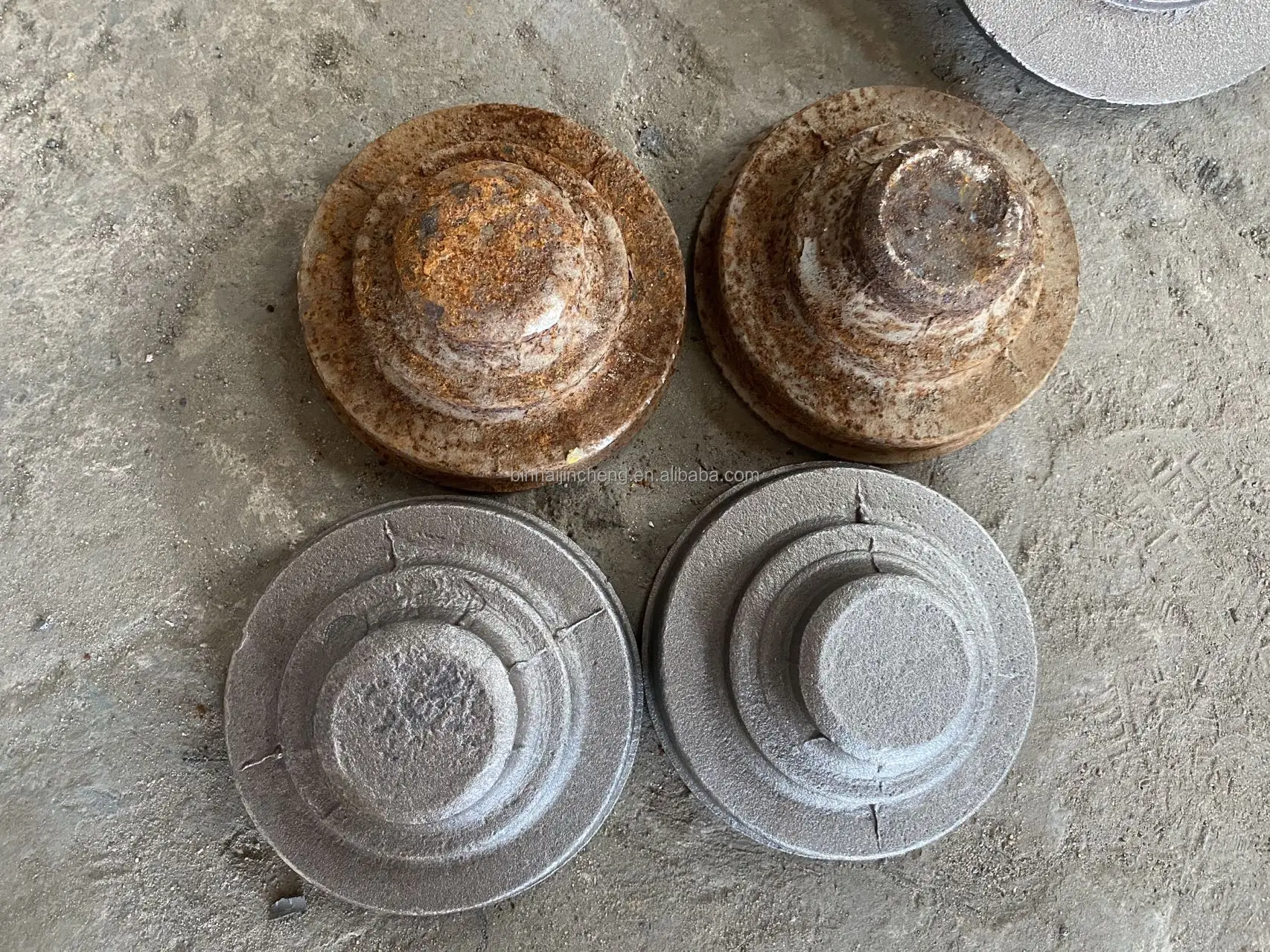

Cleaning Efficiency：
Recommend Products
Why Choose Us
Our Advantages:
Our Partners:
Company Profile
QINGDAO BINHAI JINCHENG FOUNDRY MACHINERY Co., Ltd.
Qingdao Binhai Jincheng Foundry Machinery Co., Ltd. Is the leading company of surface cleaning. professional machine manufacturer of shot blasting machine, sand reclamation line, V method production line, dust collector, core shooting machine and molding machine over 30 years, specialized in research, development, production, sale and service, always keep leading.
In quality control, our company always regarded the quality as life, got ISO9001,CE,SGS certificates, and 10 people QC team to keep sure every machine is qualified.
11 professional engineer team, the strong R&D team, always keep new design and got many national patent. All your requirement can be realized in Binhai, and ensure supply the best solution and technical support for you in first time.
Binhai machine are popular in many countries, they are selling well in all cities and provinces around China, also exported to USA, Australia, Iraq, Vietnam, Indonesia, Guatemala, Russia, Thailand, South Korea, Sri Lanka, Argentina, Chile, Brazil, and so on. also accept OEM and ODM.
Choose Binhai Jincheng, you choose a Win-win cooperation partner.
We welcome you visit us.
In quality control, our company always regarded the quality as life, got ISO9001,CE,SGS certificates, and 10 people QC team to keep sure every machine is qualified.
11 professional engineer team, the strong R&D team, always keep new design and got many national patent. All your requirement can be realized in Binhai, and ensure supply the best solution and technical support for you in first time.
Binhai machine are popular in many countries, they are selling well in all cities and provinces around China, also exported to USA, Australia, Iraq, Vietnam, Indonesia, Guatemala, Russia, Thailand, South Korea, Sri Lanka, Argentina, Chile, Brazil, and so on. also accept OEM and ODM.
Choose Binhai Jincheng, you choose a Win-win cooperation partner.
We welcome you visit us.
Our Team:
Our Clients:
Packaging and Shipping:
Exhibition
FAQ
1.What workpiece can clean by this machine?
smaller size workpiece,like screw,nuts,valve,small pipe and so on
2.How to installation machine?
We supply overseas service, engineer can go to your place guide installation and debugging.
3.How to choose the right size machine?
We design the machine all following your request based on the Biggest size and weight of your workpiece. And how many pieces need cleaning per hour.
4.How to control machine quantity?
One year machine warranty, and 10 QC teams to check every part from drawing until machine finished.
5.what is the delivery time?
15-30 working days,based on factory’s production orders condition.
6.What clean grade?
Sa2.5,metal luster, Sweden standard
