Product Overview
Description
Product Explanation:

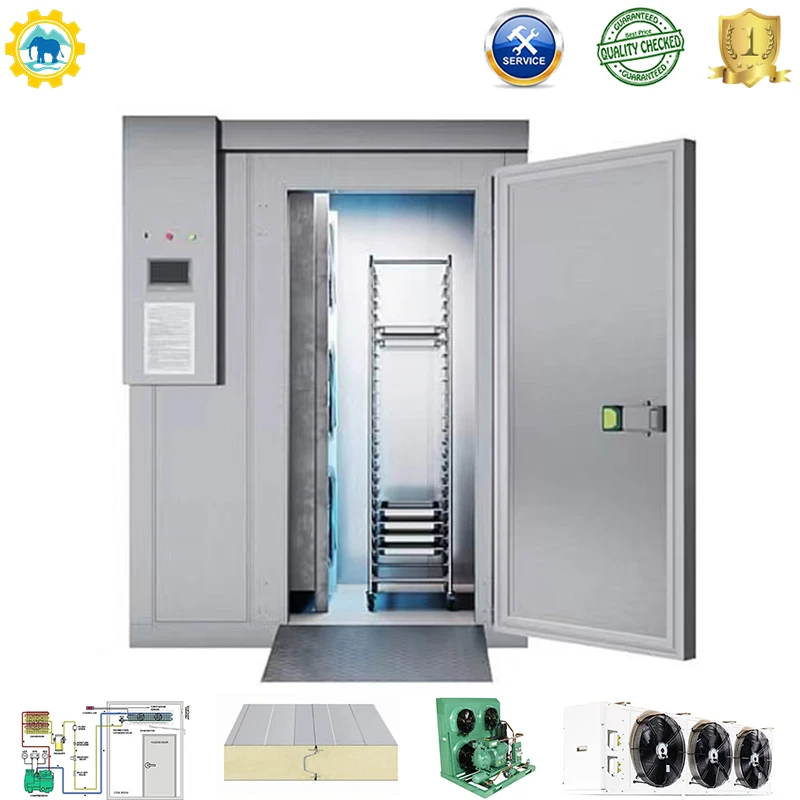

Low-temperature quick-freezing is the key to long-term high-quality preservation of food. Rapid cooling can make food quickly pass
through the ice crystal formation zone, prevent the formation of large ice crystals in food cells, avoid damage to the cell wall,
and perfectly maintain the original quality and taste of the food. The temperature of the quick-freezer is generally -15 ° C ~
-35° C. It is mainly used for low temperature and rapid freezing of food, medicine, medicine, and other items. Cooling down
quickly and the preservation effect is good.
through the ice crystal formation zone, prevent the formation of large ice crystals in food cells, avoid damage to the cell wall,
and perfectly maintain the original quality and taste of the food. The temperature of the quick-freezer is generally -15 ° C ~
-35° C. It is mainly used for low temperature and rapid freezing of food, medicine, medicine, and other items. Cooling down
quickly and the preservation effect is good.
We need to know this information!
1: What's the dimension of cold room: Length×Width×Height by Meter
2: What kind of goods will load inside? What's the indoor temperature?
3: What's the industry voltage?
Applications

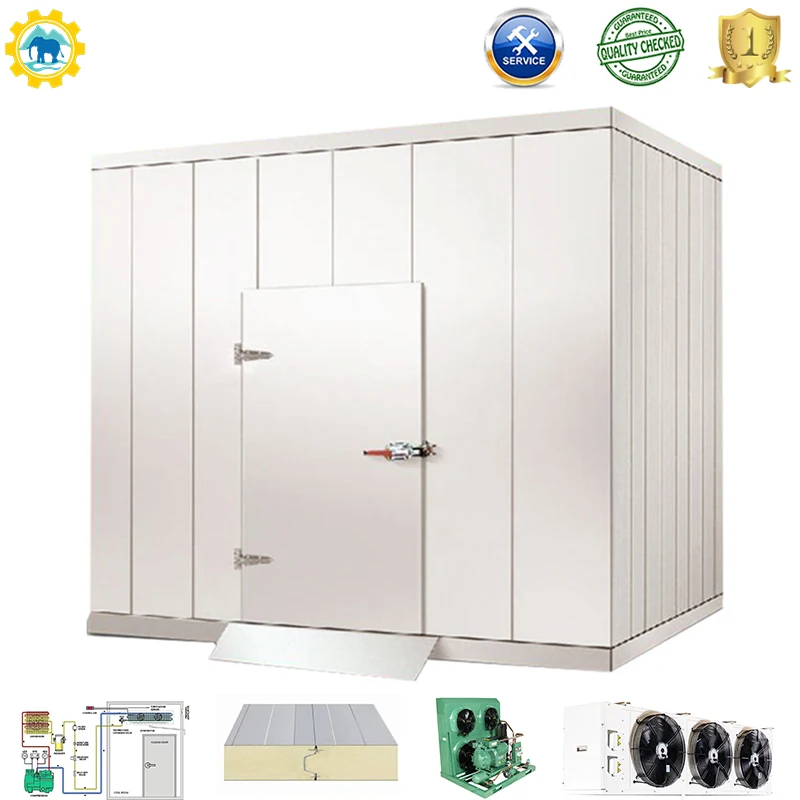

1. Cold Room Panels For Cold Room
Good waterproof performance Polyurethane cold storage board with moisture and water resistance. The rigid polyurethane has a
closed-cell ratio of more than 90% and is a hydrophobic material. It does not increase the thermal conductivity due to moisture
absorption, and the wall surface will also seep.
Good sound insulation The porosity of the polyurethane material is stable and basically closed-cell structure, which not only has
excellent heat preservation performance but also has resistance to freezing and thawing and sound absorption.
Strong resistance to deformation Strong resistance to deformation, not easy to crack, stable and safe finish.
Fire retardant and high-temperature resistant Polyurethane is a flame-retardant self-extinguishing material after adding flame
retardant. Its softening point can reach above 250 °C, and it will only decompose at higher temperatures.
closed-cell ratio of more than 90% and is a hydrophobic material. It does not increase the thermal conductivity due to moisture
absorption, and the wall surface will also seep.
Good sound insulation The porosity of the polyurethane material is stable and basically closed-cell structure, which not only has
excellent heat preservation performance but also has resistance to freezing and thawing and sound absorption.
Strong resistance to deformation Strong resistance to deformation, not easy to crack, stable and safe finish.
Fire retardant and high-temperature resistant Polyurethane is a flame-retardant self-extinguishing material after adding flame
retardant. Its softening point can reach above 250 °C, and it will only decompose at higher temperatures.
Product Name | PU sandwich panel | ||||||
Surface Material | Color steel(PPGI), stainless steel, aluminum | ||||||
Core material | Polyurethane foam | ||||||
PU density | 45±2KG/m3 | ||||||
Fire grade | B2 | ||||||
Width | standard width 960mm | ||||||
Length | Customized, maximum 11980mm | ||||||
Thickness | 50/75/100/150/200mm | ||||||
Panels thickness (mm) | Temperature gap between internal-external environment | Height of wall panel (max) | Roof length (max) | |||||
50mm | 30ºC | 3.5m | 2.4m | |||||
75mm | 40ºC | 4.5m | 3.8m | |||||
100mm | 50ºC | 5.0m | 4.5m | |||||
120mm | 60ºC | 5.5m | 6.0m | |||||
150mm | 70ºC | 6.0m | 6.5m | |||||
200mm | 90ºC | 7.0m | 7.6m | |||||
If there is a pressure gap between the internal-external environment without wind load, over-length or wind-load need to set steel wall beam. | ||||||||
Tips: the data above is figured out according to 8-10 W / heat flux. | ||||||||
Condensing Unit For Cold Room
Unit Cold Room Condensing Condenser Unit Evaporator Equipment For Cold Room
Yangchuan Condensing unit is the optimized combination of efficiency, reliability, easy installation, and sound performance. It is
optimized designed and manufactured to reduce installation and maintenance costs, more efficient while making your production even
more efficient and less noise impact for the neighborhood.
Yangchuan Condensing unit is the optimized combination of efficiency, reliability, easy installation, and sound performance. It is
optimized designed and manufactured to reduce installation and maintenance costs, more efficient while making your production even
more efficient and less noise impact for the neighborhood.

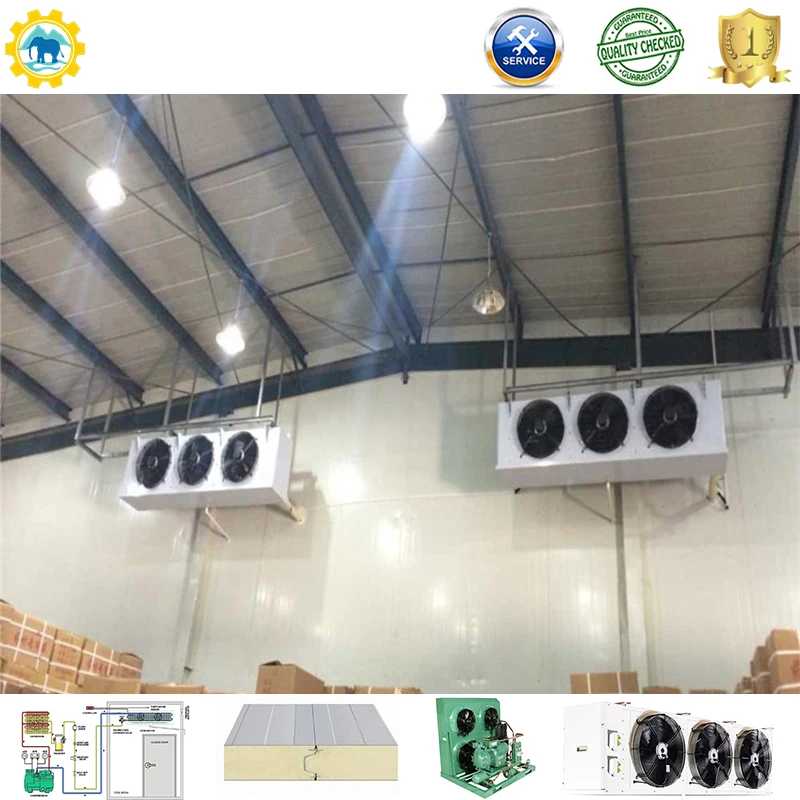

Evaporators For Cold Room
1. Rational Design
·Experienced engineers use Italian advanced design software to design, meeting the demand accurately · Products suitable to the latest refrigerant such as R410A, CO2, ammonia, glycol, and other special refrigerants are available ·Pipeline design adopts the direct oil return and counter-current heat exchanger to avoid the accumulation of refrigeration oil, which make full use of the heat transfer area, improve the heat exchange efficiency and ensure the degree of superheat
2. Reliable raw materials
The fans of the air cooler are famous brands, reasonably match the gap between blades and blast rings, and the design of hyperbolic air duct to achieve the maximum effect ·Copper tubes are multi-tooth and internal thread with high-efficiency. The copper rate is more than 99.9%. All of these increase the surface area and heat transfer efficiency. ·Shell material of the air cooler is 3003 aluminum alloy or DC51-D+180g. The paint is an outdoor type and treated with high-temperature curing, which makes the shell high in strength and anti-corrosion.
3. Quality control in all
·Management of factory was approved by ISO9001-2008 and product quality control is through all courses ·Quality control in all: incoming quality control process inspection finished product inspection.
4. Various choices
·Provide multiple models and sizes, choices of fin and coil type to meet the demands of different applications ·A variety of anti-corrosion treatment products, stainless steel products, and other customized products are available
·Experienced engineers use Italian advanced design software to design, meeting the demand accurately · Products suitable to the latest refrigerant such as R410A, CO2, ammonia, glycol, and other special refrigerants are available ·Pipeline design adopts the direct oil return and counter-current heat exchanger to avoid the accumulation of refrigeration oil, which make full use of the heat transfer area, improve the heat exchange efficiency and ensure the degree of superheat
2. Reliable raw materials
The fans of the air cooler are famous brands, reasonably match the gap between blades and blast rings, and the design of hyperbolic air duct to achieve the maximum effect ·Copper tubes are multi-tooth and internal thread with high-efficiency. The copper rate is more than 99.9%. All of these increase the surface area and heat transfer efficiency. ·Shell material of the air cooler is 3003 aluminum alloy or DC51-D+180g. The paint is an outdoor type and treated with high-temperature curing, which makes the shell high in strength and anti-corrosion.
3. Quality control in all
·Management of factory was approved by ISO9001-2008 and product quality control is through all courses ·Quality control in all: incoming quality control process inspection finished product inspection.
4. Various choices
·Provide multiple models and sizes, choices of fin and coil type to meet the demands of different applications ·A variety of anti-corrosion treatment products, stainless steel products, and other customized products are available
FAQ
1. Can you customize the cold storage room dimension and temperature?
Yes, we can customize the cold room dimension and temperature according to your requirements.
Any size will do, if you have no idea, please tell me the total amount of your cargo, our engineer can design it for you.
2. Can you offer refrigeration equipment?
Yes, we can offer a panel insulation system and an equipment refrigeration system.
3. What brand compressor can you offer?
Normally with original Bizter and Copeland compressor. Famous in the world.
4. How about the delivery time?
For panels, our delivery time is around 7~15 days. For equipment, our delivery time is around 25 workdays.
Time will be shorter if you are in a hurry.
Yes, we can customize the cold room dimension and temperature according to your requirements.
Any size will do, if you have no idea, please tell me the total amount of your cargo, our engineer can design it for you.
2. Can you offer refrigeration equipment?
Yes, we can offer a panel insulation system and an equipment refrigeration system.
3. What brand compressor can you offer?
Normally with original Bizter and Copeland compressor. Famous in the world.
4. How about the delivery time?
For panels, our delivery time is around 7~15 days. For equipment, our delivery time is around 25 workdays.
Time will be shorter if you are in a hurry.
