Multi claw straight cylindrical extractor for herb/plants/essential oil
- Category: >>>
- Supplier: Zhejiang Jhen Ten Machinery Co. Ltd.
Share on (1600511861796):
Product Overview
Description
Products Description
Purpose
The equipment is applicable to the operations such as decoction of plants and animals at normal pressure and high pressure, warm
soaking, hot reflux, forced circulation, percolation, aromatic oil extraction and organic solvent recovery in pharmacy, biology,
beverage, food, chemical industry, etc. It is especially suitable for dynamic extraction or counter-current extraction, with short
operating time and a high liquid medicine content.
Accessories
The tank body is equipped with the CIP automatic rotary spray cleaning ball, thermometer, pressure gauge, explosion-proof sight
lamp, sight glass, quick-open type feeding inlet and etc, ensuring easy operation and complying with the GMP standard. The
contactpart is made of imported 304 or 316L
Complete set supply of the equipment
Extraction tank, defoamer, condenser, cooler, oil-water separator, filter, cylinder console and other accessories
The equipment is applicable to the operations such as decoction of plants and animals at normal pressure and high pressure, warm
soaking, hot reflux, forced circulation, percolation, aromatic oil extraction and organic solvent recovery in pharmacy, biology,
beverage, food, chemical industry, etc. It is especially suitable for dynamic extraction or counter-current extraction, with short
operating time and a high liquid medicine content.
Accessories
The tank body is equipped with the CIP automatic rotary spray cleaning ball, thermometer, pressure gauge, explosion-proof sight
lamp, sight glass, quick-open type feeding inlet and etc, ensuring easy operation and complying with the GMP standard. The
contactpart is made of imported 304 or 316L
Complete set supply of the equipment
Extraction tank, defoamer, condenser, cooler, oil-water separator, filter, cylinder console and other accessories

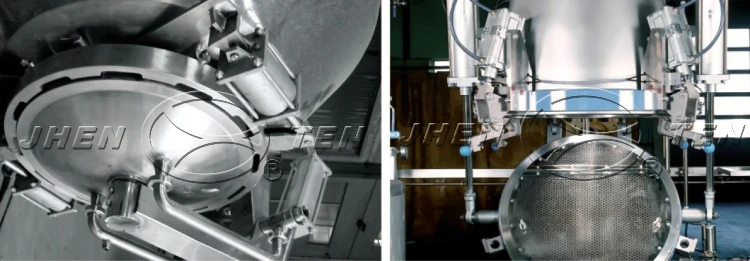

Rotary type Large-diameter residue discharging door
The tank cover can be automatically opened and closed. High temperature and high pressure extraction can be realized, and more
than 3bar can be achieved in the swivel type product. It provides more selection for extracting technology. It can also meet some
special technological requirements. With good safety and reliability, it has sufficient safety guarantee functions and the
extracting tank has no leakage.
Cylinder side & bottom drain door filtration
∗ For the liquid with high viscosity and difficult to be filtered, the tank side filtering method is adopted. The strainer is
installed on the cylinder wall and the medicinal materials will not press and paste on the filter net, so the filte ris more
unobstructed. The filter is a long hole-shaped stainless steel mesh with laser glazing.
∗ The bottom of the filter using two layers, lower support mesh, upper stainless steel mesh board, net board covered with 0.6x10mm
long hole compared with mat woven mesh, long hole mesh board is more difficult to block, filter unobstructed, stainless steel
polishing durable for 6-8 years do not replace.
Technical Parameters
The tank cover can be automatically opened and closed. High temperature and high pressure extraction can be realized, and more
than 3bar can be achieved in the swivel type product. It provides more selection for extracting technology. It can also meet some
special technological requirements. With good safety and reliability, it has sufficient safety guarantee functions and the
extracting tank has no leakage.
Cylinder side & bottom drain door filtration
∗ For the liquid with high viscosity and difficult to be filtered, the tank side filtering method is adopted. The strainer is
installed on the cylinder wall and the medicinal materials will not press and paste on the filter net, so the filte ris more
unobstructed. The filter is a long hole-shaped stainless steel mesh with laser glazing.
∗ The bottom of the filter using two layers, lower support mesh, upper stainless steel mesh board, net board covered with 0.6x10mm
long hole compared with mat woven mesh, long hole mesh board is more difficult to block, filter unobstructed, stainless steel
polishing durable for 6-8 years do not replace.
Technical Parameters
Model | TQ-0.3 | TQ-0.5 | TQ-1.0 | TQ-2 | TQ-3 | TQ-6 | TQ-8 | TQ-10 |
Volume(L) | 300 | 500 | 1000 | 2000 | 3000 | 6000 | 8000 | 10000 |
Design pressure in jacket(Mpa) | 0.3 | 0.3 | 0.3 | 0.3 | 0.3 | 0.3 | 0.3 | 0.3 |
Diameter of feeding port(mm) | 300 | 300 | 400 | 400 | 400 | 500 | 500 | 500 |
Heating area(m²) | 1.5 | 2.4 | 3 | 4.7 | 6.5 | 10.5 | 13.8 | 16 |
Condensation area(m²) | 4 | 4 | 4 | 5.4 | 8 | 10 | 15 | 18 |
Cooling area(m²) | 0.25 | 0.4 | 1 | 1 | 1 | 2.2 | 2.2 | 3 |
Slag door diameter(mm) | 600 | 600 | 800 | 1000 | 1200 | 1400 | 1500 | 1600 |
Steam consumption(kg/h) | 150 | 200 | 285 | 346 | 570 | 718 | 903 | 1140 |
Weight of equipment(kg) | 650 | 750 | 1000 | 1900 | 2400 | 3025 | 4030 | 5100 |
Note: The multi-function extraction tank can be combined into a dynamic extraction system after adding necessary equipment
