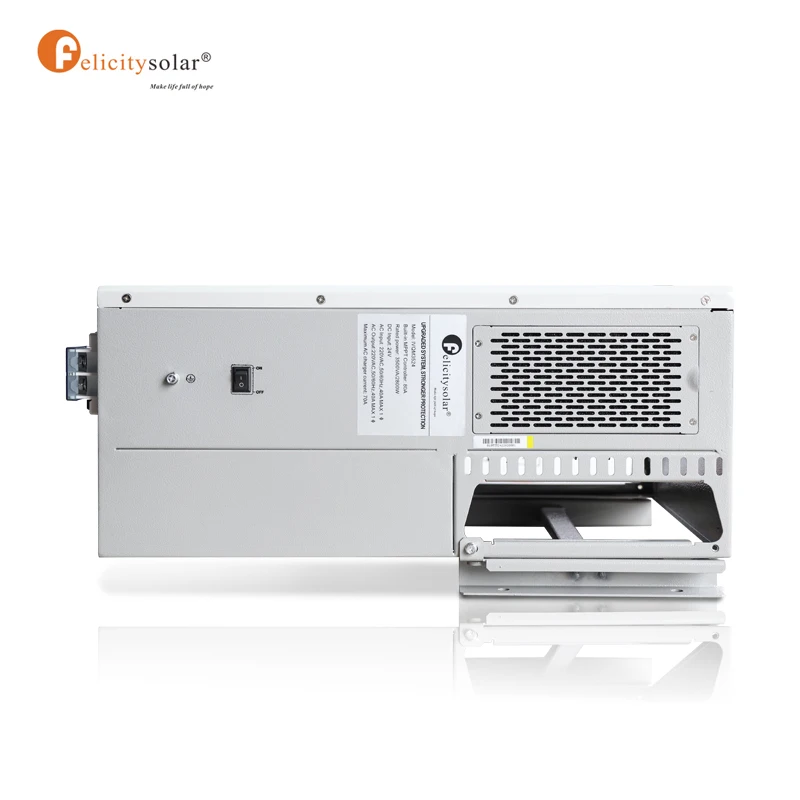

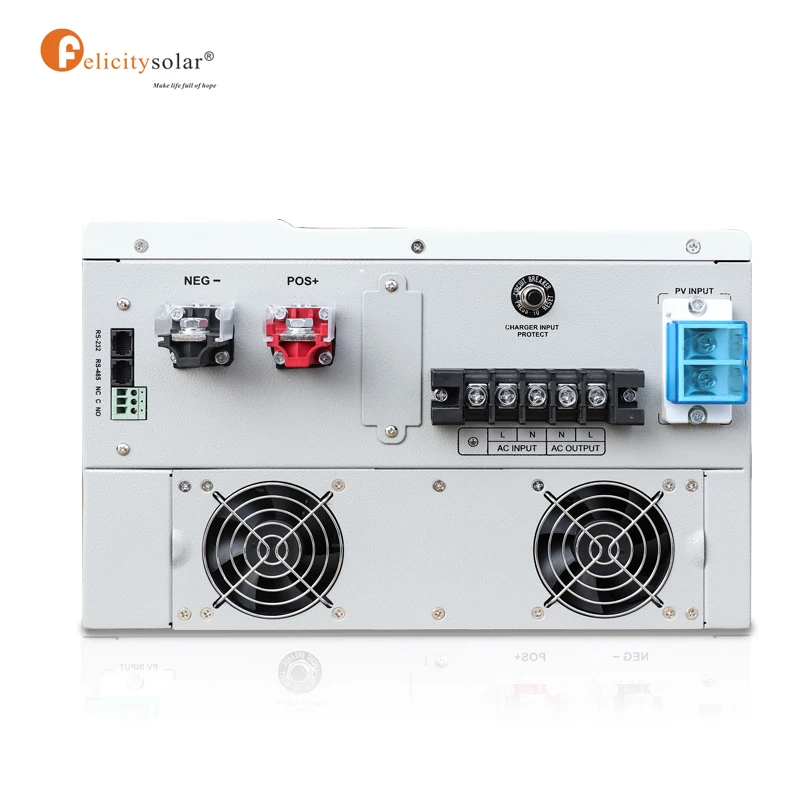

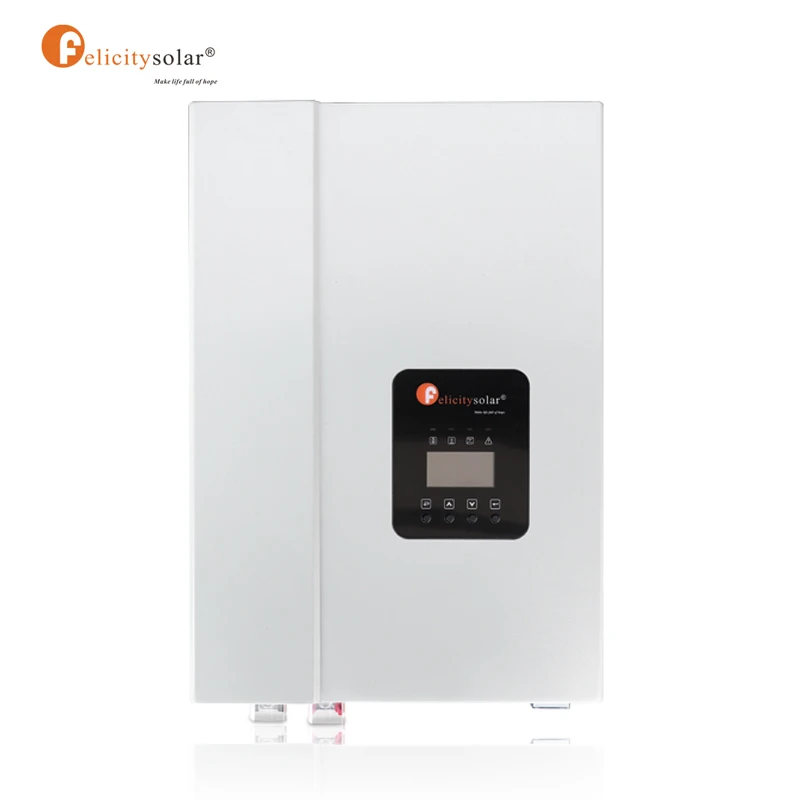

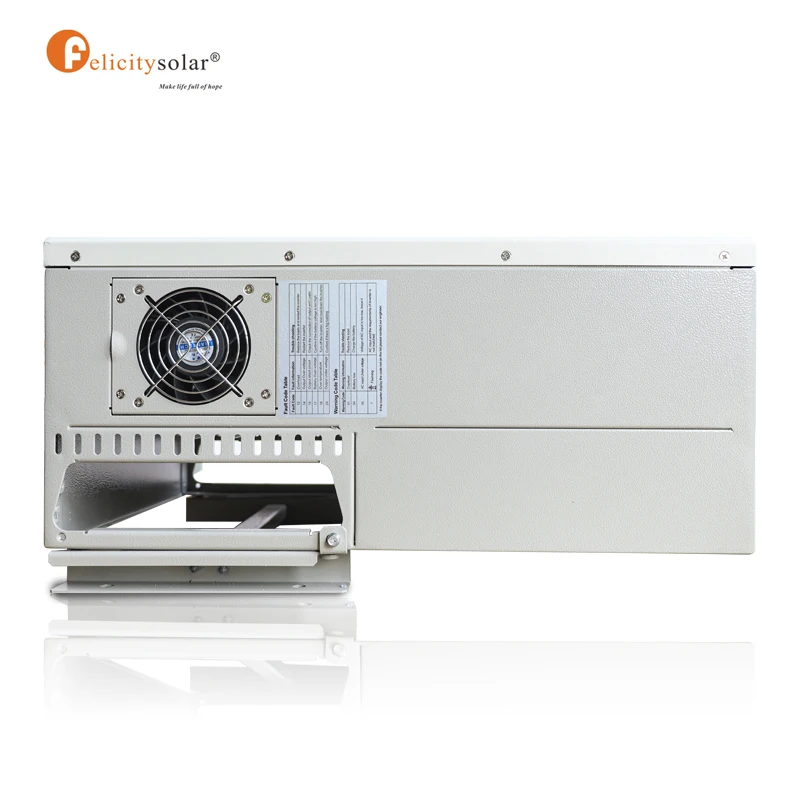

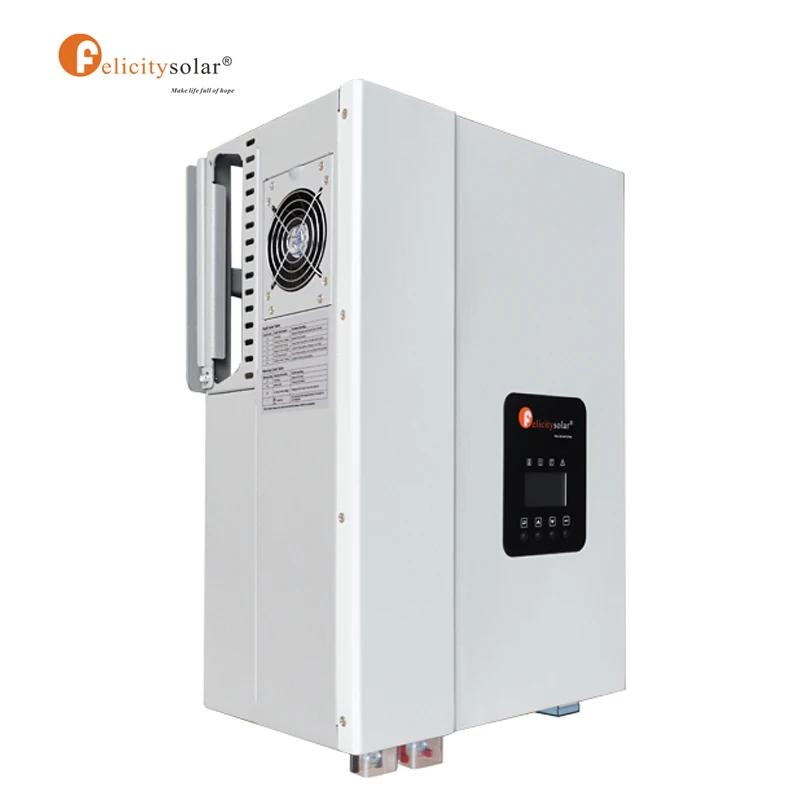

Felicitysolar 3 phase off grid mppt solar power inverters for solar panel system
- Category: >>>
- Supplier: Guangzhou Felicity Solar Technology Co. Ltd.
Share on (1600511875402):
Product Overview
Description
Products Description

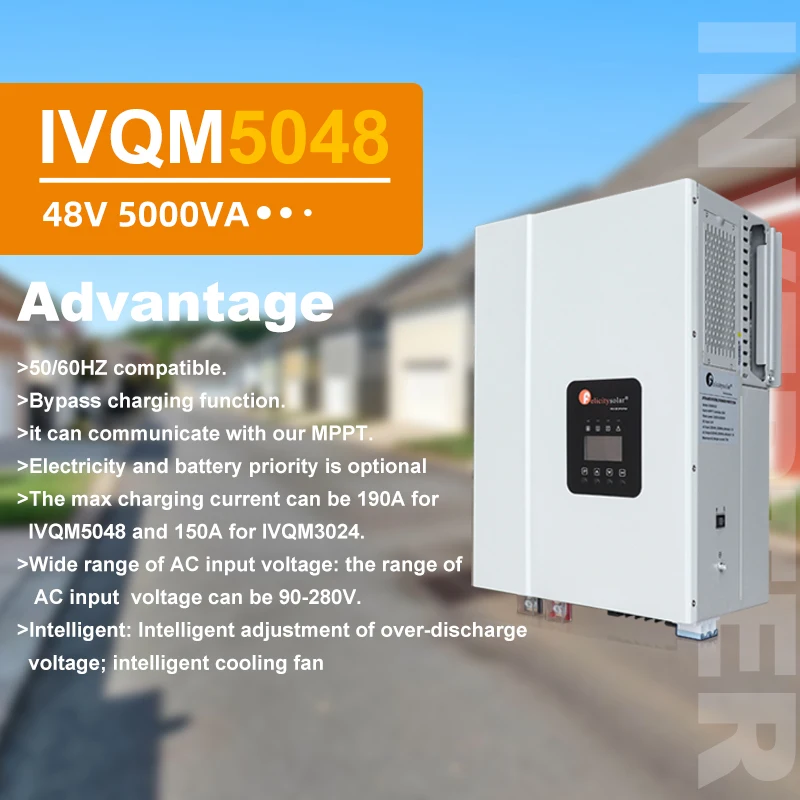

Advantages
>Bypass charging function: when the unit is off, it can be activated with bypass output and can charge the battery.
>High charging current, the max charging current can be 190A for IVQM5048 and 150A for IVQM3024.
>Wide range of AC input voltage: the range of AC input voltage can be 90-280V.
>Electricity and battery priority is optional
>Battery self-defined: customer can set the overcharge voltage and float voltage, and over-discharge voltage.
>50/60HZ compatible.
>Intelligent: Intelligent adjustment of over-discharge voltage; intelligent cooling fan
>Safety: Safety design is upgraded overall.
>Built-in MPPT charge controller.
>Bypass charging function: when the unit is off, it can be activated with bypass output and can charge the battery.
>High charging current, the max charging current can be 190A for IVQM5048 and 150A for IVQM3024.
>Wide range of AC input voltage: the range of AC input voltage can be 90-280V.
>Electricity and battery priority is optional
>Battery self-defined: customer can set the overcharge voltage and float voltage, and over-discharge voltage.
>50/60HZ compatible.
>Intelligent: Intelligent adjustment of over-discharge voltage; intelligent cooling fan
>Safety: Safety design is upgraded overall.
>Built-in MPPT charge controller.
Model | IVQM3524 | IVQM5048 | ||
Rated Output Power(VA) | 3500VA | 5000VA | ||
Rated Output Power(W) | 2800W | 4000W | ||
Nominal DC InputVoltage | 24V | 48V | ||
InputVoltageWaveform | Sinusoidal(Utility or generator) | |||
Nominal Input Voltage | 220Vac | |||
Low Line Disconnect | 170±7Vac(UPS) 90Vac±7Vac（APL） | |||
Low Line Re-connectAC Input Range | 180±7Vac(UPS) 100Vac±7Vac（APL） | |||
High Line Disconnect | 280Vac±7Vac | |||
High Line Re-connect | 270Vac±7Vac | |||
MaxAC InputVoltage | 280Vrms | |||
Nominal Input Frequency | 50Hz/60Hz | |||
Efficiency(Line mode) | ≥95% (Rated R load, and battery is fully charged) | |||
TransferTime (AC to DC) | 15ms (typical) | |||
TransferTime (DC toAC) | 15ms (typical) | |||
Solar Charging & Grid Charging(MPPT bulit-in controller is optional) | ||||
Max PV Open Circuit Voltage | 145Vdc | 195Vdc | ||
PV Voltage Working Range | 30~145Vdc | 60~195Vdc | ||
Max Input Power | 2200W | 6600W | ||
Max Solar Charging Current | 80A | 120A | ||
Max Charging current(Utility + Solar) | 150A | 190A | ||
Product packaging

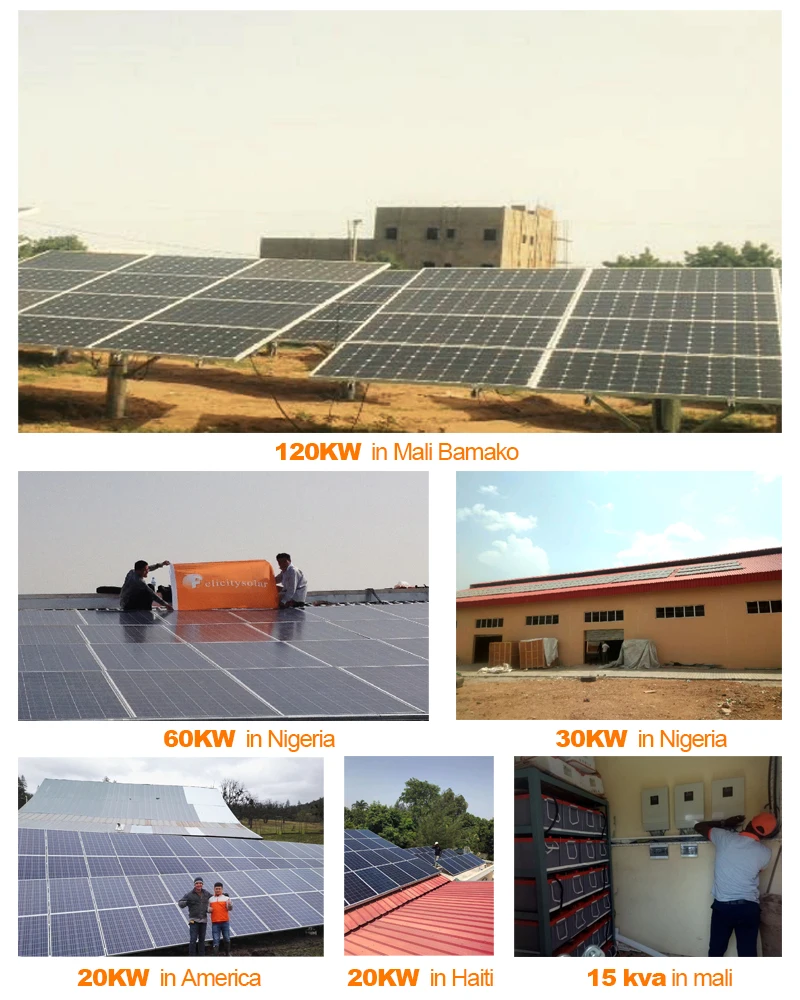

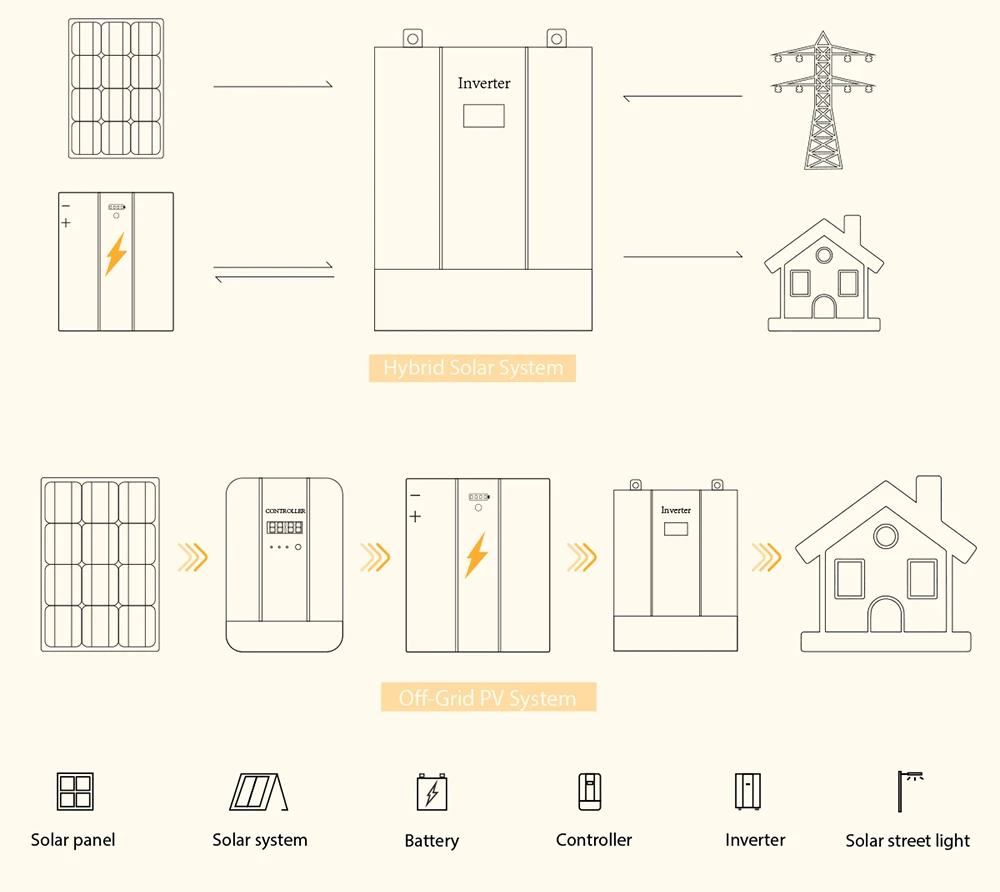

Product Applications
Company Main products
Exhibition
Payment Terms
We support wide range of secure & reliable payment methods like T/T, L/C, West Union, E-checking, Paypal and so on. Please choose your preferred payment method from those listed below.
Payment Terms | T/T or Cash | EXW | ||
FOB | ||||
CFR (C&F) | ||||
CIF | ||||
Payment Terms | L/C | For the amount more than US$90,000 payment, we can accept L/C | ||
Paypal | For the amount less than US$2,000 payment, we can accept Paypal , West Union or MoneyGram | |||
West Union | ||||
MoneyGram | ||||
Credit card or E-checking | Place a Alibaba Trade Assurance Order | |||
Company Introduction
Guangzhou Felicitysolar Technology Co ., Ltd was founded in 2007. The company's headquarters is located in the Guangdong-Hong Kong-Macao Greater Bay Area historical and cultural name - Guangzhou city, the company is headquartered in Guangzhou, a famous historical and cultural city in the Guangdong-Hong Kong-Macao Greater Bay Area, covering an area of more than 20,000 square meters and an annual output value of 400 million yuan.
Felicitysolar has more than 300 employees, including more than 40 senior experts and professional and technical personnel in the field of new energy. It has more than 50 product technology patents. It is a photovoltaic new energy high-tech enterprise integrating research and development, production, sales, engineering design, installation guidance, and after-sales service.
The company focuses on the new solar energy industry, focusing on the "PHOTOVOLTAIC + ENERGY STORAGE" industry chain and focusing on the design, research and development, production and sales of photovoltaic modules, inverters, MPPT controllers, lithium battery packs, and solar street lamps and other series of products, providing high-quality diversified photovoltaic energy storage products for domestic and foreign markets.
Products have been CE, ROHS, SONCAP, and other international certification, and the United States, Australia, Turkey, Japan, the United Arab Emirates, Singapore, Nigeria, and other countries have cooperation, the business covers more than 40 countries and regions, and has set up 15 offices at home and abroad. As the pioneer of the solar energy storage industry, the company always adheres to the development strategy of "going out and going to the battlefield ".
The business scope is all over the world. Every year, we will increase 5 overseas branches to the whole world. Looking forward to the future, the company will continue to be committed to the popularization of the solar energy storage systems as the mission, adhering to the values of hard work, innovation, focus, integrity, to send clean energy to the areas lacking in electricity, so that the lack of bright people's life full of hope.
