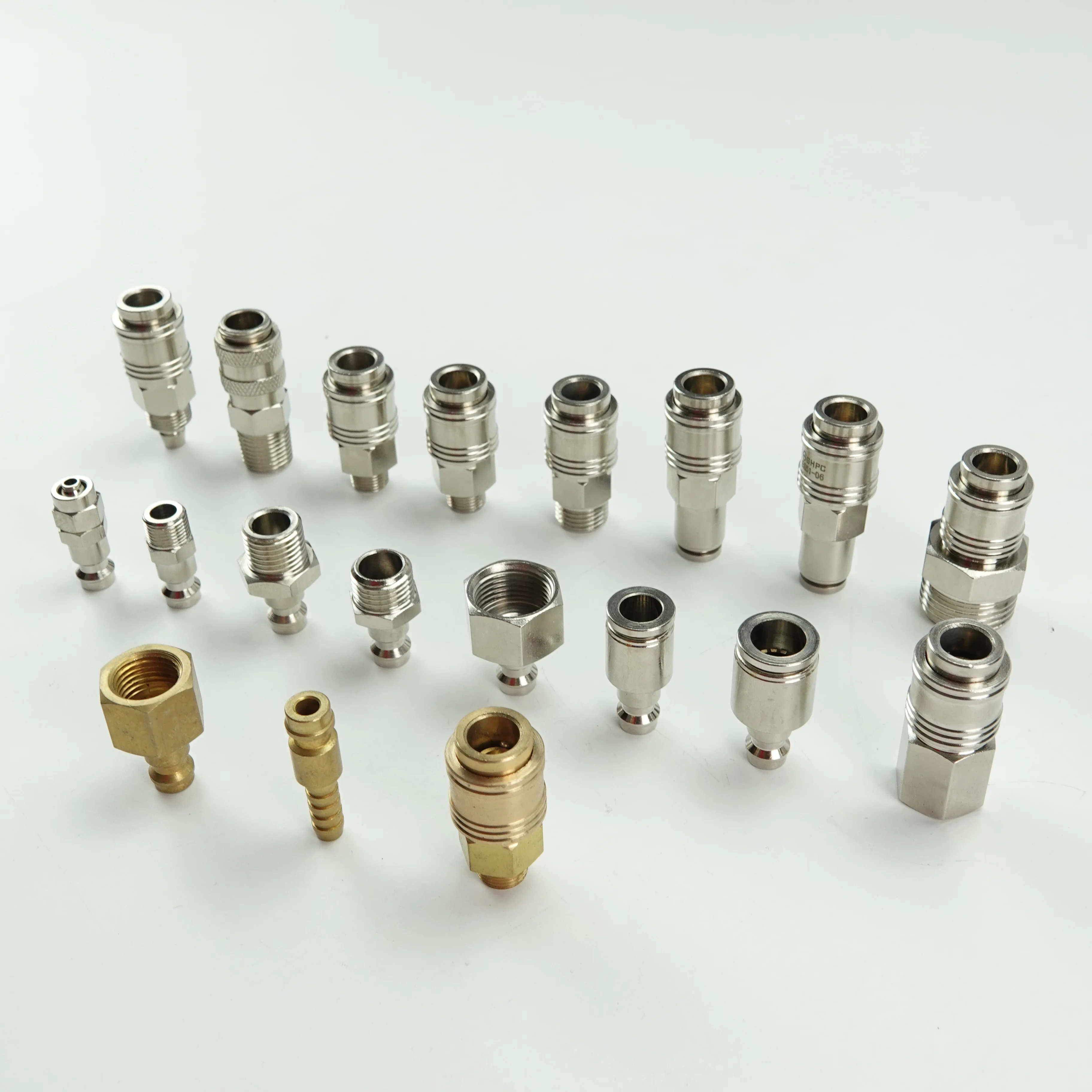

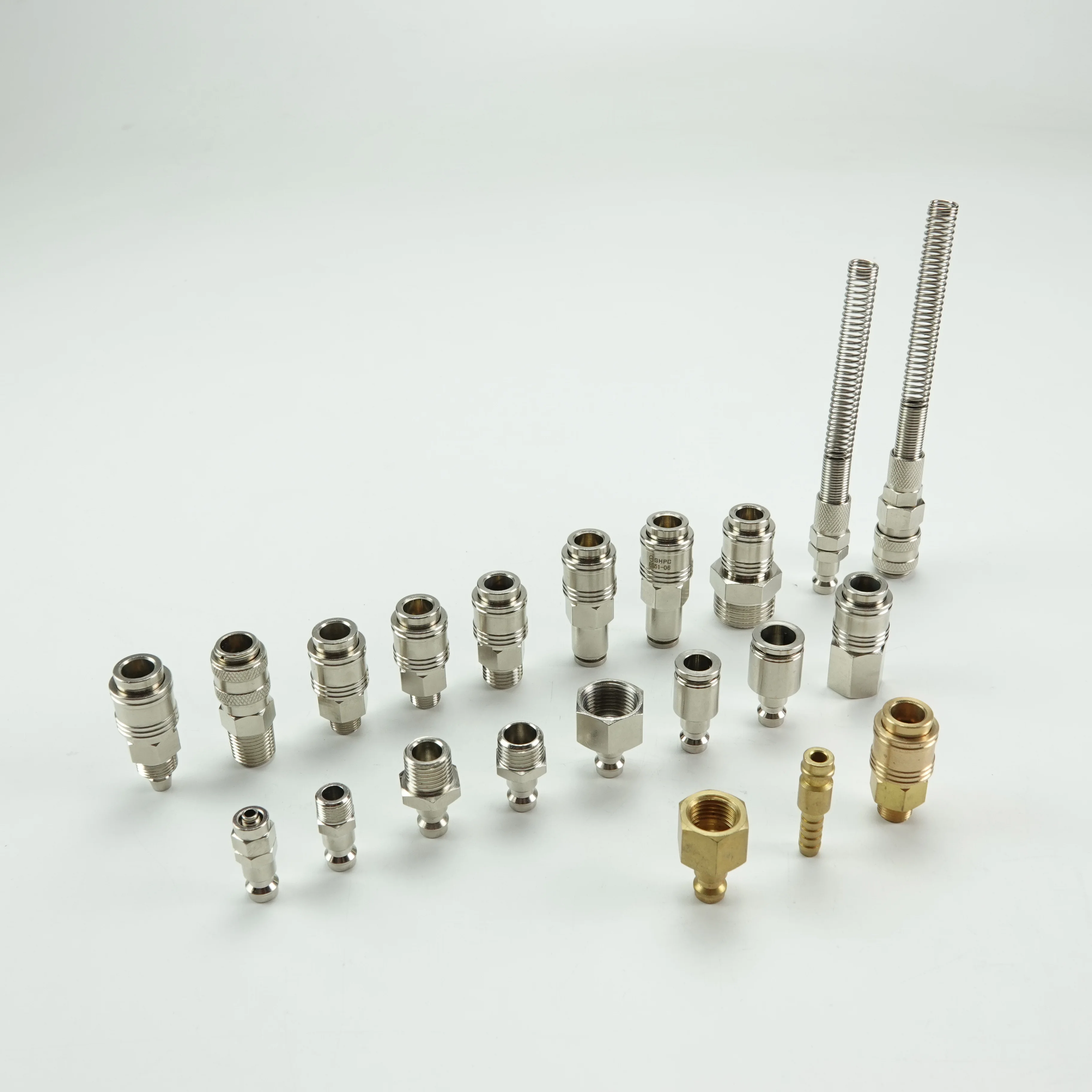

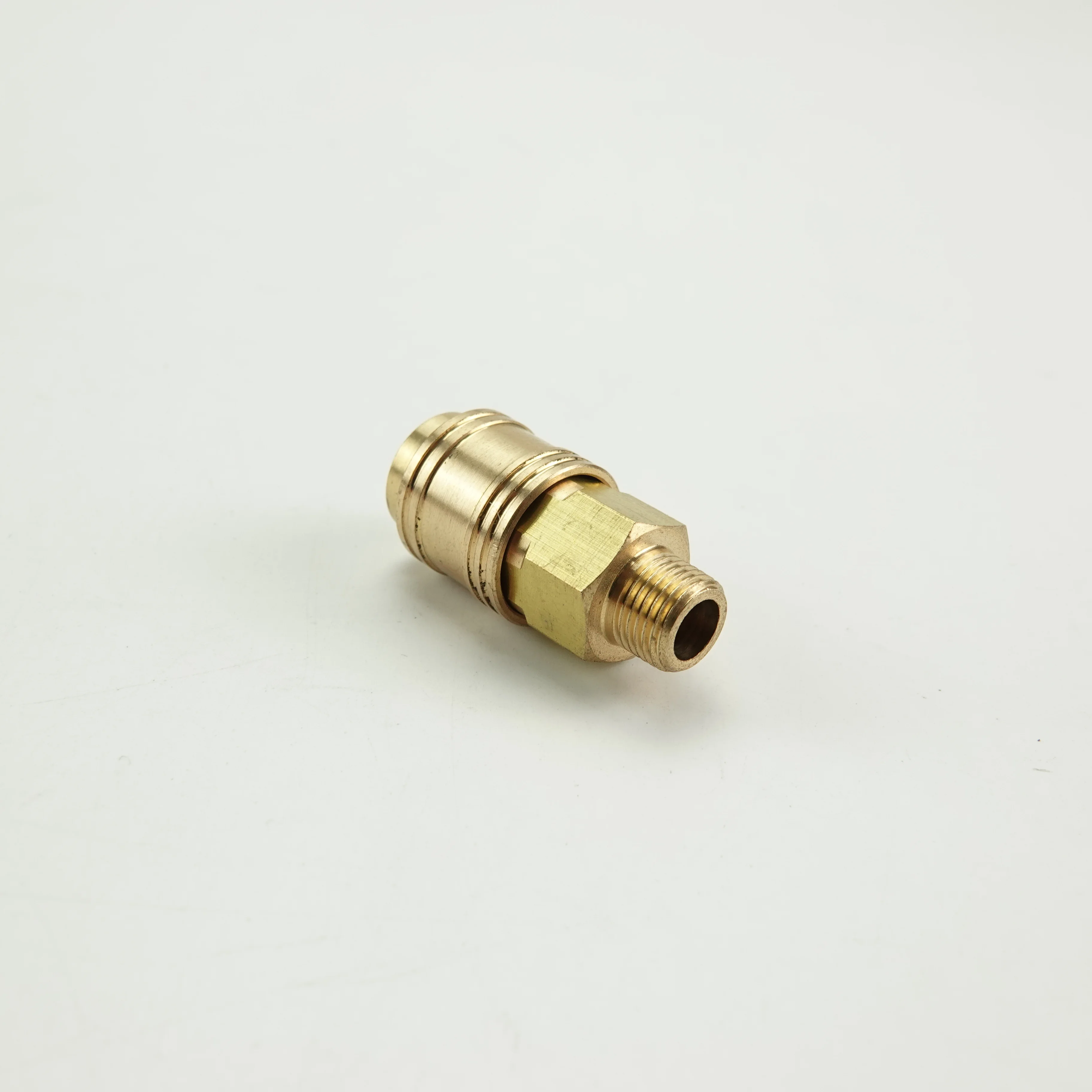

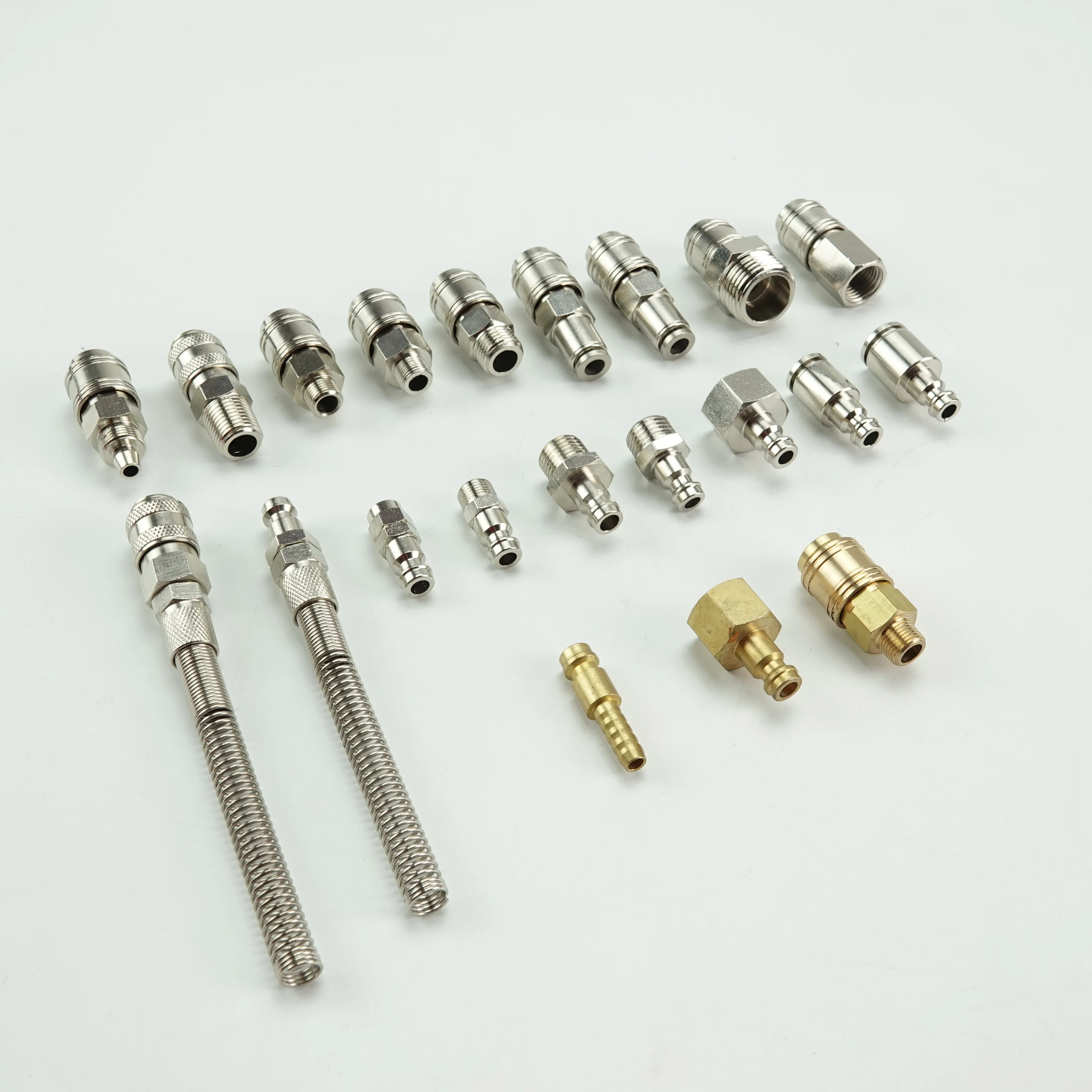

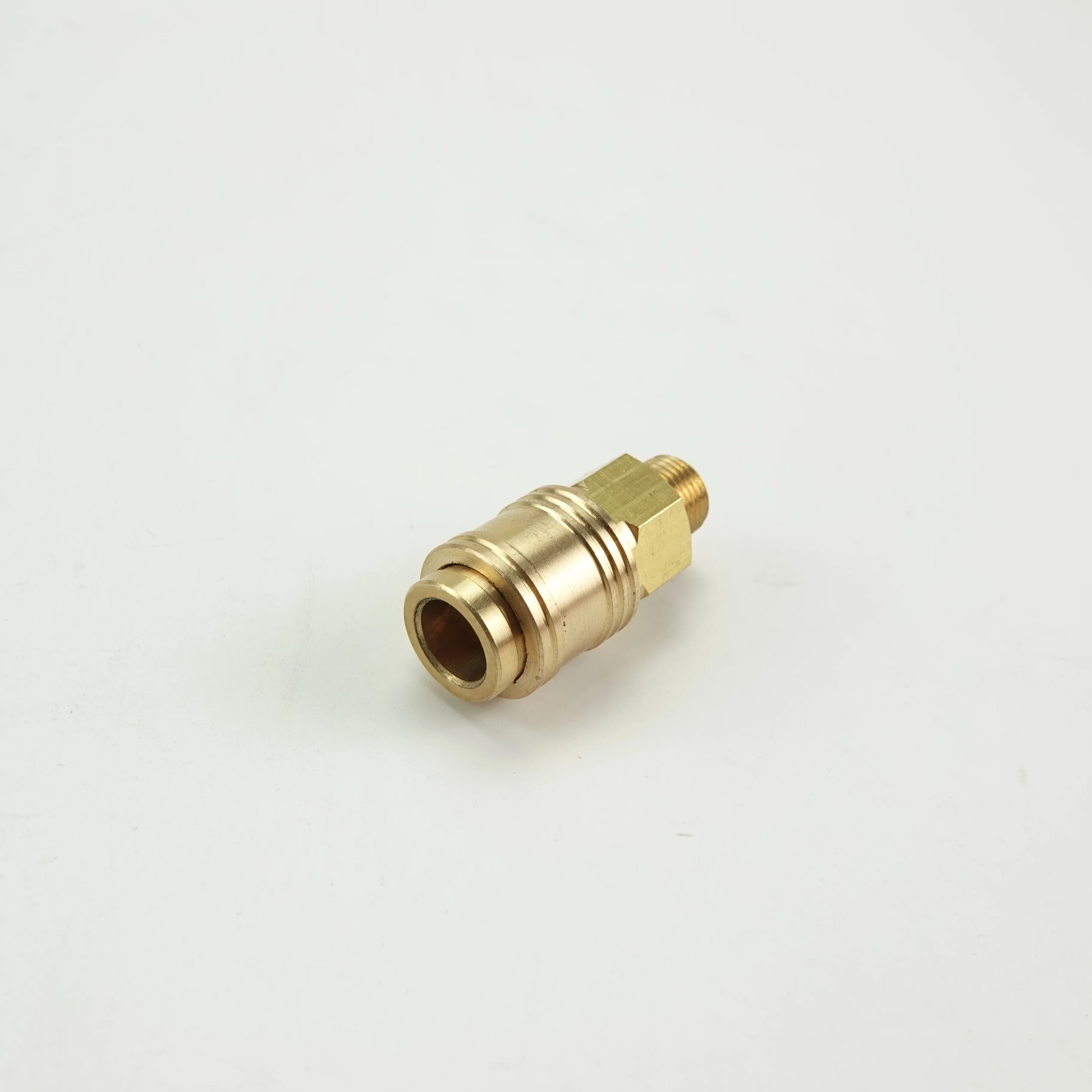

Mini Europe Type Air Coupler Connector Pneumatic Fitting Brass 6mm Parker Rectus type 21
- Category: >>>
- Supplier: Ningbo Junyi Air Tools Factory
Share on (1600511888687):
Product Overview
Description
Product Description
Specification
item | value |
Model Number | E05 |
Warranty | 1 year |
No-Load Speed | 0 |
Customized support | OEM, ODM, OBM |
Place of Origin | Zhejiang |
Type | Mini Europe |
Thread size | 5mm, 1/8", 1/4" |
Thread type | BSPT, NPS |
Material | Brass, Steel |
Application | Pneumatic field |
Certification | Reach |
Product details
This Europe standard quick coupler is the most popular one in Europe.It features high-flow valve design(DN7.6),easy-to-handle and
one-hand operation.Accept Europe standard,"IM","A" style plug1.Material:
Steel body with nickel plated,Precesion brass valve
2.Sealing:
Standard is Buna-N.EPDM and FKM are available.
3.Specifications：
Max Working pressure:200PSI
Air Volume:50SCFM at 100PSIG inlet with 10PSIG pressure drop
Working Temperature：Buna-N:-20° to 100°，
EPDM:-40° to 120°,FKM:-15° to 200°
one-hand operation.Accept Europe standard,"IM","A" style plug1.Material:
Steel body with nickel plated,Precesion brass valve
2.Sealing:
Standard is Buna-N.EPDM and FKM are available.
3.Specifications：
Max Working pressure:200PSI
Air Volume:50SCFM at 100PSIG inlet with 10PSIG pressure drop
Working Temperature：Buna-N:-20° to 100°，
EPDM:-40° to 120°,FKM:-15° to 200°
