After repair turbocharger to test Turbo charger test bench
- Category: >>>
- Supplier: Qingdao Zhongji Furun Machinery Equipment Manufacturing Co. Ltd.
Share on (1600511889339):
Product Overview
Description
Technical Parameter

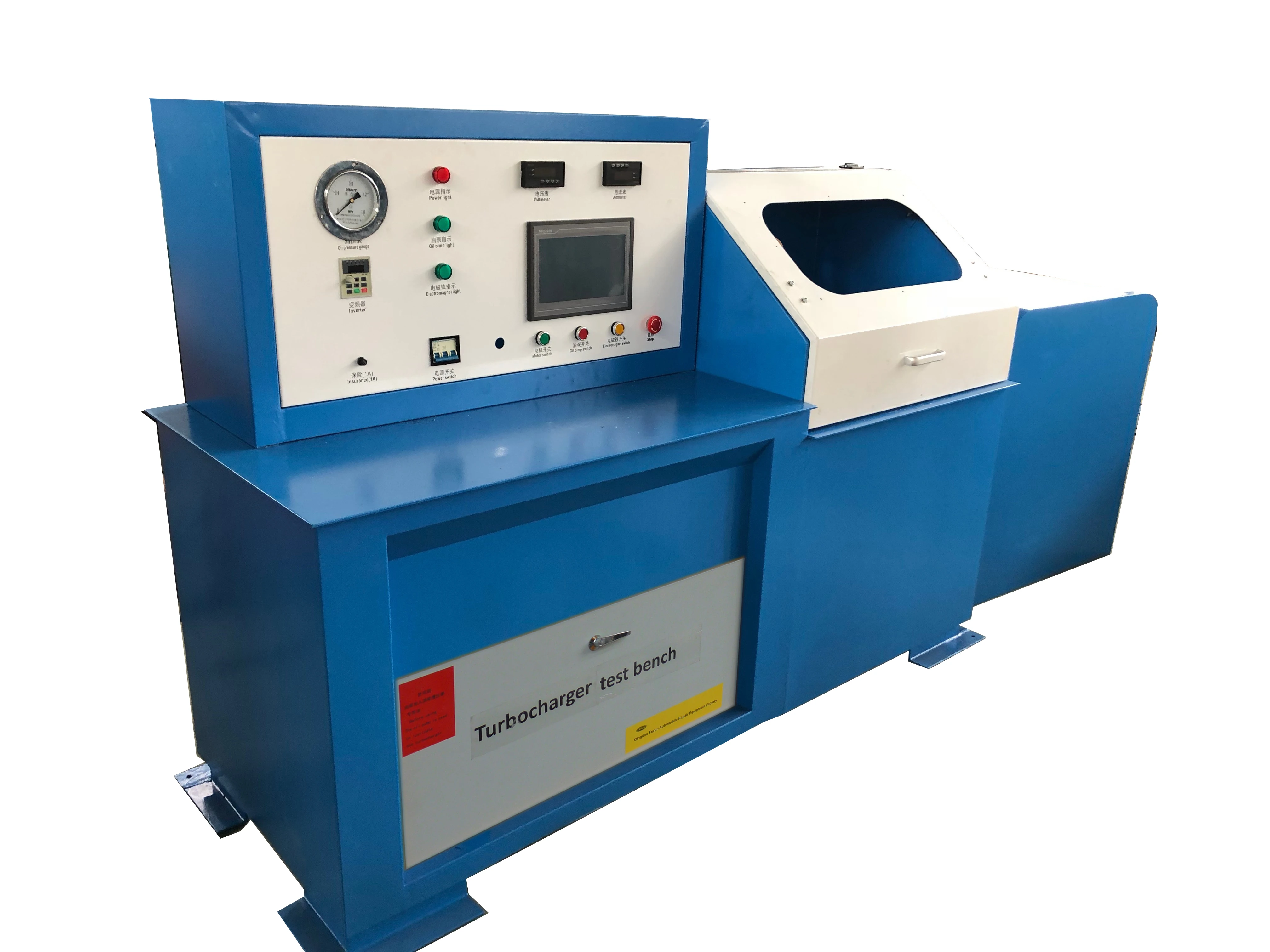

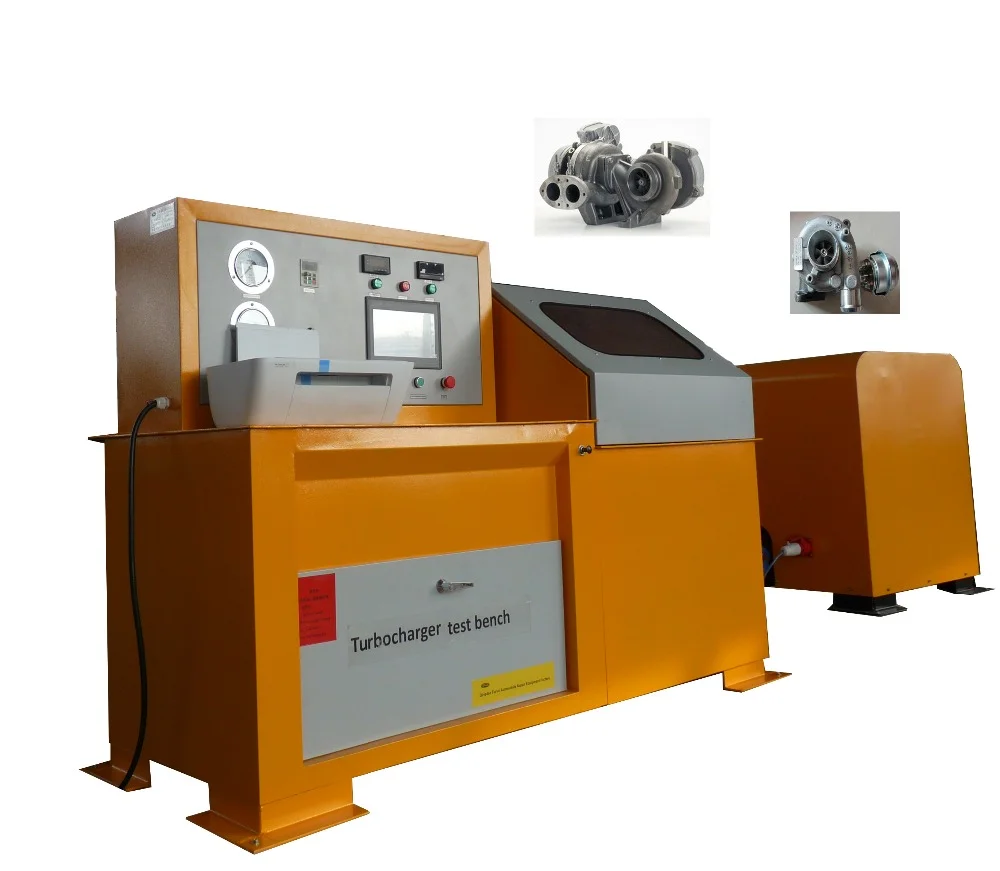

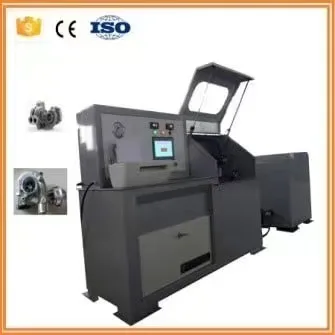

turbocharger test bench
This test bench is applicable for testing performance of turbocharger on various models truck engines and can carry out dynamic
test of boost pressure, air flow and lubrication of turbocharger and display measured data by digital instrument. It can carry out
contrast test of inlet & outlet air pressure difference of various turbochargers and read the values and is also matched with
computer to process data, display on the computer, store & print test results and wave form curve and achieve dynamic test of
various models turbochargers.
test of boost pressure, air flow and lubrication of turbocharger and display measured data by digital instrument. It can carry out
contrast test of inlet & outlet air pressure difference of various turbochargers and read the values and is also matched with
computer to process data, display on the computer, store & print test results and wave form curve and achieve dynamic test of
various models turbochargers.
Technical Parameter
PowerAC AC380V 50HZ
* Power of airflow generator5.5KW
* Frequency converter5.5KW
* RPM of airflow generator0--10000r/minIf it requires high speed, it will be customized.
* Maximum air pressure of airflow generator5KPa
* Maximum flow rate of airflow generator1500m³/h
* Power of oil pump motor120W
* Rated pressure of oil pump60KP
* Maximum displacement of oil pump15L/min
* Power of airflow generator5.5KW
* Frequency converter5.5KW
* RPM of airflow generator0--10000r/minIf it requires high speed, it will be customized.
* Maximum air pressure of airflow generator5KPa
* Maximum flow rate of airflow generator1500m³/h
* Power of oil pump motor120W
* Rated pressure of oil pump60KP
* Maximum displacement of oil pump15L/min
Power of airflow generator | 5.5KW |
Frequency converter | 5.5KW |
RPM of airflow | generator0--20000r/minIf it requires high speed, it will be customized |
Maximum air pressure of airflow | generator5KPa |
Maximum flow rate of airflow | generator1500m³/h |
Power of oil pump motor | 120W |
Rated pressure of oil pump | 60KP |
Maximum displacement of oil pump | 15L/min |
