PE PP film bags squeeze screw press dryer for recycling/ plastic squeezer machine/ squeezing machine
- Category: Plastic Granulators >>>
- Supplier: Zhangjiagang,Weiquan,Machinery,Co.,Ltd.
Share on:
Product Overview
Description
Product Overview
PE PP film bags squeeze screw press dryer for recycling/ plastic squeezer machine/ squeezing machine
Advantages:
1. Low power consumption.
Main motor power between 75-132kw, no need to connection drying pipe system. Compare transitional horizontal dewatering machine + drying pipe system, can save electric consumption 40-50%
2. Small land occupied
3. Low rotation speed, almost no noise
4. Dewatering function is better, final products humidity less than 2%
5. Can greatly increase the subsequent granulating line production capacity
1. Low power consumption.
Main motor power between 75-132kw, no need to connection drying pipe system. Compare transitional horizontal dewatering machine + drying pipe system, can save electric consumption 40-50%
2. Small land occupied
3. Low rotation speed, almost no noise
4. Dewatering function is better, final products humidity less than 2%
5. Can greatly increase the subsequent granulating line production capacity
FEATURES AT A GLANCE
Squeezer machine
Main motor power:75/90/110/132KW
Rotation speed:50-55rpm
Screw diameter:250/300/320/350mm
Rotation speed:50-55rpm
Screw diameter:250/300/320/350mm
Barrel
Material:38CrMoA1A Nitrified
Hardness: HV 740
Nitrified thickness: 0.4-0.6
CNC treatment
Hardness: HV 740
Nitrified thickness: 0.4-0.6
CNC treatment

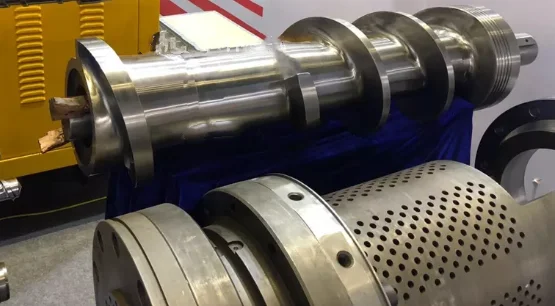

Screw
Material:38CrMoAl Nitrified
Hardness: HV ≥ 980
Nitrified thickness: 0.6-0.7
CNC treatment
Hardness: HV ≥ 980
Nitrified thickness: 0.6-0.7
CNC treatment

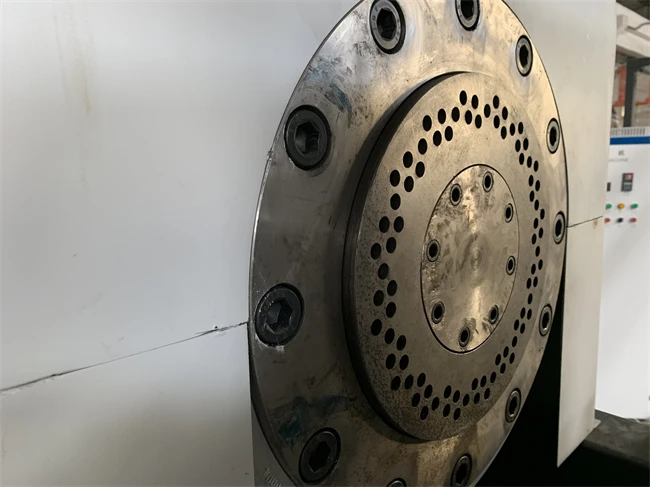

Mould
Material:38CrMoAl Nitrified
CNC treatment
CNC treatment
Cutter
Cutting hood material:stainless steel
Cutting motor and cutting shaft connect directly
Cutting motor and cutting shaft connect directly
Wind transition + silo
Material: stainless steel

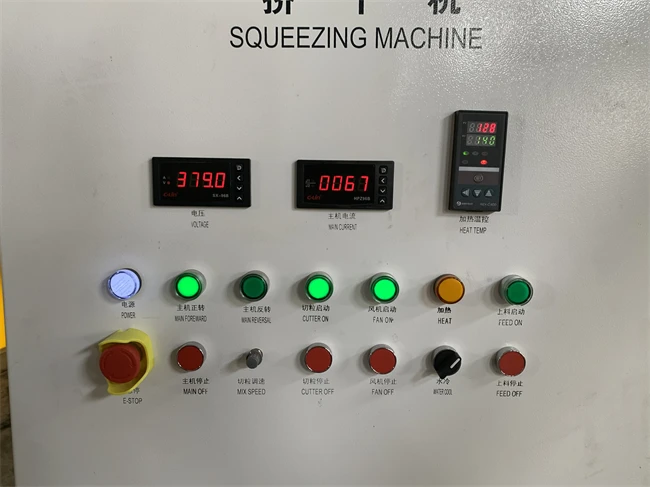

Control cabinet
Final production
PRODUCT SPECIFICATIONS
Model | Capacity (KG) | Motor power(kw) | Screw diameter (mm) | Rotation speed (rmp) | Cutting motor (kw) |
WQ-250 | 300 | 75 | 250 | 55 | 5.5 |
WQ-300 | 500 | 90 | 300 | 55 | 5.5 |
WQ-350 | 800-1000 | 132 | 350 | 55 | 5.5 |
SALES AND SERVICE NETWORK
FAQ
1): Are you a factory or trading company?
We are a factory and can provide customized services.
2): What services will you provide?
We will provide all the machines for the complete production according to customer's requirements.
We will provide complete service for factory layout and other information to help customer to build the factory.
We will provide good service for machine installation and training, until the customers can run the machines and make stably production. Except one year quality guarantee, we will provide after-sell service for all the life.
3): What can i buy from you?
Plastic crusher, Plastic Washing Recycling Line, Plastic Pelletizing Recycling Line, Pet Bottle Recycling Line, Plastic Squeezing Machine, Plastic Pipe/ Profile Extrusion Line...etc. We are a factory and can provide customized services.
4): Why should i buy from you not from other suppliers?
We have more than 10 years experience in fabricating the machine.
5): What basic terms can you accept?
Accepted Delivery Terms: FOB,CFR,CIF,EXW;
Accepted Payment Currency: USD,EUR,CNY;
Accepted Payment Type: T/T,L/C.
We are a factory and can provide customized services.
2): What services will you provide?
We will provide all the machines for the complete production according to customer's requirements.
We will provide complete service for factory layout and other information to help customer to build the factory.
We will provide good service for machine installation and training, until the customers can run the machines and make stably production. Except one year quality guarantee, we will provide after-sell service for all the life.
3): What can i buy from you?
Plastic crusher, Plastic Washing Recycling Line, Plastic Pelletizing Recycling Line, Pet Bottle Recycling Line, Plastic Squeezing Machine, Plastic Pipe/ Profile Extrusion Line...etc. We are a factory and can provide customized services.
4): Why should i buy from you not from other suppliers?
We have more than 10 years experience in fabricating the machine.
5): What basic terms can you accept?
Accepted Delivery Terms: FOB,CFR,CIF,EXW;
Accepted Payment Currency: USD,EUR,CNY;
Accepted Payment Type: T/T,L/C.
