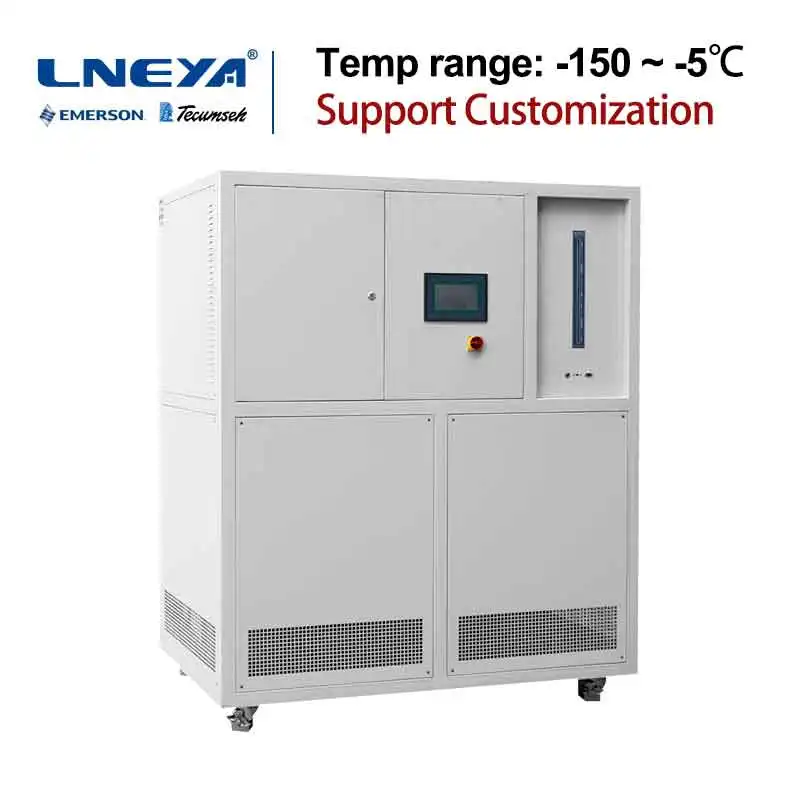

LNEYA -150c Ultra Low Custom Chiller Cryo Cooler System
Products Description
LNEYA specializes in the production of single-fluid cryogenic chillers. The refrigeration temperature ranges from -150°C to -5°C, which can meet the needs of different refrigeration temperatures. Products are widely used in chemical, pharmaceutical, biochemical and other industries in the field of low temperature reaction, refrigeration speed, safety and reliability. The company developed a direct-cooled ultra-low temperature chiller, using international brand compressors Carrier, using automatic cascade refrigeration mode and mixed refrigerants, within 3 minutes can be refrigerated to minus 120°C.
1 | alarm system |
2 | control panel |
3 | oil pressure difference protector |
4 | level gauge |
5 | frozen water import and export |
6 | cooling water inlet and outlet |

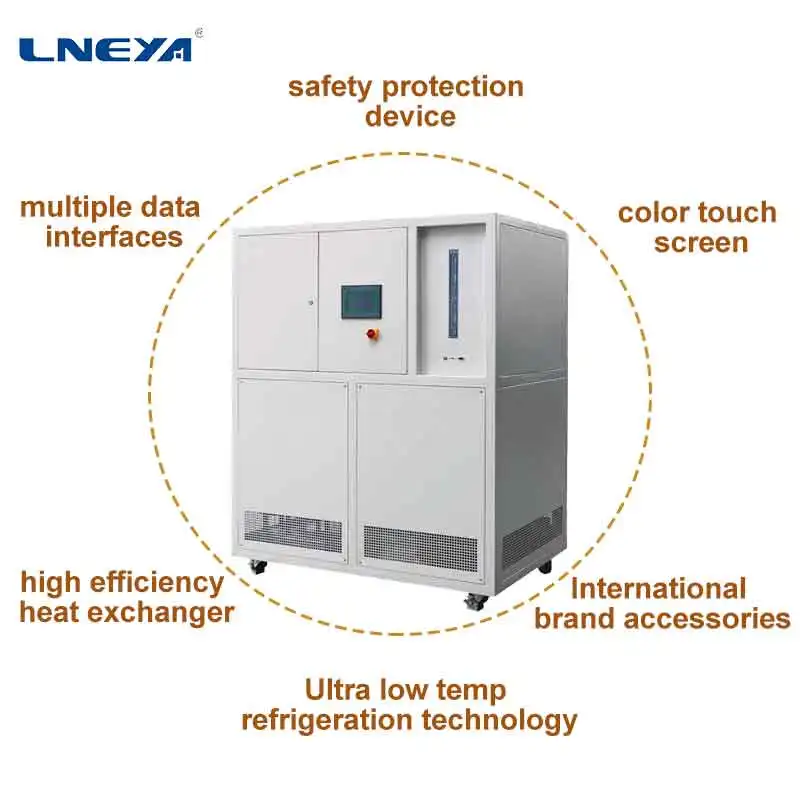

Features and advantages of industrial chiller
1.Temperature ranges from -5℃ ~ -150℃, can meet different temperature
2. Famous brand semi-closed piston compressor, semi-closed bipolar piston compressor, semi-hermetic screw compressor, main brand are BOCK. Bitzer, Copeland, Handbell, fusheng; Plate heat exchanger, Small volume, High efficiency
3. Top imported cold controller; Generator cooling water circuit uses intermediate heat exchanger, improve system reliability and safety
4. DANFOSS electronic expansion valve, high precision control
5. Adopt Siemens PLC S7-200/300, LNEYA touch screen, automatic control, temperature curve display, temperature record U disk, fault alarm
6. Offer machine installation and system test, users only need to finish the installation of refrigerant and cooling water
5. Adopt Siemens PLC S7-200/300, LNEYA touch screen, automatic control, temperature curve display, temperature record U disk, fault alarm
6. Offer machine installation and system test, users only need to finish the installation of refrigerant and cooling water
Compressor:
Adopt the world famous brand compressor, enhance the cooling effect and reduce the energy consumption.
Touch Screen:
Siemens 7-inch color touch screen, digital curve display, support data export.
Electric Cabinet:
Compact design, strong structural versatility, adopt standard module design, high technical performance.
Product Paramenters
Model | SLJ-2(W) | SLJ-4(W) | SLJ-4(W) | SLJ-6(W) | SLJ-11(W) | ||||||
Temp range | -150～-110℃ (optional: -150 ~ -5℃) | ||||||||||
Cooling capacity (KW) AT | -120℃ | 2kW | 3kW | 4kW | 6kW | 11kW | |||||
-135℃ | 1.4kW | 2.1kW | 2.8kW | 4.2kW | 7.7kW | ||||||
Evaporator area | 1.5m2 | 2m2 | 2.8m2 | 4m2 | 7.8m2 | ||||||
Compressor | Copeland/Danfoss/Emerson/TECUMSEH | ||||||||||
Operation Panel | 7-inch color touch screen display, temperature curve record | ||||||||||
Control System | SIEMENS S7 PLC&Module，Set temperature difference of refrigeration on & off | ||||||||||
Evaporator | Danfoss/KAORI plate heat exchanger | ||||||||||
Intermediate heat exchanger | Danfoss/KAORI plate heat exchanger | ||||||||||
Refrigerant | R404A /R23/R14/R50 Mixed Refrigerant | ||||||||||
Cooling Water AT 20℃ | 2.5m³/h | 3m³/h | 4m³/h | 6m³/h | 10m³/h | ||||||
Dimension cm | 70*100*175 | 75*75*175 | 75*75*175 | 100*95*205 | 120*110*205 | ||||||
Power 380V 50HZ | 8.6kW | 12kW | 16kW | 24kW | 36kW | ||||||
Weight （kg） | 320kg | 350kg | 400kg | 600kg | 950kg | ||||||
LNEYA has several high-quality designers with rich experience in ultra-low temperature and high-low temperature development. At present, the company is at the advanced level of its peers in the R & D of refrigeration technology, at the international advanced level in the research of high and low temperature rapid temperature rise and fall technology, and at the advanced level in the research of single medium temperature control of reactor.
Company Profile
Wuxi Guanya Refrigeration Technology Co., Ltd. specialized in the industrial chiller, environmental chamber, industrial freezer, thermostatic bath, multi-reactor chiller (TCU), recirculating air control system and ultra-low temp. water-cooled chiller.We are the technology leader for high precision thermoregulation solutions in research and development industry. Our products ensureprecise temperature control throughout the whole world in the semiconductor industry, chemical/pharmaceutical industry, biotechnology industry, research/lab/university, food/medical/hospital(health)and laptop/Mobile Phone. Our products offer temperature control solutions for applications from -152 to +350℃.
Product packaging
Certifications
So far, LNEYA has 11 patents of utility model authorized certificate.
As an enterprise certified by ISO9001, LNEYA has reached international standards in the integration of various management systems. The products of LNEYA, CE is used as a permit for the product to enter the European market.
