Door Access Control 7'Inch 2 Wired Video Door Phone System Visual Video Intercom Doorbell Camera Kit Support Unlock
- Category: >>>
- Supplier: Guangzhou Paili Technology Co. Ltd.
Share on (1600512006557):
Product Overview
Description
Product Description
Product performance description

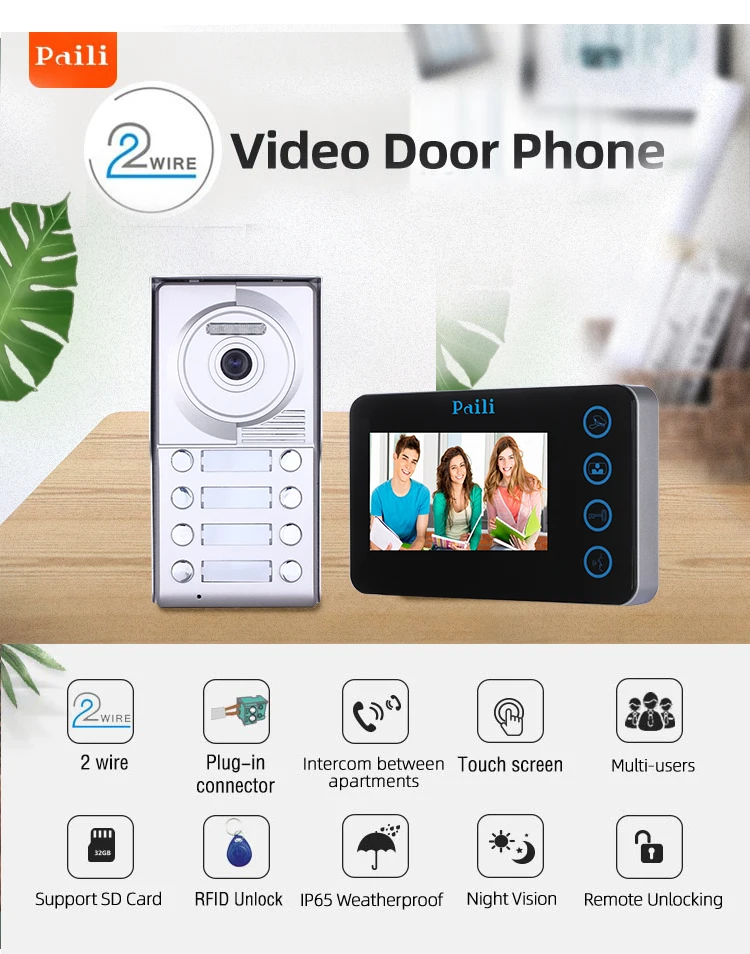

Video Door Phone, 2 Wire Video Intercom,Video Intercom System

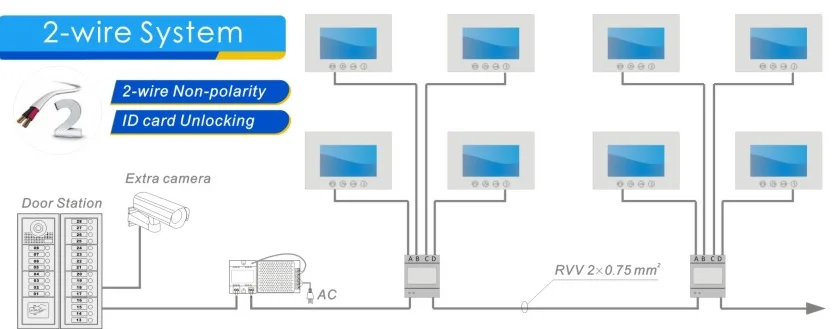

The 2-wire system required only two wires, power, audio, video and control signal all transmitted by a 2-wire cable, non polarity,
central power supply. Use Plug-in connectors and DIP switchers for rapid installation.Integrated Multi functions with simple

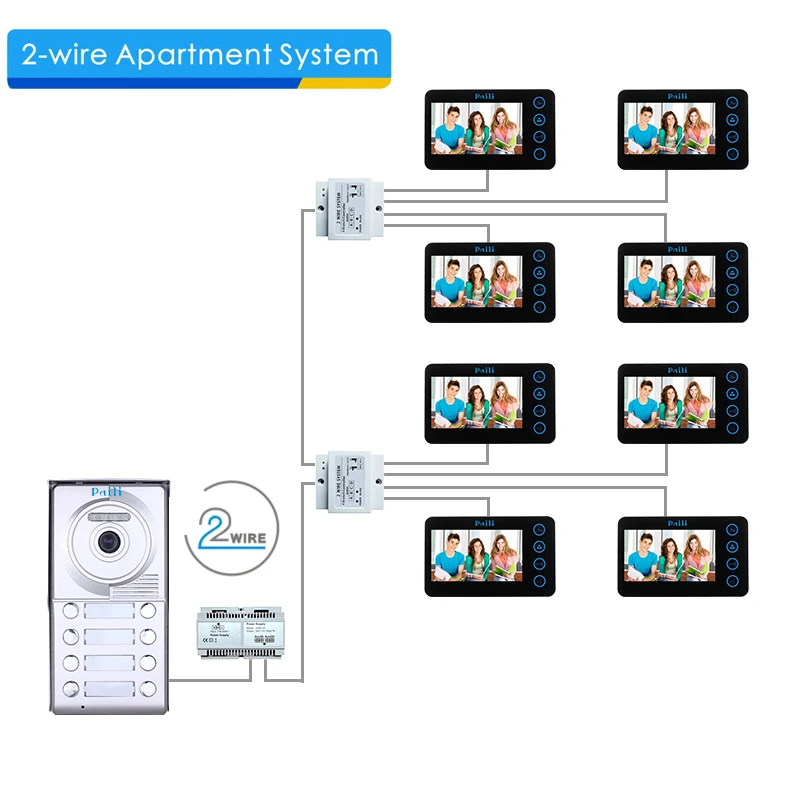

operation makes the system more attractive, Flexible cable connection to wire, support in-out, branching and mixed mode.Dual
intercom communication between indoor units;inner picture memory and extended SD card recording, CCTV camera integrated, call
transfer via IP module to mobile phone.
The 2-wire system required only two wires, power, audio, video and control signal all transmitted by a 2-wire cable, non polarity,
central power supply. Use Plug-in connectors and DIP switchers for rapid installation.Integrated Multi functions with simple
operation makes the system more attractive, Flexible cable connection to wire, support in-out, branching and mixed mode.Dual
intercom communication between indoor units;inner picture memory and extended SD card recording, CCTV camera integrated, call
transfer via IP module to mobile phone.
Door station | Model | PL702 |
Material | Stainless steel panel | |
Power supply | DC 24V | |
Power consumption | Standby 20mA, working 110mA | |
Camera | CMOS wide angle fisheye lens | |
Visual angle | 120º | |
Button | 1/2/3/4/8 | |
Unlock power output | DC 12V, 300mA(Internal power) | |
Protection | IP 54 | |
Installation | Flush mounting | |
Working temperature | -25°C~55°C | |
Wiring | 2 wire (Non-polarity) | |
Dimension | 180x94x40 mm |
indoor Monitor | Model | PL838 |
Screen | 838 inch color digital TFT screen | |
Resolution | 480*272 pixels | |
Power supply | DC 24V | |
Power consumption | Standby 15mA, working 400mA | |
Working temperature | -10ºC ~ 45ºC | |
Wiring | 2 wire (Non-polarity) | |
Installation | Surface mounting | |
IP intercom | IP | |
Dimension | 162*101*23mm |
