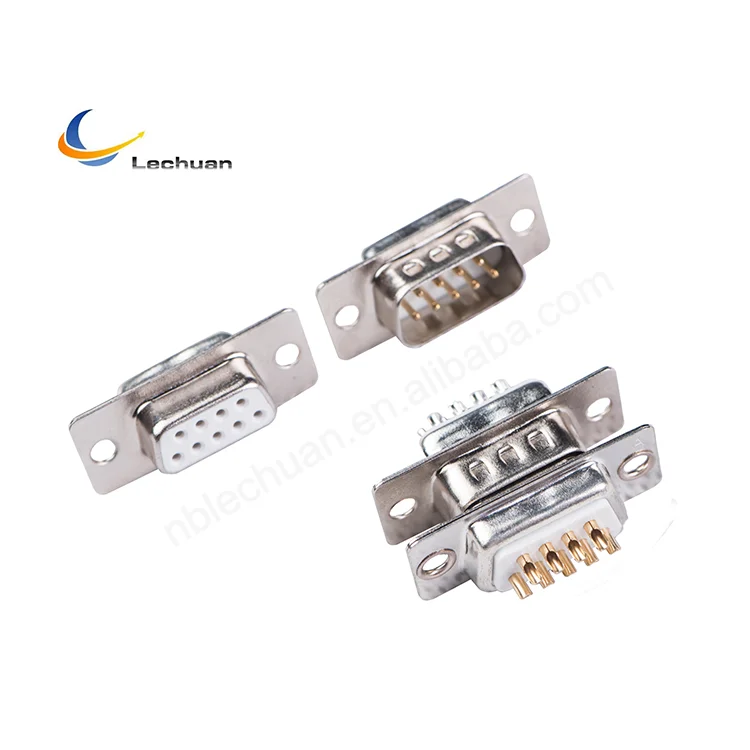

Male female D SUB connector D Connector DB9 Solder type
- Category: >>>
- Supplier: Cixi Lechuan Import And Export Co. Ltd.
Share on (1600512022225):
Product Overview
Description
Product Name | D-SUB CONNECTOR, SOLDER TYPE |
Material | Insulator:Glass filled PBT UL94V-0 |
Contacts:Brass or Phosphor Bronze | |
Plating:Contact Gold and Weld Tin over Nickel | |
Electrical Characteristic | Insulator Resistance:1000MΩmin. at 500V DC |
Contact Resistance:30mΩmax. at DC 100mA | |
Withstanding Voltage:1000V AC/rms 50Hz For 1 minute | |
Current Rating:3 AMP | |
Environment | Operating Temperature:-40℃～+105℃ |
