  • 90 16*4 round rope braiding machine elastic rope elastic belt high speed braiding machine
90 16*4 round rope braiding machine elastic rope elastic belt high speed braiding machine
90-16*4 round rope braiding machine elastic rope elastic belt high speed braiding machine
90-16*4 round rope braiding machine elastic rope elastic belt high speed braiding machine
90-16*4 round rope braiding machine elastic rope elastic belt high speed braiding machine
90-16*4 round rope braiding machine elastic rope elastic belt high speed braiding machine
90-16*4 round rope braiding machine elastic rope elastic belt high speed braiding machine
90-16*4 round rope braiding machine elastic rope elastic belt high speed braiding machine

90 16*4 round rope braiding machine elastic rope elastic belt high speed braiding machine

Share on (1600512025650):


Price:$2,900.00 - $3,250.00

Quantity:


Product Overview

Description



Products Details


More than 1000 kinds braiding machines, there is always one for you here !








Product Application

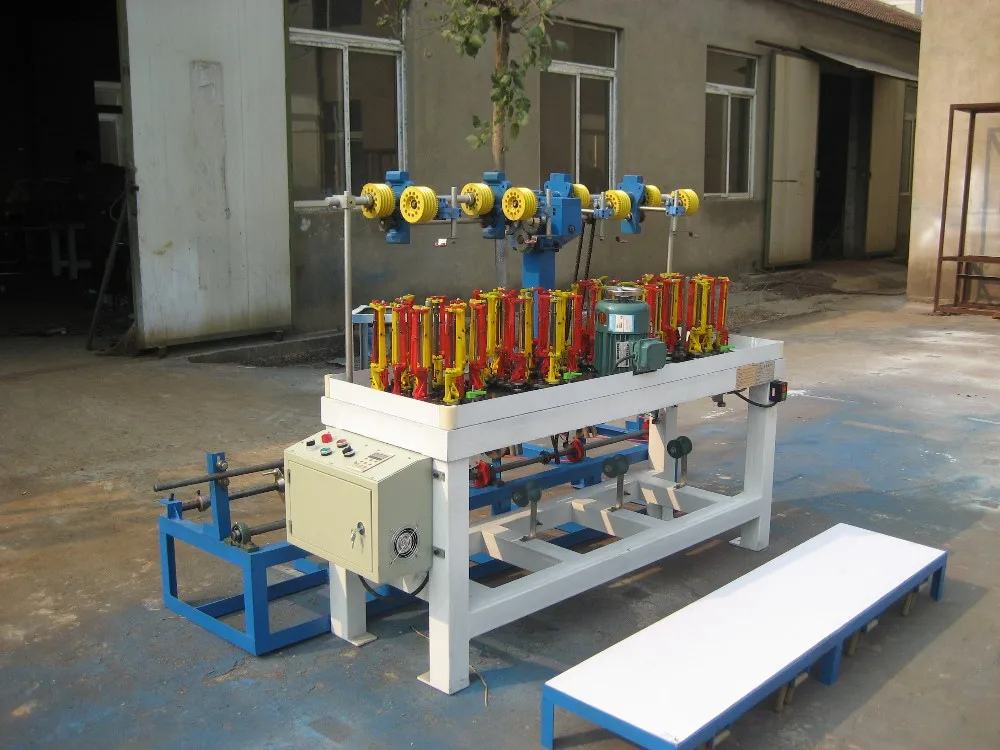

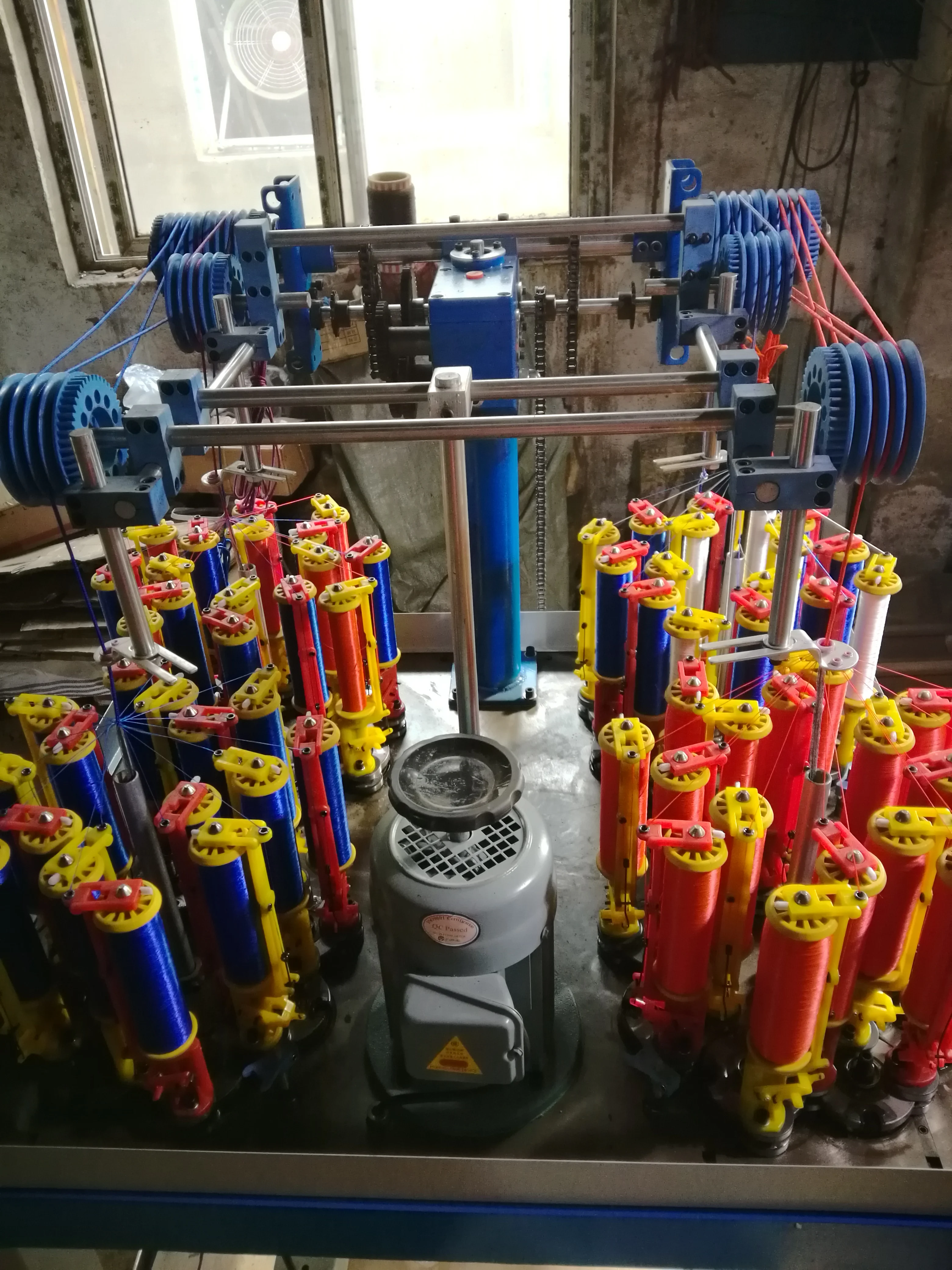

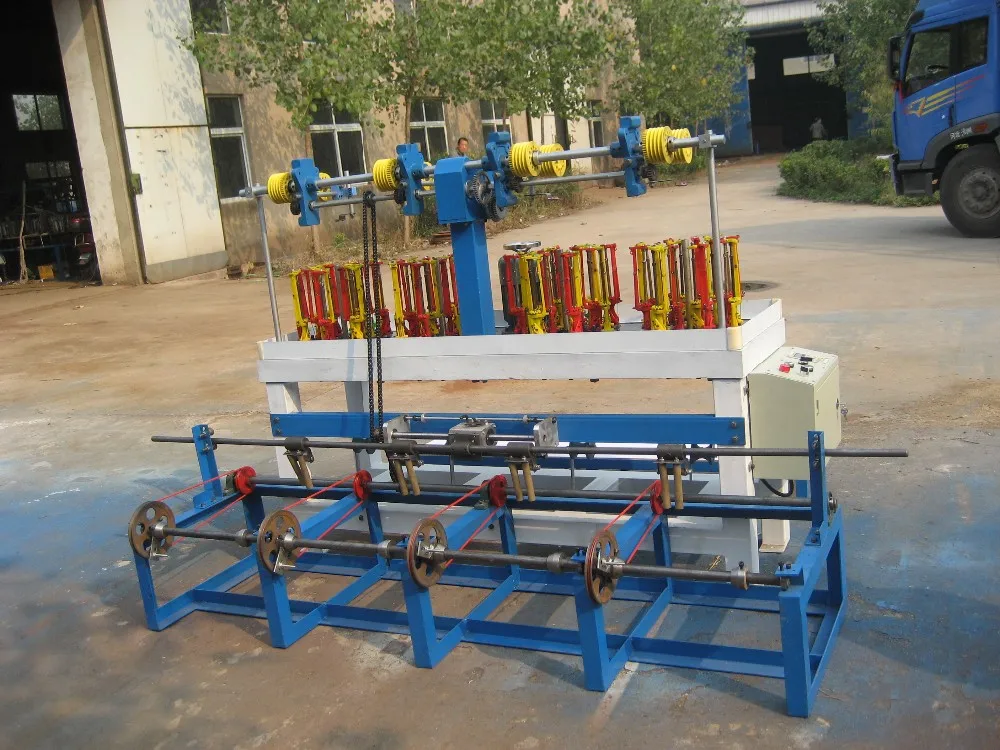

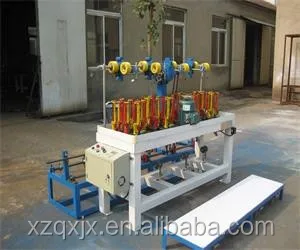

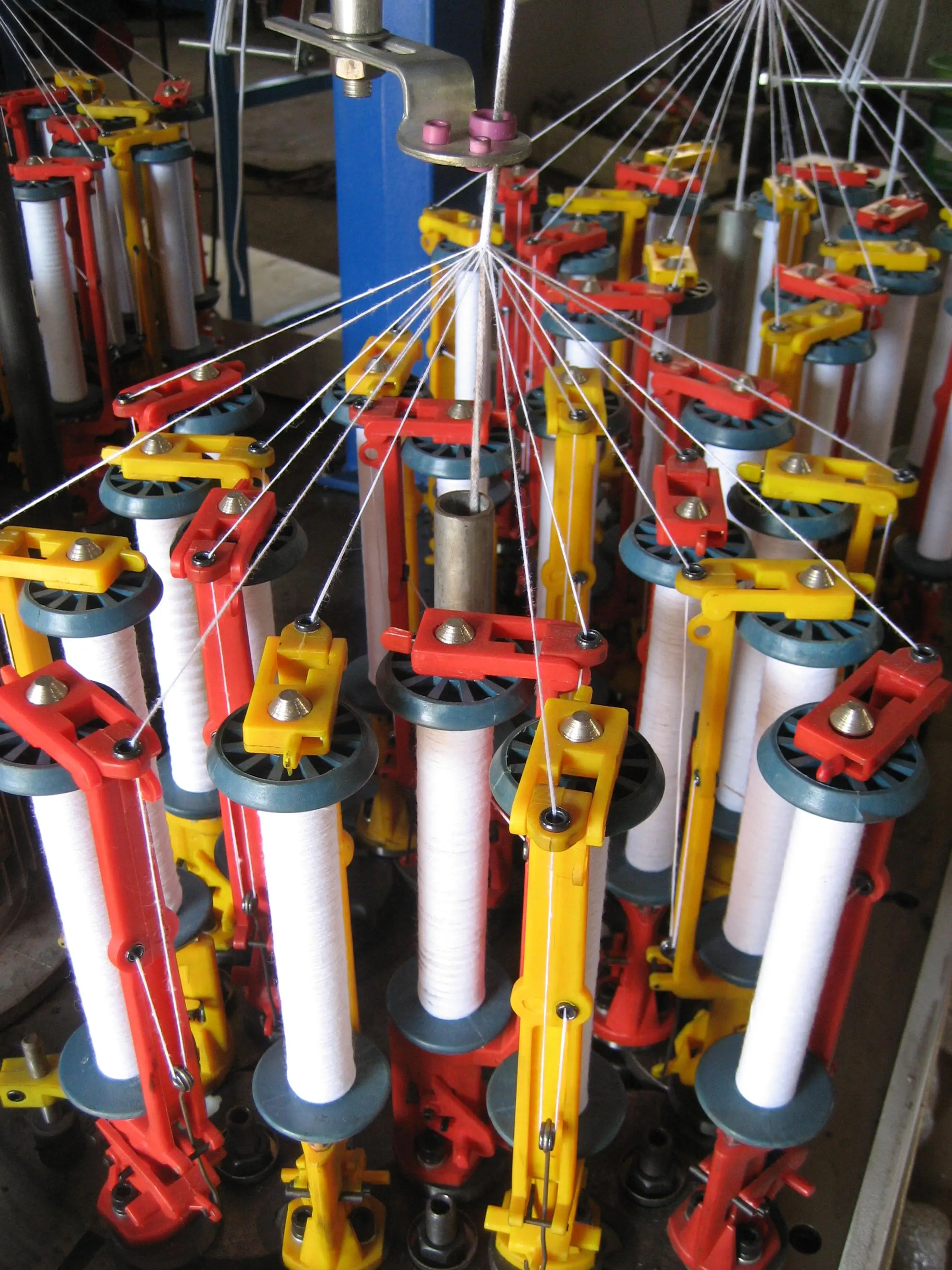

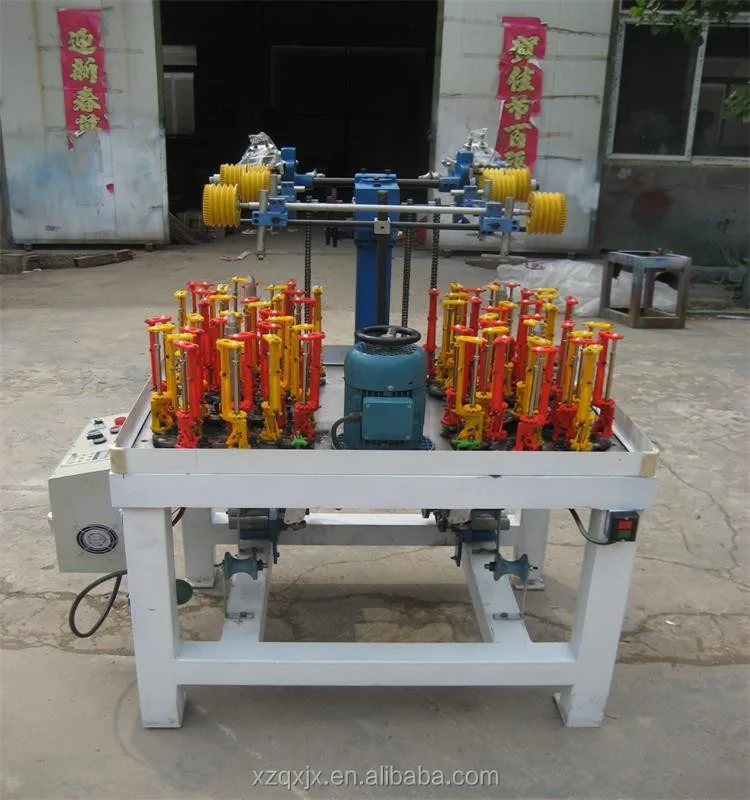

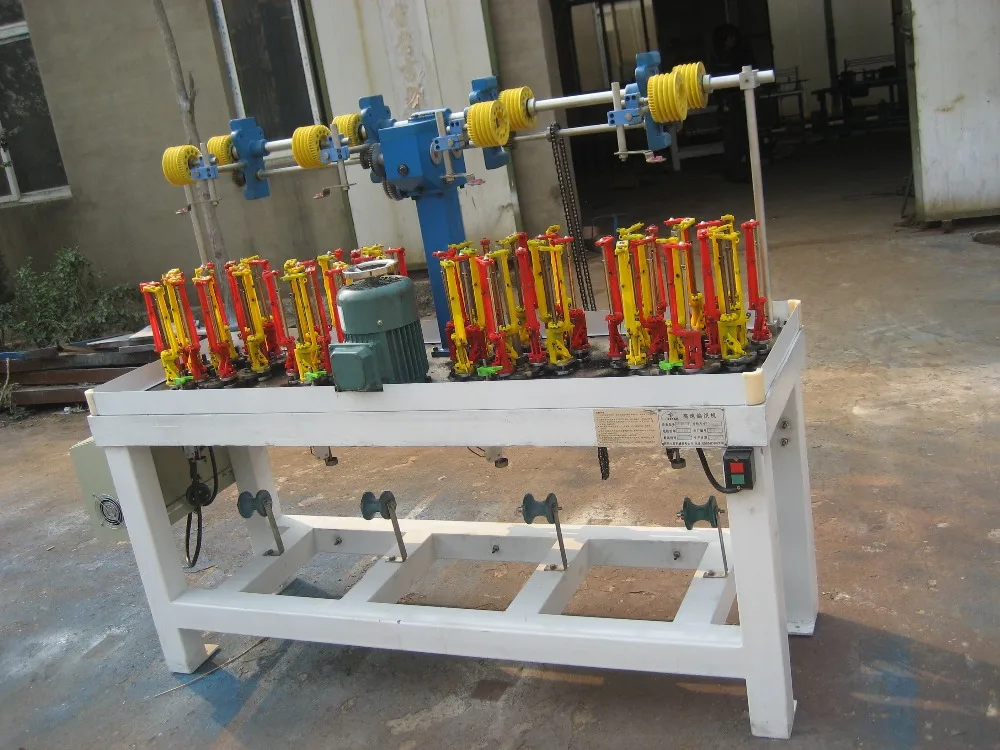

Model:QX90-16*4High Speed Braiding Machine
Head number:4
Spindle number:64pcs
Bobbin number:128pcs
Bobbin size:Ø47*142mm
Motor Power\t:0.75KW 380V 50HZ 3PH
Max Speed of Impeller:330rpm
Machine weight:500kg(for reference)
Machine size:1100*1100*1550mm(for reference)
Braided range:Ø1-8mm（for reference）


Model
Spindles
Head Number
Bobbin Size
Rope Size Range
Speed
16/2
16
2
φ47×140MM
φ1-8MM
330RMP
16/4
16
4
φ47×140MM
φ1-8MM
330RMP







Company Profile


Xuzhou Qixing Machinery Co., Ltd is professional in designing and manufacturing braiding machine, weaving machine, knitting machine, winding machine and many other braiding products. We always upholding the humanized design concept and absorbing new technical strength to update our products, serving our customers wholeheartedly. Since our company foundation in 2001,the machines we produced have won customers from many countries in Asia, America, Africa, Europe, and have been widely used in various fields to braid or knit rope, lace, cord, ribbon, band, wire and so on, such as shoelace, hair elastic fancy band, luggage band, ship rope, para cord, climbing rope, high-pressure hose, fiberglass tube, cables, packing, etc. We can also design and manufacture special models of braiding machines according to the clients' requirements. Quality, service and credit are highly valued by our company. Your feedback and advices will be appreciated so much!





Certifications






Product packaging




FAQ


1.What is the warranty for the braiding machines？
For the braiding machines ,we have one year warrnaty, if any quality problems on our side occured in this period.We will free spare parts and our technicians will be oversee to fix machines.

2.How is quality of the braiding machines?
In our company ,we have indepandent processing equipments. For damageable spare parts ,like horngear,gears,spindles and bobbins. We have heat treatment equipment.Every spare part is processed by ourselves,no worry about spare parts in the future.

3.How to get braiding machine's production?
Many clients care about the production of braiding machines.When clients provide their sample or picth size and yarn denier .We have machine speed then we can calculate the production.

4.If the machine has problem or stops working?
We have English translated operation manual and video for client reference.Also we provide engineers available to service machinery overseas after-sales service.

5.How to maintain the machines?
Change the machine oil regularly.Before working,inject some machine oil between horngear and horngear axle. After working,clear the broken yarn ,especially spindle track.
