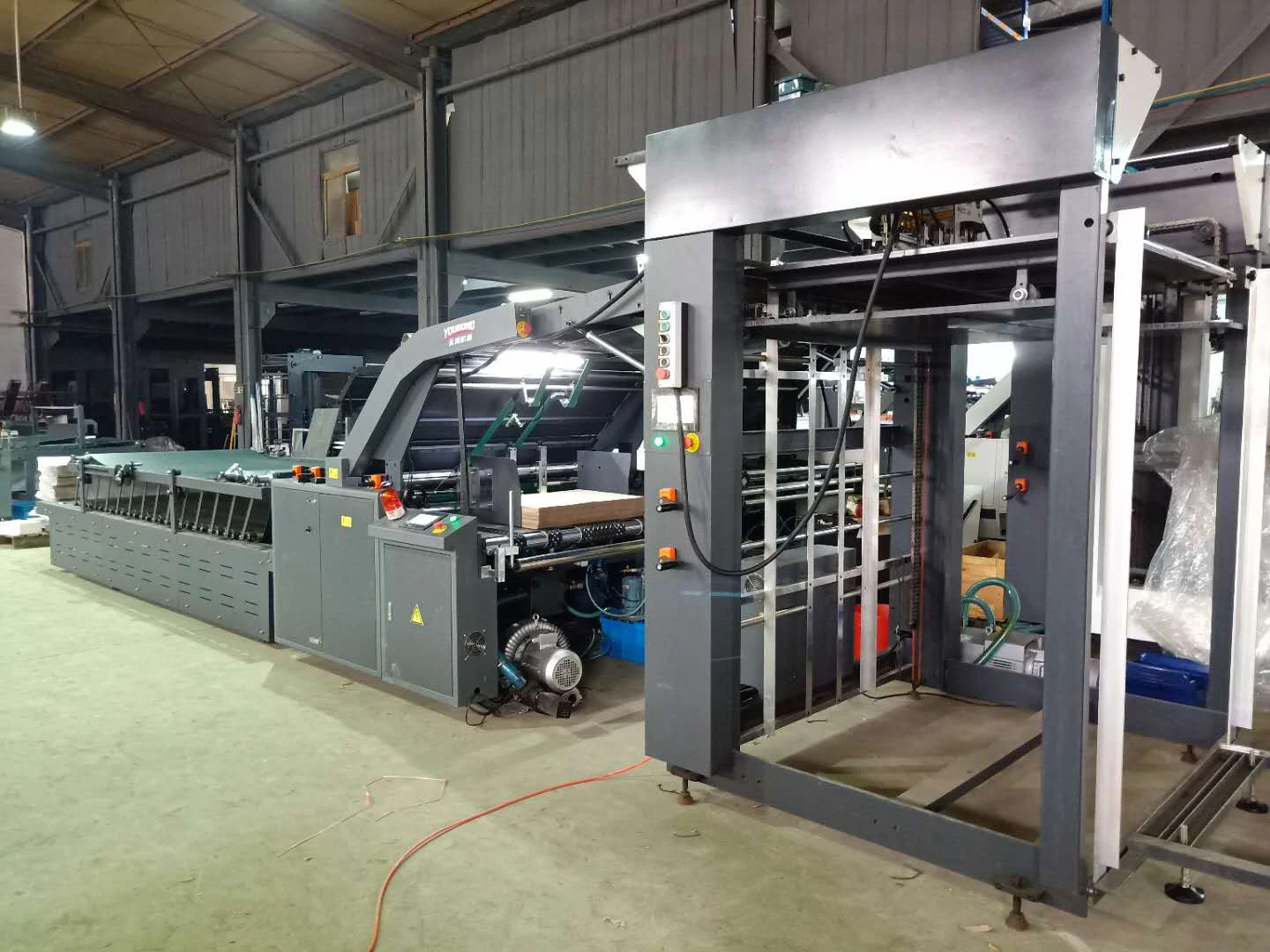

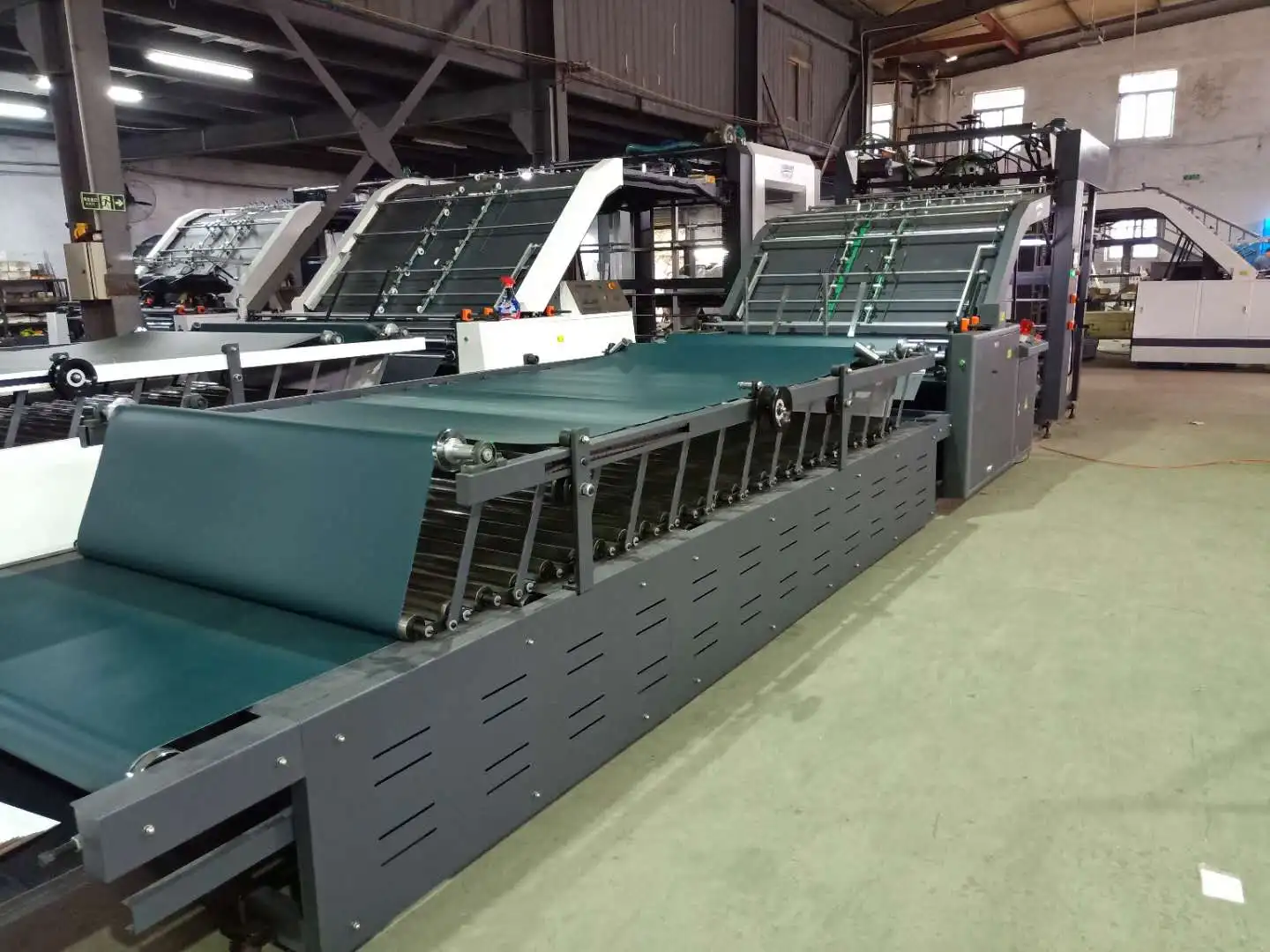

Automatic & Manual Laminating Machine with independent water tank control cycle(YB 1300D/1450D/1650D)

Manual & Auto Laminating machine, according to the actual production of users to select manually or automatically paper feeding, such as large volume / paper smooth, available feeder automatic paper feeding, otherwise can choose to manually paper feeding, regardless of the long working,short working,quality sheets and bad paper..

CHARACTERISTICS

•


  Unique front gauge positioning system, positioning accuracy, the bottom paper never exceed, top paper exceed can be adjusted.





•

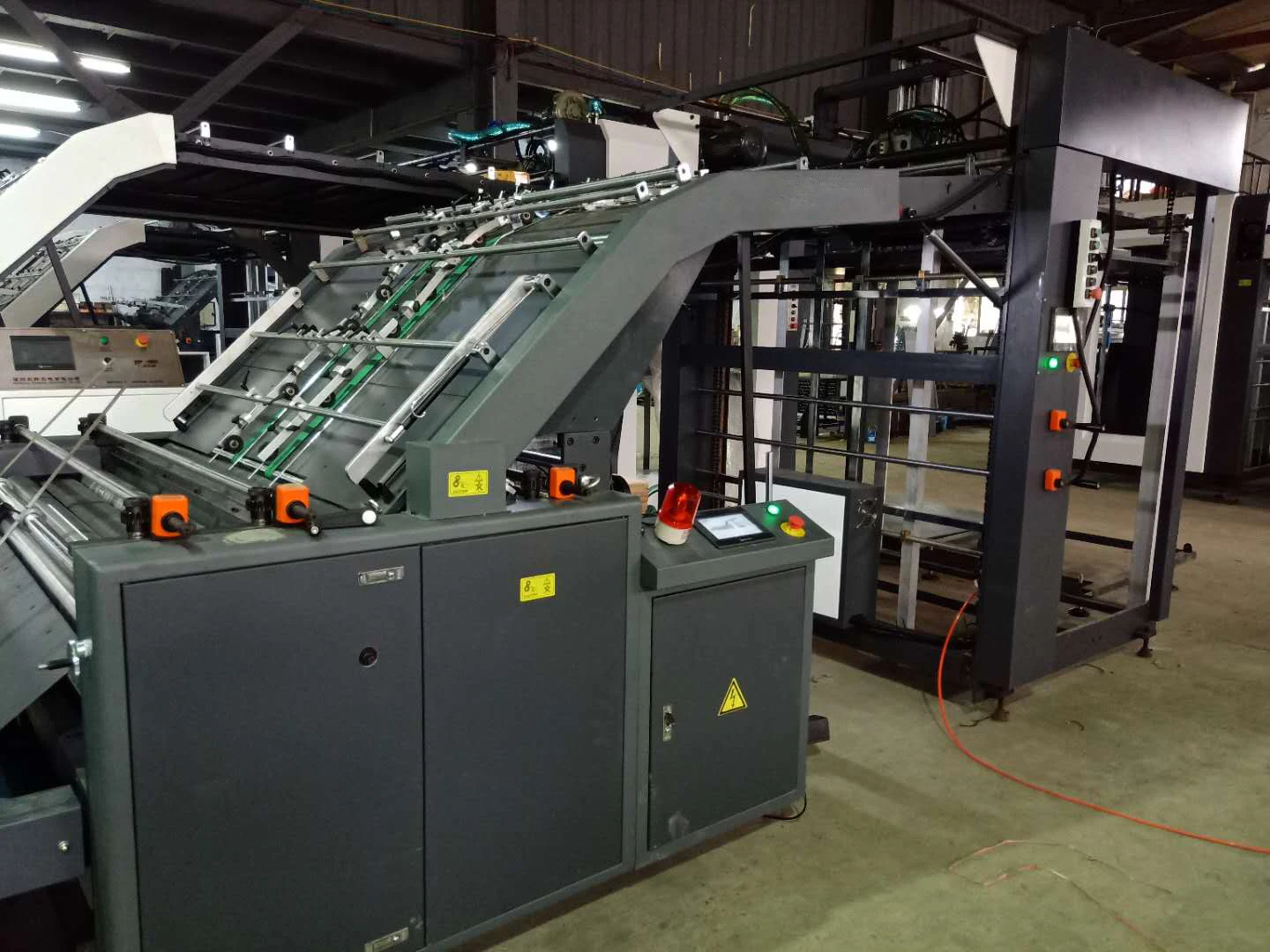

  Equipped with high precision and high speed feeder system, strengthening paper feeding device, feeding smoothly.





•


  Bottom paper using suction automatic feeding, according to main machine running speed, automatic tracking continuity.





•


  Imported electrical components ensure the stability of the electrical system. PLC tracking technology, automatic fault alarm.





•


  Fully automatic glue supplement system, can automatically replenish the loss of the glue, and cooperated, with the glue recycling.





•


  The scientific design of the roller line speed make sure the uniformity of the glue, at the same time to avoid glue being threw off during high speed running





•

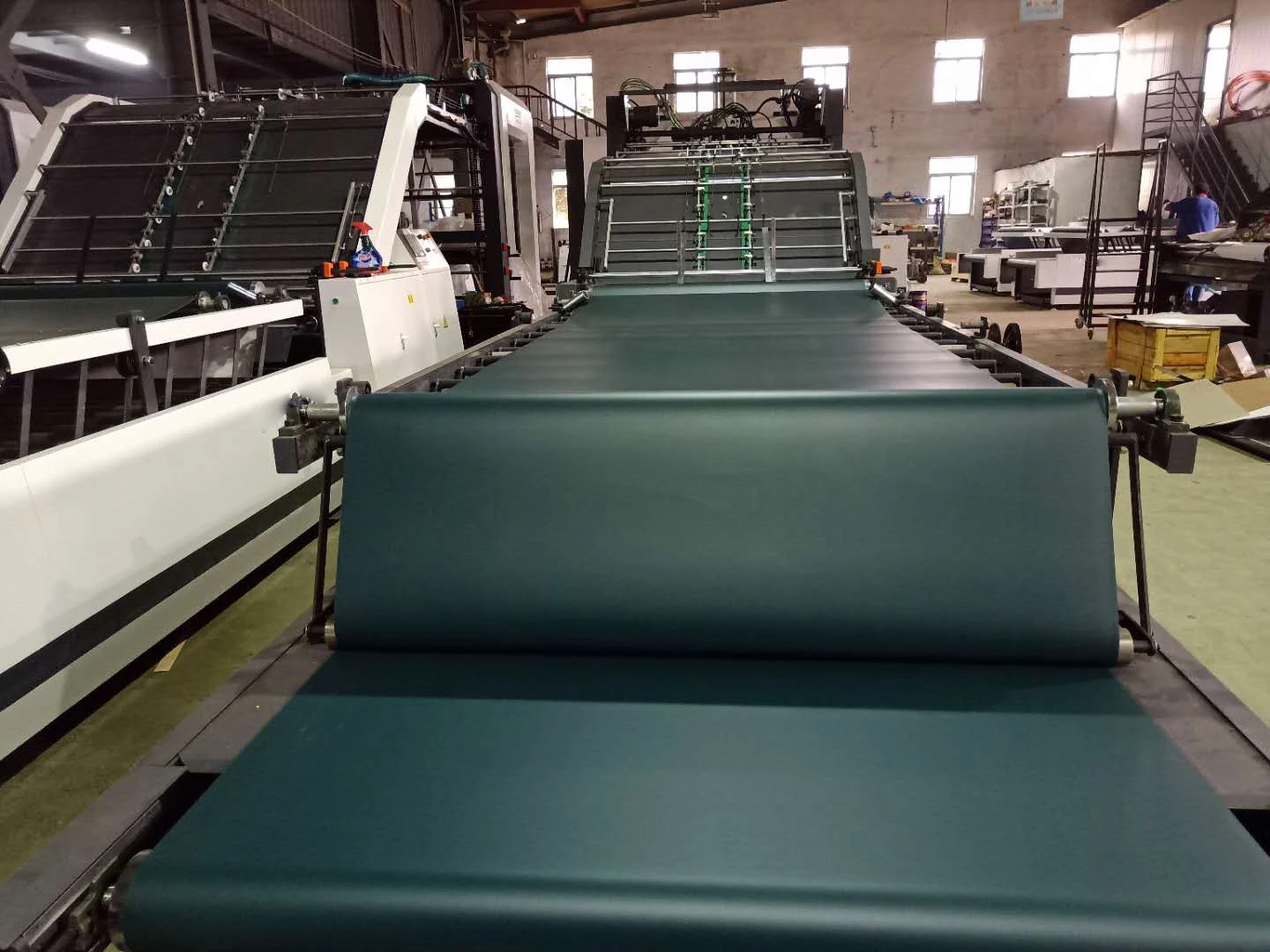

  Floating type movable pressing belt, ensure that the laminated paper will not be crushed and also ensure the sheets smooth straight.





•

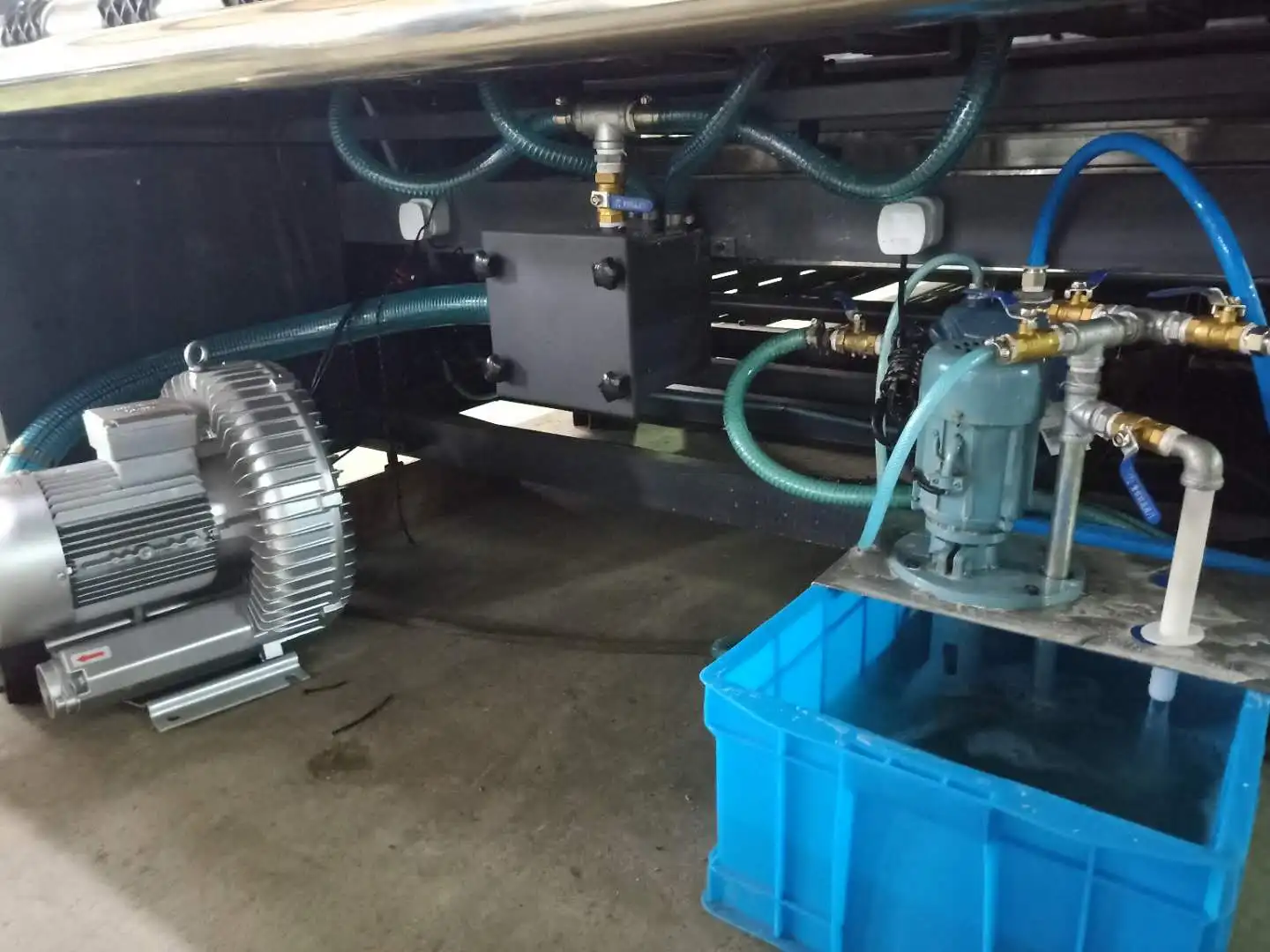

  Independent water tank control cycle, ensure the bottom paper back dry and clean, and cleaning glue rollers, glue collecting tank, back glue tank at the same time.





•


  Single side adjustment of the pressure roller, and equipped with a pressure gauge, with the record of the data , easy adjustment when change the size of bottom paper.
























                                                                             SPECIFICATION



































































  Model	YB-1300D	YB-1450D	YB-1650D
  Max Sheet	1300×1250mm	1450×1250mm	1650×1450mm
  Min Sheet	400×400mm	400×400mm	400×400mm
  Top Paper Thickness	150g-600g	150g-600g	150g-600g
  Max Speed	6000 Sheets/hour	6000 Sheets/hour	6000 Sheets/hour
  Fitting Precision	±1.5mm	±1.5mm	±1.5mm
  Measurement	10×2×2.4M	10×2.2×2.4M	10×2.4×2.4M
  Machine Weight	4500kg	5000kg	5500kg
  Machine Power	10KW/380V	11KW/380V	12KW/380V
  Bottom Paper Thickness	A,B,C,E,F,AB,BB,BC,EE Corrugated paper,Industrial paperboard











When machine arrives at the customers factory, we could dispatch the engineer to the customers factory for the installation and trainning, meanwhile, when customer has the questions, customer could contact us online, our service team will always there for customers service.
