Best Price 4mm stainless steel aluminum handheld laser welding machine 1000w 1500w 2000w for metal
- Category: Laser Welders >>>
- Supplier: WUXI QINGYUAN LASER TECHNOLOGY CO. LTD
Share on (1600512059418):
Product Overview
Description
Best Price 4mm stainless steel aluminum handheld laser welding machine 1000w 1500w 2000w for metal
Features and Advantages:
●Handheld laser welder speed is 4-10 times faster than the traditional TIG/MIG welding;●Easy to operate, no need welding work license, unskilled operator can also weld products beautifully;
●Can weld metal products of different materials and thicknesses;
●Low welding heat, no deformation of the workpiece;
●Smooth and beautiful, which reduces the subsequent grinding process and saves time and cost by laser welder.
Specification
Part Name | Description | Brand |
Laser | 1Kw-2Kw | Raycus |
Welding Head | SUP15S | QY |
Cooling Chiller | 1Kw-2Kw | Hanli |
Controller System | Hand-held feeding system | QY |
Electrical Box | Chiller and laser integrated | QY |
Electrical Components | Schneider | French |
Pneumatic Valve | SMC | Japan brand |
Wire Feeder | WF-007A | |
Holder | MT-602(0.5-1.5) | Optional |
Welding Material and Thickness
Material | 1000W | 1500W | 2000W |
Stainless Steel | 0.3mm—2mm | 0.3mm—3mm | 0.3mm—4mm |
Mild Steel | 0.3mm—1.5mm | 0.3mm—2.5mm | 0.3mm—3.5mm |
Aluminum | 0.8mm—1mm | 0.8mm—1.5mm | 0.8mm—2.5mm |
Brass | 0.8mm—1mm | 0.8mm—1.5mm | 0.8mm—2.5mm |
Applications
Professionally used for cutting 0.3-4mm stainless steel, 0.3-3.5mm carbon steel, 0.8-2.5mm aluminum, 0.8-2.5mm copper and other metal materials (thickness and material are related to the laser).
Fiber laser weldeine VS TIG welding and MIG welding
TIG welding may generate extreme heat that deforms thin materials, produces poor visual finishes, is difficult when welding copper and limited welding metals of dissimilar thicknesses.
MIG welding requires consumable wire, material pre-cleaning and beveled joints for thick metals for full penetration. Travel and work angles are limited and vertical positions are extremely challenging.
Laser welding enables dramatically faster welding, is easier to learn and operate, and provides higher-quality, consistent results across a wider range of materials and thicknesses than MIG or TIG with minimal distortion, deformation, undercut or burn-through.
Fiber Laser welder welds dissimilar metals of different thicknesses with ease and creates aesthetic high-strength joints with minimal or no consumable wire.
TIG welding may generate extreme heat that deforms thin materials, produces poor visual finishes, is difficult when welding copper and limited welding metals of dissimilar thicknesses.
MIG welding requires consumable wire, material pre-cleaning and beveled joints for thick metals for full penetration. Travel and work angles are limited and vertical positions are extremely challenging.
Laser welding enables dramatically faster welding, is easier to learn and operate, and provides higher-quality, consistent results across a wider range of materials and thicknesses than MIG or TIG with minimal distortion, deformation, undercut or burn-through.
Fiber Laser welder welds dissimilar metals of different thicknesses with ease and creates aesthetic high-strength joints with minimal or no consumable wire.
Laser Welding Machine Parts

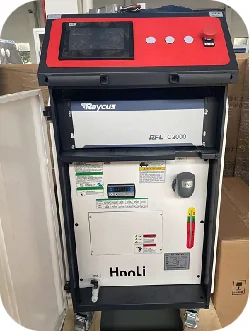

Laser and water chiller
Welding head
Wire feeder

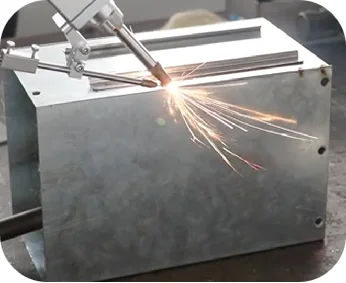

Welding Samples
Packaging

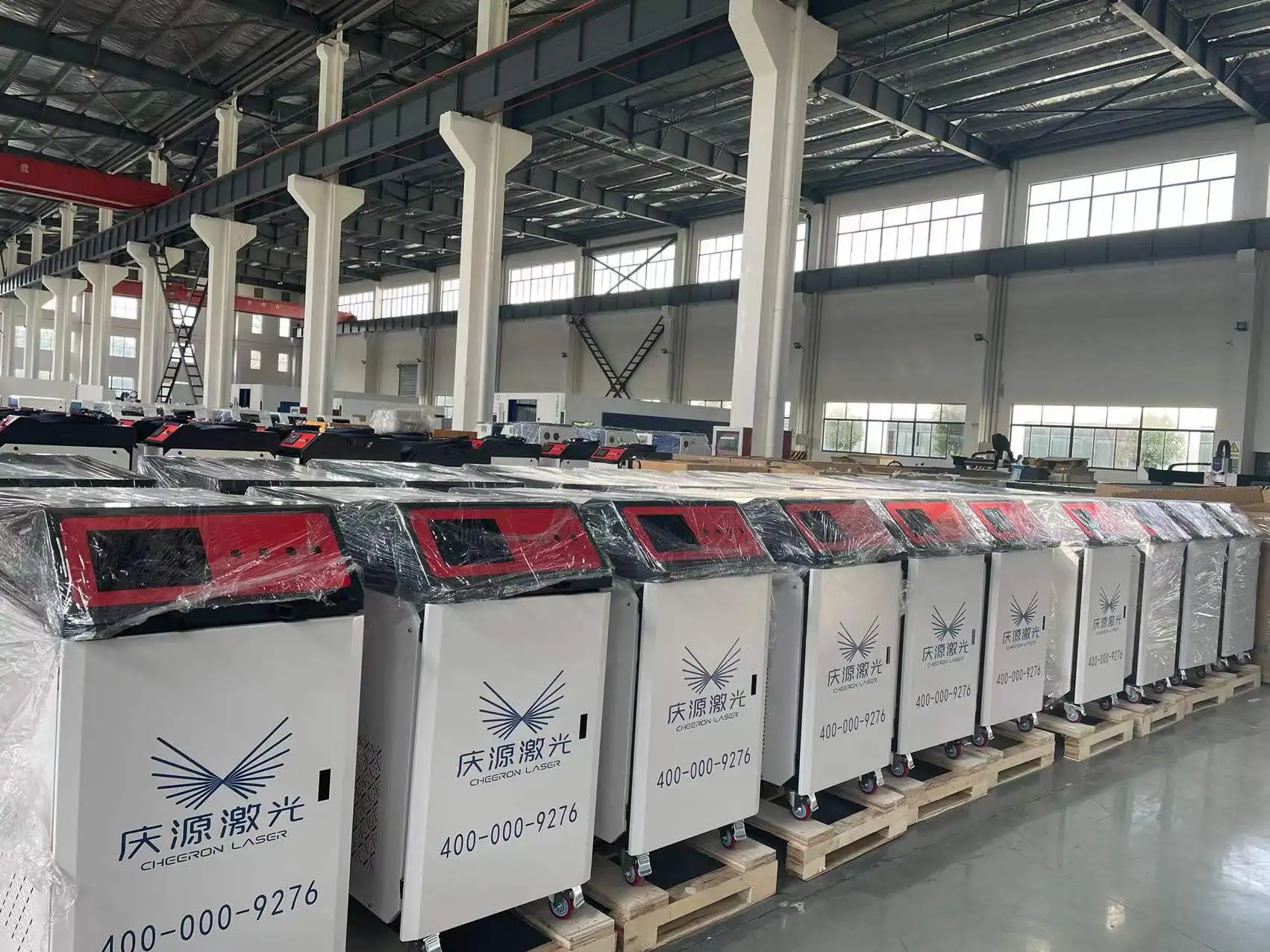

Company Profile
FAQ
1. How to select the suitable machine?
Tell us your material, detail requirements by words, pictures or video.We will recommend you the suitable model with the reasonable price.
2. How to install and use it?
We have the instruction Book, Operational manual and Training Video inside the machine.We also can provide the training on line by free.
4. If we want to learn how to operate the machine, Can you provide it?
Yes, we can. We can provide the on line training by video. We also provide free training course in our company.
Tell us your material, detail requirements by words, pictures or video.We will recommend you the suitable model with the reasonable price.
2. How to install and use it?
We have the instruction Book, Operational manual and Training Video inside the machine.We also can provide the training on line by free.
3. How to do it if we meet the issue during the operation?
You can send the wrong information to us by mail, we can help us solve it by mail.phone, or video communication.
You can send the wrong information to us by mail, we can help us solve it by mail.phone, or video communication.
4. If we want to learn how to operate the machine, Can you provide it?
Yes, we can. We can provide the on line training by video. We also provide free training course in our company.
