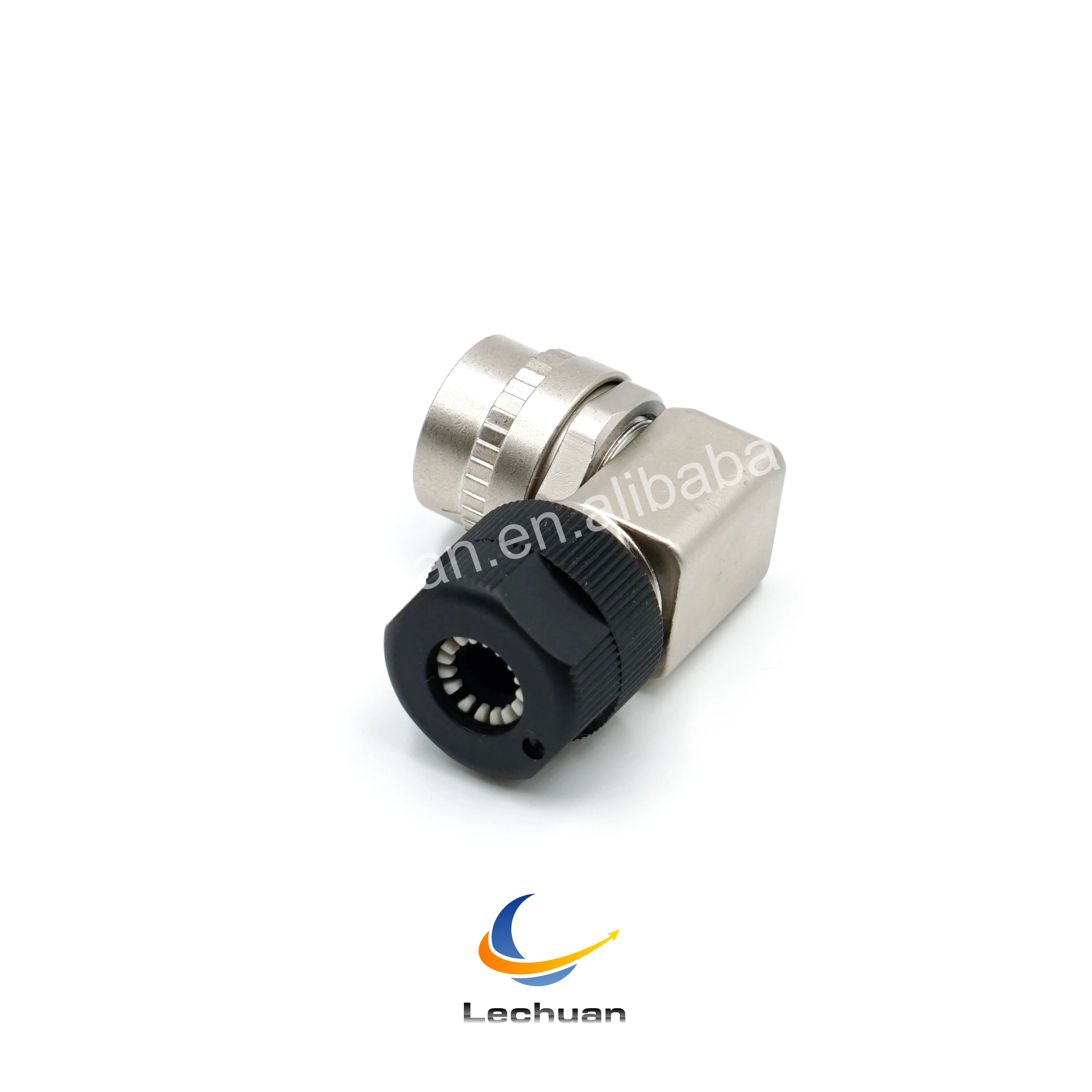

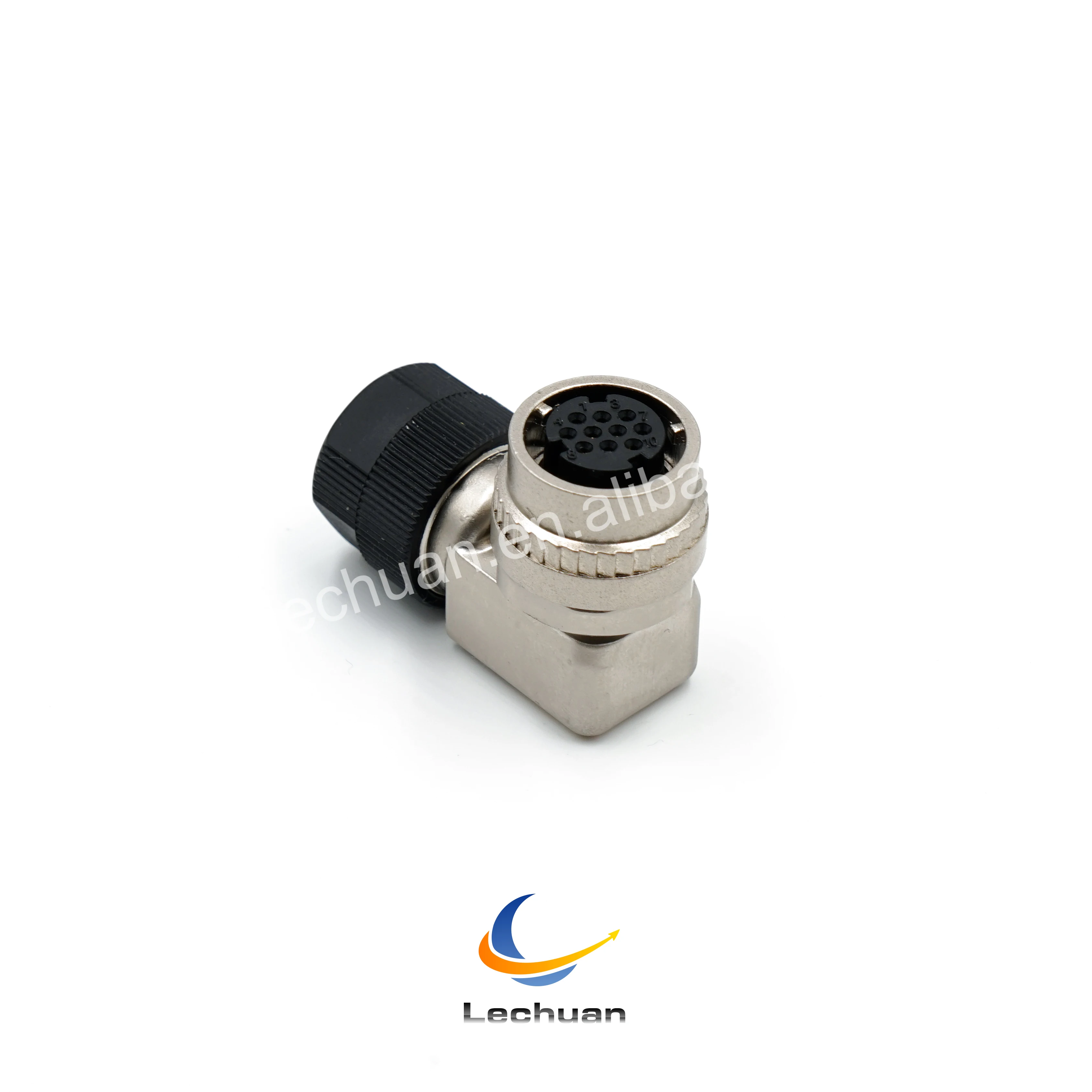

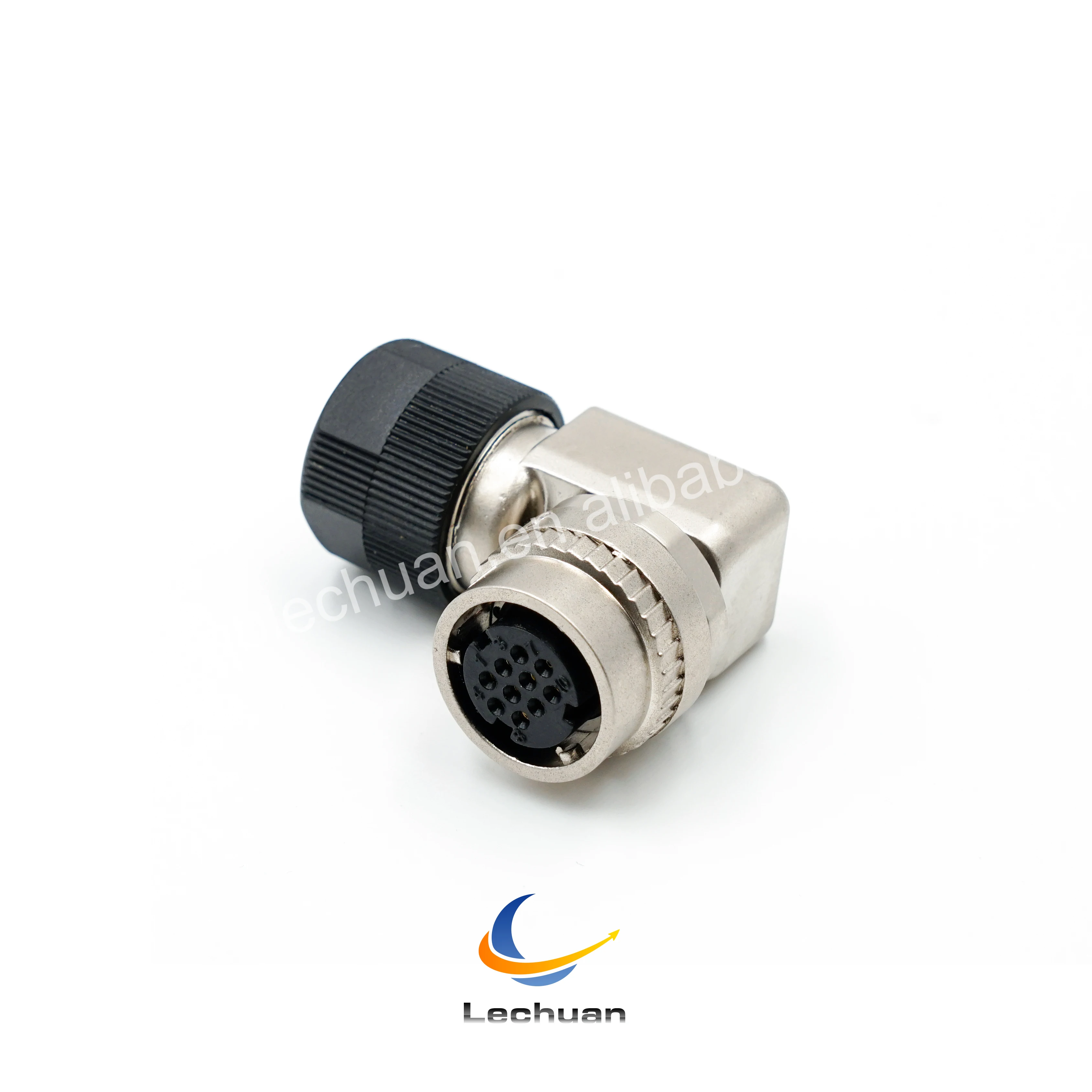

One-Touch Locking Style Small Sized Circular Connectors Encoder Connector 2Pin Metal Right angle Plug DDK CM10-AP10S-M
One-Touch Locking Style Small Sized Circular Connectors Encoder Connector 2Pin Metal Right angle Plug DDK CM10-AP10S-M
One-Touch Locking Style Small Sized Circular Connectors Encoder Connector 2Pin Metal Right angle Plug DDK CM10-AP10S-M
One-Touch Locking Style Small Sized Circular Connectors Encoder Connector 2Pin Metal Right angle Plug DDK CM10-AP10S-M

One Touch Locking Style Small Sized Circular Connectors Encoder Connector 2Pin Metal Right angle Plug DDK CM10 AP10S M

Share on (1600512061586):


Price:

Quantity:


Product Overview

Description







Product Name

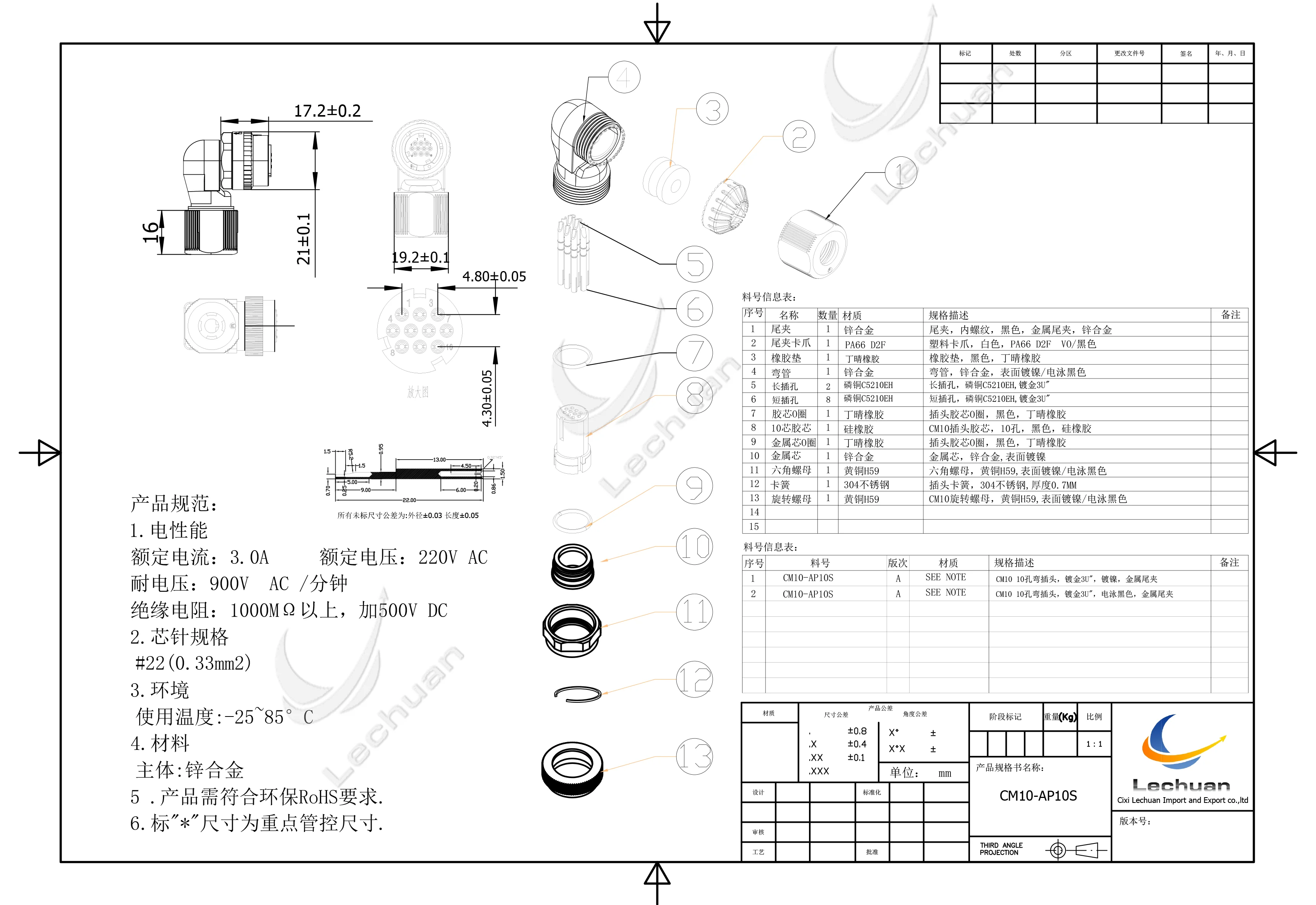

Circular Connectors CM10-AP10S-M


Electrical Characteristic
Rated Voltage：200V AC(r.m.s.)

Rated Current：3A／Contact

Dielectric Withstanding Voltage：
1500V AC(r.m.s.)／１minute. [2-Contact]
900V AC(r.m.s.)／１minute. [10-Contact]

Insulation Resistance：1000MΩ min. at 500V DC
Environment
Operating Temperature:-25℃ to +85℃
