Manufactured Ekg Machine 12 Lead Single Channel ECG Portable Electrocardiograph ECG Machine with Electrode ECG Cable Recording
- Category: >>>
- Supplier: Sinohero Changsha Meditech Co. Ltd.
Share on (1600512084315):
Product Overview
Description
Product Description

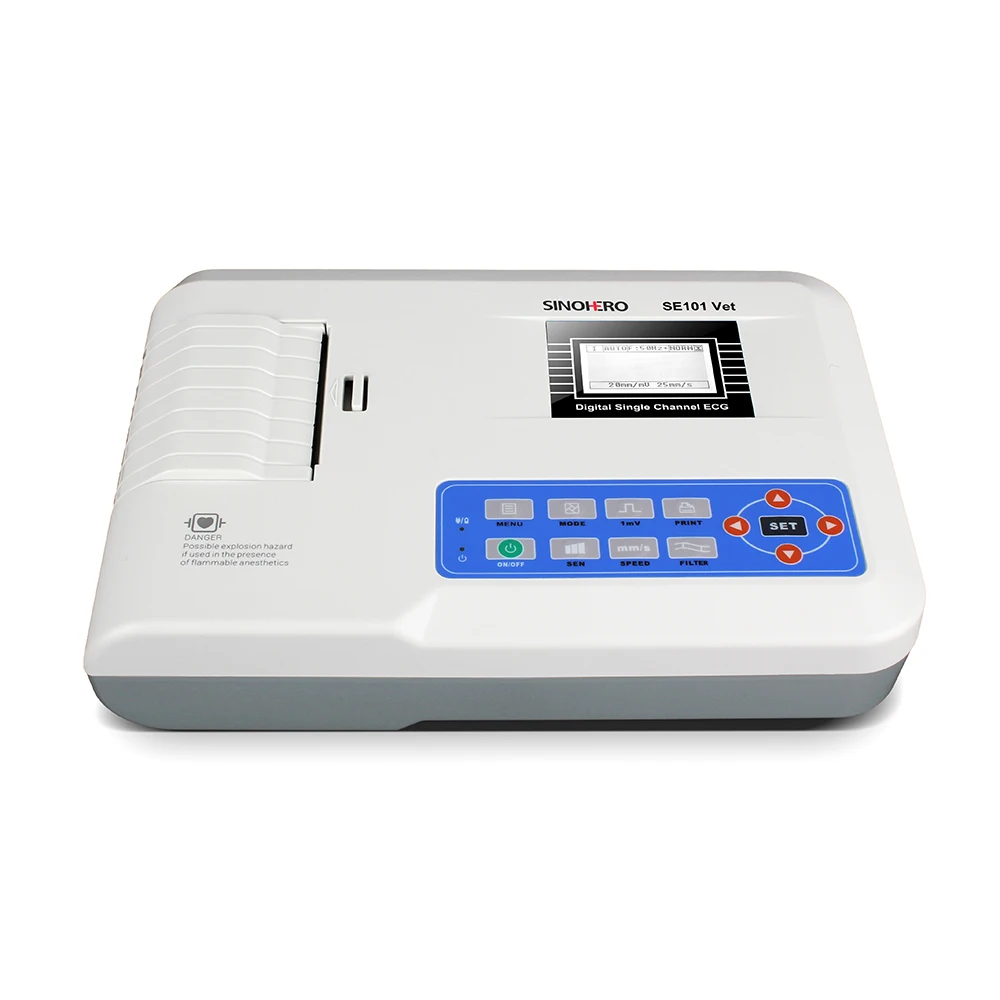

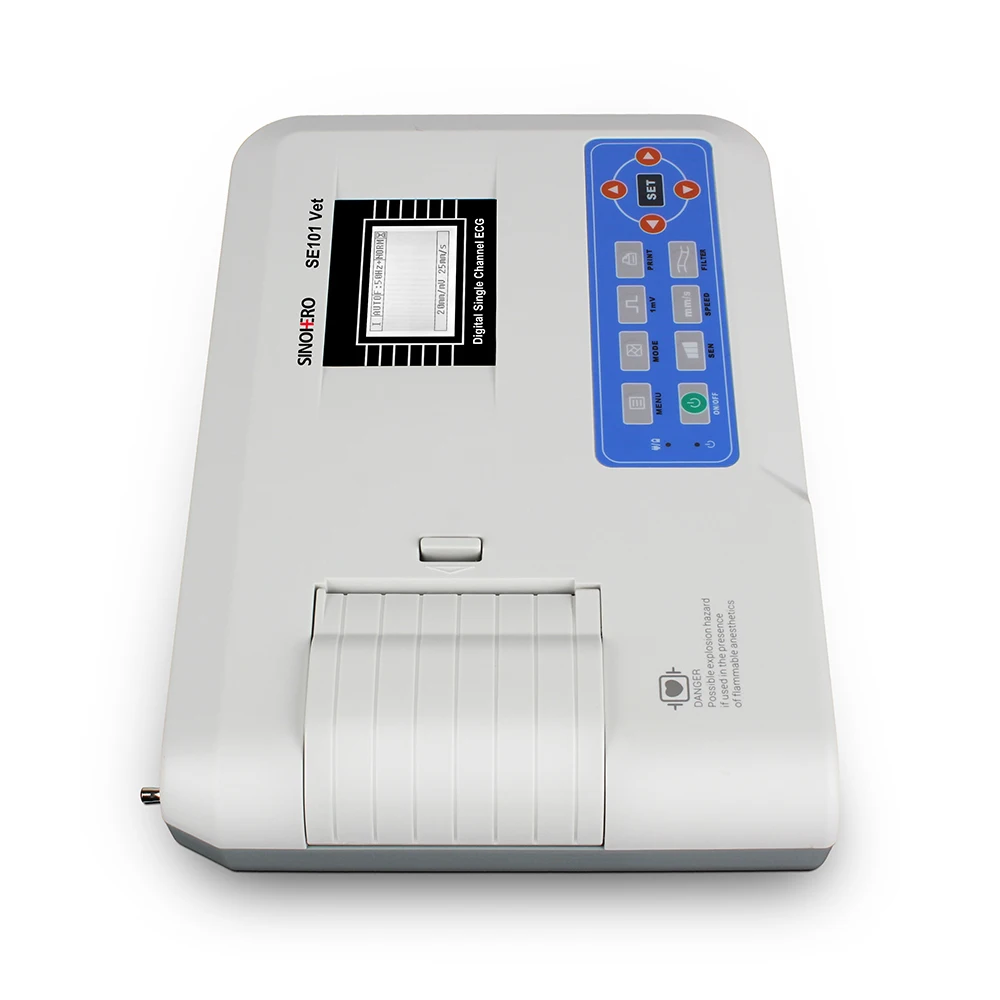

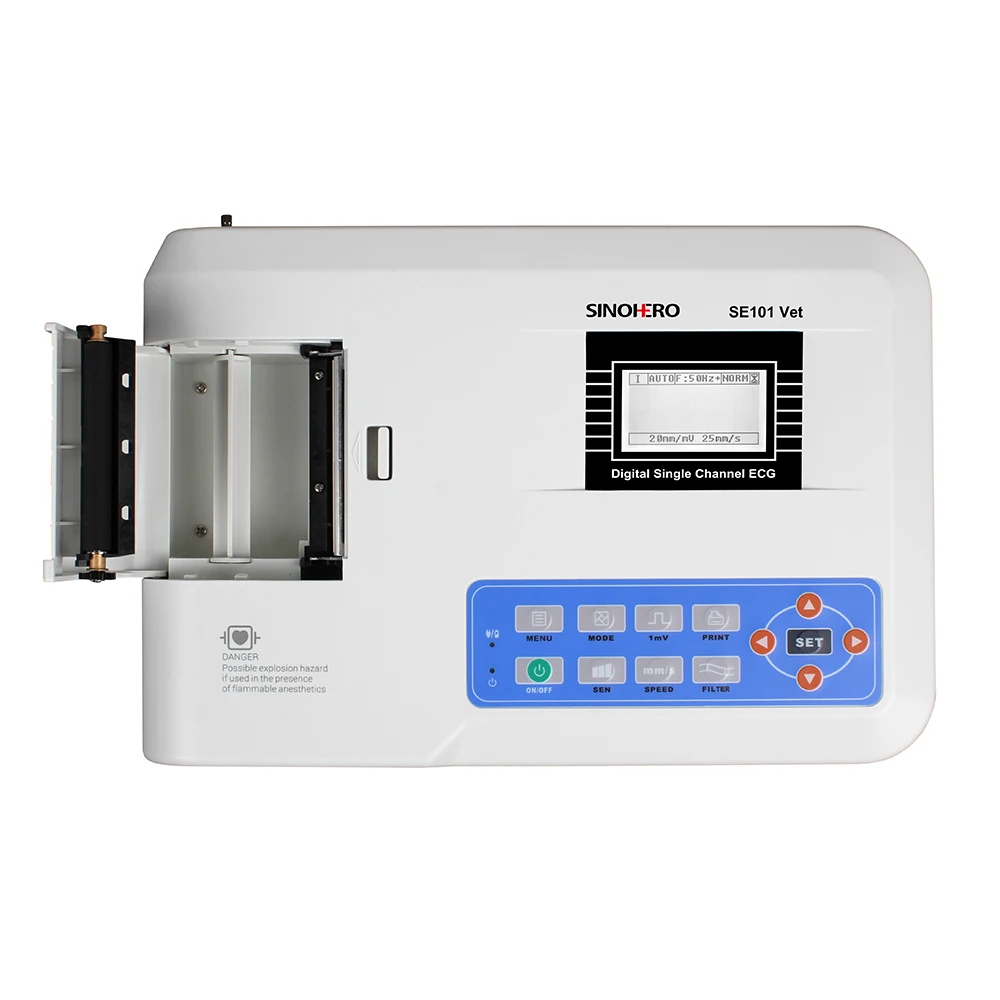

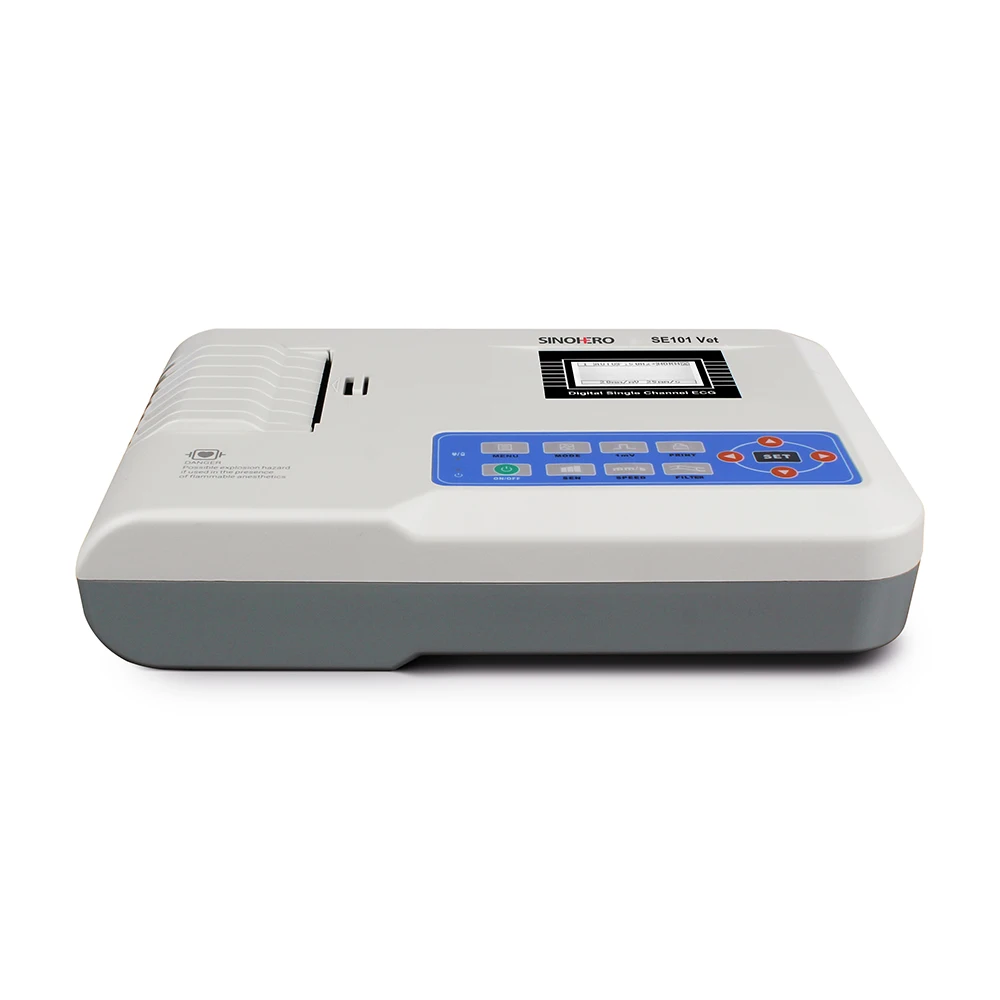

Sinohero SE101 Digital EKG Monitor Single Channel 12 leads Portable ECG Machine Electrocardiograph
● Introduction:
SE101-VET is a kind of single channel Veterinary electrocardiograph, which features in printing ECG waveform by thermal printing system, prompting for "Lead off" or "Lack of paper", multi-language interface, recording ECG waveform in AUTO/Manual mode, convenient to operate.
● Introduction:
Application:Electrocardiograph Measure ECG Recorder
● Feature:
1)Adopt digital signal processing technology and get high-quality ECG waveform via power frequency filter, baseline filter and EMG filter of ECG signal.
2)Adopt high-resolution thermal printing system(8 dot/mm), no need for any adjustments. Recording frequency: up to 150Hz.
3)Real-time and continuously record the clear and accurate ECG waveform and annotation character(including lead mark, sensitivity,paper speed and filter state, etc.).
4)In AUTO mode, finish recording by pressing the button once, which improves work efficiency.
5)Multi-language (Chinese, English, French, Italian, German, Spanish and Turkish) interface and report.
6)In optimal DC state, up to 7-hour standby time, continuous print up to 4-hour, record up to 150 ECG waveform.
● Performance:
Lead: Standard 12 leads, simultaneous acquisition
Input Circuit:Floating; Protecting against defibrillation and pacemaker effect
Input mode: floating and defibrillation protection
Frequency response: 0.05Hz ~ 150Hz(-3dB~+0.4dB)
CMRR: >60dB, >100dB(add filter)
Time constant:≥ 3.2s
Patient leak current: <10µA
Input Circuit Current:≤0.1μA
Calibration Voltage :1mV±5%
Sensitivity:2.5, 5, 10, 20, 40 mm/mV ±5%, standard sensitivity: 10mm/mV±2%
Noise level: ≤15µVp-p
Input circuit current: ≤50nA
Input impedance: ≥50MΩ
Sampling accuracy: 12-bit
Time Constant:≥3.2s
Safety classification: class I, type CF and defibrillation-proof applied part
Recording mode: thermal printing system
Paper size: 50mm(W)×20m(L)
Sampling frequency: 800Hz
EMG interference filter: 35Hz (-3dB)
Power frequency filter: AC 50Hz/60Hz(-20dB)
Paper speed: 25, 50mm/s, ±5%
Frequency Response:0.05-150Hz
Power Requirements:AC: 100-240V, 50/60Hz, 40 VA DC: 14.8V rechargeable battery
Safety Level : IEC Class I, type CF
Operation Mode :Automatic or manual
Printer:High resolution thermal array printer
Paper Speed: 6.25, 12.5, 25, 50mm/s
Recording Paper:50mmx20m, roll paper
● Feature:
1)Adopt digital signal processing technology and get high-quality ECG waveform via power frequency filter, baseline filter and EMG filter of ECG signal.
2)Adopt high-resolution thermal printing system(8 dot/mm), no need for any adjustments. Recording frequency: up to 150Hz.
3)Real-time and continuously record the clear and accurate ECG waveform and annotation character(including lead mark, sensitivity,paper speed and filter state, etc.).
4)In AUTO mode, finish recording by pressing the button once, which improves work efficiency.
5)Multi-language (Chinese, English, French, Italian, German, Spanish and Turkish) interface and report.
6)In optimal DC state, up to 7-hour standby time, continuous print up to 4-hour, record up to 150 ECG waveform.
● Performance:
Input Circuit:Floating; Protecting against defibrillation and pacemaker effect
Input mode: floating and defibrillation protection
Frequency response: 0.05Hz ~ 150Hz(-3dB~+0.4dB)
CMRR: >60dB, >100dB(add filter)
Time constant:≥ 3.2s
Patient leak current: <10µA
Input Circuit Current:≤0.1μA
Calibration Voltage :1mV±5%
Sensitivity:2.5, 5, 10, 20, 40 mm/mV ±5%, standard sensitivity: 10mm/mV±2%
Noise level: ≤15µVp-p
Input circuit current: ≤50nA
Input impedance: ≥50MΩ
Sampling accuracy: 12-bit
Time Constant:≥3.2s
Safety classification: class I, type CF and defibrillation-proof applied part
Recording mode: thermal printing system
Paper size: 50mm(W)×20m(L)
Sampling frequency: 800Hz
EMG interference filter: 35Hz (-3dB)
Power frequency filter: AC 50Hz/60Hz(-20dB)
Paper speed: 25, 50mm/s, ±5%
Frequency Response:0.05-150Hz
Power Requirements:AC: 100-240V, 50/60Hz, 40 VA DC: 14.8V rechargeable battery
Safety Level : IEC Class I, type CF
Operation Mode :Automatic or manual
Printer:High resolution thermal array printer
Paper Speed: 6.25, 12.5, 25, 50mm/s
Recording Paper:50mmx20m, roll paper
Power supply:
AC: 100V~240V(50/60Hz)
DC: 7.4V/2000mAh rechargeable lithium battery
Fuse specification: two AC time lag fuse(φ5×20mm), T1.6AL250V
Waterproof degree: IPX0
Working mode: continuous working
● Physical characteristic:
Working environment
Temperature: 5℃~40℃
Relative humidity: 25%~95%(non-condensing)
Atmospheric pressure: 700hPa~1060hPa
Transport and storage environment
Temperature: -40℃~+55℃
Relative humidity: ≤95%
Atmospheric pressure: 500hPa~1060hPa
Product size: 31.5x21.5x7cm
Packing size: 41x31x21cm
Net weight :2.5Kg
Gross weight: 3.8kg
AC: 100V~240V(50/60Hz)
DC: 7.4V/2000mAh rechargeable lithium battery
Fuse specification: two AC time lag fuse(φ5×20mm), T1.6AL250V
Waterproof degree: IPX0
Working mode: continuous working
● Physical characteristic:
Working environment
Temperature: 5℃~40℃
Relative humidity: 25%~95%(non-condensing)
Atmospheric pressure: 700hPa~1060hPa
Transport and storage environment
Temperature: -40℃~+55℃
Relative humidity: ≤95%
Atmospheric pressure: 500hPa~1060hPa
Product size: 31.5x21.5x7cm
Packing size: 41x31x21cm
Net weight :2.5Kg
Gross weight: 3.8kg
Recommend Products
ECG SE509
3-Channel ECG Machine
* 4.3” Vivid color Full Touch Screen
* 12 Leads ECG simultaneous acquisition and display
* Innovative digital filters&anti-noise technology
* Built-in high resolution thermal printer with various 3-channel report printing
* Both SD and USB memory enlarge available
* 12 Leads ECG simultaneous acquisition and display
* Innovative digital filters&anti-noise technology
* Built-in high resolution thermal printer with various 3-channel report printing
* Both SD and USB memory enlarge available
ECG SE1208
12-Channel Electrocardiograph
* Splendid 10” color TFT with Alpha-numeric keyboard
*Simultaneous 12 leads of ECG printing(Roll or Z-fold)
*Multiple USB port for connecting PC-ECG software and external printer
* Excellent ECG auto-interpretation program and Pacemaker detection
* Reliable and fas Network Connectivity and data transmission
* Splendid 10” color TFT with Alpha-numeric keyboard
*Simultaneous 12 leads of ECG printing(Roll or Z-fold)
*Multiple USB port for connecting PC-ECG software and external printer
* Excellent ECG auto-interpretation program and Pacemaker detection
* Reliable and fas Network Connectivity and data transmission
ECG SE1200 Lite
3-Channel ECG Machine
* Sharp and clear 3.5" inch TFT screen* 12 lead ECG simultaneously display
* Built-in database and store more than 1000 pieces of ECG data
* Auto-measurement, auto-analysis and auto interpretation functions
* Both AC and DC power supply with built-in lithium rechargeable battery
Packing & Delivery

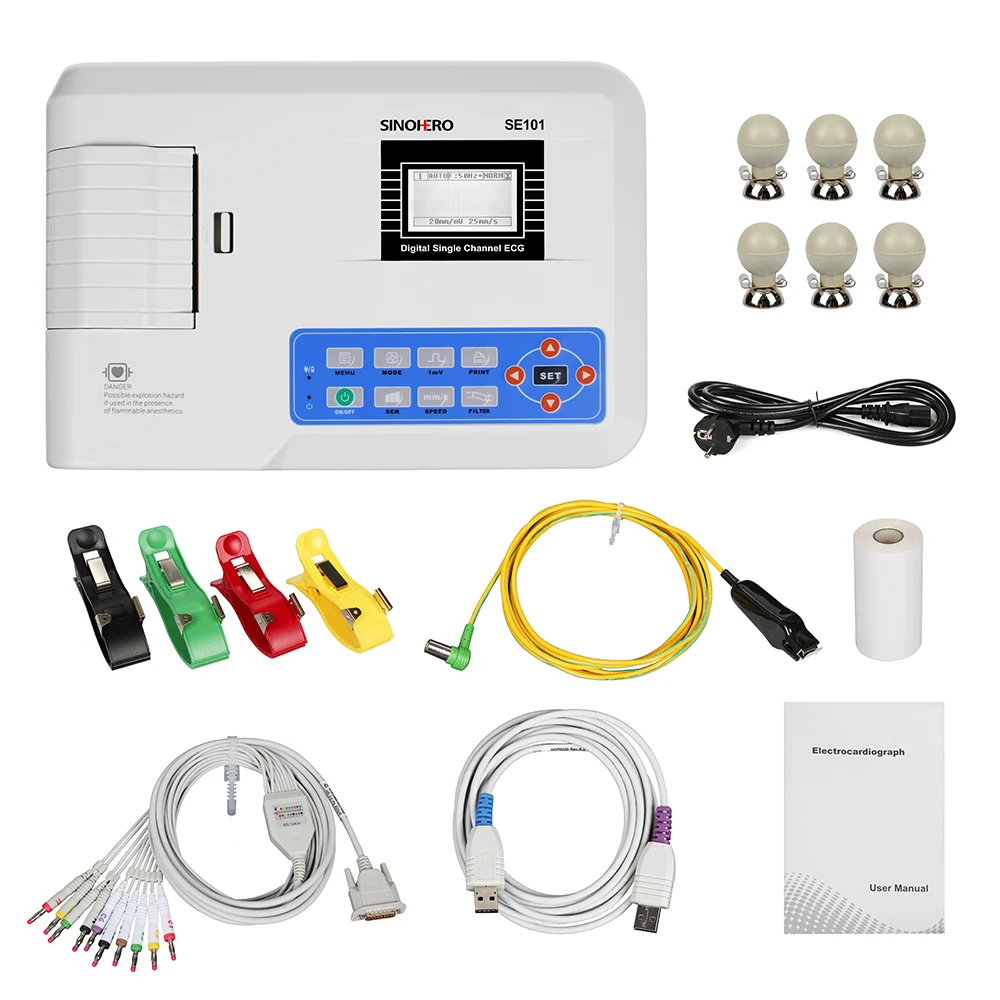

Package included:
1XSE101-VET ECG Machine
1XLead Wire
1XLimb electrode(4PCS)
1XChest electrode(6PCS)
1XThermal recording paper(1 Roller)
1XPower cord
1XEarth wire
1XUser manual
Optional:
ECG electrode
Bag
Conductive gel
1XSE101-VET ECG Machine
1XLead Wire
1XLimb electrode(4PCS)
1XChest electrode(6PCS)
1XThermal recording paper(1 Roller)
1XPower cord
1XEarth wire
1XUser manual
Optional:
ECG electrode
Bag
Conductive gel
