new intelligent diesel concrete mixer with pump good construction machinery c3 diesel concrete mixer pump
- Category: >>>
- Supplier: Hunan Haoboc Intelligent Creation Machinery Co. Ltd.
Share on (1600512087017):
Product Overview
Description
Product Overview
Main Features
1, it can do the mixing and pumping, a multi-functional machine, and convenient transfer
2, no need to register, save the annual audit, insurance and other costs, compared with the traditional line pump ,the cost is lower
3, can be configured with independent climbing rail cement lifting bucket, the construction is more convenient and efficient
4, Color and style can be customized
2, no need to register, save the annual audit, insurance and other costs, compared with the traditional line pump ,the cost is lower
3, can be configured with independent climbing rail cement lifting bucket, the construction is more convenient and efficient
4, Color and style can be customized
FEATURES AT A GLANCE

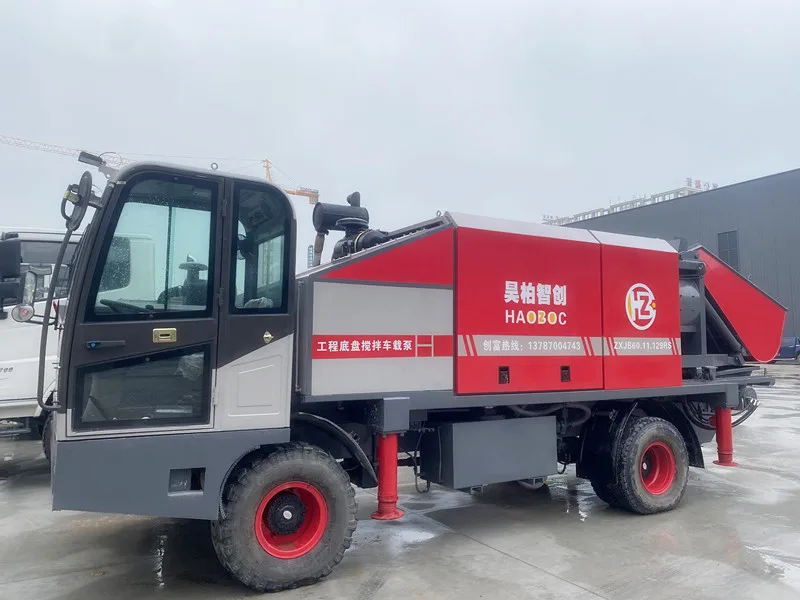

Left elevation

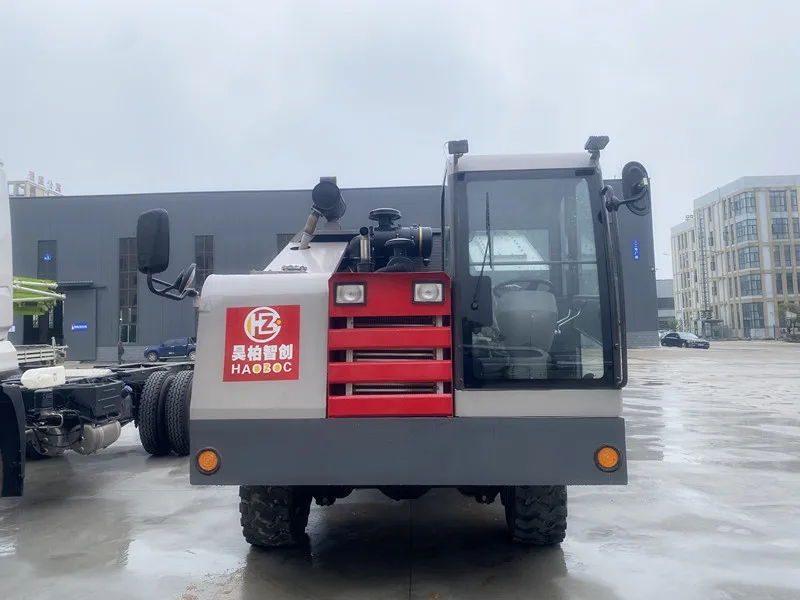

Front elevation

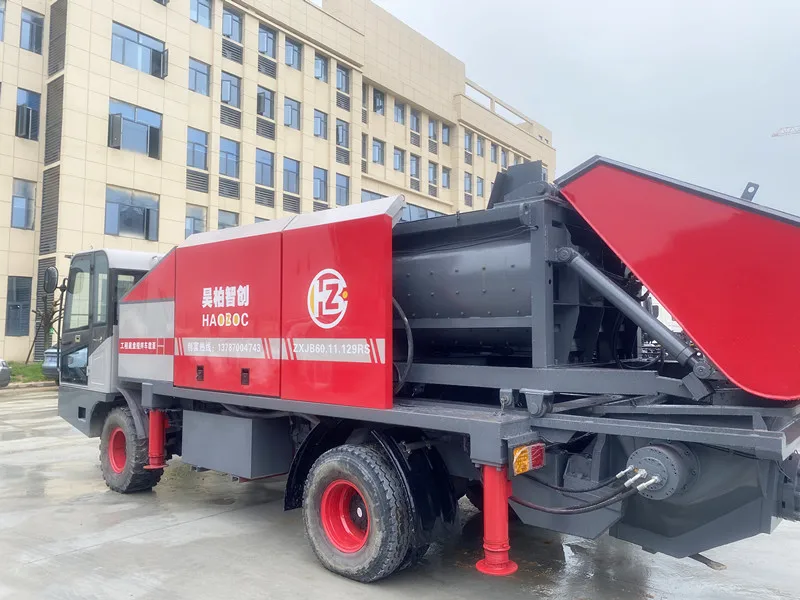

Right elevation
PRODUCT SPECIFICATIONS
No | Item | Unit | HB-ZXJB60.11.129RS |
1 | Theoretical concrete volume(High /Low pressure) | m3/h | 67 |
2 | Max pumping pressure | MPa | 13 |
3 | Theoretical pumping distance | m | Horizontal 1200 vertical 160 |
4 | Power | KW | 129 |
5 | Concrete conveying cylinder diameter&stroke | mm | φ230/1400 |
6 | Hopper volume | M3 | 0.8 |
7 | hopper feeding height | m | 1500 |
8 | Mixer model | JS500 | |
9 | theoretical production rate | m³/h | 25m³/h |
10 | Maximum aggregate size | mm | <40mm |
11 | Working cycle | s | 72 |
12 | Mixer motor power | kw | 18.5 |
13 | Water pump motor power | kw | 1.1 |
14 | Lifting motor power | kw | 5.5 |
15 | Loading height | mm | 1100 |
16 | Mixer weight | kg | 2800 |
PRODUCT CONFIGURATION
Company Profile

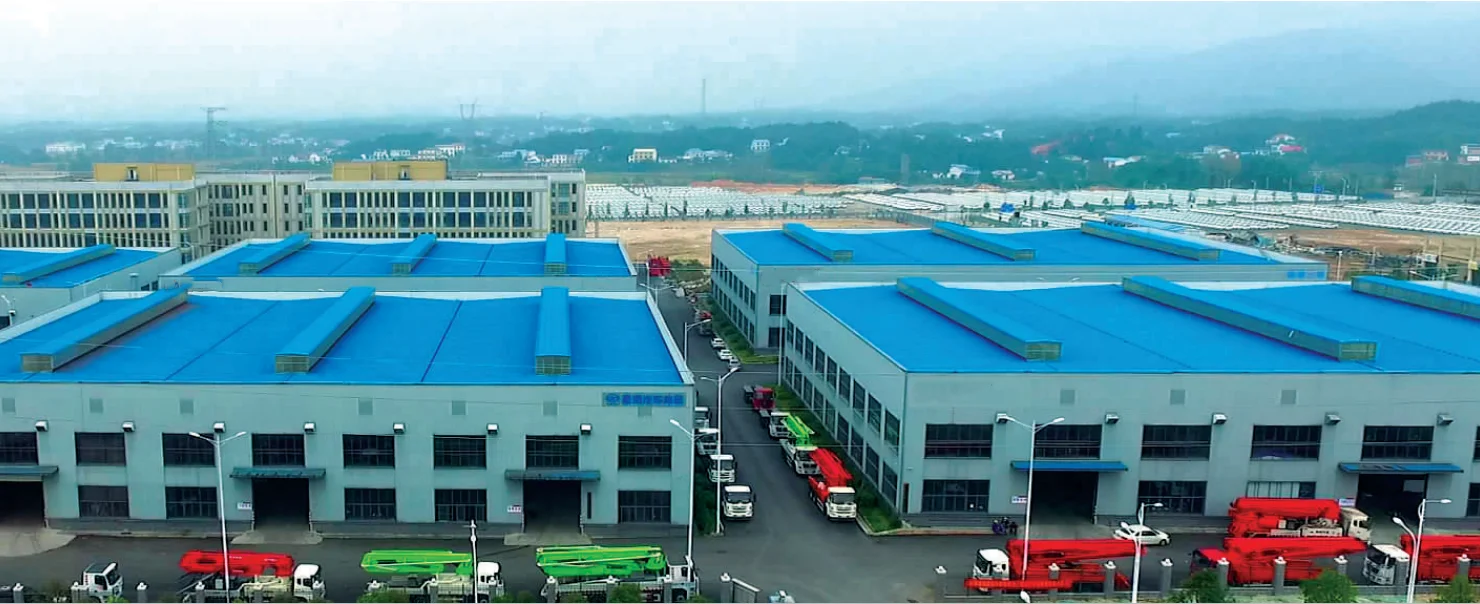

Company Introduction
Hunan Haoboc Intelligent Creation machinery Co.,Ltd is located in Changsha which is the capital of engineer machinery . It is a modern enterprise integrating the R&D, production, sales of concrete machinery and tower crane . Our company has a research and development team that masters the core technology of machinery. The main business covers new concrete machinery ,used & refurbishment concrete pump,spare parts and tower crane.
FAQ
1. Are you manufacturer ?
Yes , we are professional manufacturer of concrete machinery and lifting machinery from Changsha ,China.
2. What’s your main products ?
Concrete machinery :concrete mixer pump,concrete stationary pump,concrete truck mounted mixer pump,concrete pump ,concrete line
pump ,concrete trailer pump
Lifting machinery : Self-erecting tower crane, construction hoist
Spare Parts: S Value,pump line ,pump elbow,wear plate etc.
3. What’s your delivery time ?
It’s depend on the machinery and quantity.Usually it’s 7-10days if the goods are in stock ,or it’s 30 days if the goods are not in stock.
4. What’s your payment terms ?
We can accept T/T, L/C, D/P, Western Union,Alibaba trade assurance
5. What’s the warranty of your product ?
One year warranty for the whole machine ( exception of vulnerable part ),from the date of export shipment shows at the B/L.
Yes , we are professional manufacturer of concrete machinery and lifting machinery from Changsha ,China.
2. What’s your main products ?
Concrete machinery :concrete mixer pump,concrete stationary pump,concrete truck mounted mixer pump,concrete pump ,concrete line
pump ,concrete trailer pump
Lifting machinery : Self-erecting tower crane, construction hoist
Spare Parts: S Value,pump line ,pump elbow,wear plate etc.
3. What’s your delivery time ?
It’s depend on the machinery and quantity.Usually it’s 7-10days if the goods are in stock ,or it’s 30 days if the goods are not in stock.
4. What’s your payment terms ?
We can accept T/T, L/C, D/P, Western Union,Alibaba trade assurance
5. What’s the warranty of your product ?
One year warranty for the whole machine ( exception of vulnerable part ),from the date of export shipment shows at the B/L.
